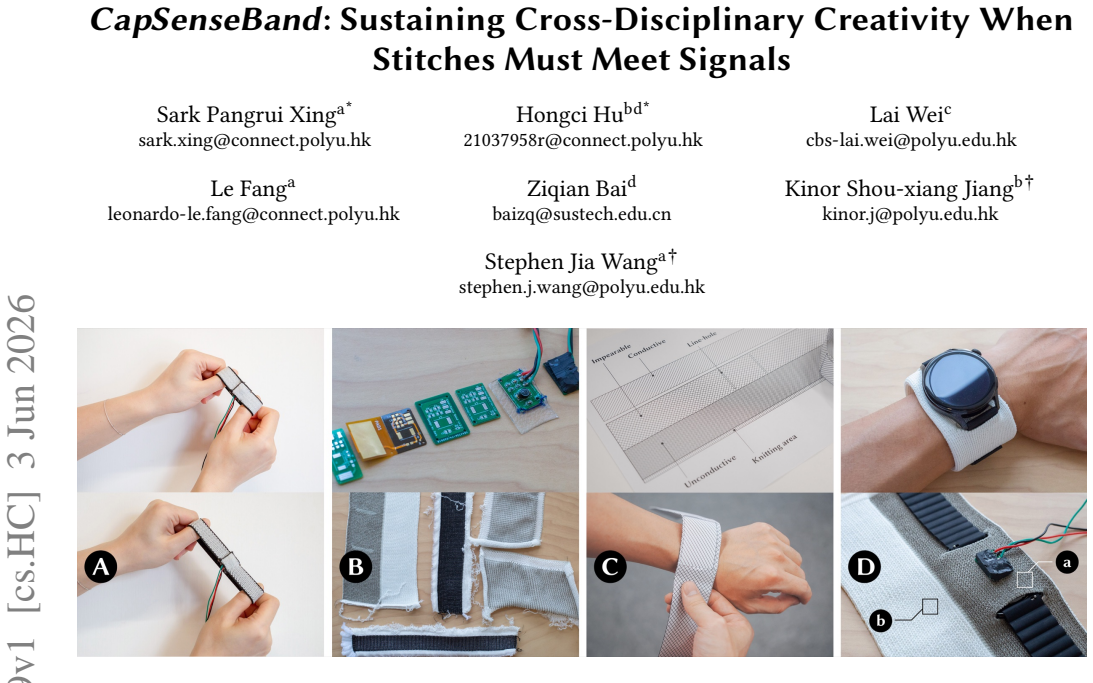

CapSenseBand: Sustaining Cross-Disciplinary Creativity When Stitches Must Meet Signals

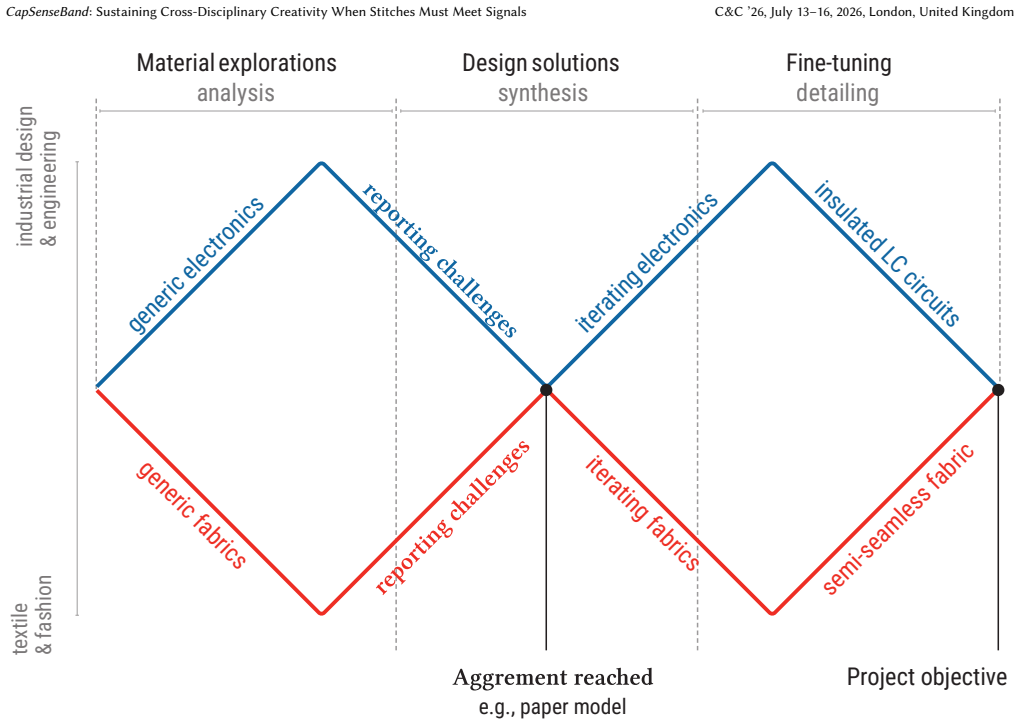

Wearable sensing systems increasingly depend on textiles that are both materially wearable and electronically functional. Their design requires collaboration between textile designers, who reason through stitches, yarn behavior, and machine constraints, and interaction designers, who reason through electrodes, signal paths, and insulation. However, these forms of expertise do not easily translate across disciplinary boundaries. This poster presents CapSenseBand, a knitted capacitive-sensing wristband developed through a research-through-design process organized around Analysis, Synthesis, and Detailing. We document an artifact chain spanning material swatches, a rapid wearable prototype, Paper Models as shared negotiation surfaces, a double-layer knitted structure, and an insulated Swept Frequency Capacitive Sensing breakout board. We show how Paper Models functioned as boundary objects, helping collaborators externalize intent, negotiate spatial and technical constraints, and preserve disciplinary expertise while converging on a shared design. We contribute a reusable swatch-to-sleeve pattern for material-centered HCI: keep discipline-specific probes open early, then converge through artifacts that make material, spatial, and electronic decisions legible before fabrication locks them in.
