Open-source Polymer Generative Pipeline

T0 review · 4 major / 3 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read An open-source pipeline can generate hypothetical polymers tuned to a target ionization-potential range.

desk verdict A genuinely useful integration whose central 'tailored generation' claim is self-confirming as written; needs independent validation and a code release before it does what the abstract says. read the letter →

arxiv 2412.08658 v1 pith:KFJPVDAK submitted 2024-11-29 cond-mat.soft cond-mat.mtrl-sciq-bio.BMq-bio.MN

Debasish Mohanty , V Shreyas , Akshaya Palai , Bharath Ramsundar This is my paper · ORCID
classification cond-mat.softcond-mat.mtrl-sciq-bio.BMq-bio.MN
keywords polymergenerationionizationpotentialpredictionweighteddirectedgraphsPSMILESmessagepassingneuralnetworkquery-basedfiltrationinformaticsopen-sourcepipeline
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish that an open-source computational pipeline can generate hypothetical polymers with ionization potentials in a user-specified range by combining property-predicting discriminators, generative models, and a query-based filter. The authors align several polymer representations—monomer SMILES, PSMILES, and weighted directed graphs—so that the same candidates can flow between generators and discriminators. Using ionization potential as the target, their best discriminator, a directed message-passing neural network on weighted directed graphs, reaches RMSE 0.156 and $R^2$ 0.89 on the test set, while the generators yield mostly valid and often novel PSMILES. If the pipeline works as claimed, it would let chemists screen many hypothetical polymers computationally before committing to synthesis.

What carries the argument

The load-bearing machinery is the weighted directed graph (WDG) representation and its two-way conversion to PSMILES. A WDG stores atoms, monomer fractions, and bond weights in a string-like graph notation, which lets a directed message-passing neural network encode both connectivity and stoichiometric information; converting WDG to PSMILES makes the same data usable by sequence generators, while converting PSMILES to WDG adds weights. Around this representation, the pipeline couples a discriminator pool (MAT, GCN, DMPNN), a generator pool (BRICS and an LSTM), and a validator/filter loop that accepts only candidates whose predicted IP satisfies a comparison-operator query. The DMPNN discriminator on WDG is what carries the property prediction, and the filter is what turns that prediction into a targeted generation loop.

What would settle it

Take a batch of polymers that the filter selects, compute their ionization potentials with an independent quantum-chemical method (or synthesize and measure them), and compare with the discriminator's predictions; if the selected set is no better matched than a random set, the targeting is an artifact. Separately, round-trip WDG to PSMILES and back to WDG and check whether the reconstructed bond weights and monomer fractions match the originals; any drift shows the conversion is lossy.

Watch

Extended reading notes

Core claim

The central claim is that a closed loop of representation conversion, generative sampling, and discriminator-based filtering can produce novel, property-tailored hypothetical polymers. The paper demonstrates this by training discriminators on a 42K copolymer dataset encoded as weighted directed graphs and converted PSMILES, comparing MAT, GCN, and DMPNN architectures. DMPNN on WDG gives the best ionization-potential predictions, with RMSE 0.156 and $R^2$ 0.89, slightly better than the earlier DMPNN monomer baseline. For generation, a rule-based BRICS approach produced 100% valid, unique, and novel PSMILES, while an LSTM trained on PSMILES produced mostly novel candidates at 51% validity. The paper takes this combined evidence to show that property-directed polymer generation is feasible with open-source components.

Load-bearing premise

The pipeline assumes that converting between weighted directed graphs and PSMILES preserves the chemistry and property-relevant information of every polymer, so a discriminator trained on converted data gives trustworthy ionization-potential predictions for generated polymers.

Editorial extensions

If this is right

  • With WDG input, the DMPNN discriminator reaches an RMSE of 0.156 and an $R^2$ of 0.89 on ionization-potential prediction, so polymer property screening can operate directly on graph ensembles rather than on simplified monomer strings.
  • A rule-based BRICS generator produced 100% valid, unique, and novel PSMILES candidates, which means fragment-based enumeration can feed a stream of new polymer strings into the property filter.
  • Narrowing the filter window from 0.1 to 0.01 roughly increases generation time by tenfold, so the pipeline explicitly trades compute against how tightly the target property must be matched.
  • Because the validator, featurizers, and filter stack are integrated into DeepChem, the pipeline's components can be reused outside this specific experiment.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A natural next check the paper does not run is to recompute the selected candidates' ionization potentials with an independent quantum-chemical method; if the agreement vanishes, the targeting would be a discriminator artifact rather than chemical control.
  • Because the pipeline treats ionization potential as just a training label, the same architecture should extend to other polymer properties, but only one property is demonstrated; testing on a property with different structure-property sensitivity would reveal whether the WDG-to-PSMILES conversion stays lossless.
  • The roughly tenfold slowdown from narrowing the filter margin suggests that rejection sampling becomes expensive for tight target windows, so a generator conditioned directly on the target property could be a more efficient next step.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 3 minor

Summary. The manuscript proposes an open-source generative pipeline for hypothetical polymers that combines discriminative models (GCN, MAT, DMPNN) with generative models (LSTM and BRICS) and a query-based filter, targeting ionization potential (IP). The pipeline operates on two representations, PSMILES and weighted directed graphs (WDG), with a conversion mechanism between them. The authors report discriminator RMSE/R² values across five model-representation combinations, generator validity/uniqueness/novelty statistics for LSTM and BRICS, and timing results for the filter under two margins. The central claim is that the pipeline generates novel polymers tailored to a desired IP range, and that the discriminators improve on prior state-of-the-art results.

Significance. If the central claim were substantiated, the pipeline would be a useful modular contribution to polymer informatics: it integrates several representation formats and generative strategies into the DeepChem framework, and the side-by-side comparison of discriminators across representations is informative. The paper also ships a custom featurizer for WDG and a BRICS-based generator adapted to PSMILES. However, the evidence for property-targeted generation is currently self-referential, and the reported discriminator improvements are small and presented without statistical uncertainty. The significance of the work therefore depends on additional validation that is not yet present, which limits the manuscript in its current form.

major comments (4)
  1. [Targeted Polymer Filtration with Discriminator; Pipeline Performance Assessment] The central claim that the pipeline generates polymers 'tailored to the desired property range' is not supported by the experiments. The filtration loop and the evaluation both use the same DMPNN-WDG discriminator, and the Pipeline Performance Assessment section reports only the number of iterations or elapsed time to reach a candidate count. The paper never reports the distribution of discriminator-predicted IP values for the accepted polymers, nor any independent measurement or alternative-model estimate of the properties of the generated candidates. Because acceptance into the candidate set and the definition of 'tailoring' are both determined by the same model, the success criterion is circular. The authors should report, for accepted candidates, the full distribution of predicted IPs relative to the target window, and validate a sample of the generated polymers with an independent oracle (e.g., DFT calculations or a different trained model) to demonstrate that the filtering genuinely selects polymers with the target property.
  2. [Representational Variations and Conversions; Datasets] The conversion between WDG and PSMILES is load-bearing for the pipeline, because generated PSMILES must be converted to WDG before the discriminator can evaluate them. The manuscript states in the Datasets section that 'Auxiliary details are added or omitted during the conversion between PSMILES and WDG,' but the paper does not quantify what information is lost or show that the round-trip conversion preserves bond weights, monomer fractions, or stoichiometric details for generated polymers. If the conversion drops or distorts property-relevant information, the discriminator is evaluating a structure that differs from the one generated, and the reported filtering behavior is not trustworthy. The authors should present a conversion-fidelity analysis, ideally on held-out examples and on typical generator outputs, and either fix the conversion or restrict the claim to representations for which the conversion is information-preserving.
  3. [Experimental Results, Table 1] The claimed discriminator improvement over the baseline is not statistically supported. The best model (DMPNN with WDG) achieves RMSE 0.156 and R² 0.89, compared with the baseline DMPNN at RMSE 0.16 and R² 0.88. These differences are small, and no error bars, confidence intervals, or repeated-split results are provided, despite the use of a single 80:20 train-test split. Given the 42K dataset size, the observed gap is plausibly within run-to-run or split-to-split noise. Moreover, the filter margins used in the time-constraint analysis (0.1 and 0.01) are of the same order as, or smaller than, the RMSE of the best discriminator (0.156), which raises the question of whether the filter is selecting on signal or on noise. The authors should report uncertainty estimates, perform multiple splits or bootstrap resampling, and discuss the relationship between the filter margin and the discriminator's prediction noise.
  4. [Title, Abstract] The manuscript is titled 'Open-source Polymer Generative Pipeline' and the abstract repeats the 'open-source' claim, but no code repository, data link, or availability statement is provided anywhere in the text. For a computational pipeline paper, this is a central deficiency: the claimed contribution is not reproducible without the implementation. The authors should either provide a working, publicly accessible code/data release or remove the 'open-source' descriptor from the title and abstract.
minor comments (3)
  1. [Experimental Results, Tables 1 and 2] The text says 'The evaluation metrics from the test set are summarized in Table 2,' but the discriminator metrics appear in Table 1 and the generator metrics in Table 2; the citation should be corrected.
  2. [Methodology, Neural Network-Based Generative Method] Equation (1) labels the input gate activation as 'fi,' but the standard notation and the surrounding text imply this should be 'i_t'; similarly, Equation (4) uses 'ft' for the forget gate, which is consistent, but the input-gate symbol should be made consistent throughout.
  3. [References] The two references 'Aldeghi and Coley 2022a' and 'Aldeghi and Coley 2022b' point to the same publication, and the in-text citation format is inconsistent; one reference key should be used.

Circularity Check

1 steps flagged · score 6.0 of 10

Targeted-generation claim reduces to the filter: accepted polymers pass the filter by construction, and no independent IP measurements are reported.

  1. self definitional [Methodology, 'Targeted Polymer Filtration with Discriminator'; Experiments, 'Pipeline Performance Assessment']
    "The generated polymer’s properties are checked against the filter to determine if they meet the desired criteria."

    The only property assigned to each generated polymer is the discriminator's prediction, and acceptance is defined as that prediction satisfying the filter. The pipeline-performance section then measures success as the time needed to collect a target count of accepted candidates, with filter margins set around the mean IP. It never reports the distribution of discriminator predictions for accepted candidates nor any experimentally measured (or otherwise independently predicted) IP values for the generated polymers.

full rationale

Most of the paper is not circular: the discriminator evaluation uses a held-out test split from the 42K WDG dataset and is a legitimate independent benchmark; the generator validity/uniqueness/novelty metrics are computed against training data and are self-contained; and the conversion between PSMILES and WDG is described as a practical alignment step with acknowledged information loss rather than as a derivation of the target property. The one load-bearing circular step is the targeted-generation claim. Because the filter and the success criterion use the same discriminator prediction, the pipeline's 'tailoring' outcome is definitional unless accepted polymers are verified by an independent property source. No such verification is reported; the pipeline-performance experiment only reports wall-clock time to accumulate candidates. This is not a self-citation or uniqueness-import issue, and the absence of released code is a reproducibility concern, not circularity. Score 6 reflects that the central claim of property-tailored generation is partially reduced to the filter definition, while the discriminator's independent test accuracy gives the pipeline some external grounding.

Assumptions & free parameters 3 free parameters · 4 assumptions · 1 invented entities

The pipeline rests on four main assumptions: the IP labels are reliable, the representation conversion is lossless, the BRICS virtual-atom trick yields valid chemistry, and the discriminator can serve as the oracle for generated polymers. The first is inherited from prior work, the second and third are asserted without quantitative checks, and the fourth creates a circular evaluation loop. The free parameters are neural network hyperparameters chosen without systematic tuning or ablations.

free parameters (3)
  • LSTM hidden dimension = 256
    Model hyperparameter chosen by hand; no ablation or grid search is reported, so generator results depend on this untested choice.
  • LSTM embedding dimension = 128
    Model hyperparameter chosen by hand; affects token representation capacity.
  • Number of LSTM training epochs = 5 for PSMILES, 50 for WDG
    Chosen without convergence analysis; different epoch counts between representations complicate comparability.
assumptions (4)
  • domain assumption The 42K WDG dataset IP labels are accurate experimental values transferred through representation conversion.
    Discriminator training and filter targets rely on these labels; the paper inherits them from Aldeghi and Coley 2022 without re-validation.
  • ad hoc to paper Converting WDG to PSMILES and back preserves the chemical identity and property-relevant structure of each polymer.
    The conversion mechanism in 'Representational Variations and Conversions' is central to aligning data with architectures; no quantitative fidelity check is provided.
  • ad hoc to paper BRICS fragmentation with virtual atoms produces chemically valid polymer precursors when wildcards are restored.
    The virtual atom replacement in 'Reaction-Based Generative Method' is asserted to resolve wildcard incompatibility; validity is checked only by counting virtual atoms, not by chemical synthesis rules.
  • domain assumption The discriminator's predicted IP is a sufficient oracle for judging whether generated polymers are tailored to the target property.
    The pipeline evaluation in 'Pipeline Performance Assessment' uses the same discriminator as the filter; no independent measurement of generated polymer IP is provided.
invented entities (1)
  • Virtual atom placeholder '[At]'
    purpose: Replaces the PSMILES wildcard '*' so that BRICS can fragment and recombine polymer strings without chemically invalid bond breaking.
    This is a computational device introduced in this paper; its validity is assessed only through the in-house validator, not through experiment or an external benchmark.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Open-source Polymer Generative Pipeline." pith.science (2026). https://pith.science/paper/KFJPVDAK

@misc{pith2026241208658,
  author       = {Pith},
  title        = {Pith review of: Open-source Polymer Generative Pipeline},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/KFJPVDAK}},
  note         = {Machine review of arXiv:2412.08658}
}
read the original abstract

Polymers play a crucial role in the development of engineering materials, with applications ranging from mechanical to biomedical fields. However, the limited polymerization processes constrain the variety of organic building blocks that can be experimentally tested. We propose an open-source computational generative pipeline that integrates neural-network-based discriminators, generators, and query-based filtration mechanisms to overcome this limitation and generate hypothetical polymers. The pipeline targets properties, such as ionization potential (IP), by aligning various representational formats to generate hypothetical polymer candidates. The discriminators demonstrate improvements over state-of-the-art models due to optimized architecture, while the generators produce novel polymers tailored to the desired property range. We conducted extensive evaluations to assess the generative performance of the pipeline components, focusing on the polymers' ionization potential (IP). The developed pipeline is integrated into the DeepChem framework, enhancing its accessibility and compatibility for various polymer generation studies.

Figures

Figures reproduced from arXiv: 2412.08658 by the authors.

Figure 1
Figure 1. Overview of the polymer generative pipeline to generate polymer representation of PSMILES and weighted directed [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. A. The syntax of the weighted directed graph representation. B. The syntax WDG converted from PSMILES of homopolymers [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. The sample representational variations of the Buna-S (rubber) polymer and its monomers. [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (5 more)
Figure 4
Figure 4. Figure 4: Representational variation and the discriminator [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5
Figure 5. Figure 5: The pipeline cycle of generating polymers from in [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]
Figure 6

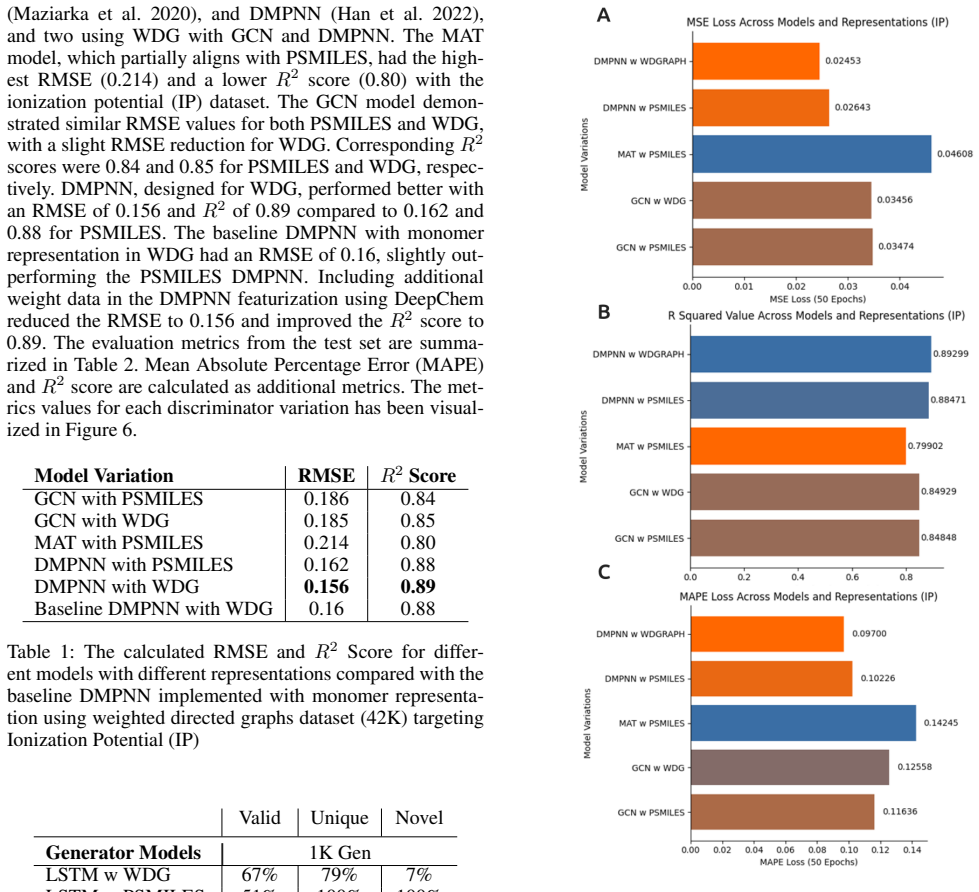

Figure 6. Figure 6: The bar plot between PSMILES and Weighted [PITH_FULL_IMAGE:figures/full_fig_p007_6.png]
Figure 7
Figure 7. Figure 7: Line plot comparison of generator performance [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]
Figure 8
Figure 8. Figure 8: Line plot showing the time taken for the pipeline to generate 10 polymers with a filter tolerance of 0.1 (A) and [PITH_FULL_IMAGE:figures/full_fig_p009_8.png]
