Decoupled Kinematics and Excitation in the Compton-thick AGN NGC 6552: Spatially Resolved KOOLS-IFU Observations

Kyuseok Oh , Yoshihiro Ueda , Kanta Fujiwara , Keisuke Isogai , Satoshi Yamada , Keito Shimoda , Yoshiki Toba , Kazuya Matsubayashi
show 2 more authors
Shoji Ogawa Yuya Nakatani
This is my paper

Pith reviewed 2026-06-27 03:14 UTC · model grok-4.3

classification 🌌 astro-ph.GA
keywords Compton-thick AGNNGC 6552integral field spectroscopyoutflow kinematicsemission line diagnosticsionized gasSeyfert galaxy
0
0 comments X

The pith

In NGC 6552, ionized gas line widths follow spatial dynamics and line-of-sight effects rather than local excitation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper uses KOOLS-IFU integral-field spectroscopy to map [O III]5007 kinematics and line ratios across the central 2 kpc of the Compton-thick AGN NGC 6552. It finds that the non-parametric width W80 is elevated near the center and declines outward, consistent with a decelerating outflow, while the velocity asymmetry dv and W80 show no statistically significant correlation with the [O III]5007/Hbeta excitation ratio. This leads to the conclusion that total line broadening is set primarily by dynamical structure and superposition of components, with no detected coupling to excitation at the achieved sensitivity. The work also reports low outflow kinetic power relative to bolometric luminosity, suggesting the ionized gas traces only one phase of a larger outflow.

Core claim

We conclude that in NGC 6552 both the total line broadening traced by W80 and dv are consistent with being governed primarily by spatial dynamical structure and line-of-sight superposition of multiple kinematic components, with no statistically significant coupling to excitation-driven processes detected at our sensitivity level.

What carries the argument

Spatially resolved non-parametric [O III]5007 kinematics (W80 width and dv asymmetry) compared against the [O III]5007/Hbeta excitation ratio over the inner ~2 kpc.

If this is right

  • Outflow kinetic power is only 0.01 to 0.28 percent of the bolometric luminosity for electron densities of 50 to 1000 cm^-3.
  • The ionized gas component traces only part of a multi-phase outflow.
  • Kinematic maps can be interpreted independently of excitation maps in this source.
  • A positive kinematics-excitation link may exist but requires higher signal-to-noise data to confirm in the best-resolved bins.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the decoupling holds, global single-aperture spectra of similar AGNs may mix kinematic and ionization information in ways that bias outflow mass and energy estimates.
  • Comparable IFU mapping of other hard X-ray selected Compton-thick AGNs could reveal whether dynamical dominance over excitation is typical or source-specific.
  • Feedback models that assume local coupling between velocity dispersion and ionization parameter would need revision for this regime.

Load-bearing premise

The absence of a statistically significant correlation in the full sample means there is no coupling between kinematics and excitation, even though a positive trend appears in the subset of bins where two-component fits are most favored.

What would settle it

Deeper integral-field spectroscopy that increases the number of spatial bins with strongly preferred two-component fits and tests whether the W80-[O III]/Hbeta correlation reaches statistical significance in that subset.

Figures

Figures reproduced from arXiv: 2606.17144 by Kanta Fujiwara, Kazuya Matsubayashi, Keisuke Isogai, Keito Shimoda, Kyuseok Oh, Satoshi Yamada, Shoji Ogawa, Yoshihiro Ueda, Yoshiki Toba, Yuya Nakatani.

Figure 1

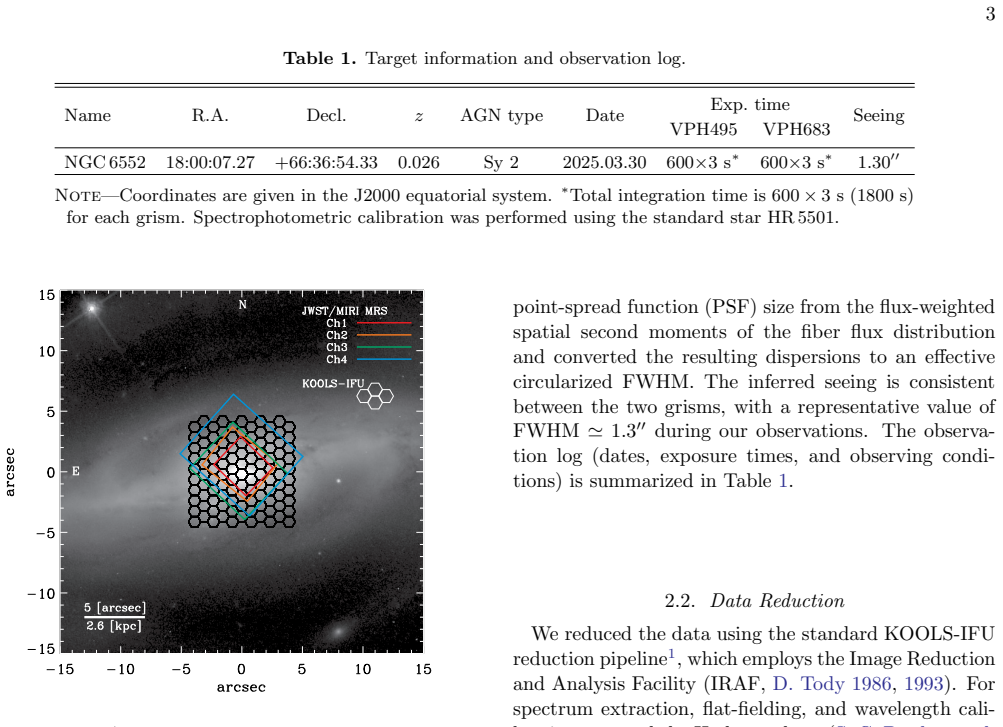

Figure 1. Figure 1: HST/ACS F814W image of the Compton-thick AGN host galaxy NGC 6552 (M. Kim et al. 2021). The black hexagons represent the KOOLS-IFU fiber layout and cover the central ∼ 8.4 ′′ × 8.0 ′′ region (corresponding to ∼ 4.3 × 4.1 kpc at z = 0.0260). The colored boxes indi￾cate the footprints of the four channels of the JWST/MIRI MRS observations reported by J. Alvarez-M´arquez et al. ´ (2023), covering progressivel… view at source ↗
Figure 2

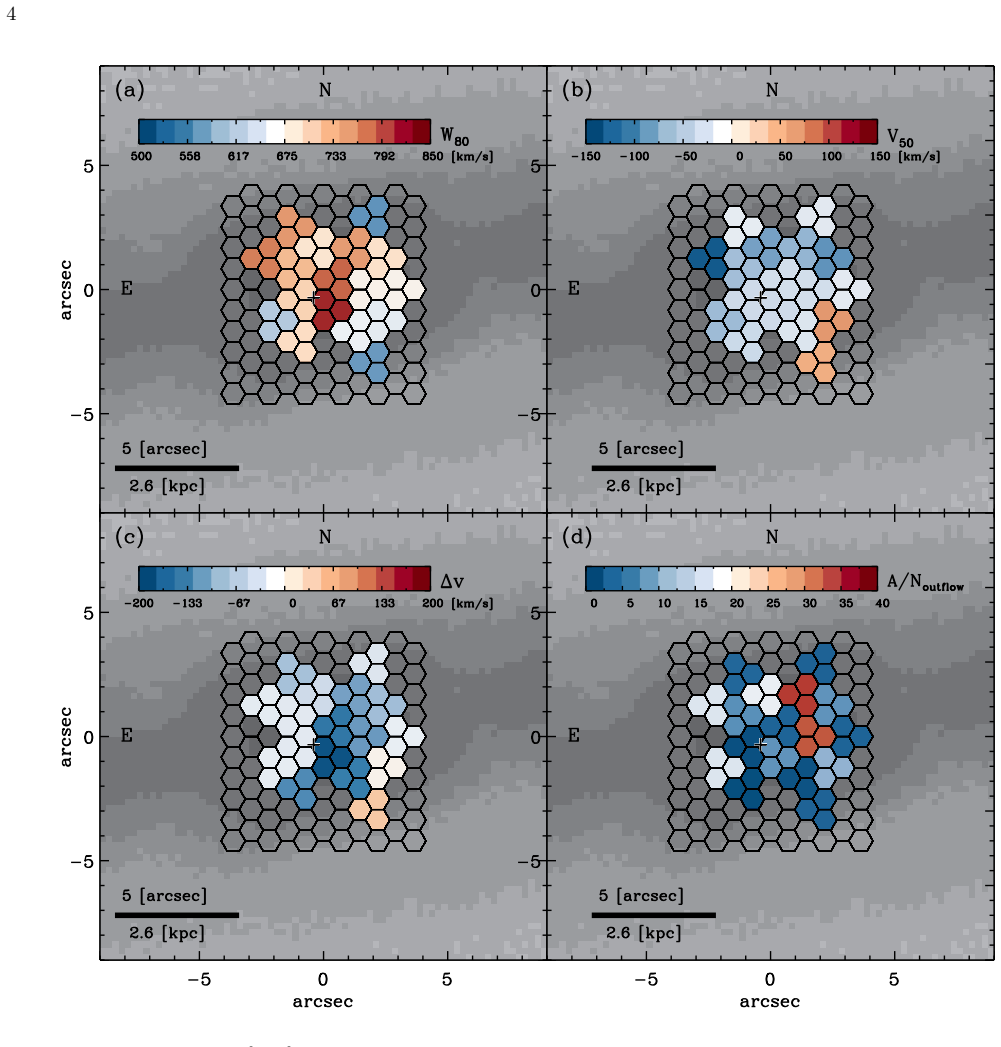

Figure 2. Figure 2: Spatially resolved [O iii]λ5007 kinematics of the AGN host galaxy NGC 6552 derived from KOOLS-IFU observations. The background greyscale image is the Pan-STARRS1 r-band image (K. C. Chambers et al. 2016). All panels show bins where the shifted [O iii]λ5007 component is detected with an amplitude-to-noise ratio A/N> 2, emphasizing the spatial distribution of asymmetric line wings. The nucleus position (cros… view at source ↗
Figure 3

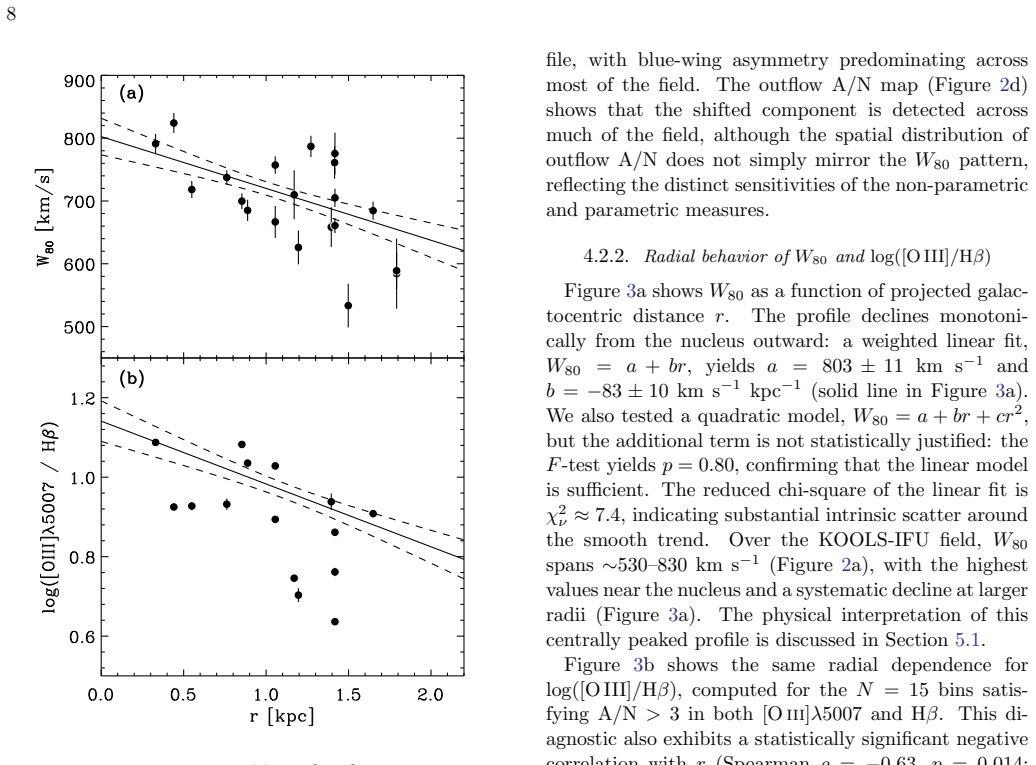

Figure 3. Figure 3: Radial profiles of (a) the [O iii]λ5007 non-para￾metric velocity width W80 and (b) the excitation diagnos￾tic log([O III]/Hβ) as a function of projected galactocentric distance r (kpc) from the JWST F560W-defined nucleus. Each point represents a spatial bin, and the vertical error bars show Monte Carlo uncertainties. Panel (a) includes all N = 20 bins with measured W80, while panel (b) includes the N = 15 … view at source ↗
Figure 4

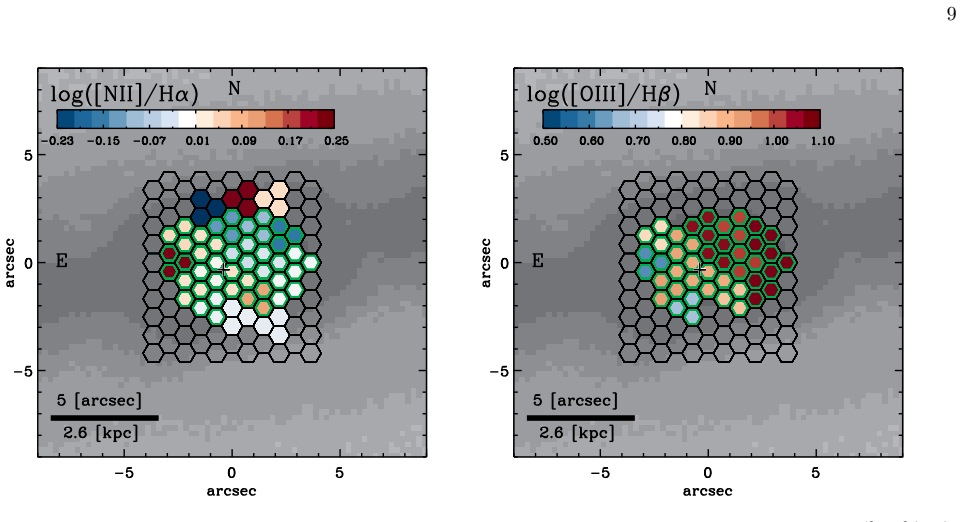

Figure 4. Figure 4: Spatially resolved emission-line ratio maps of NGC 6552 derived from KOOLS-IFU observations. Left: log([N II]/Hα), shown for bins with A/N([N II]) > 3 and A/N(Hα) > 3. Right: log([O III]/Hβ), shown for bins with A/N([O III]) > 3 and A/N(Hβ) > 3. Green thick outlines mark bins classified as Seyfert on the BPT diagram, requiring all four emission lines ([N ii]λ6584, Hα, [O iii]λ5007, and Hβ) to satisfy A/N> … view at source ↗
Figure 5

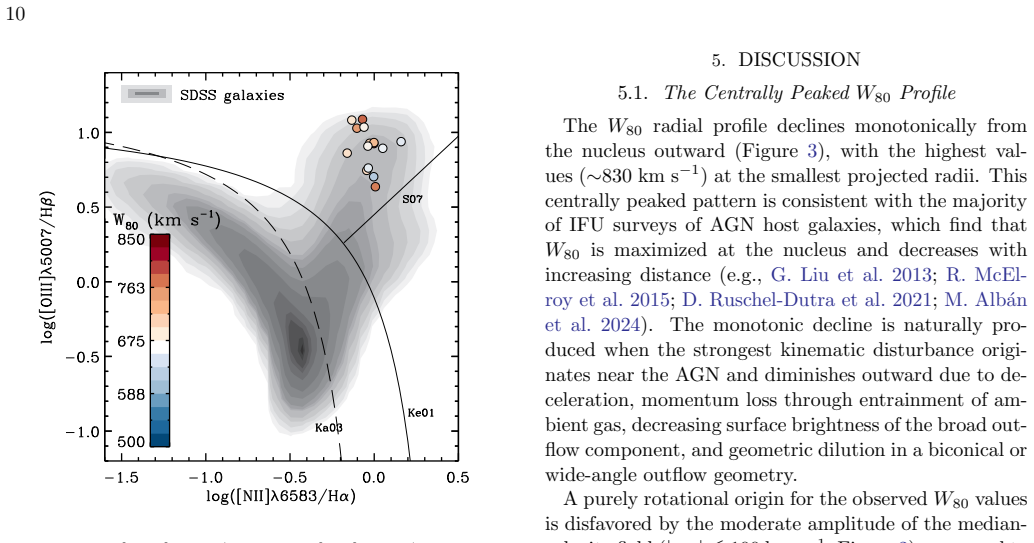

Figure 5. Figure 5: [O III]λ5007/Hβ versus [N II]λ6583/Hα BPT diagram for the Nbins = 15 spatial bins satisfying A/N> 3 in all four emission lines ([N ii]λ6584, Hα, [O iii]λ5007, Hβ). Data points are color-coded by the non-parametric velocity width W80 (km s−1 ), as indicated by the color bar. Error bars represent 1σ uncertainties propagated from the emis￾sion-line flux errors, and in all cases the uncertainties are smaller t… view at source ↗
Figure 6

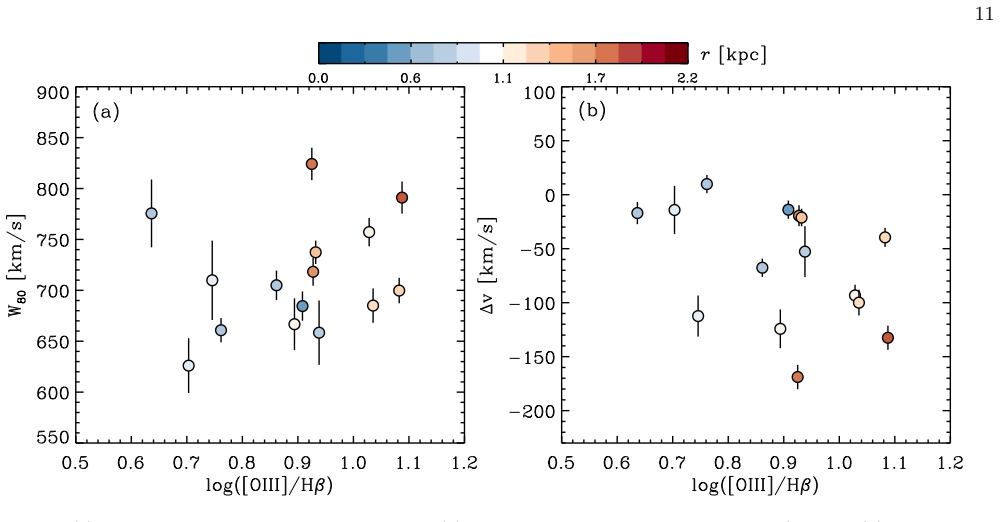

Figure 6. Figure 6: (a) Non-parametric velocity width W80 and (b) velocity asymmetry parameter ∆v = (v05 + v95)/2 − v50 of the [O iii]λ5007 emission line as a function of log([O III]/Hβ) for spatial bins satisfying A/N> 3 in both lines (Nbins = 15). Data points are color-coded by projected galactocentric distance r (kpc) from the JWST F560W-defined nucleus, as indicated by the color bar. Vertical error bars represent Monte Ca… view at source ↗
Figure 7

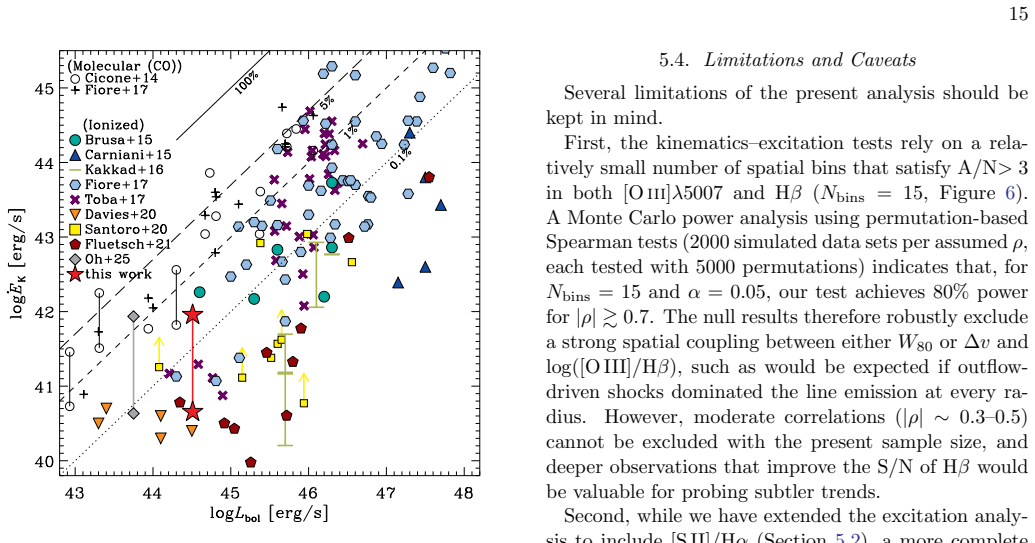

Figure 7. Figure 7: Kinetic power of the ionized gas outflow as a function of AGN bolometric luminosity. The red stars connected by a vertical line show NGC 6552, where the vertical extent reflects the assumed electron density range (ne = 50–1000 cm−3 ). The comparison sample and plotting conventions follow K. Oh et al. (2025), and include molecular (CO) outflows from C. Cicone et al. (2014) and F. Fiore et al. (2017), and io… view at source ↗
Figure 8

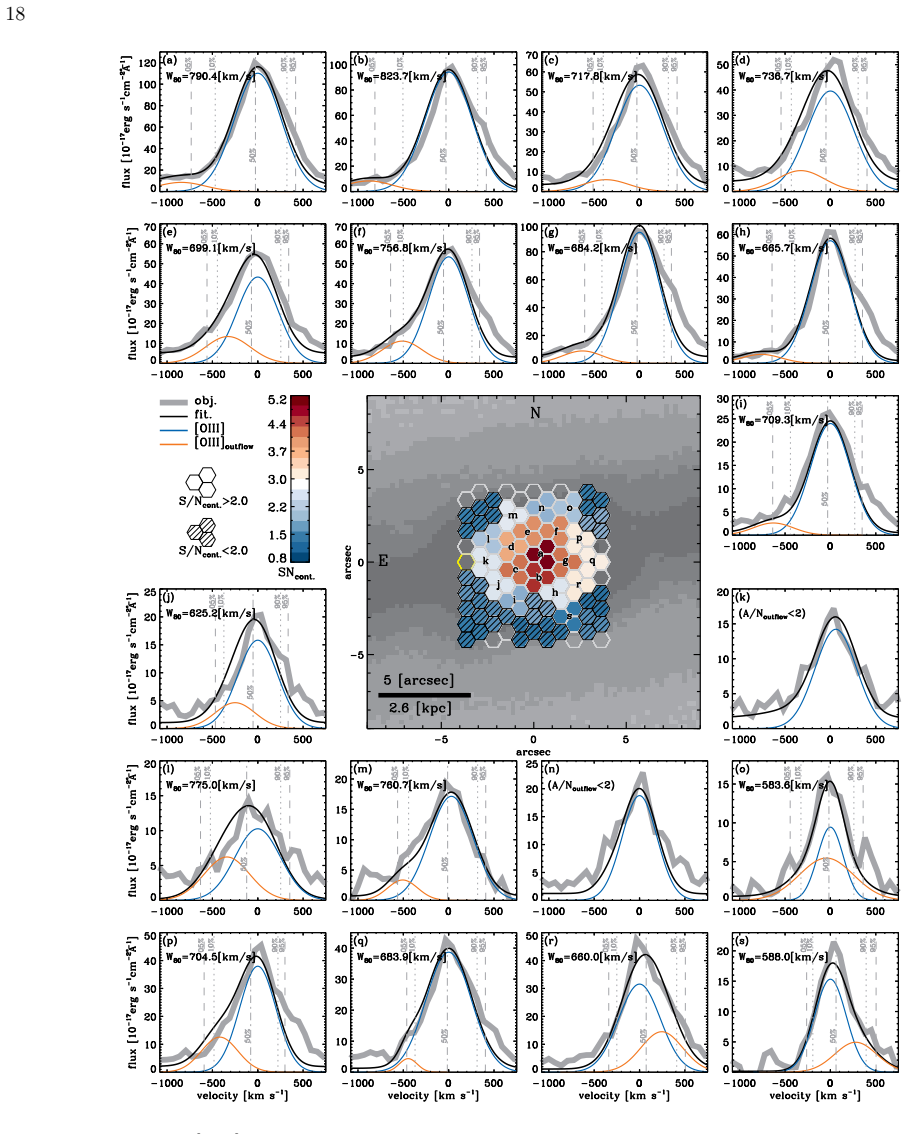

Figure 8. Figure 8: Example [O iii]λ5007 line profiles for KOOLS-IFU spatial bins, shown in velocity space. Each panel plots the observed spectrum (grey), the full best-fit model including the stellar continuum and all emission lines (black), the [O iii]λ5007 core component (blue), and the [O iii]λ5007 shifted component (orange). The shifted (outflow) component is shown only for bins with A/Noutflow > 2. In bins below this th… view at source ↗
Figure 9

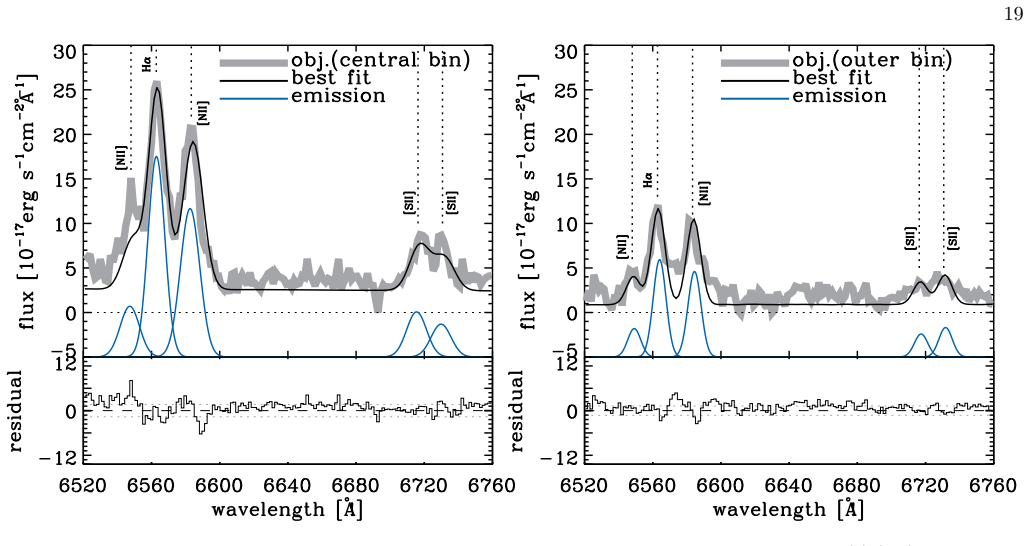

Figure 9. Figure 9: Representative spectral fitting results for the Hα spectral complex regions for the central bin (a) (left) and an outer bin (s) (right), where the bin labels correspond to those in [PITH_FULL_IMAGE:figures/full_fig_p019_9.png] view at source ↗
Figure 10

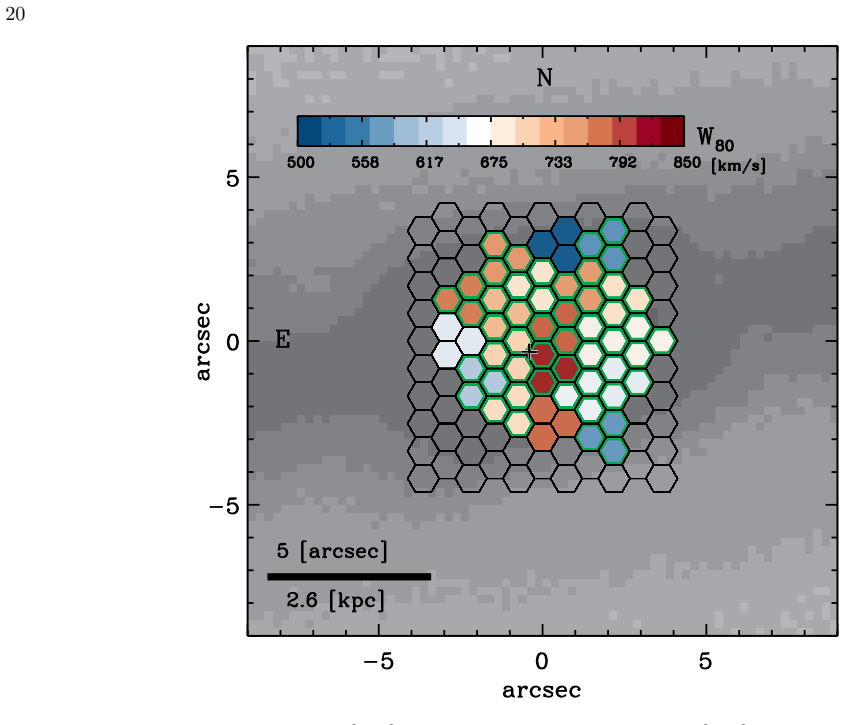

Figure 10. Figure 10: Selection-effect check for the [O iii]λ5007 W80 map. The non-parametric [O iii]λ5007 velocity width W80 is shown for all spatial bins with reliable [O iii]λ5007 detections (A/N([O III]) > 3), without requiring detection of the shifted component. Unfilled (empty) hexagons indicate bins that do not meet the [O iii]λ5007 quality cut. Green thick outlines mark bins where the shifted [O iii]λ5007 component is … view at source ↗
Figure 11

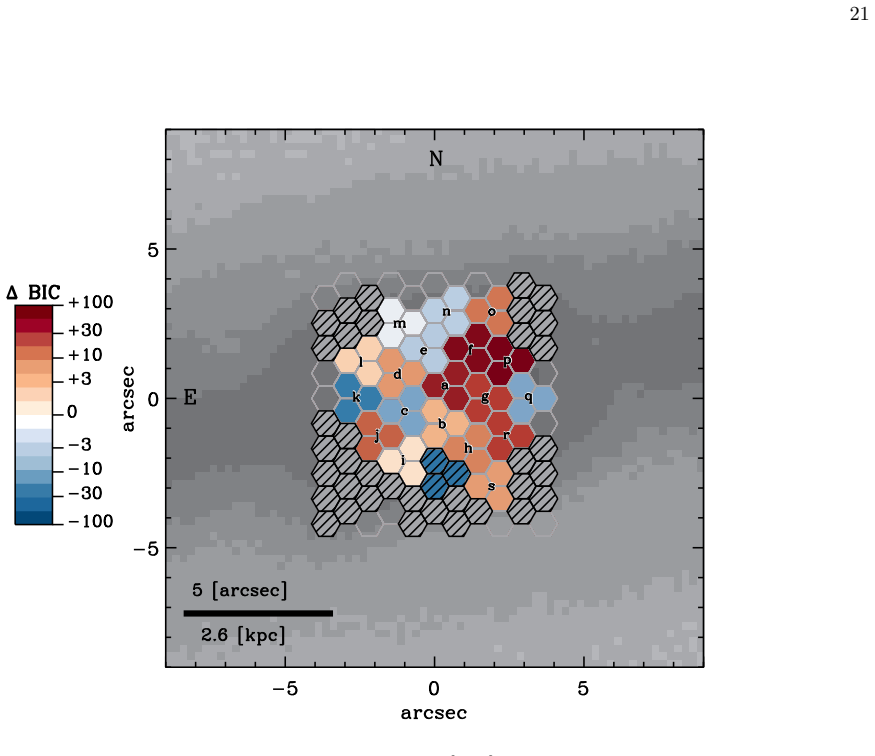

Figure 11. Figure 11: ∆BIC map of the two-component versus single-component [O iii]λ5007 fit across the KOOLS-IFU field. Each hexagon shows ∆BIC = BIC1 −BIC2 for one spatial bin, where positive values favor the two-component (core + shifted) model. The color scale uses a signed logarithmic mapping with a cap at |∆BIC| = 100 to compress the dynamic range while preserving the sign and rank order. Tick marks indicate ∆BIC = ±100,… view at source ↗
Figure 12

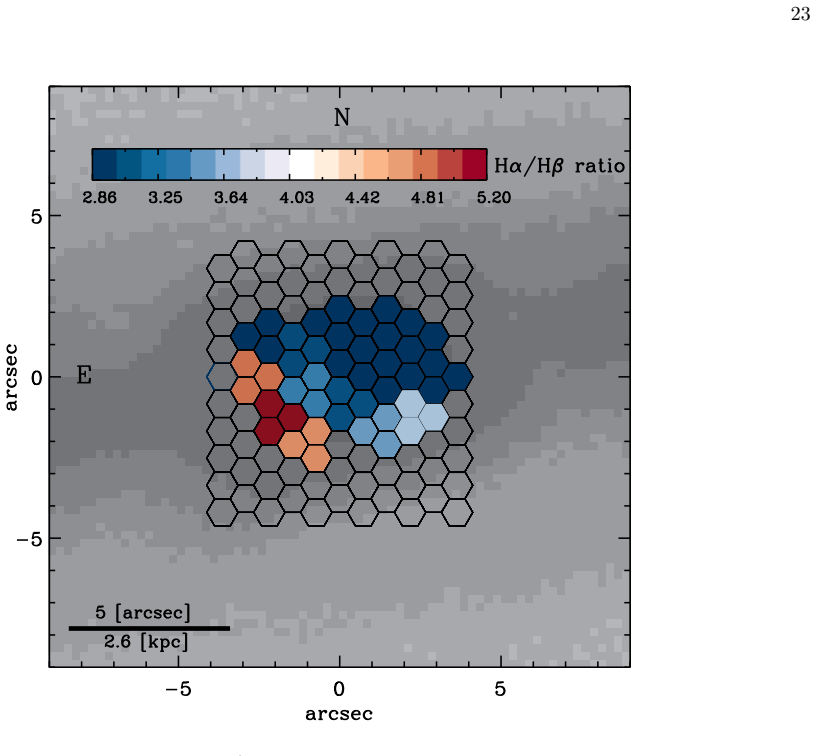

Figure 12. Figure 12: Spatially resolved Balmer decrement Hα/Hβ map of NGC 6552 overlaid on the Pan-STARRS1 r-band image. Color-coded hexagonal bins (N = 15) satisfy A/N > 3 in [O iii]λ5007, Hα, and Hβ, consistent with the main kinematics–ex￾citation sample of Section 4.4. The Hα/Hβ ratio ranges from ∼ 2.86 (the Case B recombination value at T = 104 K; D. E. Osterbrock & G. J. Ferland 2006, indicating no internal extinction) t… view at source ↗
read the original abstract

Hard X-ray selected Compton-thick AGNs provide a relatively obscuration-resistant census of accretion, but optical line diagnostics can be strongly shaped by extinction and geometry. Spatially resolved integral-field spectroscopy can mitigate these effects and provides direct constraints on outflow kinematics and ionization state on kiloparsec scales. We present KOOLS-IFU optical integral-field spectroscopy of NGC 6552 obtained on the 3.8 m Seimei Telescope. Using spatially resolved emission-line ratios and non-parametric [O III]5007 kinematics over the central ~2 kpc, we test whether ionized-gas kinematics are locally coupled to excitation. The [O III]5007 width W80 is broadly elevated across the inner region (~530-830 km/s) and declines monotonically with projected galactocentric distance, consistent with a centrally concentrated outflow that decelerates at larger radii. Despite this clear kinematic structure, neither W80 nor the velocity asymmetry parameter dv shows a statistically significant correlation with [O III]5007/Hbeta. Order-of-magnitude outflow energetics yield Edot_K/L_bol ~ 0.01%-0.28% (for assumed n_e = 50-1000 cm^-3), consistent with [O III]-based estimates tracing only the ionized phase of a multi-phase outflow. We conclude that in NGC 6552 both the total line broadening traced by W80 and dv are consistent with being governed primarily by spatial dynamical structure and line-of-sight superposition of multiple kinematic components, with no statistically significant coupling to excitation-driven processes detected at our sensitivity level. A positive W80-[O III]5007/Hbeta coupling does emerge in the small subset of bins for which the two-component fit is most strongly favored statistically, which deeper observations will be needed to confirm.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript presents KOOLS-IFU integral-field spectroscopy of the Compton-thick AGN NGC 6552, mapping [O III]5007 kinematics (non-parametric W80 and dv) and excitation ([O III]5007/Heta) over the central ~2 kpc. It reports that W80 declines radially from ~530-830 km/s but shows no statistically significant correlation with [O III]/Heta across the full sample, while a positive trend appears in the subset of spaxels where two-component kinematic fits are statistically preferred. The authors conclude that kinematics are governed primarily by spatial dynamical structure and line-of-sight superposition rather than excitation-driven processes, with ionized outflow energetics Edot_K/L_bol ~0.01-0.28% (n_e=50-1000 cm^-3) consistent with tracing only the ionized phase.

Significance. If the non-correlation result holds after addressing the subset analysis, the work provides a concrete observational constraint on the decoupling of ionized-gas kinematics from local excitation in a hard X-ray selected Compton-thick AGN, supporting multi-phase outflow interpretations and cautioning against over-interpreting line-ratio diagnostics as direct tracers of feedback energetics. The use of resolved non-parametric kinematics adds a useful data point to AGN feedback studies.

major comments (2)
  1. [Abstract] Abstract and conclusion: the central claim that 'both the total line broadening traced by W80 and dv are consistent with being governed primarily by spatial dynamical structure and line-of-sight superposition of multiple kinematic components, with no statistically significant coupling to excitation-driven processes detected' rests on the full-sample non-detection. However, the manuscript itself reports a positive W80-[O III]5007/Heta trend precisely in the small subset where the two-component model is most strongly favored, without a quantitative test (e.g., Monte Carlo simulation of selection effects or bootstrap on the subset correlation) demonstrating that this subset signal is consistent with noise or selection bias. This is load-bearing for the interpretation.
  2. [Energetics estimates] Energetics section (inferred from abstract): the reported Edot_K/L_bol range of 0.01%-0.28% depends on the assumed n_e=50-1000 cm^-3; while presented as order-of-magnitude, the manuscript should explicitly test how the lower and upper bounds affect consistency with typical AGN feedback coupling efficiencies (~0.5-5%) and whether the conclusion that this traces 'only the ionized phase' remains robust across the full n_e range.
minor comments (1)
  1. [Abstract] The abstract states the lack of correlation is 'at our sensitivity level'; the main text would benefit from an explicit statement of the minimum detectable correlation coefficient given the sample size and measurement uncertainties.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thoughtful and constructive comments, which highlight important aspects of our analysis and interpretation. We address each major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract and conclusion: the central claim that 'both the total line broadening traced by W80 and dv are consistent with being governed primarily by spatial dynamical structure and line-of-sight superposition of multiple kinematic components, with no statistically significant coupling to excitation-driven processes detected' rests on the full-sample non-detection. However, the manuscript itself reports a positive W80-[O III]5007/Heta trend precisely in the small subset where the two-component model is most strongly favored statistically, without a quantitative test (e.g., Monte Carlo simulation of selection effects or bootstrap on the subset correlation) demonstrating that this subset signal is consistent with noise or selection bias. This is load-bearing for the interpretation.

    Authors: We agree that a quantitative test of the subset trend is needed to assess potential selection effects or noise. In the revised manuscript we will add a bootstrap resampling analysis of the W80-[O III]/Heta correlation restricted to the two-component favored spaxels, together with a brief discussion of how the result compares to the full-sample non-detection. This will clarify the robustness of the subset signal without altering the primary conclusion drawn from the full sample. revision: yes

  2. Referee: [Energetics estimates] Energetics section (inferred from abstract): the reported Edot_K/L_bol range of 0.01%-0.28% depends on the assumed n_e=50-1000 cm^-3; while presented as order-of-magnitude, the manuscript should explicitly test how the lower and upper bounds affect consistency with typical AGN feedback coupling efficiencies (~0.5-5%) and whether the conclusion that this traces 'only the ionized phase' remains robust across the full n_e range.

    Authors: We will revise the energetics discussion to explicitly compare the full Edot_K/L_bol range (0.01-0.28%) against the 0.5-5% benchmark. Even the upper bound remains more than an order of magnitude below the lower end of typical coupling efficiencies, supporting the statement that the ionized phase traces only a fraction of the total outflow. We will add a short paragraph confirming that this conclusion is unchanged across the adopted n_e interval. revision: yes

Circularity Check

0 steps flagged

No circularity: purely observational analysis with data-driven conclusions

full rationale

This is an observational IFU study reporting measured line ratios, non-parametric kinematics (W80, dv), and correlations from spatially resolved spectra. No derivations, model fits, or predictions reduce to inputs by construction; the central claim follows directly from the absence of statistically significant correlations in the full sample (with a noted subset trend flagged for future work). Energetics use an assumed n_e range but do not feed back into the kinematics-excitation test. No self-citations, uniqueness theorems, or ansatzes are load-bearing. The analysis is self-contained against external benchmarks and receives the default non-circularity finding.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The analysis depends on standard assumptions about outflow phases and density in AGN studies.

free parameters (1)
  • electron density n_e = 50-1000 cm^-3
    Range assumed for calculating outflow kinetic power from emission lines.
axioms (1)
  • domain assumption The [O III] emission traces only the ionized phase of a multi-phase outflow
    Invoked to interpret the low Edot_K/L_bol as consistent with multi-phase models.

pith-pipeline@v0.9.1-grok · 5914 in / 1351 out tokens · 50149 ms · 2026-06-27T03:14:04.381846+00:00 · methodology
