GenSP: Consistent Spherical Parameterization via Learning Shape Generative Models

Sai Karthikey Pentapati , Shashank Gupta , Rajesh Sureddi , Yuezhi Yang , Alan C. Bovik , Qixing Huang This is my paper

Pith reviewed 2026-07-02 14:56 UTC · model grok-4.3

classification 💻 cs.CV
keywords spherical parameterizationgenerative modelneural networkshape deformationconsistent mappinggenus-0 shapesShapeNet dataset
0
0 comments X

The pith

Learning a neural generative model from the unit sphere to shapes produces consistent spherical parameterizations by using inverse mappings.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents GenSP, a framework that learns a generative model mapping the unit sphere to a collection of genus-0 shapes. Spherical parameterizations come from the inverse of this mapping, which naturally encourages consistency between similar shapes. This is achieved with a continuous neural deformation model, augmented training with bridging shapes, and initial correspondences from a spanning tree in latent space. The result is lower distortion and higher consistency than optimizing each shape separately, as shown on ShapeNet data.

Core claim

By training a neural network to map sphere coordinates and latent codes to surface points on shapes, the inverse operation yields spherical parameterizations that are consistent across the dataset because the model learns shared deformations.

What carries the argument

Continuous neural deformation model predicting surface points from sphere coordinates and latent shape codes, with inverse mappings providing the parameterizations.

If this is right

  • Similar shapes in the collection receive aligned spherical parameterizations.
  • Geometric distortion is reduced compared to independent per-shape optimization.
  • Cross-shape consistency improves without requiring explicit correspondence optimization.
  • The method handles heterogeneous collections through intermediate bridging shapes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This consistency could improve downstream tasks such as texture transfer or shape interpolation across the dataset.
  • The generative approach might allow parameterizing new shapes not in the training set by using the learned model.
  • Extending the method to non-genus-0 shapes would require handling topological variations.

Load-bearing premise

The continuous neural deformation model combined with intermediate bridging shapes and spanning-tree initial correspondences can learn meaningful deformations across a heterogeneous collection without introducing inconsistencies or artifacts.

What would settle it

A test where two very similar shapes receive spherical parameterizations that map corresponding surface features to widely different sphere locations would falsify the consistency benefit.

Figures

Figures reproduced from arXiv: 2607.00492 by Alan C. Bovik, Qixing Huang, Rajesh Sureddi, Sai Karthikey Pentapati, Shashank Gupta, Yuezhi Yang.

Figure 1

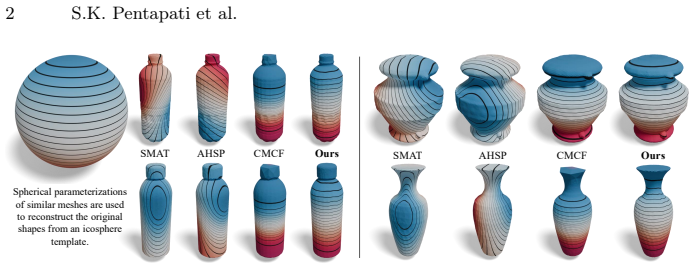

Figure 1. Figure 1: Comparison of spherical parameterizations with existing approaches. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

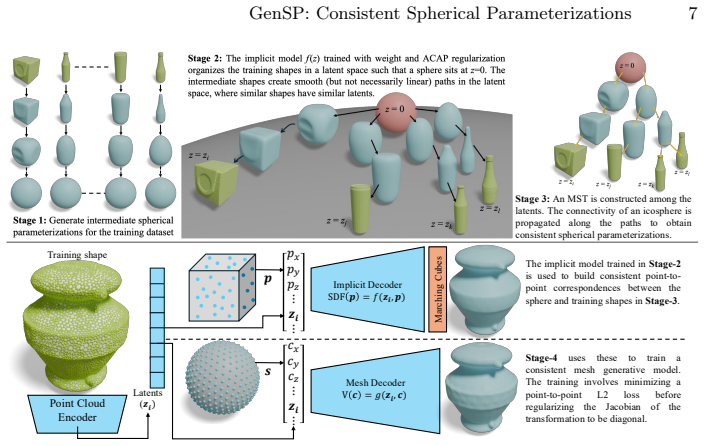

Figure 2. Figure 2: An overview of the four stages of GenSP. trapped in local minima. To address this challenge, we propose to introduce an implicit generative model f ϕ : R 3 × R d → R to facilitate the computation of initial correspondences for learning this shape generative model. As shown in [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: (Top) If we deform S0 to align Si through intermediate shapes defined by f ϕ (·, z) the alignment is poor, as some intermediate shapes have large distortions. (Bottom) When we deform S0 to align Si through intermediate shapes between adjacent training shapes on a spanning tree rooted at S0, the alignment is more accurate as intermediate shapes are much more meaningful. distribution of shapes in the AE late… view at source ↗
Figure 4

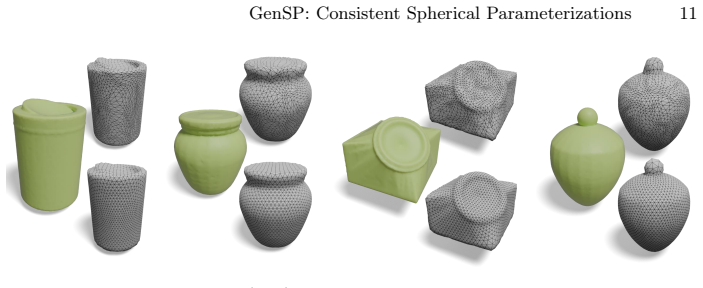

Figure 4. Figure 4: Comparisons between (Top) initial correspondences between S0 and each train￾ing shape and (Bottom) the correspondences obtained by optimized shape generator. We can see that the optimized correspondences are smoother and align the training data (green) better than the initial correspondences. This is attributed to the defor￾mation loss on the mesh generator, which optimizes all correspondences together. Le… view at source ↗
Figure 5
Figure 5. Figure 5: Additional qualitative spherical parameterization results. The top row in each block visualizes the mapping of each method from a shape to the sphere. (The spheres are manually rotated for ease of visualization.) The bottom row shows the mapping of each method from the sphere to the shape. We can see that our method offers more consistent and high-quality parameterizations. Source GenSP Diff3F DiffumatchUL… view at source ↗
Figure 6

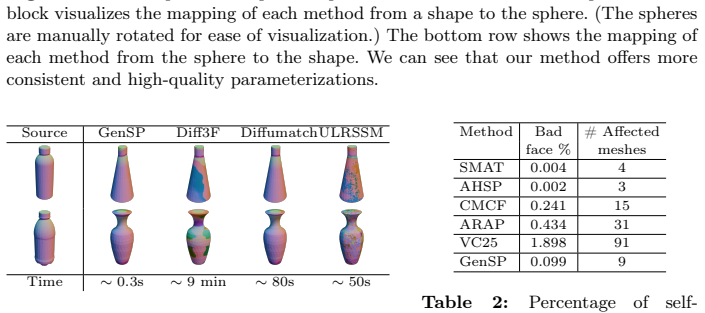

Figure 6. Figure 6: Comparison against modern correspon￾dence methods. Method Bad # Affected face % meshes SMAT 0.004 4 AHSP 0.002 3 CMCF 0.241 15 ARAP 0.434 31 VC25 1.898 91 GenSP 0.099 9 [PITH_FULL_IMAGE:figures/full_fig_p014_6.png] view at source ↗
Figure 7

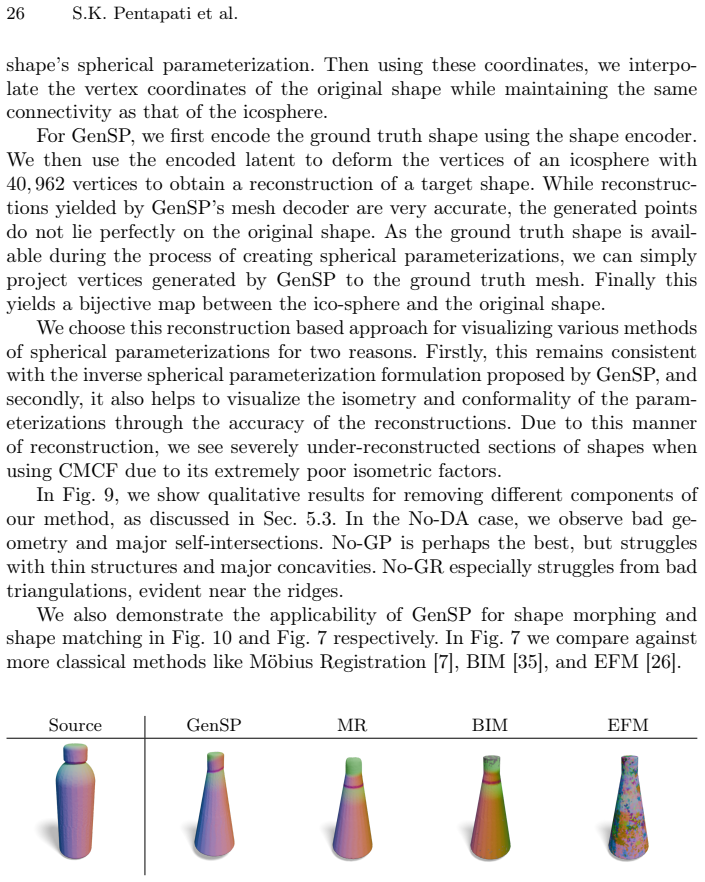

Figure 7. Figure 7: Application in inter-shape correspondences. Baselines are Mobius registration (MR), blended intrinsic maps (BIM), and elastic functional maps (EFM). Note that EFM needs an initial set of correspondences for initialization, which is why it fails in a zero-shot setting. D Limitations All methods of spherical parameterization, including ours and the baselines shown in this paper, fail for shapes with thin str… view at source ↗
Figure 8
Figure 8. Figure 8: More qualitative comparisons between GenSP and CMCF [33], SMAT [50],and AHSP [28]. We show images of the same sphere texture under different spherical pa￾rameterizations [PITH_FULL_IMAGE:figures/full_fig_p027_8.png] view at source ↗
Figure 9

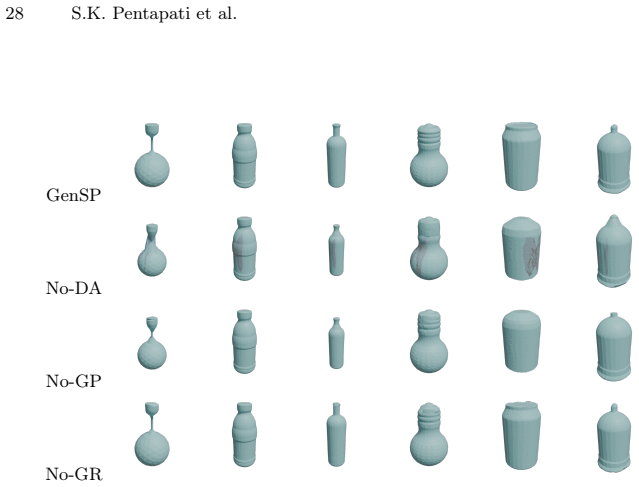

Figure 9. Figure 9: Qualitative ablation study results [PITH_FULL_IMAGE:figures/full_fig_p028_9.png] view at source ↗
Figure 10

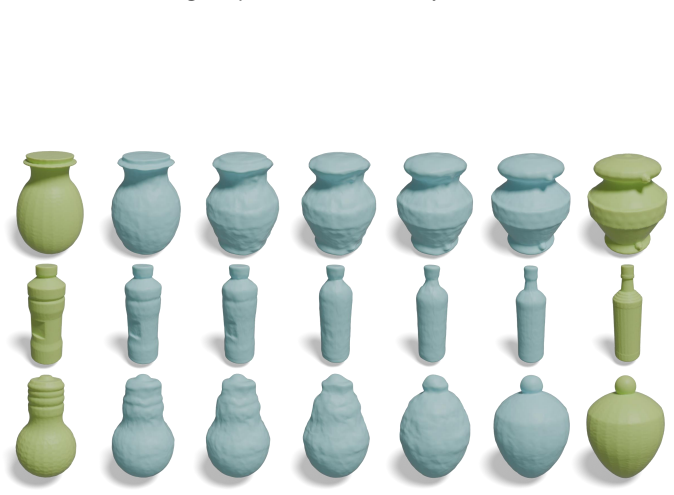

Figure 10. Figure 10: Application in shape morphing. Applying GenSP’s decoder on interpolated latent vectors produces smoothly morphed shapes [PITH_FULL_IMAGE:figures/full_fig_p028_10.png] view at source ↗
Figure 11

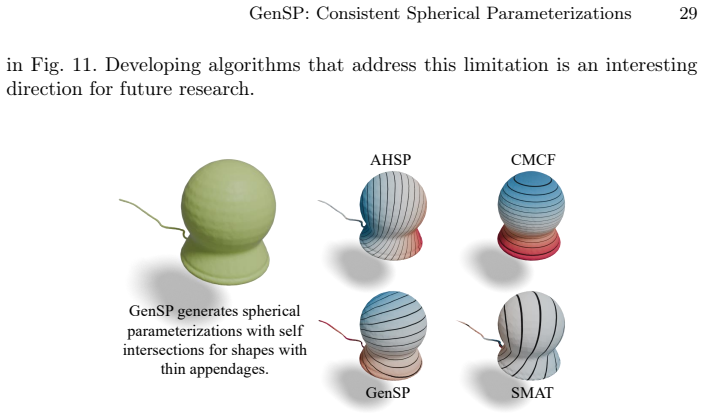

Figure 11. Figure 11: An example of GenSP’s failure mode [PITH_FULL_IMAGE:figures/full_fig_p029_11.png] view at source ↗
read the original abstract

We introduce GenSP, a data-driven framework that learns consistent spherical parameterizations across a collection of genus-0 shapes. Instead of optimizing the parameterization of each shape independently, our method learns a neural generative model that predicts a continuous mapping from the unit sphere to shapes in a dataset. Under this formulation, spherical parameterizations are obtained through the inverse mappings of the learned generator, which encourages similar shapes to share consistent parameterizations. To make this formulation practical, we address several key challenges in learning such a generative model. First, we introduce a continuous neural deformation model that predicts surface points from sphere coordinates and latent shape codes, avoiding discretization artifacts common in mesh-based formulations. Second, we augment the training space with intermediate shapes that bridge the sphere and input shapes, allowing the model to learn meaningful deformations across a heterogeneous shape collection. Third, we compute reliable initial correspondences by propagating mappings along a spanning tree of training shapes in the latent space. Experiments on the ShapeNet dataset demonstrate that our approach significantly reduces geometric distortion and improves cross-shape consistency compared with state-of-the-art spherical parameterization methods.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces GenSP, a data-driven approach to consistent spherical parameterization of genus-0 shapes. Rather than optimizing each shape independently, it trains a neural generative model G(u, z) that maps unit-sphere coordinates u and latent shape codes z to surface points; spherical parameterizations are recovered by inverting the per-shape map u ↦ G(u, z_shape). Practicality is achieved via a continuous neural deformation model, augmentation with intermediate bridging shapes, and initial correspondences obtained by propagating mappings along a spanning tree in latent space. Experiments on ShapeNet are reported to show lower geometric distortion and higher cross-shape consistency than prior spherical parameterization methods.

Significance. If the learned mappings are reliably bijective and the consistency gains hold under quantitative verification, the shift from per-shape optimization to a shared generative model would be a meaningful contribution to shape correspondence and parameterization tasks in computer vision and graphics. The spanning-tree initialization and bridging-shape augmentation are concrete technical ideas that could be reused even if the overall framework requires refinement.

major comments (2)
  1. [Abstract / method formulation] Abstract and the description of the continuous neural deformation model: the central claim that parameterizations are obtained via inverse mappings of G(u, z) requires the per-shape map to be bijective. No Jacobian-determinant penalty, cycle-consistency term, or diffeomorphic constraint is stated, leaving open the possibility that the optimization produces folds or uncovered regions on heterogeneous ShapeNet collections; this directly undermines the consistency guarantee.
  2. [method (spanning-tree step)] The spanning-tree propagation of initial correspondences (third key challenge) is presented as auxiliary, yet the consistency of the final learned inverses depends on the quality of these seeds. Without an ablation that isolates the tree construction or measures how many shapes receive poor initial maps, it is unclear whether the reported consistency improvements are robust or an artifact of favorable tree ordering.
minor comments (2)
  1. [Abstract] The abstract claims 'significantly reduces geometric distortion' but supplies no numerical values, baseline names, or table references; readers cannot assess effect size from the provided text.
  2. [Abstract / method] Notation for the generator G(u, z) and the inverse operation is introduced without an explicit equation or diagram showing how the inverse is computed at inference time (e.g., optimization-based inversion versus an auxiliary decoder).

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback highlighting the importance of bijectivity guarantees and the robustness of the spanning-tree initialization. We address each major comment below and propose targeted revisions to strengthen the claims.

read point-by-point responses

  1. Referee: [Abstract / method formulation] Abstract and the description of the continuous neural deformation model: the central claim that parameterizations are obtained via inverse mappings of G(u, z) requires the per-shape map to be bijective. No Jacobian-determinant penalty, cycle-consistency term, or diffeomorphic constraint is stated, leaving open the possibility that the optimization produces folds or uncovered regions on heterogeneous ShapeNet collections; this directly undermines the consistency guarantee.

    Authors: We acknowledge that the abstract does not explicitly mention bijectivity constraints. The continuous neural deformation model, bridging-shape augmentation, and training losses are intended to encourage smooth, invertible mappings through the generative formulation, but we agree this is not rigorously justified in the provided description. In the revision we will expand the method section with a dedicated discussion of bijectivity, add a Jacobian-determinant regularization term to the objective, and report quantitative checks (e.g., sign of the determinant and coverage metrics) on the learned inverses. revision: yes

  2. Referee: [method (spanning-tree step)] The spanning-tree propagation of initial correspondences (third key challenge) is presented as auxiliary, yet the consistency of the final learned inverses depends on the quality of these seeds. Without an ablation that isolates the tree construction or measures how many shapes receive poor initial maps, it is unclear whether the reported consistency improvements are robust or an artifact of favorable tree ordering.

    Authors: The spanning-tree step supplies the initial correspondences required for the generative model to learn consistent inverses; we therefore agree it is not merely auxiliary. The current manuscript does not contain an ablation isolating its contribution or statistics on seed quality. In the revision we will add an ablation study that varies the tree construction (e.g., random vs. latent-space MST) and report the fraction of shapes whose initial maps exhibit high distortion, thereby quantifying robustness. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation self-contained

full rationale

The paper defines spherical parameterizations explicitly as the inverse mappings of a learned generative model G(u, z) from unit sphere coordinates u and latent codes z to surface points. This is a methodological choice rather than a derivation that reduces to its own inputs by construction. Training augments the space with bridging shapes and uses spanning-tree initial correspondences as auxiliary steps to enable learning across heterogeneous data, but these do not create a self-referential loop where a claimed prediction equals a fitted input. No self-citations are invoked as load-bearing uniqueness theorems, no ansatz is smuggled, and no known empirical pattern is merely renamed. The central claim of improved consistency via shared latent space remains independent of the parameterization definition itself.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only review; specific free parameters, axioms, and invented entities cannot be enumerated from the provided text.

axioms (1)
  • domain assumption All input shapes are genus-0 surfaces that admit spherical parameterization.
    Stated in the abstract as the target class of shapes.

pith-pipeline@v0.9.1-grok · 5739 in / 1109 out tokens · 23676 ms · 2026-07-02T14:56:11.248484+00:00 · methodology
