On-orbit Calibration of the Carruthers GCI: Radiometric Sensitivity

Alex Zhang , Lara Waldrop , Heather Filippini , John Clarke , Pratik Joshi , Gonzalo Cucho-Padin , Parisa Karimi , Martin M. Sirk This is my paper

Pith reviewed 2026-06-26 09:26 UTC · model grok-4.3

classification 🌌 astro-ph.IM astro-ph.EPastro-ph.SR
keywords on-orbit calibrationradiometric sensitivitystellar photometrypassband inversionLyman-alphageocoronaUV imagingCarruthers GCI
0
0 comments X

The pith

Stellar photometry and passband inversion recover the Carruthers GCI responsivity to under 7 percent error in both primary channels.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a complete calibration pipeline for the GeoCoronal Imager that selects stars from a CALSPEC-linked ultraviolet spectral library, ranks them by an objective criterion, and inverts their measured fluxes to constrain the instrument's wavelength-dependent passband. Validation is performed entirely on synthetic star observations that incorporate the expected noise and background properties. The resulting retrieval shows passband recovery errors below 7 percent for the two Lyman-alpha science channels. Precise knowledge of this passband is required before the imagers can convert raw counts into accurate exospheric hydrogen densities and velocities.

Core claim

An objective ranking criterion applied to a refined UV stellar spectral library identifies the optimal stars for observation; the measured fluxes of those stars are then inverted to recover the final instrument passband, and the full workflow is shown on synthetic data to achieve passband errors below 7 percent in both primary Lyman-alpha channels.

What carries the argument

The passband inversion algorithm that solves for the wavelength-dependent responsivity from the selected stellar fluxes.

If this is right

  • The calibrated passband enables quantitative retrieval of exospheric hydrogen parameters from the simultaneous common-volume UV images.
  • The star-selection criterion can be applied on orbit to choose targets that maximize calibration information per observation.
  • The same library and inversion framework can be reused for any future broadband UV photometric calibration that relies on stellar standards.
  • The two co-aligned imagers share a common passband solution that supports differential measurements between the channels.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Real flight data could be cross-checked against the synthetic validation to quantify any additional systematic offsets introduced by the space environment.
  • The method supplies a template that other small-satellite UV instruments could adapt when laboratory calibration after launch is unavailable.
  • If the recovered passband proves stable over time, repeated star observations could also monitor long-term degradation of the detectors.
  • The approach ties the final science data product directly to the CALSPEC absolute flux scale without requiring an on-board calibration lamp.

Load-bearing premise

The synthetic stellar measurements reproduce the statistical properties, noise sources, and background conditions of actual on-orbit star observations with the Carruthers GCI.

What would settle it

Direct comparison of the inverted passband derived from real on-orbit star measurements against independent laboratory or pre-flight calibration data would show whether the error remains below 7 percent.

Figures

Figures reproduced from arXiv: 2606.22705 by Alex Zhang, Gonzalo Cucho-Padin, Heather Filippini, John Clarke, Lara Waldrop, Martin M. Sirk, Parisa Karimi, Pratik Joshi.

Figure 1

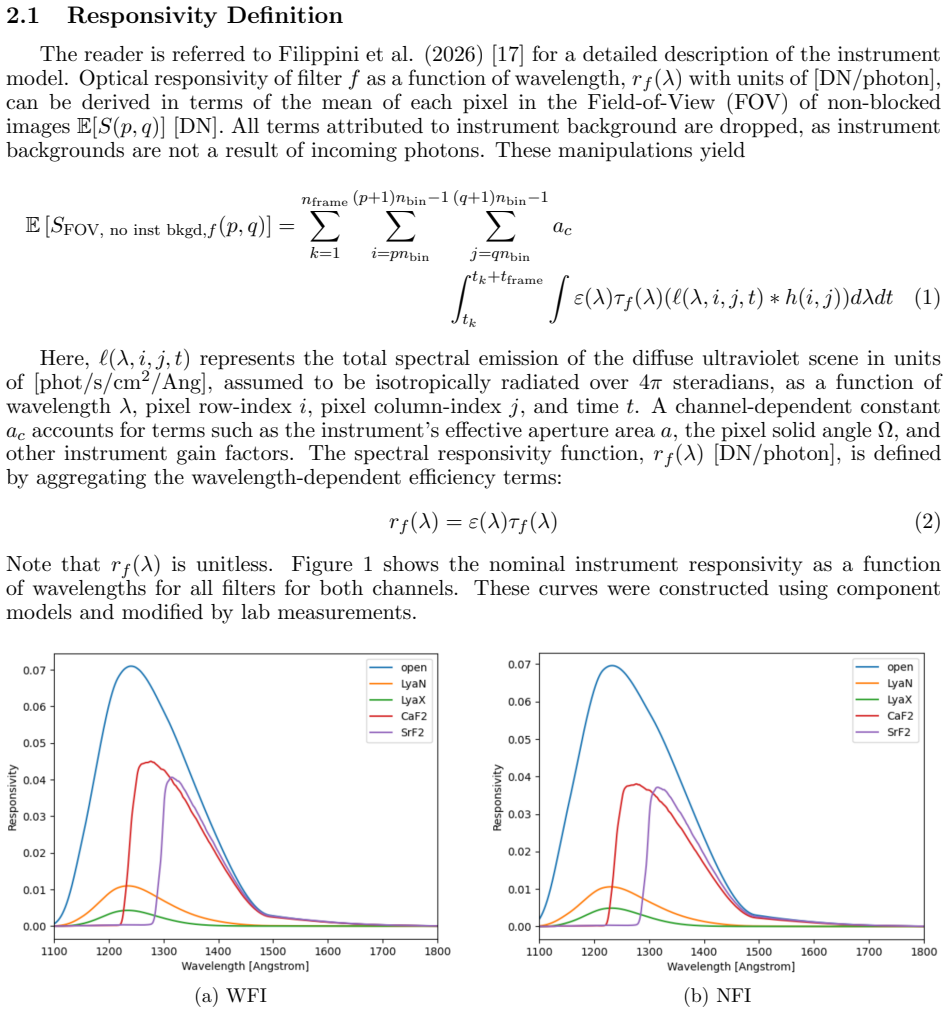

Figure 1. Figure 1: Responsivity curves for both channels. 3 Stellar Dataset This section describes the UltraViolet (UV) stellar flux dataset used by the Carruthers mission to pick calibration targets. Reliable spectrophotometric stellar datasets in the UV are scarce, pri￾marily because the hot, early-type stars that dominate emission at these wavelengths often exhibit 4 [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

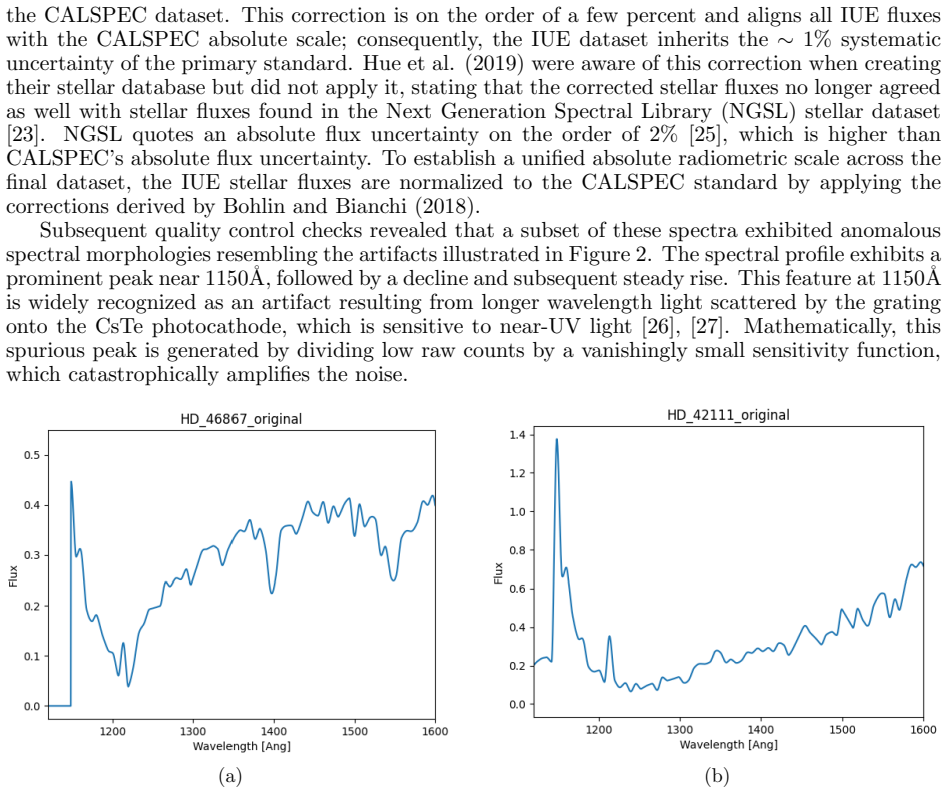

Figure 2. Figure 2: Example stellar spectra from the original Juno dataset exhibiting spurious flux below [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

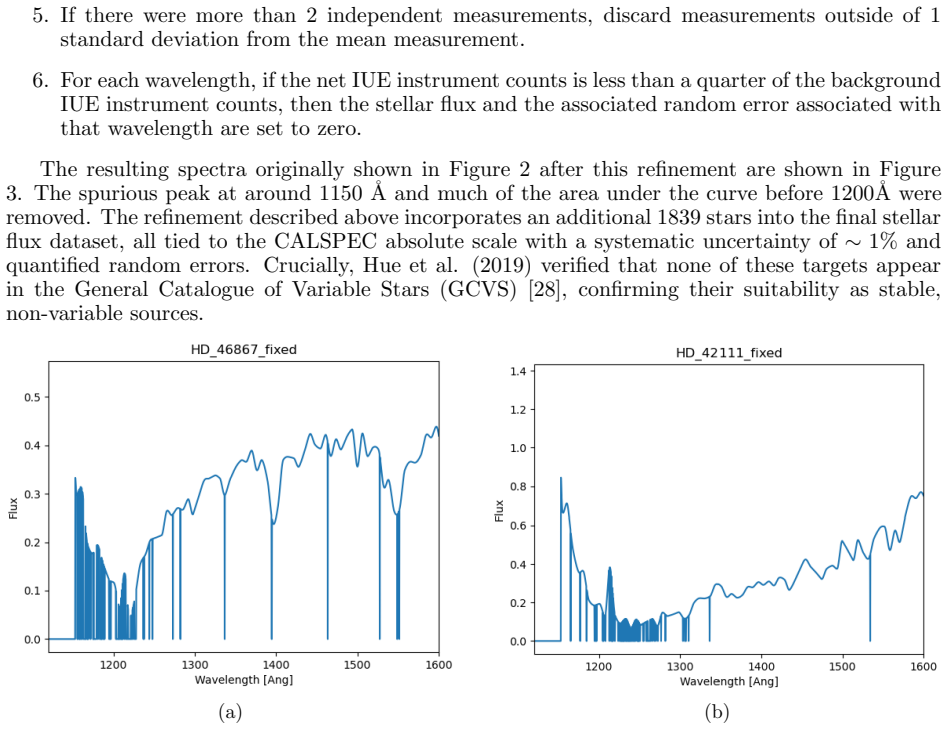

Figure 3. Figure 3: Refined versions of the stellar spectra from Figure 2. Data points exhibiting low count [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
read the original abstract

The Carruthers Geocorona Observatory is NASA's first mission dedicated to investigating the fundamental nature of Earth's exosphere. Its primary payload, the GeoCoronal Imager, consists of two co-aligned broadband photometric imagers that support simultaneous, common-volume sensing of ultraviolet emission by exospheric hydrogen atoms. However, accurate parameter retrieval requires precise knowledge of the instrument's wavelength dependent responsivity. To that end, the mission aims to perform photometric measurement of stars and invert the observed fluxes to constrain the final passband. An objective, algorithm-driven ranking criterion identifies the best subset of stars to observe from a refined UV stellar spectral library tied to CALSPEC standards. The entire workflow - including the spectral library, passband inversion, and selection criterion - is validated using synthetically generated stellar measurements, which show that the proposed retrieval algorithm has high recovery fidelity, achieving passband error rates of <7% for both primary Lyman-alpha science channels.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper describes an on-orbit radiometric calibration approach for the Carruthers GeoCoronal Imager (GCI) that uses photometric observations of stars drawn from a UV spectral library tied to CALSPEC standards. An objective ranking criterion selects the optimal subset of stars; observed fluxes are then inverted to recover the instrument passband. The full workflow (library, inversion algorithm, and selection) is validated exclusively on synthetically generated stellar measurements, which recover the input passbands to <7% error in the two primary Lyman-alpha science channels.

Significance. If the synthetic validation can be shown to incorporate realistic on-orbit noise, background, and systematics, the method would supply a practical, data-driven route to passband knowledge that is essential for quantitative exospheric hydrogen retrievals. The approach is directly relevant to the mission's core science goals and could be adapted to other UV photometric instruments.

major comments (2)
  1. [Abstract] Abstract (final sentence): The central claim of <7% passband recovery fidelity rests entirely on synthetically generated stellar measurements, yet the manuscript supplies no quantitative description of the noise model, background levels, pointing jitter, cosmic-ray hits, detector non-uniformity, or time-dependent throughput variations that were (or were not) included. Without this information it is impossible to judge whether the reported error bound applies to actual flight data.
  2. [Abstract] Abstract: The validation is performed by recovering the same passband that was used to generate the synthetic observations. This constitutes an internal consistency test rather than an independent external validation; the manuscript does not demonstrate that the inversion remains accurate when the true passband differs from the forward model or when unmodeled systematics are present.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive report and the recommendation for major revision. We address each major comment below, indicating planned changes to the manuscript where appropriate.

read point-by-point responses

  1. Referee: [Abstract] Abstract (final sentence): The central claim of <7% passband recovery fidelity rests entirely on synthetically generated stellar measurements, yet the manuscript supplies no quantitative description of the noise model, background levels, pointing jitter, cosmic-ray hits, detector non-uniformity, or time-dependent throughput variations that were (or were not) included. Without this information it is impossible to judge whether the reported error bound applies to actual flight data.

    Authors: We agree that the manuscript should provide a quantitative description of the synthetic noise model to allow readers to assess applicability to flight data. In the revised version we will add a dedicated subsection in the methods describing the noise sources that were included (Poisson photon noise, background levels, and pointing jitter) together with the specific parameters used. We will also explicitly note which effects (cosmic-ray hits, detector non-uniformity, time-dependent throughput) were not modeled in the current synthetic tests and will be examined once on-orbit data become available. revision: yes

  2. Referee: [Abstract] Abstract: The validation is performed by recovering the same passband that was used to generate the synthetic observations. This constitutes an internal consistency test rather than an independent external validation; the manuscript does not demonstrate that the inversion remains accurate when the true passband differs from the forward model or when unmodeled systematics are present.

    Authors: This observation is correct. The present validation is an internal consistency test under the assumption that the forward model matches reality. We will revise the abstract and add a short limitations paragraph in the discussion to state this explicitly and to outline planned follow-on tests that inject passband mismatches or additional systematics. These clarifications will prevent over-interpretation of the <7% figure while preserving the value of the controlled synthetic demonstration. revision: yes

Circularity Check

1 steps flagged

Synthetic validation recovers the exact passband used to generate the test data, reducing the <7% fidelity claim to internal consistency by construction

specific steps
  1. fitted input called prediction [abstract]
    "The entire workflow - including the spectral library, passband inversion, and selection criterion - is validated using synthetically generated stellar measurements, which show that the proposed retrieval algorithm has high recovery fidelity, achieving passband error rates of <7% for both primary Lyman-alpha science channels."

    The synthetics are generated from the passband model that the inversion is then asked to recover; low reported error therefore demonstrates only that the algorithm can invert its own inputs under the assumed noise model, not that it will achieve <7% error on independent flight data whose background, jitter, and systematics may differ.

full rationale

The paper's central validation claim rests on synthetically generated stellar measurements whose generation necessarily incorporates the target passband as input. Recovering that same passband with low error is then a direct test of invertibility on self-generated data rather than an external check against real on-orbit statistics. This matches the fitted-input-called-prediction pattern exactly, as the reported fidelity is statistically forced once the synthetic noise model and passband are fixed. No other derivation steps in the provided abstract exhibit self-definition or load-bearing self-citation.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Based on the abstract alone, the central claim rests on the accuracy of the CALSPEC-tied stellar library and the realism of the synthetic test data; no free parameters or invented entities are explicitly described.

axioms (1)
  • domain assumption The refined UV stellar spectral library tied to CALSPEC standards provides accurate reference spectra for the selected stars.
    The flux inversion step requires known true stellar spectra from this library.

pith-pipeline@v0.9.1-grok · 5720 in / 1224 out tokens · 34569 ms · 2026-06-26T09:26:16.906433+00:00 · methodology
