TransGUNet: Transformer Meets Graph-based Skip Connection for Medical Image Segmentation

T0 review · 3 major / 3 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read TransGUNet claims that converting cross-scale skip-connection features into an attention-weighted graph, while keeping only the lowest-entropy channels for spatial attention, yields the best average segmentation accuracy on six seen and…

desk verdict A practical cross-scale GNN skip-connection model with broad but flawed significance testing; the average gains are plausible, the 'significant' claim is not. read the letter →

arxiv 2502.09931 v1 pith:OGCUVE6M submitted 2025-02-14 cs.CV cs.AI

Ju-Hyeon Nam , Nur Suriza Syazwany , Sang-Chul Lee This is my paper · ORCID
classification cs.CVcs.AI
keywords medicalimagesegmentationskipconnectiongraphneuralnetworkspatialattentionentropy-drivenfeatureselectiondomaingeneralizationcross-scalefusiontransformer
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish that the semantic gap between encoder and decoder in medical image segmentation is best closed by a graph, not by extra transformer blocks. The authors build TransGUNet, whose skip connection first fuses feature maps from four encoder scales into one tensor, treats every pixel as a node of a graph, and updates node features with a parameter-free relative graph convolution plus a lightweight node-attention weighting. They then compute a Shannon-entropy score per channel and feed only the lowest-entropy channels to spatial attention, on the grounds that high-entropy channels are noisy and would corrupt the attention map. On six same-distribution datasets and eight unseen-distribution datasets spanning CT, MRI, ultrasound, dermoscopy, and endoscopy, they report the best average Dice scores, with the largest gains in domain transfer, notably 47.2% DSC on AMOS-MRI when trained only on CT Synapse. The claim matters because clinically useful segmentation models must transfer across modalities and hospitals, and this design improves transfer at roughly UNet-level parameter count.

What carries the argument

Two components carry the argument. ACS-GNN: a cross-scale graph built from the concatenated, resolution-normalized feature maps of the four encoder stages, with each pixel as a node, dilated K-nearest-neighbor adjacency, Max-Relative graph convolution ($x_G = G(x)$) for parameter-free aggregation, and an ECA-style node-attention map from average- and max-pooled statistics. EFS-based spatial attention: per-channel Shannon entropy $E = \frac{1}{HW}\sum_{h,w}(-\sigma(f^G_c)_{:,h,w}\log \sigma(f^G_c)_{:,h,w})$, then selection of the Bottom-M lowest-entropy channels (default $M=64$ of $4C_r=256$) to produce the spatial attention map. The claim is that the graph captures long-range, cross-scale anatomical relations without the computational cost of dense transformer blocks, and that filtering high-entropy channels removes noisy activation so the spatial attention map becomes trustworthy, which is what drives the generalization gains.

What would settle it

Train TransGUNet on Synapse and test on AMOS-MRI while replacing the entropy-based Bottom-M selection with (a) random channel selection and (b) highest-entropy selection, holding M=64 and all else fixed. If the unseen-set Dice scores stay within statistical noise of the reported 47.2%, the entropy criterion is not load-bearing; if random selection drops significantly, the paper's explanation is supported.

Watch

Extended reading notes

Core claim

On the paper's own terms, the central discovery is that skip connections redesigned as an attentional cross-scale graph (ACS-GNN) together with entropy-driven feature selection (EFS) produce more reliable spatial attention and better domain-generalizable segmentation than transformer- or convolution-based skip connections. The mechanism is: encoder features at four scales are resized and concatenated; each spatial location becomes a node; dilated K-nearest-neighbor edges define the graph; Max-Relative graph convolution exchanges information; an ECA-style 1D convolution weights node importance; and only the $M$ channels with the lowest Shannon entropy are retained to compute the spatial attention map. The authors report that this outperforms twelve baselines on average across six seen and eight unseen datasets, with DSC improvements of (9.3%, 22.3%) over UNet++, (2.1%, 7.2%) over M2SNet, and (1.6%, 4.5%) over CFATransUNet for seen and unseen settings; it is the only model exceeding 45% DSC on AMOS-MRI after CT-only training.

Load-bearing premise

The argument depends on Shannon entropy of a feature channel (low entropy = informative, high entropy = noisy) being the right filter; the paper motivates this with qualitative examples and tunes the number of kept channels, but never compares entropy against other channel-selection criteria.

Editorial extensions

If this is right

  • If the demonstrated gains hold, skip connections in future segmentation networks can be built from graph convolutions instead of nested dense blocks or transformer stacks, matching or beating those designs with roughly 25M parameters and 10G FLOPs.
  • Domain transfer across imaging modalities becomes more feasible: the reported 47.2% DSC on AMOS-MRI after Synapse CT-only training is more than 11 percentage points over the next-best model, suggesting that graph-structured cross-scale features carry modality-invariant anatomical cues.
  • The entropy filter implies that spatial attention maps improve not by adding more channels but by discarding high-entropy ones, so spatial attention modules in other architectures could adopt the same selection rule.
  • The method is backbone-agnostic in the reported ablations: swapping in CNN and transformer encoders retains gains, so the skip-connection design can be retrofitted to existing encoders.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A natural extension the authors do not pursue is to learn the channel-selection rule instead of fixing it to Shannon entropy; if a learned selector matched or beat entropy on new modalities, it would show the benefit is filtering noise rather than entropy per se.
  • Because the graph is built at $\frac{H}{8}\times\frac{W}{8}$, the same construction should transfer to 3D volumes by treating voxels as nodes; the reported memory footprint suggests 3D use is plausible but untested.
  • The entropy heuristic could be compared against attention-confidence or predictive-uncertainty measures; a testable prediction is that any criterion that removes uniformly activated channels yields similar gains.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 3 minor

Summary. The paper proposes TransGUNet, a 2D medical image segmentation architecture that modifies U-Net skip connections with an attentional cross-scale graph neural network (ACS-GNN) and an entropy-driven feature selection (EFS) mechanism for spatial attention. The method uses a P2T encoder-decoder, reports results on six in-distribution ('seen') and eight external ('unseen') datasets spanning multi-organ, skin, COVID-19, breast ultrasound, and polyp segmentation, and compares against twelve baselines in terms of DSC, mIoU, parameters, FLOPs, inference time, and memory. The headline claims are that TransGUNet achieves the best average performance on both seen and unseen settings, that the gains are statistically significant, and that the improvements are particularly large in cross-modality generalization (e.g., Synapse to AMOS-MRI).

Significance. If the empirical claims are sustained, this is a worthwhile contribution to skip-connection design: it introduces a lightweight GNN-based cross-scale fusion alternative to transformer-based skip connections and a channel-selection mechanism for spatial attention, supported by a broad evaluation across modalities. The independent unseen datasets that were not used in hyperparameter selection (AMOS, PH2, COVID19-2, STU) provide genuinely useful generalization evidence, and the paper's use of three repeats with standard deviations is a strength. The efficiency comparison (25.0M parameters, 10.0G FLOPs) is also a useful data point. However, the statistical support for the word 'significantly' is invalid as reported, and the unseen polyp datasets were used to select several hyperparameters, which weakens the claimed generalization margins on those datasets. The entropy-selection mechanism is also not tested against alternative selection criteria, so its specific contribution is underdetermined.

major comments (3)
  1. [Tables 2 and 3] The reported Wilcoxon signed-rank p-values are not achievable under the experimental design as described. With the six seen datasets as paired observations, the smallest possible one-sided exact p-value is 2^-6 = 0.0156, and with eight unseen datasets it is 2^-8 = 0.0039; yet Table 2 reports p-values as small as 9.3E-06 and Table 3 reports 1.7E-08. Pooling DSC and mIoU into 12 or 16 paired observations still gives minimum one-sided p-values of about 2.4E-04 and 1.5E-05, which remain far above many printed entries. The paper never states the sample unit for the test; if per-image scores were used, the test would need to account for clustering by dataset, and no such analysis is provided. The Section 4.3 claim that TransGUNet 'significantly outperforms' the baselines is therefore unverifiable as reported. Please state the exact test procedure, sample size, and effect definition, and recompute or verify all p-values.
  2. [Section 4.4, Fig. 7, Appendix Tables 5, 10, 11] The hyperparameters M, the target resolution (Ht,Wt), the ECA kernel size k, and the repetition count G are selected by maximizing performance on the same aggregated 'Seen' and 'Unseen' polyp splits that later appear in Table 3. The 'Unseen' columns in these ablation studies include CVC-300, CVC-ColonDB, and ETIS, which are exactly the datasets reported as unseen generalization results. This means that the claimed gains on those three polyp test sets are partially the result of test-set selection rather than independent generalization. The non-polyp unseen datasets (AMOS, PH2, COVID19-2, STU) are not affected by this leakage, but the overall 'eight unseen datasets' average and the Section 4.3 generalization claim are. Please either fix all hyperparameters before evaluating any test set, or hold out a disjoint validation split from the polyp training data, and re-report the affected numbers.
  3. [Eq. (4), Eq. (5), Section 4.4] The paper attributes the EFS improvement to the use of low Shannon-entropy channels, but it never tests the entropy criterion against alternative channel-selection rules. The ablation in Fig. 7 compares M=256 with M<256, which only shows that filtering some channels helps; it does not show that sorting by low entropy is the reason. A control selecting M random channels, M highest-entropy channels, or M channels by another statistic (e.g., variance or mean activation) is needed to establish that the entropy score itself is load-bearing. Without such a control, the gains attributed to 'entropy-driven' selection could equally come from dimensionality reduction or from any fixed channel subset. Please add this control or soften the mechanistic claim.
minor comments (3)
  1. [Table 1 vs Appendix Table 8] The efficiency numbers are inconsistent between the main table and the appendix: for example, UNet inference time is 18.6 ms in Table 1 but 10.1 ms in Table 8, UNet++ is 26.5 vs 22.9 ms, and M2SNet is 34.9 vs 32.1 ms, while ViGUNet has numerical entries in Table 1 but dashes in Table 8. Please harmonize the tables and state the measurement conditions (batch size, input resolution, GPU, warm-up).
  2. [Section 4.2] The sentence 'In the Appendix, we provide the experiment results on various hyperparameter settings (Tab. 9, 5, 10, 11)' is inaccurate because Appendix Table 9 is a backbone ablation, not a hyperparameter study; please correct the table pointers.
  3. [Section 4.3] The sentence 'Although MADGNet achieved the state-of-the-art performance in seen clinical settings' is ambiguous, since Table 2 shows TransGUNet with the best seen-average DSC; if the intended meaning is 'best among the previously published baselines,' please rephrase to avoid an apparent internal contradiction.

Circularity Check

1 steps flagged · score 6.0 of 10

Partial circularity: the 'unseen' polyp test sets were used to select hyperparameters, so three of the eight domain-generalization results are test-set-tuned predictions.

  1. fitted input called prediction [Section 4.2 (Key hyperparameters), Section 4.4 (Ablation Study on EFS-based Spatial Attention, Fig. 7), and Appendix Tables 5, 9, 10, 11, feeding Table 3's CVC-300, CVC-ColonDB, and ETIS rows.]
    "Key hyperparameters for TransGUNet on all datasets were set to Cr = 64 for efficiency and (Ht, Wt) = ( H 8 , W 8 ), K = 11, k= 3 in ACS-GNN and M = 64in EFS-based spatial attention. In the Appendix, we provide the experiment results on various hyperparameter settings (Tab. 9, 5, 10, 11). ... In Fig. 7, (·, ·) denotes DSC on seen and unseen clinical setting of polyp segmentation. Fig. 7 shows that M = 256results in worse performance than the cases utilizing the EFS-based spatial attention (M = {8, 16, 32, 64, 128})."

    The hyperparameters M=64, target resolution (H/8,W/8), ECA kernel k=3, and repetition G=1 are selected by comparing DSC on the 'seen and unseen clinical setting of polyp segmentation'. The 'unseen' polyp datasets are CVC-300, CVC-ColonDB, and ETIS, which are the same rows later presented as unseen-generalization evidence in Table 3. Thus the reported 90.0, 82.0, and 81.3 DSC values on those three datasets are outcomes of test-set-guided model selection rather than independent predictions: the configuration was chosen because it performed well on those specific test sets. The independent unseen datasets (AMOS-CT/MRI, PH2, COVID19-2, STU) were not part of this selection, so the circularity is partial but real for the polyp 'unseen' claim.

full rationale

The architecture derivation itself is self-contained: ACS-GNN is specified by its own equations (KNN graph construction, MRConv, ECA-style node attention), EFS is defined by the Shannon-entropy formula in Eq. (4), and the ablations test the components rather than importing a result from a self-citation. The authors' self-citations [44,45] are used for standard loss definitions and as comparison baselines, not as load-bearing evidence, so they do not raise the circularity score. The main circular step is in the evaluation protocol: the paper labels CVC-300, CVC-ColonDB, and ETIS as 'unseen clinical settings' in Table 3, but Section 4.4 and Appendix Tables 5, 9, 10, and 11 show that key hyperparameters and even the backbone were selected using DSC on those same 'seen and unseen' polyp datasets. That makes those three unseen numbers fitted rather than predicted, partially compromising the headline 'significantly outperforms' claim over eight unseen datasets. The five independent unseen datasets provide external grounding, so the circularity is not total. Separately, the Wilcoxon p-values in Tables 2 and 3 are below the attainable exact minimum for n=6 and n=8 dataset-level paired observations (2^-6 = 0.0156 and 2^-8 = 0.0039), so the significance claim is not supported by a valid described test; this is a statistical-support problem, not a circularity, and does not change the circularity score. Likewise, the entropy heuristic in Eq. (4) is an untested assumption, but it is not circular.

Assumptions & free parameters 6 free parameters · 5 assumptions · 0 invented entities

The model introduces no new physical entities. Its novelty is architectural: combining known components (P2T transformer, MRConv graph convolution, ECA-style attention, entropy-based channel filtering) in a new skip-connection design. The central claim rests on several domain-specific heuristics and on hyperparameters tuned against the test datasets used for evaluation.

free parameters (6)
  • M (number of lowest-entropy channels kept) = 64
    Selected via ablation on polyp seen+unseen datasets (Fig. 7), then applied to all tasks; M=256 (no filtering) performs worse.
  • k (ECA kernel size for node attention) = 3
    Chosen by ablation on polyp datasets (Appendix Tab. 10); k=5 gives marginally higher seen DSC but lower unseen DSC.
  • G (repetition count of ACS-GNN+EFS) = 1
    Ablation (Appendix Tab. 11) shows G>1 decreases both seen and unseen performance, leading to the choice G=1.
  • target_resolution (Ht, Wt) = (H/8, W/8)
    Chosen via ablation (Appendix Tab. 5) as the best trade-off between accuracy and FLOPs.
  • Cr (channel reduction) = 64
    Set for efficiency in Section 4.2; no ablation reported for this value.
  • K (number of neighbors in dilated KNN graph) = 11
    Listed as a key hyperparameter in Section 4.2; no ablation study reported for K.
assumptions (5)
  • domain assumption Shannon entropy of a feature channel is a valid measure of feature informativeness.
    Invoked in Eq. (4) and Section 3.2; supported only by qualitative examples (Fig. 4) and ablation of M, not by comparison with alternative filtering criteria.
  • domain assumption Graph-based cross-scale fusion reduces the semantic gap between encoder and decoder.
    Underpins ACS-GNN; supported by ablation (Tab. 4) but no theoretical argument is provided.
  • domain assumption P2T encoder provides sufficient representation for medical segmentation across modalities.
    Adopted from [70]; backbone ablation (Appendix Tab. 9) shows P2T-Small best among tested backbones, but only on polyp segmentation data.
  • domain assumption Synapse-to-AMOS and other seen-to-unseen transfers are valid tests of domain generalizability.
    Section 4.1 defines unseen settings as datasets with different distributions; no quantitative measure of distribution shift is provided.
  • standard math Wilcoxon signed-rank test assumptions hold for paired segmentation metrics.
    Used in Tabs. 2 and 3; underlying assumption is paired observations from three runs per model, which is plausible but not explicitly verified.

how reviews work

0 comments
Cite this review

Pith. "Pith review of TransGUNet: Transformer Meets Graph-based Skip Connection for Medical Image Segmentation." pith.science (2026). https://pith.science/paper/OGCUVE6M

@misc{pith2026250209931,
  author       = {Pith},
  title        = {Pith review of: TransGUNet: Transformer Meets Graph-based Skip Connection for Medical Image Segmentation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/OGCUVE6M}},
  note         = {Machine review of arXiv:2502.09931}
}
read the original abstract

Skip connection engineering is primarily employed to address the semantic gap between the encoder and decoder, while also integrating global dependencies to understand the relationships among complex anatomical structures in medical image segmentation. Although several models have proposed transformer-based approaches to incorporate global dependencies within skip connections, they often face limitations in capturing detailed local features with high computational complexity. In contrast, graph neural networks (GNNs) exploit graph structures to effectively capture local and global features. Leveraging these properties, we introduce an attentional cross-scale graph neural network (ACS-GNN), which enhances the skip connection framework by converting cross-scale feature maps into a graph structure and capturing complex anatomical structures through node attention. Additionally, we observed that deep learning models often produce uninformative feature maps, which degrades the quality of spatial attention maps. To address this problem, we integrated entropy-driven feature selection (EFS) with spatial attention, calculating an entropy score for each channel and filtering out high-entropy feature maps. Our innovative framework, TransGUNet, comprises ACS-GNN and EFS-based spatial attentio} to effectively enhance domain generalizability across various modalities by leveraging GNNs alongside a reliable spatial attention map, ensuring more robust features within the skip connection. Through comprehensive experiments and analysis, TransGUNet achieved superior segmentation performance on six seen and eight unseen datasets, demonstrating significantly higher efficiency compared to previous methods.

Figures

Figures reproduced from arXiv: 2502.09931 by the authors.

Figure 1
Figure 1. Graph Visualization of TransGUNet. We selected three [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. (a) The overall architecture of the proposed TransGUNet mainly comprises ACS-GNN and EFS-based spatial attention (See [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. The overall block diagram of the Entropy-driven Feature [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (9 more)
Figure 4
Figure 4. Figure 4: (a) Input image, (b) Feature map from ACS-GNN, (c) [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5

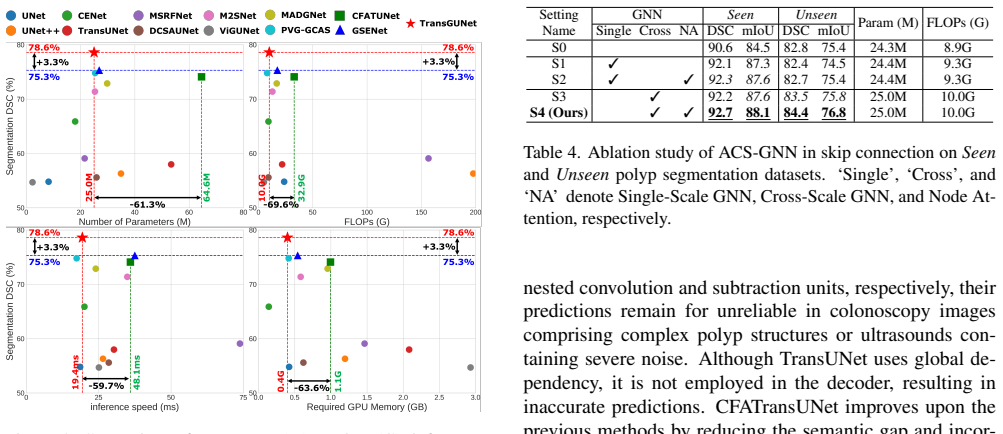

Figure 5. Figure 5: Comparison of parameters (M), FLOPs (G), inference [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
Figure 6
Figure 6. Figure 6: Qualitative comparison of other methods and TransGUNet. (a) Input images with ground truth. (b) UNet [ [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]
Figure 7
Figure 7. Figure 7: Comparison of spatial attention map quality according [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]
Figure 8
Figure 8. Figure 8: Comparison of skip connection frameworks scheme. Note that our unique approach ( [PITH_FULL_IMAGE:figures/full_fig_p014_8.png]
Figure 9

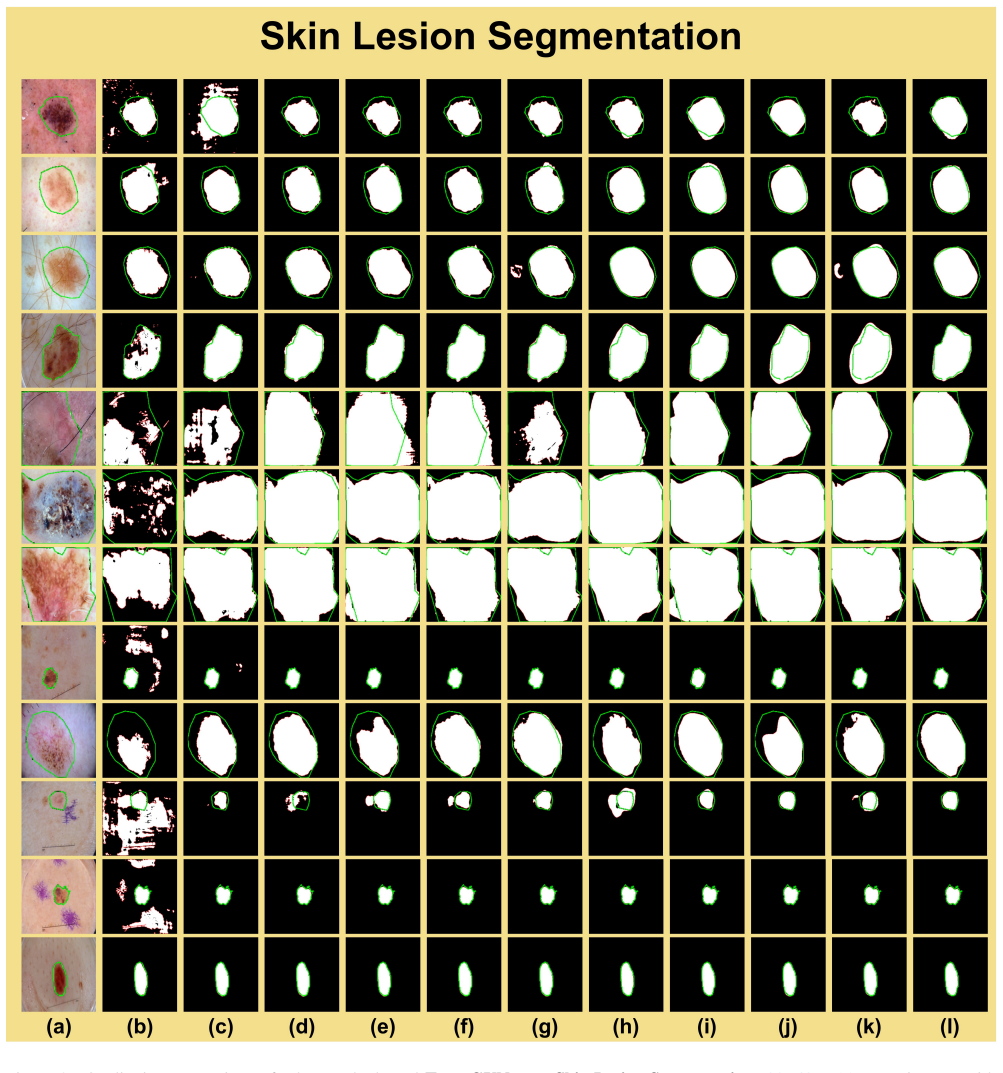

Figure 9. Figure 9: Qualitative comparison of other methods and [PITH_FULL_IMAGE:figures/full_fig_p017_9.png]
Figure 10
Figure 10. Figure 10: Qualitative comparison of other methods and [PITH_FULL_IMAGE:figures/full_fig_p018_10.png]
Figure 11
Figure 11. Figure 11: Qualitative comparison of other methods and [PITH_FULL_IMAGE:figures/full_fig_p019_11.png]
Figure 12
Figure 12. Figure 12: Qualitative comparison of other methods and [PITH_FULL_IMAGE:figures/full_fig_p020_12.png]
