AutoLayout: Closed-Loop Layout Synthesis via Slow-Fast Collaborative Reasoning

T0 review · 5 major / 5 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read AutoLayout claims that a slow deliberative system plus a fast optimizer, joined by closed-loop self-validation, lifts layout scores to 91.7%—13 to 23 points above the strongest baselines—while nearly eliminating overlaps.

desk verdict Clever system architecture, but the reported numbers don't hold together; referee it, but demand a real evaluation. read the letter →

arxiv 2507.04293 v1 pith:OPHSSHAO submitted 2025-07-06 cs.RO cs.CV

Weixing Chen , Dafeng Chi , Yang Liu , Yuxi Yang , Yexin Zhang , Yuzheng Zhuang , Xingyue Quan , Jianye Hao
show 2 more authors
Guanbin Li Liang Lin
This is my paper · ORCID
classification cs.ROcs.CV
keywords layoutgenerationspatialhallucinationslow-fastreasoningclosed-loopself-validationadaptiverelationlibraryevolutionaryoptimizationLLM3Dscenesynthesis
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

AutoLayout claims that the recurring failure of large models to produce physically sound, semantically faithful layouts—floating cups, clumped plates, missing objects—can be broken by separating 'slow' deliberative reasoning from 'fast' placement and optimization, and wiring the two into a closed loop that validates and repairs its own output. Across eight tabletop scenarios the paper reports a Physical-Semantic-Functional (PSF) score of 91.7%, which is 13.0 to 22.6 points above the best baseline (LayoutGPT at 78.7%, HOLODECK at 70.3%, I-Design at 69.1%), with 98.7% collision-free and in-boundary scores and 100% functional completeness. A sympathetic reader would care because the method replaces handcrafted spatial rules with an LLM-maintained Adaptive Relation Library, so the same pipeline is claimed to transfer across scenarios without manual re-engineering. The ablations argue that each stage of the loop—scene description, discrete initialization, adaptive relations, and self-validation—contributes to the gain rather than being decorative.

What carries the argument

The load-bearing mechanism is the slow–fast collaboration with closed-loop validation. The slow system is the RRG pipeline (Reasoning–Reflection–Generation): it reasons about functional areas and object interactions, reflects to resolve conflicts and ensure every object is covered, then generates a structured scene description. The fast system converts that description into discrete grid coordinates and into typed topological relations (anchoring, relative, alignment) drawn from the Adaptive Relation Library (ARL)—an LLM-generated collection where each relation has a definition, a Python constraint function scoring the layout, and a validation function returning a boolean. A genetic algorithm (2,000 individuals, 100 generations) over a 600x300 pixel plane optimizes a fitness that sums physical feasibility (intersection-over-union of axis-aligned bounding boxes plus boundary and stacking containment) with semantic scores from ARL constraint functions. The closed loop is completed by three self-validation stages, the last of which feeds failed relations back to the LLM to adjust thresholds and repair code, then re-optimizes until all validation functions return true.

What would settle it

Take the layouts AutoLayout reports as optimal, set them in a rigid-body physics simulator with gravity and contact, let them settle, and measure interpenetration depth, unsupported objects, and objects that fall off the table. If a non-trivial fraction of layouts that score 100% collision-free contain gravitationally unstable or interpenetrating configurations—a bowl resting only on a cup's rim, or a stack that topples because its center of mass sits outside the support polygon—then the claim that near-perfect collision scores equal physical plausibility is falsified. A cheaper version is a manual audit of the 24 test-case layouts for any arrangement that is axis-aligned-bounding-box collision-free yet unrealizable under gravity.

Watch

Extended reading notes

Core claim

The paper's central claim is that layout synthesis should not be one model call. AutoLayout first has a 'slow system' run a Reasoning-Reflection-Generation pipeline to turn the instruction and object list into a complete scene description, then has a 'fast system' translate that description into a discrete coordinate set and a topological relation set, and finally grounds the result through a genetic algorithm whose fitness function combines physical checks (collision-free and in-boundary) with semantic constraints drawn from an Adaptive Relation Library. Because the ARL's relation definitions, constraint functions, and validation functions are generated and repaired by an LLM, the system is claimed to avoid the rigidity of fixed rules. Three self-validation stages form a closed loop: inconsistent relations are filtered, missing objects re-injected, and failed relation validations are fed back to the LLM to adjust thresholds and regenerate code until the layout passes. The paper's headline empirical assertion is that this yields near-perfect physical plausibility and functional completeness while improving semantic consistency over two-stage baselines.

Load-bearing premise

The load-bearing premise is that physical plausibility is fully captured by axis-aligned bounding-box non-overlap, boundary containment, and the stacking-containment check defined in the appendix—and that the genetic algorithm optimizes exactly those quantities. If real physical validity needs more, such as stable support for irregular shapes or center-of-mass balance, the near-perfect physics scores may not transfer beyond the simulated metric.

Editorial extensions

If this is right

  • If the PSF numbers hold, AutoLayout tops every compared layout-generation baseline across all eight tabletop scenarios, with the largest gaps on dense or constrained tables.
  • The ablation results imply that the gains are structural: removing the adaptive library, scene description, self-validation, or discrete initialization each degrades PSF by roughly 2 to 12 points and increases the average sampling rounds needed to reach a valid layout.
  • 100% functional completeness means users get every requested object placed; the self-validation loop specifically re-injects omitted objects, a failure mode that drops 9.7% (LayoutGPT) to 36% (HOLODECK) of objects in baselines.
  • Because the Adaptive Relation Library replaces fixed rules with LLM-generated code, the pipeline is claimed to generalize beyond the eight benchmarked scenarios to new instruction styles and relation types without manual prompt engineering.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Because the genetic algorithm maximizes exactly the functions used to compute the reported physics scores, CF and IB largely measure optimizer convergence; the semantic scores (about 74% position, 73% alignment) are the comparatively honest ceiling and sit well below the near-perfect physics numbers.
  • A testable extension would put a rigid-body simulator inside the validation loop instead of axis-aligned bounding-box checks; since the closed-loop repair mechanism already exists, adding a physics-based validation function should correct layouts that are AABB-clean but gravitationally unstable.
  • The use of GPT-4o as the semantic judge means the reported semantic improvements are assessed by the same family of models that commits the spatial hallucinations under study; a stronger evaluation would score usability by a robot or by blinded human judges on functional criteria, of which the paper's own human study (0.95 dining, 0.875 office) is a partial instance.
  • The complexity study's zero scores for all baselines suggest the comparison is less about absolute quality than about robustness to instruction difficulty; one implication is that layout methods should be benchmarked with a graded instruction set (the paper's easy-to-expert split) rather than a single average.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 5 minor

Summary. The paper proposes AutoLayout, a closed-loop layout-synthesis system built on a slow-fast reasoning framework. A 'slow system' produces scene descriptions through a Reasoning-Reflection-Generation (RRG) pipeline, supported by an LLM-maintained Adaptive Relation Library (ARL). A 'fast system' turns these descriptions into discrete coordinates and topological relations, then refines them with a genetic algorithm, with three stages of self-validation. Experiments across 8 desktop scenarios compare AutoLayout with LayoutGPT, HOLODECK, and I-Design, reporting a PSF score of 91.7% versus 78.7% for the best baseline, near-perfect CF/IB/FC scores, ablations showing the contribution of each module, and a human evaluation in which all baselines score zero.

Significance. The system design is timely and, if the quantitative claims hold, would be a useful step toward reducing spatial hallucination in LLM-based layout generation. The paper's strengths include the explicit closed-loop validation mechanism, the ARL's ability to generate and repair constraint functions on the fly, and the unusually detailed prompt-level documentation in the appendix, which aids reproducibility. The ablation study in Table 4 also gives a clear picture of each component's role. However, the evaluation is weakened by circularity between the optimization objective and the reported metrics, a very small test set, and a human-evaluation table whose all-zero baseline scores are not adequately explained. These issues leave the magnitude of the claimed improvement not yet established.

major comments (5)
  1. [Abstract and Table 2] The abstract claims a 'significant 10.1% improvement over SOTA methods,' but Table 2's Average row reports AutoLayout PSF 91.7% versus best baseline LayoutGPT 78.7%, which is a 13.0-point absolute improvement and a 16.5% relative improvement. No calculation yielding 10.1% is shown anywhere in the manuscript. This is a material inconsistency because the headline number cannot be reproduced from the reported results; please either correct the abstract or state explicitly which aggregate and comparison the 10.1% refers to.
  2. [Section 4.1 and Appendix A.2] The CF, IB, and FC metrics are not independent evidence of quality. Algorithm 2 optimizes a fitness function that includes collision avoidance and containment, Section 3.4 uses a re-injection loop to force FC = 100%, and the PSF aggregate in Eq. (20) is a weighted combination of these same terms. In addition, the semantic Pos./Ali. scores are produced by GPT-4o, the same model family used to generate the scene descriptions and relations. Since the method is explicitly optimizing the reported metrics, the improvement over baselines partly reflects objective alignment rather than layout quality. Please provide evaluation that is not optimized by the method, such as held-out human judgment with a documented rubric, or physical-simulation validation.
  3. [Section 4.3.1 and Table 3] Table 3 reports exactly 0.0 for LayoutGPT, HOLODECK, and I-Design at every complexity level, including Easy cases with 1-3 objects, even though Table 2 shows these baselines achieving nonzero CF/IB in the same scenarios. The text explains this by citing 'cluttered centripetal placements and unnatural floating or partial overlapping,' but it provides no rubric, no number of raters, no inter-rater agreement, and no example prompts or scored responses. Because this human evaluation is the only evidence for aesthetic quality that goes beyond the already-optimized metrics, the protocol must be fully specified; without that, the all-zero baseline scores look like a scoring artifact rather than a meaningful comparison.
  4. [Section 4.1 and Table 2] The quantitative study consists of 8 scenarios with 3 object lists each, i.e., about 24 generation cases, and Table 2 reports averaged percentages without error bars, confidence intervals, or statistical tests. The per-scenario variation is large, for example AutoLayout Pos. ranges from 61.7 to 81.3 across scenarios. The claim that AutoLayout improves PSF by 13.0-22.6 points over baselines is therefore not statistically established. Please report per-case raw scores, distributions, and significance tests, or at least confidence intervals.
  5. [Appendix A.2.1 and A.2.2] Physical plausibility is defined exclusively through axis-aligned bounding-box IoU (with threshold tau=0.01) and containment checks. This cannot verify real stability for complex shapes or stacking relations; for example, an object resting on a narrow edge or tilted on another object can satisfy the AABB checks while being physically implausible. The claims in Section 4.2 about 'physical realism' and in Section 4.3 about 'realistic stacking' therefore go beyond what the metrics measure. Either adopt a stronger geometric or physics-based validation, or restrict the claims to the simulated AABB-level notion of physical plausibility.
minor comments (5)
  1. [Throughout] The term 'Dinning Table' appears in Table 2 and Figure 3; it should be 'Dining Table.'
  2. [Section 4.4] The sentence 'Finally, skipping the discrete initialization step (w/o C left the system unable to detect obvious geometric contradictions' is missing a closing parenthesis and a verb; please rephrase for clarity.
  3. [Appendix C.2] The text contains the typo 'pancils' instead of 'pencils,' and Table 5 lists 'GPT-o4-mini,' which is presumably 'GPT-4o-mini' or another intended model name.
  4. [Section 4.2] HOLODECK is referred to as 'the two-stage holographic deck'; please use the correct method name Holodeck.
  5. [Appendix A.2.3] The semantic evaluation uses GPT-4o as a judge, but no prompt template or scoring scale is provided for the Pos. and Ali. scores; please include the exact evaluation prompt so the numbers can be reproduced.

Circularity Check

3 steps flagged · score 6.0 of 10

FC=100% is enforced by re-injection, CF/IB are the GA's own fitness objective, and GPT-4o scores constraints that GPT-4o itself generated; the central PSF claim is substantially self-referential.

  1. self definitional [Algorithm 1 (lines 7-10); Section 4.2 'Functional Completeness'; Appendix A.2.4]
    "k ← Select index where validity is False ▷ Functionally Incomplete ... C, R ←Update(C, R, Oi) [Algorithm 1]; 'The integrated self-validation loop explicitly checks for missing objects after each filtering or optimization pass, triggering re-injection and relocation until full coverage is achieved without manual intervention.' [Section 4.2]"

    FC is defined in A.2.4 as the fraction of instruction-listed objects that appear in the layout. Algorithm 1 explicitly selects indices where validity is False (commented 'Functionally Incomplete') and calls Update until the layout is complete, and Section 4.2 states that the loop triggers 're-injection and relocation until full coverage is achieved.' Therefore AutoLayout's reported FC=100% is a termination condition of the algorithm, not an empirically measured outcome. Claiming 'places every requested object in every scenario' is equivalent to asserting that the re-injection loop runs to completion; the metric is satisfied by definition.

  2. fitted input called prediction [Section 3.3 (fine-grained grounding fitness); Section 4.2 'Physical Plausibility'; Appendix A.2.1-A.2.2]
    "A genetic algorithm with 2,000 individuals and 100 generations is employed to search for the optimal solution. The fitness function comprises two components:Physical feasibility: ensuring collision-free placement and stability. Semantic consistency: evaluated by invoking constraint functions from the ARL for each relation."

    CF and IB are computed from axis-aligned bounding-box overlap and table-containment violations. The Stage-2 optimizer's fitness explicitly includes 'Physical feasibility: ensuring collision-free placement and stability,' so the GA directly maximizes the same quantities later reported as CF and IB. The closed-loop validation further rejects or repairs layouts until validation functions return positive results. Reporting near-perfect CF/IB is therefore reporting the value of the objective being optimized, not an independent check of physical plausibility. The comparison to baselines that do not optimize this exact objective is meaningful but is a matched-filter comparison; the headline physical-plausibility gain is partly by construction.

1 more flagged steps
  1. other [Section 3.1 and 3.4 (ARL and self-validation); Section 4.1; Appendix A.2.3]
    "'Semantic consistency uses GPT-4o as the evaluator to determine whether the generated 3D layouts align with the input language instructions' [Section 4.1]; 'When validation failure is detected, the current layout C and the failed relation r are fed back to the large model. The model then adjusts the parameters of the constraint function associated with r ... until all validation functions return positive results.' [Section 3.4]; 'Similar to AutoVLM,we employ GPT4o as an evaluator to score the generated layouts.' [A.2.3]"

    The Pos./Ali. semantic scores are produced by GPT-4o, the same model family that generates the scene descriptions, the ARL relation definitions, the constraint functions, and the validation functions. The self-validation loop runs until all GPT-4o-generated validation functions return positive results, and then GPT-4o evaluates the rendered layout. Thus the reported semantic-consistency number measures whether GPT-4o's own generated constraints are satisfied and whether GPT-4o's evaluator approves the result. This is a self-evaluation loop rather than an external semantic ground truth; the 'semantic consistency' being reported is, by construction, GPT-4o's self-agreement.

full rationale

The central PSF score is substantially self-referential. The FC component is fully by construction: Algorithm 1 re-injects missing objects and Section 4.2 explicitly says the loop runs 'until full coverage is achieved,' so FC=100% restates the algorithm's termination condition. The CF/IB components are the genetic algorithm's own fitness objective ('ensuring collision-free placement and stability'), so near-perfect physical scores are the value of the optimized objective, not an independent physical-validation result. The semantic component is scored by GPT-4o, the same model that wrote the relation definitions, constraint functions, and validation functions, creating a self-evaluation loop. Independent content exists—human evaluation in Table 3, case studies, and ablations—so the score is not 8 or higher. Non-circular correctness risks are noted separately: the abstract's 10.1% improvement is not reproducible from Table 2's 13.0-point PSF gain, and Table 3's all-zero baseline scores lack rubric and rater-agreement details; these are validity concerns, not circularity, and do not affect the score.

Assumptions & free parameters 7 free parameters · 5 assumptions · 0 invented entities

The central results rest on hand-set engineering parameters and domain assumptions that physical validity is fully captured by AABB collision and containment metrics, and that LLM-generated constraints and evaluations are trustworthy. These are reasonable starting points but are not validated with independent data.

free parameters (7)
  • PSF metric weights = 0.4 for physics, 0.3 for semantics, 0.3 for functional completeness
    Hand-chosen aggregate weights in Eq. (20); no sensitivity analysis, and the headline improvement depends on this weighting.
  • IoU collision threshold tau = 0.01
    Sets the boundary between collision and non-collision in CF (Appendix A.2.1, Eq. 8); also used indirectly in optimization.
  • Genetic algorithm population size = 2000 individuals
    Hand-set in Section 3.3; no tuning analysis.
  • Genetic algorithm generations = 100 generations
    Hand-set in Section 3.3; early termination occurs if a full score is reached.
  • Mutation ratio = 0.3
    Mentioned in Algorithm 2; hand-set with no ablation over this value.
  • Max sampling rounds = 5
    Defines when a layout is considered unsolvable (Section 4.4 note); affects convergence and efficiency claims.
  • Table pixel plane mapping = 600x300 pixels
    Discretization scale for coordinate encoding in Section 3.3; hand-set.
assumptions (5)
  • domain assumption AABB IoU is a valid measure of physical collisions and is sufficient for layout physical plausibility.
    Used to define CF in Appendix A.2.1 and as a fitness objective in Algorithm 2; complex shapes and rotational stability are not modeled.
  • domain assumption In-boundary and stacking containment checks capture physical stability.
    Defines IB in Appendix A.2.2; no physics simulation or support analysis is used.
  • domain assumption LLM-generated constraint and validation functions are correct and comprehensive for the spatial relations that matter.
    The ARL relies on GPT-4o to write Python code and to repair it if it errors (Sections 3.1 and 3.3); no formal verification is provided.
  • domain assumption GPT-4o evaluation of rendered images is a valid proxy for semantic consistency and alignment.
    Pos. and Ali. metrics are produced by GPT-4o (Appendix A.2.3), which is the same model family used to generate the layouts.
  • domain assumption The instruction and object list fully determine the intended layout, with no hidden user preferences.
    All test cases are derived from object lists and short instructions (Appendix A.1); ambiguity is not modeled.

how reviews work

0 comments
Cite this review

Pith. "Pith review of AutoLayout: Closed-Loop Layout Synthesis via Slow-Fast Collaborative Reasoning." pith.science (2026). https://pith.science/paper/OPHSSHAO

@misc{pith2026250704293,
  author       = {Pith},
  title        = {Pith review of: AutoLayout: Closed-Loop Layout Synthesis via Slow-Fast Collaborative Reasoning},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/OPHSSHAO}},
  note         = {Machine review of arXiv:2507.04293}
}
read the original abstract

The automated generation of layouts is vital for embodied intelligence and autonomous systems, supporting applications from virtual environment construction to home robot deployment. Current approaches, however, suffer from spatial hallucination and struggle with balancing semantic fidelity and physical plausibility, often producing layouts with deficits such as floating or overlapping objects and misaligned stacking relation. In this paper, we propose AutoLayout, a fully automated method that integrates a closed-loop self-validation process within a dual-system framework. Specifically, a slow system harnesses detailed reasoning with a Reasoning-Reflection-Generation (RRG) pipeline to extract object attributes and spatial constraints. Then, a fast system generates discrete coordinate sets and a topological relation set that are jointly validated. To mitigate the limitations of handcrafted rules, we further introduce an LLM-based Adaptive Relation Library (ARL) for generating and evaluating layouts. Through the implementation of Slow-Fast Collaborative Reasoning, the AutoLayout efficiently generates layouts after thorough deliberation, effectively mitigating spatial hallucination. Its self-validation mechanism establishes a closed-loop process that iteratively corrects potential errors, achieving a balance between physical stability and semantic consistency. The effectiveness of AutoLayout was validated across 8 distinct scenarios, where it demonstrated a significant 10.1% improvement over SOTA methods in terms of physical plausibility, semantic consistency, and functional completeness.

Figures

Figures reproduced from arXiv: 2507.04293 by the authors.

Figure 1
Figure 1. In the task of generating table layouts, (a-b) directly infer the layouts using the GPT-4o and [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

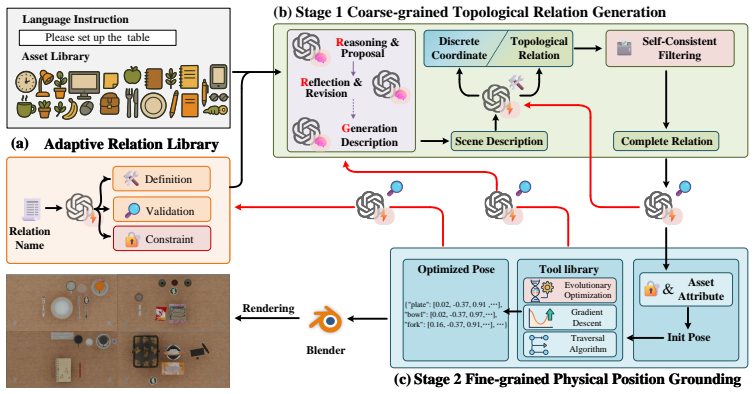

Figure 2. The system is driven collaboratively by two subsystems operating at different “thinking [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Visualizations of two examples with specified requirements requiring stacking [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figures from the paper (1 more)
Figure 4
Figure 4. Figure 4: Visualization of the four desktop setup layouts [PITH_FULL_IMAGE:figures/full_fig_p014_4.png]
