The Right Measure for Physics-Constrained Generation: A Co-Area Correction for Posterior-Consistent PDE Inverse Problems

Jian Xu , Yanning Wu , Delu Zeng , John Paisley , Qibin Zhao This is my paper

Pith reviewed 2026-06-28 07:07 UTC · model grok-4.3

classification 💻 cs.LG
keywords PDE inverse problemsgenerative modelsco-area formulaposterior samplingdiffusion modelsphysics constrained generationBorel-Kolmogorov paradox
0
0 comments X

The pith

Conditioning generative models on hard PDE constraints samples the wrong posterior unless a co-area Jacobian factor is included.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Generative models for PDE inverse problems enforce physics via projection or guidance and treat the results as calibrated posteriors. The paper shows that conditioning on a measure-zero manifold is ambiguous, and the correct physical resolution in the small-residual limit includes an omitted co-area Jacobian factor that grows with sensitivity heterogeneity. Without the factor, posterior error reaches 20 times the sampling-noise floor. The introduced CoCoS sampler targets the corrected distribution and recovers the i.i.d. ground-truth posterior within noise.

Core claim

Conditioning a generative prior on a hard PDE constraint is conditioning on a measure-zero manifold whose physically correct resolution in the small-residual-noise limit carries the co-area Jacobian factor [det(JJ^T)]^{-1/2}; projection- and guidance-based methods omit this factor, inflating posterior error to 20 times the sampling-noise floor, while minimal-displacement projection is biased at 9 times the floor and naive reweighting does not correct it; CoCoS targets the co-area posterior and matches the gold-standard i.i.d. arbiter to within sampling noise.

What carries the argument

The co-area (Fixman) Jacobian factor [det(JJ^T)]^{-1/2} that resolves the Borel-Kolmogorov paradox when conditioning a generative prior on the PDE manifold.

If this is right

  • Projection- and guidance-based methods omit the Jacobian factor and produce biased posteriors.
  • The bias inflates posterior error to 20 times the sampling-noise floor.
  • Minimal-displacement projection is biased at 9 times the sampling-noise floor.
  • CoCoS targets the correct co-area posterior and matches the i.i.d. ground-truth arbiter within sampling noise.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The result implies that manifold geometry must be explicitly accounted for in uncertainty quantification for physics-constrained generative models.
  • Similar Jacobian corrections may apply to other equality-constrained sampling problems in optimization and statistics.
  • Estimating the Jacobian in high dimensions could limit practical adoption of the corrected sampler.

Load-bearing premise

The small-residual-noise limit is the appropriate physical resolution of the Borel-Kolmogorov paradox for PDE-constrained inverse problems, and the i.i.d. ground-truth arbiter correctly represents the target posterior.

What would settle it

On a controlled PDE problem, compare posterior samples from CoCoS, standard projection, and guidance against an independent i.i.d. ground-truth sampler and check whether only CoCoS stays within sampling noise while others reach 20 times that floor.

Figures

Figures reproduced from arXiv: 2606.04804 by Delu Zeng, Jian Xu, John Paisley, Qibin Zhao, Yanning Wu.

Figure 1
Figure 1. Figure 1: The measure problem, and CoCoS fixes it. (a) Conditioning a prior (gray cloud) on the hard-constraint manifold M yields a posterior whose uncertainty (red band) varies along M: tight where the constraint is sensitive (steep) and broad where it is flat—the co-area weighting [det(JJ⊤)]−1/2 . (b) Resulting density on M in a controlled 2D example (constraint y=f(x)): CoCoS (green) recovers the true posterior (… view at source ↗
Figure 2

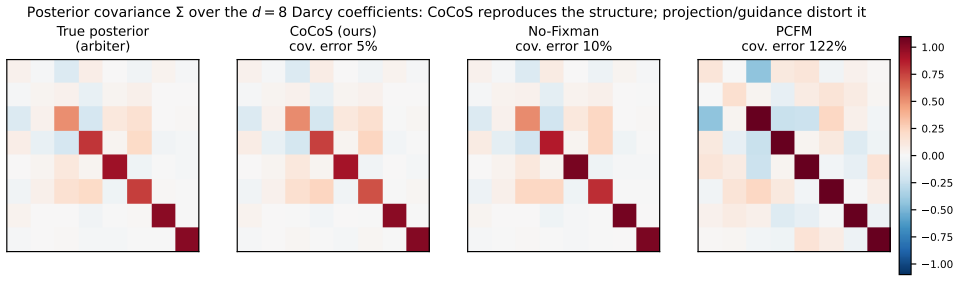

Figure 2. Figure 2: Posterior covariance Σ over the d=8 Darcy coefficients (shared colour scale). CoCoS reproduces the arbiter’s covariance structure (Frobenius error 5%); no-Fixman is close (10%); minimal-displacement projection (PCFM) distorts it badly (122%), manufacturing spurious correlations and inflated variances. The bias is a covariance-level error, not just a marginal one [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The bias is a uncertainty-quantification error. On the d=8 Darcy problem (3-instance mean): (a) relative error of the reported posterior standard deviation—CoCoS 1% vs. PCFM 96%; (b) W1 to the true posterior in units of the sampling-noise floor. Across paradigms (projection, guidance, soft penalty), enforcing the constraint without the co-area term inflates both the distance to the posterior and the error … view at source ↗
Figure 4

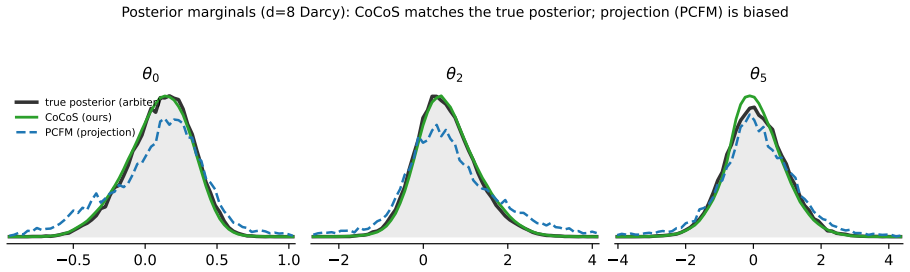

Figure 4. Figure 4: Posterior marginals (d=8 Darcy). Three representative coordinates. CoCoS (green) matches the i.i.d. arbiter (shaded); minimal-displacement projection (PCFM, dashed) misplaces mass—over-dispersed tails and a depleted mode—i.e. a miscalibrated posterior, not a cosmetic shift. (a) log-permeability log (x) (b) pressure u(x) + sensors (c) sensor sensitivity i | i| 2 0 2 top likelihood-informed coordinate (d) po… view at source ↗
Figure 5

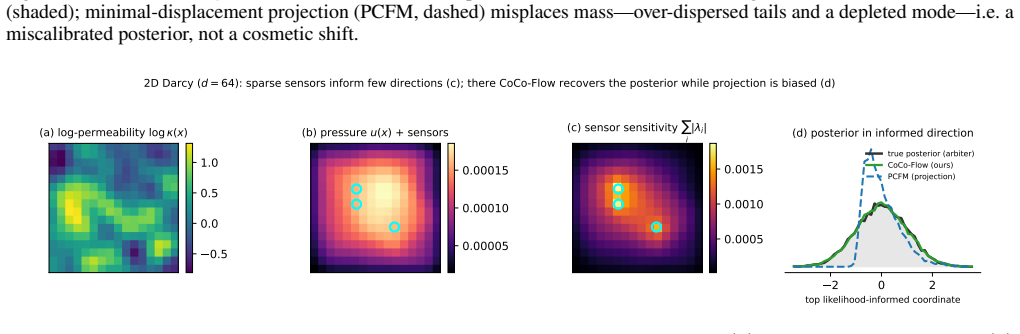

Figure 5. Figure 5: 2D Darcy inverse problem (d=64). (a) a sample log-permeability field log κ(x); (b) the pressure solution u(x) with the m=3 sparse sensors (cyan); (c) the observation-sensitivity field P i |λi | (adjoint states): the sensors inform only their neighbourhoods, so most of the field is prior-dominated. (d) In the resulting likelihood-informed direction, the amortized CoCo-Flow (green) recovers the true posterio… view at source ↗
Figure 6

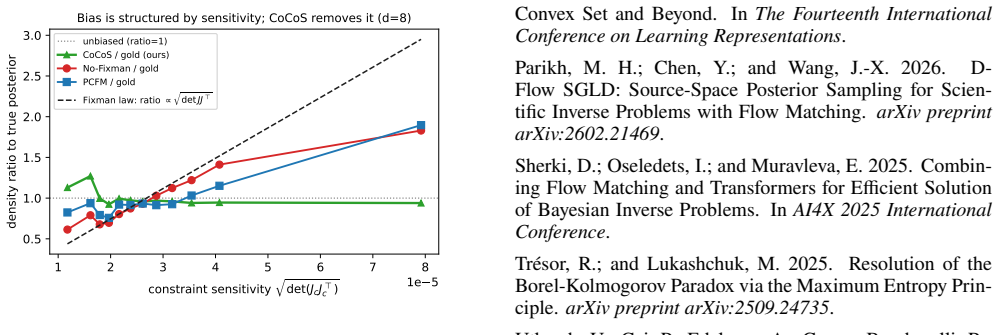

Figure 6. Figure 6: The bias is the missing co-area Jacobian— and CoCoS removes it. Empirical density ratio to the true posterior vs. constraint sensitivity p det(JJ⊤) (d=8). The no-Fixman (Hausdorff) sampler and PCFM both over￾represent high-sensitivity regions exactly along the predicted ∝ p det(JJ⊤) law (dashed), while CoCoS (green) lies flat on the unbiased line (ratio 0.92–1.27 vs. 0.6–1.9 for the others)—the bias is rec… view at source ↗
read the original abstract

Generative models -- diffusion and flow matching -- are increasingly used to solve partial differential equation (PDE) inverse problems, enforcing the governing physics as a \emph{hard constraint} (via projection or guidance) and reporting the resulting samples as a Bayesian posterior with calibrated uncertainty. We show that this widely adopted recipe samples the wrong distribution. Conditioning a generative prior on a hard PDE constraint is conditioning on a measure-zero manifold -- an operation that is intrinsically ambiguous (the Borel--Kolmogorov paradox) and whose physically correct resolution, the small-residual-noise limit, carries a co-area (Fixman) Jacobian factor $[det(JJ^{\top})]^{-1/2}$ that projection- and guidance-based methods silently omit. We make the bias precise, show that it grows with the heterogeneity of the constraint sensitivity, and validate it on controlled problems against an \emph{i.i.d.} ground-truth arbiter. The omitted factor is not a second-order detail: removing it inflates the posterior error to $20\times$ the sampling-noise floor; minimal-displacement projection (as in PCFM) is biased at $9\times$ the floor; and a naive scalar reweighting does not fix it. We introduce \textbf{CoCoS}, a measure-aware constrained sampler that targets the correct co-area posterior, and show that it matches the gold-standard posterior to within sampling noise. Our results imply that ``satisfying the physics'' is not the same as ``sampling the posterior,'' and give a principled correction for uncertainty-aware scientific inference.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript claims that conditioning generative models on hard PDE constraints via projection or guidance samples from an incorrect posterior distribution due to the Borel-Kolmogorov paradox. The physically appropriate resolution in the small-residual-noise limit requires a co-area Jacobian factor [det(JJ^T)]^{-1/2} that is omitted by existing methods, leading to posterior error inflated by up to 20x the sampling-noise floor (and 9x for minimal-displacement projection). The paper validates this bias against an i.i.d. ground-truth arbiter on controlled problems and introduces the CoCoS sampler to target the corrected co-area posterior.

Significance. If the small-residual-noise limit is the appropriate physical resolution, the work identifies a fundamental and previously overlooked source of bias in physics-constrained generative sampling for PDE inverse problems, with direct implications for calibrated uncertainty in scientific inference. Strengths include the concrete error multiples reported from validation against an i.i.d. arbiter and the introduction of a measure-aware sampler (CoCoS) that matches the target posterior to within sampling noise. The result would be significant for the growing use of diffusion and flow-matching models in physics-constrained settings.

major comments (1)
  1. The choice of the small-residual-noise limit as the canonical resolution of the Borel-Kolmogorov paradox is load-bearing for the claim that the omitted co-area factor [det(JJ^T)]^{-1/2} produces 20x error inflation. The manuscript adopts this limit without deriving it from an underlying stochastic PDE model or measurement process, even though the paradox admits multiple resolutions depending on the limiting procedure (e.g., isotropic vs. anisotropic noise or different approximating sets). This justification gap must be addressed to establish that the Jacobian correction is required rather than one of several possible conditionings.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the thoughtful comment on the justification of the small-residual-noise limit. We address the point directly below and will revise the manuscript to close the identified gap.

read point-by-point responses

  1. Referee: The choice of the small-residual-noise limit as the canonical resolution of the Borel-Kolmogorov paradox is load-bearing for the claim that the omitted co-area factor [det(JJ^T)]^{-1/2} produces 20x error inflation. The manuscript adopts this limit without deriving it from an underlying stochastic PDE model or measurement process, even though the paradox admits multiple resolutions depending on the limiting procedure (e.g., isotropic vs. anisotropic noise or different approximating sets). This justification gap must be addressed to establish that the Jacobian correction is required rather than one of several possible conditionings.

    Authors: We agree that an explicit derivation from a stochastic measurement model would strengthen the paper. In the revised manuscript we will add a new subsection (in Section 2) that begins from the noisy observation model y = f(u) + ε η with isotropic Gaussian noise η and takes the limit ε → 0. Application of the co-area formula to the joint density shows that the conditional density on the manifold {f(u)=y} acquires exactly the factor [det(J J^T)]^{-1/2}. We will also briefly discuss alternative limiting procedures (anisotropic noise, different approximating sets) and explain why the isotropic small-residual-noise limit is the physically appropriate canonical choice for hard-constraint PDE inverse problems, as it corresponds to unbiased, high-precision measurements without additional directional assumptions. This revision directly addresses the justification gap while preserving the claim that the omitted factor produces the reported error inflation. revision: yes

Circularity Check

0 steps flagged

No circularity; central derivation rests on external co-area formula and Borel-Kolmogorov resolution

full rationale

The paper's argument invokes the co-area formula [det(JJ^T)]^{-1/2} and the small-residual-noise limit as the physically correct resolution of the Borel-Kolmogorov paradox for measure-zero PDE manifolds. These are standard external mathematical facts, not quantities defined in terms of the paper's own outputs or fitted from its validation data. The i.i.d. ground-truth arbiter is independent, and no equation or claim reduces by construction to a self-citation, ansatz smuggled from prior work, or renamed empirical pattern. The derivation therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the resolution of the Borel-Kolmogorov paradox via the small-residual-noise limit and on the validity of the co-area formula in this setting; no free parameters or new invented entities are described in the abstract.

axioms (1)
  • domain assumption The small-residual-noise limit supplies the physically correct resolution of the Borel-Kolmogorov paradox for hard PDE constraints.
    Invoked to justify the co-area Jacobian as the right measure.
invented entities (1)
  • CoCoS sampler no independent evidence
    purpose: Measure-aware constrained sampler that includes the co-area factor.
    New algorithmic contribution introduced to target the corrected posterior.

pith-pipeline@v0.9.1-grok · 5826 in / 1384 out tokens · 16331 ms · 2026-06-28T07:07:51.612711+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score.

  1. Constraint residuals, graph posteriors, and determinant-corrected full-space targets in Bayesian inverse problems

    math.ST 2026-06 unverdicted novelty 7.0

    Uncorrected Gaussian residual penalties in full-space sampling converge after marginalization to the graph-lifted reduced posterior multiplied by the inverse absolute determinant of the state Jacobian, requiring expli...
