Autoregressive Modelling and Synthetic Generation of High-Fidelity, Statistically Equivalent 3D Microstructures for As-Manufactured Misalignments in Fiber-Reinforced Composites

Mohamad A. Raja , Clemens Dransfeld , Boyang Chen This is my paper

Pith reviewed 2026-06-26 15:24 UTC · model grok-4.3

classification 💻 cs.CE
keywords fiber-reinforced composites3D microstructuresX-ray micro-CTautoregressive modellingsynthetic generationmisalignment profilesstatistical equivalenceBayesian calibration
0
0 comments X

The pith

A Bayesian-calibrated stochastic model with copula dependence and autoregressive continuity generates about 2400 statistically equivalent 3D fiber microstructures from X-ray CT data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an integrated framework that extracts per-fiber misalignment profiles from experimental X-ray micro-CT scans of fiber-reinforced composites. These profiles feed a stochastic model that combines copula-based capture of in-plane dependence with latent autoregressive continuity to describe how misalignments evolve slice by slice along fiber depth, plus handling of rare extreme motifs. Hyperparameters are tuned via Bayesian optimization to match the original distributions within 10 percent, after which an iterative physical generation routine seeds variable-radius fibers and grows them slice by slice using Delaunay neighborhoods and ellipse contact rules to avoid overlaps. A sympathetic reader would care because the resulting synthetic volumes are geometrically admissible and can directly serve as input for mechanical simulations, reducing reliance on repeated physical imaging for virtual testing.

Core claim

The integrated framework processes X-ray-μCT observations to extract per-slice and per-fiber in-plane and out-of-plane misalignment profiles along fiber depth, constructs a stochastic model that captures slice-wise distributions and depth-wise evolution through copula-based in-plane dependence, latent autoregressive continuity, and rare extreme-misalignment motifs, calibrates the model hyperparameters using Bayesian optimization to achieve close agreement with deviations generally below 10 percent, and couples the model to a physical generation strategy that begins with variable-radius fiber seeding and proceeds through iterative slice-by-slice 3D growth with Delaunay-based neighbourhood con

What carries the argument

The copula-based in-plane dependence combined with latent autoregressive continuity that models slice-wise misalignment distributions and their depth-wise evolution.

If this is right

  • The framework supplies a scalable route for producing simulation-ready fiber composite microstructures for virtual testing and analysis.
  • Generated microstructures remain non-overlapping and radius-augmented while matching the original statistical descriptors.
  • The pipeline supports creation of large numbers of synthetic fibers (approximately 2400 demonstrated) that preserve fidelity to experimental CT observations.
  • Bayesian optimization of the model hyperparameters yields close agreement with observed distributions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the calibrated model generalizes to new manufacturing conditions, the same pipeline could generate variant microstructures for parametric studies of how misalignment statistics influence composite performance.
  • The slice-by-slice growth scheme with contact resolution could be extended to incorporate additional geometric constraints such as fiber waviness observed in other imaging modalities.
  • Because the generation begins from a statistical layer rather than direct replication, the approach allows controlled variation of rare extreme-misalignment motifs to study their isolated effect on simulated mechanical response.

Load-bearing premise

The copula-based in-plane dependence and latent autoregressive continuity, after Bayesian calibration to the same CT dataset, sufficiently represent the true depth-wise evolution of misalignments without missing physical mechanisms or overfitting to the training statistics.

What would settle it

Extract misalignment statistics from a fresh, independent X-ray-μCT scan of comparable fiber-reinforced composite material and compare them to the statistics of microstructures generated by the calibrated model; systematic deviations exceeding 10 percent would falsify the claim of statistical equivalence.

Figures

Figures reproduced from arXiv: 2606.20117 by Boyang Chen, Clemens Dransfeld, Mohamad A. Raja.

Figure 1

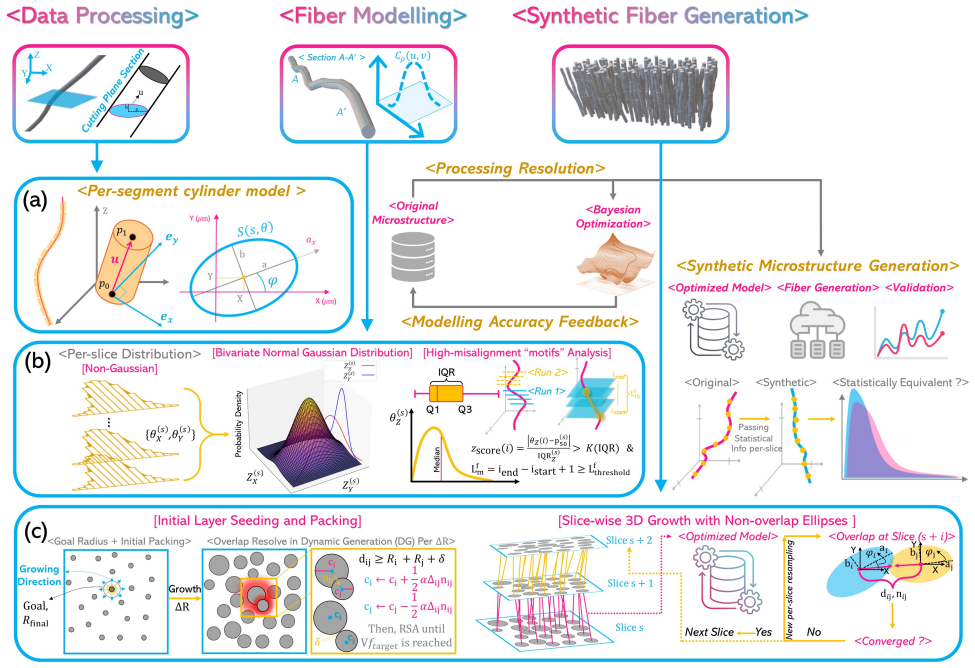

Figure 1. Figure 1: A schematic of the proposed pipeline illustrating the processing, modelling, and synthetic fiber-generation [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2

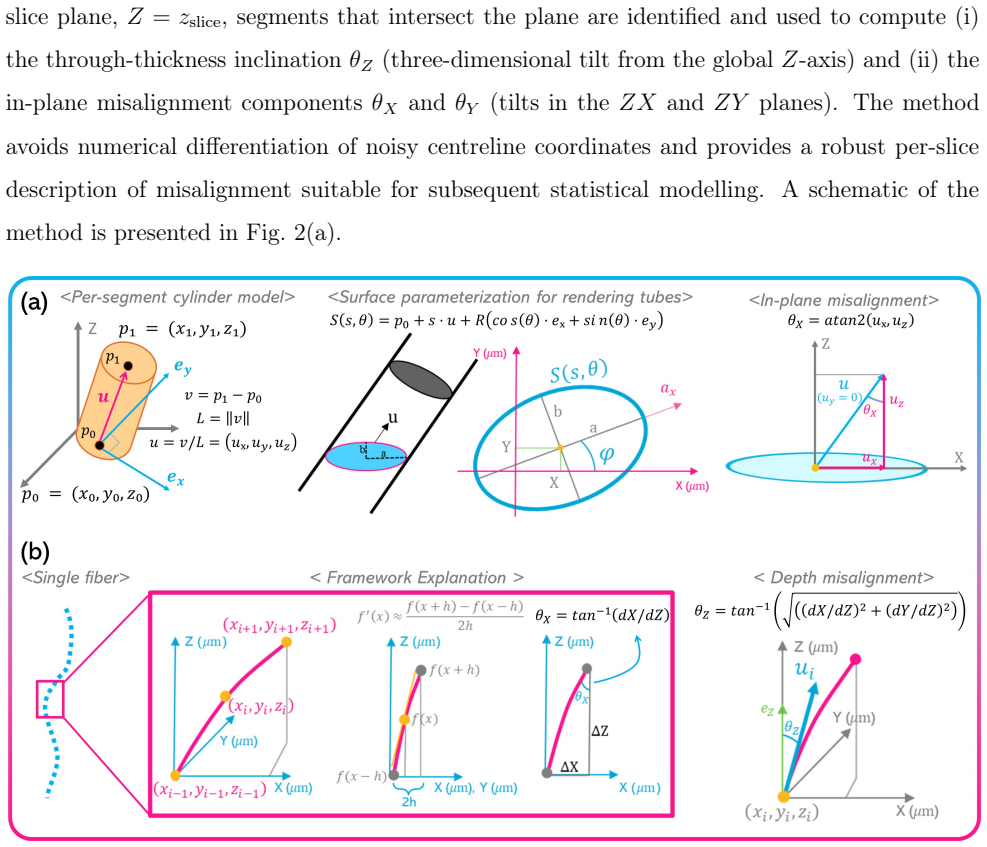

Figure 2. Figure 2: Fiber misalignment quantification in the depth and in-plane directions using (a) the ellipse–intersection [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3

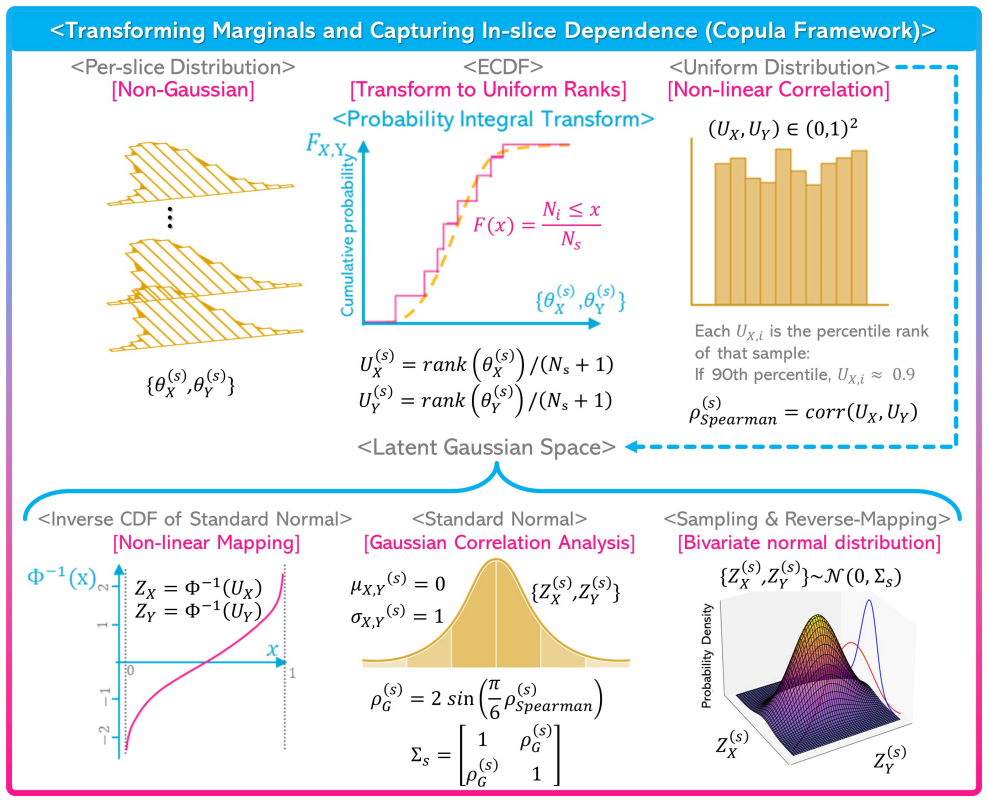

Figure 3. Figure 3: A schematic of the framework for marginals transformation and modelling the per-slice joint ( [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
Figure 4

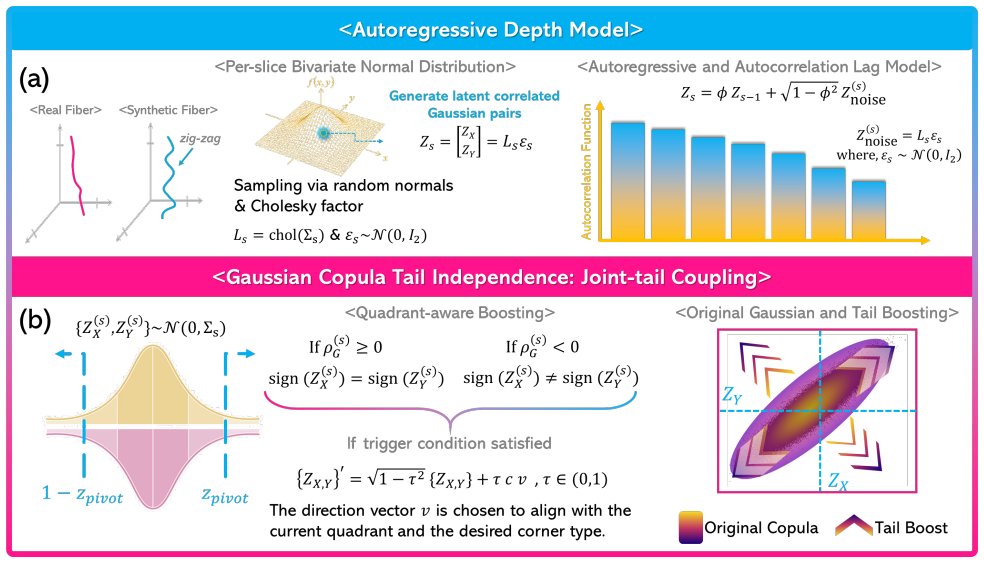

Figure 4. Figure 4: (a) A schematic of the autoregressive depth model. (b) Gaussian copula tail boosting for joint tail coupling [PITH_FULL_IMAGE:figures/full_fig_p015_4.png] view at source ↗
Figure 5

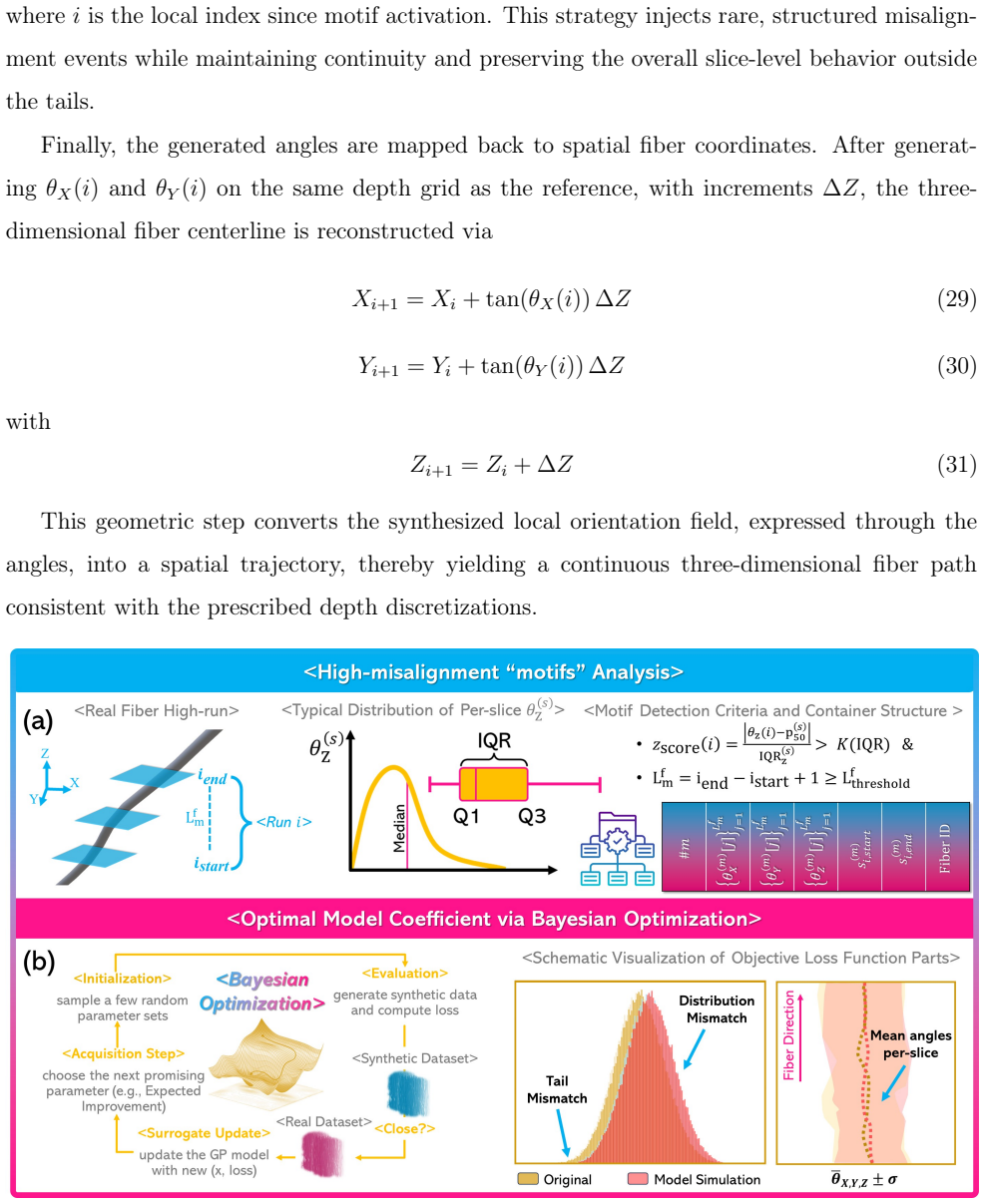

Figure 5. Figure 5: A schematic illustration of the (a) high-misalignment “motifs” analysis. (b) Bayesian optimization-based [PITH_FULL_IMAGE:figures/full_fig_p018_5.png] view at source ↗
Figure 6

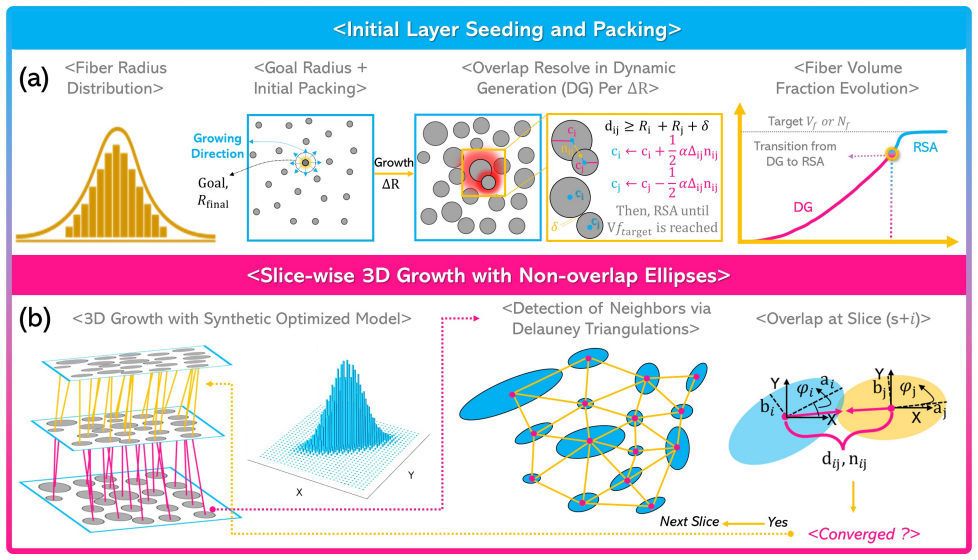

Figure 6. Figure 6: A schematic of the microstructure generation framework. (a) Initial layer microstructure generation. (b) [PITH_FULL_IMAGE:figures/full_fig_p025_6.png] view at source ↗
Figure 7

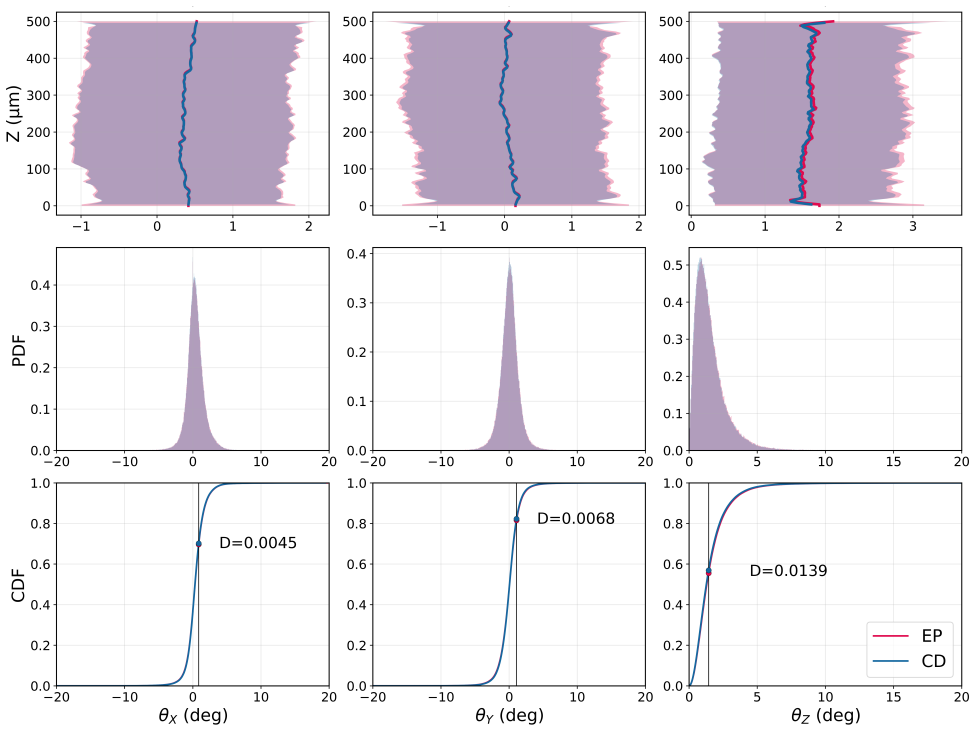

Figure 7. Figure 7: (a) Overlay of the aggregated mean ±σ versus depth for the ellipse-intersection method (EP, pink) and the central-difference method (CD, blue) for θX, θY , and θZ. (b) Overlaid aggregated misalignment distributions (PDFs) for θX, θY , and θZ obtained using the two methods. (c) Empirical CDF comparison for θX, θY , and θZ, highlighting the maximum Kolmogorov–Smirnov (KS) separation between EP and CD. 3.2. S… view at source ↗
Figure 8

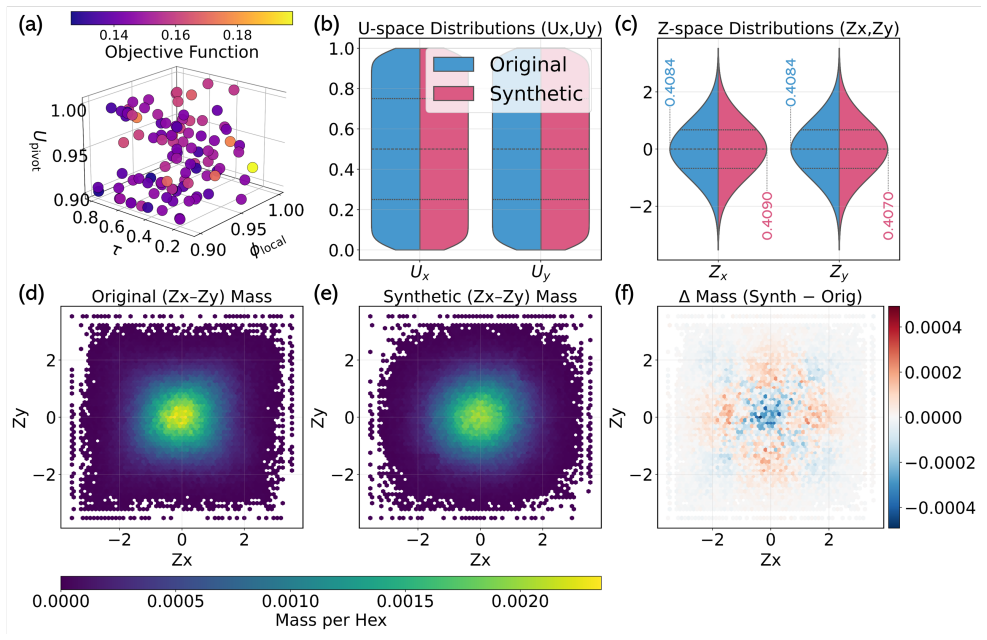

Figure 8. Figure 8: Bayesian optimization (BO) calibration and distributional validation of the misalignment generative [PITH_FULL_IMAGE:figures/full_fig_p033_8.png] view at source ↗
Figure 9

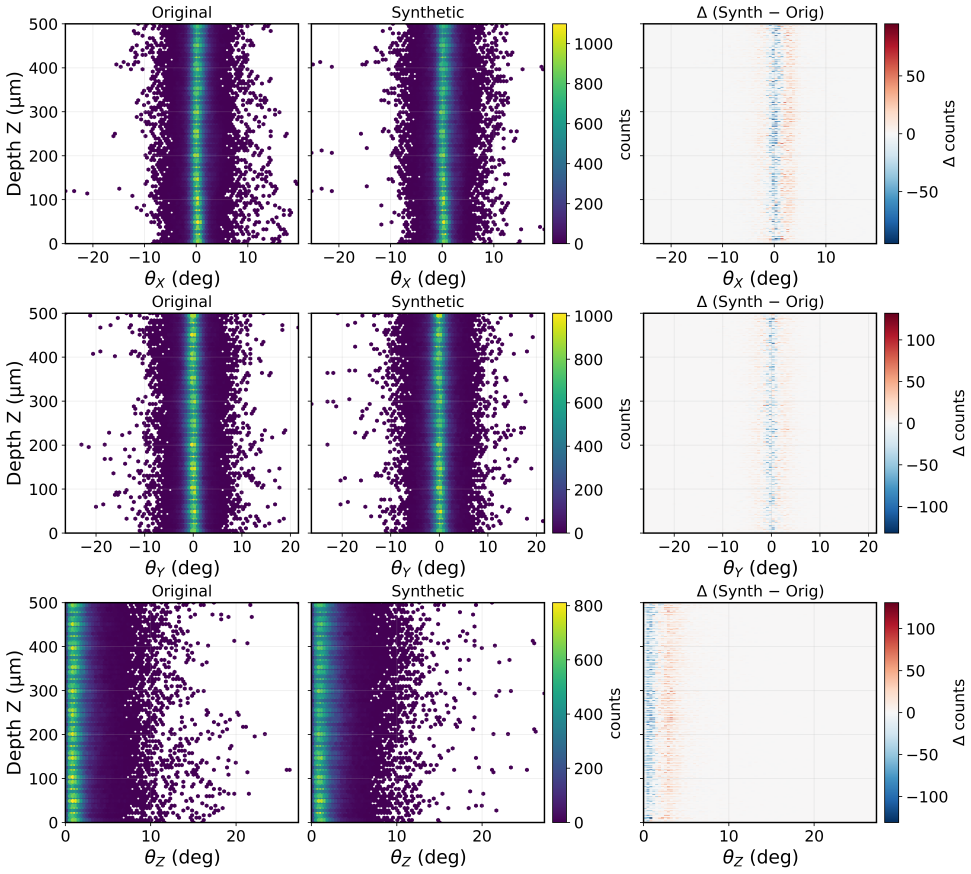

Figure 9. Figure 9: Depth-resolved hexbin density maps of the per-slice misalignment angles, highlighting agreement in [PITH_FULL_IMAGE:figures/full_fig_p035_9.png] view at source ↗
Figure 10

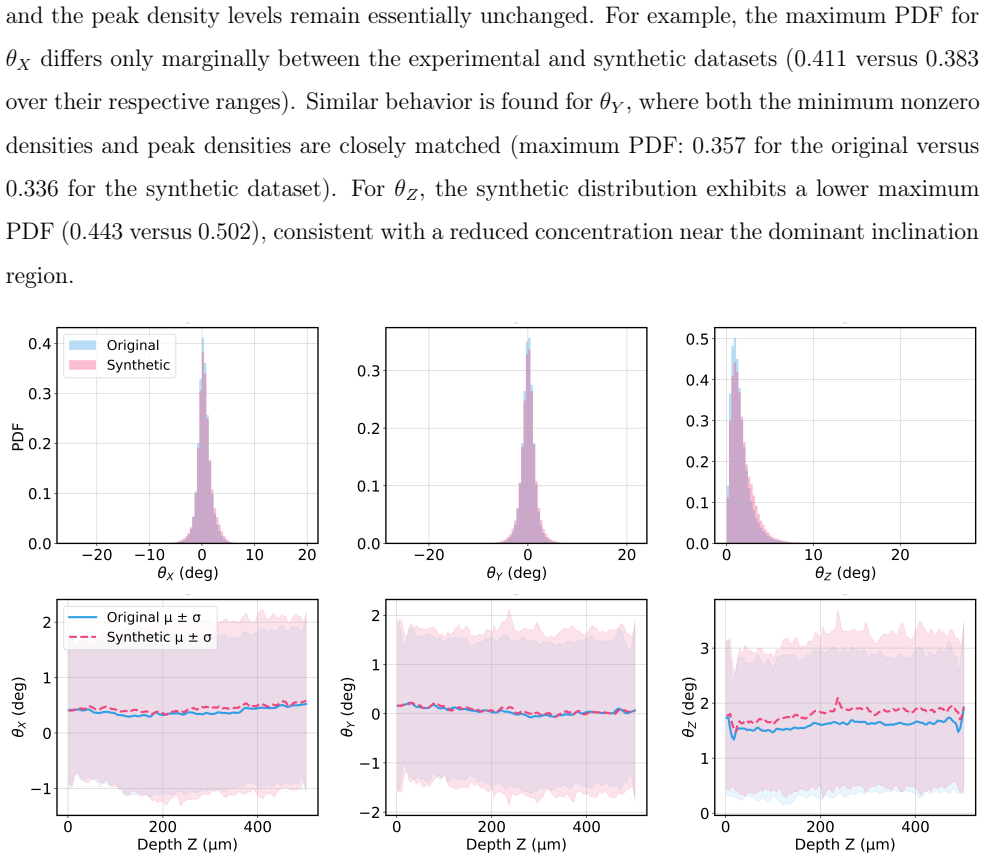

Figure 10. Figure 10: Global and depth-resolved statistical comparison of the original and synthetic misalignment distributions: [PITH_FULL_IMAGE:figures/full_fig_p036_10.png] view at source ↗
Figure 11

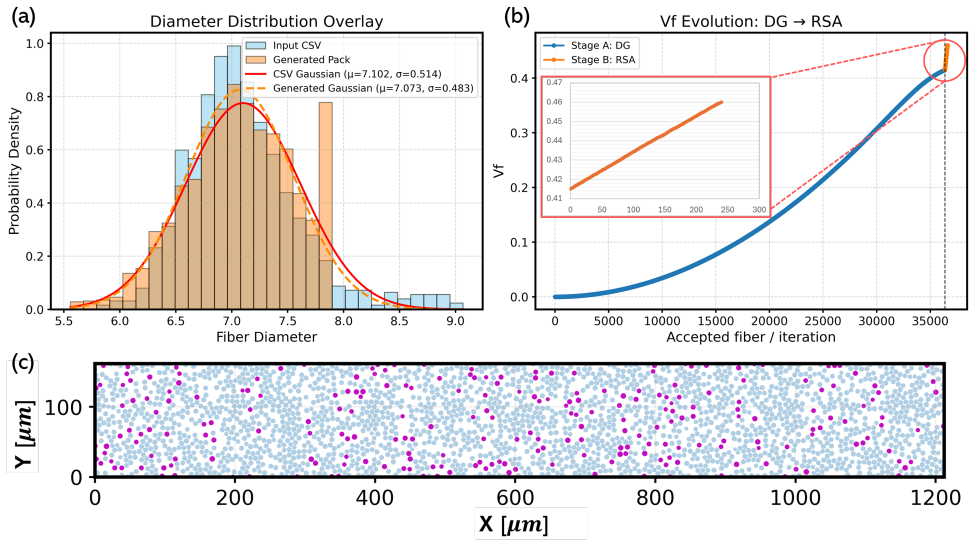

Figure 11. Figure 11: (a) Input and generated fiber-diameter distributions for the seed layer. (b) Fiber volume fraction [PITH_FULL_IMAGE:figures/full_fig_p038_11.png] view at source ↗
Figure 12

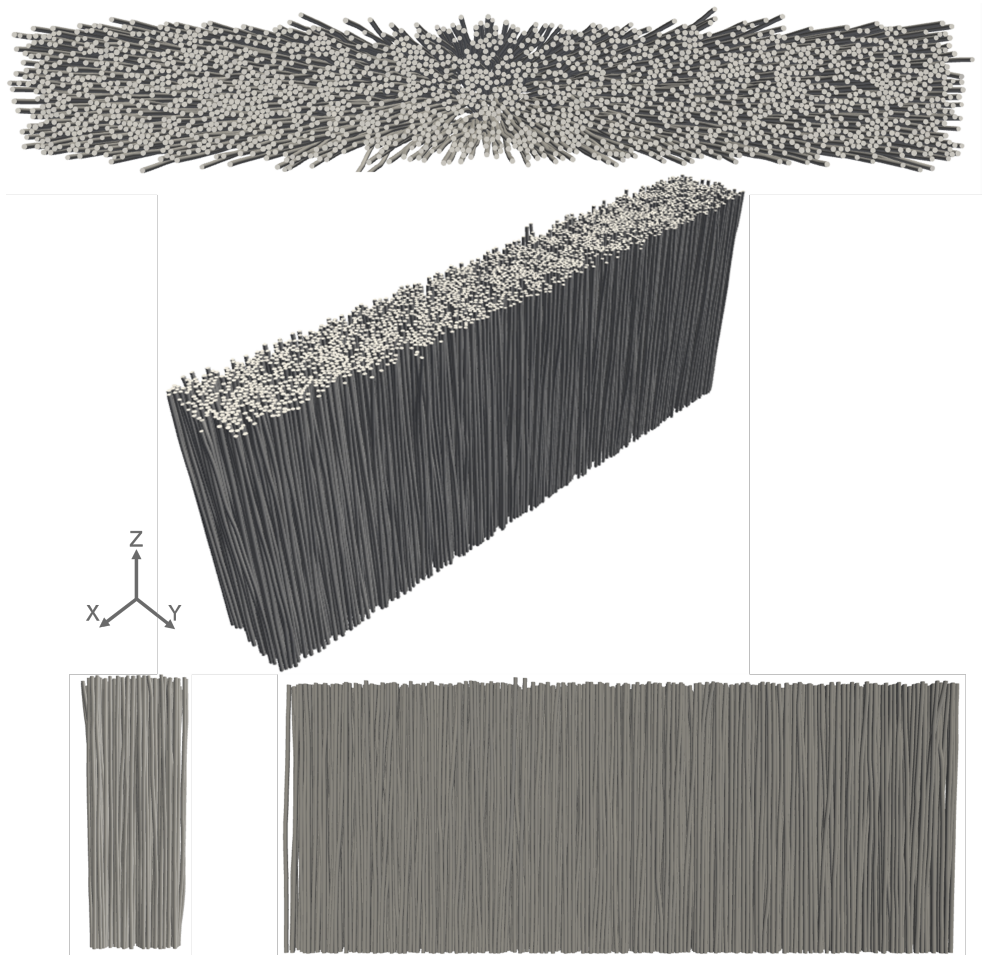

Figure 12. Figure 12: Final augmented synthetic microstructure generated by slice-by-slice 3D growth informed by the statis [PITH_FULL_IMAGE:figures/full_fig_p039_12.png] view at source ↗
read the original abstract

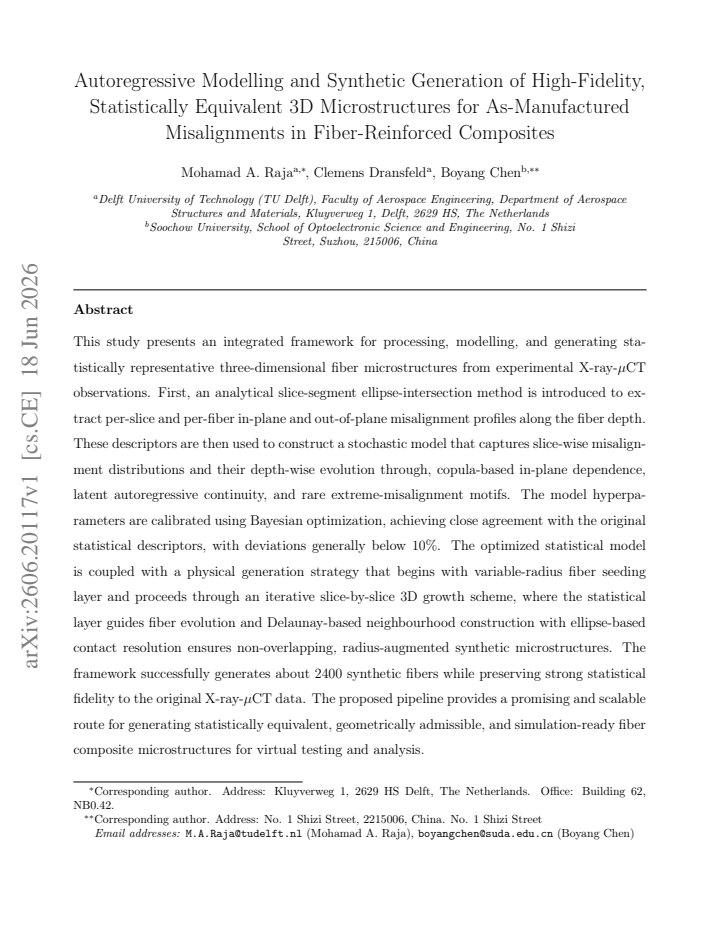

This study presents an integrated framework for processing, modelling, and generating statistically representative three-dimensional fiber microstructures from experimental X-ray-$\mu$CT observations. First, an analytical slice-segment ellipse-intersection method is introduced to extract per-slice and per-fiber in-plane and out-of-plane misalignment profiles along the fiber depth. These descriptors are then used to construct a stochastic model that captures slice-wise misalignment distributions and their depth-wise evolution through, copula-based in-plane dependence, latent autoregressive continuity, and rare extreme-misalignment motifs. The model hyperparameters are calibrated using Bayesian optimization, achieving close agreement with the original statistical descriptors, with deviations generally below 10\%. The optimized statistical model is coupled with a physical generation strategy that begins with variable-radius fiber seeding layer and proceeds through an iterative slice-by-slice 3D growth scheme, where the statistical layer guides fiber evolution and Delaunay-based neighbourhood construction with ellipse-based contact resolution ensures non-overlapping, radius-augmented synthetic microstructures. The framework successfully generates about 2400 synthetic fibers while preserving strong statistical fidelity to the original X-ray-$\mu$CT data. The proposed pipeline provides a promising and scalable route for generating statistically equivalent, geometrically admissible, and simulation-ready fiber composite microstructures for virtual testing and analysis.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper presents an integrated framework for extracting per-fiber misalignment profiles from X-ray μCT data of fiber-reinforced composites via an analytical ellipse-intersection method, constructing a stochastic model that combines slice-wise distributions, copula-based in-plane dependence, latent autoregressive continuity for depth-wise evolution, and rare extreme motifs, calibrating hyperparameters via Bayesian optimization to achieve <10% deviation from the original descriptors, and then generating ~2400 synthetic non-overlapping 3D microstructures through a variable-radius seeding and iterative slice-by-slice growth process with Delaunay neighborhood and ellipse contact resolution for use in virtual testing.

Significance. If the statistical equivalence claim holds under independent validation, the work would provide a scalable route to produce simulation-ready, geometrically admissible synthetic microstructures that match experimental statistics without direct imaging of every specimen, supporting larger-scale virtual testing of as-manufactured composites. The combination of data-driven statistical modeling with physical non-overlap constraints is a constructive contribution, though the current calibration workflow limits the strength of the equivalence evidence.

major comments (2)
  1. [Abstract] Abstract: The central claim of 'strong statistical fidelity' and 'statistically equivalent' microstructures rests on agreement (deviations generally below 10%) achieved after Bayesian optimization of model hyperparameters directly to the statistical descriptors extracted from the same μCT dataset. No independent test specimens, held-out validation sets, cross-validation procedure, or out-of-sample error metrics are described, so the reported fidelity is produced by the fitting process itself rather than an independent check; this is load-bearing for the equivalence assertion.
  2. [Abstract] Abstract and generation description: The latent autoregressive continuity and copula dependence are calibrated to reproduce the training statistics; without reported tests on whether these structures capture unmodeled manufacturing-induced spatial correlations or generalize to new specimens, it remains unclear whether the generated microstructures would preserve fidelity on metrics or physical mechanisms not used in calibration.
minor comments (1)
  1. [Abstract] The abstract states that ~2400 synthetic fibers are generated but provides no corresponding count or volume fraction for the original μCT dataset, making it difficult to assess the scale of the reproduction task.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback highlighting the validation aspects of our statistical equivalence claims. We respond to each major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim of 'strong statistical fidelity' and 'statistically equivalent' microstructures rests on agreement (deviations generally below 10%) achieved after Bayesian optimization of model hyperparameters directly to the statistical descriptors extracted from the same μCT dataset. No independent test specimens, held-out validation sets, cross-validation procedure, or out-of-sample error metrics are described, so the reported fidelity is produced by the fitting process itself rather than an independent check; this is load-bearing for the equivalence assertion.

    Authors: We agree that the reported agreement results from Bayesian optimization of hyperparameters to the statistical descriptors extracted from the single μCT dataset, without held-out validation sets, cross-validation, or out-of-sample metrics. The fidelity measure is therefore in-sample. The model structure draws on physical considerations of fiber continuity, yet this does not substitute for independent testing. In revision we will qualify the abstract language to describe the microstructures as 'statistically consistent with the calibration descriptors' and add a limitations paragraph clarifying the in-sample nature of the reported agreement. revision: yes

  2. Referee: [Abstract] Abstract and generation description: The latent autoregressive continuity and copula dependence are calibrated to reproduce the training statistics; without reported tests on whether these structures capture unmodeled manufacturing-induced spatial correlations or generalize to new specimens, it remains unclear whether the generated microstructures would preserve fidelity on metrics or physical mechanisms not used in calibration.

    Authors: The latent autoregressive and copula components are calibrated exclusively to the observed training statistics, and no explicit tests for unmodeled spatial correlations or generalization to new specimens are included. The slice-by-slice physical growth procedure enforces non-overlap constraints that lie outside the statistical calibration. We will revise the manuscript to state the intended scope of equivalence more precisely and to note that assessment of fidelity on additional metrics or independent specimens would require further experimental data. revision: yes

Circularity Check

1 steps flagged

Bayesian calibration of copula/autoregressive hyperparameters to the identical μCT descriptors makes reported <10% fidelity expected by construction

specific steps
  1. fitted input called prediction [Abstract]
    "These descriptors are then used to construct a stochastic model that captures slice-wise misalignment distributions and their depth-wise evolution through, copula-based in-plane dependence, latent autoregressive continuity, and rare extreme-misalignment motifs. The model hyperparameters are calibrated using Bayesian optimization, achieving close agreement with the original statistical descriptors, with deviations generally below 10%. ... The framework successfully generates about 2400 synthetic fibers while preserving strong statistical fidelity to the original X-ray-μCT data."

    Descriptors extracted from the μCT dataset are used both to build the model and to calibrate its hyperparameters via Bayesian optimization. The subsequent generation step is then evaluated against those exact same descriptors, so the reported close agreement is the direct output of the fitting process rather than an independent check or out-of-sample prediction.

full rationale

The paper extracts statistical descriptors from the μCT data, constructs the model using those descriptors, calibrates hyperparameters via Bayesian optimization to achieve close agreement with the same descriptors, and then reports the generated microstructures as preserving strong statistical fidelity (deviations generally below 10%). This directly matches the fitted_input_called_prediction pattern: the central fidelity claim reduces to in-sample reproduction after fitting rather than independent validation. No self-citation load-bearing, self-definitional, or other enumerated circular patterns are present in the quoted text. The generation procedure itself is described separately but the reported equivalence is forced by the calibration step.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim rests on fitted hyperparameters and standard statistical modeling assumptions drawn from the CT data; no new physical entities are postulated, but the fidelity claim depends on the data-driven calibration step.

free parameters (1)
  • model hyperparameters
    Calibrated using Bayesian optimization to match per-slice and depth-wise misalignment statistics from the experimental CT observations
axioms (2)
  • domain assumption Copula functions adequately capture the joint distribution of in-plane misalignment components within each slice
    Invoked when constructing the stochastic model for slice-wise misalignment distributions
  • domain assumption A latent autoregressive process sufficiently describes the continuity and evolution of misalignment profiles along fiber depth
    Used to model depth-wise changes including rare extreme misalignments
