Multi-Head Explainer: A General Framework to Improve Explainability in CNNs and Transformers

Bohang Sun; Pietro Li\`o

REVIEW 3 major objections 5 minor 23 references

Multi-Head Explainer: A General Framework to Improve Explainability in CNNs and Transformers

T0 review · 3 major / 5 minor · reviewed 2026-08-10 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A modular framework, the Multi-Head Explainer, claims to make CNNs and Transformers both more accurate and more interpretable by inserting attention-gated deep supervision into existing architectures.

desk verdict A well-written engineering paper whose explainability and accuracy claims are contradicted by its own tables and a circular evaluation metric. read the letter →

arxiv 2501.01311 v2 pith:RAGNCFNP submitted 2025-01-02 cs.CV cs.AI

Bohang Sun , Pietro Liò This is my paper · ORCID

classification cs.CVcs.AI

keywords Multi-HeadExplainersaliencymapsexplainableAIclassactivationdeepsupervisionattentiongateBERTexplainabilitymedicalimaging

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper claims that a single modular framework, the Multi-Head Explainer (MHEX), can be dropped into convolutional networks such as ResNet and transformer models such as BERT, and that it improves classification accuracy while generating saliency maps and scores that are more detailed and interpretable than standard methods like Grad-CAM, Layer-CAM, SHAP, and attention rollout. MHEX combines an attention gate, deep supervision, and an equivalent matrix that fuses local and global features, then uses non-negativity and salience sharpness to filter noisy channels. On ImageNet, MedMNIST, and AG News, the enhanced ResNet-18 and BERT versions match or exceed baselines at modest parameter cost, and their explanations resemble semantic segmentation maps in medical images. If the claim holds, clinical imaging and text applications could get more faithful explanations almost for free.

What carries the argument

The load-bearing object is the Equivalent Matrix $W_{\mathrm{equiv}}=W_2W_1$, which combines the two learned matrices of each MHEX block into a single class-to-feature map. The Attention Gate computes channel weights $g=\sigma(W_1\cdot \mathrm{GAP}(x+x_{\mathrm{global}}))$ to emphasize task-relevant features, Deep Supervision optimizes the equivalent matrix at multiple depths so shallow layers learn fine details, and the ReLU non-negativity constraint plus the salience-sharpness filter remove negative and class-unspecific channels before the CAM or token scores are computed. For images the final CAM aggregates layer-wise maps with weight $\alpha_l$; for text the saliency score sums contributions from the first three layers to avoid over-smoothing. The quantitative comparison also depends on the EAD metric, whose area weighting $f(x)=5x/(1+256x^5)$ peaks when the saliency map covers 25 percent of the image.

What would settle it

A direct test: on a dataset with small ground-truth objects, compute EAD for MHEX and for a method that perfectly outlines the object. If the perfect-outline method scores worse purely because the map covers less than 25 percent of the image, then EAD, and the quantitative explainability advantage built on it, fails.

Watch

Extended reading notes

Core claim

MHEX's central claim is that a single, modular scaffold can improve both classification accuracy and explanation quality in CNNs and Transformers at the same time. The scaffold consists of an Attention Gate that reweights feature channels by local and global context, Deep Supervision that trains early layers with the classification objective, and an Equivalent Matrix $W_{\mathrm{equiv}}=W_2W_1$ that maps activated features to class scores. After fine-tuning, the extra prediction heads can be discarded, leaving the original network intact while the learned matrix still supports detailed saliency maps for images or token saliency scores for text. The paper evaluates this claim on ImageNet1k, four MedMNIST biomedical datasets, and AG News, reporting that MHEX-Net matches or exceeds ResNet-18 baselines and that its saliency maps resemble semantic segmentation, whereas Grad-CAM, SHAP, and Layer-CAM produce coarser or more fragmented highlights.

Load-bearing premise

The quantitative case that MHEX explains better than other methods rests on the EAD metric, whose weighting function assumes a good saliency map covers about 25 percent of the input image; if compact explanations are legitimate, the comparison does not hold.

Editorial extensions

If this is right

If the accuracy gains replicate, MHEX gives a low-cost way to attach explainability to existing ResNet and BERT models, adding only $1920 \times n_{\mathrm{classes}} + 0.69$M parameters to ResNet-18.
Because the MHEX prediction heads can be removed after fine-tuning, the original model architecture and inference cost are largely preserved while the learned equivalent matrix still provides explanations.
On medical imaging, MHEX saliency maps approach semantic segmentation, so they could serve as a coarse localizer of pathological regions without training a separate segmentation network.
If EAD becomes a standard metric, explainability methods will be pressured to emit maps covering about a quarter of the image rather than small or scattered regions.
For text, the three-layer saliency aggregation means MHEX-BERT avoids the uniform attention that plagues deep transformers, keeping explanations informative.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

The paper's AG News comparison shows SHAP achieves a higher Average Drop than MHEX-BERT, so the intrinsic saliency scores are not necessarily more faithful under perturbation; a natural extension is to calibrate MHEX scores against drop-based measures.
Because EAD peaks at 25 percent coverage, applying the same metric to fine-grained tasks like tumor detection could unfairly penalize a correct compact map; re-weighting by object size is a testable fix.
The authors' own note that GNNs lack residual connections suggests the framework's portability depends on introducing residual links, making graph and segmentation applications a concrete next step rather than an automatic gain.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

Here's what you should know about MHEX (arXiv:2501.01311): it's a three-part add-on to CNNs and BERT—attention gate, deep supervision, and a saliency map computed as the product of two weight matrices. The combination is new, each piece is borrowed, and the paper is clearly written with code and a lot of experiments. That's the good news.

The bad news is that the central claim collapses under its own numbers. Table 3 reports SAD, AVG Drop, and EAD for PathMNIST and BloodMNIST. All are lower-is-better. On PathMNIST, MHEX scores 0.2082/0.4276/0.0710 versus Grad-CAM's 0.1181/0.1522/0.0650 and Layer-CAM's 0.1069/0.1247/0.0600. So MHEX is the worst on all three metrics. Yet the text says MHEX "results in superior performance across all three metrics." On BloodMNIST, MHEX is best on AVG Drop but worst on EAD. The table and the prose contradict each other. That's not a minor slip; it's the entire quantitative case for explainability.

The EAD metric is also designed to favor MHEX. Appendix B.1 derives f(x)=5x/(1+256x^5) from the conditions f(0.25)=1 and f'(0.25)=0. So a map covering 25% of the image gets the highest weight. MHEX's maps are described as "closely resembling semantic segmentation," which means they cover large contiguous regions. The metric is fitted to that geometry, with no independent argument that 25% is the right coverage for colon tissue or blood cells. That's circular.

Accuracy comparisons in Table 1 are against official benchmark numbers, not retrained baselines under the same schedule. ImageNet 70.57 vs 69.75 is a 0.8% gap that could be due to training details; MedMNIST gains are likewise uninterpretable. And on AG News, MHEX-BERT comes in below the baseline (93.63 vs 94.56). So the "improves accuracy" half of the abstract is also unproven.

What's worth keeping? The modular idea—deep supervision to sharpen early-layer saliency—has some plausibility, and the collaboration analysis is a creative touch. But the evidence as presented is not just weak; it's self-contradictory. I would not send this to peer review in its current form. Desk reject with an invitation to resubmit after matched baselines and a metric that isn't tuned to the method.

Referee Report

3 major / 5 minor

Summary. The paper introduces the Multi-Head Explainer (MHEX), a modular framework combining an Attention Gate, Deep Supervision, and an Equivalent Matrix, and claims that it improves both classification accuracy and explainability when integrated into ResNet and BERT. The authors report experiments on ImageNet1k, four MedMNIST datasets, and AG News, and propose new evaluation metrics (SAD and EAD) for saliency quality. The central claims are that MHEX 'not only improves classification accuracy but also produces highly interpretable and detailed saliency scores' (Abstract) and 'consistently outperforms the baseline in most tasks' (Section 4.2).

Significance. If the central claims were supported, MHEX would be a practically useful and easily deployable module for improving interpretability in CNNs and Transformers, with modest extra parameters and the ability to remove the prediction heads after fine-tuning. The paper includes several strengths: the code is made available, the Appendix documents training details and derivations, and the authors are candid about limitations (e.g., SHAP attaining higher AVG Drop on AG News, and the caveat that the collaboration metric needs further validation). However, the main empirical evidence for the explainability claim is internally contradictory and partly circular, and the accuracy comparison against unmatched official benchmarks is not interpretable as a controlled improvement. These issues bear directly on the paper's two central claims.

major comments (3)

[Section 4.5, Table 3] The text states that on PathMNIST 'MHEX-Net effectively captures these details, resulting in superior performance across all three metrics,' but Table 3 reports lower-is-better metrics where MHEX is the worst method on every row. Specifically, for PathMNIST, MHEX has SAD=0.2082 vs. Grad-CAM=0.1181 and Layer-CAM=0.1069; AVG Drop=0.4276 vs. 0.1522 and 0.1247; EAD=0.0710 vs. 0.0650 and 0.0600. For BloodMNIST, MHEX's EAD is 0.1894 vs. 0.1106 and 0.0808. These numbers directly contradict the claim of superior explainability and must be corrected or the claims substantially revised.
[Appendix B.1, Section 3.5.3, Section 4.3] The EAD metric is defined using a weighting function f(x)=5x/(1+256x^5) that is solved from the conditions f(0.25)=1 and f'(0.25)=0, i.e., the metric is constructed to reward saliency maps covering about 25% of the image. No independent evidence is given that 25% coverage is the correct target for colon pathology or blood-cell images. Since MHEX maps are described as 'closely resembling semantic segmentation' (Section 4.3) and therefore have broad coverage, the EAD comparison appears tuned to MHEX's output geometry rather than to an external notion of faithfulness. The paper should justify E=0.25 or rely on metric-free or standard evaluation protocols.
[Section 4.2, Table 1, Appendix D] Table 1 compares MHEX-Net accuracy against official benchmark values (MedMNIST and PyTorch ResNet-18), not against baselines retrained with the same training schedule, optimizer, augmentation, and epochs described in Appendix D. Therefore the reported gains (e.g., ImageNet 70.57 vs. 69.75) are uninterpretable as effects of the MHEX module. Moreover, the AG News row shows MHEX-BERT (93.63) below the reported BERT baseline (94.56), which contradicts the claim in the text that MHEX consistently outperforms the baseline in most tasks. A matched, same-schedule comparison is needed for any accuracy claim.

minor comments (5)

[Title/Abstract] The arXiv title reads 'A General Framework' while the paper's title reads 'A General Scalable Framework'; please make them consistent.
[Appendix D.3] The heading 'Fine-Tunin on BERT' contains a typo; it should read 'Fine-Tuning on BERT'.
[Figure 7 caption] The caption states 'All correlations are significant (p = 0)', but p-values cannot equal zero; please report p < 0.0001 or similar.
[Section 3.2.3] In the Transformer saliency formula, the meaning of the summation limit D is not defined; please state that D is the hidden/feature dimension.
[Section 4.5] The AG News paragraph reports that SHAP achieved a higher AVG Drop than MHEX-BERT, which is an honest but important caveat; this should be reflected in the abstract and conclusion, where the claim of generally superior explainability is stated without this qualification.

Circularity Check

0 steps flagged · score 2.0 of 10

No circular derivation is exhibited: MHEX's construction is not equivalent to its evaluation, although the EAD metric is arbitrary and Table 3 contradicts the text's claims.

full rationale

No load-bearing step in the paper reduces a claimed prediction to its own inputs by construction. MHEX is assembled from cited components (attention gate, deep supervision) plus linear weight products, and the saliency maps are defined as weighted combinations of activations; the accuracy comparisons are against external benchmarks. The EAD weighting function is indeed solved from f(0.25)=1 and f'(0.25)=0 in Appendix B.1, making the 25%-coverage optimum an arbitrary design choice rather than an independently grounded measure of faithfulness. However, this is a metric-validity problem, not circularity: MHEX's loss and saliency construction do not optimize EAD, and the reported EAD values in Table 3 actually place MHEX below Grad-CAM and Layer-CAM on both PathMNIST and BloodMNIST. The text's assertion of 'superior performance across all three metrics' contradicts its own table (Section 4.5), and the AG News row of Table 1 shows MHEX-BERT below the BERT baseline; these are serious reporting/correctness issues, but they are not instances of a derivation collapsing into its inputs. The only self-citation is the GAT paper (Veličković et al., 2017), in which co-author Liò appears; it is cited in Appendix E only as an example of GNNs lacking residual connections and is not load-bearing for the central claims. Accordingly, no circular step can be exhibited, and the appropriate finding is no significant circularity.

Assumptions & free parameters 5 free parameters · 4 assumptions · 0 invented entities

The central claims depend on several hand-chosen hyperparameters (alpha, SS, layer count L, EAD's optimal area E) and on the assumption that non-negative activations and broad saliency maps correspond to better explanations. No external ground truth or human study validates this. The EAD metric parameters are solved to make the weighting peak at E=0.25, which is the coverage of the paper's own maps.

free parameters (5)

alpha (negative contribution weight) = 0 to 0.5 depending on dataset
Section 3.4 and 4.4; alpha controls how much negative weight components contribute to saliency. The paper recommends alpha in [0,0.5] after observing which values produce 'sharper' maps.
SS (salience sharpness threshold) = 1/nclass + epsilon with epsilon in [0.1,0.3]
Appendix A.3 and Section 4.4; threshold filters channels by class-specific specificity. The paper recommends values after visual inspection of saliency maps.
alpha_l (layer aggregation weight for CAM) = 0.9
Section 3.2.3 final CAM formula; single weight applied to all layers. Chosen by hand to balance shallow and deep contributions.
L (number of BERT layers used for saliency) = 3
Section 3.2.3; set to 3 to avoid over-smoothing in AG News, an empirical choice.
E (optimal saliency area for EAD weighting) = 0.25
Appendix B.1; the EAD weighting function is designed so that f(E)=1 and f'(E)=0. The choice of E favors maps covering one quarter of the image.

assumptions (4)

domain assumption Features T in the entropy-reduction derivation follow a standard normal distribution N(0,1).
Appendix A.1 uses Gaussian features to show ReLU reduces entropy. Real network features are not exactly Gaussian.
domain assumption ReLU non-negativity improves saliency interpretability.
Section 3.4 assumes that setting negative contributions to zero makes explanations clearer; no user study or ground truth supports this.
ad hoc to paper A good saliency map covers approximately 25% of the image area.
Appendix B.1; the EAD metric is built around this value, which matches MHEX's broad maps. No independent justification.
domain assumption Attention weights are not meaningful explanations (Jain and Wallace 2019).
Cited in the introduction to motivate replacing attention-based explanations with weight-based scores. This is a contested claim in the field.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Multi-Head Explainer: A General Framework to Improve Explainability in CNNs and Transformers." pith.science (2026). https://pith.science/paper/RAGNCFNP

@misc{pith2026250101311,
  author       = {Pith},
  title        = {Pith review of: Multi-Head Explainer: A General Framework to Improve Explainability in CNNs and Transformers},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/RAGNCFNP}},
  note         = {Machine review of arXiv:2501.01311}
}

read the original abstract

In this study, we introduce the Multi-Head Explainer (MHEX), a versatile and modular framework that enhances both the explainability and accuracy of Convolutional Neural Networks (CNNs) and Transformer-based models. MHEX consists of three core components: an Attention Gate that dynamically highlights task-relevant features, Deep Supervision that guides early layers to capture fine-grained details pertinent to the target class, and an Equivalent Matrix that unifies refined local and global representations to generate comprehensive saliency maps. Our approach demonstrates superior compatibility, enabling effortless integration into existing residual networks like ResNet and Transformer architectures such as BERT with minimal modifications. Extensive experiments on benchmark datasets in medical imaging and text classification show that MHEX not only improves classification accuracy but also produces highly interpretable and detailed saliency scores.

Figures

Figures reproduced from arXiv: 2501.01311 by the authors.

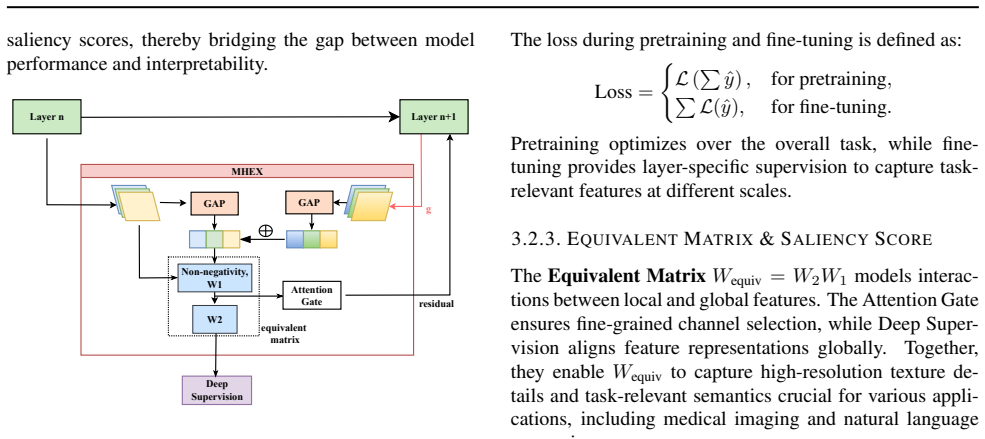

**Figure 1.** The internal structure of the Multi-Head Explainer (MHEX) 3.2. MHEX Core Components 3.2.1. ATTENTION GATE The Attention Gate (Schlemper et al., 2019) prioritizes task-relevant features by generating channel-wise weights based on local and global information. It computes: g = σ(W1 · GAP(x + xglobal)), where xglobal is a global feature map, GAP is Global Average Pooling, and σ is the sigmoid activation function. The … view at source ↗

**Figure 3.** Architecture of MHEX integrated into a Transformer model (e.g., BERT). as important activations. To mitigate this, we impose a non-negativity constraint by applying the ReLU activation function, which projects feature representations onto a non-negative subspace. This constraint effectively removes irrelevant features and reduces entropy (see Appendix A.1), thereby facilitating more accurate neuron analysis and en… view at source ↗

**Figure 2.** The internal structure of the Multi-Head Explainer (MHEX) integrated into a residual network (ResNet). Similarly, for Transformer models such as BERT, we insert MHEX between the attention layers and feed-forward layers, as shown in [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

Figures from the paper (11 more)

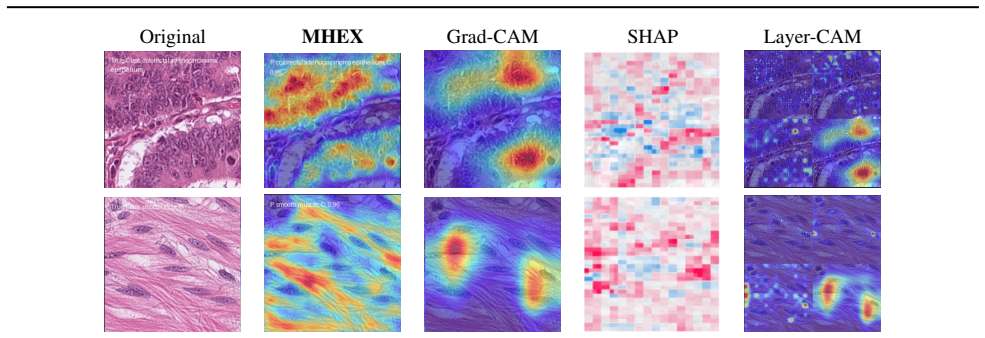

**Figure 4.** Figure 4: Saliency score comparison for smooth muscle tissue and colorectal adenocarcinoma epithelium. Colorectal adenocarcinoma epithelium is characterized by irregularly arranged epithelial cells with enlarged nuclei and poor glandular differentiation. Smooth muscle tissue con…

**Figure 5.** Figure 5: Comparison of original images, MHEX, and Grad-CAM saliency maps on selected ImageNet1k classes. MHEX SHAP Rollout london ( reuters ) - oil prices surged to a new high of $ 47 a barrel on wednesday after a new threat by rebel militia against iraqi oil facilities and as …

**Figure 8.** Figure 8: Block-wise quality analysis of saliency maps. The input image is divided into a 7 × 7 grid, and gradient similarity is computed for each spatial block to represent MHEX’s confidence in its explanations as heatmaps (b) and (c). Brighter blocks indicate higher confidenc…

**Figure 7.** Figure 7: illustrates these relationships. MHEX 6 - 7 SAD porig 0.1710 0.0634 0.1212 −0.0277 ∗ −0.1526 −0.1299 −0.1765 [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]

**Figure 9.** Figure 9: illustrates the curve of f(x). The function penalizes saliency maps that are too small or too large, ensuring that the evaluation favors maps covering approximately 25% of the input image area [PITH_FULL_IMAGE:figures/full_fig_p011_9.png]

**Figure 10.** Figure 10: Comparison of insertion and deletion curves for MHEX-Net and Grad-CAM on ResNet18 and ResNet34. Insertion curves reflect the model’s confidence recovery when saliency regions are added, while deletion curves show confidence drops when regions are removed. MHEX-Net’s …

**Figure 11.** Figure 11: AUC Boxplots for Insertion and Deletion on ResNet18 and ResNet34. 12 [PITH_FULL_IMAGE:figures/full_fig_p012_11.png]

**Figure 12.** Figure 12: Saliency Score Comparison with Insertion and Deletion Curves. C. More Results To showcase the effectiveness of MHEX-Net across diverse datasets, we provide additional saliency map visualizations. These results, shown in [PITH_FULL_IMAGE:figures/full_fig_p013_12.png]

**Figure 14.** Figure 14: Comparison of saliency maps for TissueMNIST. MHEX showcases a high degree of sensitivity to tissue structures. • Training Methods: In Section 3.2.2, we present two training approaches. If the primary focus is on enhancing accuracy, we recommend utilizing the pretrain…

**Figure 15.** Figure 15: Comparison of saliency maps for PathMNIST. MHEX consistently highlights critical regions with near-segmentation accuracy. 16 [PITH_FULL_IMAGE:figures/full_fig_p016_15.png]

**Figure 16.** Figure 16: Comparison of saliency maps for BloodMNIST. MHEX demonstrates its capability to capture fine-grained features. 17 [PITH_FULL_IMAGE:figures/full_fig_p017_16.png]
