Deep survey of millimeter RRLs towards the planetary nebulae IC 418 and NGC 7027

T0 review · 4 major / 5 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read This paper reports the most extended millimeter radio-recombination-line survey of two carbon-rich planetary nebulae to date, identifying 323 H, He I, and He II lines, most never previously reported.

desk verdict A genuinely new and carefully reduced RRL catalog for two well-studied PNe, with a model-dependent weak-line confirmation and a Te claim that inherit a known 7 mm broadening problem in Co3RaL. read the letter →

arxiv 2506.23256 v1 pith:RI6CA5NZ submitted 2025-06-29 astro-ph.SR astro-ph.GA

Teresa Huertas-Roldán , Javier Alcolea , D. Aníbal García-Hernández , Daniel Tafoya , J. Pablo Fonfría , J. Jairo Díaz-Luis , Arturo Manchado , Valentín Bujarrabal
show 2 more authors
Ransel Barzaga Marco A. Gómez-Muñoz
This is my paper · ORCID
classification astro-ph.SRastro-ph.GA
keywords radiorecombinationlinesplanetarynebulaeIC418NGC7027millimeterspectroscopyradiativetransferheliumlineidentification
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper tries to establish that very deep single-dish millimeter observations of two bright carbon-rich planetary nebulae, IC 418 and NGC 7027, reveal hundreds of weak radio recombination lines that earlier surveys missed. These lines are the fingerprint of electrons recombining onto hydrogen and helium in the ionized gas around the central stars. The authors argue that their catalogs are the most complete millimeter line lists for these nebulae, that nearly all of the 323 reported detections are new, and that the same observations rule out molecular emission toward IC 418 above a few millikelvin. The practical payoff is that future millimeter spectroscopy of ionized nebulae can use these lists to tell atomic recombination lines apart from still-unidentified molecular lines.

What carries the argument

The central tool is the Co3RaL radiative transfer code, which computes free-free continuum and radio recombination line emission from a three-dimensional nebula built from analytic ellipsoidal shells with specified density, temperature, and velocity fields. Candidate lines are first generated from the Rydberg formula with reduced-mass corrections, then confirmed or rejected by comparing their Gaussian-fitted peak fluxes and shapes with Co3RaL predictions. This comparison is what separates genuine weak lines from blends, contamination, and spurious features.

What would settle it

A spatially resolved interferometric observation of an H line and a He II line in NGC 7027 that showed both emitting regions coincide would falsify the layered stratification the model relies on; alternatively, an independent electron temperature measurement from the continuum-to-line ratio that disagreed with the 22,000 to 25,000 K range would undermine the derived value.

Watch

Extended reading notes

Core claim

The paper reports the detection of 323 radio recombination lines toward two carbon-rich planetary nebulae at 2, 3, and 7 mm: 158 detections in IC 418 and 134 in NGC 7027, plus roughly 50 tentative features. Every line was identified by comparing its frequency with Rydberg-approximation predictions for H, He I, and He II, fit with Gaussian profiles, and then checked against synthetic spectra from the Co3RaL radiative transfer code. All H lines with principal quantum number change of four or more, all He I lines with change of two or more, and every He II line in NGC 7027 are claimed as new detections; the He II lines are reported as the first millimeter detections of ionized-helium recombination lines in that nebula. The same Co3RaL models yield nebular parameters, most notably an electron temperature of 22,000 to 25,000 K for NGC 7027 that the authors say is needed to reproduce the spectral energy distribution and all radio recombination lines simultaneously.

Load-bearing premise

The load-bearing premise is that the Co3RaL model, with its hand-adjusted ellipsoidal density, temperature, and velocity fields, is a faithful and unique representation of these nebulae, so the line confirmations and the derived electron temperatures inherit the model's accuracy.

Editorial extensions

If this is right

  • The published catalogs give observers a ready checklist for separating atomic recombination lines from unidentified molecular features in millimeter spectra of planetary nebulae and similar ionized regions.
  • The new NGC 7027 He II detections open a direct millimeter probe of the hottest, most highly ionized gas near a planetary nebula's central star.
  • The derived physical parameters, including ionized masses, kinematic timescales, and mass-loss rates, provide consistency checks against independent nebular models.
  • The paper's claim that tentative lines are predicted by Co3RaL to lie just below the current detection level implies that deeper integrations could turn many tentative detections into firm ones.
  • The finding that the model predicts no maser amplification in either nebula removes one proposed mechanism for anomalously strong radio recombination lines.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If these line lists become standard references, some previously reported 'unidentified features' in planetary nebula spectra may be reclassified as H or He recombination lines, shrinking the pool of candidate molecular carriers.
  • The model's predicted 7 mm FWHM broadening for lines with lower quantum number above about 100, which the observations do not show, appears tied to the code switching to LTE Gaunt factors at that boundary; correcting the Gaunt factor treatment could remove the discrepancy and might alter the derived turbulent velocities.
  • The narrower He lines relative to H lines in IC 418 imply a radially stratified emitting region, a prediction that spatially resolved observations could test directly; if confirmed, the same stratification might be used to map expansion velocity gradients in other nebulae.
  • The absence of carbon and oxygen recombination lines in both sources, despite known abundances, suggests that detecting them will require either much deeper integrations or mapping the neutral outer shells where carbon recombination lines are expected to form.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper presents a deep single-dish millimeter survey of the planetary nebulae IC 418 and NGC 7027 at 2, 3, and 7 mm with the IRAM 30m and Yebes 40m telescopes, and reports a large number of H, He I, and He II radio recombination lines identified by matching observed emission to theoretical Rydberg frequencies. The lines are fitted with Gaussians, blended and contaminated cases are flagged, and the authors compare the catalog with synthetic profiles from the radiative transfer code Co3RaL. The paper derives nebular physical parameters (electron temperature, density structure, expansion and turbulent velocities, masses) from hand-tuned Co3RaL models and concludes that the observations constitute the most complete RRL catalog of two C-rich PNe to date.

Significance. If the catalog is taken at face value, it is a valuable resource for millimeter spectroscopy of PNe and for separating atomic lines from unidentified molecular features. The basic identifications are anchored to independently known atomic transition frequencies, and the catalog appears carefully constructed, with LO-switching RFI checks, 3-sigma thresholds, Gaussian fit errors, and explicit flags of blends and contamination in Table B.1; the high-SNR frequency-matched lines should be secure. The first millimeter He II RRL detections in NGC 7027 would be a notable result. However, the completeness of the faint end and the electron-temperature claim are not independent of the Co3RaL model, which is admitted to fail in exactly the 7 mm regime where most new detections lie; these issues must be resolved before the headline claims are accepted.

major comments (4)
  1. [Section 6, Fig. 7; Section 3.1; Table 3] The artificial FWHM broadening in Co3RaL for n_lower >= 100, caused by switching to LTE Gaunt factors, affects precisely the 7 mm band containing the bulk of the new detections: Table 3 sums to 199 of the 292 clear detections in that band. Since Section 3.1 states that Co3RaL is used to confirm weak and blended RRLs and to discard tentative identifications, the model cannot independently validate the faintest high-n lines. Please re-derive the confirmation statistics either from frequency-anchored line stacks or by restricting model-based confirmation to n_lower < 100, and state explicitly which detections survive without model support.
  2. [Section 6; Section 3.1; Table 2] The claim that only Te = 22,000-25,000 K can simultaneously reproduce the SED and all H and He RRLs is not supported by the analysis presented. The Co3RaL parameters in Table 2 were hand-tuned, with no uncertainties, no grid search, and no degeneracy or uniqueness analysis, and the model's 7 mm line profiles are acknowledged to be systematically broader than observed. Please provide a quantitative Te determination using the SED plus the 2 and 3 mm RRLs alone, or at minimum a sensitivity analysis showing how Te varies with the adopted density, velocity, and geometry parameters. Without this, the Te value should be presented as a model-dependent estimate rather than a unique result.
  3. [Section 5.3, Fig. 11] The text admits that Co3RaL overpredicts the 2 mm He II peak fluxes, which contradicts the global statement in Section 7 that the modeled spectra are compatible with the observations within the error bars across all frequency ranges. The discrepancy should be quantified, and its impact on the derived He II abundance and on the model-based confirmation of the He II lines should be discussed.
  4. [Section 7, Conclusions; Table 3; Sections 4 and 5] The headline count is not reproducible from the tables: the Conclusions quote 323 detected RRLs and 50 tentative features, while Table 3 sums to 292 detected lines (158 in IC 418 plus 134 in NGC 7027) and 53 tentative lines. Please correct the counts and define explicitly whether the quoted numbers are total detections, new detections, or detections including tentative lines.
minor comments (5)
  1. [Appendix A.2] The opening sentence of Appendix A.2 states that the profiles are found on IC 418, but the figures and text show that they are for NGC 7027; please correct the source name.
  2. [Table B.1] The He I 73-beta entry for IC 418 lists Tmb = 4.57 +/- 91.23 mK, which appears to be a typographical error and should be checked against the original fit.
  3. [Table B.1, continuation headers] The running headers of the continued table repeat 'Table B.2' for what is a continuation of Table B.1; please relabel them as 'Table B.1, continued'.
  4. [Abstract] The phrase 'most complete catalog of RRLs in space' is broader than the data support; consider changing it to 'most complete RRL catalog for these two PNe' or a similarly restricted claim.
  5. [Section 2.1] The description of polynomial baseline subtraction would benefit from an explicit statement of how the procedure was tested against the injection of synthetic weak lines, since this step is the most likely to affect the faintest reported detections.

Circularity Check

2 steps flagged · score 6.0 of 10

Weak-line confirmation and the NGC 7027 Te claim reduce to the same Co3RaL fit; the frequency-anchored catalog itself is not circular.

  1. fitted input called prediction [Section 3.1, 'Modeling of IC 418 and NGC 7027' (paragraph beginning 'The physical parameters used by Co3RaL...'); confirmation use stated in the following paragraph]
    "These parameters are the best ones that simultaneously fit both the SED and all H and He radio spectral lines. ... In short, the Co3RaL models helped us to: (i) confirm the identification of RRLs by comparing the peak fluxes and line shapes; (ii) confirm those RRLs with several components; and (iii) discard some tentative RRL identifications because they do not display the predicted line shape and/or peak fluxes."

    The Co3RaL parameters were adjusted until the model reproduced the same SED and the same H and He RRL observations (Section 3.1: 'modified them in subsequent Co3RaL runs in order to reproduce, at the same time, the SED and all the observed radio spectral lines'). Using that same fitted model to 'confirm' weak or blended lines, or to discard tentative identifications, makes the confirmation criterion the model's own output rather than an independent prediction. For weak lines the validation is circular: the model says they are consistent because it was tuned to the ensemble of lines to which they belong. The frequency anchoring via Eq. (2) and the Gaussian fitting are independent, so only the model-assisted confirmation step is circular.

  2. fitted input called prediction [Section 6, paragraph beginning 'The good agreement of the Co3RaL results...']
    "We remark that only Te values of 22 000−25 000 K can reproduce simultaneously both the SED and all RRLs of H and He in NGC 7027."

    Te is an input parameter that was varied until the model matched the observations: Section 3.1 states 'we modified Te until a good simultaneous match to all observations was obtained.' The claim that only Te = 22,000-25,000 K can simultaneously reproduce the SED and all RRLs is therefore a restatement of the fit, not a prediction from independent constraints. The paper provides no degeneracy or uncertainty analysis and does not explore other Te/ne combinations, so the uniqueness assertion reduces to the fitted input.

full rationale

The core catalog is not circular: RRL identifications are anchored to independently known atomic transition frequencies computed from the Rydberg formula (Eq. 2), and the strong lines are fitted directly with Gaussians in CLASS. Those detections stand on their own. The circular component is confined to (a) the use of Co3RaL, whose parameters were fit to the same SED and RRL data, to confirm weak/blended lines and discard tentative ones, and (b) the derived uniqueness claim for Te in NGC 7027, which is simply the fitted value asserted as a result. The paper itself flags a further limitation that reinforces the concern: Co3RaL produces artificial FWHM broadening for n_lower >= 100 at 7 mm (Section 6 and Fig. 7: 'Such broadening is not seen/detected in the observations'), and the 7 mm band contains most of the new detections. Thus the model-assisted confirmation is not an independent benchmark in exactly the regime where the catalog claims the most new lines. Separately, the headline count of 323 detected RRLs is not reproducible from Table 3, whose D entries sum to 292 with 53 tentative entries; this is an internal consistency issue rather than a circularity issue. Overall, the independent frequency-anchored part of the catalog is substantial, but the model-confirmed weak-line inventory and the Te claim reduce in part to the same fitted inputs, giving a partial circularity score of 6.

Assumptions & free parameters 5 free parameters · 5 assumptions · 0 invented entities

The central catalog rests on standard atomic physics and careful data reduction. The model-derived physical parameters require many fitted inputs such as Te, ne, velocity, turbulence, and geometry, plus the Co3RaL code, so those values carry a larger burden than the line list itself.

free parameters (5)
  • Electron temperature Te (NGC 7027) = 25,000-22,000 K
    Adjusted in Co3RaL until the SED and all H/He RRLs were reproduced; previous Te estimates did not fit both (Table 2, Sect. 3.1).
  • Electron density structure ne(r) for both nebulae = IC 418 shell 2.3e4 cm-3; NGC 7027 shell 1.5e5 to 1.2e4 cm-3
    Radial profiles in Table 2 were tuned to match continuum and line fluxes; no uncertainty is given.
  • Expansion velocity law vexp(r) = IC 418 1-13 km/s; NGC 7027 5-25 km/s
    A linear velocity gradient with radius was chosen to reproduce the observed line FWHM values.
  • Turbulent velocity vturb = IC 418 8.0 km/s; NGC 7027 10.0 km/s
    Introduced because thermal plus expansion broadening alone could not match observed line widths (Sect. 3.1).
  • Geometry: ellipsoid axes, inclination, shell radii = Examples: IC 418 9750x7500 AU, i=-20 deg; NGC 7027 6000x4000 AU, i=-55 deg
    Geometric parameters were taken from literature or adjusted during fitting; they control beam dilution and modeled profiles.
assumptions (5)
  • standard math Hydrogenic Rydberg approximation (Eqs. 2-5) gives accurate RRL rest frequencies for H, He I, and He II at high n.
    Used for all line identifications; standard quantum mechanics.
  • domain assumption Co3RaL solves radiative transfer for ellipsoidal ionized shells with provided Te, ne, and velocity fields.
    The model is used to confirm line identifications and to derive physical parameters (Sect. 3); the code is from Sanchez Contreras et al. 2024, with some author overlap.
  • ad hoc to paper The nebulae can be represented by filled ellipsoidal shells with concentric isodensity and isothermal surfaces.
    Adopted geometry in Table 2 and Fig. 2; not independently constrained by imaging in this work.
  • ad hoc to paper Observed line widths require an extra turbulent velocity component.
    Sect. 3.1 states thermal plus expansion broadening alone could not reproduce widths; vturb is a fitted value affecting derived dynamics.
  • domain assumption C, O, and 3He RRL emission is absent or negligible in these spectra.
    Sect. 3 reports no asymmetric He profiles and predicted C/O/3He intensities are below noise; if present, they could bias He line fits.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Deep survey of millimeter RRLs towards the planetary nebulae IC 418 and NGC 7027." pith.science (2026). https://pith.science/paper/RI6CA5NZ

@misc{pith2026250623256,
  author       = {Pith},
  title        = {Pith review of: Deep survey of millimeter RRLs towards the planetary nebulae IC 418 and NGC 7027},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/RI6CA5NZ}},
  note         = {Machine review of arXiv:2506.23256}
}
read the original abstract

The circumstellar environments of PNe are wonderful chemically rich astrophysical laboratories in which the ionization of atoms and the formation of simple and complex molecules can be studied. The new high-sensitivity receivers open the possibility to carry out deep observations, essential to unveil weak atomic and molecular spectra in the mm range. The main goal of this work is to study the emission lines detected in the spectra of the bright C-rich PNe IC 418 and NGC 7027 and to identify all those emission features associated with radio recombination lines (RRLs) of light elements. We aim to analyze the RRLs detected on each source, and to model the sources and derive their physical parameters. This work allows us to provide the most complete and updated catalog of RRLs in space, carried out at 2, 3 and 7 mm with the IRAM 30m and the Yebes 40m radio telescopes. We compare these observational data sets with synthetic models produced with the radiation transfer code Co3RaL. Our observations reveal the presence of several H and He I RRLs at mm wavelengths in the spectra of IC 418 and NGC 7027 and also of HeIIi RRLs in the spectrum of NGC 7027. Many of these lines had remained undetected until now due to their weakness and the lack of high-sensitivity observations at these frequencies. The data also confirm the absence of molecular emission towards IC 418, above a detection level of ~3 mK [Tmb]. These mm observations represent the most extended RRL line survey of two C-rich PNe carried out so far, with most of the lines never reported before. These extremely complete catalogs evidence the importance of high-sensitivity observations and are expected to be very helpful in the line identification process in mm observations, in particular for still unknown or poorly characterized molecular species existing in the vicinity of ionized environments.

Figures

Figures reproduced from arXiv: 2506.23256 by the authors.

Figure 1
Figure 1. Examples of the RT40m spectrum of IC 418 (left) and the IRAM 30m spectrum of NGC 7027 (right). The gray arrow on the right panel indicates an absorption feature produced by some molecule in the line of sight of NGC 7027 (probably from a cold shell of its molecular envelope) [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. The left panel shows schematically the definition of the different ellipsoidal shells to model a PN with Co3RaL. The light red area (up to R2) shows the filled shells of the PN. The central and right panels are 3D models of IC 418 and NGC 7027 (see text on Section 3.1 for further details). 3He i, C i, O i, and their corresponding ions He ii, 3He ii, C ii, Ciii, O ii, and O iii), even though we did not find any obser… view at source ↗
Figure 3
Figure 3. Spectral Energy Distribution of IC 418 (left panel) and NGC 7027 (right panel). Continuous red lines represent the Co3RaL predictions; diamonds display the observational measurements and corresponding errors. The IC 418 data has been taken from Vollmer et al. (2010); Condon et al. (1998); Griffith et al. (1994); Murphy et al. (2010); Wright et al. (2009); Massardi et al. (2009); Bennett et al. (2003); Gold et al. (2… view at source ↗
Figures from the paper (8 more)
Figure 4
Figure 4. Figure 4: Peak intensity (in Tmb [ K ] units, top panel) and FWHM (in km s−1 , bottom panel) of the observed H lines in IC 418. Diamonds represent the 2 mm data, stars the 3 mm data, and dots the 7 mm data. panel) within the error bars (i.e., a maximum flux calibration uncertain…
Figure 5
Figure 5. Figure 5: Peak intensity (in Tmb [ K ] units, top panel) and FWHM (in km s−1 , bottom panel) of the observed He i lines in IC 418. Diamonds represent the 2 mm data, stars the 3 mm data, and dots the 7 mm data. the list of frequencies we previously calculated for He i using Eq. (…
Figure 6
Figure 6. Figure 6: Compatibility of the Co3RaL model data (peak fluxes and FWHM in mJy and km s−1 , respectively) with the observational ones for H (upper panel) and He i (lower panel) in PN IC 418. The dots represent the peak flux and FWHM of each observed emission line obtained with th…
Figure 7
Figure 7. Figure 7: FWHM values (in km s−1 ) from Co3RaL modeling of the RRLs in IC 418 as a function of the lower quantum number n. Note the step increase in line width for n larger than 100. Such broadening is not seen/detected in the observations (see Section6 for more detailed explana…
Figure 8
Figure 8. Figure 8: Peak intensity (in Tmb [ K ] units, top panel) and FWHM (in km s−1 , bottom panel) of the observed H lines in NGC 7027. Diamonds represent the 2 mm data, stars the 3 mm data, and dots the 7 mm data. 5.2. Neutral Helium (He i) RRLs The 2 mm band is the only one in which…
Figure 9
Figure 9. Figure 9: Peak intensity (in Tmb [ K ] units, top panel) and FWHM (in km s−1 , bottom panel) of the observed He i lines in NGC 7027. Diamonds represent the 2 mm data, stars the 3 mm data, and dots the 7 mm data. to 50 km s−1 , but it is strongly blended with He i 42α, which is s…
Figure 10
Figure 10. Figure 10: Peak intensity (in Tmb [ K ] units, top panel) and FWHM (in km s−1 , bottom panel) of the observed He ii lines in NGC 7027. Diamonds represent the 2 mm data, stars the 3 mm data, and dots the 7 mm data. H and He i, respectively), but the FWHM distributions for H and H…
Figure 11

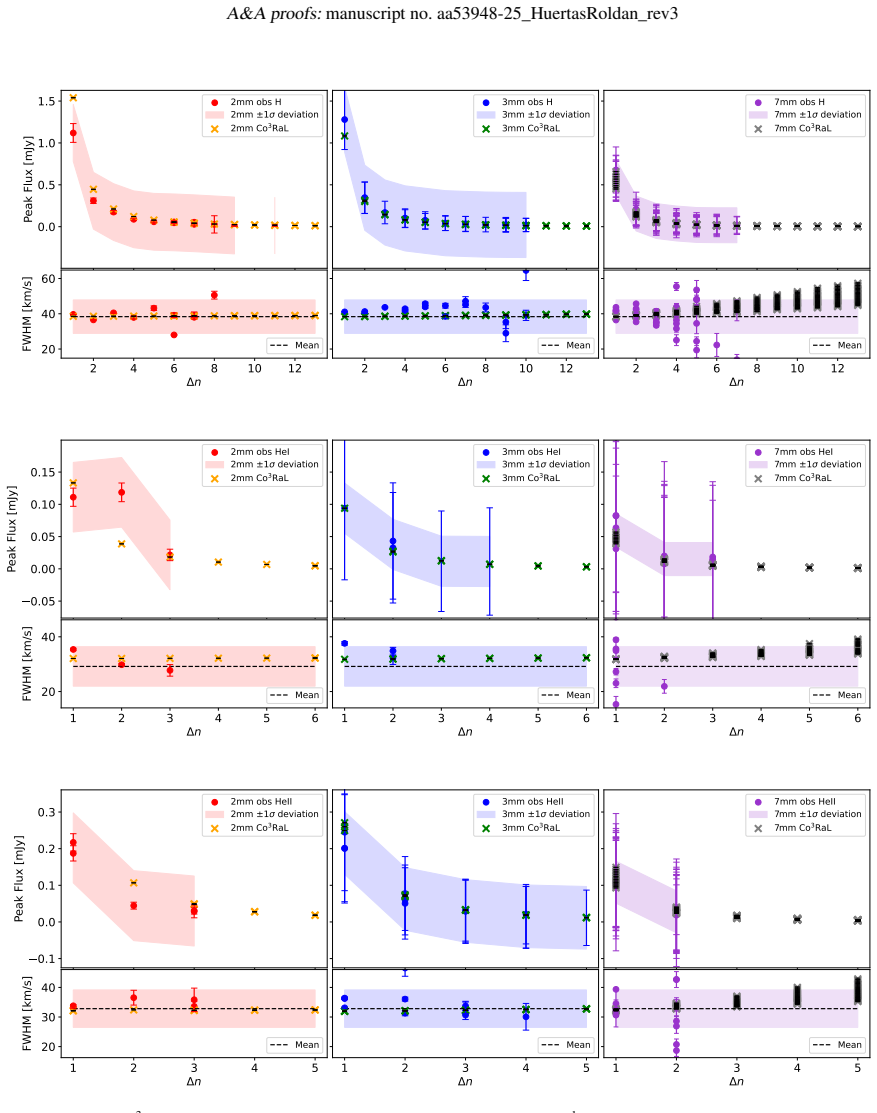

Figure 11. Figure 11: Compatibility of Co3RaL model data (peak fluxes and FWHM in mJy and km s−1 , respectively) with the observational ones for H (upper panel), He i (middle panel), and He ii (lower panel) in PN NGC 7027. Color and label codes are the same as in Fig.6. sults of the Balmer…
