X-GRM: Large Gaussian Reconstruction Model for Sparse-view X-rays to Computed Tomography

T0 review · 4 major / 5 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read X-GRM is a large feedforward Transformer that reconstructs a full 3D CT volume from six to ten X-ray projections in about one second, using fixed-position voxel-based Gaussians to make the volume both extractable and differentiable.

desk verdict Competent large-model sparse-view CT paper with a genuinely useful fixed-center Gaussian representation, but the clinical claim runs ahead of the synthetic-only evidence. read the letter →

arxiv 2505.15235 v2 pith:RRSKNCUO submitted 2025-05-21 eess.IV cs.CV

Yifan Liu , Wuyang Li , Weihao Yu , Chenxin Li , Alexandre Alahi , Max Meng , Yixuan Yuan This is my paper
classification eess.IVcs.CV
keywords computedtomographysparse-viewCTreconstructionX-rayimaging3DGaussianSplattingfeedforwardtransformervolumerenderingnovelviewsynthesismedical
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

X-GRM is a large feedforward Transformer that takes six to ten 2D X-ray projections of a body region and outputs a full 3D CT volume in about one second. The paper's central claim is that a scalable cross-view transformer paired with a new volume representation, Voxel-based Gaussian Splatting, gives better reconstruction quality and far faster inference than existing sparse-view CT methods, including per-sample optimization approaches that take minutes to hours. If that claim holds, sparse-view CT could shift from iterative, time-consuming reconstruction to instant learned reconstruction from many fewer projections, lowering radiation exposure and enabling time-sensitive uses. The experiments support the claim on a large curated set of 14,972 CT volumes with synthetic X-ray projections, plus cross-dataset and novel-view tests.

What carries the argument

The load-bearing object is Voxel-based Gaussian Splatting (VoxGS): a set of 3D Gaussians whose centers are locked to voxel centroids, each carrying only opacity $\alpha_i$, scale $s_i$, and rotation $r_i$. Locking positions lets the CT volume be extracted by direct indexing, $V(x,y,z)=\alpha_i$, with no trilinear interpolation, and dropping color is consistent with X-ray attenuation being a scalar line integral. The differentiable rasterizer for VoxGS supplies a rendering constraint during training, while the encoder-and-fusion ViT, with per-view patch tokens and all-to-all self-attention across views, supplies the capacity and cross-view reasoning that the paper argues prior CNN and voxel-grid models lack.

What would settle it

Run the trained X-GRM on a real cone-beam CT study with measured polyenergetic projections, or on simulated projections that add scatter and beam hardening, and compare its PSNR and SSIM against per-sample optimization methods; if the quality gap shrinks sharply or anatomical detail develops new artifacts, the paper's equivalence between 3DGS rasterization and X-ray imaging would be broken for practical CT.

Watch

Extended reading notes

Core claim

The paper proposes X-GRM, a one-pass model that maps sparse X-ray projections with their camera matrices to a voxelized density field $V \in \mathbb{R}^{M \times N \times L}$. Each projection is tokenized by a DINO-initialized ViT, given ray geometry through camera-ray-modulated adaptive layer norm, and all views are fused by a 16-layer all-to-all self-attention transformer. The fused tokens are decoded into Voxel-based Gaussian Splatting (VoxGS) attributes: every voxel center hosts a 3D Gaussian with opacity, scale, and rotation but no color, making CT extraction a direct opacity lookup and making X-ray rendering differentiable. The model is trained with a volume MSE loss plus a rendering loss combining L1 and D-SSIM, and it reports PSNR of 28.39, 28.86, and 29.21 dB for 6, 8, and 10 input views on the 680-volume test set, with SSIM of 0.873, 0.879, and 0.886. These numbers exceed the best feedforward baseline by roughly 3.6 to 3.8 dB while running about twice as fast, and exceed per-sample optimized methods by 4 to 5 dB while running hundreds to thousands of times faster. The same model also synthesizes unseen X-ray views with higher reported fidelity than NeRF- and 3DGS-based per-sample methods.

Load-bearing premise

The entire evaluation rests on synthetic X-ray projections rendered from CT volumes under simplified X-ray physics with no scatter or beam hardening, so the reported one-second reconstruction gains may not transfer to real clinical scanners if actual projection physics differ.

Editorial extensions

If this is right

  • With 6 to 10 input projections, a $256^3$ CT volume is reconstructed in about 0.9 seconds, a regime per-sample optimization methods cannot reach.
  • Because VoxGS supports differentiable X-ray rendering, the trained model can also synthesize novel projection views; the paper reports 49.44 dB PSNR on held-out views at 0.02 seconds per projection.
  • A single model trained with variable view counts (6, 8, or 10) serves different sparsity levels without retraining for each setting.
  • On unseen chest and pelvis datasets, the model retains a quality advantage over feedforward baselines and matches or beats per-sample optimization while being about 500 times faster, indicating out-of-distribution generalization.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Beyond the paper's explicit claims, VoxGS's opacity-as-density reading suggests the same fixed-lattice Gaussian head could be applied to other tomographic inverse problems whose forward operator is a line integral, such as PET or ultrasound computed tomography.
  • The paper's synthetic-only evaluation leaves an immediate stress test implicit: re-running the model on projections with beam hardening and scatter would quantify how much of the reported margin over per-sample optimization survives real scanner physics.
  • The model was trained and tested only with uniformly spaced views; an untested extension is non-uniform or limited-angle trajectories, where all-to-all cross-view attention may behave differently and missing angular coverage may expose the fixed voxel lattice's limits.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The manuscript proposes X-GRM, a feed-forward transformer-based model that reconstructs a 3D CT volume from 6, 8, or 10 sparse X-ray projections in about one second. The model uses a DINO-initialized ViT encoder to tokenize each projection, a fusion ViT to exchange information across views, and a novel Voxel-based Gaussian Splatting (VoxGS) representation in which isotropic Gaussians are placed at fixed voxel centers. Training combines an MSE loss on the extracted volume with L1 and D-SSIM losses on rendered X-rays, using sub-volume sampling to reduce memory. Experiments compare X-GRM with traditional, feedforward, and self-supervised baselines on a collected 14,972-volume dataset assembled from eight public CT datasets, and report consistent PSNR/SSIM gains, faster inference, and additional cross-dataset and novel-view-synthesis results.

Significance. If the reported results hold, X-GRM is a meaningful advance in sparse-view CT reconstruction: it combines a large-capacity transformer with a differentiable Gaussian volume representation, and the reported gains over strong baselines are consistent across 6/8/10-view settings. The paper contributes a sizable public-data-derived training set, a clean feed-forward formulation, and a promised code release, all of which are valuable for reproducibility and follow-up work. The main limitation is that every input X-ray in every experiment is synthesized with the TIGRE toolbox under a simplified monochromatic Beer-Lambert model; this makes the core technical contribution convincing as a proof of concept on synthetic data, but it does not by itself support the abstract's unqualified claims about 'various testing inputs' and clinical deployment.

major comments (4)
  1. [§4.1, §A.1, Abstract] All X-ray inputs across training, test, cross-dataset, and novel-view experiments are rendered from CT volumes with the TIGRE toolbox, and the equivalence between 3DGS rasterization and X-ray imaging is explicitly limited in A.1 to 'a simplified imaging model that accounts solely for isotropic absorption (per Beer-Lambert law).' The added Gaussian and Poisson noise in §4.1 does not model polyenergetic spectra, scatter, beam hardening, detector blur, or calibration offsets. As a result, the central claims in the Abstract and §1 that the model handles 'various testing inputs' and is suited to clinical workflows are stronger than the evidence supports. I would like to see the claims restricted to synthetic monochromatic projections, or ideally a validation on real paired X-ray/CT data (or at least a realistic polyenergetic scatter-inclusive simulation) to test physical domain shift.
  2. [§4.5, Table 6] The ablation study is described as performed on the 'ReconX-16K dataset,' but this dataset is never defined anywhere in the paper or appendix. Its source, number of volumes, split, resolution, and projection parameters are unknown, so the reader cannot determine whether the ablation is run on the same scale as the main experiments or whether the reported component rankings (e.g., 0.28 dB for pose, 0.55 dB for VoxGS, 0.52 dB for attention) are stable. This should be specified exactly, or the ablation should be moved to the main test split.
  3. [§4.2, Tables 2 and 3] The claim that X-GRM 'drastically outperforms' prior methods is based on single-run PSNR/SSIM numbers with no error bars, multiple seeds, or significance tests. Since feed-forward models are trained with stochastic optimization, run-to-run variance of several tenths of a dB is plausible at these resolutions, and some of the reported margins (e.g., 0.28 dB in Table 6a) are within that range. In addition, Table 2 reports timings on an A100 GPU while Table 3 uses an RTX 4090Ti, so the speed comparisons across tables are not directly comparable. Please report mean±std over at least three seeds and state the GPU configuration for each timing measurement.
  4. [§4.3, Table 4] The cross-dataset experiments on FUMPE and PENGWIN demonstrate generalization to unseen anatomies, but because the projections are still generated with the same TIGRE rendering pipeline, they do not demonstrate generalization to new acquisition physics. The text in §4.3 and the Abstract's phrase 'out-domain X-ray projections' suggest a broader domain shift than the experiment actually tests. Please rephrase these claims as anatomical-domain generalization, or add an experiment with a different forward model to support physical-domain generalization.
minor comments (5)
  1. [References, Table 3] Table 3 cites R2-Gaussian as [76], but the reference list places R2-Gaussian at [75]; moreover, the same work appears to be duplicated as references [74] and [75]. Please reconcile the numbering and deduplicate.
  2. [§4.4 vs. §A.3] The main text says novel-view synthesis is evaluated on 30 distinct CT samples, while §A.3 and Table 8 describe the 'sampled test set (40 samples)'. Please clarify which number is correct.
  3. [§3.5, Eq. (10)] The rendering loss weights λ_L1 and λ_SSIM are not reported. Please give their values, as well as the sub-volume sampling factor, so that the training objective is fully reproducible.
  4. [References, §3.3] Reference [78] is the object-detection DINO paper, but the text says the encoder is initialized from DINO pre-trained weights, which normally refers to the self-supervised ViT-DINO of Caron et al. Please correct the citation.
  5. [§3.5] The notation for sub-volume sampling uses K for both the number of views and the depth dimension (M/4×N/4×K/4), while the volume is earlier defined as M×N×L. Please use consistent dimensional notation.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the CT prediction is learned against ground-truth volumes and external baselines, and the Beer-Lambert/3DGS equivalence is a standard physical model, not a self-referential construction.

full rationale

X-GRM's derivation chain is self-contained and non-circular. The forward model is defined by the Beer-Lambert line integral (Sec. 3.1), and the VoxGS representation fixes Gaussian positions at voxel centers and predicts opacities from fused X-ray tokens (Eqs. 5-8). Training minimizes a volume MSE against ground-truth CT volumes (Eq. 9) plus a rendering loss against ground-truth X-ray projections (Eq. 10). The predicted CT volume is therefore a supervised output of a learned mapping f_theta, not a repackaged version of the input projections. The relation V(x,y,z)=alpha_i is a definition of the chosen representation, not a derived claim that reduces to its inputs. No fitted parameter is renamed as a prediction: the reported PSNR/SSIM numbers are comparisons against FDK, SART, ASD-POCS, FBPConvNet, FreeSeed, DIF-Net, DIF-Gaussian, NAF, SAX-NeRF, and R2-Gaussian on held-out test volumes, with feedforward baselines retrained on the same data. Citations to X-LRM, R2-Gaussian, and DINO are used for dataset construction, rasterizers, and initialization; none of these are self-citations by the present authors, and none is invoked as an unverified uniqueness theorem. The main caveat, correctly identified as an external-validity concern rather than circularity, is that all X-ray projections, including cross-dataset tests, are synthesized with the TIGRE toolbox under the simplified monochromatic Beer-Lambert model (Sec. 4.1, A.1); this affects realism and clinical transfer but does not make any equation equivalent to its own input. The A.4 limitations about memory and very sparse inputs are practical constraints, not circular steps. Overall, no prediction in the paper is forced by construction or by self-citation.

Assumptions & free parameters 2 free parameters · 3 assumptions · 0 invented entities

The scientific claim is empirical and rests on standard deep learning plus three domain assumptions: (1) the Beer-Lambert/3DGS equivalence (Sec. 3.1, A.1), (2) the V=alpha_i volume extraction mapping (Eq. 8), and (3) TIGRE synthetic X-rays being representative of clinical acquisitions (Sec. 4.1). The only hand-chosen numbers that affect training are the rendering loss weights and the sub-volume sampling factor; the network weights are learned, not fitted constants.

free parameters (2)
  • Rendering loss weights lambda_L1 and lambda_SSIM = not reported
    Appear in Eq. 10; hand-chosen hyperparameters are never specified, making exact reproduction impossible.
  • Sub-volume sampling factor = 1/4 per dimension
    Training renders only M/4 x N/4 x K/4 sub-volumes to fit GPU memory (Sec. 3.5); this is a hand-chosen trade-off between memory and gradient fidelity.
assumptions (3)
  • domain assumption X-ray attenuation follows the Beer-Lambert law with monochromatic, scatter-free imaging; 3DGS rasterization is mathematically equivalent to X-ray projection under this model.
    Stated in Sec. 3.1 and A.1; this justifies using differentiable splatting for X-ray rendering and training, but ignores polyenergetic spectra, scatter, and beam hardening present in real CT.
  • domain assumption The CT volume density at a voxel can be read directly from the opacity alpha_i of the Gaussian fixed at that voxel center (Eq. 8).
    Assumes negligible contribution from neighboring Gaussians at the voxel center; this is not exact for overlapping Gaussians but is validated empirically by the ablations.
  • domain assumption Synthetic X-ray projections generated with TIGRE, with Gaussian and Poisson noise, are a sufficient proxy for clinical X-ray projections.
    The entire training and test pipeline uses simulated radiographs; generalization to real acquisitions is not demonstrated.

how reviews work

0 comments
Cite this review

Pith. "Pith review of X-GRM: Large Gaussian Reconstruction Model for Sparse-view X-rays to Computed Tomography." pith.science (2026). https://pith.science/paper/RRSKNCUO

@misc{pith2026250515235,
  author       = {Pith},
  title        = {Pith review of: X-GRM: Large Gaussian Reconstruction Model for Sparse-view X-rays to Computed Tomography},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/RRSKNCUO}},
  note         = {Machine review of arXiv:2505.15235}
}
read the original abstract

Computed Tomography serves as an indispensable tool in clinical workflows, providing non-invasive visualization of internal anatomical structures. Existing CT reconstruction works are limited to small-capacity model architecture and inflexible volume representation. In this work, we present X-GRM (X-ray Gaussian Reconstruction Model), a large feedforward model for reconstructing 3D CT volumes from sparse-view 2D X-ray projections. X-GRM employs a scalable transformer-based architecture to encode sparse-view X-ray inputs, where tokens from different views are integrated efficiently. Then, these tokens are decoded into a novel volume representation, named Voxel-based Gaussian Splatting (VoxGS), which enables efficient CT volume extraction and differentiable X-ray rendering. This combination of a high-capacity model and flexible volume representation, empowers our model to produce high-quality reconstructions from various testing inputs, including in-domain and out-domain X-ray projections. Our codes are available at: https://github.com/CUHK-AIM-Group/X-GRM.

Figures

Figures reproduced from arXiv: 2505.15235 by the authors.

Figure 1
Figure 1. Our method achieves state-of-the-art reconstruction quality while maintaining the fastest [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. X-GRM is a large feed-forward transformer trained on a curated large CT reconstruction dataset. (a) X-ray Reconstruction Transformer efficiently encodes and fuses tokens from multiple X-ray projections, and (b) Voxel-based Gaussian Splatting enables both the efficient CT volume extraction and differentiable X-ray rendering. information (Sec. 3.3). Then, we discuss the design of VoxGS and how to regress Gaussian attr… view at source ↗
Figure 3
Figure 3. Qualitative comparison with traditional and feedforward methods. Results shown are from [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figures from the paper (5 more)
Figure 4

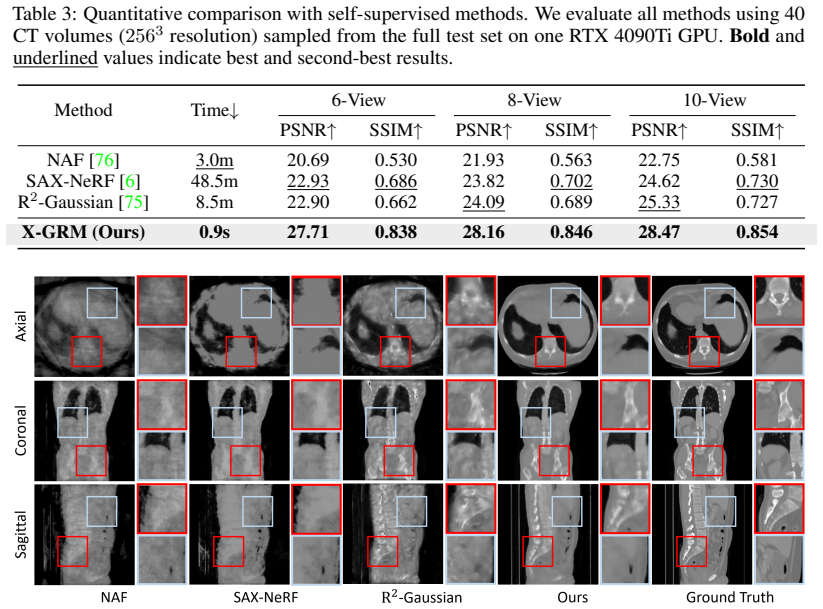

Figure 4. Figure 4: Qualitative comparison with self-supervised models. Results shown are from the test set [PITH_FULL_IMAGE:figures/full_fig_p008_4.png]
Figure 5
Figure 5. Figure 5: Qualitative results of novel views [PITH_FULL_IMAGE:figures/full_fig_p009_5.png]
Figure 6
Figure 6. Figure 6: Additional qualitative comparison of novel view synthesis. [PITH_FULL_IMAGE:figures/full_fig_p016_6.png]
Figure 7
Figure 7. Figure 7: Qualitative comparison of reconstructed slices with traditional and feedforward models. [PITH_FULL_IMAGE:figures/full_fig_p017_7.png]
Figure 8
Figure 8. Figure 8: Qualitative comparison of reconstructed slices with self-supervised models. [PITH_FULL_IMAGE:figures/full_fig_p017_8.png]
