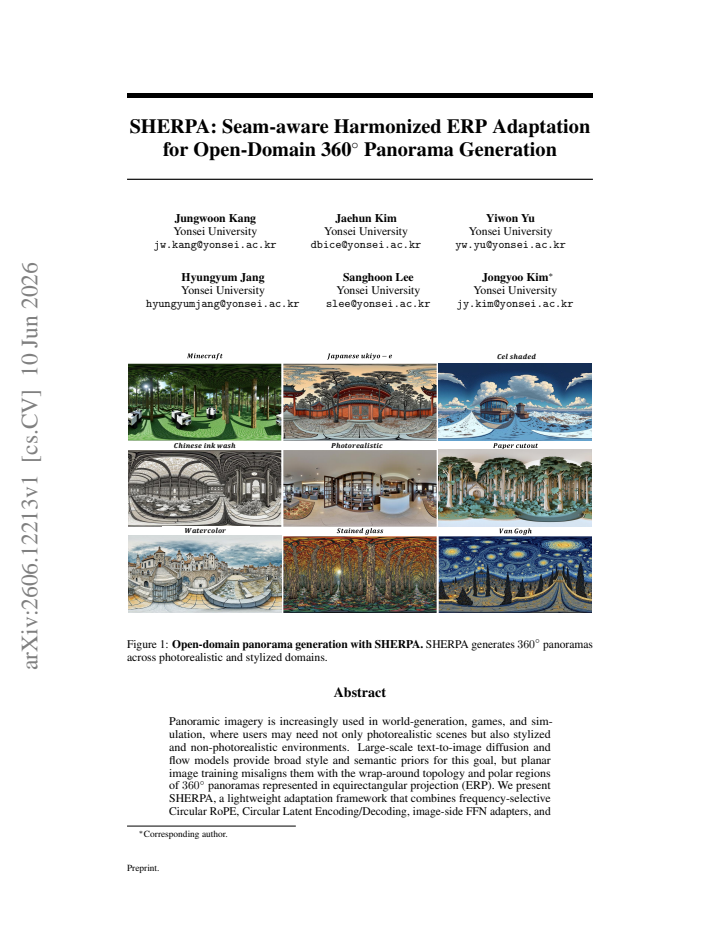

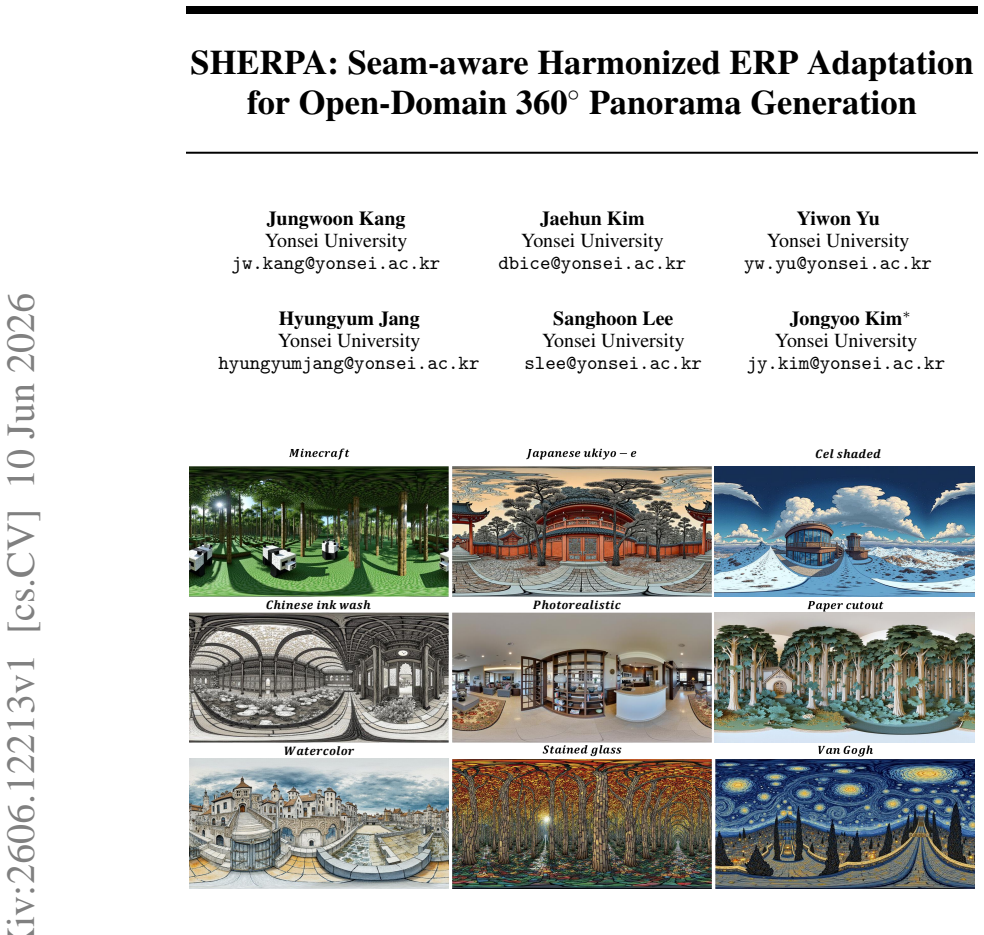

SHERPA: Seam-aware Harmonized ERP Adaptation for Open-Domain 360^circ Panorama Generation
Pith reviewed 2026-06-27 09:43 UTC · model grok-4.3
The pith
SHERPA adapts text-to-image models to generate seamless 360-degree panoramas for both realistic and stylized prompts.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
SHERPA generates 360° panoramas across both photorealistic panorama domains and open-domain stylized prompts through frequency-selective Circular RoPE, Circular Latent Encoding/Decoding, image-side FFN adapters, and a Dual-Path Training Scheme.
What carries the argument

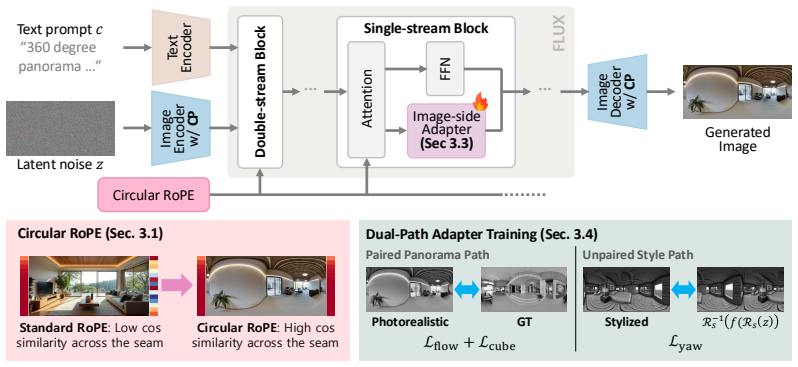

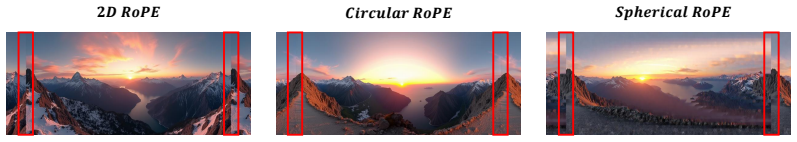

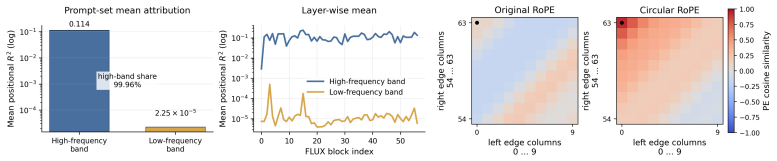

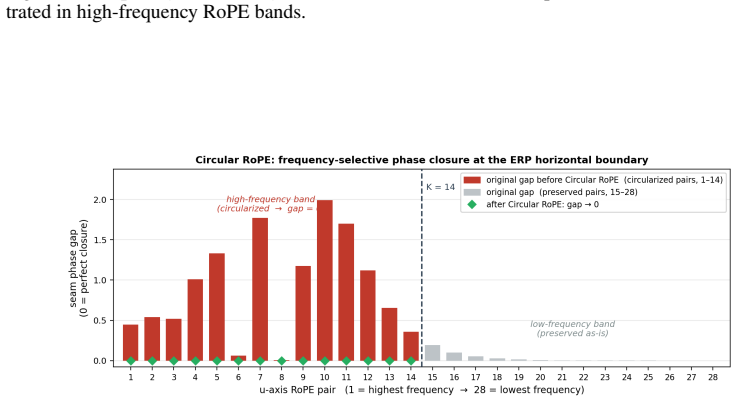

Circular RoPE replaces only the seam-sensitive high-frequency horizontal RoPE band with integer-periodic harmonics while preserving the pretrained lower-frequency spectrum.
If this is right
- Panoramas maintain geometry consistency under yaw rotations without paired target images for stylized cases.
- The method works on both photorealistic and non-photorealistic open-domain prompts.
- Only high-frequency components are altered, leaving most pretrained weights and lower-frequency behavior intact.
- Generation covers full 360° ERP output suitable for games, simulation, and world-building.
Where Pith is reading between the lines
- The same frequency-band split could be tested on other positional encodings in diffusion or flow models for spherical data.
- Integration with existing panorama viewers might allow direct text-driven environment creation for VR or 3D tools.
- Extending the dual-path idea to video or 3D-consistent generation could address temporal wrap-around consistency.
Load-bearing premise
Replacing only the seam-sensitive high-frequency horizontal RoPE band with integer-periodic harmonics while preserving the pretrained lower-frequency spectrum maintains model performance and avoids new artifacts in polar regions.
What would settle it
Visual inspection or quantitative seam/polar artifact metrics on generated panoramas from stylized prompts would show failure if horizontal wraps or poles exhibit distortions.
Figures
read the original abstract
Panoramic imagery is increasingly used in world-generation, games, and simulation, where users may need not only photorealistic scenes but also stylized and non-photorealistic environments. Large-scale text-to-image diffusion and flow models provide broad style and semantic priors for this goal, but planar image training misaligns them with the wrap-around topology and polar regions of $360^\circ$ panoramas represented in equirectangular projection (ERP). We present SHERPA, a lightweight adaptation framework that combines frequency-selective Circular RoPE, Circular Latent Encoding/Decoding, image-side FFN adapters, and a Dual-Path Training Scheme. Circular RoPE replaces only the seam-sensitive high-frequency horizontal RoPE band with integer-periodic harmonics while preserving the pretrained lower-frequency spectrum. The Paired Panorama Path supervises geometry, while the Unpaired Style Path uses self-supervised yaw consistency for target-free stylized prompts. As a result, SHERPA generates $360^\circ$ panoramas across both photorealistic panorama domains and open-domain stylized prompts.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript presents SHERPA, a lightweight adaptation framework for text-to-image diffusion and flow models to generate 360° panoramas in equirectangular projection (ERP). It introduces frequency-selective Circular RoPE (replacing only the seam-sensitive high-frequency horizontal band with integer-periodic harmonics while preserving lower-frequency spectrum), Circular Latent Encoding/Decoding, image-side FFN adapters, and a Dual-Path Training Scheme (Paired Panorama Path for geometry supervision and Unpaired Style Path for self-supervised yaw consistency) to enable generation across photorealistic panorama domains and open-domain stylized prompts.
Significance. If the central claims hold, the work would be significant for enabling open-domain 360° panorama synthesis by adapting pretrained planar models to ERP topology without full retraining. The dual-path training for target-free stylized adaptation and the selective RoPE modification represent targeted contributions that could reduce artifacts at seams and poles while retaining model priors.
major comments (2)
- [§3.2] §3.2 (Circular RoPE description): The assumption that selectively replacing only the seam-sensitive high-frequency horizontal RoPE band with integer-periodic harmonics while preserving the pretrained lower-frequency spectrum maintains performance and avoids new artifacts in polar regions lacks a derivation or analysis. In ERP, polar latitudes undergo extreme vertical compression, allowing horizontal rotary embeddings at any frequency to couple into latitude-dependent distortions via the projection; no frequency-cutoff justification or phase-discontinuity analysis at the poles is supplied to isolate seam effects.
- [§4] §4 (Experiments): No quantitative results, error analysis, ablation studies on the RoPE frequency cutoff, or baseline comparisons are reported to validate that the method achieves the claimed performance across photorealistic and stylized domains, leaving the central claim that SHERPA works for both domains uncheckable from the provided details.
minor comments (2)
- The abstract would be strengthened by including one or two key quantitative metrics or baseline comparisons to ground the performance claims.

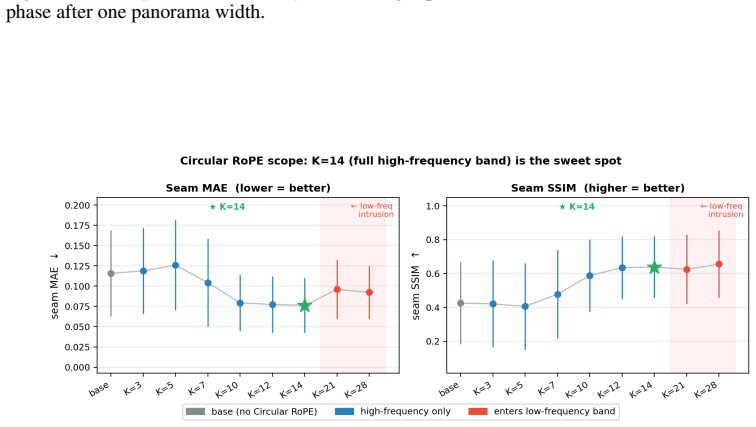

- [§3.2] Notation for the frequency band cutoff in Circular RoPE should be defined explicitly with an equation reference rather than described only in prose.
Simulated Author's Rebuttal
We thank the referee for the detailed and constructive review. We address each major comment below and commit to revisions that strengthen the manuscript without altering its core claims.
read point-by-point responses
-
Referee: [§3.2] §3.2 (Circular RoPE description): The assumption that selectively replacing only the seam-sensitive high-frequency horizontal RoPE band with integer-periodic harmonics while preserving the pretrained lower-frequency spectrum maintains performance and avoids new artifacts in polar regions lacks a derivation or analysis. In ERP, polar latitudes undergo extreme vertical compression, allowing horizontal rotary embeddings at any frequency to couple into latitude-dependent distortions via the projection; no frequency-cutoff justification or phase-discontinuity analysis at the poles is supplied to isolate seam effects.
Authors: We agree that the current description would benefit from explicit justification. The frequency cutoff was chosen empirically to target the horizontal seam discontinuity while retaining pretrained low-frequency priors that encode global structure. In the revision we will add a dedicated analysis subsection deriving the band selection from the ERP seam geometry, including a phase-continuity argument at the poles that accounts for vertical compression and shows that low-frequency components remain largely unaffected by the periodic replacement. revision: yes
-
Referee: [§4] §4 (Experiments): No quantitative results, error analysis, ablation studies on the RoPE frequency cutoff, or baseline comparisons are reported to validate that the method achieves the claimed performance across photorealistic and stylized domains, leaving the central claim that SHERPA works for both domains uncheckable from the provided details.
Authors: The current manuscript emphasizes the architectural and training innovations with qualitative results. We acknowledge that quantitative validation is necessary to substantiate performance across domains. In the revised version we will include FID and seam-consistency metrics on both photorealistic and stylized test sets, an ablation table varying the RoPE frequency cutoff, and comparisons against relevant baselines (full fine-tuning, standard RoPE, and other ERP adaptations). revision: yes
Circularity Check
No circularity: method is an engineering adaptation without self-referential derivation
full rationale
The paper presents SHERPA as a composite adaptation framework (frequency-selective Circular RoPE, latent encoding, adapters, dual-path training) whose central design choices are stated as explicit engineering decisions rather than derived predictions. No equations or claims reduce a 'first-principles result' or 'prediction' to fitted inputs by construction, and the provided text contains no self-citations invoked as load-bearing uniqueness theorems. The description of Circular RoPE is an ansatz for seam handling, not a tautological redefinition of its own inputs. The derivation chain is therefore self-contained as a proposed method.
