On the weak formulation of Prandtl's minimum drag problem

Aram L. Karakhanyan; Yigit Katgi

arxiv: 2606.12757 · v1 · pith:SLQETRRZnew · submitted 2026-06-10 · 🧮 math.AP

On the weak formulation of Prandtl's minimum drag problem

Aram L. Karakhanyan , Yigit Katgi This is my paper

Pith reviewed 2026-06-27 08:44 UTC · model grok-4.3

classification 🧮 math.AP

keywords induced dragPrandtl problemfractional Sobolev spacehalf-Laplaciansingular integral equationcirculation profilevariational methodsEuler-Lagrange equation

0 comments

The pith

Prandtl's minimum induced drag problem is well-posed in H^{1/2} and solved explicitly in the periodic setting to recover the bell-shaped circulation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Prandtl's classical problem of minimizing induced drag for a finite wing with fixed span is posed as a constrained variational problem whose energy is a singular quadratic functional of the circulation. The problem is set in the fractional Sobolev space H^{1/2}, where existence and uniqueness of minimizers are proved by the direct method and the Euler-Lagrange equation is derived. Reformulating the problem on the one-dimensional torus identifies the drag functional with the quadratic form of the half-Laplacian, whose singular integral equation is solved explicitly to recover the classical bell-shaped circulation profile.

Core claim

The induced drag minimization problem for a finite wing is formulated in the space H^{1/2} subject to fixed lift and second-moment constraints. Existence and uniqueness of minimizers follow from variational arguments, and the Euler-Lagrange equation is obtained. In the equivalent periodic formulation on the torus the drag coincides with the quadratic form of the half-Laplacian; the resulting singular integral equation is solved explicitly and yields Prandtl's bell-shaped circulation profile.

What carries the argument

The quadratic form of the half-Laplacian on the one-dimensional torus, which represents the drag functional and permits explicit solution of the Euler-Lagrange equation.

If this is right

A unique minimizer exists in H^{1/2} under the given lift and second-moment constraints.
The Euler-Lagrange equation holds pointwise for the minimizer.
The periodic drag functional equals the quadratic form of the half-Laplacian.
The singular integral equation on the torus admits the explicit bell-shaped circulation as its solution.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The weak formulation supplies a natural setting for studying stability of the minimizer with respect to small changes in lift or span.
The explicit periodic solution can serve as an exact benchmark for numerical schemes applied to non-periodic or three-dimensional wing problems.
The identification with the half-Laplacian suggests that similar singular quadratic functionals arising in other potential-flow problems may admit the same explicit treatment.

Load-bearing premise

The admissible set consists of functions in H^{1/2} satisfying the lift and second-moment conditions, and the periodic torus formulation captures the essential features of the original finite-wing problem.

What would settle it

A direct verification that the explicit bell-shaped solution fails to satisfy the derived Euler-Lagrange equation or to minimize the drag functional in the periodic H^{1/2} setting.

Figures

Figures reproduced from arXiv: 2606.12757 by Aram L. Karakhanyan, Yigit Katgi.

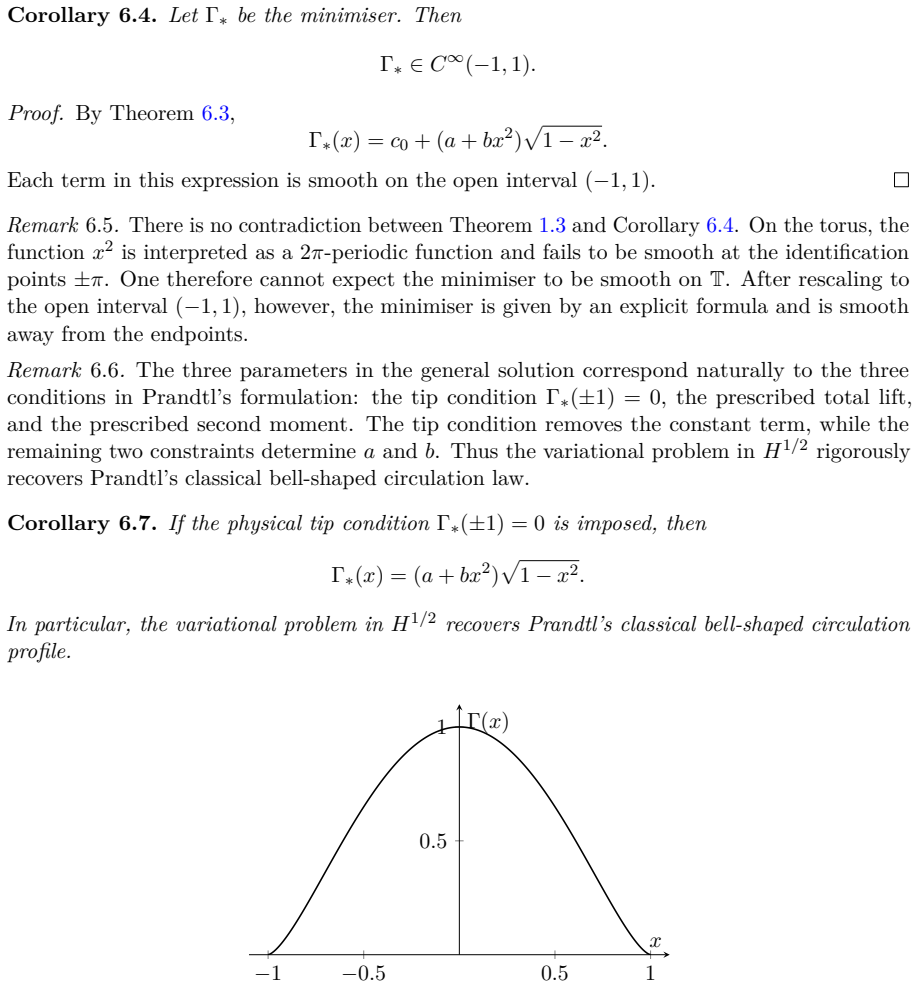

**Figure 2.** Figure 2: A representative bell-shaped circulation distribution. [PITH_FULL_IMAGE:figures/full_fig_p014_2.png] view at source ↗

read the original abstract

We study Prandtl's classical problem on minimising the induced drag for a finite wing with fixed span. The induced drag is given by a singular quadratic functional of the circulation, with admissible functions satisfying the prescribed lift and second-moment conditions. We formulate the problem in the fractional Sobolev space \(H^{1/2}\), which is the natural energy space for the functional, prove existence and uniqueness of minimisers by variational methods, and derive the corresponding Euler--Lagrange equation. % Passing to a periodic formulation on the one-dimensional torus, we identify the drag functional with the quadratic form of the half-Laplacian and solve the resulting singular integral equation explicitly and recover Prandtl's bell-shaped circulation profile.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper sets up Prandtl's drag problem cleanly in H^{1/2} and solves the periodic version explicitly, but the torus step needs checking against the original compact-support conditions.

read the letter

The punchline is that this paper puts Prandtl's minimum-drag problem into the fractional Sobolev space H^{1/2} as the natural energy space, proves existence and uniqueness of minimizers by standard variational arguments, derives the Euler-Lagrange equation, and then solves the periodic version on the torus by identifying the drag with the quadratic form of the half-Laplacian, recovering the classical bell-shaped profile.

That formulation and the explicit solution are the actual new pieces. The variational existence/uniqueness part follows the usual direct-method template and looks routine but correctly applied. The identification with the half-Laplacian and the singular-integral solution on the torus is a neat reduction that lets them write down the profile explicitly.

The soft spot is the passage to the periodic torus. The original finite-wing problem has circulation supported on a fixed bounded interval that vanishes at the tips. Replacing that with a second-moment condition on the torus changes the support constraint and replaces the finite-interval kernel with a periodic one. The paper claims the periodic solution solves the original minimization, but the abstract does not spell out why the two admissible sets are equivalent in H^{1/2} or how the tip conditions are recovered. If that equivalence is only approximate or requires extra justification, the result applies more directly to the periodic problem than to the classical finite-span one.

This is for people working on variational formulations of singular integral problems in aerodynamics or on fractional Sobolev spaces. It is a focused analysis piece rather than a broad advance.

I would send it to peer review. The core variational work is grounded enough to deserve referee time, even if the connection between the torus solution and the original finite-wing constraints needs tightening.

Referee Report

1 major / 1 minor

Summary. The manuscript formulates Prandtl's minimum induced drag problem for a finite wing in the fractional Sobolev space H^{1/2}. It proves existence and uniqueness of minimizers satisfying fixed lift and second-moment conditions by direct variational methods, derives the associated Euler-Lagrange equation, and passes to a periodic formulation on the one-dimensional torus. There the drag is identified with the quadratic form of the half-Laplacian; the resulting singular integral equation is solved explicitly, recovering the classical bell-shaped circulation profile.

Significance. If the periodic reformulation is rigorously equivalent to the original finite-span problem, the work supplies a clean variational existence proof and an explicit solution in the natural energy space, confirming the classical result by modern methods. The use of standard fractional-Sobolev properties and the explicit solution of the integral equation are clear strengths.

major comments (1)

[periodic formulation section] The passage to the periodic torus formulation (described after the derivation of the Euler-Lagrange equation) replaces the compact-support constraint and tip-vanishing condition of the original finite-wing problem with a second-moment condition on the torus. The periodic kernel differs from the finite-interval kernel, and the manuscript does not supply a detailed argument showing that the two problems are equivalent in H^{1/2}. Because the explicit bell-shaped profile is obtained only in the periodic setting, this equivalence is load-bearing for the central claim that the recovered profile solves Prandtl's original minimization problem.

minor comments (1)

Notation for the admissible set and the precise statement of the second-moment constraint should be repeated when the periodic problem is introduced, to make the transition self-contained.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading and for identifying the need to strengthen the justification of the periodic reformulation. We address the single major comment below and will revise the manuscript to incorporate a detailed equivalence argument.

read point-by-point responses

Referee: [periodic formulation section] The passage to the periodic torus formulation (described after the derivation of the Euler-Lagrange equation) replaces the compact-support constraint and tip-vanishing condition of the original finite-wing problem with a second-moment condition on the torus. The periodic kernel differs from the finite-interval kernel, and the manuscript does not supply a detailed argument showing that the two problems are equivalent in H^{1/2}. Because the explicit bell-shaped profile is obtained only in the periodic setting, this equivalence is load-bearing for the central claim that the recovered profile solves Prandtl's original minimization problem.

Authors: We agree that a more explicit argument is required to establish equivalence between the original problem on a finite interval (with compact support and tip-vanishing) and the periodic formulation on the torus. In the revised manuscript we will add a dedicated subsection that (i) compares the kernels directly, (ii) shows how the second-moment constraint on the torus reproduces the effect of the tip conditions in H^{1/2}, and (iii) proves that the two quadratic forms coincide on the admissible class, thereby confirming that the explicit half-Laplacian solution satisfies the Euler-Lagrange equation of the original finite-wing problem. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation uses standard variational methods and fractional Sobolev space properties.

full rationale

The paper sets up the drag minimization in H^{1/2} with lift and second-moment constraints, applies standard existence/uniqueness arguments from variational calculus, derives the Euler-Lagrange equation, and reduces the periodic-torus case to the half-Laplacian quadratic form whose explicit solution recovers the known elliptical profile. None of these steps are self-definitional, fitted-then-renamed-as-prediction, or dependent on load-bearing self-citations; the chain rests on externally verifiable properties of fractional Sobolev spaces and singular integral operators. The periodic reformulation is presented as an equivalent reformulation rather than a tautological redefinition of the original finite-wing problem.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper relies on standard functional-analytic structures without introducing new free parameters or postulated entities.

axioms (1)

domain assumption The fractional Sobolev space H^{1/2} is the natural energy space in which the drag functional is well-defined and coercive on the admissible set
Invoked to justify application of variational methods for existence and uniqueness.
