Pith's one-line read CyberSentinel claims the first accurate line-speed anomaly detector that runs entirely in the programmable switch data plane, using an Isolation Forest distilled from autoencoder reconstruction errors to match control-plane accuracy at…

desk verdict Real Tofino prototype with a genuinely new unsupervised knowledge-distillation scheme, but the headline 'similar detection performance' only holds for the deployed 8-feature version at 40–200x higher false-positive rates; the 21-feature version that matches at the same FPR is simulated, not on the switch. read the letter →

arxiv 2412.16693 v1 pith:T2EMGPJD submitted 2024-12-21 cs.CR cs.NI

Sankalp Mittal This is my paper · ORCID
classification cs.CRcs.NI
keywords anomalydetectionprogrammableswitchP4dataplaneknowledgedistillationIsolationForestautoencoderIoTsecurityline-speed
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

CyberSentinel claims that accurate, unsupervised anomaly detection can run entirely inside a programmable switch's data plane, at line speed, without a control-plane model in the detection path. The paper's method distills the learned knowledge of an ensemble of autoencoders into an Isolation Forest, then converts the distilled forest into whitelist rules that P4 match-action tables can evaluate. On a 40 Gbps testbed, the deployed prototype matches the detection performance of the best control-plane-assisted system while increasing packet-processing throughput by 66.47% and cutting average per-packet latency by 50%. If correct, this removes the control plane as the throughput bottleneck, making autoencoder-grade detection scalable to high-rate IoT traffic.

What carries the argument

The load-bearing object is the distilled Isolation Forest: an unsupervised tree ensemble that isolates anomalies by short path lengths, whose leaves are augmented with expected reconstruction errors from an ensemble of autoencoders and labelled benign or malicious (Eqs. 2-3). A second piece, the burst-to-flow mapping module, converts variable-length sequences of burst-level features into the fixed-length flow vectors that popular autoencoders expect, which is what makes the distillation possible when teacher and student are trained on different feature granularities. On the hardware side, the key mechanism is a P4 resubmission-free design: register read/update/reset actions are arranged atomically within the switch's action unit so that no packet is recirculated for feature maintenance, which is the main source of the throughput and latency gains.

What would settle it

Evaluate the burst-to-flow mapping module in isolation against an oracle: feed the same flows' true flow-level features directly to the autoencoder, compare those reconstruction errors to the ones obtained through the learned burst-to-flow mapping, and compute TPR/TNR at the paper's operating points. Alternatively, re-run the end-to-end comparison with the learned mapping replaced by the oracle flow features; if detection performance moves beyond a small margin, the mapping, not the distillation, carries the result.

Watch

Extended reading notes

Core claim

On its own terms, the paper's central discovery is a way to embed the reconstruction-error signal of a trained autoencoder ensemble into the leaf nodes of an Isolation Forest without altering the forest's structure. During training, each leaf is labelled by the weighted majority of the base autoencoders' per-leaf average reconstruction errors, so inference is just a tree traversal and a majority vote. The labelled forest is then compressed into a small set of hypercubes, and hypercubes labelled benign become whitelist rules installed in the switch. The paper argues that this distilled iForest retains the high true-positive rate of the original iForest and the low false-positive rate of the autoencoder, delivering the first fully data-plane, line-speed detector with accuracy comparable to a control-plane autoencoder.

Load-bearing premise

The load-bearing premise is that the deferred burst-to-flow mapping module faithfully preserves the autoencoder's reconstruction-error signal when it converts variable-length burst statistics into fixed-length flow vectors, so if that conversion distorts the signal, the distilled forest's low-false-positive advantage erodes.

Editorial extensions

If this is right

  • Anomaly detection no longer has to stop or slow down for the control plane; the switch itself can mark malicious bursts and trigger blacklist insertion.
  • The detection scheme remains unsupervised: it needs only benign traffic for training, so it can flag unseen attacks without labels.
  • Because the deployed artifact is a small set of whitelist rules, the memory footprint stays low (about 9.86% SRAM, 2.85% TCAM in the reported prototype), leaving room for other in-network functions.
  • The same distillation recipe should transfer to other unsupervised teachers and other switch targets, since the teacher is only used offline.
  • Model updates can be continuous: normal bursts mirrored to the control plane retrain the distilled forest and refresh the whitelist rules.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editorial inference: if the burst-to-flow mapping is as lossless as the end-to-end numbers imply, the same distillation should work for any teacher whose input features are flow-level, suggesting a general recipe for porting deep unsupervised detectors into switches.
  • Editorial inference: the reported 66.47% throughput gain bundles two separate effects — the distillation (which removes control-plane round trips) and the resubmission-free P4 design. A controlled ablation that isolates these two would tell operators how much of the gain transfers to a switch that already avoids resubmissions.
  • Editorial inference: the consistency metric C is computed against the teacher's own labels, so high C does not by itself guarantee better end-task detection; a direct comparison on TPR/TNR at matched FPR is the more operationally meaningful figure.
  • Editorial inference: if the whitelist-rule compression merges adjacent same-label hypercubes, the rule set could become coarser as traffic shifts; periodic online retraining (which the paper implements) is what keeps the rules aligned with drift.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. CyberSentinel proposes a fully data-plane anomaly detection system for programmable switches. The authors train an ensemble of autoencoders (Magnifier) and distill its reconstruction-error knowledge into an Isolation Forest, then convert the distilled iForest into whitelist rules that can be installed on an Intel Tofino switch. The system is evaluated on a 40 Gbps testbed across multiple IoT attack datasets, reporting 39.6 Gbps throughput versus 23.79 Gbps for HorusEye, roughly 50% lower per-packet latency, and detection metrics claimed to be similar to HorusEye. A 21-feature variant is evaluated in simulation because the deployed 8-feature version cannot fit the switch memory.

Significance. If fully supported, this would be a significant contribution: it would be the first demonstration that autoencoder-grade unsupervised anomaly detection can run inline in the switch data plane without a control-plane bottleneck. The paper's real strengths are the actual Tofino deployment, the P4-level description of a no-resubmission data-path design, the extensive attack-dataset evaluation, and the supplementary algorithms and P4 code. However, the headline claim of "similar detection performance" is not currently established at comparable false-positive rates for the deployed hardware, and the burst-to-flow mapping module that the distillation depends on is not evaluated standalone. These issues are load-bearing for the central contribution and must be fixed before the claim can be accepted.

major comments (3)
  1. [§VII-D and Table III; Abstract]
  2. [Supplementary §XIV, Algorithm 4]
  3. [Supplementary §XIV.G and Algorithm 4]
minor comments (4)
  1. [§VII-D, text after Table III]
  2. [Eq. (5) and Fig. 15]
  3. [Supplementary §XI, Theorem 3]
  4. [General presentation]

Circularity Check

1 steps flagged · score 4.0 of 10

Distilled-iForest leaf labels are thresholded autoencoder errors, so the reported consistency/fidelity metric is self-referential; core throughput and ground-truth detection results remain independent.

  1. self definitional [Section IV-A1, Eqs. (2), (3), (5); echoed in Section VII-D and Section XIII-A]
    "We embed the reconstruction errors (REs) of the r autoencoders in each of the leaf node ... REleaf = (1/(k+|Xleaf|) * sum_{x in Xleaf union Aleaf} REu(x))_{u=1}^{r} (2) ... labelleaf = 1 { sum_{i=1}^{r} w_i * l_i > 0.5 } (3) ... Consistency of knowledge distillation ... C = 1/N * sum_{i=1}^{N} 1 { iForest_distilled(x_i) = Autoencoder(x_i) } (5)"

    The distilled iForest's per-leaf label is the thresholded mean of the autoencoder's reconstruction-error decisions (Eqs. 2-3). Eq. (5) then validates the distilled model by counting agreement with Autoencoder(x_i), the same function that produced the leaf labels. High C therefore measures how finely the leaves reproduce the teacher on the evaluation set; it is a quantization/approximation-fidelity check, not independent evidence of detection capability. The statement 'Since Magnifier's knowledge is transferred in CyberSentinel, we can argue superior attack detection performance similar to that of HorusEye' is likewise an argument from construction.

full rationale

The central claim—accurate anomaly detection entirely in the switch data plane—rests on two pillars. Pillar 1 (line-speed deployment) is fully independent: it is established by the Tofino implementation (Sections IV-C and VII-C) with measured throughput 39.59 Gbps vs 31.02 Gbps and latency 532.8 ns vs 1065.6 ns versus Gulliver Tunnel, plus resource-utilization numbers. Pillar 2 (detection quality) is partially independent: Table III reports TPR/PR-AUC against ground-truth attack labels for the 8-feature hardware prototype and the simulated 21-feature variant, and those results could have been poor if the leaf quantization or burst-flow mapping had distorted the teacher. However, the distillation-fidelity evidence (Eq. 5, Fig. 15, and the 'retains high TNR from Magnifier' claim) is self-referential: leaf labels are constructed from the autoencoder's reconstruction-error thresholds, so agreement with that autoencoder measures approximation fidelity, not independent predictive power. There is no load-bearing self-citation: borrowed components (bi-hash, double hash table, hypercube/whitelist-rule strategy) are cited to HorusEye [24] and other external works, not to the author's own prior results. No uniqueness theorem is imported. The FPR-budget mismatch between the 8-feature hardware variant (<=2e-3/<=1e-2) and the baselines (<=5e-5/<=5e-4) is a comparison-validity concern, not circularity. Overall: one localized self-definitional step in the consistency/fidelity argument, with the central deployment and ground-truth results retaining independent content, giving score 4.

Assumptions & free parameters 9 free parameters · 6 assumptions · 0 invented entities

The central claim relies on a moderately large set of tunable hyperparameters and on several domain assumptions about traffic and switch hardware. The most under-validated component is the burst-to-flow mapping module, which is necessary to bridge burst-level and flow-level features during distillation.

free parameters (9)
  • Number of iTrees (t) = 200 (typically; 300 in some experiments)
    Controls how finely the feature space is divided; chosen based on consistency and detection experiments.
  • Sub-sample size (Psi) = 5000 (main), 400/256 in some experiments
    Controls iTree depth and feature boundary narrowness; tuned via consistency curves.
  • Data augmentation factor (k) = 50 (main), 150 in some experiments
    Number of uniformly sampled points per leaf used to compute expected reconstruction error; higher k improves distillation consistency up to a point.
  • Burst segmentation threshold (Nthreshold) = 15 (main), 4 for UNSW
    Maximum packets per burst; set based on distribution of burst lengths.
  • Idle timeout (delta_idle) = 1 second
    Inter-packet delay threshold defining a burst; taken from prior work.
  • Active timeout (delta_active) = 15 seconds
    Maximum burst duration; chosen to limit memory.
  • RMSE thresholds (T_u) = Set to meet FPR targets (e.g., 5e-5, 5e-4, 2e-3)
    Thresholds for each autoencoder used to label leaves; chosen per evaluation budget.
  • Autoencoder weights (w_u) = Equal weights (unspecified in text)
    Weights for combining autoencoder labels in Eq. 3; no detailed fitting is reported.
  • Profiler reward alpha = 0.5
    Trade-off between detection reward and memory footprint in Eq. 7.
assumptions (6)
  • domain assumption Normal (benign) traffic is available for training and is representative of the benign distribution at deployment time.
    The whole unsupervised method trains on normal traffic only; if the benign training data does not match deployment, detection degrades. Stated in threat model and dataset sections.
  • domain assumption Attacks from compromised IoT devices leave detectable traces in IP-layer features (packet sizes, timing, ports, TTL).
    The system uses only BL/PL features from IP layer; attacks like eavesdropping or MAC spoofing are excluded by threat model (§II-E).
  • standard math The iForest anomaly score threshold of 0.5 separates normal and anomalous samples.
    Standard iForest practice from Liu et al. [40]; used in Eq. 4 when combining original and distilled labels.
  • domain assumption The generated whitelist rules fit within the switch's memory and action constraints.
    The paper reports 9 stages and low TCAM/SRAM use (§VII-C), but assumes this generalizes to larger rule sets and other switches.
  • domain assumption The teacher autoencoders (Magnifier/Kitsune) are effective unsupervised anomaly detectors on the chosen features.
    The distilled iForest inherits the teacher's knowledge; if the teacher is weak, the student cannot exceed it. The paper uses state-of-the-art Magnifier.
  • ad hoc to paper The burst-to-flow mapping module accurately maps burst features to flow features.
    This module is introduced in supplementary §XIV, trained with mapping and reconstruction losses, and is not independently evaluated. The whole distillation from FL-based Magnifier to BL-based iForest depends on it.

how reviews work

0 comments
Cite this review

Pith. "Pith review of CyberSentinel: Efficient Anomaly Detection in Programmable Switch using Knowledge Distillation." pith.science (2026). https://pith.science/paper/T2EMGPJD

@misc{pith2026241216693,
  author       = {Pith},
  title        = {Pith review of: CyberSentinel: Efficient Anomaly Detection in Programmable Switch using Knowledge Distillation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/T2EMGPJD}},
  note         = {Machine review of arXiv:2412.16693}
}
abstract

The increasing volume of traffic (especially from IoT devices) is posing a challenge to the current anomaly detection systems. Existing systems are forced to take the support of the control plane for a more thorough and accurate detection of malicious traffic (anomalies). This introduces latency in making decisions regarding fast incoming traffic and therefore, existing systems are unable to scale to such growing rates of traffic. In this paper, we propose CyberSentinel, a high throughput and accurate anomaly detection system deployed entirely in the programmable switch data plane; making it the first work to accurately detect anomalies at line speed. To detect unseen network attacks, CyberSentinel uses a novel knowledge distillation scheme that incorporates "learned" knowledge of deep unsupervised ML models (\textit{e.g.}, autoencoders) to develop an iForest model that is then installed in the data plane in the form of whitelist rules. We implement a prototype of CyberSentinel on a testbed with an Intel Tofino switch and evaluate it on various real-world use cases. CyberSentinel yields similar detection performance compared to the state-of-the-art control plane solutions but with an increase in packet-processing throughput by $66.47\%$ on a $40$ Gbps link, and a reduction in average per-packet latency by $50\%$.

Figures

Figures reproduced from arXiv: 2412.16693 by the authors.

Figure 1
Figure 1. Protocol Independent Switch Architecture (PISA). [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Overview of CyberSentinel Data plane module. This module first extracts burst-level features from the incoming traffic/packets using the burst feature extractor (§IV-B). It detects anomalies based on the knowledge distilled iForest model (knowledge distillation from an ensemble of autoencoders) deployed in the form of whitelist rules. Details of knowledge distillation and whitelist rules generation are presented in … view at source ↗
Figure 3
Figure 3. Knowledge distillation of autoencoders into iForest and whitelist rules generation. (1) We first train an ensemble of autoencoders and (2) collect reconstruction errors by feeding each training sample in the trained ensemble. (3) We then train iForest model itself. We then (4) map each leaf node of trained iForest’s iTrees with the respective training samples. (5) Next, we embed each leaf node with expected reconstr… view at source ↗
Figures from the paper (16 more)

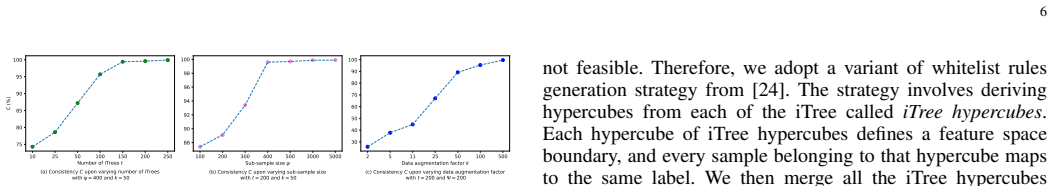

Figure 4
Figure 4. Figure 4: Effect of various hyperparameters on consistency of knowledge [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5
Figure 5. Figure 5: TPR and TNR comparison of iForest, Magnifier [24] and Magnifier [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]
Figure 6
Figure 6. Figure 6: As shown, 1 we first match the incoming packet’s 5-tuple in the blacklist match action table. If there is a match, we can simply drop the packet or redirect it for further analysis [PITH_FULL_IMAGE:figures/full_fig_p007_6.png]
Figure 6
Figure 6. Figure 6: Data plane implementation of CyberSentinel at a glance Listing 1: Approach followed by [24] 1 action resubmit (bit<7> resub_port) { 2 ig_tm_md.ucast_egress_port = resub_port; 3 } 4 apply{ 5 //If packet is resubmitted one 6 if(ig_intr_md.ingress_port == RESUBMIT_PORT){ …
Figure 7
Figure 7. Figure 7: Data plane management V. CONTROL PLANE MODULE We discuss two components of control plane module. A. Profiler The profiler ( [PITH_FULL_IMAGE:figures/full_fig_p009_7.png]
Figure 8
Figure 8. Figure 8: Comparison of detection performance (TPR and TNR) of [PITH_FULL_IMAGE:figures/full_fig_p012_8.png]
Figure 9
Figure 9. Figure 9: Effect of data augmentation factor k on CyberSentinel’s TPR and TNR. Number of iTrees = 200, subsample size = 400, and contamination ratio of 0.18 on both w / port and w/o port. Switch memory overheads. CyberSentinel takes up 9 stages of the pipeline with TCAM utilizat…
Figure 10
Figure 10. Figure 10: Comparison of CyberSentinel with Gulliver Tunnel, Magnifier, and HorusEye in terms of ROCAUC and PRAUC on UNSW NB-15 dataset. E. Detection performance on other datasets Setting. We use the popular intrusion detection dataset called UNSW NB-15 [45] from where we pick u…
Figure 12
Figure 12. Figure 12: Throughput and detection capability. G = Gulliver Tunnel, K = [PITH_FULL_IMAGE:figures/full_fig_p014_12.png]
Figure 14
Figure 14. Figure 14: We see a drop of 0.6% and 0.8% for TPR and TNR [PITH_FULL_IMAGE:figures/full_fig_p021_14.png]
Figure 13
Figure 13. Figure 13: P4 Code for average/variance/standard deviation of packet size [PITH_FULL_IMAGE:figures/full_fig_p022_13.png]

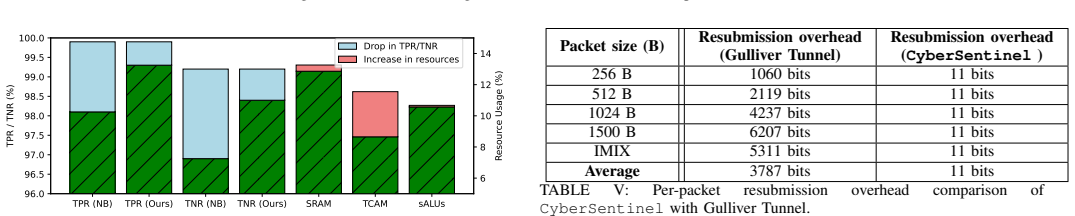

Figure 14
Figure 14. Figure 14: Drop in TPR/TNR and increase in TCAM, SRAM, and ALUs resource [PITH_FULL_IMAGE:figures/full_fig_p022_14.png]
Figure 15
Figure 15. Figure 15: Effect of various hyperparameters on consistency of knowledge distillation algorithm. [PITH_FULL_IMAGE:figures/full_fig_p023_15.png]
Figure 16
Figure 16. Figure 16: Effect of flow abnormality threshold on TPR and TNR of [PITH_FULL_IMAGE:figures/full_fig_p023_16.png]
Figure 17
Figure 17. Figure 17: Comparison of Magnifier-distilled iForest with iForest and Magnifier [PITH_FULL_IMAGE:figures/full_fig_p024_17.png]
Figure 18
Figure 18. Figure 18: Burst-to-flow mapping module (M) design For a given burst Bi having ni packets, the corresponding burst vector BVi is, BVi = ⟨ni , bf1, bf2, ..., bfd⟩ (13) where bfj is the j th burst-level (BL) feature and d is number of BL features. A sequence of burst vectors (for …
