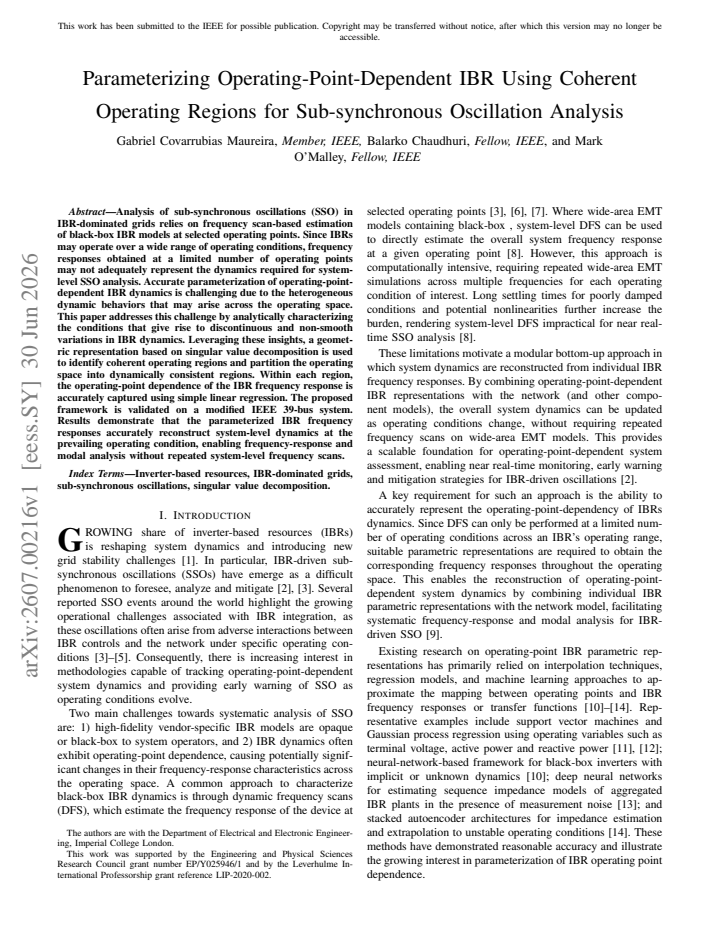

Parameterizing Operating-Point-Dependent IBR Using Coherent Operating Regions for Sub-synchronous Oscillation Analysis

Gabriel Covarrubias Maureira , Balarko Chaudhuri , Mark O'Malley This is my paper

Pith reviewed 2026-07-02 17:22 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords IBRsub-synchronous oscillationsfrequency scanoperating pointcoherent regionssingular value decompositionlinear regressionpower system dynamics
0
0 comments X

The pith

Partitioning IBR operating space into coherent regions via SVD enables accurate linear parameterization of frequency responses.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper establishes that IBR frequency responses can change discontinuously across operating conditions, making limited scans insufficient for system SSO analysis. It analytically characterizes when such discontinuities occur and uses singular value decomposition on a geometric representation to partition the space into coherent regions where dynamics vary smoothly. Within each region, linear regression on operating-point variables models the frequency response dependence. Validation shows these models reconstruct system-level dynamics accurately at any operating condition. This matters because it avoids the need for repeated full-system frequency scans when analyzing IBR-dominated grids.

Core claim

The paper claims that by partitioning the IBR operating space into dynamically consistent regions identified through singular value decomposition, and applying linear regression within each region, the operating-point-dependent frequency responses can be parameterized to accurately reconstruct system-level dynamics for sub-synchronous oscillation analysis without requiring new system-level frequency scans at each operating point.

What carries the argument

Singular value decomposition to identify coherent operating regions from a geometric representation of the operating space, enabling linear regression to capture frequency response variations inside each region.

Load-bearing premise

The premise that the operating space can be divided into regions where IBR frequency response changes smoothly enough for linear regression to suffice.

What would settle it

A direct frequency scan at an operating point inside one of the identified regions that shows large deviation from the linear regression prediction would falsify the claim.

Figures

Figures reproduced from arXiv: 2607.00216 by Balarko Chaudhuri, Gabriel Covarrubias Maureira, Mark O'Malley.

Figure 1

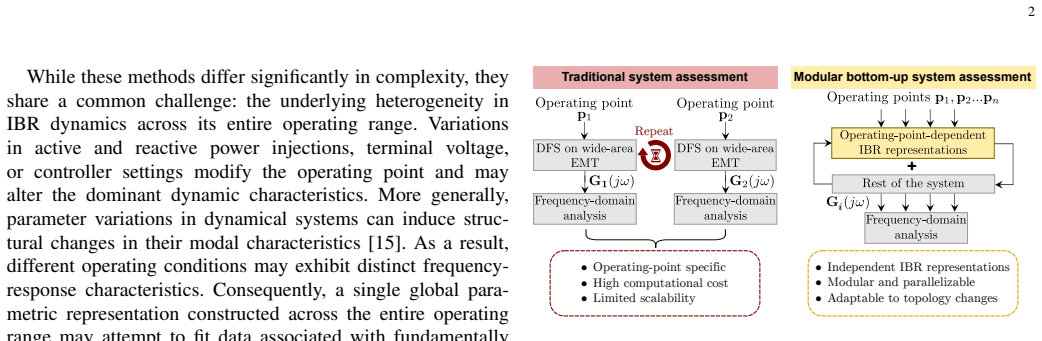

Figure 1. Figure 1: Traditional system-level assessment versus modular bottom-up recon [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

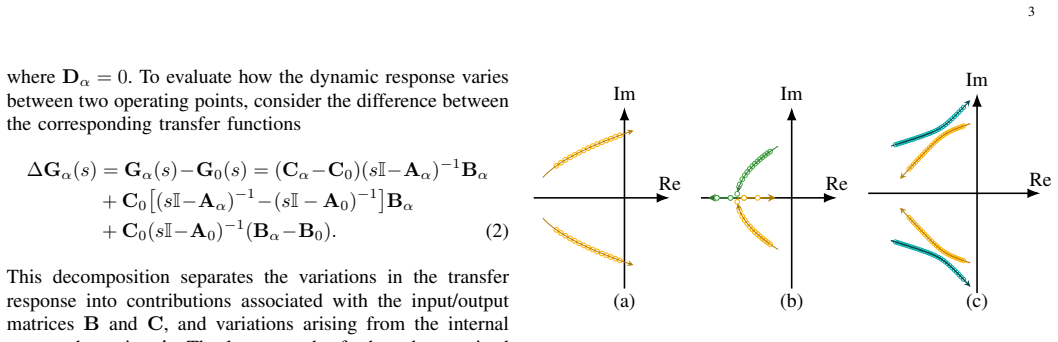

Figure 2. Figure 2: Eigenvalue trajectories under structural changes: (a) Hopf bifurcation, [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

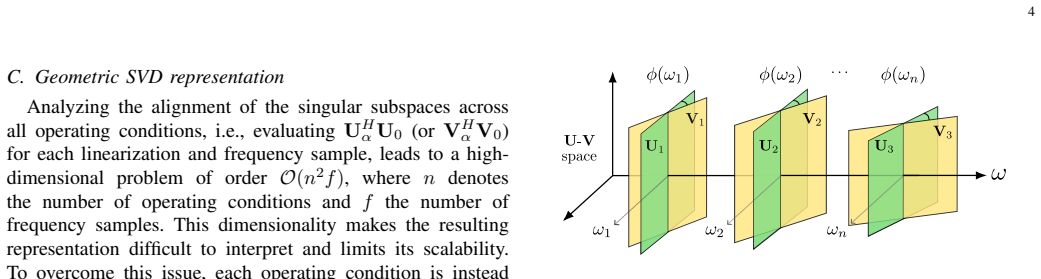

Figure 3. Figure 3: Geometric representation in the U-V space. Each frequency ωi defines an angle ϕ(ωi) between the subspaces spanned by the left (green) and right (yellow) singular vectors, enabling a representation of system alignment and identification of abrupt directional changes. that the system response is strongly dominated by a single mode (or direction), whereas values close to zero correspond to a balanced contribu… view at source ↗
Figure 4

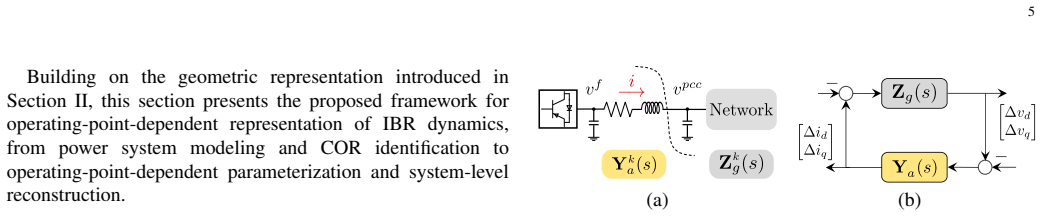

Figure 4. Figure 4: Feedback system representation of the interaction between a device [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

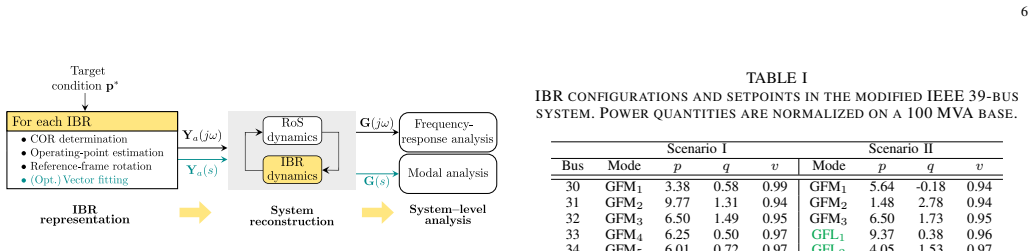

Figure 5. Figure 5: System reconstruction framework based on operating-point-dependent [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6

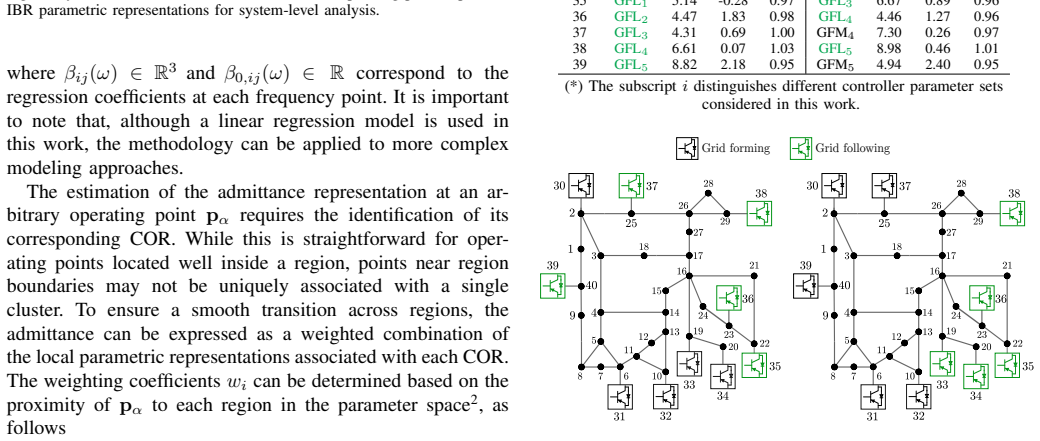

Figure 6. Figure 6: Modified IEEE-39 bus system with 10 IBRs: (left) scenario I, and [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7

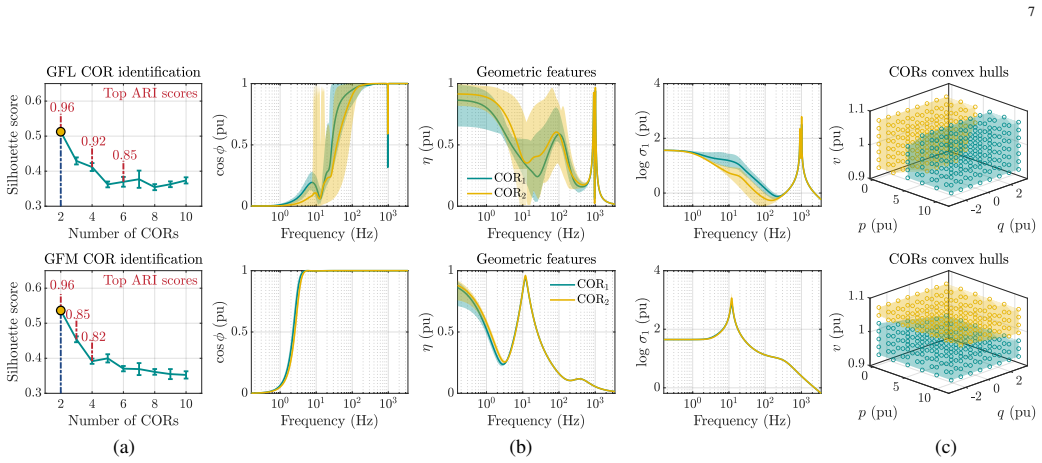

Figure 7. Figure 7: Geometric feature-based COR identification for representative GFL [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8

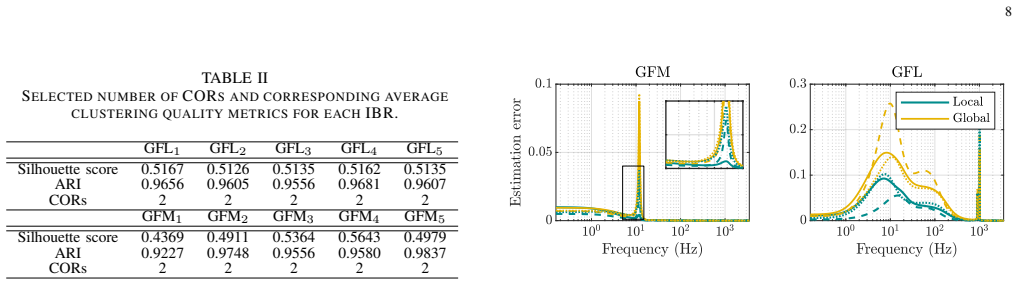

Figure 8. Figure 8: Estimation error for GFM3 (left) and GFL2 (right) at p1 = [6.2, −0.7, 0.94]T (solid line), p2 = [1.5, 1.2, 1.02]T (dashed line), and p3 =[4.5, 2.7, 0.99]T (dotted line) B. Modified IEEE-39 bus system reconstruction The operating-point-dependent IBR representations ob￾tained are then used to reconstruct the overall system dynamics for both scenarios. The resulting closed-loop admittance fre￾quency responses… view at source ↗
Figure 9

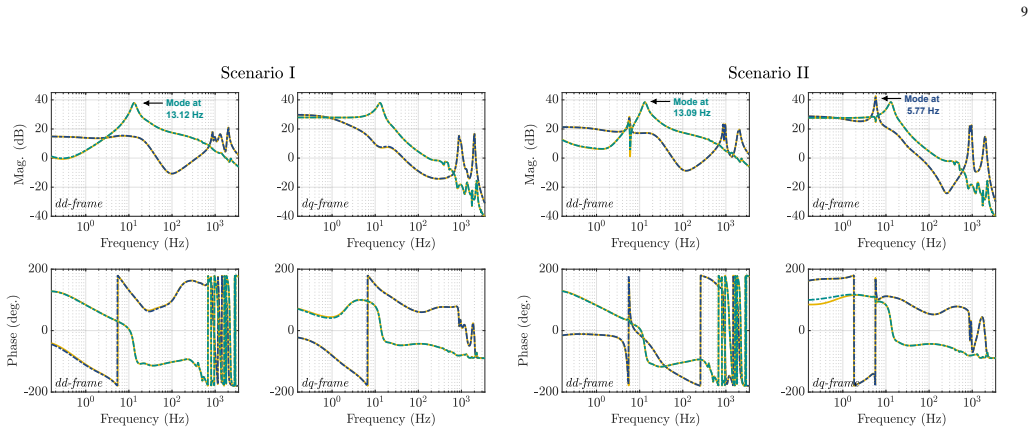

Figure 9. Figure 9: Overall system admittance reconstruction for the modified IEEE-39 bus system. Results at buses 6 (green) and 22 (blue) are compared with actual [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
Figure 10

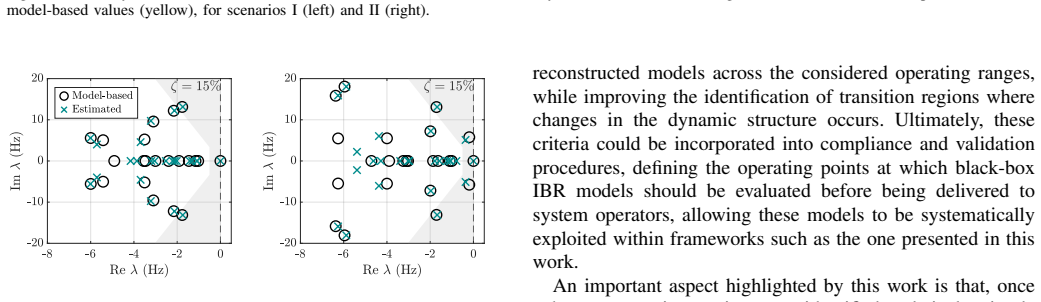

Figure 10. Figure 10: Estimated and model-based eigenvalues for Scenarios I (left) and II [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
Figure 11

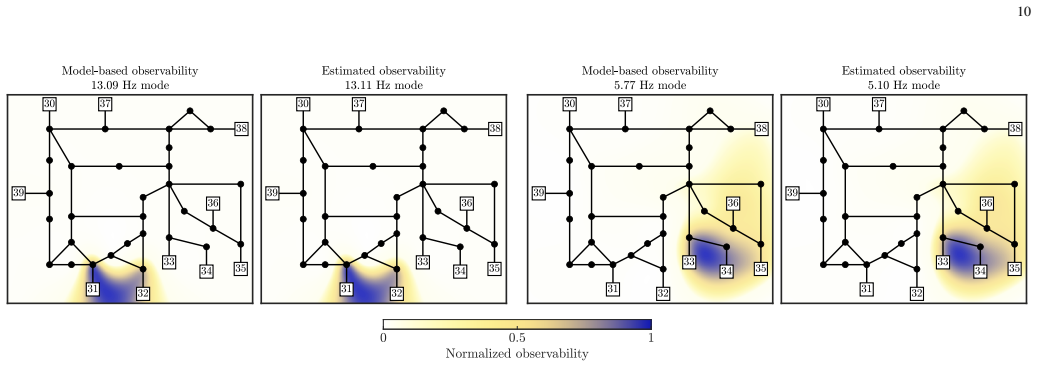

Figure 11. Figure 11: Estimated and model-based observability heatmaps for the two poorly damped modes in Scenario II, obtained from the overall system impedance. [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
