From Canonical to Complex: Benchmarking LLM Capabilities in Undergraduate Thermodynamics
T0 review · 5 major / 4 minor · reviewed 2026-08-05 · deepseek-v4-flash
Pith's one-line read Current LLMs fall short of the 95% accuracy needed for unsupervised thermodynamics tutoring, topping out at 82%.
desk verdict Useful new benchmark with a credible text-vs-diagram gap, but the tutoring-suitability claim rests on an unvalidated 95% bar and a missing human baseline; needs revision, not desk rejection. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The central object is UTQA, a 50-item benchmark with 33 text-only and 17 diagram-based single-choice questions. Its design deliberately isolates single constructs (state vs path functions, q/w sign conventions, quasistatic vs non-quasistatic, entropy bookkeeping) and uses distractors that correspond to known student misconceptions, so accuracy measures principle-grounded reasoning rather than surface cueing. The benchmark's power comes from the contrast between items with canonical structure, solvable by one state-function identity, and items requiring multi-constraint integration or diagram-to-thermodynamics binding.
What would settle it
A concrete falsifier: run UTQA on a future or untested model with the same protocol; if it scores above 95% on both text and diagram subsets, the central suitability claim is directly refuted. A more targeted check: take items the models miss and present the same diagrams with axis labels added or rotated; if accuracy jumps sharply, the bottleneck is label-pairing rather than conceptual diagram binding, weakening the paper's interpretation.
Extended reading notes
Core claim
The central claim is that no leading 2025-era LLM reached the authors' 95% competence threshold on UTQA, a 50-item instrument covering ideal-gas processes, reversibility, and diagram interpretation. The best model achieved 82%; text-only items averaged 67% across 19 models, while diagram-based items averaged 32%. Error analysis locates the bottleneck in two specific capabilities: recognizing when an ideal-gas process is finite-rate or irreversible and therefore resisting quasistatic templates, and mapping perceptual features of diagrams (signed areas, path orientation, leg types, cycle constraints) to thermodynamic quantities. The authors argue this pattern shows fluent recall of canonical r
Load-bearing premise
The claim depends on treating 95% accuracy on UTQA's 50 items as the right bar for unsupervised tutoring; if the items overstate difficulty or a lower accuracy is acceptable with safeguards, the suitability conclusion could change even though the raw scores stand.
Editorial extensions
If this is right
- No model currently reaches the 95% threshold, so unsupervised LLM tutoring in undergraduate thermodynamics is not supported by this evidence.
- Diagram-based items are the main bottleneck; even models that parse axes and curves fail to bind them to thermodynamic meaning.
- Prompt phrasing, including chain-of-thought and persona variants, shifts accuracy by a small amount but does not close the gap; elimination-style prompts hurt.

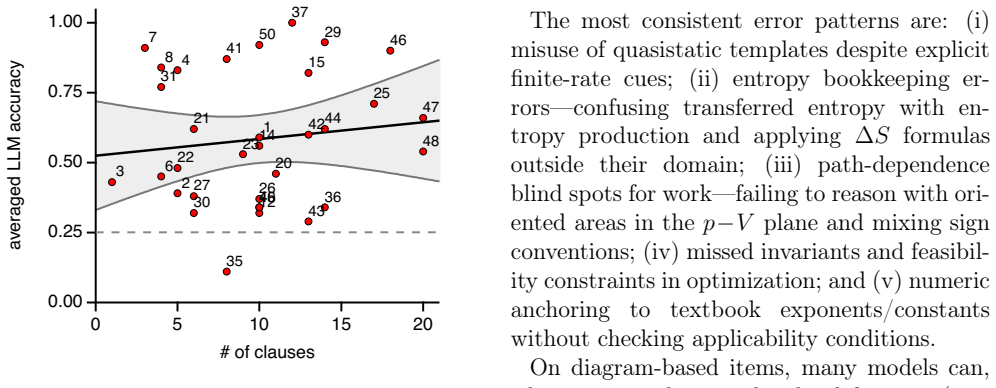

- Clause count, a simple proxy for linguistic complexity, shows no significant correlation with accuracy over the observed 1–20 clause range.
- Improvements in multimodal binding and finite-rate process reasoning are the most likely path to crossing the threshold.
Reading between the lines
- This suggests a testable extension: adding axis labels or verbal descriptions of diagrams to exam prompts could disproportionately improve scores if the binding deficit is genuine.
- The 95% threshold, imported from tutoring-effectiveness research, may be conservative for hybrid human-AI tutoring; a supervised setting with model uncertainty flags might be viable below that bar.
- UTQA's misconception-based distractors could double as a diagnostic instrument for categorizing LLM errors, such as regime misclassification versus entropy bookkeeping versus area orientation.
- If diagram-binding is the bottleneck, progress in visually-grounded reasoning could be tracked directly on this benchmark before general benchmark improvements appear.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper introduces UTQA, a 50-item single-choice undergraduate thermodynamics benchmark (33 text-only, 17 diagram-based), and uses it to evaluate 19 commercial LLMs plus 17 prompting variants on gpt-4o. The headline finding is that no 2025-era model reaches the authors' 95% accuracy threshold for unsupervised tutoring; the best model (gpt-o3) scores 82% overall. Text-only accuracy is substantially higher than diagram accuracy (67% vs. 32% averaged across models), and the authors attribute the gap to failures in finite-rate/irreversible reasoning and in mapping visual diagram features to thermodynamic meaning. The paper concludes that current LLMs are not yet reliable enough for unsupervised undergraduate thermodynamics tutoring, while noting that accuracy is necessary but not sufficient for tutoring quality.
Significance. If the results hold, UTQA is a useful, publicly released benchmark for a domain that is underrepresented in existing LLM evaluation suites. The paper has clear strengths: the benchmark is downloadable, full prompts and solutions are promised in the SI, items were expert-validated, controlled linguistic degradations are systematically designed, and the text-only vs. diagram gap is a striking and actionable finding. The strongest raw result—no leading model exceeds 82% on a 50-item expert-constructed test—appears robust in direction, and the evidence that diagram comprehension is the main bottleneck is plausible. However, the paper's suitability conclusion depends on an absolute accuracy threshold whose calibration is not established, and several supporting claims (human equivalence, finite-rate difficulty concentration) lack direct measurement. The benchmark itself is a contribution; the interpretive framing needs substantial reinforcement.
major comments (5)
- [Conclusions / Fig. 8] The central claim—that no LLM is suitable for unsupervised tutoring because none reaches 95% on UTQA—requires an anchor showing that UTQA items are a fair measure of competent human tutor knowledge. No human-expert baseline is reported: no data on how thermodynamics faculty or PhD-level experts perform on the same 50 items, no per-item expert agreement, and no demonstration that the 17 diagram items are decidable from the image resolution used. If expert accuracy on UTQA is itself below 95% (due to item ambiguity or deliberate emphasis on edge cases), the conclusion would reflect instrument difficulty rather than an LLM-specific deficit. The paper should add a human-expert baseline or explicitly reframe the claim as 'below an aspirational threshold' rather than 'unsuitable for tutoring.'
- [Figure 3 caption / Results] Immediately before the Fig. 3 caption, the manuscript contains the leftover text 'OLD STUFF before problem with question set spottet' (sic). This is internal evidence that some displayed prompt results may have been generated before a known problem with the question set was identified. The paper must clarify whether the prompt-comparison results in Figs. 2–4, and the gpt-4o points in Figs. 5 and 8, were obtained with the final, released UTQA item set. If any displayed results predate a question-set fix, those numbers cannot be interpreted as evaluating the released benchmark.
- [Methods / Figs. 5–6] The run-to-run scatter σ≈0.05 is estimated from 51 gpt-4o prompt-variation batches (Methods, Fig. 2a), but it is then applied as a universal per-condition uncertainty to all 19 cross-model comparisons, including the 17-item diagram subset. For a 17-item binary test, the binomial standard error at p≈0.5 is roughly 0.12, so several adjacent model differences in Fig. 6 are not significant under a test-specific error. The paper should report run counts and standard errors for each model and subset rather than a single pooled σ, or explicitly justify why the pooled estimate is transferable.
- [Results: Common strengths and weaknesses / Conclusions] The claim that the performance gap 'concentrates in finite-rate/irreversible scenarios' is not supported by a defined item subset or statistical comparison. The text gives illustrative examples but no per-category accuracies, item IDs, or a significance test for the category. Similarly, the statement that the strongest text-only models 'approach the level of a well-prepared graduate tutor' is a human-equivalence claim with no human data behind it. Define the finite-rate/irreversible item subset and report its accuracy separately, or soften these claims to what the data directly show.
- [Introduction / Conclusions] The 95% competence threshold is imported from VanLehn (2011), which is a review of tutoring effectiveness expressed in effect sizes, not a calibration of accuracy thresholds for an MCQ test. The paper does not justify translating that literature into a 95% accuracy cut on this specific 50-item instrument. Because the threshold is decisive for the suitability conclusion, its calibration needs direct support—for example, human expert scores, an analysis of the consequences of an 18% vs. 5% error rate in tutoring, or a learning-outcome criterion. Without this, the suitability conclusion is an interpretive assertion, even though the raw accuracy numbers remain informative.
minor comments (4)
- [Figure 3] The caption states the figure shows '33 text-only questions,' but the panel labels mention 'no image interpretation' and 'image interpretation problems,' and the caption contains the typo 'spottet.' Please align labels and text and remove the leftover note.
- [Figures 5–6] The diagram-based results appear in both Fig. 5(b) and Fig. 6 with inconsistent panel labels ('image interpretation problems' vs. 'diagram based items') and model ordering. Consolidate or clearly distinguish the two figures to avoid duplication confusion.
- [Bibliography] There are minor typographical issues in the reference list, e.g., 'Langauge' in ref. 31 and 'arXiv preprint' duplicated in ref. 26. Please proofread.
- [Abstract/Conclusions] The abstract says 'the best LLMs achieved 82% accuracy,' which matches gpt-o3 in Fig. 8, but the Results section also emphasizes DeepSeek R1 on text-only items. Make the exact aggregation basis (overall vs. text-only) consistent wherever numbers are quoted.
Circularity Check
No significant circularity: UTQA results are empirical measurements with an external threshold.
full rationale
The paper's central outputs—model accuracy scores, prompt comparisons, and linguistic degradation effects—are measurements on a fixed, expert-validated 50-item set. No load-bearing step reduces to its own inputs: the 95% competence threshold is an external criterion imported from VanLehn (ref. 17), not fitted to the model data; the item answer keys were determined by expert validation rather than derived from model outputs; and the prompting/degradation experiments compare fixed prompts on fixed items. There are no self-citations used as premises, nor any uniqueness theorem or ansatz smuggled in from the authors' prior work. Two limitations are flagged in the manuscript but are not circularity: (1) the Fig. 3 caption contains the stray note 'OLD STUFF before problem with question set spottet', indicating that some displayed prompt results may have been generated before a known problem with the question set was identified—this undermines the integrity of those specific figure values but does not make the argument circular; (2) no human-expert baseline is reported on the same items, so the absolute suitability conclusion is unanchored to item quality—this is an external-validity concern, not a circular derivation. The headline 'not suitable for unsupervised tutoring' depends on an imported threshold, but the threshold is not a function of the measurements themselves; the raw accuracies stand as independent observations.
Assumptions & free parameters
free parameters (1)
- 95% competence threshold =
95% accuracy
assumptions (4)
- domain assumption Accuracy on UTQA's 50 single-choice expert-validated items measures the targeted thermodynamic reasoning constructs.
- domain assumption The 95% accuracy threshold is an appropriate minimum bar for unsupervised tutoring.
- domain assumption UTQA items were not seen by the tested models during training.
- ad hoc to paper Cross-model web-CLI evaluations are comparable to each other and to the gpt-4o API evaluation, with a common sigma of about 0.05.
Cite this review
Pith. "Pith review of From Canonical to Complex: Benchmarking LLM Capabilities in Undergraduate Thermodynamics." pith.science (2026). https://pith.science/paper/TIGRJQ2N
@misc{pith2026250821452,
author = {Pith},
title = {Pith review of: From Canonical to Complex: Benchmarking LLM Capabilities in Undergraduate Thermodynamics},
year = {2026},
howpublished = {\url{https://pith.science/paper/TIGRJQ2N}},
note = {Machine review of arXiv:2508.21452}
}
read the original abstract
Large language models (LLMs) are increasingly considered as tutoring aids in science education. Yet their readiness for unsupervised use in undergraduate instruction remains uncertain, as reliable teaching requires more than fluent recall: it demands consistent, principle-grounded reasoning. Thermodynamics, with its compact laws and subtle distinctions between state and path functions, reversibility, and entropy, provides an ideal testbed for evaluating such capabilities. Here we present UTQA, a 50-item undergraduate thermodynamics question answering benchmark, covering ideal-gas processes, reversibility, and diagram interpretation. No leading 2025-era model exceeded our 95\% competence threshold: the best LLMs achieved 82\% accuracy, with text-only items performing better than image reasoning tasks, which often fell to chance levels. Prompt phrasing and syntactic complexity showed modest to little correlation with performance. The gap concentrates in finite-rate/irreversible scenarios and in binding visual features to thermodynamic meaning, indicating that current LLMs are not yet suitable for unsupervised tutoring in this domain.
Figures
Figures from the paper (4 more)
Reference graph
Works this paper leans on
-
[1]
Hinton, G. E.; Salakhutdinov, R. R. Reducing the dimensionality of data with neural networks. Science 2006, 313, 504--507
work page 2006
-
[2]
Learning deep architectures for AI
Bengio, Y. Learning deep architectures for AI . Foundations and Trends in Machine Learning 2009, 2, 1--127
work page 2009
-
[3]
LeCun, Y.; Bengio, Y.; Hinton, G. Deep learning. Nature 2015, 521, 436--444
work page 2015
-
[4]
Vaswani, A.; Shazeer, N.; Parmar, N.; Uszkoreit, J.; Jones, L.; Gomez, A. N.; Kaiser, .; Polosukhin, I. Attention is All You Need. Advances in Neural Information Processing Systems (NeurIPS). 2017
work page 2017
-
[5]
Brown, T. B. et al. Language Models are Few-Shot Learners. Advances in Neural Information Processing Systems 2020, 33, 1877--1901
work page 2020
-
[6]
2023; https://arxiv.org/abs/2303.08774
OpenAI GPT-4 Technical Report. 2023; https://arxiv.org/abs/2303.08774
arXiv 2023
-
[7]
Thermodynamics and Chemistry: A Non-mathematical Treatise for Chemists and Students of Chemistry; J
Duhem, P. Thermodynamics and Chemistry: A Non-mathematical Treatise for Chemists and Students of Chemistry; J. Wiley & sons, 1903
work page 1903
-
[8]
Hollinger, H. B.; Zenzen, M. J. Thermodynamic Irreversibility: I. What Is It? Journal of Chemical Education 1991, 68, 31--34
work page 1991
Show all 43 references
-
[9]
Unearthing a Buried Memory: Duhem’s Third Way to Thermodynamics
Bordoni, S. Unearthing a Buried Memory: Duhem’s Third Way to Thermodynamics. Part 1. Centaurus 2012, 54, 124--147
2012
-
[10]
Callen, H. B. Thermodynamics and an Introduction to Thermostatistics, 2nd ed.; Wiley: New York, 1985
1985
-
[11]
Physical Chemistry, 11th ed.; Oxford University Press: Oxford, 2018
Atkins, P.; de Paula, J.; Keeler, J. Physical Chemistry, 11th ed.; Oxford University Press: Oxford, 2018
2018
-
[12]
Bain, K.; Towns, M. H. A review of research on the teaching and learning of thermodynamics at the university level. Chemistry Education Research and Practice 2014, 15, 320--335
2014
-
[13]
Y.; Dirani, J.; Michael, J.; Bowman, S
Rein, D.; Li Hou, B.; Cooper Stickland, A.; Petty, J.; Pang, R. Y.; Dirani, J.; Michael, J.; Bowman, S. R. GPQA: A Graduate Level Google-Proof Q&A Benchmark. arXiv preprint 2023, arXiv:2305.10408
2023 arXiv
-
[14]
Phan, L. e. a. Humanity's Last Exam: A Benchmark for Evaluating AI on the Benchmarks of Human Civilization. https://arxiv.org/abs/2501.14249 2025,
2025 arXiv
-
[15]
R.; Zhang, S.; Sun, Y.; Wang, W
Wang, X.; Hu, Z.; Lu, P.; Zhu, Y.; Zhang, J.; Subramaniam, S.; Loomba, A. R.; Zhang, S.; Sun, Y.; Wang, W. SciBench: Evaluating College-Level Scientific Problem-Solving Abilities of Large Language Models. Proceedings of the Forty-First International Conference on Machine Learn...
2024
-
[16]
In Albert Einstein: Philosopher--Scientist; Schilpp, P
Einstein, A. In Albert Einstein: Philosopher--Scientist; Schilpp, P. A., Ed.; Library of Living Philosophers: Evanston, IL, 1949
1949
-
[17]
The Relative Effectiveness of Human Tutoring, Intelligent Tutoring Systems, and Other Tutoring Systems
VanLehn, K. The Relative Effectiveness of Human Tutoring, Intelligent Tutoring Systems, and Other Tutoring Systems. Educational Psychologist 2011, 46, 197--221
2011
-
[18]
https://learn.microsoft.com/en-us/azure/ai-foundry/openai/how-to/prompt-caching, OpenAI documentation (accessed 2025)
OpenAI Prompt caching. https://learn.microsoft.com/en-us/azure/ai-foundry/openai/how-to/prompt-caching, OpenAI documentation (accessed 2025)
2025
-
[19]
Holistic Evaluation of Language Models
Liang, P.; Bommasani, R.; Lee, T.; Tsipras, D.; Soylu, D.; Yasunaga, M.; Zhang, Y.; Narayanan, D.; Wu, Y.; Kumar, A. Holistic Evaluation of Language Models. arXiv preprint arXiv:2305.14233 2023,
2023 arXiv
-
[20]
B.; Doan, K
Shojaee, P.; Nguyen, N.-H.; Meidani, K.; Farimani, A. B.; Doan, K. D.; Reddy, C. K. LLM-SRBench: A New Benchmark for Scientific Equation Discovery with Large Language Models. 2025; https://arxiv.org/abs/2504.10415
2025 arXiv
-
[21]
Cognitive load theory, learning difficulty, and instructional design
Sweller, J. Cognitive load theory, learning difficulty, and instructional design. Learning and Instruction 1994, 4, 295--312
1994
-
[22]
M.; Rodriguez, M
Haladyna, T. M.; Rodriguez, M. C. Developing and Validating Test Items, 3rd ed.; Routledge: New York, 2013
2013
-
[23]
Validity of psychological assessment: Validation of inferences from persons' responses and performances as scientific inquiry into score meaning
Messick, S. Validity of psychological assessment: Validation of inferences from persons' responses and performances as scientific inquiry into score meaning. American Psychologist 1995, 50, 741--749
1995
-
[24]
Prompt Programming for Large Language Models: Beyond the Few-Shot Paradigm
Reynolds, L.; McDonell, K. Prompt Programming for Large Language Models: Beyond the Few-Shot Paradigm. Proceedings of the 3rd Workshop on Natural Language Processing for Programming (NLP4Prog). 2021; pp 15--22
2021
-
[25]
Chatterjee, A.; Renduchintala, H. S. V. N. S. K.; Bhatia, S.; Chakraborty, T. POSIX: A Prompt Sensitivity Index For Large Language Models. Findings of the Association for Computational Linguistics: EMNLP 2024. 2024; pp 14550--14565
2024
-
[26]
X.; Hasan, S
He, J.; Rungta, M.; Koleczek, D.; Sekhon, A.; Wang, F. X.; Hasan, S. Does Prompt Formatting Have Any Impact on LLM Performance? arXiv preprint arXiv:2411.10541 2024, arXiv preprint
2024 arXiv
-
[27]
Chain-of-Thought Prompting Elicits Reasoning in Large Language Models
Wei, J.; Wang, X.; Schuurmans, D.; Bosma, M.; Ichter, B.; Xia, F.; Chi, E.; Le, Q.; Zhou, D. Chain-of-Thought Prompting Elicits Reasoning in Large Language Models. Advances in Neural Information Processing Systems. 2022; pp 24824--24837
2022
-
[28]
Tree of Thoughts: Deliberate Problem Solving with Large Language Models
Yao, S.; Yu, D.; Zhao, J.; Shafran, I.; Griffiths, T.; Cao, Y.; Narasimhan, K. Tree of Thoughts: Deliberate Problem Solving with Large Language Models. Advances in Neural Information Processing Systems. 2023; pp 11809--11822
2023
-
[29]
Graph of Thoughts: Solving Elaborate Problems with Large Language Models
Besta, M.; Blach, N.; Kubicek, A.; Gerstenberger, R.; Podstawski, M.; Gianinazzi, L.; Gajda, J.; Lehmann, T.; Niewiadomski, H.; Nyczyk, P.; Hoefler, T. Graph of Thoughts: Solving Elaborate Problems with Large Language Models. Proceedings of the AAAI Conference on Artificial In...
2024
-
[30]
L ogi C o T : Logical Chain-of-Thought Instruction Tuning
Liu, H.; Teng, Z.; Cui, L.; Zhang, C.; Zhou, Q.; Zhang, Y. L ogi C o T : Logical Chain-of-Thought Instruction Tuning. Findings of the Association for Computational Linguistics: EMNLP 2023. Singapore, 2023; pp 2908--2921
2023
-
[31]
Chain-of-Symbol Prompting Elicits Planning in Large Langauge Models
Hu, H.; Lu, H.; Zhang, H.; Song, Y.-Z.; Lam, W.; Zhang, Y. Chain-of-Symbol Prompting Elicits Planning in Large Langauge Models. arXiv preprint arXiv:2305.09692. 2023
2023 arXiv
-
[32]
Large Language Models Understand and Can be Enhanced by Emotional Stimuli
Li, C.; Wang, J.; Zhang, Y.; Zhu, K.; Hou, W.; Lian, J.; Luo, F.; Yang, Q.; Xie, X. Large Language Models Understand and Can be Enhanced by Emotional Stimuli. 2023; https://arxiv.org/abs/2307.11760
2023 arXiv
-
[33]
Selective Prompting Tuning for Personalized Conversations with LLMs
Huang, Q.; Liu, X.; Ko, T.; Wu, B.; Wang, W.; Zhang, Y.; Tang, L. Selective Prompting Tuning for Personalized Conversations with LLMs. 2024; https://arxiv.org/abs/2406.18187
2024 arXiv
-
[34]
Measuring Faithfulness in Chain-of-Thought Reasoning
Lanham, J.; et al. Measuring Faithfulness in Chain-of-Thought Reasoning. 2023; https://arxiv.org/abs/2307.13702
2023 arXiv
-
[35]
ASCoT: An Adaptive Self-Correction Chain-of-Thought Method for Late-Stage Fragility in LLMs
Zhang, D.; Yang, N.; Zhu, J.; Yang, J.; Xin, M.; Tian, B. ASCoT: An Adaptive Self-Correction Chain-of-Thought Method for Late-Stage Fragility in LLMs. 2025; https://arxiv.org/abs/2508.05282
2025 arXiv
-
[36]
Large Language Models are Zero-Shot Reasoners
Kojima, T.; et al. Large Language Models are Zero-Shot Reasoners. 2022; https://arxiv.org/abs/2205.11916
2022 arXiv
-
[37]
E.; Uccelli, P
Snow, C. E.; Uccelli, P. In The Cambridge Handbook of Literacy; Olson, D. R., Torrance, N., Eds.; Cambridge University Press: Cambridge, 2009; pp 112--133
2009
-
[38]
Measuring Massive Multitask Language Understanding
Hendrycks, D.; Burns, C.; Basart, S.; Zou, A.; Mazeika, M.; Tang, D.; Song, D.; Steinhardt, J. Measuring Massive Multitask Language Understanding. Proceedings of the International Conference on Learning Representations (ICLR). 2021
2021
-
[39]
H.; Simon, H
Larkin, J. H.; Simon, H. A. Why a Diagram is (Sometimes) Worth Ten Thousand Words. Cognitive Science 1987, 11, 65--100
1987
-
[40]
Chi, M. T. H.; Feltovich, P. J.; Glaser, R. Categorization and Representation of Physics Problems by Experts and Novices. Cognitive Science 1981, 5, 121--152
1981
-
[41]
Construction and interference in learning from multiple representation
Schnotz, W.; Bannert, M. Construction and interference in learning from multiple representation. Learning and Instruction 2003, 13, 141--156
2003
-
[42]
C.; McNamara, D
Graesser, A. C.; McNamara, D. S.; Louwerse, M. M.; Cai, Z. Coh-Metrix: Analysis of text on cohesion and language. Behavior Research Methods, Instruments, & Computers 2004, 36, 193--202
2004
-
[43]
urzburg, 97074 W\
Gibson, E. Linguistic complexity: Locality of syntactic dependencies. Cognition 1998, 68, 1--76 mcitethebibliography JChemEd_LLM_Benchmark.tex0000664000000000000000000010305215054271360014221 0ustar rootroot [journal=jceda8,manuscript=article,layout=twocolumn] achemso [utf8] i...
1998
Reviewed August 5, 2026 · model on record in the stance chip above.
