EIT-Pneumatic Hybrid Robotic Skin for Practical and Accurate Force Map Reconstruction

Junhwi Cho , Sunggyu Bae , Junghyeon Ma , Hyosang Lee , Jung Kim , Kyungseo Park This is my paper

Pith reviewed 2026-06-29 12:00 UTC · model grok-4.3

classification 💻 cs.RO
keywords robotic skinelectrical impedance tomographypneumatic sensingforce reconstructiontactile sensinghumanoid robothybrid sensor3D printing
0
0 comments X

The pith

Hybrid robotic skin combines EIT with pneumatic calibration to cut sensitivity variation from 0.31 to 0.14.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a hybrid robotic skin made by 3D printing that merges electrical impedance tomography with pneumatic sensing. It applies per-pad pneumatic calibration together with Tikhonov-regularized reconstruction to map forces accurately over large areas. Experiments with load cells confirm that force values stay consistent within each pad. The coefficient of variation in sensitivity drops from 0.31 for EIT alone to 0.14 for the hybrid system. Tests on a chest-mounted humanoid robot show the pneumatic signals hold up under multiple simultaneous contacts.

Core claim

By pairing EIT measurements with per-pad pneumatic calibration, the hybrid skin achieves accurate force map reconstruction across entire pads. This reduces the longstanding sensitivity non-uniformity of EIT, lowering the coefficient of variation from 0.31 to 0.14, while the fabrication method remains simple and scalable.

What carries the argument

Per-pad pneumatic calibration that normalizes the non-uniform sensitivity of EIT-based force reconstruction.

If this is right

  • Force reconstruction is consistent across different contact locations on the same pad.
  • Sensitivity non-uniformity is reduced compared to EIT-only methods.
  • Pneumatic signals remain reliable for diverse contact scenarios including simultaneous multiple contacts.
  • The approach supports integration into real robotic systems for whole-body tactile sensing.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Calibration per pad could extend EIT sensing to more complex contact patterns without redesign.
  • Full-body application on robots might enhance safe physical interaction with humans.
  • Similar calibration strategies may improve other tomographic sensing methods in robotics.

Load-bearing premise

Pneumatic calibration per pad stays accurate and stable for diverse contact scenarios including multiple simultaneous contacts on the same sensing pad.

What would settle it

A test where force reconstruction becomes inconsistent under multiple simultaneous contacts on one pad would show the calibration does not hold.

Figures

Figures reproduced from arXiv: 2605.28468 by Hyosang Lee, Junghyeon Ma, Jung Kim, Junhwi Cho, Kyungseo Park, Sunggyu Bae.

Figure 1

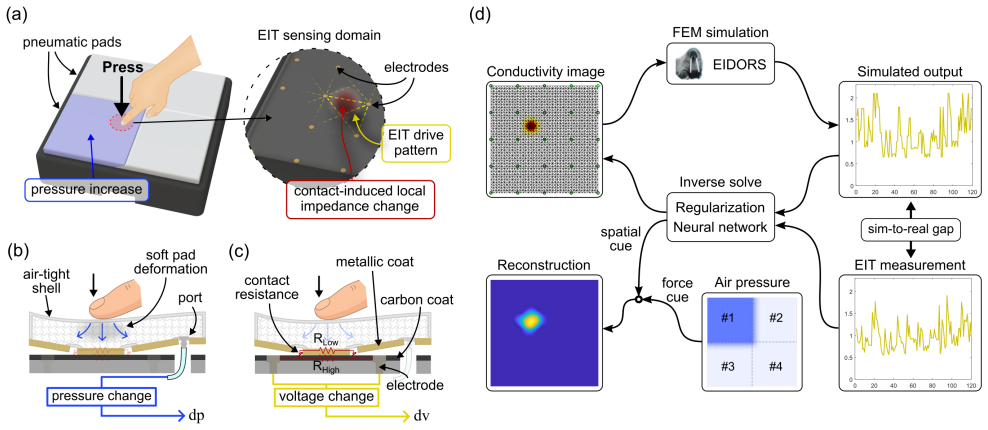

Figure 1. Figure 1: Inferential tactile sensing concept. (a) EIT-pneumatic hybrids composed of rigid base and soft pad; (b) pneumatic [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

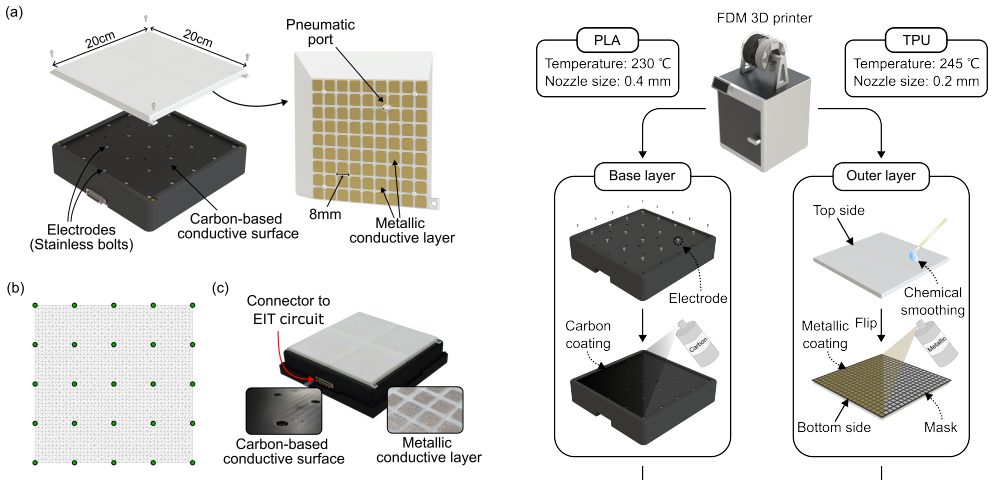

Figure 2. Figure 2: Structure of the EIT-pneumatic hybrid sensor. (a) rigid [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4

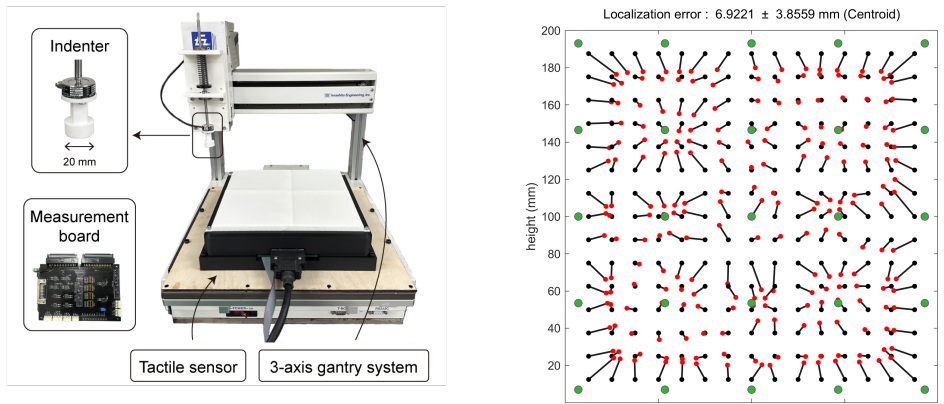

Figure 4. Figure 4: Indentation setup including the motorized stage and [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 6

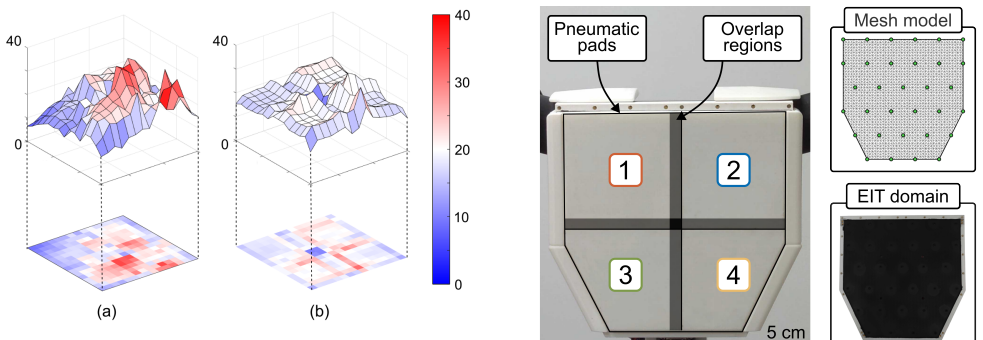

Figure 6. Figure 6: Reconstruction sensitivity map. (a) EIT-only result [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 8

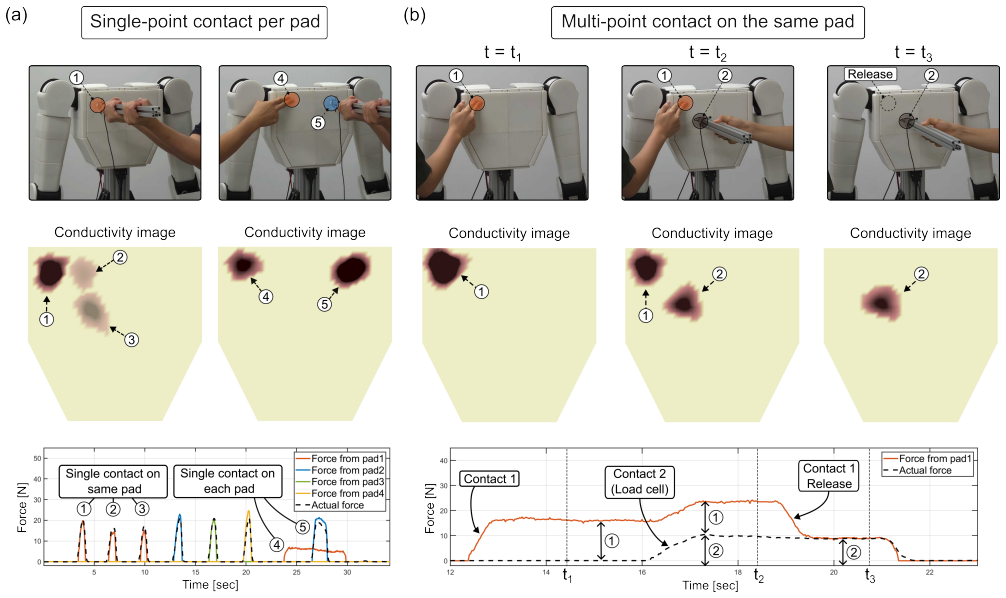

Figure 8. Figure 8: Demonstration on skin-integrated robot. (a) single-point contact per pad. EIT-only conductivity images show position [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
Figure 7
Figure 7. Figure 7: One limitation of the pneumatic signal is a drop in sensitivity near overlap regions. Since the current method relies mainly on pneumatic signals, errors in those areas can bias the force estimation. Nevertheless, this issue can be addressed by using spatial cues from the EIT reconstructions; for example, we can adjust the pressure-force mapping according to the contact location and size derived from [PIT… view at source ↗
read the original abstract

We present a hybrid robotic skin that combines electrical impedance tomography (EIT) with pneumatic tactile sensing to improve force reconstruction capability. The developed robotic skin is fabricated entirely by 3D printing and spray coating, making it affordable and easy to build. A Tikhonov-regularized inverse reconstruction, paired with per-pad pneumatic calibration, enables accurate large-area tactile sensing with a simple measurement scheme. For validation, we conducted load-cell indentation experiments; the results showed consistent force reconstruction across locations within a pad. Compared with an EIT-only baseline, sensitivity non-uniformity was also reduced, with the coefficient of variation decreasing from 0.31 to 0.14, indicating that the proposed approach addresses a longstanding limitation of EIT. We further demonstrated chest-mounted integration on a humanoid robot and found that the pneumatic signals remained reliable across diverse contact scenarios, including multiple simultaneous contacts on the same sensing pad. These results indicate a practical path toward accurate, scalable whole-body tactile sensing in real robotic systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper presents a hybrid robotic skin combining electrical impedance tomography (EIT) with pneumatic tactile sensing, fabricated entirely by 3D printing and spray coating. It employs Tikhonov-regularized inverse reconstruction paired with per-pad pneumatic calibration to achieve accurate large-area force mapping. Load-cell indentation experiments are reported to show consistent force reconstruction within pads and a reduction in sensitivity non-uniformity (coefficient of variation from 0.31 to 0.14 versus an EIT-only baseline). Integration on a chest-mounted humanoid robot is used to demonstrate reliability of pneumatic signals under diverse contacts, including multiple simultaneous contacts on the same pad.

Significance. If the reported CV reduction holds under rigorous validation, the hybrid approach would address a known limitation of EIT-based tactile skins by improving spatial uniformity without complex electrode arrays, while retaining the advantages of simple fabrication and measurement. The emphasis on affordability and robot integration points to practical utility for whole-body sensing, though the current evidence base is too thin to assess whether the improvement generalizes beyond the tested scenarios.

major comments (2)
  1. [Abstract] Abstract: The headline result (CV reduction from 0.31 to 0.14) is attributed to the hybrid method via per-pad pneumatic calibration, yet the load-cell indentation protocol is described only as yielding 'consistent force reconstruction across locations within a pad' with no explicit statement that multi-contact stability of the calibration was verified in those trials; the multi-contact demonstration is confined to the separate robot-integration experiments. This disconnect leaves the causal link between the hybrid calibration and the reported non-uniformity reduction unsupported.
  2. [Abstract] Abstract: No equations, regularization-parameter values, error bars, number of indentation trials, or exclusion criteria are supplied for the load-cell experiments that produced the CV figures, nor is the EIT-only baseline reconstruction procedure detailed. Without these, the quantitative improvement cannot be evaluated or reproduced.
minor comments (1)
  1. The Tikhonov regularization parameter is listed as a free parameter; a sensitivity analysis or selection criterion should be added to clarify its influence on the reported results.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript. We address each major comment below and propose revisions where they improve clarity without altering the reported findings.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The headline result (CV reduction from 0.31 to 0.14) is attributed to the hybrid method via per-pad pneumatic calibration, yet the load-cell indentation protocol is described only as yielding 'consistent force reconstruction across locations within a pad' with no explicit statement that multi-contact stability of the calibration was verified in those trials; the multi-contact demonstration is confined to the separate robot-integration experiments. This disconnect leaves the causal link between the hybrid calibration and the reported non-uniformity reduction unsupported.

    Authors: The load-cell indentation experiments used single-point contacts at multiple locations within each pad to measure spatial sensitivity variation. The per-pad pneumatic calibration was applied directly to the EIT reconstructions from these single-contact trials, producing the reported CV reduction. The robot-integration experiments separately demonstrate pneumatic signal reliability under multi-contact conditions. We agree the abstract should explicitly distinguish the single-contact load-cell protocol (used for the CV metric) from the multi-contact robot demonstration and will revise the abstract accordingly to strengthen the presentation of the causal link. revision: partial

  2. Referee: [Abstract] Abstract: No equations, regularization-parameter values, error bars, number of indentation trials, or exclusion criteria are supplied for the load-cell experiments that produced the CV figures, nor is the EIT-only baseline reconstruction procedure detailed. Without these, the quantitative improvement cannot be evaluated or reproduced.

    Authors: The full manuscript details the Tikhonov regularization (including parameter selection) in the Methods section, reports the number of indentation trials, error bars, and exclusion criteria in the Results section for the load-cell experiments, and describes the EIT-only baseline as identical reconstruction without pneumatic calibration. To improve abstract self-containment, we will add a concise statement of these key parameters and the baseline procedure in the revised abstract. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical results are independent of inputs

full rationale

The paper reports an empirical comparison of force reconstruction accuracy between a hybrid EIT-pneumatic method and an EIT-only baseline, using load-cell indentation data to measure coefficient of variation (0.31 to 0.14). No equations, fitted parameters, or predictions are described that reduce by construction to the per-pad calibration data or any other input. The Tikhonov reconstruction is presented as a standard technique paired with calibration, but the non-uniformity reduction is shown as an experimental outcome rather than a definitional or fitted tautology. No self-citation load-bearing steps, uniqueness theorems, or ansatz smuggling appear in the provided text. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 0 axioms · 0 invented entities

The approach rests on standard Tikhonov regularization for EIT inverse problems and the assumption that pneumatic signals provide an independent ground-truth reference for calibration; no new entities or ad-hoc axioms are introduced in the abstract.

free parameters (1)
  • Tikhonov regularization parameter
    Controls the smoothness of the inverse reconstruction; value not stated and likely tuned to data.

pith-pipeline@v0.9.1-grok · 5719 in / 1064 out tokens · 35510 ms · 2026-06-29T12:00:37.535754+00:00 · methodology
