CacheWeaver: Cache-Aware Evidence Ordering for Efficient Grounded RAG Inference

Kaizhen Tan , Rong Gu , Mingyuan Li This is my paper

Pith reviewed 2026-06-26 18:14 UTC · model grok-4.3

classification 💻 cs.CL
keywords RAGprefix cachingevidence orderingtime-to-first-tokenvLLMgrounded generationprompt scheduling
0
0 comments X

The pith

CacheWeaver reorders retrieved evidence in RAG prompts using a prefix tree and greedy walk to maximize cache reuse and reduce median time-to-first-token by 20-33 percent.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

In RAG, retrieved evidence often overlaps between queries but arrives in different orders, so standard prefix caching in engines like vLLM cannot reuse the shared tokens. CacheWeaver maintains a prefix tree of past evidence sequences at the prompt layer and greedily selects an ordering that starts with the longest reusable prefix, without modifying the retrieved set or the serving engine. This produces 20-33 percent lower median TTFT across three vLLM configurations while leaving answer quality unchanged on QA tasks. The greedy policy recovers 97.5 percent of the gain available from an oracle ordering, showing that simple scheduling between retrieval and inference can capture most of the available locality.

Core claim

CacheWeaver keeps a prefix tree over recently served evidence sequences and uses a greedy walk to place the most reusable prefix first in the prompt. Across three vLLM configurations the method lowers median time-to-first-token by 20-33 percent relative to retrieval-order prefix caching, without hurting answer quality in QA tests. The greedy policy reaches 97.5 percent of the median TTFT gain from oracle ordering.

What carries the argument

A prefix tree over recently served evidence sequences paired with a greedy walk that selects the ordering maximizing the length of the reusable prefix.

If this is right

  • Evidence reordering at the prompt layer recovers most prefix cache locality without engine or retrieval changes.
  • Median TTFT drops 20-33 percent relative to retrieval-order caching.
  • Answer quality stays the same on the tested QA tasks.
  • A simple greedy policy captures 97.5 percent of the gain from perfect oracle ordering.
  • The retrieved evidence set and serving engine remain unchanged.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same prefix-tree idea could be applied to track overlap in other token sequences, such as conversation history, if the serving engine exposes similar cache interfaces.
  • In very high query-rate regimes the cost of tree maintenance and walk computation might eventually offset the TTFT savings.
  • Retrieval modules could be co-designed to return evidence sets whose internal order is already closer to the greedy optimum.
  • Testing the method on evidence collections larger than those used in the QA experiments would show whether the prefix-tree size grows too large to remain lightweight.

Load-bearing premise

Maintaining and querying a prefix tree over recently served evidence sequences adds negligible overhead and the greedy walk reliably recovers most reusable prefix locality without changes to the retrieved evidence set or the serving engine.

What would settle it

Measure TTFT when evidence pieces are forced to have zero token overlap; if the 20-33 percent reduction disappears while tree-maintenance overhead remains, the central claim does not hold.

Figures

Figures reproduced from arXiv: 2606.19667 by Kaizhen Tan, Mingyuan Li, Rong Gu.

Figure 1

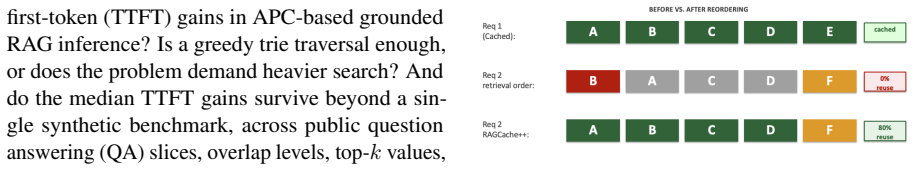

Figure 1. Figure 1: Prefix alignment in APC-based RAG serving. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

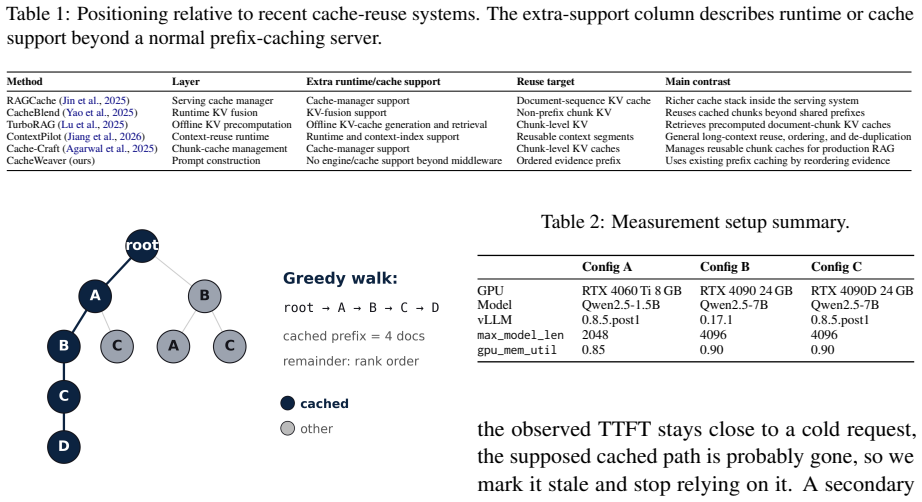

Figure 2. Figure 2: Knowledge tree example. Dark nodes are cached; gray nodes are evicted or on other branches. Given candidate set {A, B, C, F, D}, the greedy walk follows root→A→B→C→D (the longest cached path), yielding a 4-document prefix hit; the remaining docu￾ment (F) is appended in retrieval-rank order. following the single cached continuation yields the deepest reusable prefix. Sub-optimality can arise only when two c… view at source ↗
Figure 3

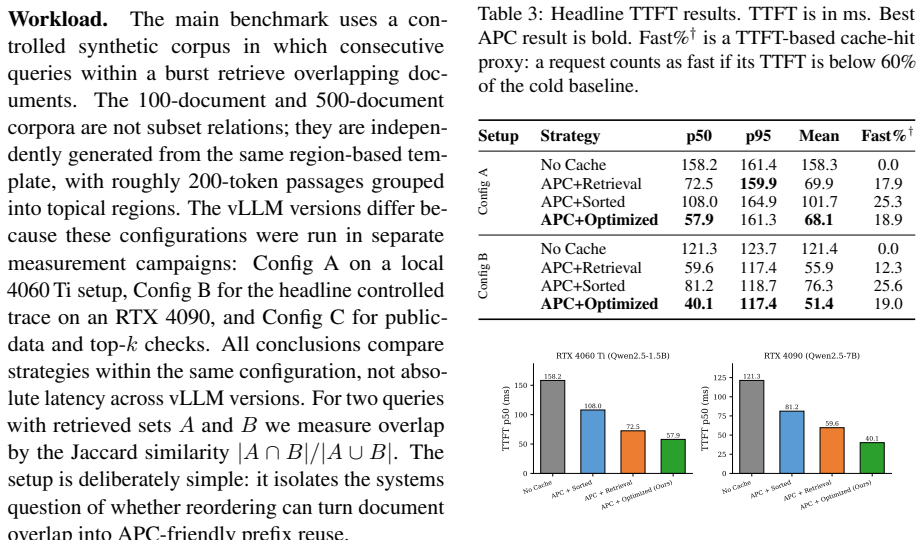

Figure 3. Figure 3: Median TTFT across strategies. Optimized or [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

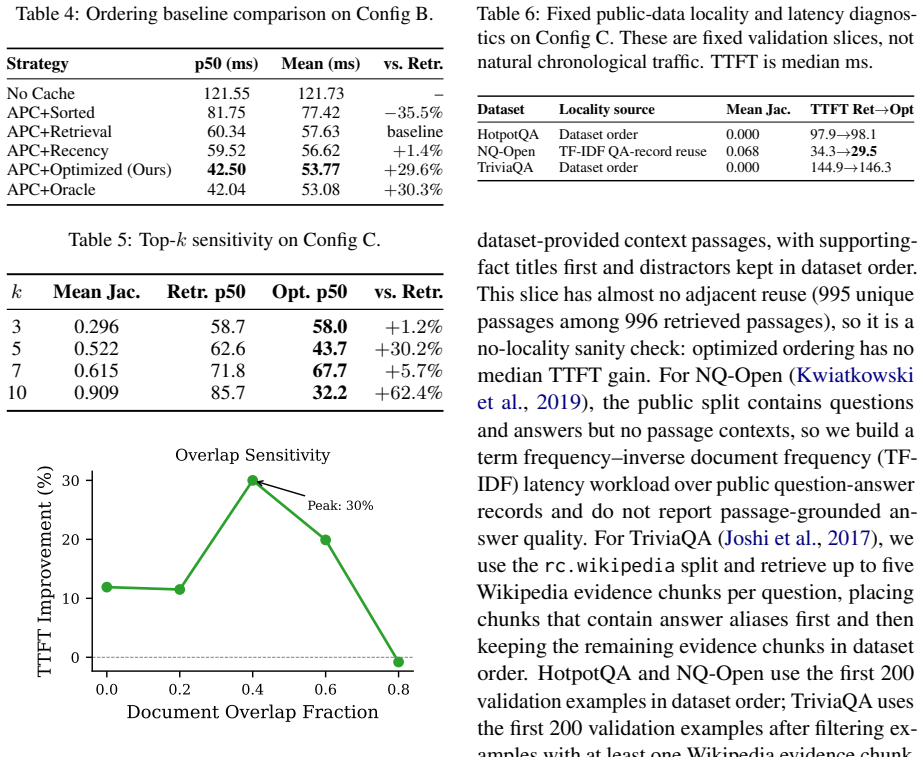

Figure 4. Figure 4: TTFT improvement versus the trace genera [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
read the original abstract

Retrieval-Augmented Generation (RAG) improves factual grounding, but it also lengthens prompts and raises prefill cost. Prefix caching in serving engines such as vLLM reduces this cost only when requests share the same token prefix. In grounded generation, however, adjacent queries may retrieve overlapping evidence in different orders, so set overlap does not become reusable prefix overlap. We present CacheWeaver, a lightweight prompt-layer method for cache-aware evidence ordering. The method keeps a prefix tree over recently served evidence sequences and uses a greedy walk to place the most reusable prefix first, while leaving the serving engine and retrieved evidence set unchanged. Across three vLLM configurations, the method lowers median time-to-first-token (TTFT) by about 20-33 percent relative to retrieval-order prefix caching, without hurting answer quality in our QA tests. The greedy policy reaches 97.5 percent of the median TTFT gain from oracle ordering, indicating that most reusable prefix locality can be recovered by a simple scheduling layer between retrieval and inference.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper introduces CacheWeaver, a lightweight prompt-layer scheduler for grounded RAG that maintains a prefix tree over recently served evidence sequences and applies a greedy walk to reorder evidence chunks. This aims to maximize reusable token prefixes for vLLM-style prefix caching without altering the retrieval set or serving engine. The central empirical claim is a 20-33% reduction in median TTFT across three vLLM configurations relative to retrieval-order caching, with no degradation in QA answer quality and the greedy policy recovering 97.5% of the median gain achieved by an oracle ordering.

Significance. If the reported TTFT gains prove robust and the overhead remains negligible, the work offers a practical, low-effort improvement to inference efficiency in RAG pipelines by better exploiting existing prefix-caching hardware without requiring engine modifications or changes to retrieved evidence.

major comments (2)
  1. [Abstract] Abstract: the 20-33% median TTFT reduction and 97.5% oracle-recovery figures are presented without any description of experimental setup (datasets, query count, model sizes, vLLM configurations, or statistical testing), which is required to assess whether the central performance claim is reproducible or confounded by workload specifics.
  2. [Abstract] Abstract: the claim that prefix-tree construction, updates, and the greedy walk add negligible latency is stated but unsupported by any separate timing measurements or scaling analysis; because these operations run per-request before inference, their cost directly affects whether the reported net TTFT savings survive when history size or chunk length increases.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thoughtful comments on the abstract. We address each point below and will make the requested revisions to improve transparency.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the 20-33% median TTFT reduction and 97.5% oracle-recovery figures are presented without any description of experimental setup (datasets, query count, model sizes, vLLM configurations, or statistical testing), which is required to assess whether the central performance claim is reproducible or confounded by workload specifics.

    Authors: We agree that the abstract would benefit from a concise indication of the experimental context. In the revised version we will append a short clause summarizing the evaluation (three standard QA datasets, hundreds of queries per configuration, 7B–70B models, and three vLLM KV-cache settings) while keeping the abstract within length limits. Full experimental details, including run counts and median reporting, remain in Section 4. revision: yes

  2. Referee: [Abstract] Abstract: the claim that prefix-tree construction, updates, and the greedy walk add negligible latency is stated but unsupported by any separate timing measurements or scaling analysis; because these operations run per-request before inference, their cost directly affects whether the reported net TTFT savings survive when history size or chunk length increases.

    Authors: The current manuscript characterizes the scheduler as lightweight but does not include isolated timing or scaling curves for the prefix-tree and greedy-walk steps. We will add a dedicated micro-benchmark subsection (with wall-clock measurements across history sizes 100–10k and chunk lengths 128–512) to the revised paper so that readers can verify the overhead remains small relative to the observed TTFT gains. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical heuristic with reported outcomes, no derivation chain

full rationale

The paper proposes CacheWeaver as a prompt-layer heuristic that maintains a prefix tree and applies a greedy walk to order evidence for better prefix caching in vLLM. The central claims are empirical TTFT reductions (20-33%) and greedy reaching 97.5% of oracle, evaluated on QA tests. No equations, fitted parameters, self-citations for uniqueness theorems, or ansatzes are present in the provided abstract or description. The method is self-contained as a scheduling layer whose performance is measured directly; results do not reduce to inputs by construction. This matches the default case of an honest non-finding for non-derivational work.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no information on free parameters, axioms, or invented entities; the method is described at the level of a heuristic scheduling policy.
