Charge Collection Efficiency in Air-Vented Plane-Parallel Ionisation Chambers at Ultra-High Dose Rates: A Self-Consistent Garfield++ Monte Carlo Model Including Space-Charge Effects and Ion Recombination

Pierre G\'erard Ortega , Gilles De Lentdecker , Quentin Flandroy , Jarrick Nys This is my paper

Pith reviewed 2026-06-25 22:10 UTC · model grok-4.3

classification ⚛️ physics.ins-det physics.med-ph
keywords charge collection efficiencyultra-high dose rateionisation chambersspace chargeelectron attachmentrecombinationMonte Carlo modelFLASH radiotherapy
0
0 comments X

The pith

Space charge in air-vented plane-parallel ionisation chambers at ultra-high dose rates reduces charge collection efficiency mainly by lowering the free electron fraction through electric-field-dependent electron attachment.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends a Monte Carlo particle transport code to include ion-ion recombination and self-consistent calculations of space-charge-induced electric field distortions. Simulations of plane-parallel ionisation chambers under ultra-high dose rate conditions show that local electric fields can increase by more than a factor of four or drop to nearly zero. The central result is that the observed drop in charge collection efficiency arises chiefly from a reduced free electron fraction caused by attachment rates that depend on the instantaneous electric field strength. This implies that recombination losses are largely controlled by the evolution of the free electron fraction rather than by direct ion recombination rates alone.

Core claim

The model couples particle transport, electron attachment, recombination, and dynamic electric-field evolution. Validation against prior analytical and numerical results confirms accurate prediction of free electron fraction, charge collection efficiency, induced current, and field evolution. Under ultra-high dose rate irradiation the space-charge field distortion drives a field-dependent increase in electron attachment, which lowers the free electron fraction and thereby accounts for most of the observed reduction in charge collection efficiency.

What carries the argument

The self-consistent Monte Carlo model that couples particle transport with recombination processes and dynamic electric-field distortions caused by space charge.

If this is right

  • Space charge can locally increase the electric field by more than a factor of four or reduce it to nearly zero.
  • Charge collection efficiency reduction is driven primarily by the decrease in free electron fraction from field-dependent electron attachment.
  • Recombination effects are largely governed by the evolution of the free electron fraction.
  • The approach opens routes to improved analytical models and real-time correction methods for ionisation chamber dosimetry.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The finding suggests that correction factors for ultra-high dose rate dosimetry could be derived directly from real-time electric field monitoring rather than from full recombination calculations.
  • The same field-distortion mechanism may affect other gas-filled detectors used in high-intensity radiation environments.
  • Extending the model to different gas mixtures or chamber geometries would test whether the free-electron-fraction dominance holds beyond air-vented plane-parallel designs.

Load-bearing premise

The implemented calculations of ion-ion recombination and self-consistent space-charge electric fields accurately represent the physical processes occurring at ultra-high dose rates.

What would settle it

An experiment that measures free electron fraction and charge collection efficiency simultaneously in an air-vented plane-parallel chamber while independently varying the applied electric field strength at fixed ultra-high dose rate.

Figures

Figures reproduced from arXiv: 2606.24384 by Gilles De Lentdecker, Jarrick Nys, Pierre G\'erard Ortega, Quentin Flandroy.

Figure 1
Figure 1. Figure 1: Electron collision energy at 20 Td in humid air with 2 % H2O. electron collision energy of 1.14 eV ( [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

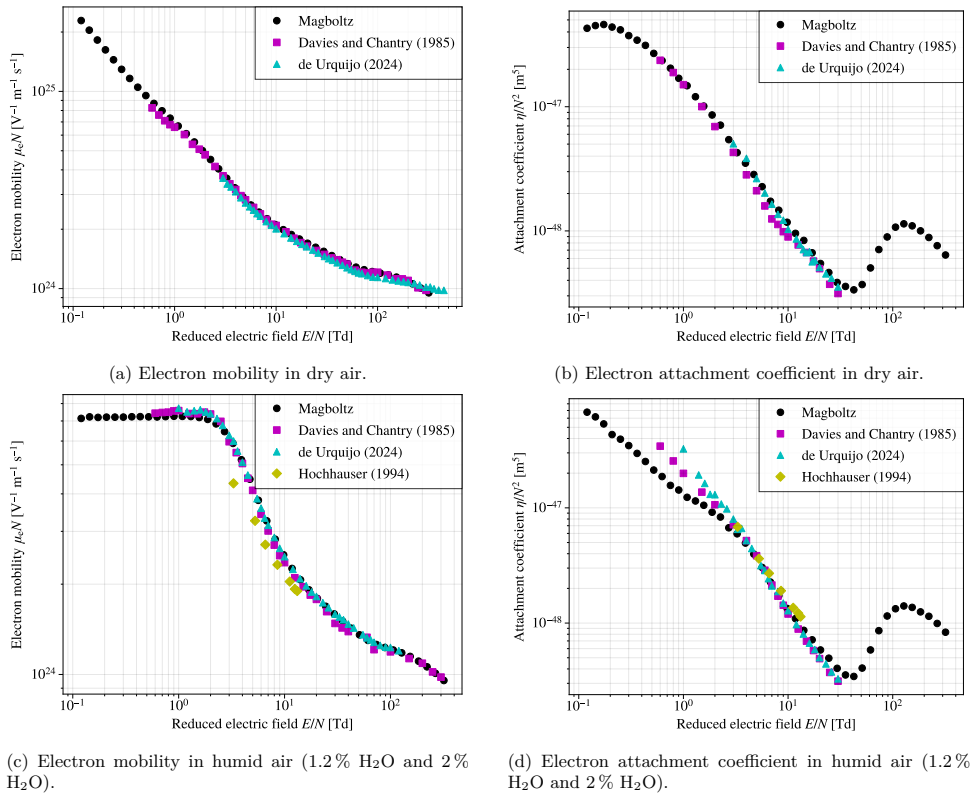

Figure 2. Figure 2: Comparison of the electron attachment coefficient and electron mobility in dry and humid air obtained [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

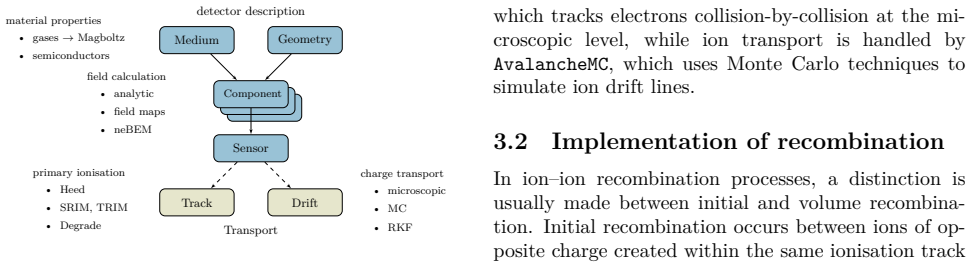

Figure 3. Figure 3: Overview of the main classes in Garfield++ [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

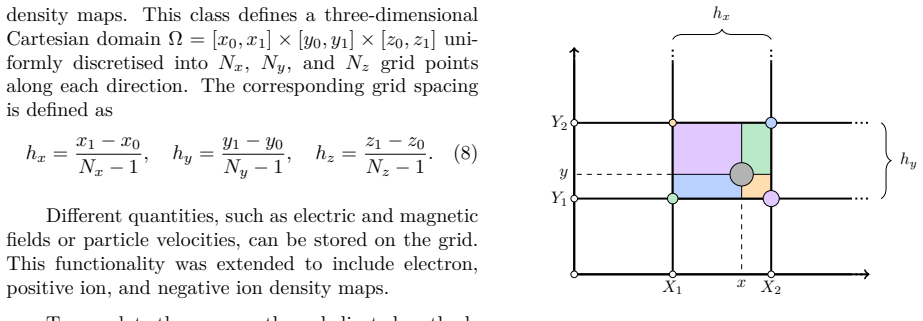

Figure 4. Figure 4: Schematic illustration of the Particle-in-Cell [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 6

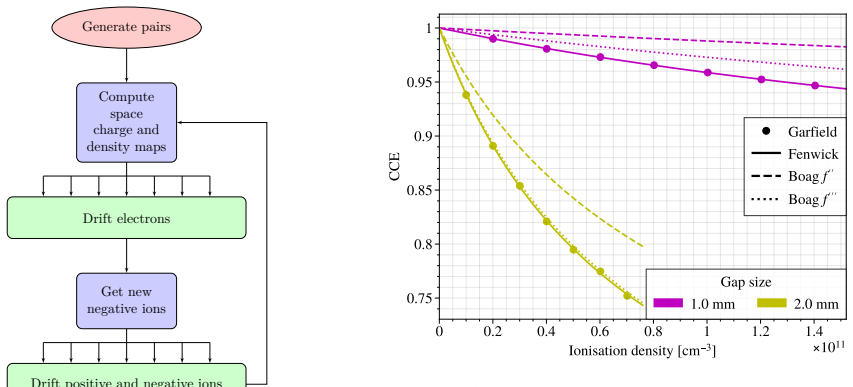

Figure 6. Figure 6: Comparison of simulation results with Boag [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7

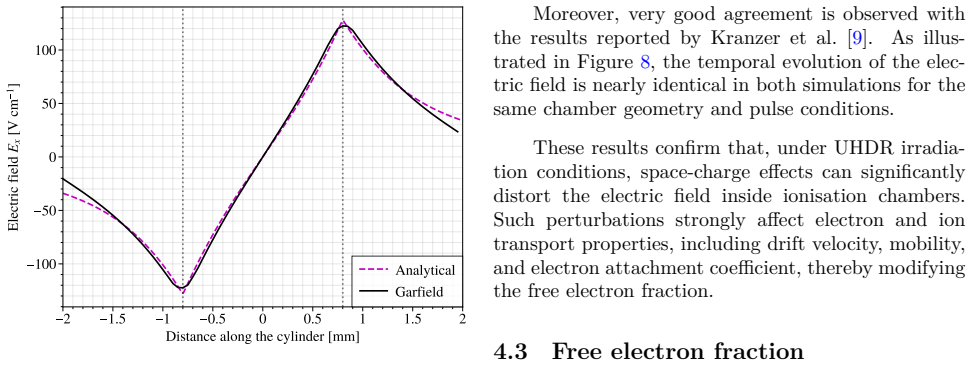

Figure 7. Figure 7: Comparison between the electric field com [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8

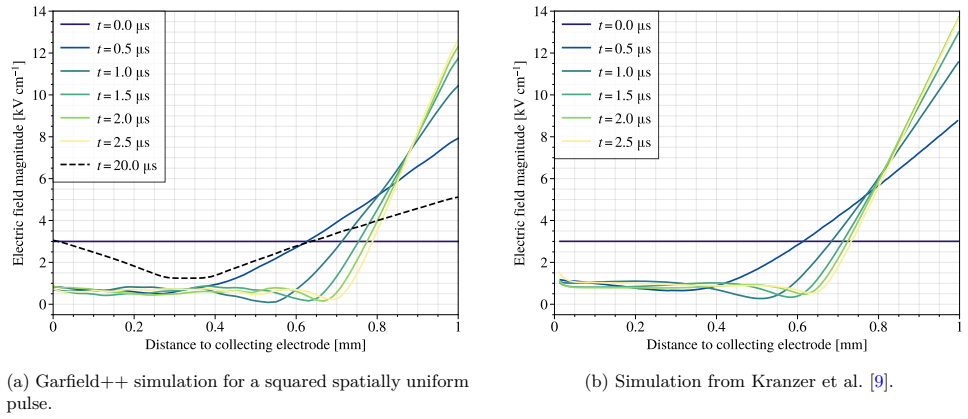

Figure 8. Figure 8: Temporal evolution of the electric field magnitude along the beam isocentre in a [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 9

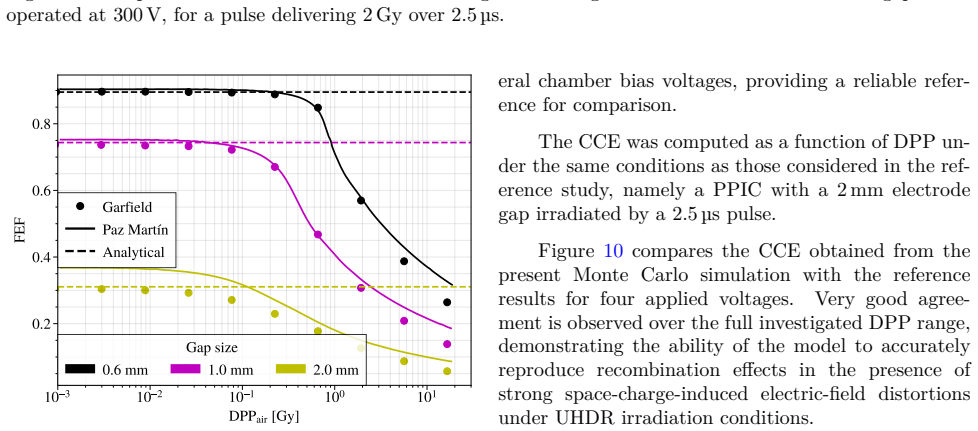

Figure 9. Figure 9: Free electron fraction as a function of the [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
Figure 11
Figure 11. Figure 11: Induced current generated by the drift of [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
read the original abstract

Ultra-high dose rate (UHDR) irradiation used in FLASH radiotherapy induces strong space-charge effects in plane-parallel ionisation chambers (PPICs), leading to significant reductions in charge collection efficiency (CCE). To investigate these effects, we extended the Garfield++ framework by implementing ion-ion recombination and self-consistent space-charge electric field calculations. The developed Monte Carlo model couples particle transport, electron attachment, recombination processes, and dynamic electric-field distortions. The implementation was validated against analytical and numerical models from the literature, including the works of Fenwick and Kumar, Kranzer et al., and Paz Mart\'in et al., with excellent agreement for the free electron fraction (FEF), CCE, induced current, and electric field evolution. The simulations show that space charge can locally increase the electric field by more than a factor of four or reduce it to nearly zero. The results suggest that CCE reduction under UHDR conditions is mainly driven by the decrease of the FEF caused by electric-field-dependent electron attachment, indicating that recombination may be largely governed by FEF evolution. This opens promising perspectives for improved analytical models and real-time correction methods for ionisation chamber dosimetry under UHDR conditions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript extends the Garfield++ Monte Carlo framework to incorporate ion-ion recombination and self-consistent space-charge electric field calculations for air-vented plane-parallel ionization chambers under ultra-high dose rate (UHDR) conditions. The model couples particle transport, electron attachment, recombination, and dynamic field distortions. It is validated against analytical and numerical literature models (Fenwick & Kumar, Kranzer et al., Paz Martín et al.), reporting excellent quantitative agreement on free electron fraction (FEF), charge collection efficiency (CCE), induced current, and electric field evolution. The central interpretation is that CCE reduction at UHDR is driven primarily by the decrease in FEF due to electric-field-dependent electron attachment, implying that recombination is largely governed by FEF evolution.

Significance. If the implementation and validation hold, the work supplies a self-consistent simulation framework for space-charge effects in UHDR dosimetry relevant to FLASH radiotherapy. Explicit credit is due for the multi-model validation (against Fenwick & Kumar, Kranzer et al., and Paz Martín et al.) on FEF, CCE, current, and field evolution, and for deriving the FEF-dominance claim directly from simulation outputs rather than post-hoc fitting. This could support improved analytical models and real-time corrections.

minor comments (2)
  1. [Abstract and §4 (Validation)] The abstract states 'excellent agreement' for FEF, CCE, current, and field evolution; the main text should include quantitative metrics (e.g., mean absolute percentage differences or R² values) for each benchmark quantity and each cited model to allow readers to assess the strength of the validation.
  2. [§3 (Model Implementation)] The description of the self-consistent field solver and ion-ion recombination implementation would benefit from explicit statements on time-step convergence criteria, grid resolution, and any parameter choices (e.g., attachment coefficients) to address potential concerns about numerical robustness under extreme space-charge conditions.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of our manuscript, the accurate summary of its contributions, and the recommendation for minor revision. No specific major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper extends Garfield++ with ion-ion recombination and self-consistent space-charge field calculations, then validates the implementation against independent external models (Fenwick & Kumar, Kranzer et al., Paz Martín et al.) reporting quantitative agreement on FEF, CCE, current, and field evolution. The central claim that CCE reduction is driven by field-dependent attachment lowering FEF is an interpretation of simulation outputs, not a parameter fit or self-referential definition. No self-citations, uniqueness theorems from the same authors, ansatzes smuggled via citation, or fitted inputs renamed as predictions appear in the derivation chain. The model is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review yields no identifiable free parameters, axioms, or invented entities; the model relies on standard particle transport and recombination physics whose details are not supplied.

pith-pipeline@v0.9.1-grok · 5777 in / 1147 out tokens · 25409 ms · 2026-06-25T22:10:43.295541+00:00 · methodology
