Whole-Body Inverse Kinematics with Graph Diffusion

Helong Huang , Kai Tan , Feng Wen , Guowei Huang , Xingyue Quan This is my paper

Pith reviewed 2026-06-30 13:39 UTC · model grok-4.3

classification 💻 cs.RO
keywords inverse kinematicsgraph diffusionkinematic graphswhole-body roboticsdiffusion modelsURDFmulti-modal IK
0
0 comments X

The pith

Modeling robots as kinematic graphs and running conditional graph diffusion on them solves inverse kinematics for single-arm, dual-arm, and whole-body systems while producing multiple valid solutions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper turns inverse kinematics into a conditional diffusion process that operates directly on a graph whose nodes are joints and whose edges follow the kinematic chain from the robot's URDF file. Hierarchical stage-wise message passing moves information along this graph, and torso-aware conditioning lets the model respect the central body when the robot has multiple branches. Noisy forward-kinematics feedback and task-space loss terms are added during the denoising steps to keep generated poses geometrically consistent. The same trained model handles single-arm, dual-arm, and torso-equipped robots without separate code paths. Because diffusion naturally samples from a distribution, the method can return several distinct joint configurations that all reach the same end-effector targets when the robot is redundant.

Core claim

Formulating inverse kinematics as a conditional graph diffusion process on a kinematic graph constructed from URDF, augmented by hierarchical stage-wise message passing and torso-aware conditioning, yields a unified framework that supports single-arm, dual-arm, and multi-branch articulated robots while producing accurate solutions and multiple feasible configurations for redundant systems.

What carries the argument

Kinematic graph built from URDF with conditional graph diffusion and hierarchical stage-wise message passing plus torso-aware conditioning.

If this is right

  • A single trained model produces IK solutions for single-arm, dual-arm, and torso-equipped robots.
  • The diffusion process yields multiple distinct yet valid joint configurations when the robot is redundant.
  • Noisy forward-kinematics feedback during denoising improves geometric accuracy of the generated poses.
  • Task-space supervision keeps the solutions aligned with the commanded end-effector targets.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Swapping the URDF input could let the same model adapt to new robot designs without retraining from scratch.
  • Sampling multiple modes from the diffusion process may help downstream planners choose among collision-free options.
  • Faster sampling or model distillation would be needed before the method runs inside a real-time control loop.
  • Adding obstacle or self-collision information as extra conditioning could turn the framework into a primitive motion planner.

Load-bearing premise

Representing the robot as a graph from its URDF and applying hierarchical message passing in a diffusion process will capture the structural dependencies and multi-modal character of inverse kinematics across different robot shapes.

What would settle it

Generate samples for a dual-arm robot with torso, apply the resulting joint angles through forward kinematics, and check whether the end-effector errors remain below a few millimeters while the torso link stays within its joint limits.

Figures

Figures reproduced from arXiv: 2606.00086 by Feng Wen, Guowei Huang, Helong Huang, Kai Tan, Xingyue Quan.

Figure 1

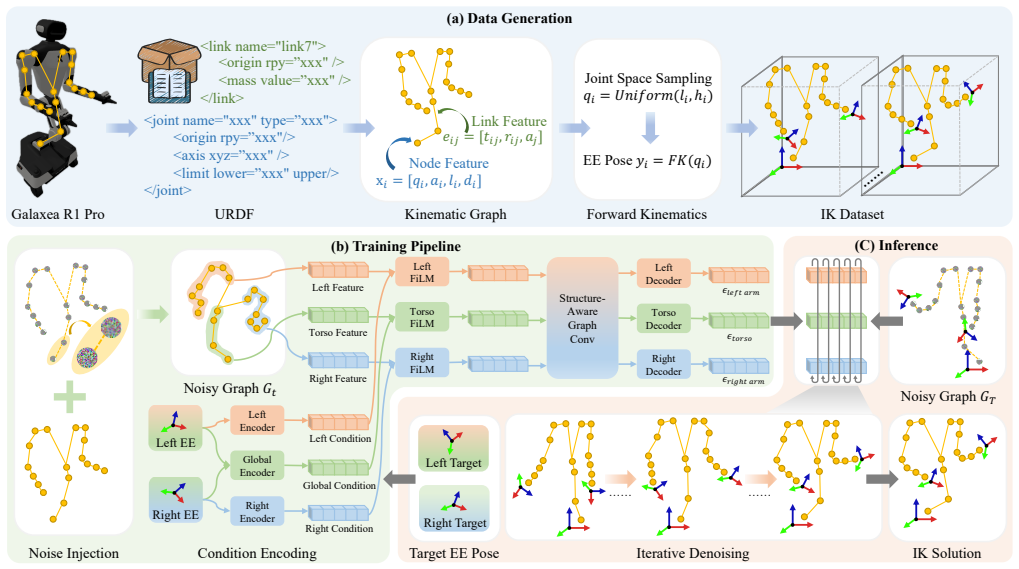

Figure 1. Figure 1: Overview of GraphDiff-IK. (a) Data generation. The robot URDF is converted into a kinematic graph, where nodes represent actuated joints and edges encode kinematic relations. Joint configurations are sampled from the joint limits, and corresponding end-effector poses are computed via forward kinematics to construct an IK dataset of pairs (q, y). (b) Training pipeline. Given a clean graph G0, forward diffus… view at source ↗
Figure 2

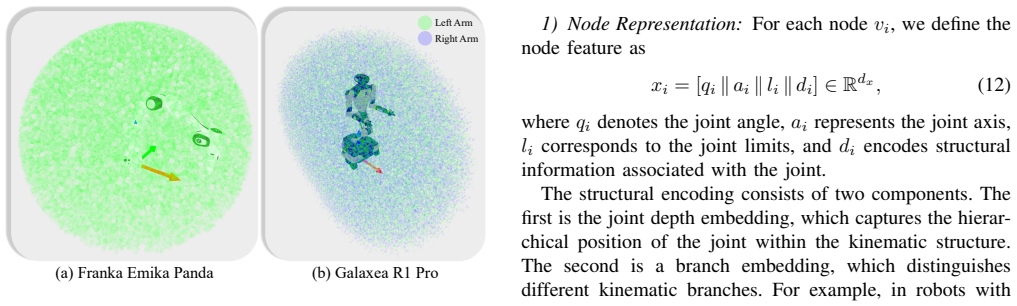

Figure 2. Figure 2: End-effector workspace visualization. End-effector positions generated from 106 joint configurations randomly sampled within joint limits. (a) Franka Emika Panda exhibits a continuous reachable workspace under single-arm kinematics. (b) Galaxea R1 Pro shows a more complex distribution due to dual-arm coordination, where left and right end-effectors jointly span the workspace. The large spatial coverage hig… view at source ↗
Figure 3

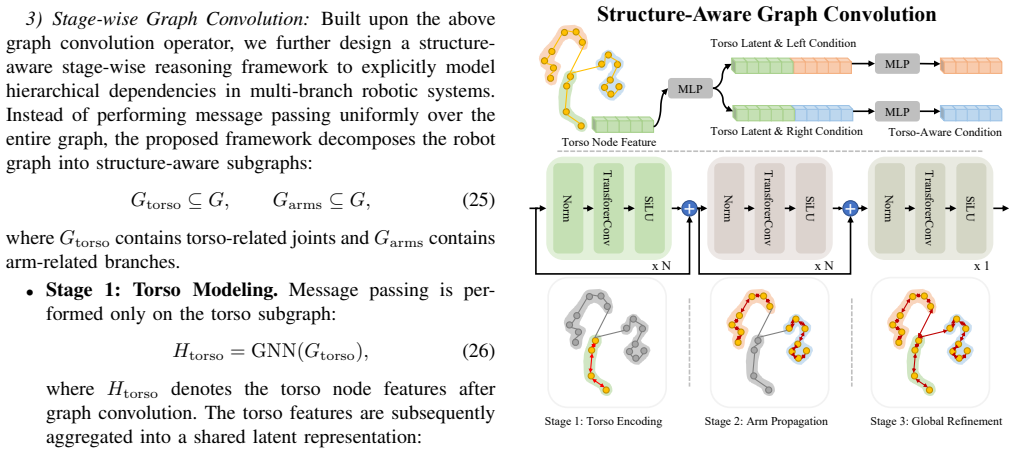

Figure 3. Figure 3: Structure-Aware Graph Convolution. We perform stage-wise message passing over the robot kinematic graph derived from the URDF. Given node features encoding joint states and structural attributes, the model applies a sequence of structure-aware graph convolution blocks with residual connections. In Stage 1, torso nodes are updated to capture global context and produce a shared latent representation ztorso. … view at source ↗
Figure 4

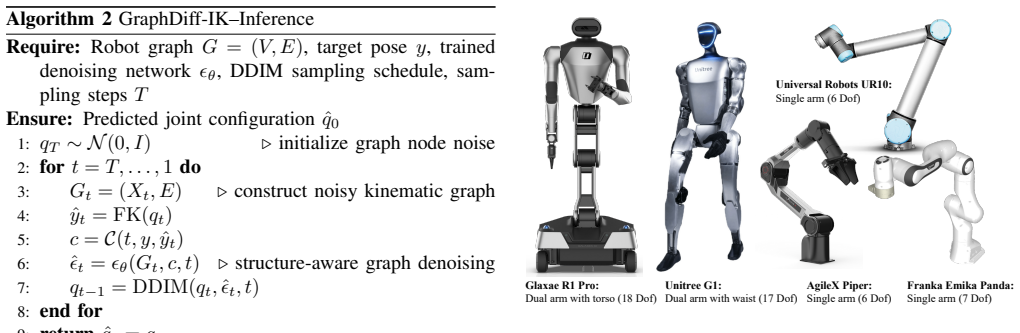

Figure 4. Figure 4: Robot platforms used in our experiments. The evaluated platforms include fixed-base single-arm manipulators, dual-arm systems with torso articulation, and humanoid robots with waist coupling, covering diverse kinematic structures and degrees of freedom. orientation of the corresponding manipulator. For dual-arm systems, target poses are generated independently for both arms while preserving the shared tors… view at source ↗
Figure 5

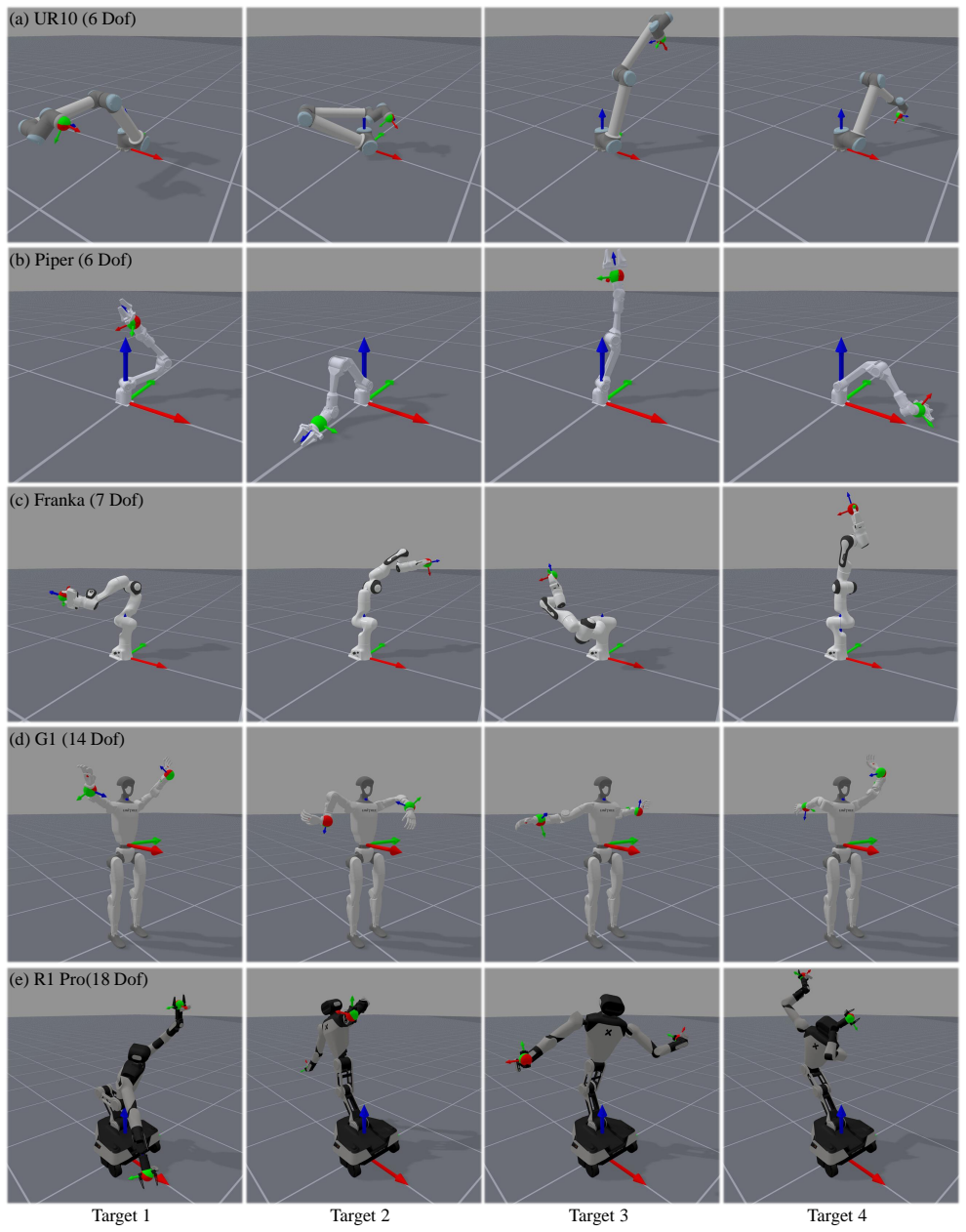

Figure 5. Figure 5: Generalization across different robot morphologies and target poses. Each row corresponds to a different robotic platform, while each column represents a different target end-effector pose. The generated results demonstrate that GraphDiff-IK can produce valid inverse kinematics solutions across diverse robot structures and workspace regions while preserving articulated structural consistency [PITH_FULL_IM… view at source ↗
Figure 6

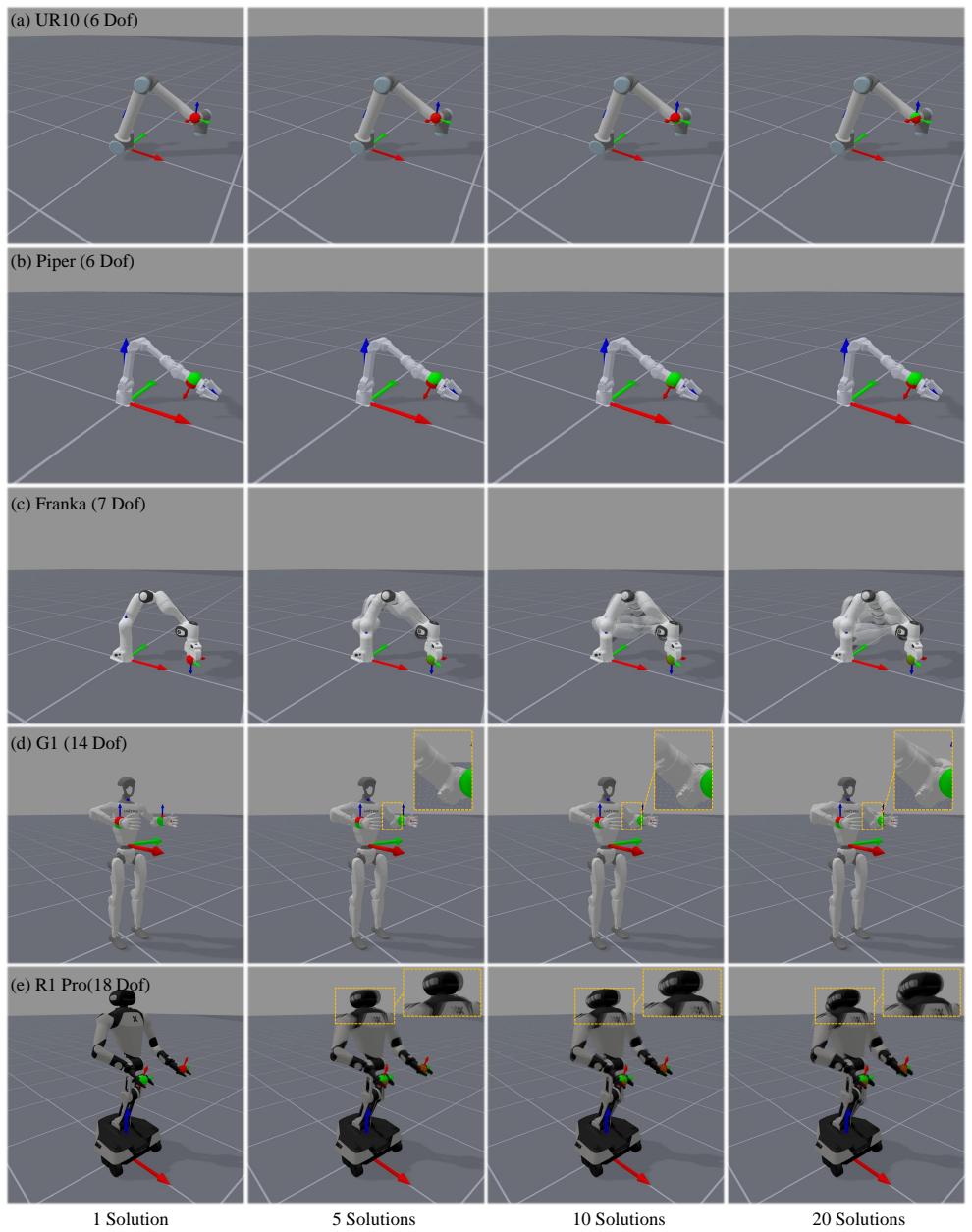

Figure 6. Figure 6: Visualization of multiple inverse kinematics solutions generated by GraphDiff-IK. Each row corresponds to a robot platform, while each column shows 1, 5, 10, and 20 generated solutions overlaid for the same target end-effector pose. Non-redundant robots exhibit highly overlapping solutions, whereas redundant and multi-branch systems produce diverse valid articulated configurations for the same target pose … view at source ↗
Figure 7

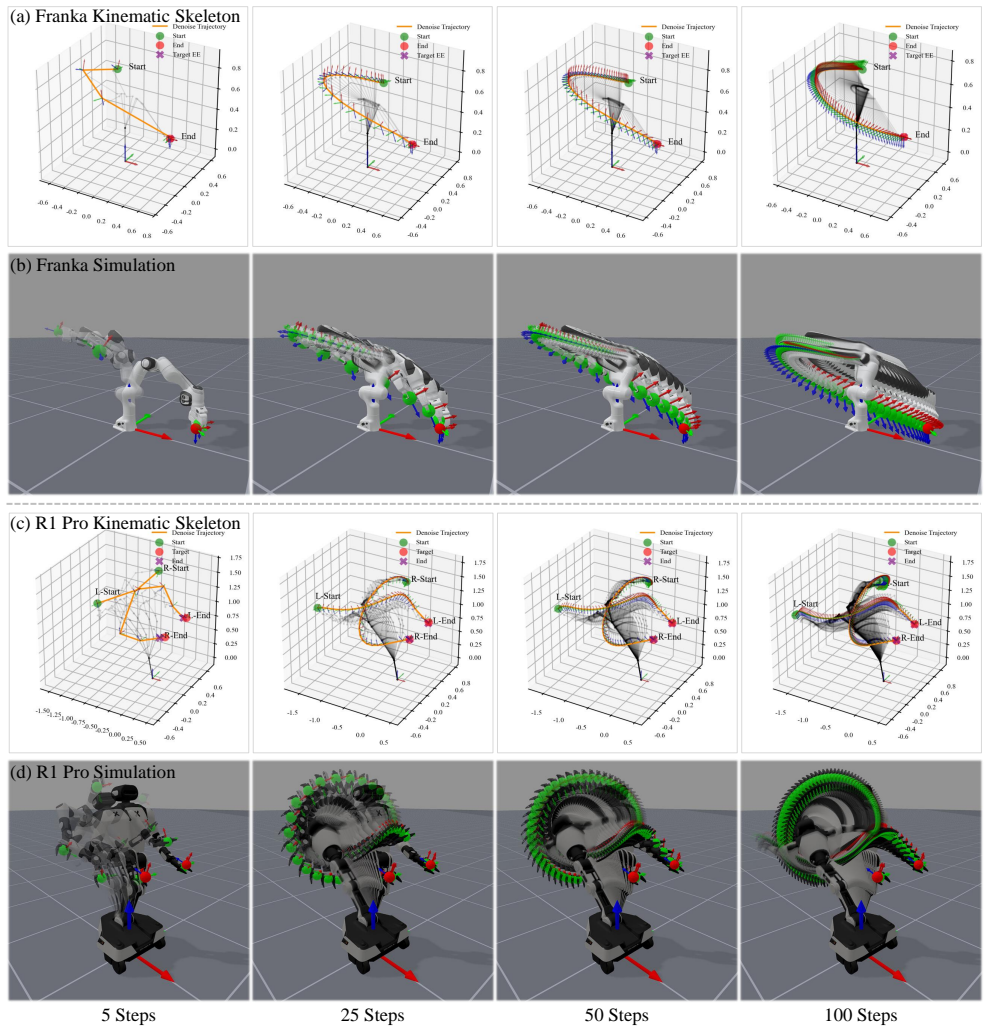

Figure 7. Figure 7: Visualization of the iterative denoising process in GraphDiff-IK. Each column corresponds to different denoising steps (5, 25, 50, and 100). The first row for each robot shows the articulated kinematic skeleton reconstructed via forward kinematics, while the second row visualizes overlaid simulation trajectories during diffusion inference. behavior suggests that the proposed framework effectively captures … view at source ↗
read the original abstract

Inverse kinematics (IK) is a fundamental problem in robotics, requiring the generation of joint configurations that satisfy target end-effector poses. Existing approaches often struggle to generalize across diverse robot morphologies and to effectively model the multi-modal nature of IK, particularly in articulated systems with multiple kinematic branches. In this work, we propose GraphDiff-IK, a structure-aware graph diffusion framework for inverse kinematics. Specifically, we represent the robot as a kinematic graph constructed from the robot URDF, where nodes correspond to actuated joints and edges encode kinematic dependencies. Building upon this representation, we formulate IK as a conditional graph diffusion process that directly generates joint configurations on the robot graph. To better capture structural dependencies in articulated systems, we further introduce a structure-aware graph reasoning framework with hierarchical stage-wise message passing and torso-aware conditioning for multi-branch robots. In addition, we incorporate noisy forward kinematics feedback and task-space supervision to improve geometric consistency during denoising. The proposed framework provides a unified formulation that naturally supports single-arm robots, dual-arm systems, and articulated robots with torso or waist structures. Extensive experiments on diverse robotic platforms demonstrate that the proposed method achieves accurate and stable IK performance while preserving the ability to generate multiple feasible solutions for redundant robotic systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes GraphDiff-IK, a structure-aware graph diffusion framework for whole-body inverse kinematics. Robots are represented as kinematic graphs derived from URDF (nodes as actuated joints, edges as kinematic dependencies); IK is cast as a conditional graph diffusion process that generates joint configurations. The method adds hierarchical stage-wise message passing, torso-aware conditioning for multi-branch systems, and auxiliary losses from noisy forward kinematics plus task-space supervision. It claims a unified formulation supporting single-arm, dual-arm, and torso/waist robots, with experiments on diverse platforms showing accurate, stable performance and the ability to produce multiple feasible solutions for redundant manipulators.

Significance. If the empirical claims hold, the work supplies a unified, morphology-agnostic approach to multi-modal IK that directly exploits graph structure and diffusion to address generalization and solution diversity—two persistent challenges for articulated systems. The graph representation and conditioning mechanisms are a natural fit for the problem and could reduce the need for morphology-specific engineering.

major comments (2)
  1. [Abstract / Experiments] The abstract asserts that 'extensive experiments on diverse robotic platforms demonstrate that the proposed method achieves accurate and stable IK performance,' yet supplies no quantitative metrics, baselines, success-rate tables, or ablation results. Without these data the central empirical claim cannot be evaluated.
  2. [Method] The description of hierarchical stage-wise message passing and torso-aware conditioning is given at a conceptual level only; no equations, layer definitions, or conditioning mechanism details are provided, preventing assessment of whether the architecture actually captures the claimed structural dependencies.
minor comments (1)
  1. [Method] Notation for the graph diffusion process (e.g., forward/reverse schedules, conditioning variables) should be introduced with explicit symbols and a short algorithmic outline.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address each major comment below and will revise the manuscript to strengthen the presentation of results and technical details.

read point-by-point responses

  1. Referee: [Abstract / Experiments] The abstract asserts that 'extensive experiments on diverse robotic platforms demonstrate that the proposed method achieves accurate and stable IK performance,' yet supplies no quantitative metrics, baselines, success-rate tables, or ablation results. Without these data the central empirical claim cannot be evaluated.

    Authors: We agree that the abstract's empirical claim requires supporting quantitative evidence to be properly evaluated. The manuscript's experiments section presents results on multiple platforms, but we acknowledge the absence of consolidated metrics, baselines, and ablations in a form that directly substantiates the abstract. We will revise by adding a concise summary of key metrics (e.g., position/orientation errors and success rates) to the abstract and by ensuring prominent tables for baselines, success rates, and ablations appear in the experiments section. revision: yes

  2. Referee: [Method] The description of hierarchical stage-wise message passing and torso-aware conditioning is given at a conceptual level only; no equations, layer definitions, or conditioning mechanism details are provided, preventing assessment of whether the architecture actually captures the claimed structural dependencies.

    Authors: We appreciate this observation. The method section currently describes the hierarchical stage-wise message passing and torso-aware conditioning at a conceptual level. We will expand this section in the revision to include the explicit equations for the message-passing updates, the layer definitions, and the precise formulation of the torso-aware conditioning mechanism. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The provided abstract and description outline a construction for GraphDiff-IK: a URDF-derived kinematic graph, formulated as a conditional graph diffusion process with hierarchical stage-wise message passing, torso-aware conditioning, and auxiliary noisy FK/task-space losses. No equations, derivations, or parameter-fitting steps are shown that would allow any claimed result to reduce to its inputs by construction. No self-citations, uniqueness theorems, or ansatzes are invoked in a load-bearing way. The unified support for different robot morphologies follows directly from the graph representation itself, with no evidence of circular reduction in the stated components.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Based solely on the abstract, no free parameters, axioms, or invented entities are explicitly described or required for the central claim.

pith-pipeline@v0.9.1-grok · 5748 in / 1176 out tokens · 48232 ms · 2026-06-30T13:39:52.630201+00:00 · methodology
