From Region Arrival to Instance-Level Grounding in Vision-and-Language Navigation

T0 review · 3 major / 6 minor · reviewed 2026-07-11 · grok-4.5

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Stopping near a room is not the same as seeing the object; a short-horizon refinement module can close that gap.

desk verdict Solid problem formalization and multi-backbone gains on a real VLN evaluation gap; the hand-off basin assumption is real but does not sink the contribution. read the letter →

arxiv 2607.03792 v1 pith:VYO2PWDF submitted 2026-07-04 cs.RO cs.CV

Xiangyu Shi , Ruoxi Yang , Wei Tao , Jiwen Zhang , Yanyuan Qiao , Qi Wu This is my paper
classification cs.ROcs.CV
keywords vision-and-languagenavigationobjectgroundinglast-3-metergapREALMREVERIE-AIMvisibility-awarestoppingembodiedAI
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Standard vision-and-language navigation scores count an agent successful if it stops within three meters of a labeled endpoint, even when the target object is invisible or the agent faces the wrong way. The paper names this mismatch the Last-3-Meter Grounding Gap and shows that strong conventional scores often hide very weak object proximity and visibility. To close the gap it decouples long-horizon navigation from a short final approach: once any upstream navigator stops, a plug-in module called REALM takes over using only egocentric RGB and the original instruction, with a visibility-aware stop penalty that discourages premature termination. Supporting data and metrics come from REVERIE-AIM, which replaces region-level goals with instance-level endpoints and supplies roughly 180 000 short-horizon training clips. Across four different navigators the module raises fine-grained proximity and grounding success, and a small real-robot test shows the same direction of gain.

What carries the argument

REALM: a decoupled short-horizon refinement policy (LoRA-adapted UniNaVid) whose visibility-aware stop penalty (VSP) suppresses premature termination until the referred object becomes visible, after which open-vocabulary detection grounds the final view.

What would settle it

Run the same four upstream backbones on the REVERIE-AIM val-unseen split with and without REALM; if ONS@0.1 m, GS, and OracleGS do not rise under the full VSP loss, or if the gains disappear when the upstream stop is artificially displaced beyond a few meters, the central claim fails.

Watch

Extended reading notes

Core claim

The paper claims that the conventional 3-meter success rate systematically overstates object-level readiness, and that a plug-and-play, architecture-agnostic refinement stage (REALM) that is trained only on short-horizon approaching and that penalizes stops when the target is invisible can consistently improve proximity precision, target visibility, and final-view grounding without altering the upstream navigator.

Load-bearing premise

The upstream navigator must already stop close enough that a short-horizon visibility-aware policy can recover a usable viewpoint; if it stops many meters away or in the wrong room, the refinement module has no recovery path.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The paper argues that standard VLN-CE success (stop within 3 m of a region endpoint) does not guarantee instance-level object grounding, formalizing this as the Last-3-Meter Grounding Gap. It introduces three metrics (ONS for geodesic proximity to the instance, GS for final-view detection IoU, OracleGS for target visibility/area), the REVERIE-AIM dataset with object-centric endpoints and ~180K short-horizon clips, and REALM: a plug-and-play refinement stage that takes over after any upstream navigator stops, LoRA-adapts UniNaVid with a visibility-aware stop penalty (VSP), then extracts a target phrase and runs OWLv2. Table 2 reports consistent gains on ONS/GS/OracleGS across four diverse backbones (ETPNav-ZS/FT, UniNaVid-ZS, Smartway); a small real-robot study on Stretch shows parallel direction of improvement.

Significance. If the results hold, the work usefully separates long-horizon VLN from short-horizon viewpoint alignment and supplies evaluation tools that better match downstream interaction needs. Strengths include: architecture-agnostic hand-off design; multi-backbone ablations (including VSP ablation) that move in the claimed direction; an explicit short-horizon training set rather than only end-to-end fine-tuning; and preliminary physical deployment. These are concrete engineering contributions for continuous object-referring navigation, even if absolute numbers remain far below the reported human upper bound.

major comments (3)
  1. [§4, §5.4, Table 2] §4 (three-stage pipeline) and §5.4 (short-horizon sampling from second-to-last node with σ=1.5 m perturbation): the plug-and-play claim assumes that π_nav’s stop already lies inside REALM’s recovery basin. The manuscript never reports the distribution of geodesic distances (or room-level correctness) of the raw upstream stop poses that are handed to REALM. Without that breakdown—especially for zero-shot/training-free backbones whose SR is low—the Table 2 gains could be driven mainly by already-near episodes rather than general recovery. Please add distance/room histograms of hand-off poses and, if possible, a stratified analysis (e.g., gains conditioned on d_hand-off ≤ 3 m vs. farther).
  2. [§6.3, Table 3] §6.3 / Table 3: real-world evaluation uses only 12 episodes and reports point estimates with no error bars, confidence intervals, or statistical tests. The jump from 8.33% to 33.33% ONS@0.5m is directionally consistent with simulation but is too thin to support the claim of “preliminary evidence of real-world applicability” at the strength stated in the abstract and conclusion. Expand the episode set or qualify the claim more carefully and report variability.
  3. [Table 2, §6.2] Table 2 “Human Eval” row (ONS@0.1m 50.40%, ONS@0.5m 74.71%, GS 38.24%, OracleGS 80.38%): no protocol is given (number of subjects, interface, time budget, whether they used the same continuous action space and camera FOV). These numbers are used as an upper bound that frames the remaining gap; without a clear protocol they are hard to interpret and should be documented or removed from the primary comparison.
minor comments (6)
  1. [Figure 1] Figure 1 caption and body: “Grounding-based Evalua;on” and similar OCR-style typos; clean for camera-ready.
  2. [§4.1] Eq. (2)–(3): λ_vsp is free but no sensitivity sweep is shown; a short ablation over a few λ values would strengthen the VSP claim.
  3. [§3.3] §3.3 OracleGS uses Area(b*)/Area(OT) ≥ 0.01; justify the 1% threshold or show robustness to nearby values (e.g., 0.5%, 2%).
  4. [§2] Related work: GroundingMate is discussed for discrete REVERIE; a sentence clarifying how REALM’s open-world OWLv2 detection differs from candidate-box classification would help readers.
  5. [Table 1, §5.3] Table 1 feature matrix is useful; ensure “Object Proximity Endpoint” is defined consistently with the 0.34 m average min geodesic distance stated in §5.3.
  6. [Abstract, §4] Abstract and intro claim “architecture-agnostic” while the refinement policy is always UniNaVid+LoRA; clarify that agnosticism refers to the upstream hand-off interface, not the refinement backbone itself.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: empirical VLN engineering paper with independently defined metrics, external simulator supervision, and non-tautological multi-backbone gains.

full rationale

The paper’s load-bearing claims are empirical performance lifts (Table 2: ONS/GS/OracleGS across four backbones) and a three-stage pipeline (navigation → refinement → grounding). None of these reduce by construction to their inputs. ONS, GS, and OracleGS are defined from geodesic proximity, IoU, and frame-area visibility against simulator ground truth, independent of REALM’s parameters or losses. REVERIE-AIM endpoints come from Habitat ObjectNav instance sampling, not from the learned policy’s own stops. The VSP term (Eq. 2) multiplies a stop-margin by an external binary visibility label vb from the simulator; it is a training regularizer, not a fitted constant renamed as a prediction. LoRA fine-tuning of UniNaVid on 180K short-horizon clips is ordinary supervised adaptation. Self-citations (UniNaVid base architecture; SmartWay as one of four baselines) are ordinary prior-work reuse and do not force the multi-backbone gains. There is no uniqueness theorem, no ansatz smuggled via self-citation, and no equation that equates a claimed prediction to a fitted input. The basin/hand-off assumption noted by the skeptic is a validity/scope concern, not circularity. Score 0 is the honest finding.

Assumptions & free parameters 5 free parameters · 4 assumptions · 4 invented entities

The central empirical claim rests on standard Habitat/ObjectNav sampling conventions, ordinary imitation-learning assumptions, a handful of hand-chosen thresholds and one loss weight, plus the newly defined metrics and dataset. No exotic physical entities are postulated; the free parameters are ordinary engineering knobs whose values are not claimed to be universal constants.

free parameters (5)
  • lambda_vsp
    Scalar weight balancing the visibility-aware stop penalty against the base cross-entropy loss (Eq. 3); value not reported, chosen by the authors.
  • ONS distance thresholds (0.1 m / 0.5 m)
    Success cut-offs taken from ObjectNav convention and ‘downstream positioning tolerance’; affect all reported ONS numbers.
  • OracleGS area fraction 0.01
    Minimum fraction of camera frame occupied by the ground-truth box for visibility success; hand-chosen.
  • GS IoU threshold 0.5
    Standard detection threshold; still a free design choice that defines the GS metric.
  • Spatial perturbation sigma=1.5 m, truncation [-5,5] m
    Controls diversity of short-horizon training starts (§5.4); directly shapes the 180 k sample distribution.
assumptions (4)
  • domain assumption Habitat continuous simulator trajectories and ObjectNav navigable-point sampling faithfully represent real indoor geometry and visibility for the purpose of training and metric computation.
    Invoked throughout §§5.1–5.2 and for all simulator tables; sim-to-real gap is only lightly probed with 12 real episodes.
  • domain assumption A short-horizon policy that receives only egocentric RGB and the original language instruction can recover a usable final pose once any upstream navigator has stopped.
    Core design premise of the three-stage pipeline (§4); if the stop is outside the short-horizon basin the module cannot help.
  • domain assumption Simulator-provided binary visibility labels are a valid supervisory signal for the VSP loss.
    Used to compute L_vsp (Eq. 2); real cameras lack this oracle.
  • standard math Standard token-level cross-entropy imitation learning plus LoRA on a frozen vision encoder is a sufficient adaptation regime for the refinement task.
    Ordinary deep-learning practice; no new theoretical claim.
invented entities (4)
  • Last-3-Meter Grounding Gap
    purpose: Names the systematic discrepancy between conventional 3 m SR and instance-level proximity/visibility/grounding.
    Conceptual framing introduced in §3; useful but not an independent physical entity.
  • ONS / GS / OracleGS metrics
    purpose: Decouple proximity, detection success and pure visibility so the gap can be quantified.
    New evaluation axes defined in §3.3; their numerical values are the paper’s main evidence.
  • REVERIE-AIM dataset
    purpose: Supplies instance-level goals and 180 k short-horizon clips for training and evaluation.
    Constructed artifact (§5); not yet released, so independent verification is pending.
  • REALM refinement module + Visibility-Aware Stop Penalty
    purpose: Architecture-agnostic last-meters policy that suppresses premature stops.
    Core technical contribution (§4); performance claims rest on the new metrics and dataset.

how reviews work

0 comments
Cite this review

Pith. "Pith review of From Region Arrival to Instance-Level Grounding in Vision-and-Language Navigation." pith.science (2026). https://pith.science/paper/VYO2PWDF

@misc{pith2026260703792,
  author       = {Pith},
  title        = {Pith review of: From Region Arrival to Instance-Level Grounding in Vision-and-Language Navigation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/VYO2PWDF}},
  note         = {Machine review of arXiv:2607.03792}
}
read the original abstract

Vision-and-Language Navigation (VLN) agents may satisfy conventional success criteria while still failing to establish reliable object-level grounding, because current evaluation protocols mainly reward stopping within a 3-meter radius and largely ignore the agent's final orientation and target visibility. We formalize this limitation as the Last-3-Meter Grounding Gap and introduce three instance-centric metrics to quantify proximity precision, target visibility, and final-view grounding. To mitigate this gap, we propose REALM (Region-to-Entity Alignment for Last-3-Meter Navigation), a plug-and-play, architecture-agnostic refinement module that decouples fine-grained target approaching from long-horizon navigation. REALM uses a visibility-aware stopping strategy to reduce premature termination and improve final viewpoint alignment. We further construct REVERIE-AIM, which provides object-instance-level goals and 180K short-horizon training samples for final-stage target approaching. Extensive evaluations across four diverse VLN backbones show that REALM consistently improves proximity precision and visual grounding success, demonstrating its broad applicability.

Figures

Figures reproduced from arXiv: 2607.03792 by the authors.

Figure 1
Figure 1. Existing evaluation rewards stopping near a target viewpoint, but object grounding requires [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

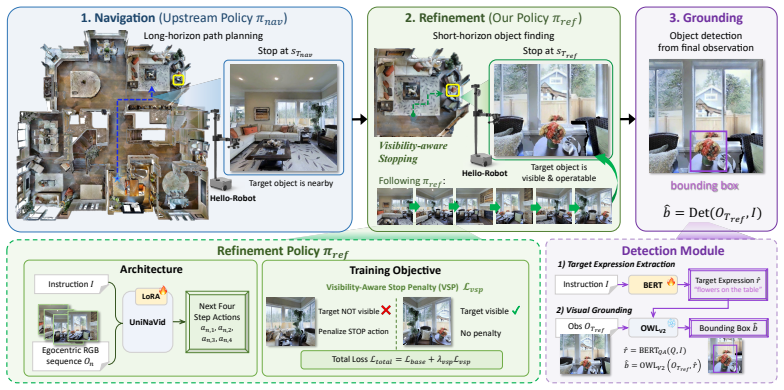

Figure 2. An overview of the REALM framework. The pipeline comprises three decoupled stages: (i) Navigation: πnav follows instruction I (e.g., “Go to the living room and water the flowers on the table.”) and stops at sTnav ; (ii) Refinement: πref repositions the agent to sTref where the target is proximate and visible; (iii) Grounding: a BERT-based extractor yields a target phrase rˆ, passed to OWLv2 for bounding box predicti… view at source ↗
