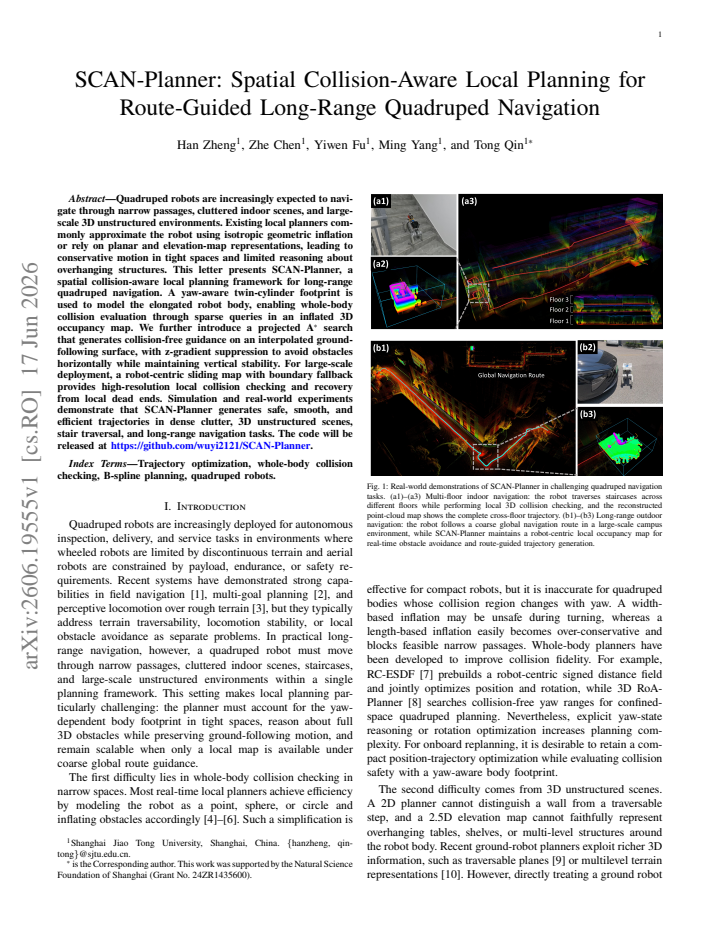

SCAN-Planner: Spatial Collision-Aware Local Planning for Route-Guided Long-Range Quadruped Navigation

Han Zheng , Zhe Chen , Yiwen Fu , Ming Yang , Tong Qin This is my paper

Pith reviewed 2026-06-26 20:36 UTC · model grok-4.3

classification 💻 cs.RO
keywords quadruped navigationlocal planningcollision avoidance3D occupancy mapwhole-body collisionroute-guided navigationstair traversal
0
0 comments X

The pith

A yaw-aware twin-cylinder model lets quadruped robots check whole-body collisions in 3D maps for safer local planning.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces SCAN-Planner as a local planning method that models the quadruped body with two yaw-aware cylinders to evaluate collisions through sparse queries in an inflated 3D occupancy map. It adds a projected A* search on an interpolated ground surface with z-gradient suppression to generate guidance that avoids obstacles horizontally while preserving vertical stability. A robot-centric sliding map with boundary fallback supports high-resolution checking and recovery during large-scale navigation. The approach is tested in simulation and real-world settings across dense clutter, unstructured 3D scenes, stairs, and long-range tasks, where it produces safe, smooth, and efficient trajectories.

Core claim

SCAN-Planner generates safe, smooth, and efficient trajectories in dense clutter, 3D unstructured scenes, stair traversal, and long-range navigation tasks by using a yaw-aware twin-cylinder footprint for whole-body collision evaluation via sparse queries in an inflated 3D occupancy map, a projected A* search on a ground-following surface with z-gradient suppression, and a robot-centric sliding map with boundary fallback for recovery from dead ends.

What carries the argument

The yaw-aware twin-cylinder footprint, which models the elongated robot body to enable whole-body collision evaluation through sparse queries in an inflated 3D occupancy map.

If this is right

  • Quadrupeds can move through narrow passages and cluttered indoor scenes with less conservative paths than isotropic inflation methods.
  • The planner reasons about overhanging structures that planar or elevation-map approaches ignore.
  • Stair traversal and long-range navigation become feasible without getting stuck in local dead ends.
  • High-resolution local collision checking remains available even as the robot travels over large areas.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same footprint and query approach could apply to other elongated mobile robots that need fast 3D collision checks.
  • Higher planning rates become possible because only sparse queries are used instead of dense mesh checks.
  • Combining the local planner with existing global route planners could produce fully autonomous missions in large buildings or outdoor sites.
  • The sliding map mechanism might help other planners recover when global routes temporarily conflict with local obstacles.

Load-bearing premise

Sparse queries on the inflated 3D map with the twin-cylinder model are enough to detect all critical contacts without missing collisions or requiring too much computation.

What would settle it

Execution of a planned trajectory that results in an undetected body or leg contact with an obstacle that the twin-cylinder queries missed.

Figures

Figures reproduced from arXiv: 2606.19555 by Han Zheng, Ming Yang, Tong Qin, Yiwen Fu, Zhe Chen.

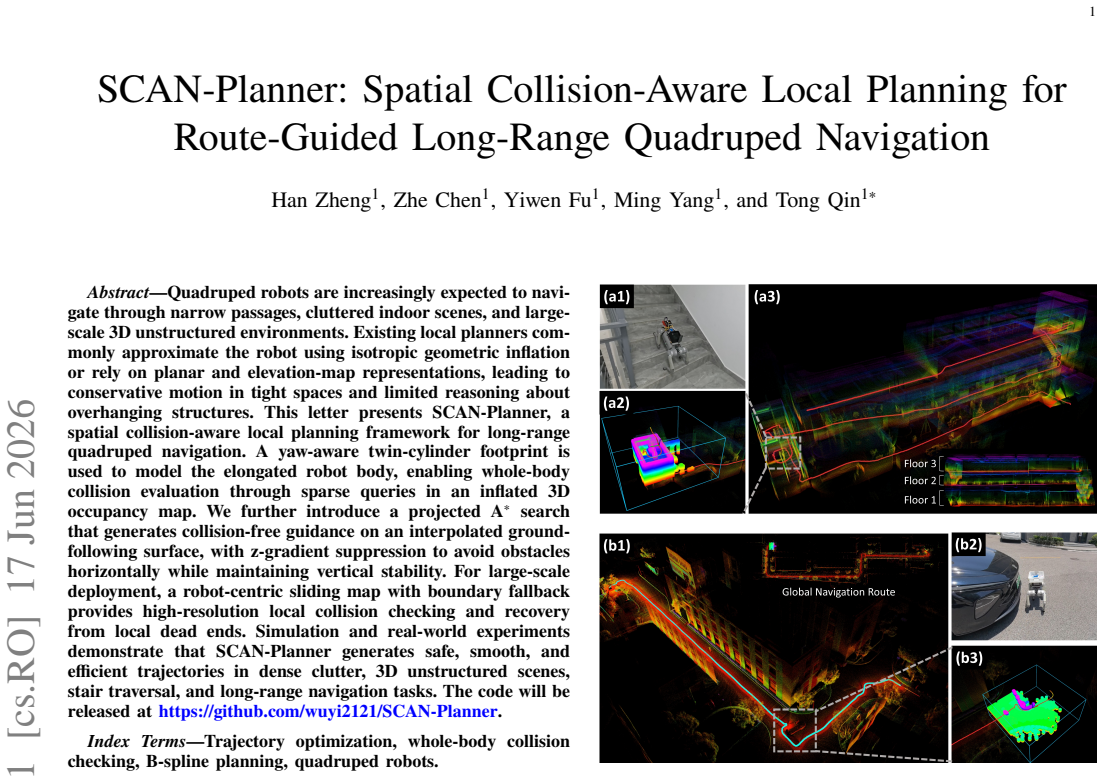

Figure 1
Figure 1. Figure 1: Real-world demonstrations of SCAN-Planner in challenging quadruped navigation [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

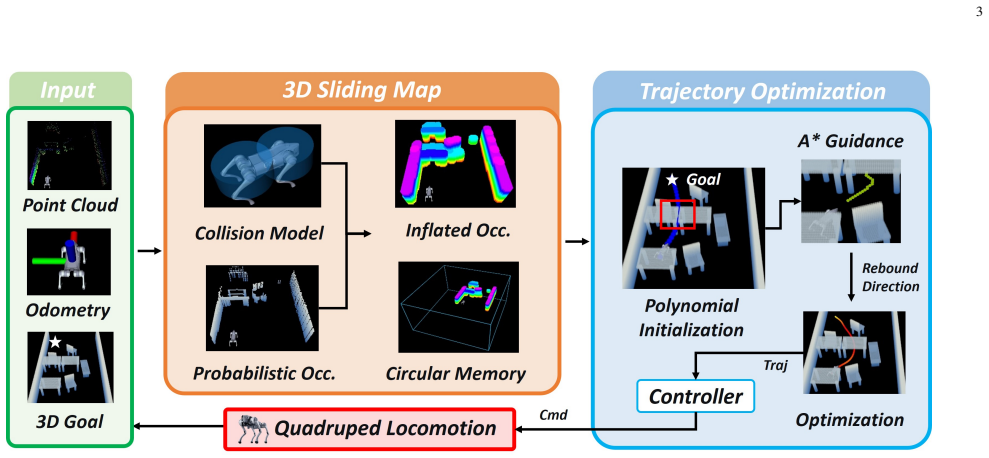

Figure 2. Figure 2: System architecture of SCAN-Planner. The system takes point clouds, odometry, and a route-guided 3D local goal as inputs. A robot-centric 3D sliding map maintains [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

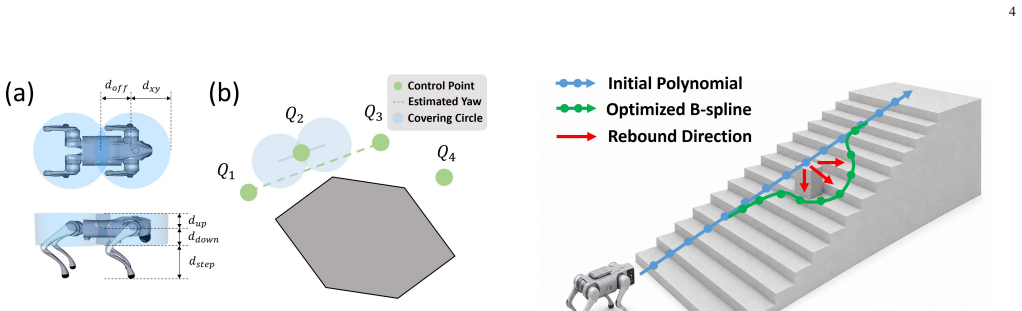

Figure 3. Figure 3: Yaw-aware footprint for whole-body collision checking. (a) The quadruped body [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 5

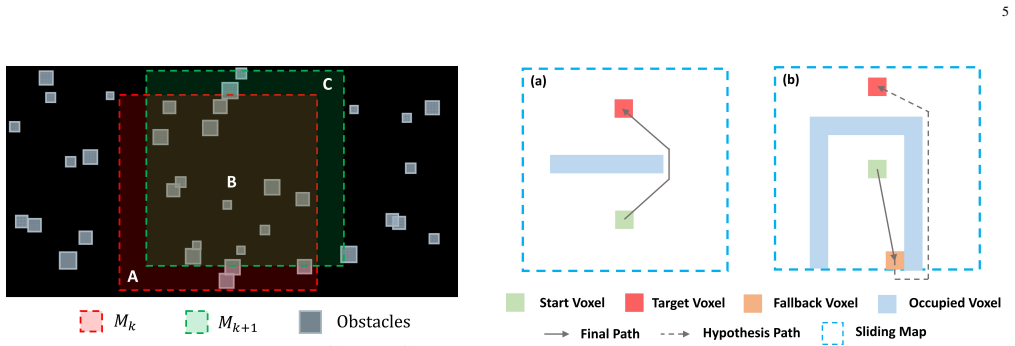

Figure 5. Figure 5: Sliding map update. When the active map shifts from [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 7

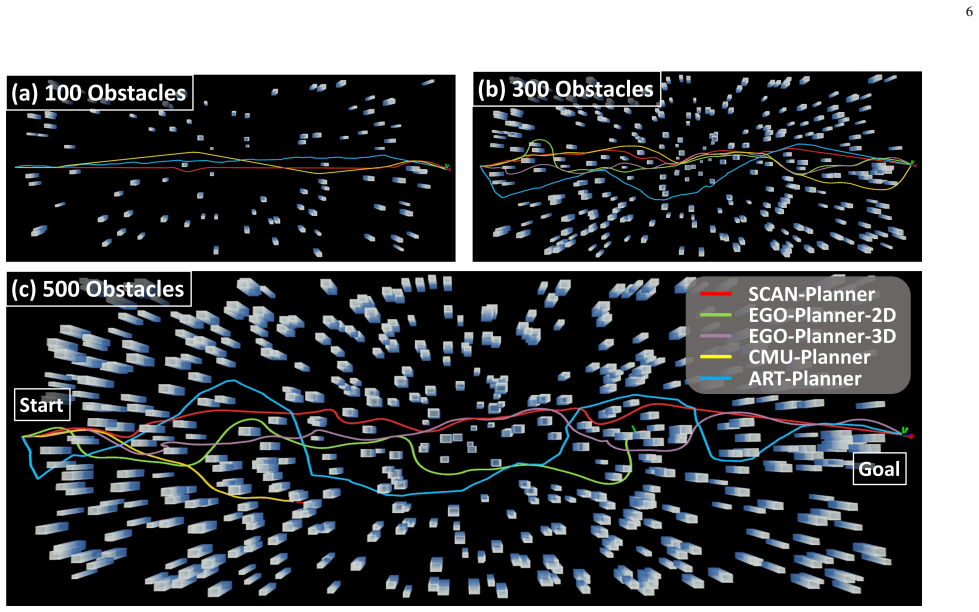

Figure 7. Figure 7: Simulation comparison in dense random obstacle fields. The planners are evaluated in environments with increasing obstacle density: (a) 100 obstacles, (b) 300 obstacles, [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 9

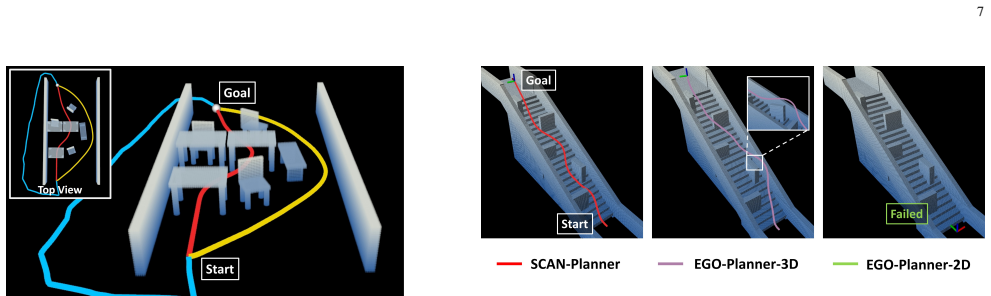

Figure 9. Figure 9: Comparison in a stair scene with obstacles. SCAN-Planner (red) maintains a stable [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
Figure 10

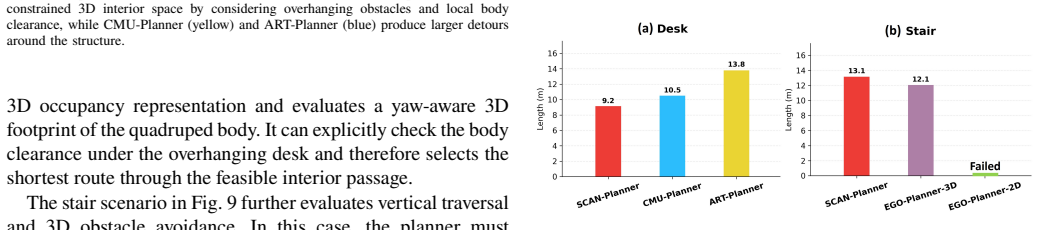

Figure 10. Figure 10: Path length comparison in representative 3D unstructured scenarios. (a) In the [PITH_FULL_IMAGE:figures/full_fig_p007_10.png] view at source ↗
Figure 11

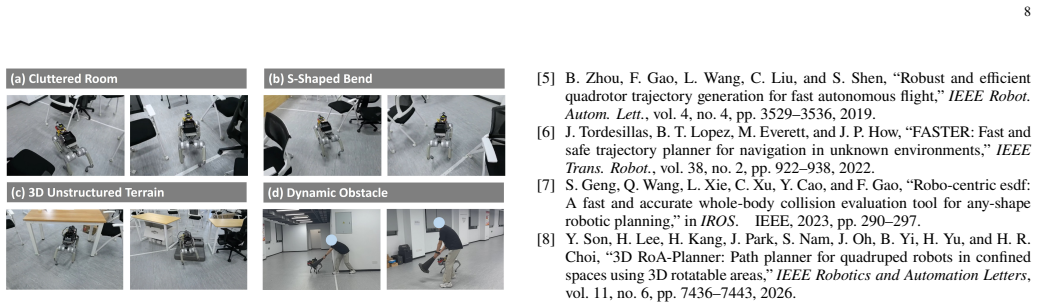

Figure 11. Figure 11: Indoor real-world experiments of SCAN-Planner in challenging environments. [PITH_FULL_IMAGE:figures/full_fig_p008_11.png] view at source ↗
