TrajFlow: Multi-modal Motion Prediction via Flow Matching

T0 review · 3 major / 5 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read TrajFlow predicts all candidate future driving trajectories in a single flow-matching pass and, on the Waymo Open Motion Dataset, reports state-of-the-art scores on all five metrics.

desk verdict A solid flow-matching motion predictor whose real contribution is efficiency and the ranking loss; the test-set SOTA claim is not established because of protocol mismatch and tiny margins. read the letter →

arxiv 2506.08541 v2 pith:WDHGJAWQ submitted 2025-06-10 cs.CV cs.AI

Qi Yan , Brian Zhang , Yutong Zhang , Daniel Yang , Joshua White , Di Chen , Jiachao Liu , Langechuan Liu
show 3 more authors
Binnan Zhuang Shaoshuai Shi Renjie Liao
This is my paper
classification cs.CVcs.AI
keywords motionpredictionflowmatchingtrajectoryautonomousdrivingmulti-modalforecastingPlackett-Lucerankingself-conditioningWaymoOpenDataset
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

TrajFlow claims that multi-modal motion prediction—generating the few distinct ways a traffic agent could move in the next eight seconds—can be done by a single flow-matching decoder that outputs all candidate trajectories and their confidence scores in one forward pass, instead of sampling trajectories one at a time. The paper argues this removes the main computational bottleneck of generative forecasters and avoids the incoherence that comes from independent samples. Two supporting components are added: a Plackett-Luce ranking loss that trains the confidence scores to order predictions by their true displacement error, and a self-conditioning training scheme that rebuilds noisy inputs from the model's own predictions so the decoder cannot shortcut by copying its input at low noise levels. On the Waymo Open Motion Dataset marginal test set, the paper reports TrajFlow outperforming every compared non-ensemble baseline on all five official metrics: minADE, minFDE, Miss Rate, mAP, and Soft mAP. If these numbers survive a consistent evaluation protocol, TrajFlow would be the current reference model for efficient, calibrated, multi-modal motion forecasting.

What carries the argument

The load-bearing mechanism is the multi-shot trajectory-space flow matching decoder. Standard flow matching learns a velocity field $v_\theta(Y^t, C, t)$ and generates one trajectory per sampling run; TrajFlow instead predicts the denoised trajectory $\hat{Y}^1$ directly, and does so for $N_q=64$ query tokens simultaneously, so one Euler step produces all candidate trajectories together with classification logits and ranking scores. Noisy inputs are formed by linear interpolation $Y^t=(1-t)Y^0+tY^1$ between Gaussian noise and ground truth, and the trajectory-space regression loss replaces the standard velocity loss, letting the model pick the best-matching prediction for the ground truth. The ranking head assigns Plackett-Luce scores $r_k$, and the negative log-likelihood of the ground-truth ordering of displacement errors (Eq. 7) is added to the training loss with weight $\lambda=0.1$, which is what calibrates the confidence scores. Self-conditioning, used with 50% probability, takes the model's own $t=1$ prediction, mixes it with noise at a fresh time $t$, and feeds it back through the decoder, preventing the trivial copy-input solution and making multi-step ODE sampling stable.

What would settle it

Re-evaluating the strongest baselines (e.g., EDA and BeTop) under the exact current WOMD official evaluation protocol on the same test split would settle the state-of-the-art claim; if the small minADE and minFDE gaps (roughly 0.001–0.004) reverse or become statistically indistinguishable, the all-metrics claim fails, and the validation-split results, where TrajFlow trails on three of five metrics, suggest this is a live possibility.

Watch

Extended reading notes

Core claim

The paper's central claim is that a flow-matching decoder can generate the full set of candidate future trajectories in a single forward pass, and that this design is both more accurate and more efficient than repeated sampling. The decoder outputs $N_q$ denoised trajectories, classification logits, and ranking scores at once, conditioned on scene context tokens. The training objective combines a trajectory-space regression loss on the best-matching prediction, a classification loss that raises that prediction's score, and a Plackett-Luce ranking loss that trains all scores to order predictions by displacement error. Self-conditioning, applied with probability 0.5, rebuilds the noisy input from the model's own prediction instead of the ground truth, which the paper says prevents the decoder from copying its input when the noise level is low and stabilizes ODE sampling. The paper reports that on the WOMD marginal test set this single model outperforms all compared non-ensemble baselines on minADE, minFDE, Miss Rate, mAP, and Soft mAP, with faster per-agent inference than MTR.

Load-bearing premise

The test-set comparison assumes that the baseline numbers in Table I, taken from earlier papers and the Waymo leaderboard, were obtained under the same official evaluation protocol that TrajFlow used, even though the Waymo evaluation server and internal protocol have changed over time.

Editorial extensions

If this is right

  • Single-pass generation makes the inference cost of a full multi-modal prediction roughly the cost of one forward pass plus NMS, removing the need for multiple sampling runs.
  • If the Plackett-Luce ranking loss calibrates confidence scores correctly, planners and NMS-based trajectory selection receive better top-ranked candidates, which matters for downstream decision-making.
  • With self-conditioning, the model remains stable as the number of ODE steps increases, so one-step speed can be traded for multi-step accuracy without the performance collapse observed without self-conditioning.
  • On the WOMD marginal test set, the reported numbers imply that a single, non-ensemble model using no extra sensor data is currently ahead of all compared baselines on every official metric.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the single-pass design generalizes, the same multi-shot flow matching decoder could be applied to other multi-modal structured prediction tasks that currently rely on repeated sampling, such as human motion synthesis or multi-agent interaction forecasting.
  • Because the Plackett-Luce loss acts only on the scores, it could be retrofitted to other trajectory predictors that already output confidence scores, potentially improving their mAP and Soft mAP without changing the trajectory generator.
  • The self-conditioning scheme is described as training-only; iterating it during inference, by feeding the model's own prediction back into the next denoising step, is a natural experimental extension the paper does not report.
  • The validation-split results, where the protocol is consistent, show TrajFlow ahead on mAP but behind on minADE, minFDE, and Miss Rate, so the test-set 'wins all metrics' claim is the part most sensitive to the protocol changes noted in Appendix B.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper introduces TrajFlow, a flow-matching framework for multi-modal motion prediction on the Waymo Open Motion Dataset (WOMD). The method uses a multi-shot decoder that produces Nq trajectory proposals in a single ODE integration pass, a Plackett-Luce ranking loss for confidence calibration, and a self-conditioning training procedure that reuses the model's own predictions to construct noisy inputs. The authors report state-of-the-art results on the WOMD marginal test set, claiming superiority over all baselines across minADE, minFDE, Miss Rate, mAP, and Soft mAP, along with reduced inference cost compared to MTR.

Significance. If the state-of-the-art claim were established under a consistent evaluation protocol, the paper would make a useful contribution: it demonstrates that flow matching can serve as an efficient alternative to diffusion-based trajectory predictors, and it introduces a principled ranking objective for confidence calibration. The method is clearly described with pseudo-code, architecture details, ablations, and a promised code release. However, the empirical headline is not yet supported. The test-set comparison mixes protocols, as acknowledged in Appendix B; the reported margins over strong baselines are at the 0.0001 level with no error bars; and the same-protocol validation numbers in Table IV show TrajFlow trailing EDA on minADE, minFDE, and Miss Rate. The paper's current value lies in the method and its mAP improvements, not in an established all-metrics state of the art.

major comments (3)
  1. [IV-C, Table I, and Appendix B] The central claim that TrajFlow "outperforms all baselines across all metrics" on the WOMD test set is not supported by consistent-protocol evidence. The paper acknowledges in Appendix B that baseline numbers were obtained under older Waymo evaluation protocols, yet the reported margins over EDA and BeTop are on the order of 0.0001 (minADE 0.5714 vs 0.5718; minFDE 1.1667 vs 1.1668; Miss Rate 0.1162 vs 0.1169). No error bars or multiple-seed results are reported anywhere. On the Standard-Val split of Table IV, where all numbers come from the same protocol, TrajFlow trails EDA on minADE (0.5734 vs 0.5708), minFDE (1.1768 vs 1.1730), and Miss Rate (0.1187 vs 0.1178), while leading only on mAP and Soft mAP. The all-metrics test-set claim therefore cannot be taken as established; the authors should either provide a same-protocol test-set comparison (e.g., by submitting to the current leaderboard and re-evaluating baselines under the same protocol) or revise the claim to "competitive on error metrics and best on mAP."
  2. [III-B.3, Eq. (7)] The Plackett-Luce ranking loss defines the ground-truth ranking using the model's own predicted trajectories: d_k = ||Y_1_hat_k - Y_1||^2. Because the target ranking is a function of the current model output, the loss may be minimized by a model that learns to rank its own errors consistently without improving the absolute calibration of confidence scores relative to the ground-truth future. The paper should provide a direct evaluation of uncertainty calibration (e.g., reliability diagrams or expected calibration error) in addition to mAP, which primarily measures ranking quality. Without such evidence, the claim that the PL loss improves uncertainty estimation is only partially supported.
  3. [IV-C] The paper does not report the official Waymo composite meta-metric, which is the weighted combination of mAP, minADE, minFDE, and Miss Rate used for leaderboard ranking. Since TrajFlow's advantage on the Standard-Val split is concentrated in mAP/Soft mAP while it trails on the error metrics, the composite could place it below EDA or BeTop. Reporting the official composite is necessary to substantiate any claim of state-of-the-art performance on WOMD, and the statement that mAP and Soft mAP are "the most crucial indicators" should be justified with respect to the official evaluation protocol.
minor comments (5)
  1. [IV-A.3] The implementation details mention "a linear decay learning rate scheduler over 22/24/26/28 epochs, 40 total epochs," which is internally inconsistent; please clarify the exact learning-rate schedule and the number of training epochs.
  2. [Tables I and IV] The same baseline is referred to as "SceneTF" in Table I and "SceneTransformer" in Table IV; please use consistent naming throughout the paper and table captions.
  3. [II and Table V] The paper motivates TrajFlow against diffusion-based generative models, but the runtime comparison in Table V is only against MTR; adding a runtime (and if possible accuracy) comparison with a diffusion-based trajectory predictor would make the efficiency claim more convincing.
  4. [III-B.3] The GMM formulation of the regression loss is referenced to [19] but not defined; please provide the exact loss expression or a precise pointer to the equation in [19] so that the objective is self-contained.
  5. [IV-E] The ablation study in Table II uses 20% of the training set; please state whether the same 40-epoch budget and all other hyperparameters are used for the variants, and report the number of random seeds over which the results are averaged.

Circularity Check

1 steps flagged · score 2.0 of 10

No load-bearing circularity: the central SOTA claim is empirical and externally benchmarked; only a mild self-referential training target (PL ranking loss) is present.

  1. self definitional [Section III-B.3, Eq. (7) and preceding definition]
    "We define the ground-truth ranking as σ = arg sort([d1, . . . , dNq ]), where dk = ∥ ˆY 1 k − Y 1∥2 2 is the displacement error."

    The 'ground-truth ranking' used to supervise the ranking head is defined from the model's own predicted trajectories Ŷ1_k, not from an independent target. Therefore the Plackett-Luce loss in Eq. (7) trains the ranking scores to match a permutation that the model itself determines; the improvement in score-error alignment is partly by construction. This is a self-referential training objective rather than a derived prediction, and it is separately validated by external mAP/ablation results, so it is only a mild circular step and does not undermine the benchmark claims.

full rationale

The paper's central claims are the WOMD benchmark results and the architectural/loss contributions. These are empirical: the model is trained and evaluated against an external dataset with fixed metrics, and the reported SOTA numbers are compared to baselines from prior papers and the official leaderboard. That comparison, though subject to protocol-mismatch caveats noted in Appendix B, is not circular because the baselines are external and the metric values are not derived from the model's own definitions. The only self-referential elements are the PL ranking loss, whose 'ground-truth ranking' is computed from the model's own predicted trajectories, and the self-conditioning mechanism, which reuses model outputs to construct noisy training inputs. Both are training techniques validated by ablations on external metrics, not logical deductions that reduce to their inputs. No load-bearing self-citations or imported uniqueness theorems appear; the references to the authors' prior work are background or method-building blocks. The protocol-mismatch concern about test-set baselines is a correctness risk, not circularity. Overall, the derivation chain for the main contribution is self-contained and externally grounded, so the circularity score is low.

Assumptions & free parameters 5 free parameters · 4 assumptions · 0 invented entities

The central empirical claim depends on several hand-selected hyperparameters (lambda, T, Nq, self-conditioning probability) and on background assumptions about flow matching and the PL model. No new physical entities are introduced; the only new component is a ranking prediction head, which is a standard neural network module.

free parameters (5)
  • lambda (Lrank weight) = 0.1
    Chosen by hand to balance ranking loss; reported in Section III-B.3 and Table III. Performance depends on it.
  • number of ODE steps T = 1
    Selected empirically as 'one-step ODE solving is sufficient' (Section IV-A.3). The method's efficiency claim depends on T=1.
  • self-conditioning probability = 0.5
    Set to 50% in Algorithm 1; a hyperparameter controlling how often the self-conditioning pass is used.
  • Nq (number of queries) = 64
    Number of candidate trajectories generated before NMS; a design choice affecting diversity and runtime.
  • normalization offset/scale per coordinate = from training set statistics
    Linear mapping of trajectories to [-1,1] using statistics collected from the training set, described in Appendix A.2.
assumptions (4)
  • standard math Linear interpolation flow (Eq. 1-2) defines a valid probability path for trajectory generation
    Taken from Lipman et al. [30]; the paper relies on this for the flow matching objective without proving it in this context.
  • ad hoc to paper Plackett-Luce model (Eq. 6) is an appropriate likelihood for ranking predicted trajectories
    The paper adopts the PL distribution for ranking without justification specific to trajectory prediction; it is a standard model in learning-to-rank, but its suitability here is assumed.
  • domain assumption The Waymo Open Motion Dataset ground truth is accurate and representative
    All empirical claims depend on the benchmark labels; the paper does not question the dataset.
  • ad hoc to paper A single shared noise vector plus per-query embeddings can cover the multi-modal future distribution
    The multi-shot decoder feeds the same Y_t to all queries; the paper assumes this preserves multimodality, with no theoretical or empirical isolation of noise vs query contributions.

how reviews work

0 comments
Cite this review

Pith. "Pith review of TrajFlow: Multi-modal Motion Prediction via Flow Matching." pith.science (2026). https://pith.science/paper/WDHGJAWQ

@misc{pith2026250608541,
  author       = {Pith},
  title        = {Pith review of: TrajFlow: Multi-modal Motion Prediction via Flow Matching},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/WDHGJAWQ}},
  note         = {Machine review of arXiv:2506.08541}
}
read the original abstract

Efficient and accurate motion prediction is crucial for ensuring safety and informed decision-making in autonomous driving, particularly under dynamic real-world conditions that necessitate multi-modal forecasts. We introduce TrajFlow, a novel flow matching-based motion prediction framework that addresses the scalability and efficiency challenges of existing generative trajectory prediction methods. Unlike conventional generative approaches that employ i.i.d. sampling and require multiple inference passes to capture diverse outcomes, TrajFlow predicts multiple plausible future trajectories in a single pass, significantly reducing computational overhead while maintaining coherence across predictions. Moreover, we propose a ranking loss based on the Plackett-Luce distribution to improve uncertainty estimation of predicted trajectories. Additionally, we design a self-conditioning training technique that reuses the model's own predictions to construct noisy inputs during a second forward pass, thereby improving generalization and accelerating inference. Extensive experiments on the large-scale Waymo Open Motion Dataset (WOMD) demonstrate that TrajFlow achieves state-of-the-art performance across various key metrics, underscoring its effectiveness for safety-critical autonomous driving applications. The code and other details are available on the project website https://traj-flow.github.io/.

Figures

Figures reproduced from arXiv: 2506.08541 by the authors.

Figure 1

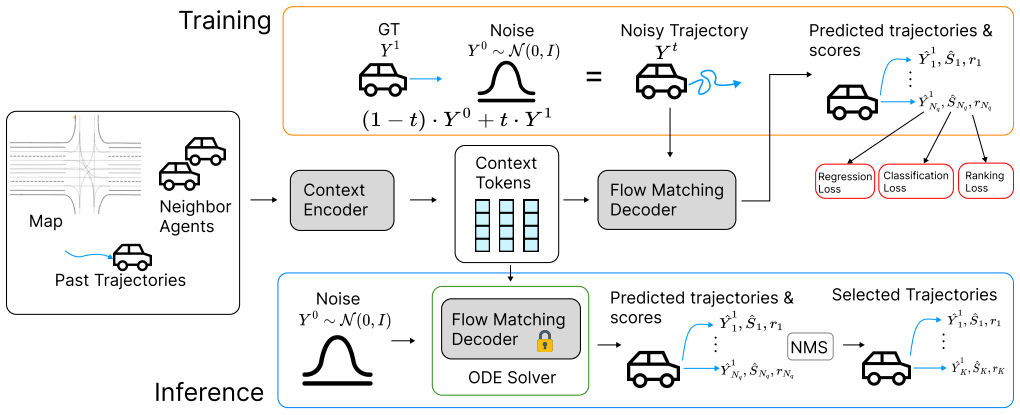

Figure 1. Overview of motion prediction via flow matching. The input scene, including agent history and a road map, is encoded into context tokens via a transformer. During training, noise sampled i.i.d. from a normal distribution is added to the ground truth (GT) trajectory to create a linear interpolation. The denoiser, conditioned on these tokens, predicts denoised trajectories to align with the GT. During inference, traje… view at source ↗
Figure 2
Figure 2. Network architecture of flow matching decoder. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

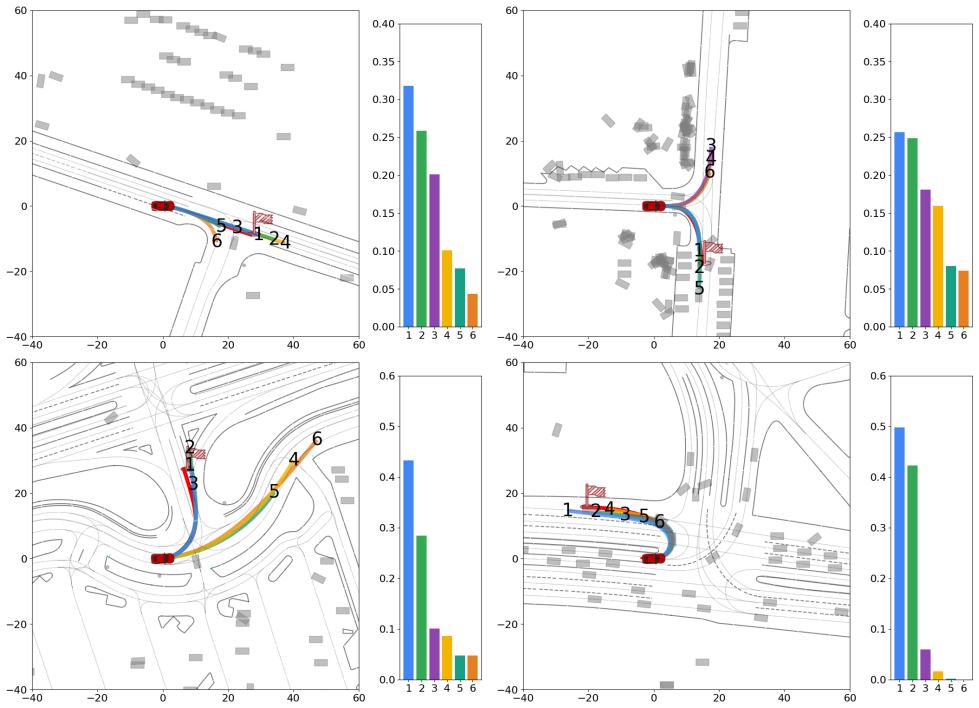

Figure 3. Qualitative results. We visualize trajectory predictions (left) and their normalized confidence scores (right) in each plot. Six trajectory predictions are marked with different colors and numbered at their endpoints; the most confident prediction is shown in blue. The ground truth is displayed in red, with a flag indicating its endpoint. Surrounding road elements, such as lanes and sidewalks, are shown as lines and… view at source ↗
Figures from the paper (2 more)
Figure 4

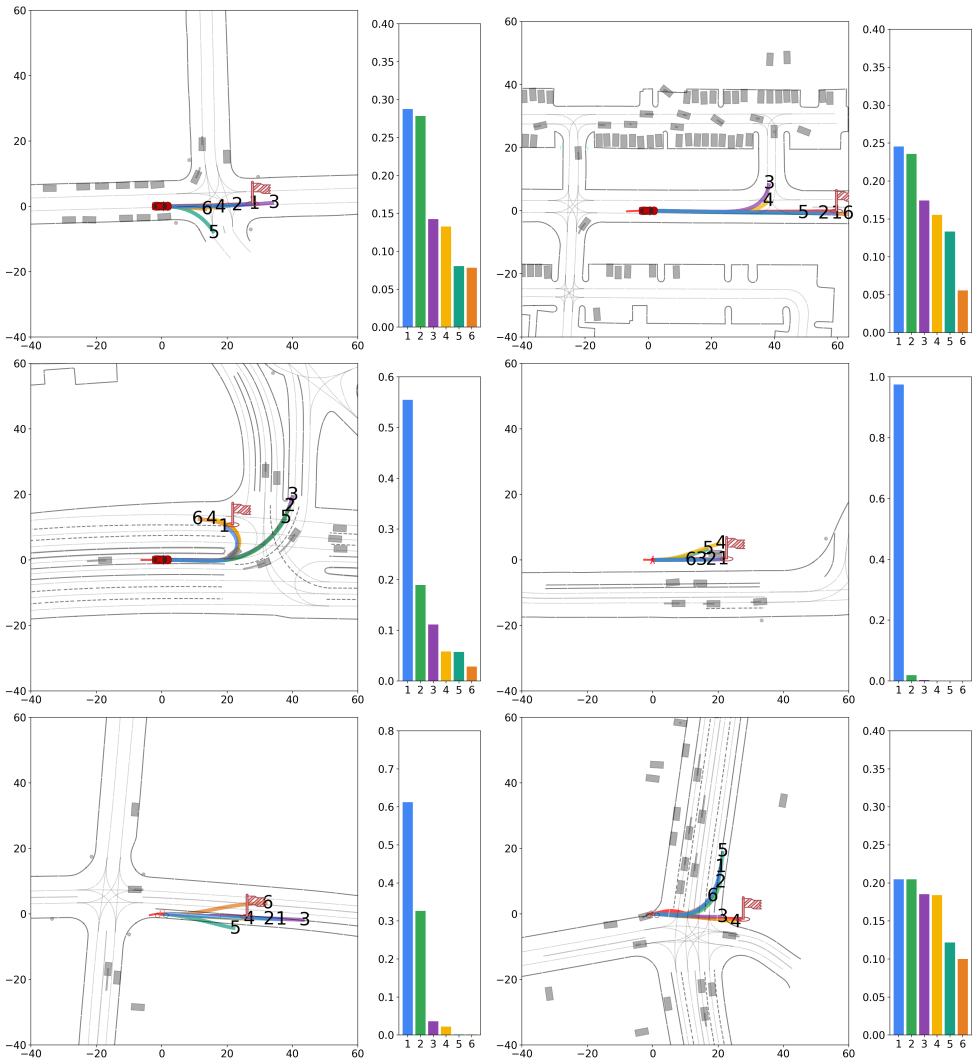

Figure 4. Figure 4: Additional qualitative results. We visualize trajectory predictions (left) and their normalized confidence scores (right) in each plot. Six trajectory predictions are marked with different colors and numbered at their endpoints; the most confident prediction is shown i…
Figure 5
Figure 5. Figure 5: Failure cases. Given the volatility of real-world traffic, the models may not always predict accurate waypoints. closely aligns with the ground truth, while the remaining predictions exhibit diverse and plausible motion patterns. This highlights the model’s ability to …
