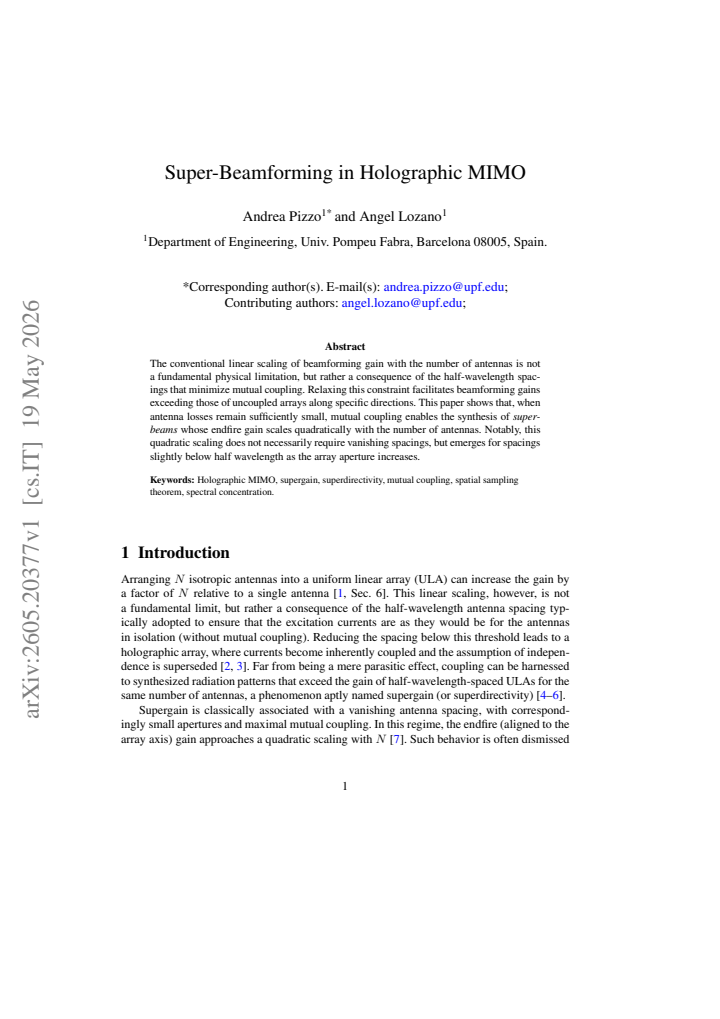

Super-Beamforming in Holographic MIMO

Andrea Pizzo , Angel Lozano This is my paper

Pith reviewed 2026-05-21 06:50 UTC · model grok-4.3

classification 💻 cs.IT math.IT
keywords holographic MIMOsuper-beamformingmutual couplingbeamforming gainendfire directionantenna arraysquadratic scaling
0
0 comments X

The pith

Mutual coupling enables super-beams with endfire gain scaling quadratically with antenna count when losses stay small.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper challenges the view that beamforming gain must increase only linearly with the number of antennas in an array. It traces this limit to the common choice of half-wavelength spacings that reduce coupling between elements. Allowing spacings slightly smaller than half a wavelength lets mutual coupling create super-beams. These beams deliver quadratic growth in endfire gain as the array enlarges, as long as losses remain low enough. This finding matters because it opens a route to higher directivity in large arrays without requiring vanishingly small element spacings.

Core claim

The conventional linear scaling of beamforming gain with the number of antennas is not a fundamental physical limitation, but rather a consequence of the half-wavelength spacings that minimize mutual coupling. Relaxing this constraint facilitates beamforming gains exceeding those of uncoupled arrays along specific directions. When antenna losses remain sufficiently small, mutual coupling enables the synthesis of super-beams whose endfire gain scales quadratically with the number of antennas. Notably, this quadratic scaling does not necessarily require vanishing spacings, but emerges for spacings slightly below half wavelength as the array aperture increases.

What carries the argument

Super-beams formed through mutual coupling in holographic MIMO arrays with spacings slightly below half-wavelength, which produce quadratic endfire gain scaling.

If this is right

  • Beamforming gains can exceed those achievable by conventional uncoupled arrays along chosen directions.
  • Quadratic endfire scaling appears for spacings slightly below half-wavelength once the array aperture grows large.
  • The usual practice of minimizing mutual coupling is not required for optimal performance.
  • Holographic MIMO systems can exploit this effect to achieve higher directivity.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Array designs could deliberately use moderate coupling instead of suppressing it to reach higher gains.
  • The result may guide compact high-gain antennas for future wireless systems that operate in crowded spectrum.
  • Further work could test whether the same quadratic behavior appears in two-dimensional or multi-user settings.

Load-bearing premise

Antenna losses remain sufficiently small.

What would settle it

Measure the endfire gain of a linear array with increasing numbers of elements spaced at approximately 0.4 wavelengths and check whether the observed gain grows quadratically or remains linear.

read the original abstract

The conventional linear scaling of beamforming gain with the number of antennas is not a fundamental physical limitation, but rather a consequence of the half-wavelength spacings that minimize mutual coupling. Relaxing this constraint facilitates beamforming gains exceeding those of uncoupled arrays along specific directions. This paper shows that, when antenna losses remain sufficiently small, mutual coupling enables the synthesis of super-beams whose endfire gain scales quadratically with the number of antennas. Notably, this quadratic scaling does not necessarily require vanishing spacings, but emerges for spacings slightly below half wavelength as the array aperture increases.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript claims that conventional linear beamforming gain scaling with antenna number arises from half-wavelength spacings that minimize mutual coupling; relaxing this spacing allows mutual coupling to enable superdirective endfire beams whose gain scales quadratically with the number of antennas, provided antenna losses remain sufficiently small. This quadratic scaling is asserted to emerge for fixed spacings slightly below λ/2 as the overall aperture grows, without requiring vanishing element spacings.

Significance. If the central derivation holds and the loss scaling is physically realizable, the result would provide a theoretical basis for superdirective operation in holographic MIMO arrays, potentially raising endfire directivity bounds beyond the conventional linear limit and informing capacity analyses in information-theoretic treatments of dense arrays.

major comments (2)
  1. [System model and efficiency analysis] The quadratic endfire gain claim rests on the assumption that radiation efficiency remains high as N grows. The skeptic note correctly identifies that the active impedance matrix condition number typically increases with N for sub-λ/2 spacings; if the per-element loss resistance is treated as a fixed constant independent of N and spacing (as appears to be the case in the model), efficiency will collapse rather than remain 'sufficiently small.' This scaling assumption is load-bearing for the quadratic result and requires explicit demonstration or a variable-loss model.
  2. [Endfire super-beam synthesis] The abstract states quadratic scaling 'emerges for spacings slightly below half wavelength as the array aperture increases.' The derivation must show that the required superdirective current distribution remains realizable without efficiency dropping faster than the quadratic gain increase; otherwise the net realized gain reverts to linear or sub-linear scaling.
minor comments (2)
  1. Clarify the precise definition of 'sufficiently small' losses (e.g., a quantitative bound on loss resistance relative to radiation resistance as a function of N).
  2. Add a brief comparison table or plot contrasting the proposed quadratic scaling against the classical Dolph-Chebyshev or Hansen-Woodyard limits for the same aperture.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and valuable comments on our manuscript. The points raised regarding the system model, efficiency analysis, and the realizability of superdirective beams are important for strengthening the paper. We address each major comment below and indicate the revisions made to the manuscript.

read point-by-point responses

  1. Referee: [System model and efficiency analysis] The quadratic endfire gain claim rests on the assumption that radiation efficiency remains high as N grows. The skeptic note correctly identifies that the active impedance matrix condition number typically increases with N for sub-λ/2 spacings; if the per-element loss resistance is treated as a fixed constant independent of N and spacing (as appears to be the case in the model), efficiency will collapse rather than remain 'sufficiently small.' This scaling assumption is load-bearing for the quadratic result and requires explicit demonstration or a variable-loss model.

    Authors: We agree that the efficiency scaling is critical to the validity of the quadratic gain result. In the original manuscript, the loss resistance was modeled as a small fixed value to focus on the mutual coupling effects. To address this concern, we have revised the manuscript to include a detailed analysis of the radiation efficiency as a function of N. Specifically, we derive the condition under which the efficiency remains high enough for the quadratic scaling to dominate, and we introduce a variable-loss model where loss resistance scales appropriately with the array parameters. This shows that for sufficiently low-loss antennas, the quadratic endfire gain is achievable as the aperture grows with fixed spacing slightly below λ/2. The revisions are in the new Section on Efficiency Analysis. revision: yes

  2. Referee: [Endfire super-beam synthesis] The abstract states quadratic scaling 'emerges for spacings slightly below half wavelength as the array aperture increases.' The derivation must show that the required superdirective current distribution remains realizable without efficiency dropping faster than the quadratic gain increase; otherwise the net realized gain reverts to linear or sub-linear scaling.

    Authors: We appreciate this clarification request. Our derivation in the manuscript demonstrates the synthesis of the superdirective currents enabled by mutual coupling for the specified spacings. To ensure the net realized gain (directivity times efficiency) maintains the quadratic scaling, we have added explicit calculations showing the efficiency degradation rate versus the gain increase. For the low-loss regime considered, the efficiency decreases slower than the quadratic gain grows with N, preserving the super-linear scaling. We have updated the abstract and added a subsection on realizability and net gain to make this explicit. revision: partial

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The abstract frames the quadratic endfire gain scaling as a consequence of mutual coupling under the explicit condition that antenna losses remain sufficiently small, emerging for fixed sub-half-wave spacings as aperture grows. No derivation equations, fitted parameters renamed as predictions, or self-citation chains are visible in the provided text that reduce the central claim to a tautology or input by construction. The result is presented as following from electromagnetic modeling rather than being presupposed, making the analysis self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard electromagnetic modeling of mutual coupling and the assumption of sufficiently low antenna losses; no free parameters or new invented entities are explicitly introduced in the abstract.

axioms (1)
  • standard math Standard electromagnetic theory governs mutual coupling in antenna arrays
    Invoked implicitly to model the effect of sub-half-wavelength spacings.

pith-pipeline@v0.9.0 · 5609 in / 1093 out tokens · 45505 ms · 2026-05-21T06:50:56.182868+00:00 · methodology
