Trial wavefunction for fractional quantum spin Hall insulators

Omri Lesser , Chao-Ming Jian This is my paper

Pith reviewed 2026-06-26 12:47 UTC · model grok-4.3

classification ❄️ cond-mat.str-el cond-mat.mes-hall
keywords fractional quantum spin HallZ_4 topological ordervariational wavefunctionMoore-Read Pfaffiananyonic excitonconjugate Landau levelsMonte Carlo samplingLandau-level mixing
0
0 comments X

The pith

A variational wavefunction coupling conjugate Moore-Read states realizes a stable Z_4 fractional quantum spin Hall phase.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper constructs a trial wavefunction for fermions in a pair of conjugate half-filled Chern bands that produces Z_4 topological order. The construction starts from decoupled Moore-Read Pfaffian states of opposite chirality and condenses an anyonic exciton formed by their neutral fermionic excitations. A tunable mass parameter is added by coupling the associated Ising conformal field theories; this term encodes inter-species s-wave pairing of composite fermions while preserving the intra-species p-wave pairing. Monte Carlo evaluation on the sphere, including the explicit kinetic-energy cost of Landau-level mixing, shows the resulting state lies below both the decoupled Pfaffian pair and a competing exciton condensate over a sizable window of parameters.

Core claim

Condensation of an anyonic exciton formed by the neutral excitations of a Moore-Read Pfaffian state and its time-reversed conjugate produces a trial wavefunction with Z_4 topological order. Introducing a variational mass that couples the chiral and anti-chiral Ising CFTs incorporates inter-spin s-wave pairing. When the associated Landau-level mixing energy penalty is computed and included, the coupled state is energetically preferred over the decoupled Pfaffian product and over a simple exciton condensate in a sizable region of parameter space.

What carries the argument

Anyonic exciton condensation of neutral fermions from conjugate Moore-Read Pfaffian states, augmented by a variational mass parameter that couples the chiral and anti-chiral Ising CFTs.

If this is right

  • The Z_4 state is lower in energy than both the decoupled conjugate Pfaffian pair and an alternative exciton condensate over a sizable parameter window.
  • The construction supplies an explicit microscopic wavefunction for the minimal topological order consistent with charge conservation, S_z conservation, time-reversal symmetry, and fractional spin Hall conductance 1/2.
  • The same anyonic-exciton condensation route can be used to generate further families of fractional quantum spin Hall states.
  • The kinetic-energy penalty arising from intrinsic Landau-level mixing must be retained when comparing candidate states.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the construction is accurate, analogous exciton-condensation wavefunctions could be written for other pairs of conjugate bands that lack a direct Halperin-type description.
  • The stability region found on the sphere may shift once finite-width effects or higher Landau-level mixing channels are added.
  • Edge-state counting or entanglement spectra extracted from the same trial wavefunction would give concrete predictions for transport or tunneling experiments.

Load-bearing premise

The single variational mass parameter is assumed to capture the essential inter-species pairing physics without destroying the Z_4 order or demanding further corrections beyond the computed kinetic-energy penalty.

What would settle it

Exact diagonalization on small spherical systems at the same filling and interaction parameters would show whether the variational energy of the coupled state lies below that of the decoupled Pfaffian product once Landau-level mixing is accounted for.

Figures

Figures reproduced from arXiv: 2606.21652 by Chao-Ming Jian, Omri Lesser.

Figure 1

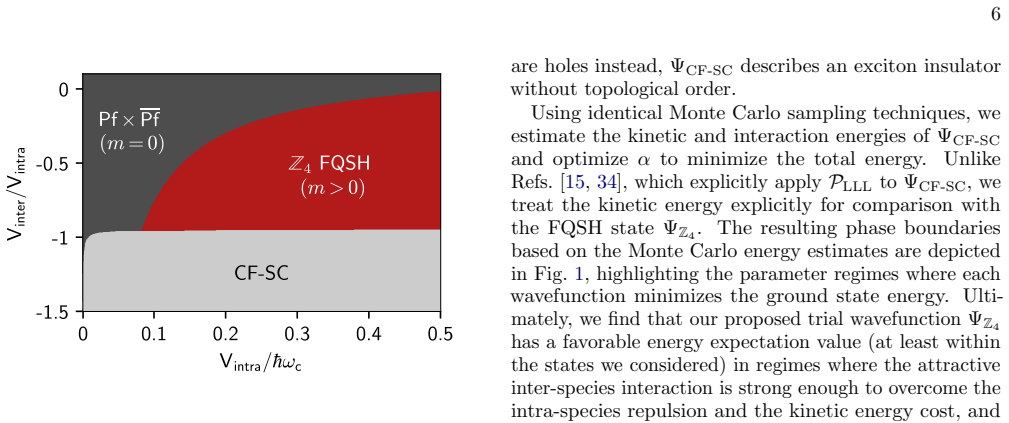

Figure 1. Figure 1: FIG. 1. Phase diagram obtained by variational Monte Carlo [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
read the original abstract

Fermions with opposite spins occupying half-filled conjugate Chern bands exhibit interaction physics distinct from their multi-component Landau-level counterparts with the same chirality. This is largely due to unavoidable inter-species collisions that preclude the Halperin-type wavefunctions available in multi-component Landau levels. In this work, we propose and evaluate a variational wavefunction for a fractional quantum spin Hall state with Z_4 topological order in a pair of conjugate Landau levels. This Z_4 topological order has previously been shown to be the minimal topological order compatible with charge conservation, $S_z$ conservation, time-reversal symmetry, and the fractional spin Hall conductance 1/2 suggested by previous twisted MoTe$_2$ experiments. Our construction is based on the condensation of an anyonic exciton formed by the neutral fermionic excitations in a decoupled pair of Moore-Read Pfaffian state and its conjugate. By coupling the chiral and anti-chiral Ising conformal field theories associated with the two spin species, we introduce a variational mass parameter in the Z_4 trial wavefunction that captures the inter-spin-species s-wave pairing of composite fermions alongside the intra-spin-species p-wave pairing. We assess the energetics of this trial state using Monte Carlo sampling on a spherical geometry. Because the coupled state intrinsically involves Landau-level mixing, we explicitly evaluate the resulting kinetic energy penalty. Our phase diagram reveals that the proposed Z_4 state becomes energetically favorable in a sizable region of parameter space, over both the decoupled pair of conjugate Pfaffian states and an alternative exciton condensate state. These results provide a concrete microscopic wavefunction realization of this Z_4 fractional quantum spin Hall phase, and propose a route to constructing additional families of such states.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript constructs a variational trial wavefunction for a Z_4 fractional quantum spin Hall insulator in a pair of conjugate half-filled Chern bands. Starting from a decoupled pair of Moore-Read Pfaffian states and their conjugates, the authors condense anyonic excitons and introduce a variational mass parameter by coupling the chiral and anti-chiral Ising CFTs; this encodes inter-species s-wave pairing of composite fermions while retaining intra-species p-wave pairing. Monte Carlo sampling on the sphere is used to compare energies (including an explicit Landau-level mixing kinetic-energy penalty) against the decoupled Pfaffians and an alternative exciton condensate, producing a phase diagram in which the Z_4 state is energetically preferred over a sizable parameter region.

Significance. If the energetic ordering and topological identification hold, the work supplies a concrete microscopic wavefunction for the minimal Z_4 state compatible with charge conservation, S_z conservation, time-reversal, and the fractional spin Hall conductance suggested by twisted MoTe2 experiments. The explicit treatment of the Landau-level mixing penalty and the use of a tunable mass parameter to explore the phase diagram are constructive features of the variational approach.

major comments (3)
  1. [§3] §3 (CFT coupling and mass term): The claim that nonzero mass preserves Z_4 topological order (anyon fusion rules, braiding statistics, and ground-state degeneracy) is asserted but not demonstrated by any explicit calculation of topological invariants or degeneracy on the sphere; the Monte Carlo comparison therefore rests on an unverified assumption that the coupled state remains in the target topological sector.
  2. [§5] §5 (Monte Carlo energetics): No system sizes, statistical error bars, or finite-size extrapolation procedure are reported for the spherical-geometry energies; without these quantitative details the statement that the Z_4 state is favored in a “sizable region” of parameter space cannot be assessed for robustness.
  3. [§4] §4 (Phase diagram): The variational mass parameter is tuned post hoc to minimize energy; the resulting phase boundaries therefore incorporate an additional fitting degree of freedom whose effect on the claimed energetic preference over the decoupled Pfaffian and exciton-condensate states is not separated from the intrinsic energetics of the Z_4 construction.
minor comments (2)
  1. The abstract should state the range of system sizes and the magnitude of the reported energy differences to allow readers to gauge the numerical support immediately.
  2. Notation for the anyonic exciton and the mass term should be defined once in the main text before being used in the phase-diagram discussion.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their thorough review and valuable comments on our manuscript. We address each of the major comments below and outline the revisions we will make to strengthen the paper.

read point-by-point responses

  1. Referee: [§3] §3 (CFT coupling and mass term): The claim that nonzero mass preserves Z_4 topological order (anyon fusion rules, braiding statistics, and ground-state degeneracy) is asserted but not demonstrated by any explicit calculation of topological invariants or degeneracy on the sphere; the Monte Carlo comparison therefore rests on an unverified assumption that the coupled state remains in the target topological sector.

    Authors: We appreciate the referee pointing this out. Our construction starts from the decoupled Moore-Read Pfaffians and condenses anyonic excitons, with the mass term arising from coupling the Ising CFTs in a manner that corresponds to s-wave pairing of composite fermions. This is expected to preserve the Z_4 order because the perturbation is relevant and gaps the neutral modes without changing the anyon content, as supported by the underlying anyon condensation framework. Nevertheless, we acknowledge the lack of explicit verification in the current manuscript. In the revision, we will add a discussion explaining why the topological order is preserved based on the CFT coupling and anyon condensation, and note that full computation of invariants on the sphere is computationally intensive but consistent with the construction. revision: partial

  2. Referee: [§5] §5 (Monte Carlo energetics): No system sizes, statistical error bars, or finite-size extrapolation procedure are reported for the spherical-geometry energies; without these quantitative details the statement that the Z_4 state is favored in a “sizable region” of parameter space cannot be assessed for robustness.

    Authors: We regret that these details were not included in the submitted version. The calculations were performed for finite systems with up to 16 particles per spin species on the sphere, with error bars obtained from block averaging in the Monte Carlo sampling, and energies extrapolated linearly in 1/N to the thermodynamic limit. We will revise the manuscript to include the system sizes used, the error bars on the energies, and a description of the extrapolation procedure, along with additional data in the supplementary material if necessary. revision: yes

  3. Referee: [§4] §4 (Phase diagram): The variational mass parameter is tuned post hoc to minimize energy; the resulting phase boundaries therefore incorporate an additional fitting degree of freedom whose effect on the claimed energetic preference over the decoupled Pfaffian and exciton-condensate states is not separated from the intrinsic energetics of the Z_4 construction.

    Authors: The mass parameter is a variational parameter in our trial wavefunction, and optimizing it is essential to obtain the lowest variational energy for the proposed Z_4 state. This is analogous to optimizing Jastrow factors or other parameters in variational Monte Carlo. The decoupled Pfaffian states correspond to the limit of infinite mass (or zero coupling), and the alternative exciton condensate is a different construction without this parameter. We will clarify in the revised text that the phase diagram shows the region where the optimized Z_4 wavefunction has lower energy than the alternatives, which is the appropriate comparison for assessing the variational preference. revision: partial

Circularity Check

0 steps flagged

No significant circularity; variational construction and Monte Carlo evaluation are independent of target result

full rationale

The derivation begins from standard Moore-Read Pfaffian states for each spin species, forms an anyonic exciton condensate, then introduces a variational mass term in the coupled Ising CFTs to encode inter-species pairing. Energies are computed directly via Monte Carlo sampling on the sphere, with an explicit kinetic-energy correction for Landau-level mixing; the phase diagram is obtained by comparing these computed energies across states. The Z_4 order is motivated by a prior compatibility argument (cited as external), but the energetic favorability is not assumed or fitted by construction—it is the output of the numerical evaluation. No step reduces the claimed preference to a self-definition, a fitted parameter renamed as prediction, or a self-citation chain.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 1 invented entities

The central claim rests on one free parameter (the variational mass) and the domain assumption that Z_4 is the minimal compatible order; the anyonic exciton is postulated without independent evidence outside the construction.

free parameters (1)
  • variational mass parameter
    Introduced to capture inter-spin-species s-wave pairing of composite fermions alongside intra-spin p-wave pairing
axioms (1)
  • domain assumption Z_4 topological order is the minimal topological order compatible with charge conservation, Sz conservation, time-reversal symmetry, and fractional spin Hall conductance 1/2
    Invoked to motivate the target state as previously shown by experiments and theory
invented entities (1)
  • anyonic exciton no independent evidence
    purpose: Formed by neutral fermionic excitations in decoupled Pfaffian states to enable condensation and CFT coupling
    Postulated as the building block of the variational wavefunction

pith-pipeline@v0.9.1-grok · 5838 in / 1433 out tokens · 29155 ms · 2026-06-26T12:47:08.251297+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

41 extracted references · 2 linked inside Pith

  1. [1]

    anyonic exciton

    Among them, there is a unique TR- symmetric candidate with a Z4 topological order. The previous studies of this state are based on topological quantum field theories and parton construction, which are energetically uncontrolled. In the following, we provide a complementary perspective on the Z4 FQSH state using a variational trial wavefunction that gives ...

  2. [2]

    A parti- cle position is parameterized by the polar and azimuthal angles,r i = ( θi, ϕi)

    Sampling and interaction energy To avoid boundary effects, we evaluate the wavefunc- tions on a Haldane sphere [14] of radius R = √QℓB, which encloses a magnetic monopole of strength 2 Q. A parti- cle position is parameterized by the polar and azimuthal angles,r i = ( θi, ϕi). ConfigurationsR= {r1, . . . ,rN } are sampled according to the probability dist...

  3. [3]

    Propose a new configuration by randomly displacing a single particle i: θi,new = θi,old + δθ and ϕi,new = ϕi,old +δϕ

  4. [4]

    Calculate the acceptance probability, accounting for the spherical measure: pacc = min 1, |ΨT(Rnew)|2 sin(θi,new) |ΨT(Rold)|2 sin(θi,old) .(A1)

  5. [5]

    Moves that push a particle outside the polar boundsθ∈[0, π] are strictly rejected

    Accept or reject based on a random number compar- ison. Moves that push a particle outside the polar boundsθ∈[0, π] are strictly rejected. The interaction energy is computed by evaluating the local energy EL(R) = ˆV ΨT(R)/ΨT(R). For the spherical geometry, the interaction potential is evaluated using the 3D chord distance between particles, dchord(ri,r j)...

  6. [6]

    On the spherical geometry, the kinetic energy operator ˆT is proportional to the squared dynamical angular momentum operatorΛ 2 [14, 35]

    Kinetic energy We now discuss the evaluation of the kinetic energy, which is non-zero because the trial wavefunction Ψ Z4 does not reside entirely in the lowest Landau level for finite coupling m̸ = 0. On the spherical geometry, the kinetic energy operator ˆT is proportional to the squared dynamical angular momentum operatorΛ 2 [14, 35]. For a particle wi...

  7. [7]

    Levin and A

    M. Levin and A. Stern, Physical Review Letters103, 196803 (2009)

    2009

  8. [8]

    Regnault and B

    N. Regnault and B. A. Bernevig, Physical Review X1, 021014 (2011)

    2011

  9. [9]

    Repellin, B

    C. Repellin, B. A. Bernevig, and N. Regnault, Physical Review B90, 245401 (2014)

    2014

  10. [10]

    Neupert, L

    T. Neupert, L. Santos, C. Chamon, and C. Mudry, Physi- cal Review Letters106, 236804 (2011)

    2011

  11. [11]

    Neupert, C

    T. Neupert, C. Chamon, T. Iadecola, L. H. Santos, and C. Mudry, Physica Scripta2015, 014005 (2015)

    2015

  12. [12]

    Stern, Annual Review of Condensed Matter Physics7, 349 (2016)

    A. Stern, Annual Review of Condensed Matter Physics7, 349 (2016)

    2016

  13. [13]

    K. Kang, B. Shen, Y. Qiu, Y. Zeng, Z. Xia, K. Watanabe, T. Taniguchi, J. Shan, and K. F. Mak, Nature628, 522 (2024)

    2024

  14. [14]

    K. Kang, Y. Qiu, B. Shen, K. Lee, Z. Xia, Y. Zeng, K. Watanabe, T. Taniguchi, J. Shan, and K. F. Mak, Time-reversal symmetry breaking fractional quantum spin Hall insulator in moir´ e MoTe2 (2025), arXiv:2501.02525 [cond-mat]

    arXiv 2025

  15. [15]

    Y. Wang, G. E. Minarik, W. Li, Y. Kwan, S. Yuan, E. Anderson, C. Hu, J. Ingham, J. Choe, T. Taniguchi, K. Watanabe, X. Roy, J.-H. Chu, R. Queiroz, J. C. Hone, N. Regnault, X. Xu, and X. Zhu, Magnetic Signatures of a Putative Fractional Topological Insulator in Twisted MoTe2 (2026), arXiv:2601.18508 [cond-mat]

    arXiv 2026

  16. [16]

    Z. Han, Y. Xia, K. Watanabe, T. Taniguchi, K. F. Mak, and J. Shan, Quantum oscillations between excitonic and quantum spin Hall insulators in moir´ e WSe2 (2025), arXiv:2509.19287 [cond-mat]

    arXiv 2025

  17. [17]

    P. X. Nguyen, R. Chaturvedi, B. Zou, K. Watanabe, T. Taniguchi, A. H. MacDonald, K. F. Mak, and J. Shan, Nature Materials , 1 (2025)

    2025

  18. [18]

    Chang, Z

    X. Chang, Z. Tao, B. Shen, W. Tian, J. Hu, K. Pistunova, K. Watanabe, T. Taniguchi, T. F. Heinz, T. Li, K. F. Mak, J. Shan, and S. Jiang, Electric-field-tuned consecutive topological phase transitions between distinct correlated insulators in moire MoTe2/WSe2 heterobilayer (2026), arXiv:2602.15466 [cond-mat]

    arXiv 2026

  19. [19]

    Halperin, Helvetica Physica Acta56, 75 (1983)

    B. Halperin, Helvetica Physica Acta56, 75 (1983)

    1983

  20. [20]

    F. D. M. Haldane, Physical Review Letters51, 605 (1983)

    1983

  21. [21]

    Wagner and T

    G. Wagner and T. Neupert, Physical Review B111, 195143 (2025)

    2025

  22. [22]

    Abouelkomsan and L

    A. Abouelkomsan and L. Fu, Physical Review Research 7, 023083 (2025)

    2025

  23. [23]

    Moore and N

    G. Moore and N. Read, Nuclear Physics B360, 362 (1991)

    1991

  24. [24]

    Sodemann Villadiego, Physical Review B110, 045114 (2024)

    I. Sodemann Villadiego, Physical Review B110, 045114 (2024)

    2024

  25. [25]

    Y. H. Kwan, G. Wagner, J. Yu, A. K. Dagnino, Y. Jiang, X. Xu, B. A. Bernevig, T. Neupert, and N. Regnault, Communications Physics9, 52 (2026)

    2026

  26. [26]

    C.-M. Jian, M. Cheng, and C. Xu, Physical Review X15, 021063 (2025)

    2025

  27. [27]

    Zhang, Physical Review B110, 155102 (2024)

    Y.-H. Zhang, Physical Review B110, 155102 (2024)

    2024

  28. [28]

    B. I. Halperin, P. A. Lee, and N. Read, Physical Review B47, 7312 (1993)

    1993

  29. [29]

    Zhang, Physical Review Letters133, 106502 (2024)

    Y.-H. Zhang, Physical Review Letters133, 106502 (2024)

    2024

  30. [30]

    Cano and J

    J. Cano and J. Wang, arXiv e-prints , arXiv:2606.05496 (2026), arXiv:2606.05496 [cond-mat.str-el]

    Pith/arXiv arXiv 2026

  31. [31]

    Greiter, X.-G

    M. Greiter, X.-G. Wen, and F. Wilczek, Physical Review Letters66, 3205 (1991)

    1991

  32. [32]

    S.-S. Lee, S. Ryu, C. Nayak, and M. P. A. Fisher, Physical Review Letters99, 236807 (2007)

    2007

  33. [33]

    Storni, R

    M. Storni, R. H. Morf, and S. Das Sarma, Physical Review Letters104, 076803 (2010)

    2010

  34. [34]

    D. T. Son, Physical Review X5, 031027 (2015)

    2015

  35. [35]

    E. H. Rezayi, K. Pakrouski, and F. D. M. Haldane, Phys- ical Review B104, L081407 (2021)

    2021

  36. [36]

    Greiter, X

    M. Greiter, X. G. Wen, and F. Wilczek, Nuclear Physics B374, 567 (1992)

    1992

  37. [37]

    X. G. Wen and A. Zee, Physical Review B46, 2290 (1992)

    1992

  38. [38]

    B. J. Overbosch and X.-G. Wen, Phase transitions on the edge of the ν=5/2 Pfaffian and anti-Pfaffian quantum Hall state (2008), arXiv:0804.2087 [cond-mat]

    Pith/arXiv arXiv 2008

  39. [39]

    Di Francesco, P

    P. Di Francesco, P. Mathieu, and D. S´ en´ echal,Confor- mal field theory, Graduate texts in contemporary physics (Springer, New York, NY, 1997)

    1997

  40. [40]

    Wagner, D

    G. Wagner, D. X. Nguyen, S. H. Simon, and B. I. Halperin, Physical Review Letters127, 246803 (2021)

    2021

  41. [41]

    J. K. Jain, inComposite Fermions(Cambridge University Press, 2007) pp. 26–76

    2007
