A decoupled staggered scheme for the shallow water equations

Rapha\`ele Herbin (LATP) , Jean-Claude Latch\'e (IRSN) , Youssouf Nasseri , Nicolas Therme (LMJL) This is my paper

Pith reviewed 2026-05-25 15:23 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords shallow water equationsstaggered gridpositivity preservingentropy inequalitynumerical schemetopographyfinite volume methodweak consistency
0
0 comments X

The pith

A staggered-grid scheme for the shallow water equations with topography preserves water height positivity, constant states, and is consistent with the entropy inequality.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a first-order numerical method on a staggered grid for solving the two-dimensional shallow water equations that include bottom topography. This scheme is designed to keep the water height positive, maintain constant states like still water over flat or varying bottom, and stay consistent with both the governing equations and an associated entropy inequality. A sympathetic reader would care because these properties prevent unphysical results such as negative water depths in simulations of floods or tsunamis, and ensure the method respects conservation laws and energy-like principles over long times. The approach decouples the discretization to achieve all these features simultaneously in two dimensions.

Core claim

We present a first order scheme based on a staggered grid for the shallow water equations with topography in two space dimensions, which enjoys several properties: positivity of the water height, preservation of constant states, and weak consistency with the equations of the problem and with the associated entropy inequality.

What carries the argument

The decoupled staggered-grid discretization that separates the updates to achieve positivity, steady-state preservation, and weak consistency at once.

If this is right

  • The scheme can simulate flows without producing negative water heights.
  • It preserves still-water equilibria exactly, even with varying topography.
  • The method remains consistent with the continuous equations in a weak sense.
  • It satisfies a discrete version of the entropy inequality.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the decoupling works in 2D, similar staggered approaches might extend to three dimensions or other hyperbolic systems with source terms.
  • Practical implementations might benefit from combining this with higher-order reconstructions while retaining the base properties.
  • Tests on standard benchmarks like dam-break problems would verify the listed properties numerically.

Load-bearing premise

The staggered-grid discretization can be constructed and decoupled in two space dimensions so that positivity, steady-state preservation, and weak consistency hold simultaneously.

What would settle it

A specific two-dimensional test case with varying topography where the computed water height becomes negative at some cell or a constant state is not preserved to machine precision.

Figures

Figures reproduced from arXiv: 1906.11001 by Jean-Claude Latch\'e (IRSN), Nicolas Therme (LMJL), Rapha\`ele Herbin (LATP), Youssouf Nasseri.

Figure 1

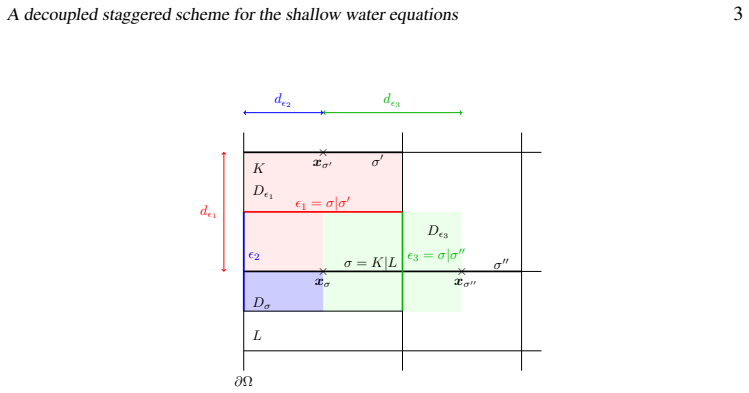

Figure 1. Figure 1: Notations for control volumes and dual cells (in two space dimensions, for the [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

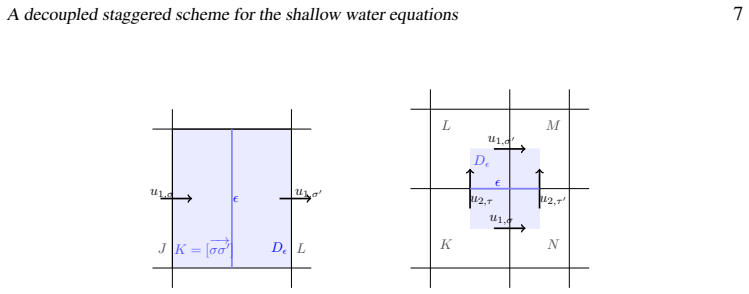

Figure 2. Figure 2: Notations for the definition of the momentum flux on the dual mesh for the first [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

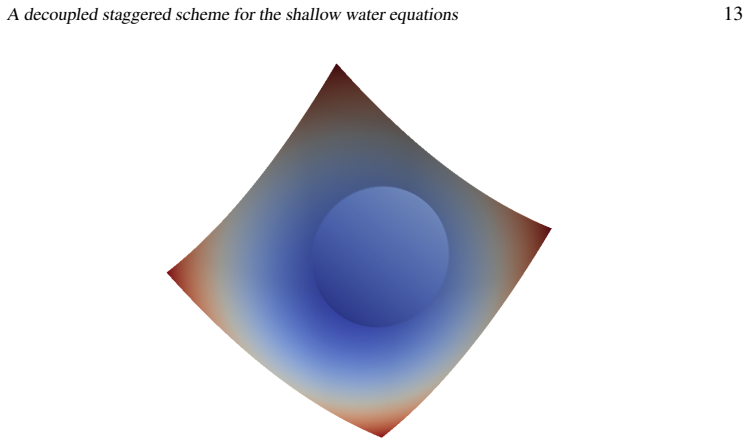

Figure 3. Figure 3: Sloshing of a drop on a parabolic support – State obtained after one revolution (very [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
Figure 4

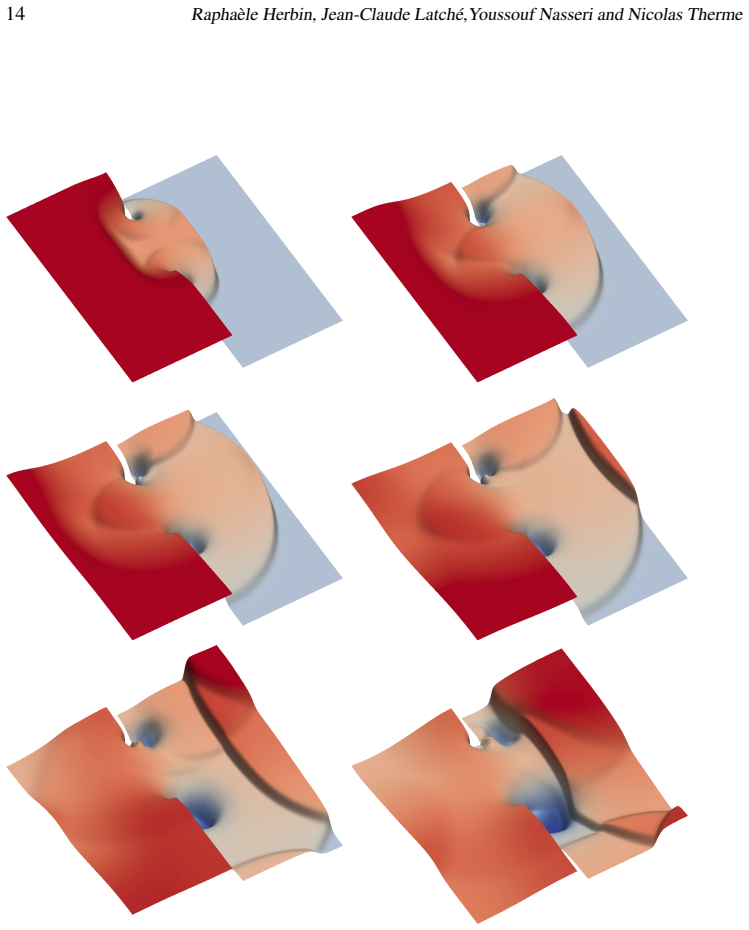

Figure 4. Figure 4: Partial dam break – Height obtained at t = 4, t = 8, t = 10, t = 12, t = 16 and t = 20 with a mesh obtained (by supression of the zones associated to the obstacles) from a 1000 × 1000 regular grid. In the last Figure (t = 20), the obtained minimal and maximal heights are h = 2.149 and h = 9.306 respectively [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
read the original abstract

We present a first order scheme based on a staggered grid for the shallow water equations with topography in two space dimensions, which enjoys several properties: positivity of the water height, preservation of constant states, and weak consistency with the equations of the problem and with the associated entropy inequality.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript presents a first-order decoupled staggered-grid finite-volume scheme for the two-dimensional shallow water equations with topography. It establishes three properties: positivity of the water height under a CFL restriction, exact preservation of constant (lake-at-rest) states via cancellation of pressure and topography gradients on staggered interfaces, and weak consistency with the integral form of the equations and the entropy inequality obtained through summation-by-parts identities.

Significance. If the stated properties hold, the work supplies a simple, fully decoupled scheme that simultaneously satisfies positivity, steady-state preservation, and weak consistency without additional corrections or limiters. This is useful for practical geophysical simulations. The manuscript supplies explicit proofs of the three properties together with numerical verification, which strengthens the contribution to the literature on structure-preserving discretizations for hyperbolic balance laws.

minor comments (3)
  1. [§2] §2: The placement of the staggered variables (velocity on edges, height at centers) is described in text only; a single schematic diagram would improve readability of the 2D construction.
  2. [§3.2] Eq. (3.12) and the subsequent summation-by-parts argument: the boundary terms arising from the decoupled updates are stated to vanish, but the precise treatment of the domain boundary conditions is not repeated in this section; a short cross-reference would help.
  3. [Table 1] Table 1 (convergence rates): the L1 errors for the lake-at-rest test are reported to machine precision, but the table caption does not explicitly note that the test uses the exact steady-state initial data; this is a minor clarity point.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the careful reading and positive assessment of our manuscript. The recommendation for minor revision is noted. No specific major comments appear in the report, so we have no points requiring rebuttal or clarification at this time. We will address any minor comments or suggestions in the revised version.

Circularity Check

0 steps flagged

No circularity: properties derived from explicit discretization and standard identities

full rationale

The scheme is constructed explicitly via staggered placement, well-balanced flux definitions for topography, and decoupled updates. Positivity follows from CFL restriction on the explicit update; lake-at-rest preservation follows from exact cancellation of pressure and topography terms at interfaces; weak consistency follows from discrete summation-by-parts identities that recover the integral form. These steps are independent of the target properties and do not reduce to self-definition, fitted inputs renamed as predictions, or load-bearing self-citations. No equations or proofs in the manuscript collapse the claimed results to the inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available; no free parameters, axioms, or invented entities can be identified.
