MP-SfM: Monocular Surface Priors for Robust Structure-from-Motion

T0 review · 3 major / 5 minor · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Monocular depth and normal priors let incremental SfM reconstruct scenes from two-view tracks alone.

desk verdict MP-SfM is a real advance in incremental SfM for low-overlap scenes; the main soft spot—untested robustness to non-scale depth bias—is worth a revision experiment but not a rejection. read the letter →

arxiv 2504.20040 v1 pith:Z2FEURJH submitted 2025-04-28 cs.CV cs.RO

Zador Pataki , Paul-Edouard Sarlin , Johannes L. Schönberger , Marc Pollefeys This is my paper · ORCID
classification cs.CVcs.RO
keywords structure-from-motionmonoculardepthpriorssurfacenormalsuncertaintypropagationtwo-viewreconstructionincrementalSfMlow-overlapconsistencycheck
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Classical incremental structure-from-motion needs three-view tracks: a new camera can only be registered through 3D points already triangulated by two earlier views, so low-overlap or low-parallax captures routinely break. This paper claims that requirement can be dropped by feeding monocular depth and surface-normal predictions, with their uncertainties, into every stage of the pipeline. The predictions supply per-image 3D scaffolds, letting the system register a new view and grow structure from two-view correspondences alone, while a joint optimization refines poses, sparse points, and dense depth maps together. A dense depth-consistency step rejects misregistrations that sparse geometry accepts, notably those caused by repeated or symmetric structure. The reported result is accurate reconstruction in extreme low-overlap and low-parallax conditions, with competitive accuracy where overlap is plentiful; if true, it substantially widens the class of image sets ordinary users can reconstruct.

What carries the argument

The load-bearing mechanism is an uncertainty-weighted fusion of single-view and multi-view geometric constraints, solved by alternating optimization. The objective $C_{BA} + C_{reg} + C_{int}$ couples (i) standard bundle adjustment over sparse 3D points, (ii) a depth-regularization term $C_{reg}$ pulling scene points toward refined per-image depth maps $D^*_i$, and (iii) a bilateral normal-integration term $C_{int}$ that conditions $D^*_i$ on the monocular depth and normal priors with Mahalanobis weighting by predicted covariances. Because the Hessian of the joint cost loses the block-diagonal structure needed for Schur-complement elimination, the authors alternate: refine each depth map independently with $C_{reg}+C_{int}$ at fixed poses and points, then optimize poses and points with $C_{BA}+C_{reg}$ at fixed depth maps. A final dense depth-consistency check, comparing each image's refined depth against a reprojected min-depth buffer of overlapping views, rejects images that contradict free space.

What would settle it

Take a scene with strictly zero three-view overlap and run the full pipeline with the monocular depth term disabled (the paper's 'no lifting' ablation); the reported minimal-overlap AUC at 5 degrees falls from about 56 to 16 on the indoor benchmark, while the pose error with priors enabled is close to ground truth. A reader can reproduce that contrast on a held-out set of such triplets: if accurate poses persist without the depth prior, the three-view requirement was never the bottleneck; if they collapse, the two-view claim rests on the priors, exactly as stated.

Watch

Extended reading notes

Core claim

The paper's central claim is that the scale information incremental SfM normally obtains from three-view tracks can instead be supplied by per-image monocular priors, up to one unknown scale per image. Each view's predicted depth and surface normals act as soft constraints: 3D points lifted from a single view serve as 2D–3D correspondences for pose estimation, and a combined objective $C_{BA}+C_{reg}+C_{int}$ couples sparse bundle adjustment with depth regularization and bilateral normal integration. The predicted uncertainties are propagated and calibrated, so bad depth estimates are down-weighted rather than trusted. A dense forward–backward depth-consistency check then de-registers any image whose refined depth contradicts overlapping views, removing symmetry-induced false positives. On low-overlap subsets of standard benchmarks, the authors report accurate pose estimates for scenes with zero three-view overlap where existing incremental, structure-less, and learned two-view pipelines fail, and they maintain competitive accuracy in dense high-overlap settings; they further state that this makes the approach the first to reliably reconstruct challenging indoor scenes from few images.

Load-bearing premise

The method's load-bearing premise is that monocular depth and normal predictions are accurate enough up to a per-image scale that their uncertainty-weighted fusion improves multi-view geometry; if the predicted uncertainties are systematically overconfident or miscalibrated, the joint optimization can pull poses toward wrong depth rather than toward consistent multi-view structure.

Editorial extensions

If this is right

  • A reconstruction can be built from image pairs with no triple overlap, so sparse casual captures no longer need careful planning to guarantee three-view coverage.
  • Dense two-view correspondences in texture-poor regions become usable directly, improving completeness where sparse keypoints are scarce.
  • Because the priors are treated as uncertain soft constraints, swapping in a different monocular depth or normal estimator requires little retuning, so future improvements in single-image geometry transfer to SfM.
  • Symmetry-induced wrong registrations can be detected and removed by dense depth consistency, even when sparse geometric verification accepts them.
  • In low-parallax configurations, incremental reconstruction approaches the accuracy of global methods, which previously did not suffer from the same failure.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Beyond the paper, the same uncertainty-weighted fusion should apply to camera relocalization and dense SLAM, where pure rotation, low texture, or repetitive structure make epipolar constraints degenerate; a monocular depth prior could supply scale and depth hypotheses there too.
  • The per-image scale formulation implies that a monocular model with reliable relative depth but no metric scale could be substituted if its scale is recovered from the first verified two-view pair; that would decouple the method from metric depth models.
  • The depth-consistency check could be inverted into an active-capture signal: images that repeatedly fail it flag symmetric or ambiguous regions, telling a non-expert user exactly which additional views would disambiguate the scene.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper proposes MP-SfM, an incremental Structure-from-Motion pipeline that augments COLMAP with monocular depth and surface-normal priors, including their predicted uncertainties. The key idea is to lift the classical requirement for three-view tracks: depth-lifted 2D-3D correspondences allow registration of new views with only two-view overlap, while an alternating optimization of bundle adjustment, depth refinement, and normal integration fuses the priors into the reconstruction. A dense depth-consistency check rejects incorrectly registered views, particularly in symmetric scenes. The method is evaluated on ETH3D, SMERF, Tanks and Temples, and RealEstate10k under varying overlap and parallax conditions, showing consistent improvements over COLMAP, GLOMAP, SLR, DF-SfM, VGGSfM, StudioSfM, and MASt3R-SfM. The paper claims that this is the first approach capable of reliably reconstructing challenging indoor environments from few images, while requiring little tuning.

Significance. If the results hold, this is a meaningful advance for incremental SfM: it directly attacks the three-view-track requirement, a known practical bottleneck for non-expert capture, and demonstrates large gains on low-overlap and low-parallax benchmarks. The evaluation is commendably broad: external benchmarks, multiple sparse and dense matchers, several monocular depth models, and component-wise ablations. The public code release is a concrete strength that supports reproducibility. The main robustness claim is credible, but the evidence does not yet cover all the error modes that the paper claims to handle: the per-image scale correction assumes scale-only prior errors, and the calibrated uncertainty machinery relies on several unreported tuning constants. These gaps are fixable but should be addressed before publication.

major comments (3)
  1. [Eq. (1) and Sec. 3.1] The median-ratio scaling in Eq. (1) corrects the monocular depth prior only up to a single per-image scale factor. The paper's central claim of robustness to errors in the priors (Abstract; Sec. 1) therefore depends on the unstated assumption that prior depth errors are predominantly scale-only. This assumption is not tested: no experiment perturbs the priors with additive offsets, depth-dependent scale drift, or spatially varying bias. The ground-truth-depth ablation in Table 5 (ETH3D minimal overlap: AUC@1° improves from 27.3 to 42.9) shows that prior bias, not just its scale, limits fine-grained accuracy. Please add a synthetic-bias ablation or explicitly scope the robustness claim to scale-correct priors.
  2. [Sec. 3.4, Eq. (6)] The depth consistency check is a central safeguard against symmetry failures, yet the two decision parameters—gamma in Eq. (6) and the ratio beta_hat mentioned in the text—are never given numeric values. Since Table 6 shows this check is crucial in the SMERF scenes, leaving these thresholds unreported prevents reproduction and makes it impossible to judge how much tuning the method requires.
  3. [Appendix C and Sec. 4.3] The uncertainty calibration and robust-loss configuration involve several tuned quantities—the constant scaling factor for predicted uncertainties, the 2 cm standard-deviation clip, the depth-proportional uncertainty factor, and the robust loss scales for Creg and Cint—but the final values are not reported. Because the claim of 'principled uncertainty propagation' and little tuning (Abstract; Sec. 1) is part of the contribution, the paper should list all free parameters and the data splits used to select them.
minor comments (5)
  1. [Sec. 3.4] The sentence 'We consider a view c as inconsistent if any of the overlapping views' beta_i exceeds a ratio beta_hat of occluded pixels' is ambiguous: Eq. (6) defines beta_i as a ratio of inconsistent pixels, so the phrase 'ratio of occluded pixels' should be clarified or removed.
  2. [Eq. (7) / Appendix B] In the definition of Sigma_r, the last diagonal entry is written as sigma^2_{N-_u}; it should presumably be sigma^2_{N-_v}.
  3. [Fig. 7 caption] There are several typos in the caption: 'estiamtes', 'yileded', and 'uncertianties' should be corrected.
  4. [Table 1] The header of the right block is garbled in the manuscript ('max overlapminimal, 0% <5% <10% <30%'); please fix the column labels to make the overlap buckets unambiguous.
  5. [Sec. 4.1] The sentence 'The GT camera poses were estimated with COLMAP – achieving sufficient accuracy by using 10 to 100 times more images' is missing a subject; it should read 'The GT camera poses were estimated with COLMAP using 10 to 100 times more images, which we assume achieves sufficient accuracy.'

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the two-view-only SfM pipeline is validated on external benchmarks against external baselines, and no predicted quantity reduces to a fitted input by construction.

full rationale

The derivation chain is self-contained. The central claim, that monocular depth and normal priors enable accurate incremental SfM from two-view tracks only, is implemented through the objective in Eqs. (2)-(5): a standard bundle adjustment term C_BA, a depth-regularization term C_reg, and an uncertainty-weighted prior term C_int. No output quantity is defined in terms of an input, and no evaluation metric is fitted by the method. The per-image scale in Eq. (1) is an internal median alignment of each monocular depth map to the current sparse 3D points; it is a normalization step, not a prediction of the pose or reconstruction quality that is later scored. Appendix C calibrates uncertainty scaling factors on a separate dataset or validation split, and the paper's Limitations section explicitly concedes the dependency: 'Our system depends on reliable uncertainties for the monocular priors. State-of-the-art depth models rarely estimate uncertainties and those that do are often over-confident.' That is an acknowledged assumption, not a circular reduction. Evaluations on ETH3D, SMERF, Tanks and Temples, and RealEstate10k compare against external baselines (COLMAP, GLOMAP, MASt3R-SfM, StudioSfM, etc.), and the ground-truth poses are derived from much larger reconstructions or benchmark data. Self-citations to COLMAP and GLOMAP point to publicly available, code-reproduced frameworks used both as a base and as baselines; they are not invoked as unverified uniqueness theorems. The unreported depth-check thresholds (gamma, beta_hat) and the load-bearing assumption that off-the-shelf priors are correct up to a per-image scale are legitimate correctness risks, but they are not circularity because the paper does not derive its headline result from those thresholds or from a fitted parameter renamed as a prediction.

Assumptions & free parameters 5 free parameters · 4 assumptions · 0 invented entities

The central contribution is a system integration that does not introduce new physical entities. It does rely on several fitted hyperparameters (uncertainty calibration, robust loss scales, depth-check thresholds) and on domain assumptions about the reliability and calibratability of learned monocular priors.

free parameters (5)
  • depth uncertainty scaling factor = not reported
    Appendix C: constant factor used to scale predicted depth uncertainties down; tuned on a separate dataset using sparse SfM point clouds as pseudo ground truth.
  • depth-proportional uncertainty factor = not reported
    Appendix C: scaling factor for the depth-proportional uncertainty term; selected by maximizing AUC of sensitivity plots on the ETH3D training split.
  • minimum depth stddev clip = 2 cm
    Appendix C: standard deviations clipped to at least 2 cm to handle over-confident depth estimates.
  • depth consistency thresholds gamma and beta_hat = not reported
    Section 3.4: gamma is the inconsistency ratio threshold in the indicator function, beta_hat is the occluded-pixel ratio for deregistration; values are not stated in the paper.
  • robust loss scale for depth regularization and integration = not reported
    Section 3.3 and Appendix H.2: scales for the Cauchy loss on Creg and truncated L2 losses on Cint; the paper mentions that a smaller robust loss scale in final global BA improves accuracy, but absolute values are omitted.
assumptions (4)
  • domain assumption Monocular depth and normal priors are sufficiently accurate and their uncertainties calibratable to support fused SfM.
    The whole pipeline relies on this; the paper's own Limitations section states the dependence on reliable uncertainties, and over-confident estimates degrade performance.
  • domain assumption A global per-image scale factor can align each monocular depth map to the multi-view structure (Eq. 1).
    Eq. 1 assumes the depth prior is metric up to a per-image scale; if the prior has non-uniform bias, the scaling and subsequent fusion could be biased.
  • domain assumption Ground-truth poses for SMERF and Tanks and Temples, estimated with COLMAP from 10 to 100 times more images, are accurate enough for evaluation.
    Section 4.1: GT poses from COLMAP; COLMAP errors could bias comparisons, though the high image density mitigates this risk.
  • standard math Bilateral normal integration with uncertainty weighting (Cao et al.) is a valid model for refining depth maps.
    Appendix B: relies on the published bilateral normal integration method; the approximation of Jacobians is stated by the authors.

how reviews work

0 comments
Cite this review

Pith. "Pith review of MP-SfM: Monocular Surface Priors for Robust Structure-from-Motion." pith.science (2026). https://pith.science/paper/Z2FEURJH

@misc{pith2026250420040,
  author       = {Pith},
  title        = {Pith review of: MP-SfM: Monocular Surface Priors for Robust Structure-from-Motion},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/Z2FEURJH}},
  note         = {Machine review of arXiv:2504.20040}
}
read the original abstract

While Structure-from-Motion (SfM) has seen much progress over the years, state-of-the-art systems are prone to failure when facing extreme viewpoint changes in low-overlap, low-parallax or high-symmetry scenarios. Because capturing images that avoid these pitfalls is challenging, this severely limits the wider use of SfM, especially by non-expert users. We overcome these limitations by augmenting the classical SfM paradigm with monocular depth and normal priors inferred by deep neural networks. Thanks to a tight integration of monocular and multi-view constraints, our approach significantly outperforms existing ones under extreme viewpoint changes, while maintaining strong performance in standard conditions. We also show that monocular priors can help reject faulty associations due to symmetries, which is a long-standing problem for SfM. This makes our approach the first capable of reliably reconstructing challenging indoor environments from few images. Through principled uncertainty propagation, it is robust to errors in the priors, can handle priors inferred by different models with little tuning, and will thus easily benefit from future progress in monocular depth and normal estimation. Our code is publicly available at https://github.com/cvg/mpsfm.

Figures

Figures reproduced from arXiv: 2504.20040 by the authors.

Figure 1
Figure 1. A typical failure case for SfM. Existing approaches can￾not handle low-overlap image pairs because they require three-view tracks to ensure a consistent scale across the scene. We bridge this limitation by augmenting SfM with monocular depth and normal priors from off-the-shelf deep networks. This makes SfM signifi￾cantly more robust for data captured by non-expert users. scenario of extreme viewpoint changes. These… view at source ↗
Figure 2
Figure 2. Overview of our approach. Given image correspondences, depth, and surface normals, we first initialize the reconstruction by estimating a relative pose or, if the parallax is low, an absolute pose from points lifted to 3D by depth. While SfM can generally estimate 3D only for points observed in multiple views, we leverage single-view observations with depth. This helps registering images with lower visual overlap. C… view at source ↗
Figure 3
Figure 3. Qualitative results for low overlap scenes. Left: Input images with low overlap. Center: Estimated (red) and ground-truth (blue) camera poses with the monocular depth refined by our system. Right: Lifted refined depth of which points are colored differently whether they are visible in a single image (red), two (green), or at least three images. (Ia, Ib) yielding a stable relative pose Tba ∈ SE(3), i.e., suf￾ficient … view at source ↗
Figures from the paper (9 more)
Figure 4
Figure 4. Figure 4: Depth consistency check. These two image pairs are incorrectly matched because of symmetries (blue points). Our ap￾proach successfully rejects them as a large ratio of pixels have an inconsistent depth (red), while ignoring occlusion (yellow) and areas with consistent …
Figure 5
Figure 5. Figure 5: Qualitative comparison of reconstructions for low-overlap scenes. Estimated (red) and ground-truth (blue) camera poses, and AUC accuracies at 1 ◦ /5 ◦ /20◦ error thresholds are presented. Left: COLMAP [50]. Center: MASt3R-SfM [16]. Right: Our method. Rows 1–2 show scen…
Figure 6

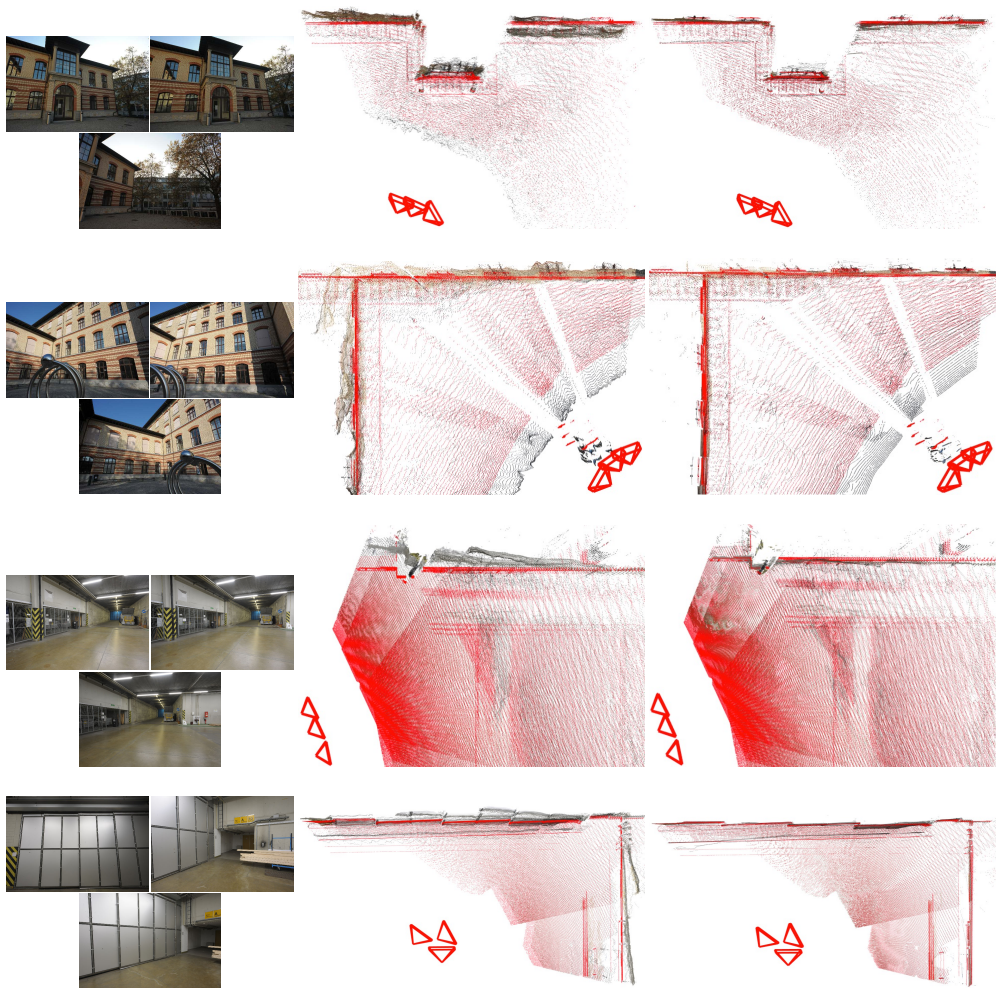

Figure 6. Figure 6: Visualizations of prior and refined depth map. For four reconstructions of the ETH3D datasets, we show the input images (left) and the colored point clouds obtained by unprojecting the monocular prior depth maps (center) and the refined depth maps (right). We overlay t…
Figure 7
Figure 7. Figure 7: Analysis of the prior depth uncertainties on the ETH3D [53] dataset. Left: The sensitivity analysis of Metric3D-v2 [28] and MASt3R [16] depth estiamtes shows the total RMSE for the X% of pixels (recall) with the lowest uncertainty. The uncertainties include the monocul…
Figure 8
Figure 8. Figure 8: Leveraging dense matching to build long tracks in salient regions and two-view tracks in featureless areas. Left: sparse matches sampled at SuperPoint [13] keypoints, and in textureless areas. Middle: dense reconstruciotn of the scene with the colmap points overlayed. …
Figure 9
Figure 9. Figure 9: Visual examples of our triplet test set. Each row corresponds to a triplet from one of our triplet test set categories: 0%, [0%, 5%], [5%, 10%], [10%, 20%], [20%, 40%], and > 40%, respectively. Triplets are colored by two-view overlap and three-view overlap. All triple…
Figure 10
Figure 10. Figure 10: Sparsity structure in the Hessian of the cost function. Off-diagonals in the 3D point block are color-coded according to the observing camera, reflecting the per-image normal constraints. COLMAP. Additionally, we fix the intrinsics to their ground truth values in all …
Figure 11
Figure 11. Figure 11: Comparison between low and high overlap dense reconstruction. Left: Sparse view reconstruction. Right: dense view reconstruction of the same scene. Multiple views constraining the depth refinements yield consistent depth maps. to drastic improvements. In the case of R…
Figure 12
Figure 12. Figure 12: Comparing reconstruction quality with and without robust loss. Depth Anything V2 [70] struggles to estimate depth at large distances. We visualize 3D points with low and high covariance, overlaid on the lifted, refined depth maps. Top: Reconstruction using a robust lo…
