arxiv: 2606.31353 · v1 · pith:ZEFSHV7Inew · submitted 2026-06-30 · 💻 cs.CV

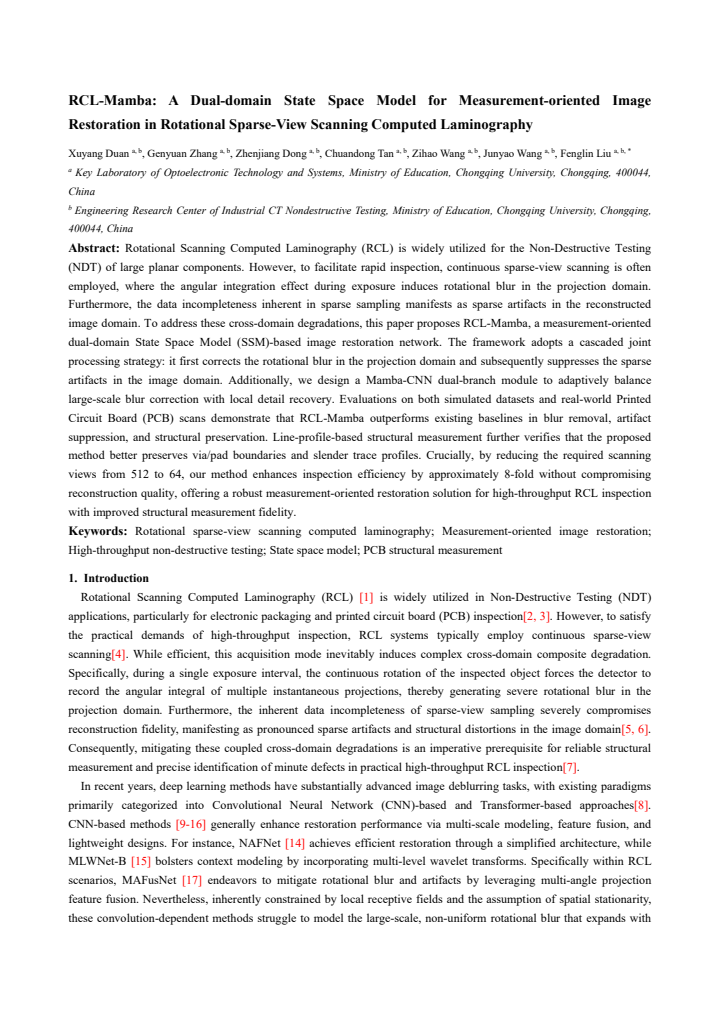

RCL-Mamba: A Dual-domain State Space Model for Measurement-oriented Image Restoration in Rotational Sparse-View Scanning Computed Laminography

Xuyang Duan , Genyuan Zhang , Zhenjiang Dong , Chuandong Tan , Zihao Wang , Junyao Wang , Fenglin Liu This is my paper

Pith reviewed 2026-07-01 05:50 UTC · model grok-4.3

classification 💻 cs.CV
keywords computed laminographyimage restorationstate space modelsparse-view reconstructionrotational blurnon-destructive testingPCB inspectiondual-domain processing
0
0 comments X

The pith

RCL-Mamba corrects rotational blur in projections and sparse artifacts in images via a dual-domain state space model, enabling 8-fold fewer views for equivalent structural fidelity in laminography.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents RCL-Mamba as a measurement-oriented network for restoring images degraded by continuous sparse-view scanning in rotational computed laminography for non-destructive testing of planar components. It applies a cascaded strategy that first corrects angular integration blur in the projection domain and then suppresses sampling artifacts in the reconstructed image domain. A Mamba-CNN dual-branch module balances global correction with local detail preservation. Tests on simulated data and real PCB scans show superior blur removal, artifact suppression, and line-profile accuracy for features like vias and traces. This supports reducing views from 512 to 64 while preserving reconstruction quality.

Core claim

RCL-Mamba is a dual-domain SSM-based restoration network that uses cascaded joint processing to correct rotational blur in the projection domain before suppressing sparse artifacts in the image domain, with a Mamba-CNN dual-branch module to adaptively balance large-scale correction and local recovery, outperforming baselines on blur removal, artifact suppression, and structural preservation while allowing an 8-fold reduction in scanning views from 512 to 64 without quality loss.

What carries the argument

The cascaded dual-domain processing strategy with the Mamba-CNN dual-branch module inside the state space model framework, which sequentially handles projection-domain blur correction followed by image-domain artifact suppression.

Load-bearing premise

Sequentially correcting rotational blur in the projection domain and then suppressing sparse artifacts in the image domain is sufficient to handle the degradations without introducing new errors or losing critical structural information.

What would settle it

Direct side-by-side line profile comparisons on real PCB RCL scans where 64-view RCL-Mamba outputs deviate from 512-view ground truth measurements of via diameters or trace widths beyond acceptable tolerances would falsify the no-compromise claim.

read the original abstract

Rotational Scanning Computed Laminography (RCL) is widely utilized for the Non-Destructive Testing(NDT) of large planar components. However, to facilitate rapid inspection, continuous sparse-view scanning is often employed, where the angular integration effect during exposure induces rotational blur in the projection domain. Furthermore, the data incompleteness inherent in sparse sampling manifests as sparse artifacts in the reconstructed image domain. To address these cross-domain degradations, this paper proposes RCL-Mamba, a measurement-oriented dual-domain State Space Model (SSM)-based image restoration network. The framework adopts a cascaded joint processing strategy: it first corrects the rotational blur in the projection domain and subsequently suppresses the sparse artifacts in the image domain. Additionally, we design a Mamba-CNN dual-branch module to adaptively balance large-scale blur correction with local detail recovery. Evaluations on both simulated datasets and real-world Printed Circuit Board (PCB) scans demonstrate that RCL-Mamba outperforms existing baselines in blur removal, artifact suppression, and structural preservation. Line-profile-based structural measurement further verifies that the proposed method better preserves via/pad boundaries and slender trace profiles. Crucially, by reducing the required scanning views from 512 to 64, our method enhances inspection efficiency by approximately 8-fold without compromising reconstruction quality, offering a robust measurement-oriented restoration solution for high-throughput RCL inspection with improved structural measurement fidelity.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript proposes RCL-Mamba, a dual-domain state space model (SSM) network for measurement-oriented image restoration in rotational sparse-view computed laminography (RCL). It employs a cascaded strategy that first corrects rotational blur in the projection domain and then suppresses sparse-view artifacts in the image domain, using a Mamba-CNN dual-branch module for adaptive large-scale and local processing. On simulated data and real PCB scans, it reports outperformance over baselines in blur removal, artifact suppression, and structural preservation (via line-profile measurements of via/pad boundaries and traces), enabling an 8-fold reduction in views (512 to 64) without quality loss for high-throughput NDT inspection.

Significance. If the empirical results hold under rigorous validation, the work offers a practical advance for efficient RCL-based NDT of large planar components such as PCBs. The dual-domain SSM approach and explicit focus on structural measurement fidelity (rather than generic image quality) address a real industrial need for reduced scan time while preserving metrological utility.

major comments (1)
  1. [Abstract (cascaded joint processing strategy)] The central claim of 8-fold view reduction (512 to 64) 'without compromising reconstruction quality' and 'improved structural measurement fidelity' rests on the cascaded joint processing strategy being sufficient. However, rotational blur correction in the projection domain necessarily modifies the sinogram, which alters the distribution of sparse-view artifacts that the subsequent image-domain stage must handle; no verification mechanism (e.g., ablation on information preservation or error propagation analysis) is described to confirm that high-frequency structural details survive both stages without irreversible loss.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive comment on the cascaded joint processing strategy. We address the concern point-by-point below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract (cascaded joint processing strategy)] The central claim of 8-fold view reduction (512 to 64) 'without compromising reconstruction quality' and 'improved structural measurement fidelity' rests on the cascaded joint processing strategy being sufficient. However, rotational blur correction in the projection domain necessarily modifies the sinogram, which alters the distribution of sparse-view artifacts that the subsequent image-domain stage must handle; no verification mechanism (e.g., ablation on information preservation or error propagation analysis) is described to confirm that high-frequency structural details survive both stages without irreversible loss.

    Authors: We acknowledge that the manuscript does not describe explicit ablations or error-propagation analysis to verify information preservation across the two stages. The empirical validation relies on quantitative metrics and line-profile measurements of via/pad boundaries and traces on both simulated data and real PCB scans, which demonstrate that structural fidelity is maintained after the full cascaded pipeline. Nevertheless, we agree that dedicated verification would strengthen the claims. In the revision we will add an ablation study that (i) compares cascaded versus single-domain processing and (ii) quantifies high-frequency content preservation (e.g., via Fourier analysis and edge sharpness metrics) before and after each stage. revision: yes

Circularity Check

0 steps flagged

Empirical architecture proposal with no derivation chain reducing to self-inputs

full rationale

The paper proposes an empirical dual-domain SSM-based restoration network (RCL-Mamba) with a cascaded projection-then-image strategy. All performance claims, including the 512-to-64 view reduction and structural fidelity, rest on experimental evaluations against baselines on simulated and real PCB data rather than any first-principles derivation or prediction step. No equations, uniqueness theorems, or fitted-parameter predictions appear in the provided text that would reduce outputs to inputs by construction. The architecture choices (Mamba-CNN dual-branch, domain ordering) are presented as design decisions validated by results, not as self-referential or self-cited necessities. This is the standard case of an applied ML paper whose central claims remain independent of any circular reduction.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the empirical superiority of the proposed cascaded dual-domain network; the architecture itself contains many trainable parameters whose values are determined by training rather than derived from first principles.

free parameters (1)
  • network hyperparameters and weights
    All trainable parameters of the Mamba-CNN dual-branch modules are fitted to the training data; no count or specific values are given in the abstract.
axioms (1)
  • domain assumption Rotational blur and sparse artifacts can be sequentially corrected in separate domains without significant residual interaction effects that would require joint optimization.
    The cascaded strategy described in the abstract presupposes that sequential processing is adequate.

pith-pipeline@v0.9.1-grok · 5806 in / 1364 out tokens · 28644 ms · 2026-07-01T05:50:16.648992+00:00 · methodology
