The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper tries to establish that the classic O(log^2 N) bandwidth overhead of oblivious maps is not fundamental. BOLT, a new accelerator-based oblivious map design, claims to reduce that overhead to O(1)+O(log2 log2 N) with a constant number of rounds by treating on-package High-Bandwidth Memory as a large unobservable cache. Data is spread across HBM bins and visible host-memory pages; each access reads two random bins, then remaps the key to two new bins using power-of-two-choices load balancing, which keeps the worst-case bin size small. A self-hosted accelerator controls its own memory and I/O, so the host CPU cannot leak traces indirectly. If the unobservability premise holds, BOLT brings oblivious key-value access to within about 2.5x of non-private speed, a dramatic improvement over the 960x-plus slowdowns of prior designs.

What carries the argument

The load-bearing object is a flat bin layout over two memory tiers: HBM bins and host-memory pages, coordinated by an HBM-resident position map and an eviction stash. The mechanism that produces the log-log overhead is power-of-two-choices (P2C) load balancing: after each access the data item is placed in the less loaded of two uniformly random bins, which bounds the maximum bin load by c+O(log2 log2 N). That bound directly sets the page size, the stash size, and ultimately the bandwidth per access. The second essential mechanism is the assumption of unobservable HBM: because the position map, stash, counts, and reverse index live inside the sealed package, the algorithm can run data-depende

What would settle it

Run a known sequence of key lookups on an isolated HBM accelerator and record physical emanations per access, e.g., EM from the package or HBM power draw; if the observed pattern correlates with which two logical bins are accessed rather than being uniform over all bin pairs, the unobservable-HBM premise is falsified. A cheaper check: instrument the HBM controller to log which banks the position-map and stash reads hit, then test whether a simulator that knows only the dataset size can reproduce that distribution.

Watch

Extended reading notes

Core claim

The paper's central claim is that oblivious maps do not need worst-case padding and randomized remapping at the O(log^2 N) level if the trusted hardware has a large unobservable memory region rather than a constant-size one. BOLT divides the key-value store into K bins in on-package HBM and M fixed-size encrypted pages in host DRAM. Each key is mapped to two random bins; a request reads both bins (one real, one dummy), executes the get/put, then remaps the key to two fresh random bins. The power-of-two-choices rule places the item in the less loaded bin, and the paper proves (Claims 4.2-4.4) that the maximum bin load is c+O(log2 log2 N), the total HBM load concentrates tightly, and the evict

Load-bearing premise

The whole obliviousness proof presumes that an attacker cannot observe the accelerator's HBM access patterns, because the position map, stash, and load-balancing logic are hidden there; if power, electromagnetic, or controller-level observation of HBM traffic is possible, the simulation argument collapses.

Editorial extensions

If this is right

  • If the claim holds, oblivious key-value access has constant rounds and O(log log N) bandwidth growth, so query latency remains nearly flat as datasets grow to tens of millions of entries.
  • The HBM footprint is modest: for one billion 64-byte-value entries with 32-bit keys, the paper computes roughly 26% of raw data size in HBM when the HBM store is disabled, and less for larger values.
  • Initialization cost drops to near the non-private baseline because the data owner can pre-organize data into bins and BOLT just loads them, giving up to 279x faster init than prior OMAPs.
  • BOLT's measured slowdown over a non-private key-value store stays at 1.8x-2.5x for tested sizes, versus at least 960x for the compared state-of-the-art OMAPs at 1M entries.
  • With larger HBM fractions, query throughput improves further (up to 219K QPS in the prototype), suggesting the design scales with accelerator memory capacity.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If unobservable on-package memory is accepted as a building block, the classical Omega(log N) bandwidth lower bound for ORAM no longer applies to designs with a large private memory tier; the same bin-plus-P2C recipe may extend to other oblivious data structures, such as oblivious sets or sorted maps.
  • The security guarantee is only as strong as the isolation boundary: a physical attack that recovers HBM access patterns (power, EM, or a compromised HBM controller) would void the simulation argument, so the design's practical security depends on hardware hardening the paper explicitly defers to prior TEE work.
  • The paper's stash bound is conservative and the resulting HBM allocation may be pessimistic; a tighter stochastic analysis or adaptive page sizing could reduce HBM requirements further than the reported figures.
  • BOLT's comparison excludes TEE runtime overheads and is run on a 300MHz FPGA, so the absolute speedups would shrink under vendor TEEs; the asymptotic claim, not the clock-rate-dependent latency, is the durable result.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper presents BOLT, an oblivious map (OMAP) accelerator that uses isolated on-package HBM as an unobservable memory region to hide position-map lookups, HBM bin accesses, and stash operations, while host DRAM is accessed through a bin-based oblivious scheme. The logical algorithm (Algorithm 1) assigns each key to two random bins, accesses both per operation, remaps after every access, and applies power-of-two-choices (P2C) load balancing. The authors claim O(1) rounds and O(1)+O(log_2 log_2 N) bandwidth overhead, enabled by HBM-backed metadata and a self-hosted FPGA architecture. A Xilinx U55C prototype is evaluated against H2O2RAM, EnigMap, and Facebook's OMAP, reporting large speedups in query/init time and low slowdown relative to non-private baselines. The paper includes a formal obliviousness argument (Claim 4.1), analytical bounds on bin load, HBM load, and stash size (Claims 4.2–4.4), and an overhead analysis (Claim 5.1).

Significance. If the security and performance claims hold, this is a significant advance for oblivious data structures: it challenges the conventional O(log^2 N)-style overheads by leveraging a hardware assumption (unobservable HBM) that is plausible for packaged accelerators. The paper's strengths include a clean algorithmic idea, a concrete FPGA prototype, open-source code, large speedups over prior OMAP implementations, and a careful empirical validation of the analytical bounds. The central security guarantee, however, rests entirely on the unobservability of HBM; the paper states this assumption but does not implement or validate the required isolation in the prototype. The stochastic analysis supporting the bounds also contains gaps that need to be repaired before the theoretical claims are fully supported.

major comments (4)
  1. [Claim 4.2 and Appendix C.1] The proof of the P2C bin-load bound is not valid as written. The recurrence beta_{k+1}=2N(beta_k/B)^2 with beta_0=B gives beta_1=2N, which is not <= B, and beta_2 is even larger; the claimed doubly exponential decay beta_k <= B*2^{-(2^k-O(1))} is inconsistent with these values. The conclusion max load = c+O(log log N) is therefore not established by the provided proof. Moreover, Claim 4.2 is a static balls-and-bins statement, whereas Algorithm 1 remaps items after every access and uses a dynamic P2C rule; the paper does not prove that the dynamic process preserves the static bound. Since Claim 5.1's bandwidth bound depends directly on the bin-load bound, this is load-bearing and must be fixed, either with a correct proof or by citing a theorem that covers the dynamic setting.
  2. [Claim 4.3] Claim 4.3 applies Hoeffding's inequality to the sum of HBM bin loads, but bin loads are not independent: they are coupled by the P2C placement and by the fact that items are remapped. The proof simply states 'all bin loads are within l_max' and applies Hoeffding, which is not justified for dependent bounded variables. This bound is used in Claim 5.2 to size HBM usage, so the gap matters for the practical resource calculation. The authors should either prove negative association (or another suitable dependence condition) or replace Hoeffding with a concentration inequality that applies under the actual dependence structure.
  3. [Claim 4.4 and Appendix C.2] The queue model for the stash is an approximation of the actual coupled enqueue/dequeue process. In particular, the enqueue probability 1-alpha^2 is an upper bound for the probability that the P2C final destination is a host bin, but the model treats enqueue and dequeue as if they were driven by independent random choices; in reality, the same pair of bins that triggers a page read also determines which stash labels are evicted. Additionally, the supermartingale argument in Appendix C.2 chooses lambda = 2(1-alpha)Delta/(M(...)) with Delta being the tail threshold, rather than the current state, so the claimed one-step supermartingale condition is not established. The numerical validation is encouraging, but the proof as written does not rigorously support the stash-size bound. Since stash overflow would cause data loss, this needs either a rigorous repair or an explicit statement that th
  4. [Section 3 and Claim 4.1] The obliviousness proof is explicitly conditional on HBM being unobservable: the simulator only simulates off-package accesses, and the threat model rules out power/EM analysis, chip depackaging, and multi-tenancy. This is a reasonable modeling choice, but the paper's abstract and conclusion state 'full data-obliviousness' without that qualifier. The security guarantee collapses if the HBM isolation is imperfect, and the FPGA prototype is evaluated without TEE isolation (Section 6.1), so the isolation mechanism is not implemented or validated. The authors should prominently state that the security claim is conditional on the HBM unobservability assumption and should discuss what concrete hardware mechanisms (e.g., SHEF-style firewalls, HBM controller protection) are needed to instantiate it, or explicitly list this as a limitation.
minor comments (5)
  1. [Section 5.3] In the proof of Claim 5.1, it is stated that for d>=4, log_2 log_2 N / log_2 d 'can be viewed as small as a constant.' This is not asymptotically correct; for fixed d it is O(log log N), which grows with N. The final O(log log N) bound is unaffected, but the sentence is misleading.
  2. [Section 4.3] The phrase 'with probability at least 1 - 1/O(N)' is nonstandard and likely intended to mean 1 - O(1/N) or 1 - 1/N^{Omega(1)}. Please clarify throughout.
  3. [Figure 2] The validation figure and the embedded table are hard to read; the legend labels ('Paramater', 'Bin Ld', 'HBM Ld', 'Stash') should be expanded and the axis scales clarified. Also, the table headers 'c=8' and 'c=16' are not clearly associated with the rows.
  4. [General] There are several typos: 'conclud' (Section 4.3), 'shwon' (Section 5.2), 'lighgweight' (Section 5.2), and a duplicated reference entry for Path ORAM (references [104], [105], [106] are the same work). A final proofreading pass is needed.
  5. [Section 6.3] The EnigMap comparison is performed at N=260K rather than the full 1M dataset, as noted. Since the slowdown metric is the primary comparison, this is acceptable, but the table should make the data-size disparity more visually prominent to avoid overstating the raw speedup.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: BOLT's bounds come from external theorems and its security proof rests on an explicit, externally-sourced HBM-unobservability modeling assumption.

full rationale

BOLT's central derivation is self-contained. The O(log log N) bin-load bound (Claim 4.2) is a direct application of the external power-of-two-choices theorem [89,103], and the HBM-load and stash bounds (Claims 4.3-4.4) follow from Hoeffding's inequality and drift analysis. The paper does not fit these bounds to data; the validation experiments in Figure 2 compare simulated peaks to the a priori analytic bounds with constants set to 1, so no fitted parameter is being renamed as a prediction. The security argument (Claim 4.1) is a standard simulator proof whose only non-algorithmic input is the threat-model assumption that on-package HBM accesses are unobservable. That assumption is attributed to prior external works (Vaswani et al., Hunt et al., Volos et al.) and is explicitly scoped in Section 3's non-goals, making it a modeling premise rather than a circular reduction. There is no load-bearing self-citation chain: the authors' own prior work is not used to justify the central claim. Concerns about whether HBM is truly unobservable against power/EM or compromised-controller attacks are legitimate security-risk questions, but they are not instances of the paper's derivation reducing to its own inputs.

Assumptions & free parameters 3 free parameters · 5 assumptions · 0 invented entities

The central claim depends on two classes of assumptions: (1) the physical unobservability of HBM (the entire security argument), and (2) the concentration bounds for random bin loads (the bandwidth argument). The paper provides empirical validation for N=2^20, but the analytical proofs for the stash bound and the bin-load concentration are heuristic or improperly justified.

free parameters (3)
  • c (average records per bin, N/B) = 8 (default)
    Controls the page size and the position map size. The bandwidth blow-up is O(c + log log N); larger c reduces position map size but increases per-access bandwidth.
  • alpha (fraction of bins in HBM) = 0.2 (default; 0.01 and 0.5 in experiments)
    Sets the ratio of HBM bins and affects stash size and HBM usage. Larger alpha requires more HBM but reduces host-page access probability.
  • d (number of hash choices for position map) = 4
    Number of hash functions for power-of-choices in the position map; the paper claims d=4 suffices to keep position-map load bounded.
assumptions (5)
  • domain assumption HBM is unobservable to the adversary
    Introduced Section 1, used throughout. The entire security proof treats all HBM traffic as invisible; if false, obliviousness fails.
  • domain assumption Attacker cannot perform chip depackaging
    Threat model Section 3: 'we assume attackers cannot perform hypothetical chip depackaging to compromise silicon interposers within the chip package.'
  • domain assumption Standard TEE building blocks are available and correct
    Section 2.3 and Appendix B; BOLT relies on remote attestation, I/O isolation, memory encryption, and integrity mechanisms rather than implementing them.
  • standard math Power-of-two-choices theorem for balls-and-bins
    Claim 4.2 cites [89,103]; gives max bin load c+O(log log N).
  • domain assumption Data owner is trusted to prepare initial partitioning
    Section 5.3 'Fast data initialization': DO pre-processes data and organizes into bins; if the owner is malicious, the initial layout could leak, but that is outside the threat model.

how reviews work

0 comments
Cite this review

Pith. "Pith review of BOLT: Bandwidth-Optimized Lightning-Fast Oblivious Map powered by Secure HBM Accelerators." pith.science (2026). https://pith.science/paper/ZQ2OPZVN

@misc{pith2026250901742,
  author       = {Pith},
  title        = {Pith review of: BOLT: Bandwidth-Optimized Lightning-Fast Oblivious Map powered by Secure HBM Accelerators},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/ZQ2OPZVN}},
  note         = {Machine review of arXiv:2509.01742}
}
read the original abstract

While Trusted Execution Environments provide a strong foundation for secure cloud computing, they remain vulnerable to access pattern leakages. Oblivious Maps (OMAPs) mitigate this by fully hiding access patterns but suffer from high overhead due to randomized remapping and worst-case padding. We argue these costs are not fundamental. Modern accelerators featuring High-Bandwidth Memory (HBM) offer a new opportunity: Vaswani et al. [OSDI'18] point out that eavesdropping on HBM is difficult -- even for physical attackers -- as its memory channels are sealed together with processor cores inside the same physical package. Later, Hunt et al. [NSDI'20] show that, with proper isolation, HBM can be turned into an unobservable region where both data and memory traces are hidden. This motivates a rethink of OMAP design with HBM-backed solutions to finally overcome their traditional performance limits. Building on these insights, we present BOLT, a Bandwidth Optimized, Lightning-fast OMAP accelerator that, for the first time, achieves O(1) + O(log_2(log_2 (N))) bandwidth overhead. BOLT introduces three key innovations: (i) a new OMAP algorithm that leverages isolated HBM as an unobservable cache to accelerate oblivious access to large host memory; (ii) a self-hosted architecture that offloads execution and memory control from the host to mitigate CPU-side leakage; and (iii) tailored algorithm-architecture co-designs that maximize resource efficiency. We implement a prototype BOLT on a Xilinx U55C FPGA. Evaluations show that BOLT achieves up to 279x and 480x speedups in initialization and query time, respectively, over state-of-the-art OMAPs, including an industry implementation from Facebook.

Figures

Figures reproduced from arXiv: 2509.01742 by the authors.

Figure 1
Figure 1. BOLT overview and deployments level, BOLT is built on top of accelerator TEE architectures. It uses existing TEE features (§2.3) to enforce physical isolation and en￾sure integrity. The BOLT core is a full-fledged OMAP engine that sits behind the TEE gateway to provide efficient oblivious KV ac￾cesses. A typical BOLT lifecycle goes like this: A client first goes through standard TEE setups, such as remotely attestin… view at source ↗
Figure 2
Figure 2. Validation experiments (Exp. vs. Anal.) Our empirical results in [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Architectural overview of BOLT. the design and execution flows of BOLT. For brevity, we focus on OMAP transactions and omit standard TEE features. 1 Initialization. BOLT undergoes a secure boot to initialize its internal states and allocates HBM storage for position map, eviction stash, and HBM bins. The host allocates a physically contiguous, pinned memory region (e.g., Hugepages [120]) so that BOLT can directly ac… view at source ↗
Figures from the paper (8 more)
Figure 4
Figure 4. Figure 4: Comparison of different storage design [PITH_FULL_IMAGE:figures/full_fig_p008_4.png]
Figure 4
Figure 4. Figure 4: c), we partition storage across multiple banks, with each [PITH_FULL_IMAGE:figures/full_fig_p009_4.png]
Figure 5

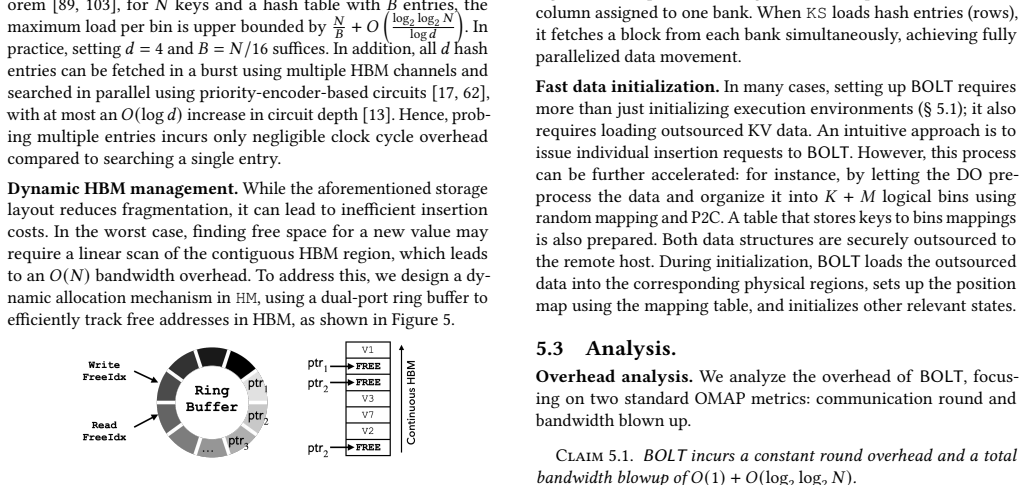

Figure 5. Figure 5: Free address ring buffer. Initially, the ring buffer is preloaded with all available HBM addresses for value stores. When space is needed for, e.g., inserting new data or remapping a page-ed value into the HBM—an address is dequeued. For other cases where data is remov…
Figure 6
Figure 6. Figure 6: Performance under scaling data entries. 8 16 32 64 128256 Value Size (bytes) 10 0 10 1 10 2 10 3 a. Init time (s) 8 16 32 64 128256 Value Size (bytes) 10 0 10 1 10 2 10 3 b. Init slowdown 8 16 32 64 128256 Value Size (bytes) 10 1 10 0 10 1 c. Query time (s) 8 16 32 64 …
Figure 7
Figure 7. Figure 7: Performance under scaling value sizes. Experiment setup. We adopt the same setup as § 6.3 and consider two scaling scenarios: (i) Entry size scaling. We fix the key and value size, but vary the number of data entries from 100K to 10M; (ii) Value length scaling. We fix …
Figure 8
Figure 8. Figure 8: Performance breakdown. MAPpos Vhbm Vhost Stash Objects 10 0 10 1 10 2 10 3 10 4 Memory (MB) 624 16 192 128 a. 8B value size MAPpos Vhbm Vhost Stash Objects 624 488 6144 128 b. 256B value size [PITH_FULL_IMAGE:figures/full_fig_p012_8.png]
Figure 11
Figure 11. Figure 11: Post-synthesis netlist schematic of BOLT. HWRoT. A HWRoT is a compact, tamper-resistant hardware mod￾ule embedded in silicon that serves as the foundation for a system’s security functions. It comprises two primary components: (1) Boot ROM. An immutable section of cod…
Figure 10
Figure 10. Figure 10: The testbed and BOLT prototype. B Additional Background B.1 FPGA and its security features FPGA. An FPGA is a hardware device consisting of configurable logic blocks and interconnects, programmable by loading a developer￾created binary file called a bitstream. The bit…
