FunnelNet: An End-to-End Deep Learning Framework to Monitor Digital Heart Murmur in Real-Time

Imre Rudas; Md Jobayer; Md. Mehedi Hasan Shawon; Md Rakibul Hasan; Md Zakir Hossain; Shreya Ghosh; Tom Gedeon

arxiv: 2405.09570 · v2 · submitted 2024-05-10 · 📡 eess.SP · cs.LG· cs.SD· eess.AS

FunnelNet: An End-to-End Deep Learning Framework to Monitor Digital Heart Murmur in Real-Time

Md Jobayer , Md. Mehedi Hasan Shawon , Md Zakir Hossain , Shreya Ghosh , Imre Rudas , Tom Gedeon , Md Rakibul Hasan This is my paper

Pith reviewed 2026-05-24 01:08 UTC · model grok-4.3

classification 📡 eess.SP cs.LGcs.SDeess.AS

keywords heart murmur detectionphonocardiogramdeep learningTinyMLreal-time inferencelightweight neural networkpediatric heart soundsconvolutional network

0 comments

The pith

A 5.4-thousand-parameter network detects heart murmurs from sound recordings with 85 percent accuracy and runs on smartphones.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper builds FunnelNet to classify heart murmurs directly from phonocardiogram signals after noise removal with a Butterworth filter and feature extraction via continuous wavelet transform. Its architecture squeezes the input representation, routes it through a depthwise-separable bottleneck, and expands to recover detail for the final decision. With roughly 5.4 thousand parameters the model reaches 85 percent accuracy, 85 percent sensitivity, and 92 percent specificity on the CirCor pediatric dataset while beating several larger networks; after conversion to TinyML it runs in real time at 91 percent accuracy on a Raspberry Pi 4B and 80 percent on an Android phone. Readers would care because the approach could move murmur screening from specialized clinics to everyday portable devices in settings that lack cardiologists or echocardiography equipment.

Core claim

FunnelNet is an end-to-end framework whose squeeze net compresses the preprocessed signal, whose bottleneck applies depthwise-separable convolutions to limit computation, and whose expansion net restores fine structure before classification. Evaluated on the public CirCor pediatric heart-sound collection, the model with approximately 5.4k parameters attains 85 percent accuracy, 85 percent sensitivity, and 92 percent specificity and exceeds the performance of several larger models. Once ported to TinyML the same network produces real-time inference at 91 percent accuracy on a Raspberry Pi 4B and 80 percent accuracy on an Android smartphone.

What carries the argument

FunnelNet architecture of squeeze net, depthwise-separable bottleneck, and expansion net that compresses, efficiently processes, and reconstructs the signal for murmur classification.

If this is right

Heart-murmur screening can occur in real time on battery-powered devices without sending data to the cloud.
A model this small can still exceed the accuracy of larger networks on the same pediatric phonocardiogram task.
The preprocessing pipeline of Butterworth filter plus continuous wavelet transform supplies the features the lightweight classifier needs.
Deployment on consumer smartphones becomes feasible for point-of-care use in low-resource settings.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same squeeze-bottleneck-expand pattern could be tried on other bio-signal tasks that must run under tight memory limits.
The gap between 91 percent on Raspberry Pi and 80 percent on Android points to hardware-specific tuning that may be needed for broader phone deployment.
Performance on only pediatric data leaves open whether the same weights would work on adult recordings without additional training.

Load-bearing premise

The features produced by Butterworth filtering and continuous wavelet transform on the CirCor pediatric recordings will remain useful when the same model encounters new recordings made on different equipment or in different clinical environments.

What would settle it

A test of the TinyML version on an independent set of heart-sound recordings collected from adults or from a different hospital that yields accuracy below 70 percent without any retraining.

Figures

Figures reproduced from arXiv: 2405.09570 by Imre Rudas, Md Jobayer, Md. Mehedi Hasan Shawon, Md Rakibul Hasan, Md Zakir Hossain, Shreya Ghosh, Tom Gedeon.

**Figure 1.** Figure 1: An illustration of the proposed FunnelCNN network architecture, divided into three parts: the squeeze net, the bottleneck, and the expansion net. The [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗

**Figure 2.** Figure 2: An illustration of training accuracy, validation loss, training loss, and validation loss with respect to epochs. The accuracy and loss functions for the [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗

**Figure 1.** Figure 1: Heart’s cyclic pattern. It consists of two main phases: systole and [PITH_FULL_IMAGE:figures/full_fig_p010_1.png] view at source ↗

**Figure 2.** Figure 2: A sample heart sound audio file without any preprocessing steps [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗

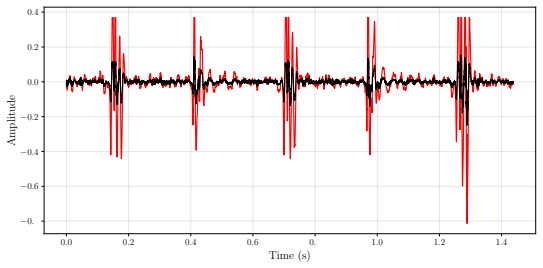

**Figure 3.** Figure 3: A sample heart sound audio file after removing the outliers from [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
