arxiv: 2605.05199 · v1 · submitted 2026-05-06 · ❄️ cond-mat.mes-hall · cond-mat.str-el

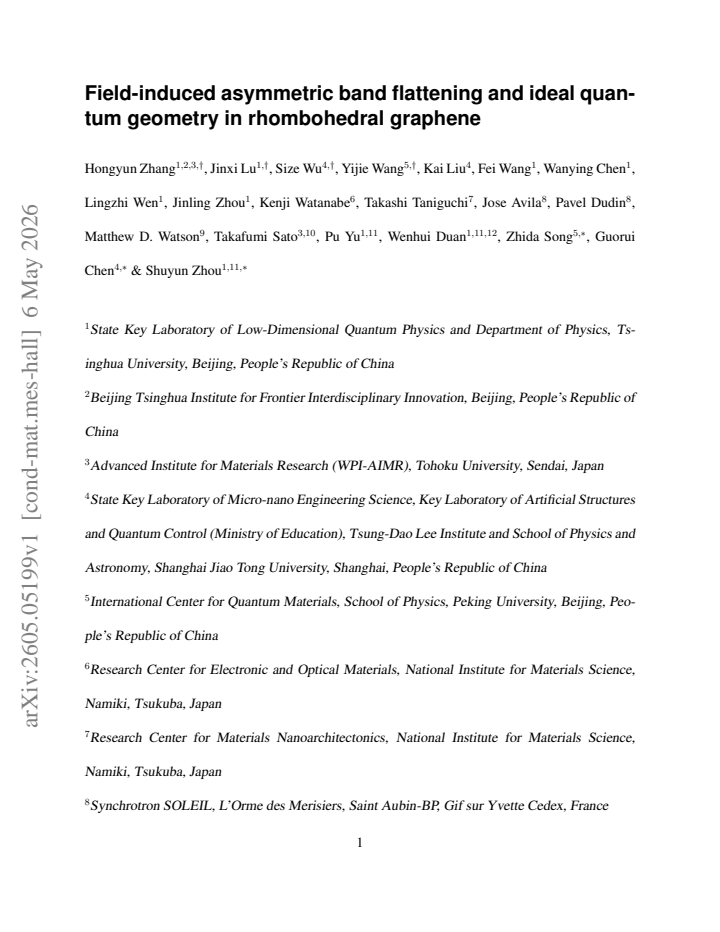

Field-induced asymmetric band flattening and ideal quantum geometry in rhombohedral graphene

Hongyun Zhang , Jinxi Lu , Size Wu , Yijie Wang , Kai Liu , Fei Wang , Wanying Chen , Lingzhi Wen
show 12 more authors
Jinling Zhou Kenji Watanabe Takashi Taniguchi Jose Avila Pavel Dudin Matthew D. Watson Takafumi Sato Pu Yu Wenhui Duan Zhida Song Guorui Chen Shuyun Zhou
This is my paper

Pith reviewed 2026-05-08 16:04 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall cond-mat.str-el
keywords rhombohedral graphenepentalayer graphenedisplacement fieldflat bandsquantum geometryBerry curvaturefractional quantum anomalous HallARPES
0
0 comments X

The pith

In rhombohedral pentalayer graphene an applied gate field bends the valence flat band into an M shape while further flattening the conduction band, producing finite Berry curvature and near-ideal quantum geometry that favors topological and

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper maps the evolution of flat bands in rhombohedral five-layer graphene as an electrostatic displacement field is increased. Nanospot ARPES reveals that the valence band develops an M-shaped dispersion at high fields while the conduction band becomes progressively flatter. Calculations matched to the data identify the parameters that control this curvature change and show the resulting band structure carries finite Berry curvature together with quantum geometry close to the ideal limit. This microscopic asymmetry directly accounts for the experimental phase diagram in which correlated states appear on the hole side at low fields but the fractional quantum anomalous Hall effect is seen only on the electron side at large fields.

Core claim

The gating field induces strongly asymmetric band flattening in rhombohedral pentalayer graphene: the flat valence band evolves into an M-shaped dispersion at high field, whereas the flat conduction band progressively flattens with increasing field. Comparison with calculations identifies critical parameters governing the band curvature, from which the resulting finite Berry curvature and near-ideal quantum geometry support the emergence of topological phases under electron doping at large fields.

What carries the argument

Field-dependent reshaping of the flat valence and conduction bands, tracked by ARPES and matched to band-structure calculations that extract curvature parameters, Berry curvature, and quantum geometry.

If this is right

  • The observed electron-hole asymmetry in band shape explains why correlated phases emerge on the hole-doped side at small fields while fractional quantum anomalous Hall states require large fields and electron doping.
  • Critical parameters for band curvature in rhombohedral pentalayer graphene are identified and can be used to predict when near-ideal quantum geometry occurs.
  • The microscopic band-structure changes establish a direct connection between displacement-field tuning, quantum geometry, and the stability of topological phases.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same field-tuning strategy may produce ideal quantum geometry in rhombohedral multilayers with different layer numbers.
  • The M-shaped valence band at high fields could suppress certain correlated states that appear at low fields, offering a route to selective stabilization of phases.
  • Direct probes of quantum geometry beyond ARPES, such as nonlinear transport or optical measurements, could test the predicted near-ideal metric.

Load-bearing premise

The measured band dispersions and the calculations they are compared against accurately reflect the intrinsic quantum geometry without large contributions from disorder, screening, or other unmodeled effects.

What would settle it

Observation of symmetric flattening of both valence and conduction bands with increasing field, or ARPES data showing zero Berry curvature at the fields where the fractional quantum anomalous Hall effect appears, would contradict the claimed link between band evolution and topological phases.

read the original abstract

Rhombohedral graphene exhibits an exceptionally diverse array of correlated phases that depend sensitively on the displacement field. Compiling reported phases into a unified phase diagram reveals a pronounced field-dependent electron-hole asymmetry: correlated states on the hole-doped side emerge at small displacement fields, whereas the fractional quantum anomalous Hall effect (FQAHE) is observed exclusively on the electron-doped side under large displacement fields. This stark asymmetry highlights the need to understand how flat bands evolve with displacement fields. Here, we directly visualize the field-induced electron-hole asymmetric band flattening in rhombohedral pentalayer graphene (R5G) using nanospot angle-resolved photoemission spectroscopy with electrostatic gating. Beyond gap opening and spectral weight redistribution indicative of layer polarization, the gating field drives a strongly asymmetric modification of the flat bands: the flat valence band (FVB) evolves into an M-shaped dispersion at high field, whereas the flat conduction band (FCB) progressively flattens with increasing field. Comparison with calculations identifies critical parameters governing the band curvature of R5G, from which the resulting finite Berry curvature and near-ideal quantum geometry support the emergence of topological phases under electron doping at large fields. These results establish a direct link between the asymmetric phase diagram, band structure evolution, and quantum geometry, providing a microscopic framework for understanding correlated and topological phases in rhombohedral graphene.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports nanospot ARPES measurements with electrostatic gating on rhombohedral pentalayer graphene (R5G). It claims to directly visualize a strongly asymmetric evolution of the flat bands under displacement field: the flat valence band develops an M-shaped dispersion at high fields while the flat conduction band progressively flattens. Comparison of the measured dispersions to single-particle calculations identifies critical parameters controlling band curvature; the resulting finite Berry curvature and near-ideal quantum geometry are argued to explain the electron-hole asymmetry in the correlated phase diagram, specifically supporting FQAHE exclusively on the electron-doped side at large fields.

Significance. If the measured dispersions accurately reflect the intrinsic single-particle structure and the quantum-geometry extraction is robust, the work supplies a microscopic, field-dependent link between band flattening asymmetry and the preference for topological phases under electron doping. The gated nanospot ARPES technique itself is a technical strength that enables direct visualization of the evolution, and the parameter identification from data-to-calculation comparison offers a concrete framework for understanding why FQAHE appears only at large fields on one side.

major comments (2)
  1. [Abstract and comparison-with-calculations section] Abstract and the comparison-with-calculations section: the claim that the extracted parameters yield 'near-ideal quantum geometry' supporting FQAHE rests on single-particle calculations fitted to the ARPES dispersions. No self-consistent treatment or sensitivity analysis is presented for electrostatic screening of the displacement field by the gates and the induced 2D carrier density. In gated multilayer graphene the internal field experienced by the layers can differ substantially from the nominal value; even modest renormalization of the effective Hamiltonian parameters would alter the computed Berry curvature and quantum metric while leaving the raw ARPES traces unchanged.
  2. [Abstract and quantum-geometry discussion] Abstract and the quantum-geometry discussion: the manuscript does not quantify how finite ARPES resolution, lifetime broadening, or residual disorder could affect the inferred band curvatures, particularly the M-shaped valence-band dispersion. Without an explicit estimate of these effects on the extracted curvature parameters, the assertion that the quantum geometry is 'near-ideal' and directly responsible for the observed phase asymmetry remains vulnerable to systematic corrections.
minor comments (2)
  1. [Introduction] The introduction's compilation of the phase diagram would benefit from an explicit table or supplementary figure listing the cited experiments, doping ranges, and field values for each reported phase to allow readers to assess the claimed electron-hole asymmetry quantitatively.
  2. [Figures] Figure captions for the ARPES intensity maps and extracted dispersions should state the corresponding gate voltages or nominal displacement-field values and include error bars or resolution estimates for the band positions.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. We address the major comments below and will revise the manuscript accordingly to strengthen the analysis of the displacement field and experimental effects on band curvature extraction.

read point-by-point responses

  1. Referee: [Abstract and comparison-with-calculations section] Abstract and the comparison-with-calculations section: the claim that the extracted parameters yield 'near-ideal quantum geometry' supporting FQAHE rests on single-particle calculations fitted to the ARPES dispersions. No self-consistent treatment or sensitivity analysis is presented for electrostatic screening of the displacement field by the gates and the induced 2D carrier density. In gated multilayer graphene the internal field experienced by the layers can differ substantially from the nominal value; even modest renormalization of the effective Hamiltonian parameters would alter the computed Berry curvature and quantum metric while leaving the raw ARPES traces unchanged.

    Authors: We agree that accounting for electrostatic screening is important for a quantitative comparison. In our work, the ARPES data are taken at low carrier densities where screening effects are minimized, and the nominal displacement field values are calibrated against the observed gap opening and band shifts. To address the referee's concern, we will perform a sensitivity analysis by varying the effective displacement field in the calculations by up to 20% (consistent with typical screening estimates in similar graphene systems) and demonstrate that the key features of the quantum geometry, including the large Berry curvature on the electron side, remain robust. We will add this analysis to the revised manuscript and supplementary information. revision: yes

  2. Referee: [Abstract and quantum-geometry discussion] Abstract and the quantum-geometry discussion: the manuscript does not quantify how finite ARPES resolution, lifetime broadening, or residual disorder could affect the inferred band curvatures, particularly the M-shaped valence-band dispersion. Without an explicit estimate of these effects on the extracted curvature parameters, the assertion that the quantum geometry is 'near-ideal' and directly responsible for the observed phase asymmetry remains vulnerable to systematic corrections.

    Authors: We thank the referee for highlighting this point. The M-shaped dispersion in the valence band is a prominent feature observed consistently in our data, and the curvature parameters are extracted from momentum distribution curves and energy distribution curves that incorporate the known instrumental resolution of our nanospot ARPES setup (approximately 20 meV energy and 0.01 Å^{-1} momentum). To quantify the impact, we will add an analysis in the revised manuscript where we convolve the theoretical bands with broadening functions matching our experimental resolutions and estimate the effect of disorder broadening. This will show that while the absolute curvature values have some uncertainty, the asymmetry between conduction and valence bands and the resulting near-ideal quantum geometry for the electron-doped side persist. We believe this will bolster the claim. revision: yes

Circularity Check

0 steps flagged

No significant circularity; central claims derive from independent ARPES measurements

full rationale

The paper's derivation begins with experimental ARPES data on field-dependent band dispersions in R5G, which are directly measured and visualized. These observations of asymmetric flattening (FVB to M-shaped, FCB flattening) stand independently. Comparison to calculations is used only to identify governing parameters and compute derived quantities such as Berry curvature and quantum geometry; the computed properties are outputs from the fitted model, not inputs that redefine the measured dispersions. No self-definitional steps, fitted inputs renamed as predictions, or load-bearing self-citations that reduce the central claim to its own assumptions appear in the chain. The link to topological phases is interpretive support, not a tautology.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Based on the abstract alone, no explicit free parameters, axioms, or invented entities are stated; the work relies on standard band-structure calculations whose internal parameters are not detailed here.
