JESTR: Joint Embedding Space Technique for Ranking Candidate Molecules for the Annotation of Untargeted Metabolomics Data

T0 review · 3 major / 5 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read JESTR ranks metabolite candidates by contrastively learning a joint molecule-spectrum embedding space, avoiding explicit fingerprint or spectrum reconstruction.

desk verdict Solid empirical paper on joint embedding for metabolomics, with a strong evaluation and an honest ablation—but the headline gains over ESP/MIST need an overlap analysis between regularization candidates and test decoys before I trust them. read the letter →

arxiv 2411.14464 v3 pith:7JVME4OB submitted 2024-11-18 q-bio.QM cs.AIcs.LGq-bio.BM

Apurva Kalia , Yan Zhou Chen , Dilip Krishnan , Soha Hassoun This is my paper · ORCID
classification q-bio.QMcs.AIcs.LGq-bio.BM
keywords metabolomicsannotationjointembeddingspacecontrastivelearningmassspectrometrycandidaterankingmolecularfingerprintregularizationcosinesimilarity
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

JESTR addresses metabolite annotation — assigning a molecular structure to a measured tandem mass spectrum — by treating the molecule and its spectra as two views of the same object and learning a joint embedding space for both. Instead of explicitly predicting a fingerprint or a spectrum and then matching, JESTR trains a graph-neural-network molecular encoder and a spectral encoder with contrastive loss, and ranks candidate molecules by cosine similarity to the query spectrum in that shared space. The paper claims this implicit paradigm outperforms explicit-construction tools (ESP, MIST) and the joint-embedding model CMSSP on rank@1, rank@5, and rank@20 across four datasets, with average rank@[1-20] gains of 55.5%, 56.6%, and 302.56% respectively, and also beats pretrained SIRIUS and CFM-ID on held-out MassSpecGym subsets by 31% and 238%. A fine-tuning regularization step that pulls formula-matched candidate molecules away from training spectra further improves rank@1 on the three non-MassSpecGym datasets. If the claims hold, the field's heavy reliance on reconstructing intermediate fingerprints or spectra may be unnecessary for accurate ranking.

What carries the argument

The central object is the joint molecule-spectrum embedding space learned by two encoders: a graph-convolutional network over molecular graphs and a three-layer MLP over 1000-dimension binned spectra, trained with Contrastive Multiview Coding (CMC) — a contrastive objective using temperature-scaled cosine similarity (InfoNCE loss) that pulls matching views together and pushes non-matching views apart. The second mechanism is regularization: during the last 3% of training, an additional loss minimizes cosine similarity between each spectrum embedding and the $k_{aug}$ most Tanimoto-similar formula-matched candidate molecules fetched from PubChem, teaching the model to suppress near-target candidates. Ranking at inference is then pure cosine similarity between the query spectrum embedding and each candidate molecular embedding, which the paper argues is sufficient because the joint space already separates targets from candidates.

What would settle it

Compute the overlap between the regularization candidate pool (all formula-matched PubChem molecules retrieved for training targets) and the test candidate sets for NPLIB1, NIST2020, MoNA, and MassSpecGym, e.g., by InChIKey; if a large fraction of test candidates appear in the regularization pool, the rank@1 improvements over the no-regularization baseline would be suspect. A complementary falsifier would be retraining with regularization candidates restricted to molecules whose Tanimoto similarity to every test target is low and checking whether rank@1 gains persist.

Watch

Extended reading notes

Core claim

The paper's central claim is that a molecule and its mass spectrum are views of the same object, so the annotation problem reduces to learning a joint embedding space in which matching molecule-spectrum pairs are close and non-matching pairs are far apart. Using Contrastive Multiview Coding with a temperature-scaled InfoNCE loss, JESTR trains a GNN encoder for molecular graphs and an MLP encoder for binned, intensity-normalized spectra. At inference, candidates are ranked purely by cosine similarity between the spectrum embedding and each candidate's molecular embedding, with no learned ranking layer and no intermediate fingerprint or spectrum reconstruction. The paper reports that this simple scheme outperforms explicit-construction baselines on all four datasets (NPLIB1, NIST2020, MoNA, MassSpecGym) on nearly all ranks, and demonstrates via ablation that the regularization loss, which pushes the most Tanimoto-similar formula-matched candidates away from each training spectrum, is responsible for substantial rank@1 gains on the three curated datasets. The paper also attributes the advantage over CMSSP to the combination of the InfoNCE loss and cosine-similarity ranking, arguing that magnitude normalization prevents embedding-scale artifacts.

Load-bearing premise

The load-bearing premise is that the millions of PubChem molecules used as regularization candidates during training do not substantially overlap the molecules in the test candidate sets; if they do overlap, the model could learn to suppress those specific identities and inflate the reported rank@k numbers.

Editorial extensions

If this is right

  • If JESTR's results hold, explicit reconstruction of fingerprints or spectra is not a necessary step for accurate candidate ranking; a contrastively learned joint space plus cosine similarity is sufficient.
  • The regularization recipe — fine-tuning with formula-matched candidates drawn from PubChem — sharpens the target-versus-candidate boundary, improving rank@1 by up to 37.1% on the MoNA dataset.
  • On held-out MassSpecGym subsets, JESTR generalizes to structurally novel molecules better than pretrained SIRIUS (31% relative rank@1 gain) and CFM-ID (238% relative gain), suggesting implicit embedding methods scale better to unseen chemistry.
  • The temperature-scaled cosine similarity combined with InfoNCE loss, rather than dot-product cross-entropy, is the component that gives JESTR its edge over the similarly structured CMSSP, per the paper's ablation.
  • Because JESTR needs no spectral library coverage, its annotation capability is not limited by reference spectra availability, directly addressing the low 2.3% library-search identification rate cited in the introduction.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The paper leaves implicit that the regularization pool (millions of formula-matched PubChem molecules) may overlap the test candidate sets; if a large fraction of test candidates appeared in training regularization, part of the reported rank@1 gains could come from suppressing already-seen identities rather than learning view-invariant chemistry.
  • The ablation shows regularization lifts rank@1 on the three curated datasets but slightly reduces rank@20 on NPLIB1 and yields no consistent gain on MassSpecGym, hinting that the last-3%-of-epochs, 0.1-weight schedule is dataset-dependent rather than a universal recipe.
  • Because JESTR's encoders are independent of how candidates are produced, the same joint space could be reused for de novo generation, e.g., by decoding the molecular embedding manifold, connecting this ranking technique to spec-to-mol generation.
  • A stricter head-to-head against CMSSP's released pretrained weights, rather than weights retrained on each dataset, would clarify how much of the 302.56% margin is architectural (InfoNCE plus cosine ranking) versus a training-from-scratch disadvantage.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper proposes JESTR, a contrastive-learning method that embeds mass spectra and molecular graphs in a shared space and ranks candidate molecules by cosine similarity, adding a regularization loss that uses PubChem formula-matched candidate molecules to push non-targets away. The method is evaluated on NPLIB1, NIST2020, MoNA, and MassSpecGym, with rank@1/5/20 comparisons against ESP, MIST, CMSSP, and against SIRIUS and CFM-ID on MassSpecGym subsets. The authors report large average improvements over ESP, MIST, and CMSSP, and an ablation showing that regularization improves rank@1 on three datasets.

Significance. The paper's central idea of avoiding explicit fingerprint or spectrum reconstruction is well motivated, and the evaluation is broad, covering four datasets and multiple baselines. The authors are honest about several cases where baselines beat JESTR, such as MIST on MoNA rank@1 and CMSSP pretrained on NPLIB1 rank@1, and they report that regularization does not help on MassSpecGym. The release of code and data is a strength. However, two methodological issues—possible overlap between regularization candidates and test candidate sets, and hyperparameter selection without a validation split—currently make the magnitude of the reported improvements uncertain. If these are resolved, the paper would be a solid contribution to the metabolomics annotation literature.

major comments (3)
  1. [Section 2.3 and Section 3.1] The regularization candidates and the test candidate sets are both retrieved from PubChem by molecular formula, yet the paper never measures their overlap. The InChIKey-disjoint split only excludes test target molecules from training targets; it does not prevent test candidate decoys or even test target molecules from appearing as regularization negatives. If such overlap is substantial, the regularization loss of Eq. (6) may have directly suppressed test decoys during training, inflating the rank@k results in Table 2 and the ablation gains in Section 3.6. Please quantify, for each dataset, the fraction of test candidate molecules (and test targets) that appear in the regularization pool, and re-run the main experiments with overlapping candidates removed (or with a candidate-disjoint split) to establish that the reported improvements over ESP, MIST, and CMSSP are not an artifact of this exposure.
  2. [Section S2, Table S1] Hyperparameters were selected by grid search and 'the values of the parameters that achieved the best performance were selected and used to train and test the model for all datasets.' Because there is no separate validation split, the reported test numbers are selected on the test set, which is circular and can overstate accuracy. Please introduce a validation split (or nested resampling) and report test results using hyperparameters chosen solely from validation data. The same concern applies to how hyperparameters were selected for the MIST and ESP baselines, which is not described.
  3. [Section 3.6 and Conclusion] The text states that regularization improves rank@1 by 11.4%, 6.0%, and 37.1% on NPLIB1, NIST2020, and MoNA, respectively, but the abstract and conclusion report an average improvement of 5.72% across all datasets. This number does not correspond to any simple average of the per-dataset improvements in Table 2, especially since regularization is neutral or slightly negative on MassSpecGym. Please clarify the averaging procedure or correct the reported average.
minor comments (5)
  1. [Section 3.1] The MassSpecGym dataset is described as containing 32,010 molecules, but later in the same section it is said to contain 29,000 unique molecular structures; these numbers should be reconciled.
  2. [Section 3.3] There is a typo: 'CMF-ID' should be 'CFM-ID' in the sentence reporting a 238.00% improvement.
  3. [Section 3.3] The CFM-ID comparison uses a single random draw of spectra per collision-energy bin; please report results over multiple random draws or provide a seed and variance estimate, since random selection can affect the merged-spectrum evaluation.
  4. [Table 3] The header of Table 3 repeats 'CE loss' for two columns; the caption should clarify which columns correspond to the CMSSP architecture and which to the JESTR architecture.
  5. [Section S2] Table S2 reports that JESTR was trained for 800 epochs on NPLIB1, while Section S1 says contrastive learning was stopped at 1000 epochs; please clarify the stopping criterion and the exact number of epochs used.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity; the central rank@k claims are supported by held-out test evaluation against external baselines, and the regularization result is an ablation, not a fitted prediction.

full rationale

This is an empirical machine-learning paper, not a derivation. The central claims (Sections 3.3 and 3.6) are supported by evaluating JESTR on held-out test splits against external baselines (ESP, MIST, CMSSP, SIRIUS, CFM-ID), with structure-disjoint train/test splits. The regularization procedure (Eq. 6) is an additional training loss applied to training-batch candidates, and its value is assessed by an ablation that retrains without it; it is not a parameter fitted to the test ranking metric and then reported as a prediction. No equation in the paper reduces by construction to its own output, and no load-bearing premise is justified only by a self-citation. The one legitimate concern — that regularization candidates and test candidate sets are both drawn from the same formula-matched PubChem pools and the overlap is not quantified — is a potential data-leakage or correctness risk, not a circularity: the model never sees test target labels, and the reported gains are measured, not derived. Self-citations to prior work (e.g., CMC, ESP, PUMA) are used as background or as baselines, not as unverified premises that force the conclusion. The paper also discloses limitations, including the inconsistent benefit of regularization on MassSpecGym and possible leakage in the CMSSP comparison, which further supports a non-circular reading.

Assumptions & free parameters 7 free parameters · 4 assumptions · 0 invented entities

The paper introduces no new physical or chemical entities. The joint embedding space is a model artifact, not a new ontological claim. The central claim rests on several domain assumptions about spectral binning, candidate set representativeness, and the sufficiency of in-batch negatives, plus the tuned hyperparameters listed above.

free parameters (7)
  • InfoNCE temperature tau = 0.05
    Temperature hyperparameter controlling sharpness of cosine similarity in the contrastive loss; tuned by grid search (Table S1).
  • Contrastive batch size = 32
    Number of spectrum-molecule pairs per batch; affects the number of in-batch negatives; tuned among 32, 64, 128.
  • Regularization candidate batch size kaug = 32
    Number of most similar candidates per molecule used in the regularization loss; set to 32 (Section S1).
  • Regularization loss weight beta = 0.1
    Weight for regularization loss during the last 3% of epochs; tuned among 0.1, 0.3, 0.5 (Table S1).
  • Regularization epoch percentage = 3%
    Fraction of final epochs during which regularization is active; tuned among 3, 10, 20 (Table S1).
  • Learning rate = 5e-4
    Adam learning rate for contrastive training; tuned among 5e-6, 5e-5, 5e-4 (Table S1).
  • Early stopping patience = 80
    Epochs without improvement before stopping; tuned among 20, 40, 80 (Table S1).
assumptions (4)
  • domain assumption A molecule and its MS/MS spectra are views of the same object, so contrastive learning can align their embeddings.
    Core premise of the joint embedding approach (Section 2.2).
  • domain assumption PubChem-derived, formula-matched candidate sets are representative of the isomer space for metabolites in the test sets and are appropriate for both training regularization and evaluation.
    Candidate sets for three datasets are pulled from PubChem by formula matching (Section 3.1).
  • domain assumption Binning spectra into 1 Da m/z bins and applying log10/3 intensity scaling preserves enough information for ranking.
    Spectral preprocessing choice in Section 2.1, Eq. 2.
  • domain assumption In-batch random negatives provide a sufficient contrastive signal for learning a discriminative joint space.
    The InfoNCE loss uses only in-batch negatives with batch size 32 (Section 2.2 and Supplementary S1).

how reviews work

0 comments
Cite this review

Pith. "Pith review of JESTR: Joint Embedding Space Technique for Ranking Candidate Molecules for the Annotation of Untargeted Metabolomics Data." pith.science (2026). https://pith.science/paper/7JVME4OB

@misc{pith2026241114464,
  author       = {Pith},
  title        = {Pith review of: JESTR: Joint Embedding Space Technique for Ranking Candidate Molecules for the Annotation of Untargeted Metabolomics Data},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/7JVME4OB}},
  note         = {Machine review of arXiv:2411.14464}
}
read the original abstract

Motivation: A major challenge in metabolomics is annotation: assigning molecular structures to mass spectral fragmentation patterns. Despite recent advances in molecule-to-spectra and in spectra-to-molecular fingerprint prediction (FP), annotation rates remain low. Results: We introduce in this paper a novel paradigm (JESTR) for annotation. Unlike prior approaches that explicitly construct molecular fingerprints or spectra, JESTR leverages the insight that molecules and their corresponding spectra are views of the same data and effectively embeds their representations in a joint space. Candidate structures are ranked based on cosine similarity between the embeddings of query spectrum and each candidate. We evaluate JESTR against mol-to-spec and spec-to-FP annotation tools on three datasets. On average, for rank@[1-5], JESTR outperforms other tools by 23.6%-71.6%. We further demonstrate the strong value of regularization with candidate molecules during training, boosting rank@1 performance by 11.4% and enhancing the model's ability to discern between target and candidate molecules. When comparing JESTR's performance against that of publicly available pretrained models of SIRIUS and CFM-ID on appropriate subsets of MassSpecGym benchmark dataset, JESTR outperforms these tools by 31% and 238%, respectively. Through JESTR, we offer a novel promising avenue towards accurate annotation, therefore unlocking valuable insights into the metabolome.

Figures

Figures reproduced from arXiv: 2411.14464 by the authors.

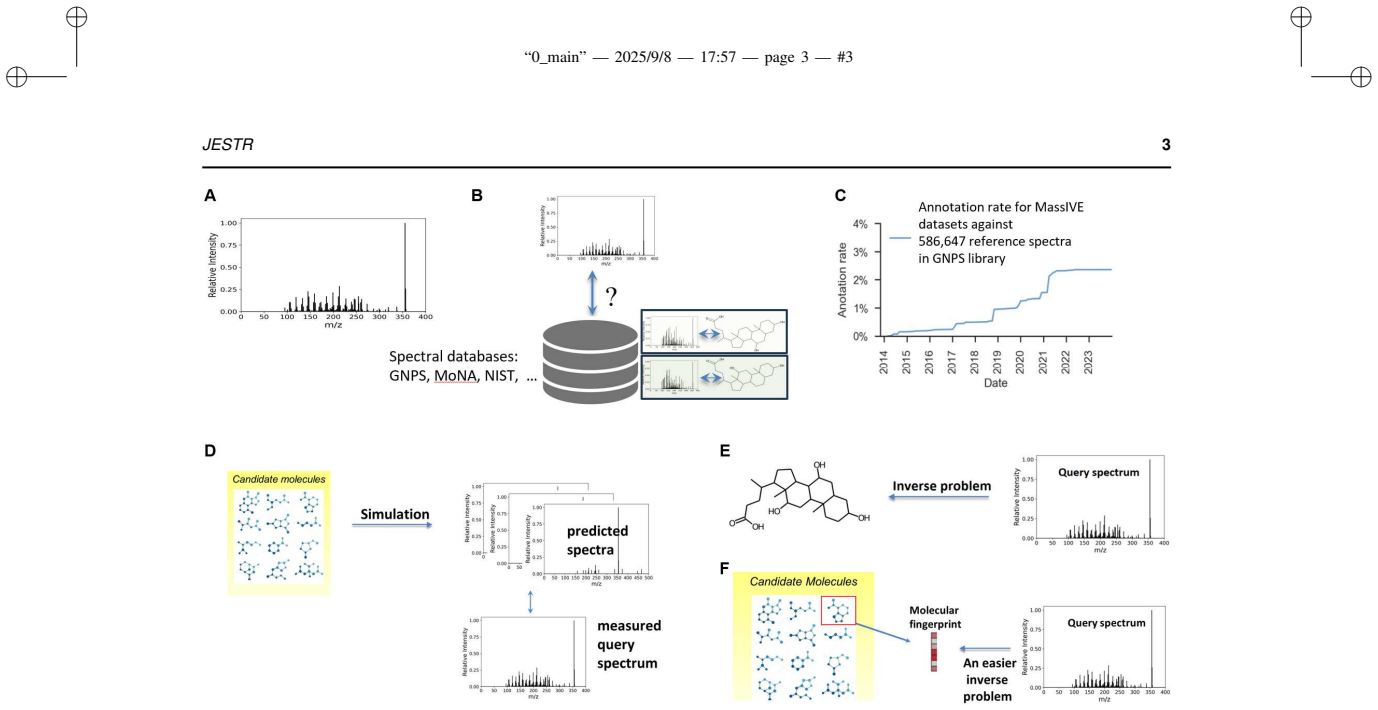

Figure 1
Figure 1. Current annotation workflows. A. Example spectrum measured using LC-MS or MS/MS, where x-axis represent the mass-to-charge ratio and the y-axis represent the relative intensity of each peak. B. Reference library search using spec-to-spec comparison. C. Current annotation rates using state-of-the-art library search are low despite growth in reference databases. D. Mol-to-spec predictive approach mimics the mass spect… view at source ↗
Figure 2
Figure 2. Novelty of the JESTR annotation approach. A. JESTR avoids the explicit generation of spectra, molecules, and fingerprints, and ranks the candidate molecules against the query spectrum based on their joint-space embeddings. B. JESTR learns to place representations of matching molecule-spectrum pairs close in the joint embedding space relative to non-matching pairs. Further, JESTR utilizes additional molecules beyond … view at source ↗

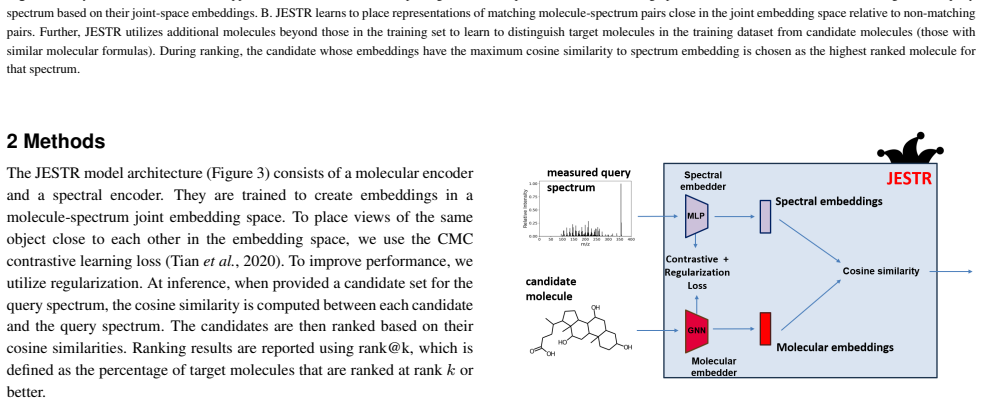

Figure 3
Figure 3. Overview of the JESTR model architecture. The model is trained to minimize the contrastive and regularization losses. The embeddings produced by the encoders are used to compute the cosine similarity in the joint embedding space between a molecule and a spectrum. final spectral embedding, zspec: zs = 1 3 log10({Σ Ii, ∀ i, n < (mz)i < (n + 1), f or n in 0..999}) (2) where Ii is the intensity of the i-th peak and mzi … view at source ↗
Figures from the paper (2 more)
Figure 4
Figure 4. Figure 4: Results on NPLIB1. A. Rank@k results for JESTR , with and without regularization, ESP MLP-PD, and MIST. B. Distribution of cosine similarities of query spectra and target/candidate molecules with contrastive learning using JESTR. dataset, JESTR achieves 15.62% rank@1 u…
Figure 5
Figure 5. Figure 5: Regularization analysis for JESTR for NPLIB1. A. Regularization improves rank@k by significantly placing more targets at rank 1. B. Distribution on Tanimoto similarities on the ECFP fingerprints between target and candidates in the training set. C. Distribution on cosi…

Discussion (0). Continue with ORCID to comment.
