arxiv: 2511.01995 · v2 · submitted 2025-11-03 · ✦ hep-ex

Inclusive and differential measurements of the mathrm{tbar{t}}γ cross section and the mathrm{tbar{t}}γ / mathrm{tbar{t}} cross section ratio in proton-proton collisions at sqrt{s} = 13 TeV

CMS Collaboration This is my paper

Pith reviewed 2026-05-18 00:53 UTC · model grok-4.3

classification ✦ hep-ex
keywords top quark pairphoton associationcross section measurementfiducial phase spaceCMS detector13 TeV collisionscharge asymmetrystandard model test
0
0 comments X

The pith

The fiducial cross section for top quark pair production with a photon is measured to be 137 fb, agreeing with the standard model prediction of 126 fb.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper measures the cross section for producing a top quark pair together with a photon in proton-proton collisions at 13 TeV. Using 138 fb inverse of data collected by the CMS detector, events with two leptons and a high-momentum isolated photon are selected. The fiducial cross section is found to be 137 plus or minus 8 fb, close to the predicted 126 plus or minus 19 fb. The ratio of the tt gamma cross section to the tt cross section is 0.0133 plus or minus 0.0005, matching the expected 0.0127 plus or minus 0.0008. Differential distributions and the charge asymmetry are also compared to theory and show consistency.

Core claim

The authors measure the inclusive fiducial tt gamma cross section to be 137 plus or minus 8 fb and the tt gamma to tt ratio to be 0.0133 plus or minus 0.0005 at 13 TeV, both in agreement with standard model predictions of 126 plus or minus 19 fb and 0.0127 plus or minus 0.0008, based on events containing two leptons and an isolated photon in 138 fb inverse of data.

What carries the argument

Fiducial phase space selection requiring two leptons and a high-momentum isolated photon, combined with background subtraction using simulation and unfolding to particle and parton level for differential results.

If this is right

  • Differential cross sections versus lepton, photon, and top quark kinematics test higher-order QCD calculations directly.
  • The tt gamma to tt ratio measurement reduces sensitivity to common systematic uncertainties in the absolute rates.
  • The measured top quark charge asymmetry of minus 0.012 plus or minus 0.042 constrains possible beyond-standard-model contributions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Continued agreement at higher luminosity would tighten constraints on new physics models that alter rare top quark processes.
  • Extending the same fiducial approach to other rare top-associated processes could provide a consistent test of the standard model.

Load-bearing premise

After all selection cuts and background subtraction, the remaining events are dominated by genuine tt gamma production in the defined fiducial phase space.

What would settle it

A measured fiducial cross section significantly different from 126 fb in an independent analysis with higher statistics or a different photon selection would challenge the reported agreement.

Figures

Figures reproduced from arXiv: 2511.01995 by CMS Collaboration.

Figure 1
Figure 1. Figure 1: Example Feynman diagrams for the production of t [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Distributions after the event selection for: the [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The pT (t 1 ) (upper left), m(tt) (upper right), and ∆|y|(t, t) (lower) distributions in data and simulation, after the fit to the production component of ttγ, described in Section 9.3. The hatched area indicates the total uncertainty in the prediction. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the data to the sum of the prefit predictions (… view at source ↗
Figure 4
Figure 4. Figure 4: Distributions of the invariant mass of the two leptons (left) and two leptons + pho [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗
Figure 5

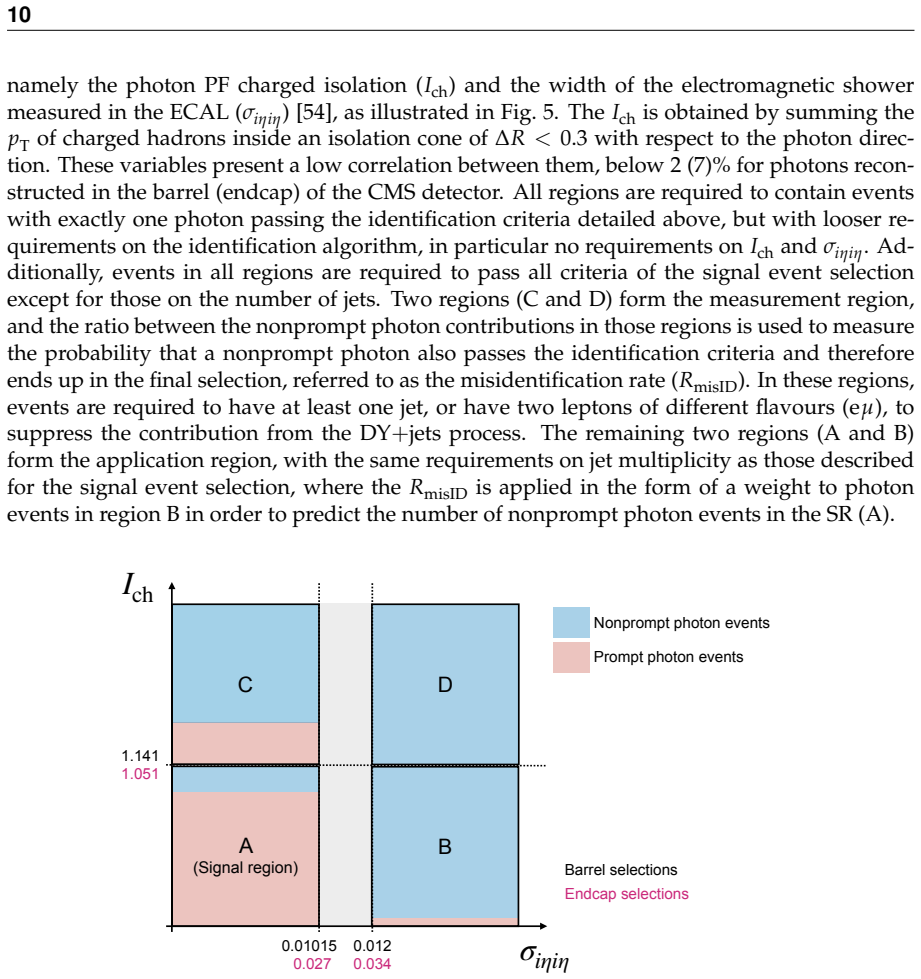

Figure 5. Figure 5: Schematic representation of the regions used to estimate the contribution from events [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6

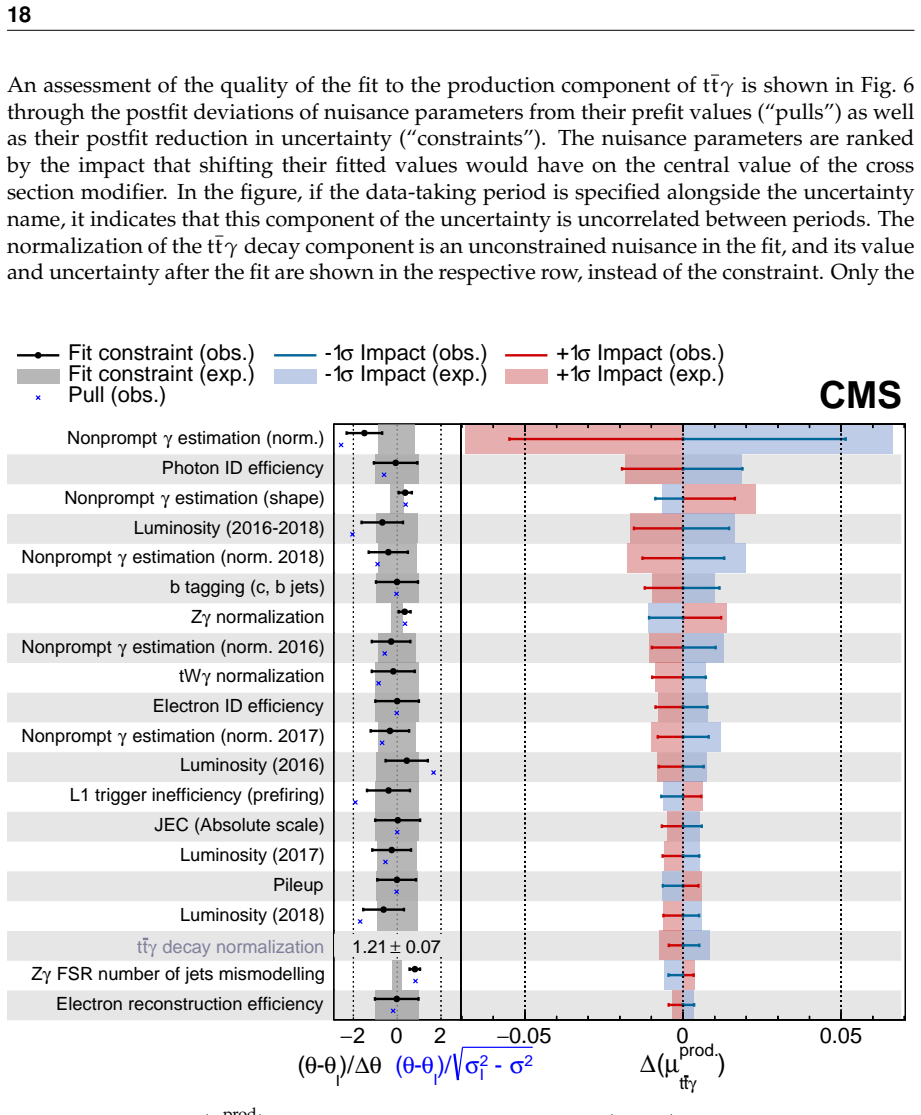

Figure 6. Figure 6: Impacts ∆(µ prod ttγ ) (right column) and fit constraints (θ − θI )/∆θ (middle column) of the twenty most important nuisance parameters (listed in the left column) in the fit to extract the cross section of the ttγ production component. In the fit constraints column, the gray horizontal bands (black horizontal lines) show the ratio between the uncertainties in the fit result and the ones initially assigned… view at source ↗
Figure 7
Figure 7. Figure 7: Absolute (left) and normalized (right) differential t [PITH_FULL_IMAGE:figures/full_fig_p022_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Absolute (left) and normalized (right) differential t [PITH_FULL_IMAGE:figures/full_fig_p023_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Absolute (left) and normalized (right) differential t [PITH_FULL_IMAGE:figures/full_fig_p024_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Absolute (left) and normalized (right) differential t [PITH_FULL_IMAGE:figures/full_fig_p025_10.png] view at source ↗
Figure 11

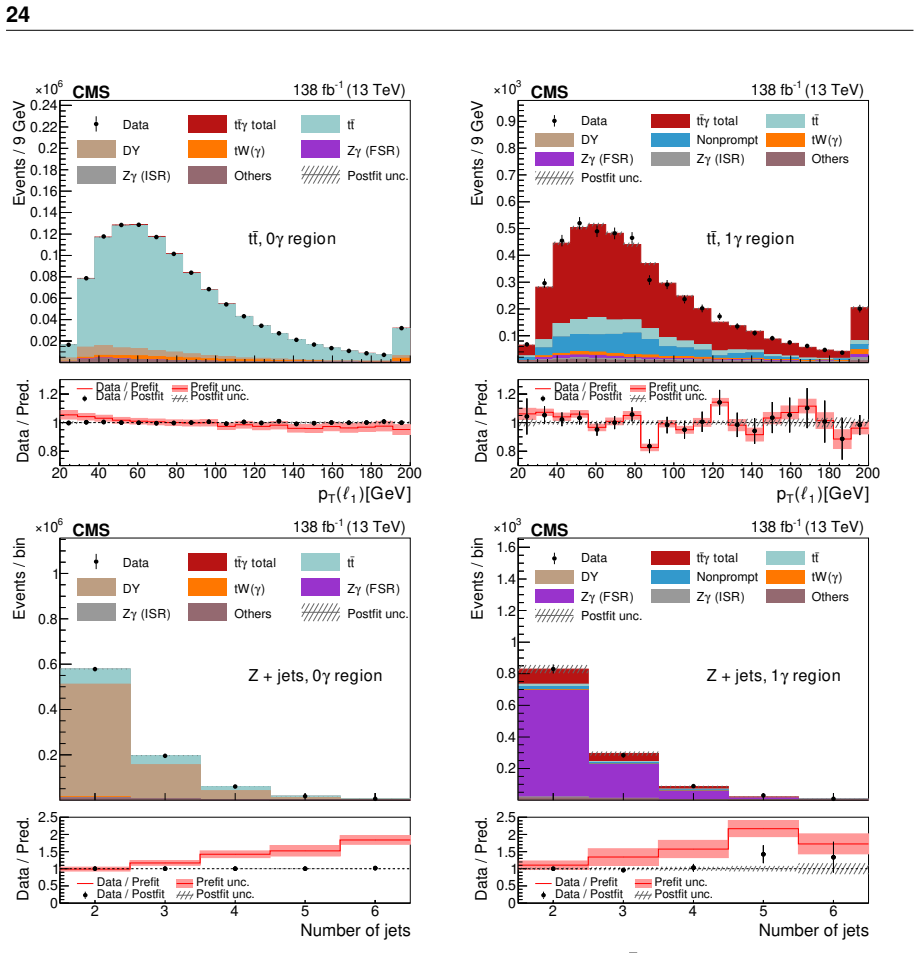

Figure 11. Figure 11: Distribution of the pT of the leading lepton for the “tt, 0γ” region (upper left) and the “tt, 1γ” SR (upper right), and the number of jets for the DY+jets (lower left) and Zγ+jets (lower right) CRs after the fit. The hatched area indicates the total uncertainty in the prediction. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the data to the su… view at source ↗
Figure 12
Figure 12. Figure 12: Absolute differential measurements of Rγ as a function of pT (t 1 ) at the parton level (left) and pT (ℓ1 ) at the particle level (right). The purple (blue) lines show the predic￾tions from the nominal (alternative) simulation, and the lighter purple (blue) shaded areas represent the theoretical uncertainties in the predictions. The gray lines and bands represent the fixed-order predictions and their resp… view at source ↗
read the original abstract

Inclusive and differential cross section measurements of top quark pair ($\mathrm{t\bar{t}}$) production in association with a photon ($\gamma$) are performed as a function of lepton, photon, top quark, and $\mathrm{t\bar{t}}$ kinematic observables, using data from proton-proton collisions at $\sqrt{s}$ = 13 TeV, corresponding to an integrated luminosity of 138 fb$^{-1}$, collected at the CERN LHC with the CMS detector. Events containing two leptons (electrons or muons) and a photon in the final state are considered. The fiducial cross section of $\mathrm{t\bar{t}}\gamma$ is measured to be 137 $\pm$ 8 fb, in a phase space including events with a high momentum, isolated photon. The fiducial cross section of $\mathrm{t\bar{t}}\gamma$ is also measured to be 56 $\pm$ 5 fb when considering only events where the photon is emitted in the production part of the process. Both measurements are in agreement with the theoretical predictions, of 126 $\pm$ 19 fb and 57 $\pm$ 5 fb, respectively. Differential measurements are performed at the particle and parton levels. Additionally, inclusive and differential ratios between the cross sections of $\mathrm{t\bar{t}}\gamma$ and $\mathrm{t\bar{t}}$ production are measured. The inclusive ratio is found to be 0.0133 $\pm$ 0.0005, in agreement with the standard model prediction of 0.0127 $\pm$ 0.0008. The top quark charge asymmetry in $\mathrm{t\bar{t}}\gamma$ production is also measured to be $-$0.012 $\pm$ 0.042, compatible with both the standard model prediction and with no asymmetry.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper reports inclusive and differential cross-section measurements of ttγ production in the dilepton final state with an isolated high-momentum photon, using 138 fb^{-1} of 13 TeV CMS data. The fiducial ttγ cross section is measured as 137 ± 8 fb (theory 126 ± 19 fb) and 56 ± 5 fb for the production-stage photon subset (theory 57 ± 5 fb). The inclusive ttγ/tt ratio is 0.0133 ± 0.0005 (SM 0.0127 ± 0.0008), with differential distributions at particle and parton level and a charge asymmetry of -0.012 ± 0.042.

Significance. If the results hold, this constitutes a precision test of the SM ttγ process at the LHC, probing the top-photon coupling and providing differential distributions for validation of NLO+PS predictions. The ratio measurement cancels several common uncertainties, yielding a more robust comparison to theory. The large dataset and standard unfolding approach make the results a useful addition to the top-quark physics program.

minor comments (3)
  1. The abstract states that differential measurements are performed at both particle and parton levels; the methods section should explicitly describe the unfolding procedure, choice of regularization, and any migration matrices to allow full reproducibility of the differential results.
  2. Table or figure presenting the breakdown of systematic uncertainties for the fiducial cross section (137 ± 8 fb) would clarify the dominant sources (e.g., photon identification, background modeling) and support the quoted total uncertainty.
  3. The separation between production and decay photons for the 56 fb measurement relies on simulation; a brief discussion of the associated modeling uncertainty and any data-driven validation would strengthen the claim.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of our manuscript and the recommendation for minor revision. The referee's summary accurately reflects the main results and their significance for testing the Standard Model ttγ process and the top-photon coupling. We appreciate the recognition that the ratio measurement provides a robust comparison to theory.

Circularity Check

0 steps flagged

No circularity: results are direct data-driven measurements

full rationale

The paper performs standard experimental measurements of fiducial ttγ cross sections and the ttγ/tt ratio using 138 fb^{-1} of 13 TeV collision data. Event selection, background estimation, efficiency corrections, and unfolding to particle/parton level are applied to extract the reported values (137 ± 8 fb and 0.0133 ± 0.0005) directly from observed events after subtraction. These are compared to independent SM theoretical predictions (126 ± 19 fb and 0.0127 ± 0.0008) that are not derived within the paper. No load-bearing step reduces by construction to a fit on the same dataset, self-definition, or self-citation chain; the derivation chain is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The measurement rests on standard assumptions about detector response, background composition, and the validity of Monte Carlo generators for ttγ and its backgrounds; no new free parameters or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption Standard Model calculations for ttγ production and the associated backgrounds are sufficiently accurate for comparison with data after efficiency corrections.
    The reported agreement between measured and predicted cross sections relies on this assumption.

pith-pipeline@v0.9.0 · 5889 in / 1278 out tokens · 43326 ms · 2026-05-18T00:53:33.984618+00:00 · methodology
