arxiv: 2602.15166 · v2 · submitted 2026-02-16 · 💻 cs.AR

Recognition: no theorem link

Fast and Fusiest: An Optimal Fusion-Aware Mapper for Accelerator Design

Tanner Andrulis , Michael Gilbert , Vivienne Sze , Joel S. Emer
Authors on Pith no claims yet

Pith reviewed 2026-05-15 21:29 UTC · model grok-4.3

classification 💻 cs.AR
keywords tensor accelerator mappingfusion optimizationenergy-delay productautomated mapperpruningtensor algebradata movement scheduling
0
0 comments X

The pith

FFM prunes partial mappings that cannot lead to optimal fusion to search the full fused mapspace for tensor accelerators in feasible time.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents the Fast and Fusiest Mapper (FFM) as a way to automatically discover the best way to schedule data movement and operations on tensor algebra accelerators while keeping intermediate results on-chip through fusion. Prior automated mappers could not explore the full space of fused mappings because the number of candidates grows exponentially with the number of computation steps, forcing designers to rely on hand-tuned fusion choices. FFM eliminates large subsets of mappings shown never to appear in any optimal schedule, then assembles the remaining partial mappings into complete fused schedules. The resulting mappings deliver up to 1.8 times lower energy-delay product than the hand-optimized TransFusion accelerator and run more than 10,000 times faster than TileFlow or SET.

Core claim

FFM shrinks the search space by pruning subsets of mappings that are shown to never be a part of optimal mappings, quickly eliminating all suboptimal mappings containing those partial mappings, then joins the surviving partial mappings to construct optimal fused mappings.

What carries the argument

The Fast and Fusiest Mapper (FFM) pruning rules on partial mappings, which remove any partial schedule proven never to participate in a globally optimal fused mapping before the remaining pieces are joined into complete schedules.

Load-bearing premise

The pruning rules correctly eliminate only those partial mappings that can never belong to an optimal fused schedule for the given workload shapes and fusion semantics.

What would settle it

A workload in which an optimal fused mapping is known to contain a partial mapping that FFM's rules prune would falsify the pruning correctness claim.

Figures

Figures reproduced from arXiv: 2602.15166 by Joel S. Emer, Michael Gilbert, Tanner Andrulis, Vivienne Sze.

Figure 1
Figure 1. Figure 1: An analogy of pmappings as puzzle pieces. (a) Tabs [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: (a) Pseudocode of a mapping for two matrix-vector [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4
Figure 4. Figure 4: An example constrained optimization and (b) ex [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: (a) ReservationTree for the mapping in Fig. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 7
Figure 7. Figure 7: Overview of the Fast and Fusiest Mapper (FFM). [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8

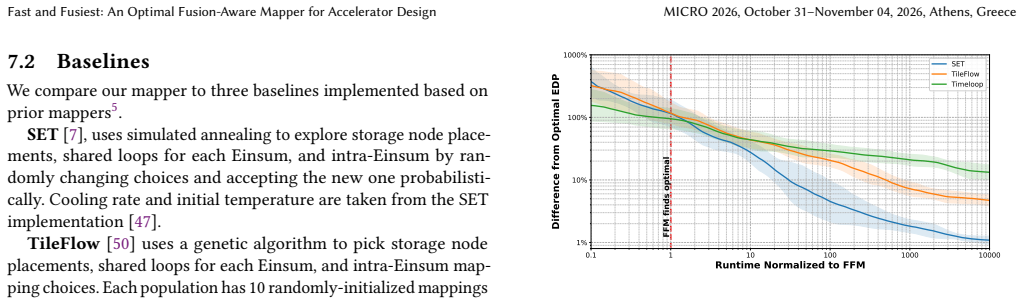

Figure 8. Figure 8: Convergence speeds of baselines relative to FFM. [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FFM is fast and per-Einsum runtime remains flat [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
Figure 12

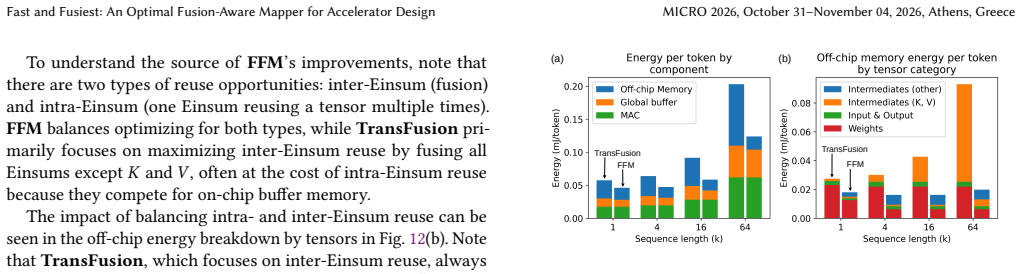

Figure 12. Figure 12: (a) FFM reduces off-chip memory energy compared [PITH_FULL_IMAGE:figures/full_fig_p011_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: FFM strategically fuses Einsums with low com [PITH_FULL_IMAGE:figures/full_fig_p011_13.png] view at source ↗
Figure 11
Figure 11. Figure 11: FFM reduces EDP, latency, and energy per token [PITH_FULL_IMAGE:figures/full_fig_p011_11.png] view at source ↗
read the original abstract

A low-latency and energy-efficient tensor algebra accelerator design must optimize how data movement and operations are scheduled (i.e., mapped) in the accelerator architecture. A key mapping optimization is fusion, meaning holding data on-chip between computation steps in the workload, which has been shown to reduce energy and latency by reducing expensive off-chip data movement. However, the optimal fusion choice depends on the workload and workload shape, and a mapper, which searches for the optimal mapping, can improve energy and latency significantly. However, prior mappers cannot find optimal mappings with fusion (i.e., fused mappings) in a feasible runtime because the number of fused mappings to search increases exponentially with the number of computation steps in the workload. In this paper, we introduce the Fast and Fusiest Mapper (FFM), a mapper to quickly find optimal mappings in a comprehensive fused mapspace for tensor algebra workloads. FFM shrinks the search space by pruning subsets of mappings (i.e., partial mappings) that are shown to never be a part of optimal mappings, quickly eliminating all suboptimal mappings containing those partial mappings. Then FFM joins partial mappings to construct optimal fused mappings. Using FFM, we demonstrate an energy-delay-product (EDP) reduction by up to $1.8\times$ compared to TransFusion, a state-of-the-art accelerator with hand-optimized fusion. Moreover, we show that FFM finds mappings orders of magnitude faster ($>10,000\times$) than prior automated mappers TileFlow and SET, and given the same runtime, reduces EDP by $>2\times$.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper introduces the Fast and Fusiest Mapper (FFM), which prunes partial mappings shown to never appear in optimal fused mappings for tensor algebra workloads on accelerators, then joins the surviving partial mappings to construct complete optimal fused mappings. It claims this enables exhaustive search in a comprehensive fused mapspace, yielding up to 1.8× EDP reduction versus the hand-optimized TransFusion accelerator and >10,000× faster mapping than TileFlow and SET (with >2× EDP improvement at equal runtime).

Significance. If the pruning predicate is sound, FFM would make optimal fusion-aware mapping tractable for workloads with many computation steps, directly addressing the exponential mapspace growth that limits prior automated mappers. This could improve automated design-space exploration for energy-efficient tensor accelerators beyond current hand-tuned or heuristic approaches.

major comments (3)
  1. [§3] §3 (Pruning Rules): The central claim that the pruning rules eliminate only mappings that 'can never be a part of optimal mappings' is presented without a formal invariant, proof sketch, or exhaustive enumeration on representative workloads; the rules depend on unstated assumptions about fusion semantics, dataflow reuse, and cost-model monotonicity that must hold for arbitrary tensor-algebra patterns.
  2. [§5] §5 (Experimental Results): Concrete claims of 1.8× EDP reduction and >10,000× speedup are reported, yet the manuscript supplies no details on workload selection, accelerator parameters, cost-model implementation, or any validation that the pruned mapspace still contains the true optimum; this leaves the performance numbers unsupported and non-reproducible from the given text.
  3. [§4.2] §4.2 (Joining Step): The joining procedure that reconstructs complete fused mappings from pruned partials is described at a high level but does not specify how it guarantees completeness (i.e., that every optimal fused mapping is recovered) once pruning has occurred.
minor comments (2)
  1. [Abstract] Abstract: The title uses 'Fusiest' but the term is never defined or motivated in the body; a brief clarification of the intended meaning would improve readability.
  2. [Figure 2] Figure 2: The diagram of the pruning and joining process lacks labels on the partial-mapping nodes and does not indicate which pruning rules are applied at each step.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the thorough and constructive review. We address each major comment below and will revise the manuscript to strengthen the formal arguments, add missing experimental details, and clarify the joining procedure.

read point-by-point responses

  1. Referee: [§3] §3 (Pruning Rules): The central claim that the pruning rules eliminate only mappings that 'can never be a part of optimal mappings' is presented without a formal invariant, proof sketch, or exhaustive enumeration on representative workloads; the rules depend on unstated assumptions about fusion semantics, dataflow reuse, and cost-model monotonicity that must hold for arbitrary tensor-algebra patterns.

    Authors: We agree that the current presentation lacks a formal invariant and proof sketch. In the revised manuscript we will add to §3 a proof sketch based on cost-model monotonicity (any increase in partial cost cannot be offset by later fusion choices) together with the standard fusion semantics that fused steps must share on-chip buffers without intermediate DRAM writes. We will also report exhaustive enumeration results on representative small workloads (chains of 3–5 GEMMs and CONVs) confirming that no optimal mapping is eliminated. The assumptions on fusion semantics, dataflow reuse, and monotonicity will be stated explicitly at the start of the section. revision: yes

  2. Referee: [§5] §5 (Experimental Results): Concrete claims of 1.8× EDP reduction and >10,000× speedup are reported, yet the manuscript supplies no details on workload selection, accelerator parameters, cost-model implementation, or any validation that the pruned mapspace still contains the true optimum; this leaves the performance numbers unsupported and non-reproducible from the given text.

    Authors: We accept that the experimental section is insufficiently detailed for reproducibility. The revised §5 will enumerate the exact workloads (MLPerf-derived GEMM/CONV shapes plus synthetic chains), accelerator parameters (PE array size, buffer capacities, NoC bandwidth), and cost-model implementation (Timeloop/Accelergy energy and latency tables). We will also add a validation subsection that compares FFM against exhaustive search on reduced mapspaces to confirm the pruned space retains the true optimum, thereby supporting the reported 1.8× EDP and >10,000× speedup figures. revision: yes

  3. Referee: [§4.2] §4.2 (Joining Step): The joining procedure that reconstructs complete fused mappings from pruned partials is described at a high level but does not specify how it guarantees completeness (i.e., that every optimal fused mapping is recovered) once pruning has occurred.

    Authors: We will expand §4.2 with pseudocode for the join operation and an explicit completeness argument: because the pruning rules of §3 remove only partial mappings that cannot participate in any optimal solution, every optimal complete mapping is composed exclusively of surviving partials; the join enumerates all compatible combinations of those partials and therefore recovers every optimal fused mapping. A short inductive argument will be included to show that no optimal mapping is lost. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper's core mechanism prunes partial mappings claimed to never appear in optimal fused mappings before joining survivors to form complete mappings. This is presented as an analysis of optimality invariants for tensor algebra operations and the accelerator cost model, with results validated empirically against external baselines (TransFusion, TileFlow, SET). No equations or steps reduce by construction to fitted parameters, self-definitions, or load-bearing self-citations; the pruning predicate is asserted from workload properties rather than derived from the target result itself. The derivation remains self-contained and externally falsifiable via the reported EDP and runtime comparisons.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no explicit free parameters, axioms, or invented entities; the pruning correctness is treated as an unstated domain assumption whose validity cannot be audited from the given text.
