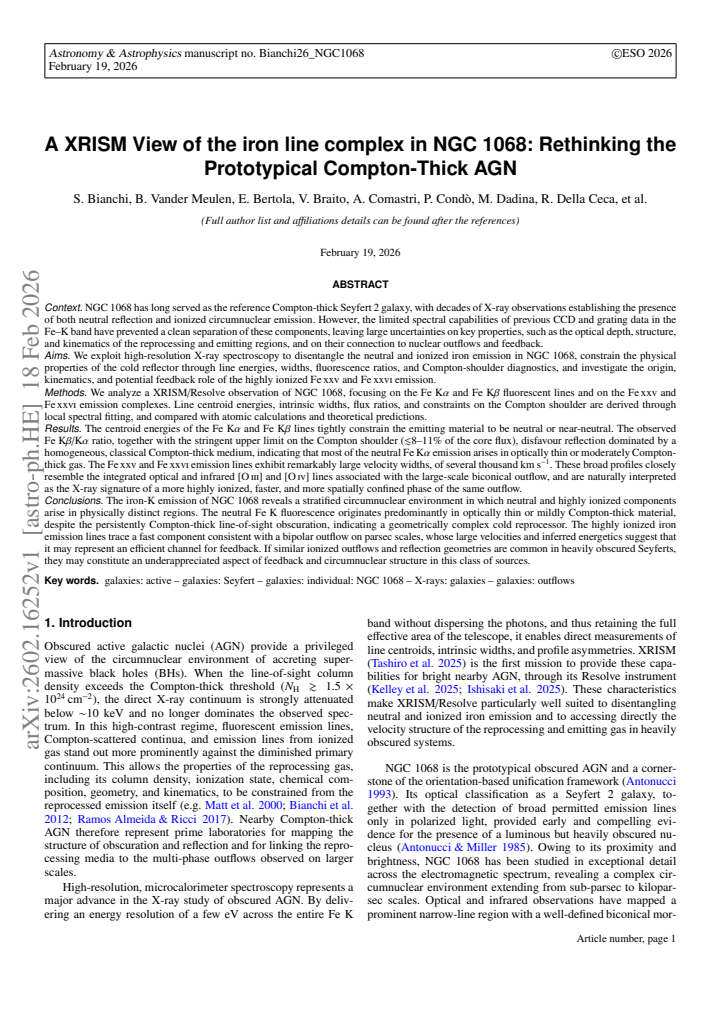

A XRISM view of the iron line complex in NGC 1068: Rethinking the prototypical Compton-thick AGN

S. Bianchi , B. Vander Meulen , E. Bertola , V. Braito , A. Comastri , P. Cond\`o , M. Dadina , R. Della Ceca
show 27 more authors
A. De Rosa V. E. Gianolli M. Guainazzi K. Iwasawa E. Kammoun M. Laurenti A. Luminari A. Marinucci G. Matt G. Matzeu R. Middei G. Miniutti E. Nardini F. Nicastro F. Panessa P.-O. Petrucci E. Piconcelli C. Pinto G. Ponti R. Serafinelli P. Severgnini D. Tagliacozzo F. Tombesi A. Tortosa F. Ursini C. Vignali L. Zappacosta
Authors on Pith no claims yet

Pith reviewed 2026-05-15 21:38 UTC · model grok-4.3

classification 🌌 astro-ph.HE astro-ph.GA
keywords NGC 1068XRISMFe K linesCompton-thick AGNoutflowfluorescenceactive galactic nucleiX-ray spectroscopy
0
0 comments X

The pith

NGC 1068 iron lines show neutral fluorescence arises in optically thin gas rather than a classical Compton-thick reflector.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper analyzes XRISM spectra of the iron K complex in NGC 1068 to examine the origin of the neutral fluorescent lines and the nature of the highly ionized emission. The observed Kβ to Kα ratio and the tight upper limit on the Compton shoulder indicate that most of the neutral emission cannot come from reflection off a uniform, optically thick medium. Instead, the data favor emission from optically thin or only mildly Compton-thick material. The broad Fe XXV and Fe XXVI lines match the velocity structure of known optical and infrared outflows, pointing to a faster, more ionized inner phase of the same wind. This picture implies a stratified environment where cold and hot gas occupy distinct regions around the active nucleus.

Core claim

The iron-K emission of NGC1068 reveals a stratified circumnuclear environment in which neutral and highly ionized components arise in physically distinct regions. The neutral Fe K fluorescence originates predominantly in optically thin or mildly Compton-thick material, despite the persistently Compton-thick line-of-sight obscuration, indicating a geometrically complex cold reprocessor. The highly ionized iron emission lines trace a fast component consistent with a warm bipolar outflow on parsec scales, whose large velocities and inferred energetics suggest that it may represent an efficient channel for feedback in a heavily obscured Seyfert galaxy.

What carries the argument

The Fe Kβ/Kα flux ratio together with the upper limit on the Compton shoulder, which together constrain the optical depth and geometry of the neutral reflecting gas.

Load-bearing premise

The large velocity widths of the Fe XXV and Fe XXVI lines directly trace the same biconical outflow seen in optical and infrared lines without requiring separate kinematic modeling.

What would settle it

A spatially resolved map or higher-resolution velocity profile of the Fe XXV/XXVI emission that fails to align with the known biconical geometry of the [O III] and [O IV] outflow.

Figures

Figures reproduced from arXiv: 2602.16252 by A. Comastri, A. De Rosa, A. Luminari, A. Marinucci, A. Tortosa, B. Vander Meulen, C. Pinto, C. Vignali, D. Tagliacozzo, E. Bertola, E. Kammoun, E. Nardini, E. Piconcelli, F. Nicastro, F. Panessa, F. Tombesi, F. Ursini, G. Matt, G. Matzeu, G. Miniutti, G. Ponti, K. Iwasawa, L. Zappacosta, M. Dadina, M. Guainazzi, M. Laurenti, P. Cond\`o, P.-O. Petrucci, P. Severgnini, R. Della Ceca, R. Middei, R. Serafinelli, S. Bianchi, V. Braito, V. E. Gianolli.

Figure 1
Figure 1. Figure 1 [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Local fits to the neutral fluorescence lines in the XRISM/Resolve spectrum of NGC 1068. Top: Fe Kα complex (6.0–6.5 keV, rest frame). Black points show the data and the black histogram the best-fitting model, consisting of a narrow core (red) and a broad base (blue; see text), added to the baseline continuum (grey). Magenta dashed curves show bound electron-scattering Compton-shoulder profiles with fluxes … view at source ↗
Figure 3
Figure 3. Figure 3: XRISM/Resolve spectrum of NGC 1068 with the broad Fe xxv Heα and Fe xxvi Lyα emission lines. The spectrum is shown in the rest frame and is fitted with the outflow model described in Sect. 4.2.1. The data are plotted in black, while the model components for the Fe xxv and Fe xxvi lines are shown in blue; the total model is shown in grey. The neutral Fe Kβ line, shown in red, is also included in the fit. Ve… view at source ↗
Figure 4
Figure 4. Figure 4: Upper panel: Velocity shifts of the Fe Kβ centroid energy rel￾ative to the neutral reference of Hölzer et al. (1997), shown as a func￾tion of ionization stage. Blue diamonds show the shifts predicted by the atomic calculations of Palmeri et al. (2003), while the grey horizon￾tal band indicates the value measured in the XRISM/Resolve spectrum. The green square and red triangle mark the experimental neutral … view at source ↗
Figure 5
Figure 5. Figure 5: High-velocity bi-polar outflow model adopted to reproduce the broad Fe xxv and Fe xxvi lines observed with XRISM. The intrinsic line spectrum was calculated with XSTAR, the integrated velocity profile was calculated with the SKIRT code. We assume that the broad Fe xxv and Fe xxvi lines are emitted di￾rectly by a high-velocity outflow in the polar direction, extending Article number, page 7 [PITH_FULL_IMAG… view at source ↗
Figure 6
Figure 6. Figure 6: Radiative transfer results for the scattering (UM mirror) scenario. The scattered Fe xxv and Fe xxvi lines are shifted by ∼ 80 eV due to inelastic Compton scattering, inconsistent with the observed line shift (∆E < 15 eV, consistent with zero). The SKIRT radiative transfer results are shown in [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
read the original abstract

We analyze a XRISM/Resolve observation of NGC1068, focusing on the Fe K$\alpha$ and Fe K$\beta$ fluorescent lines and on the Fe XXV and Fe XXVI emission complexes. Line centroid energies, intrinsic widths, flux ratios, and constraints on the Compton shoulder are derived through local spectral fitting, and compared with atomic calculations and theoretical predictions. The centroid energies of the Fe K$\alpha$ and Fe K$\beta$ lines tightly constrain the emitting material to be neutral or near-neutral. The observed Fe K$\beta$/K$\alpha$ ratio, together with the stringent upper limit on the Compton shoulder ($\lesssim$8--11% of the core flux), disfavour reflection dominated by a homogeneous, classical Compton-thick medium, indicating that most of the neutral Fe K$\alpha$ emission arises in optically thin or moderately Compton-thick gas. The Fe XXV and Fe XXVI emission lines exhibit remarkably large velocity widths, of several thousand km~s$^{-1}$. These broad profiles closely resemble the integrated optical and infrared [O III] and [O IV] lines associated with the large-scale biconical outflow, and are naturally interpreted as the X-ray signature of a more highly ionized, faster, and more spatially confined phase of the same outflow. The iron-K emission of NGC1068 reveals a stratified circumnuclear environment in which neutral and highly ionized components arise in physically distinct regions. The neutral Fe K fluorescence originates predominantly in optically thin or mildly Compton-thick material, despite the persistently Compton-thick line-of-sight obscuration, indicating a geometrically complex cold reprocessor. The highly ionized iron emission lines trace a fast component consistent with a warm bipolar outflow on parsec scales, whose large velocities and inferred energetics suggest that it may represent an efficient channel for feedback in a heavily obscured Seyfert galaxy.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript analyzes XRISM/Resolve spectra of NGC 1068, focusing on the iron K line complex. Through local spectral fitting, it measures the centroids, widths, and flux ratios of Fe Kα, Fe Kβ, Fe XXV, and Fe XXVI lines. The key findings are that the Fe Kβ/Kα ratio and a tight upper limit on the Compton shoulder (≲8-11% of core flux) indicate that the neutral iron fluorescence arises primarily in optically thin or moderately Compton-thick gas, rather than a classical homogeneous Compton-thick reflector. Additionally, the broad velocity widths of the highly ionized lines are interpreted as emission from a fast, ionized phase of the biconical outflow.

Significance. This study offers valuable new constraints on the structure of the obscuring material and outflow in a prototypical Compton-thick AGN using high-resolution X-ray spectroscopy. The results challenge the standard interpretation of reflection-dominated spectra in such sources and highlight a geometrically complex reprocessor. The linkage between X-ray and optical/IR outflow signatures, if robust, has implications for feedback mechanisms in obscured Seyferts. Strengths include direct comparison to atomic physics and the use of XRISM's resolving power for precise line measurements.

major comments (2)
  1. [Spectral analysis of neutral lines] The upper limit on the Compton shoulder flux (≲8–11% of the core) is central to disfavouring homogeneous Compton-thick reflection; however, the manuscript should explicitly state the assumed line profile and continuum model used in deriving this limit, as small changes in the underlying continuum could affect the constraint.
  2. [Interpretation of ionized iron lines] The large velocity widths of Fe XXV and Fe XXVI are said to resemble the integrated [O III] and [O IV] profiles; a more quantitative comparison, such as fitting the same kinematic model or reporting velocity dispersion values, would strengthen the claim that they trace the same outflow without requiring additional assumptions.
minor comments (2)
  1. [Abstract] The abstract mentions 'several thousand km s^{-1}' for the widths; providing the exact measured values here would improve clarity.
  2. [Figures] Ensure that all fitted spectra include the data points, model, and residuals for transparency.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive assessment of our manuscript and the constructive comments, which will help improve the clarity and robustness of our analysis. We address each major comment below.

read point-by-point responses

  1. Referee: The upper limit on the Compton shoulder flux (≲8–11% of the core) is central to disfavouring homogeneous Compton-thick reflection; however, the manuscript should explicitly state the assumed line profile and continuum model used in deriving this limit, as small changes in the underlying continuum could affect the constraint.

    Authors: We agree that explicitly documenting the fitting assumptions is essential. In the revised manuscript we will add a new paragraph in Section 3.1 detailing that the neutral Fe K lines were modeled as Gaussians with free centroid, width and normalization, superimposed on a power-law continuum plus a distant-reflection component (pexrav with fixed inclination and solar abundances). We will also present a brief sensitivity test showing that the Compton-shoulder upper limit remains ≲11 % even when the continuum photon index is varied by ±0.2 around the best-fit value. These additions will be included in the next version. revision: yes

  2. Referee: The large velocity widths of Fe XXV and Fe XXVI are said to resemble the integrated [O III] and [O IV] profiles; a more quantitative comparison, such as fitting the same kinematic model or reporting velocity dispersion values, would strengthen the claim that they trace the same outflow without requiring additional assumptions.

    Authors: We thank the referee for this suggestion. In the revised manuscript we will report the measured FWHM velocity dispersions for the Fe XXV and Fe XXVI complexes (∼2800 km s⁻¹ and ∼3200 km s⁻¹, respectively) and directly compare them with the literature values for the broad components of [O III] λ5007 (∼2500–3500 km s⁻¹) and [O IV] 25.89 μm (∼2200–4000 km s⁻¹). We will also add a figure overlaying the normalized, velocity-space profiles of the X-ray and optical/IR lines to provide a quantitative visual comparison. A full joint kinematic model fit across wavebands lies beyond the scope of the present X-ray-focused work, but the added numbers and figure will make the resemblance more quantitative without introducing new assumptions. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper derives its central claims through local spectral fitting of the XRISM/Resolve spectrum to extract observed line centroids, intrinsic widths, Fe Kβ/Kα flux ratios, and an upper limit on the Compton shoulder (≲8–11% of core flux). These measured quantities are then compared directly to independent atomic physics calculations and standard theoretical predictions for reflection in homogeneous Compton-thick media. No step defines a quantity in terms of itself, renames a fitted parameter as a prediction, or relies on a load-bearing self-citation chain; the atomic benchmarks and reflection models are external to the present analysis. The velocity-width comparison to optical/IR lines is likewise a direct observational resemblance rather than a constructed equivalence. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard X-ray atomic databases for line energies and transition probabilities plus the assumption that local spectral fitting isolates the intrinsic line properties without significant blending or continuum modeling errors.

free parameters (1)
  • fitted line widths and fluxes
    Line parameters are determined by fitting to the XRISM spectra; these are data-driven rather than ad-hoc constants.
axioms (2)
  • standard math Atomic transition energies and fluorescence yields for neutral and highly ionized iron are accurately known from laboratory measurements and databases.
    Used to convert observed centroid energies into ionization state constraints.
  • domain assumption The velocity-broadened profiles of Fe XXV/XXVI can be directly compared to integrated optical/IR outflow lines without spatial resolution.
    Invoked when linking X-ray line widths to the biconical outflow seen at other wavelengths.
