Constant depth magic state cultivation with Clifford measurements by gauging

Bence Het\'enyi , Benjamin J. Brown , Dominic J. Williamson
Authors on Pith no claims yet

Pith reviewed 2026-05-15 16:01 UTC · model grok-4.3

classification 🪐 quant-ph
keywords magic state cultivationcolor codegaugingconstant depthClifford measurementquantum error correctionpost-selectionfault-tolerant quantum computing
0
0 comments X

The pith

Gauging a transversal Clifford gate performs constant-depth logical XS dagger measurements on the color code, enabling practical magic state cultivation for larger distances.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors demonstrate a protocol that measures the transversal Clifford operator on the color code by gauging it, which converts the measurement into a constant-depth circuit instead of the previous linear-in-distance depth. They rely on repeated gauging rounds with post-selection to suppress errors rather than decoding the intermediate Clifford code. This yields logical error rates comparable to earlier cultivation methods while requiring only square-grid connectivity. For distance-7 codes the protocol reaches the 10 to the minus 12 logical error regime at 0.05 percent physical error while keeping more than 1 percent of shots.

Core claim

Logical XS dagger measurements on the color code are realized in constant depth by gauging a transversal Clifford gate; repeated gauging measurements followed by post-selection then prepare magic states whose logical error rates match those of prior cultivation protocols without incurring circuit-depth overhead that grows with code distance.

What carries the argument

Gauging a transversal Clifford gate to obtain a constant-depth logical measurement circuit, followed by repeated post-selected gauging rounds.

If this is right

  • The protocol works on a regular square grid and reaches 10 to the minus 12 logical error at 0.05 percent physical error for d=7 while retaining over 1 percent of shots.
  • Circuit depth stays constant with code distance, removing the main obstacle that limited prior cultivation to d=5.
  • Magic states become available for distances where transversal Clifford measurements were previously too deep to be practical.
  • The method trades full error correction of the gauged code for simplicity and post-selection overhead.
  • Only square-lattice connectivity is required, matching many existing hardware layouts.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same gauging idea could be applied to other codes that admit transversal Clifford gates, potentially broadening the set of cultivable magic states.
  • Because post-selection discards most shots at higher distances, the approach may need to be paired with more efficient rejection sampling or hybrid distillation to remain useful beyond d=7.
  • If the noise model used in simulation underestimates correlated errors during gauging, the retained-shot fraction could drop sharply on real hardware.
  • Combining constant-depth gauging with existing lattice-surgery techniques might further reduce the total space-time cost of magic-state factories.

Load-bearing premise

Repeated gauging measurements with post-selection alone suffice to suppress errors to the claimed logical rates without performing error correction on the emergent Clifford stabilizer code.

What would settle it

An experiment or simulation on the d=7 color code at 0.05 percent physical error rate that measures the final logical error rate after the full protocol and finds it stays above 10 to the minus 10 while the fraction of retained shots falls below 1 percent.

Figures

Figures reproduced from arXiv: 2603.05429 by Bence Het\'enyi, Benjamin J. Brown, Dominic J. Williamson.

Figure 1
Figure 1. Figure 1: (a) Gauging measurement of the logical XS† operator supported on data qubits (d and d ′ ) using ancillas (a and a ′ ) on the edges of the honeycomb lattice. The weight of logical Z operator (cyan) is reduced during the measurement. (b) Gauge operators for measuring the transversal XS† on the d = 3 color code. (c) Two minimum-weight logical representatives (solid and dashed cyan lines) of the d = 7 color co… view at source ↗
Figure 2
Figure 2. Figure 2: (a) Qubit layout for the square-grid implementation of the gauging Clifford measurement. In the middle of each plaquette [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: (a) Gauging Clifford measurements on a growing the lattice (intermediate code distances [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

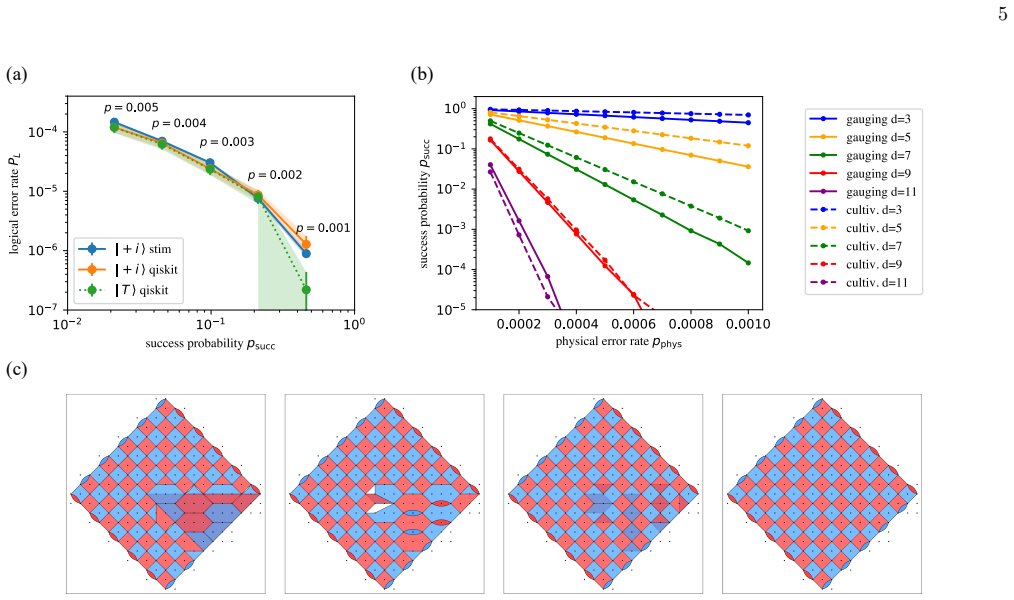

Figure 4. Figure 4: (a) Comparison of different simulation methods for the [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

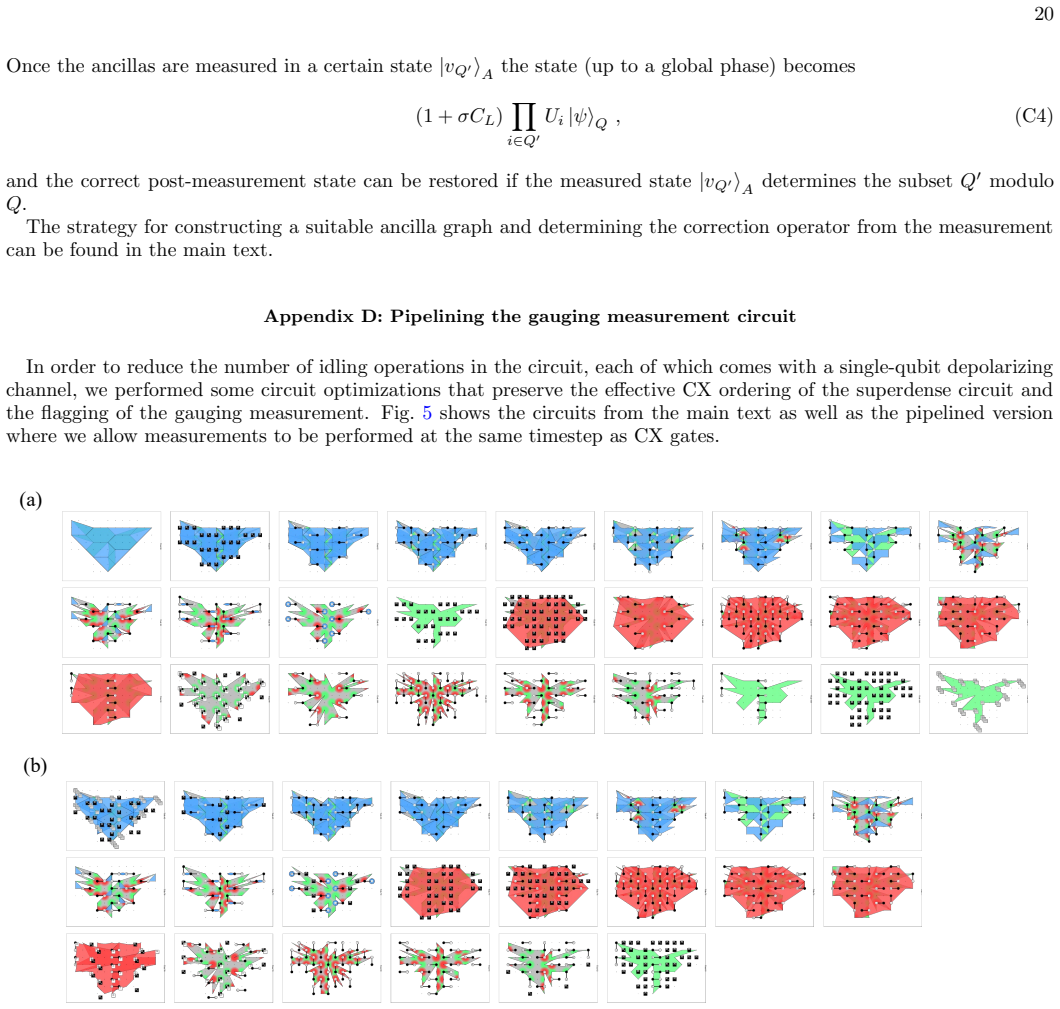

Figure 5. Figure 5: (a) The same circuit as in the main text. (b) Pipelined circuit with 18 CX time steps and 3 measurement/reset time [PITH_FULL_IMAGE:figures/full_fig_p020_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: The full circuit for the transition of the grafted surface code to a regular (rotated) surface code. These steps cover the [PITH_FULL_IMAGE:figures/full_fig_p021_6.png] view at source ↗
read the original abstract

Magic states are a scarce resource for two-dimensional qubit stabilizer codes. Magic state cultivation was recently proposed to reduce the cost of magic state preparation by measuring the transversal Clifford operator of the color code. Cultivation achieves $\sim 10^{-9}$ logical error rates for the $d=5$ color code, with substantially lower space-time overhead than magic state distillation. However, due to the $\mathcal{O}(d)$ depth of the Clifford measurement circuit, magic state cultivation becomes impractical for $d>5$. Here, we perform logical $XS^\dagger$ measurements on the color code by gauging a transversal Clifford gate, resulting in a constant-depth logical measurement circuit. We employ repeated gauging measurements with post-selection rather than performing error correction on the Clifford stabilizer code that emerges during the gauging protocol, thus gaining simplicity at the cost of scalability. Our protocol requires a regular square grid connectivity and yields logical error rates comparable to magic state cultivation. The $d=7$ version of our protocol gives access to the $10^{-12}$ logical error rate regime at $0.05\%$ physical error rate while retaining more than $1\%$ of the shots after the equivalent of the cultivation stage.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes a constant-depth magic state cultivation protocol for color codes that implements logical XS† measurements via gauging of a transversal Clifford gate. It relies on repeated gauging measurements combined with post-selection rather than error correction on the emergent Clifford stabilizer code, achieving logical error rates comparable to prior cultivation methods while requiring only square-grid connectivity. Simulations are reported to show that the d=7 version reaches the 10^{-12} logical error regime at 0.05% physical error rate while retaining more than 1% of shots after the cultivation stage.

Significance. If the simulation results hold under the stated assumptions, the protocol would offer a practical constant-depth route to high-fidelity magic states with lower space-time overhead than distillation, extending the reach of 2D color-code architectures toward universal fault-tolerant computation.

major comments (2)
  1. [Simulation results] Simulation results (abstract and main text): the reported d=5 and d=7 logical error rates and yields lack full circuit-level descriptions, explicit data-exclusion rules, and statistical error-bar analysis, preventing independent verification of the central performance claim that d=7 reaches 10^{-12} at 0.05% physical error with >1% retention.
  2. [Protocol description] Protocol description (abstract): the choice to rely exclusively on repeated gauging plus post-selection without error correction on the emergent Clifford code is load-bearing for the claimed suppression; no quantitative analysis is given of how residual gauge errors propagate to logical errors when the noise model deviates from ideal depolarizing circuit noise (e.g., leakage or correlated errors).
minor comments (1)
  1. [Abstract] The abstract could explicitly state the precise noise model and connectivity assumptions used in the simulations.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading and constructive comments. We respond to each major comment below and indicate the changes we will make in the revised manuscript.

read point-by-point responses

  1. Referee: [Simulation results] Simulation results (abstract and main text): the reported d=5 and d=7 logical error rates and yields lack full circuit-level descriptions, explicit data-exclusion rules, and statistical error-bar analysis, preventing independent verification of the central performance claim that d=7 reaches 10^{-12} at 0.05% physical error with >1% retention.

    Authors: We agree that the simulation details must be expanded for independent verification. In the revised manuscript we will add a dedicated methods subsection that specifies the full circuit-level depolarizing noise model, the precise post-selection rules used to discard shots, and the statistical error bars obtained from the Monte Carlo sampling. These additions will make the reported d=5 and d=7 performance figures, including the 10^{-12} regime at 0.05% physical error with >1% retention, fully reproducible from the stated parameters. revision: yes

  2. Referee: [Protocol description] Protocol description (abstract): the choice to rely exclusively on repeated gauging plus post-selection without error correction on the emergent Clifford code is load-bearing for the claimed suppression; no quantitative analysis is given of how residual gauge errors propagate to logical errors when the noise model deviates from ideal depolarizing circuit noise (e.g., leakage or correlated errors).

    Authors: The exclusive use of repeated gauging measurements followed by post-selection, without error correction on the emergent Clifford stabilizer code, is indeed central to achieving constant depth and architectural simplicity. Our quantitative claims are derived under the standard circuit-level depolarizing noise model. We acknowledge that a detailed propagation analysis of residual gauge errors under non-ideal models (leakage, correlated errors) is absent and would be valuable; such an extension lies beyond the scope of the present work. In the revision we will add a concise paragraph noting this limitation and identifying it as a topic for future study. revision: partial

Circularity Check

0 steps flagged

Minor self-citation to prior cultivation work but no load-bearing circularity in derivations or predictions

full rationale

The paper introduces a gauging-based constant-depth protocol for logical XS† measurements on the color code and reports d=7 simulation results (10^{-12} logical error at 0.05% physical error with >1% yield) under repeated gauging plus post-selection. No equations reduce a claimed prediction to a fitted input by construction, nor does any derivation rely on self-definition or ansatz smuggling. The abstract's reference to 'magic state cultivation was recently proposed' constitutes a minor self-citation (likely overlapping authors), but this is not load-bearing: the new constant-depth circuit and post-selection performance claims rest on explicit circuit-level simulation outputs rather than on any unverified prior result. The derivation chain for the gauging protocol is self-contained against the stated square-grid connectivity and depolarizing noise model.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The protocol rests on standard quantum error correction assumptions about noise models and the validity of gauging for logical measurements; no new free parameters or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption Physical errors follow a standard depolarizing or Pauli noise model amenable to simulation.
    Required to obtain the quoted logical error rates from numerical simulation.

pith-pipeline@v0.9.0 · 5514 in / 1282 out tokens · 44492 ms · 2026-05-15T16:01:50.156496+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score.

  1. Reducing Postselection Overhead in Magic-State Cultivation by In-Patch Multiplexing

    quant-ph 2026-05 unverdicted novelty 6.0

    In-patch multiplexing reduces expected attempts for early-stage magic-state cultivation by 45.46% (d1=3) to 72.91% (d1=5) and full-cycle attempts by 49-79% at p=2e-3, while final logical error rates stay governed by t...
