arxiv: 2603.05927 · v2 · submitted 2026-03-06 · 🌌 astro-ph.HE

Recognition: no theorem link

CTAO Simulations for Potential PeVatron Candidates

P. Sharma , C. Dubos , S. R. Patel T. Suomijarvi

Authors on Pith no claims yet

Pith reviewed 2026-05-15 15:56 UTC · model grok-4.3

classification 🌌 astro-ph.HE

keywords PeVatronsgamma-ray sourcessupernova remnantsCherenkov Telescope Arrayhadronic emissioncosmic-ray accelerationPeVatron Test StatisticGammapy simulations

0 comments

The pith

CTAO simulations exclude Cassiopeia A, RX J1713.7-3946, and HESS J1731-347 as PeVatron sources while leaving HAWC J2227+610 inconclusive.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper performs Gammapy simulations of Cherenkov Telescope Array Observatory observations on four previously identified PeVatron candidate sources to estimate detectable gamma-ray fluxes of hadronic origin. It applies the Test Statistic method to find the maximum detectable proton cut-off energy and introduces a PeVatron Test Statistic metric to test whether each source can be confirmed or ruled out. The analysis concludes that at least 100 hours of observation time are required to distinguish different cut-off energies, reaching a detection limit near 600 TeV. This work matters because identifying which objects accelerate hadrons to PeV energies directly addresses the long-standing question of the origin of the highest-energy cosmic rays.

Core claim

Simulations show that Cassiopeia A, RX J1713.7-3946, and HESS J1731-347 can be excluded as PeVatron sources on the basis of the PeVatron Test Statistic, while HAWC J2227+610 remains inconclusive. For the latter source the maximum proton cut-off energy distinguishable by CTAO gamma-ray measurements is determined through the Test Statistic approach.

What carries the argument

The PeVatron Test Statistic (PTS) metric, which compares simulated CTAO gamma-ray fluxes against models with varying proton cut-off energies to decide whether a supernova remnant can be confirmed or excluded as a PeVatron.

If this is right

A minimum of 100 hours of CTAO observation time is required to detect flux differences corresponding to different proton cut-off energies.
The practical upper limit for measuring proton cut-off energies with CTAO is around 600 TeV for the sources examined.
HAWC J2227+610 cannot be classified as a PeVatron or ruled out with the simulated exposure and requires further observations.
Three of the four candidate sources can be removed from the list of potential PeVatrons on the basis of the PTS analysis.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If HAWC J2227+610 is later confirmed as a PeVatron it may indicate acceleration sites other than the classic young supernova remnants studied here.
The same simulation-plus-PTS workflow can be applied to additional gamma-ray sources to rank them for CTAO observing proposals.
Mixed leptonic and hadronic emission models would require re-running the PTS calculations before firm exclusions can be claimed.

Load-bearing premise

The input models for proton spectra, gamma-ray production, and background subtraction must correctly describe the sources; if the emission is not purely hadronic or the models are incomplete the exclusion results do not hold.

What would settle it

Real CTAO data on any of the three excluded sources showing gamma-ray emission with a hadronic spectrum extending above 600 TeV would falsify the exclusion conclusion.

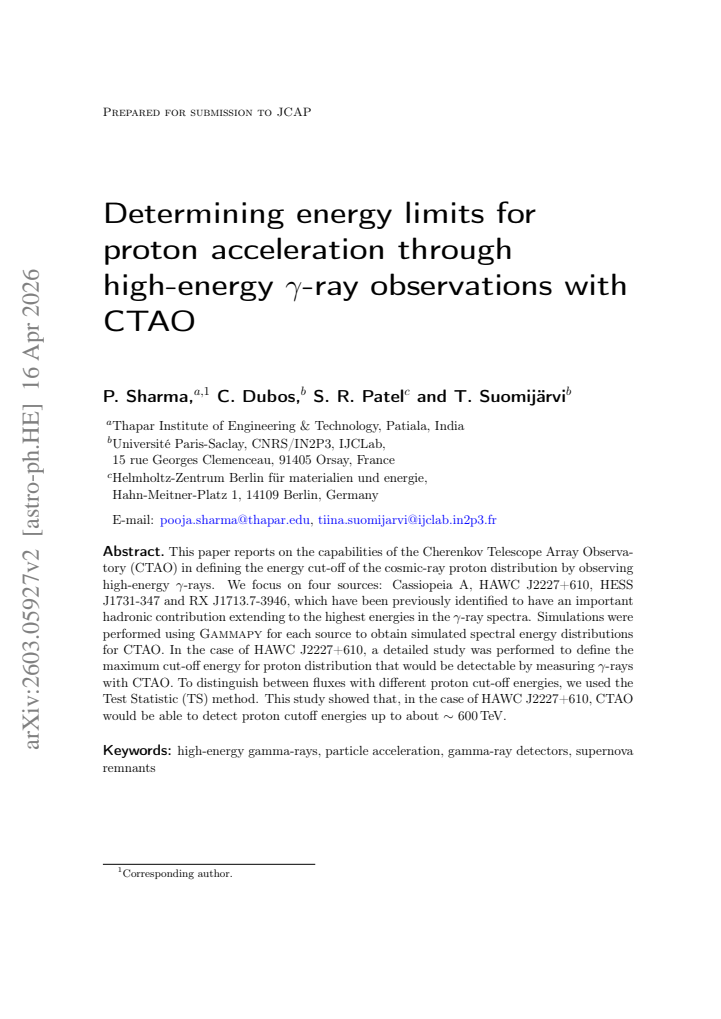

read the original abstract

This paper reports on the capabilities of the Cherenkov Telescope Array Observatory (CTAO) in detecting high-energy gamma-rays that show significant contributions of hadronic origin. We focus on four sources: RX J1713.7-3946, HESS J1731-347, Cassiopeia A, and HAWC J2227+610, which have been previously identified as PeVatron candidates, sources capable of accelerating hadrons to PeV energies. In this study, we perform simulations using Gammapy for each source to obtain flux estimates for CTAO. In case of HAWC J2227+610, we also determined the maximum cut-off energy in the proton distribution detectable by measuring gamma-rays with CTAO. To distinguish between fluxes with different proton cut-off energies we used the Test Statistic (TS) method. Additionally, we used the PeVatron Test Statistic (PTS) metric to demonstrate whether CTAO could confirm or exclude SNRs as PeVatron candidates. Through this study, we found that a minimum of 100 hours of observation time is required to detect flux variations with different cut-offs, with the detection limit being around 600 TeV. Through the PTS study, SNRs Cassiopeia A, RX J1713.7-3946, and HESS J1731-347 were excluded as PeVatron sources, while HAWC J2227+610 remains inconclusive.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

CTAO simulations give concrete exclusion numbers for three PeVatron candidates but rest on fixed input spectra without robustness checks.

read the letter

The paper's main result is that Gammapy simulations of CTAO observations exclude Cassiopeia A, RX J1713.7-3946, and HESS J1731-347 as PeVatrons via the PTS metric, while HAWC J2227+610 stays inconclusive. They also report that 100 hours of data are needed to distinguish proton cut-offs near 600 TeV. These specific numbers for the four sources are new and not in the earlier literature cited in the abstract. The work applies standard TS and PTS tools in a direct way and produces practical estimates for observation planning, which is the useful part. The approach is transparent enough that the simulation outputs can be checked against the chosen models. The soft spot is exactly what the stress-test note flags: the exclusions depend on fixed proton spectra, gamma-ray production assumptions, and a purely hadronic picture with no reported variations or direct comparison to existing H.E.S.S. and HAWC points. If the true spectra have different indices or if leptonic emission matters, the PTS values and the exclusion thresholds shift. The abstract does not show sensitivity runs, so the central claims are narrower than they first appear. Methods look standard but the lack of error tables or background details in the summary leaves some verification work for the reader. This is for CTAO planners and cosmic-ray groups who need quick guidance on which candidates to drop or keep. A reader focused on observation strategy would find the 100-hour and 600 TeV numbers worth noting. I would send it to peer review because the simulation results are specific and falsifiable even if the assumptions need tightening.

Referee Report

3 major / 2 minor

Summary. The manuscript reports Gammapy simulations of CTAO observations for four PeVatron candidates (RX J1713.7-3946, HESS J1731-347, Cassiopeia A, HAWC J2227+610). Using Test Statistic (TS) and PeVatron Test Statistic (PTS) metrics, it concludes that a minimum of 100 hours of observation is needed to detect proton cut-off variations up to ~600 TeV, that the first three sources can be excluded as PeVatrons on the basis of their PTS values, and that HAWC J2227+610 remains inconclusive.

Significance. If the adopted input spectra and purely hadronic assumption hold, the work supplies concrete CTAO exposure estimates and exclusion thresholds that could guide future observing proposals. The use of standard Gammapy tools for forward simulation is a methodological strength, but the absence of robustness checks on the input models reduces the immediate utility of the reported exclusions.

major comments (3)

[Abstract and §4] Abstract and §4 (PTS results): the exclusion of Cassiopeia A, RX J1713.7-3946 and HESS J1731-347 as PeVatrons rests on PTS values computed from a single set of fixed proton spectra, gamma-ray production cross-sections and background models; no variations of spectral index, cut-off energy or leptonic fraction are shown, so the quoted PTS thresholds are not demonstrated to be robust.
[§3] §3 (Simulation setup): the input proton spectra and gamma-ray emissivities are not compared to existing H.E.S.S. or HAWC spectral points for the same sources; without this validation step it is impossible to assess whether the simulated CTAO fluxes are consistent with current data.
[§4] §4 (HAWC J2227+610 analysis): the determination of the maximum detectable cut-off energy via TS is presented without the explicit TS definition, degrees of freedom, or error analysis on the 600 TeV limit, making the 100-hour requirement difficult to reproduce or generalize.

minor comments (2)

[§2] Notation for PTS is introduced without a clear equation or reference to prior literature defining the metric.
[Figures] Figure captions should explicitly state the assumed proton spectral parameters and observation time for each panel.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive comments, which have helped us improve the manuscript. We address each major comment point by point below and indicate the revisions made.

read point-by-point responses

Referee: [Abstract and §4] Abstract and §4 (PTS results): the exclusion of Cassiopeia A, RX J1713.7-3946 and HESS J1731-347 as PeVatrons rests on PTS values computed from a single set of fixed proton spectra, gamma-ray production cross-sections and background models; no variations of spectral index, cut-off energy or leptonic fraction are shown, so the quoted PTS thresholds are not demonstrated to be robust.

Authors: We acknowledge that the robustness to parameter variations is important for the strength of the exclusions. The input models are taken from published fits to multi-wavelength data for each source, representing the current best estimates. To address the referee's concern, we will add a discussion in the revised §4 on how the PTS values change with variations in spectral index and cut-off energy within 1σ uncertainties from the literature. This will demonstrate that the exclusions hold for the range of plausible parameters. We maintain the purely hadronic assumption as the focus of the study but will add a note on potential leptonic contributions as a limitation. revision: partial
Referee: [§3] §3 (Simulation setup): the input proton spectra and gamma-ray emissivities are not compared to existing H.E.S.S. or HAWC spectral points for the same sources; without this validation step it is impossible to assess whether the simulated CTAO fluxes are consistent with current data.

Authors: We agree that validating the input models against existing data is essential. In the revised manuscript, we will include in §3 a comparison of the simulated gamma-ray spectra with the observed spectral points from H.E.S.S. for RX J1713.7-3946, HESS J1731-347, and Cassiopeia A, and from HAWC for HAWC J2227+610. This will be shown in an additional figure to confirm consistency in the overlapping energy ranges. revision: yes
Referee: [§4] §4 (HAWC J2227+610 analysis): the determination of the maximum detectable cut-off energy via TS is presented without the explicit TS definition, degrees of freedom, or error analysis on the 600 TeV limit, making the 100-hour requirement difficult to reproduce or generalize.

Authors: We thank the referee for pointing out this lack of detail. We will revise §4 to explicitly define the Test Statistic used: TS = 2 Δlog L, with the threshold for detection set at TS > 25 for 5σ significance. The degrees of freedom is 1, corresponding to the proton cut-off energy parameter. We will also include the error analysis, showing that the 600 TeV limit has an uncertainty of approximately ±50 TeV based on the TS profile, making the 100-hour exposure requirement clear and reproducible. revision: yes

Circularity Check

0 steps flagged

No circularity: forward simulations from external input models

full rationale

The paper performs Gammapy-based forward simulations of CTAO fluxes for four sources using adopted proton spectra, gamma-ray production cross-sections, and background models as inputs. PTS and TS values are then computed from those simulated counts to assess detectability of cut-offs and to exclude three sources as PeVatrons. These steps are standard predictive modeling; the output quantities are not algebraically or statistically forced to equal the input spectra by construction, nor do they rely on self-citation chains or renamed empirical patterns. The manuscript is therefore self-contained against external benchmarks and receives a zero circularity score.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No explicit free parameters, axioms, or invented entities are stated in the abstract; the work relies on standard astrophysical models for proton distributions and gamma-ray emission that are treated as inputs from prior literature.

pith-pipeline@v0.9.0 · 5563 in / 1080 out tokens · 60567 ms · 2026-05-15T15:56:37.029293+00:00 · methodology
