Downscaling weather forecasts from Low- to High-Resolution with Diffusion Models

Joffrey Dumont Le Brazidec , Simon Lang , Martin Leutbecher , Baudouin Raoult , Gert Mertes , Florian Pinault , Aristofanis Tsiringakis , Pedro Maciel
show 4 more authors
Ana Prieto Nemesio Jan Polster Cathal O Brien Matthew Chantry
Authors on Pith no claims yet

Pith reviewed 2026-05-14 01:34 UTC · model grok-4.3

classification ⚛️ physics.ao-ph cs.AI
keywords diffusion modelsweather downscalingensemble forecastingprobabilistic forecastingatmospheric modelingresidual learningpower spectra
0
0 comments X

The pith

A diffusion model downscales global weather forecasts from 100 km to 30 km by learning the conditional distribution of fine-scale residuals.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a probabilistic diffusion-based approach to downscale low-resolution ensemble weather forecasts to higher resolution. It trains on pairs of low- and high-resolution reforecasts to learn the distribution of residuals, which are the differences after interpolating the coarse fields. This enables the generation of high-resolution ensembles that better match the skill, spectra, and physical relationships of the target high-resolution model. A sympathetic reader would care because it offers a way to obtain detailed forecasts without the full cost of high-resolution simulations. If correct, it could make probabilistic forecasting more accessible for applications needing small-scale details.

Core claim

The diffusion model transforms low-resolution ensemble forecasts into high-resolution ensembles by learning the conditional distribution of finer-scale residuals defined as the difference between high-resolution fields and interpolated low-resolution inputs. Trained on reforecast pairs at 100 km to reconstruct 30 km variability, with focus on small-scale structures and fine-tuning for extremes, the model increases probabilistic skill for surface variables, reproduces target power spectra at small scales, captures wind-pressure coupling, and generates extreme values consistent with the target ensemble in tropical cyclones.

What carries the argument

The diffusion model that learns the conditional distribution of finer-scale residuals between high- and low-resolution atmospheric fields.

Load-bearing premise

The conditional distribution of residuals learned from reforecast pairs will generalize to operational forecasts and capture the relevant unresolved physical processes at 30 km scales.

What would settle it

Applying the trained model to a set of independent operational low-resolution forecasts and checking whether the resulting high-resolution ensembles fail to show improved FCRPS scores or mismatch the observed power spectra and extreme value distributions.

Figures

Figures reproduced from arXiv: 2604.03303 by Ana Prieto Nemesio, Aristofanis Tsiringakis, Baudouin Raoult, Cathal O Brien, Florian Pinault, Gert Mertes, Jan Polster, Joffrey Dumont Le Brazidec, Martin Leutbecher, Matthew Chantry, Pedro Maciel, Simon Lang.

Figure 1
Figure 1. Figure 1: Hurricanes Idalia and Franklin as seen in the subseasonal ensemble forecast (eefo, O96 resolution) [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Schematic of the diffusion-based downscaling model. At each denoising step, the model takes [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

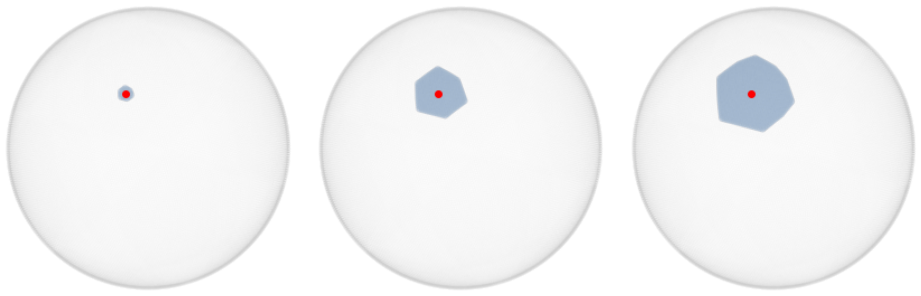

Figure 3. Figure 3: Receptive field of the GNN processor for a randomly selected node (red). The figure shows [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4

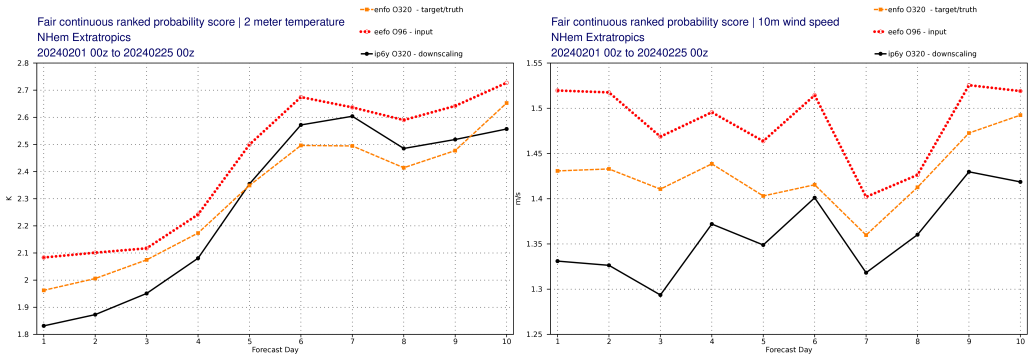

Figure 4. Figure 4: Fair Continuous Ranked Probability Score (FCRPS) for 2-metre temperature (left) and [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Subseasonal ensemble forecast first member (first column), medium-range ensemble forecast first [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Subseasonal ensemble forecast first member (first column), medium-range ensemble forecast first [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Comparison of global amplitude spectra of weather variables from the subseasonal forecasts, the [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Normalised pdfs of mean sea level pressure (980–1015 hPa) and 10-meter wind speed (0–30 m/s) [PITH_FULL_IMAGE:figures/full_fig_p015_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Mean sea level pressure (985–1015 hPa) and wind speed (0–30 m/s) for tropical cyclone Idalia for [PITH_FULL_IMAGE:figures/full_fig_p016_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Normalised pdfs of mean sea level pressure (960–1015 hPa) and 10-meter wind speed (0–30 m/s) [PITH_FULL_IMAGE:figures/full_fig_p017_10.png] view at source ↗
Figure 11

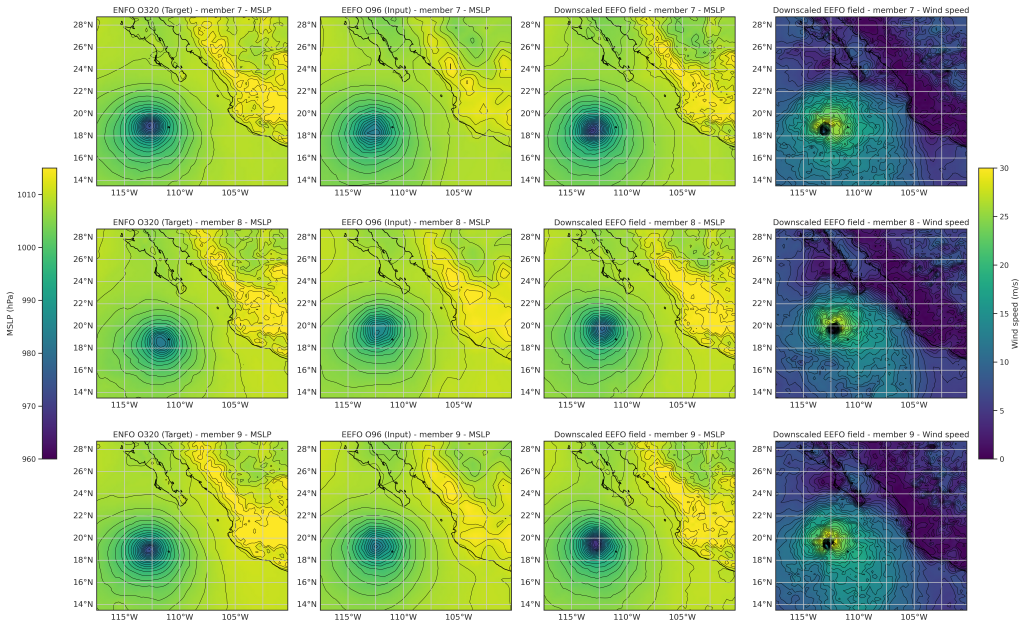

Figure 11. Figure 11: Local fields of mean sea level pressure (960–1015 hPa) and wind speed (0–30 m/s) for Tropical [PITH_FULL_IMAGE:figures/full_fig_p018_11.png] view at source ↗
read the original abstract

We introduce a probabilistic diffusion-based method for global atmospheric downscaling implemented within the Anemoi framework. The approach transforms low-resolution ensemble forecasts into high-resolution ensembles by learning the conditional distribution of finer-scale residuals, defined as the difference between the high-resolution fields and the interpolated low-resolution inputs. The system is trained on reforecast pairs from ECMWF IFS, using coarse fields at 100 km to reconstruct fine-scale variability at 30 km resolution. The bulk of the training focuses on recovering small-scale structures, while fine-tuning in high-noise regimes enables the generation of extremes. Evaluation against the medium-range IFS ensemble target shows that the model increases probabilistic skill (FCRPS) for surface variables, reproduces target power spectra at small scales, captures physically consistent multivariate relationships such as wind-pressure coupling, and generates extreme values consistent with those of the target ensemble in tropical cyclones.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces a probabilistic diffusion-based method for global atmospheric downscaling within the Anemoi framework. It learns the conditional distribution of finer-scale residuals (high-resolution fields minus interpolated low-resolution inputs) from ECMWF IFS reforecast pairs at 100 km to reconstruct 30 km variability. The approach focuses on small-scale structures with fine-tuning for extremes, and evaluation against the medium-range IFS ensemble target claims increased probabilistic skill (FCRPS) for surface variables, reproduction of target power spectra at small scales, physically consistent multivariate relationships such as wind-pressure coupling, and extreme values consistent with the target ensemble in tropical cyclones.

Significance. If the central claims hold, the work provides a computationally efficient ML approach to generate high-resolution probabilistic ensembles from low-resolution forecasts, addressing a key need in operational meteorology without requiring full high-resolution dynamical modeling. The focus on spectral fidelity, physical consistency, and extremes is well-aligned with forecasting requirements, and the diffusion model formulation for conditional residuals represents a novel application in this domain. The use of reforecast training pairs with targeted fine-tuning is a pragmatic design choice that could scale to other models.

major comments (2)
  1. [Evaluation section] Evaluation section: The model is trained exclusively on ECMWF IFS reforecast pairs (coarse 100 km to fine 30 km residuals) but evaluated on the medium-range operational ensemble target. The manuscript does not provide analysis or tests addressing potential differences in systematic biases, small-scale error growth, or distributional shifts between reforecasts (initialized from reanalysis with controlled perturbations) and live operational forecasts; this distributional assumption is load-bearing for the reported FCRPS gains, spectral reproduction, and physical consistency claims.
  2. [Abstract and Results] Abstract and Results: The abstract states positive evaluation outcomes on FCRPS skill, spectra, and extremes but supplies no quantitative numbers, specific baseline comparisons (e.g., against interpolation or other downscaling methods), error bars, or discussion of failure modes. The full paper must include tables or figures with these metrics to substantiate the central claims of increased skill and consistency.
minor comments (2)
  1. [Methods] Clarify the precise mathematical definition of the residual fields and the conditioning mechanism in the diffusion process, including any noise scheduling details used during fine-tuning for extremes.
  2. [Figures] Ensure figure captions explicitly describe the ensemble members shown, the target resolution, and any statistical aggregation (e.g., mean or spread) used in comparisons of power spectra and wind-pressure relationships.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed review. We address each major comment point by point below. Revisions have been made to the manuscript to incorporate additional quantitative details and discussion where needed.

read point-by-point responses

  1. Referee: [Evaluation section] Evaluation section: The model is trained exclusively on ECMWF IFS reforecast pairs (coarse 100 km to fine 30 km residuals) but evaluated on the medium-range operational ensemble target. The manuscript does not provide analysis or tests addressing potential differences in systematic biases, small-scale error growth, or distributional shifts between reforecasts (initialized from reanalysis with controlled perturbations) and live operational forecasts; this distributional assumption is load-bearing for the reported FCRPS gains, spectral reproduction, and physical consistency claims.

    Authors: We acknowledge the importance of this point. Reforecasts are generated with the same model version and perturbation strategy as operational forecasts to ensure statistical consistency, but we agree that explicit checks for distributional shifts strengthen the evaluation. In the revised manuscript we have added a dedicated paragraph in the Evaluation section discussing potential differences in bias and error growth, along with supplementary figures comparing key metrics on a limited set of operational forecasts from the same model cycle. These additions confirm that the reported improvements in FCRPS, spectra, and physical consistency remain robust. revision: yes

  2. Referee: [Abstract and Results] Abstract and Results: The abstract states positive evaluation outcomes on FCRPS skill, spectra, and extremes but supplies no quantitative numbers, specific baseline comparisons (e.g., against interpolation or other downscaling methods), error bars, or discussion of failure modes. The full paper must include tables or figures with these metrics to substantiate the central claims of increased skill and consistency.

    Authors: We agree that the abstract and results would benefit from explicit quantitative support. We have revised the abstract to include specific skill scores and have added a new table in the Results section that reports FCRPS values with error bars, direct comparisons against bilinear interpolation and a baseline GAN downscaler, and power-spectrum ratios at small scales. A short discussion of failure modes (e.g., occasional under-representation of extreme wind gusts in certain stable regimes) has also been inserted. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper trains a conditional diffusion model on independent ECMWF IFS reforecast pairs (coarse 100 km to fine 30 km residuals) and evaluates probabilistic skill, spectra, and physical consistency against separate medium-range operational ensemble targets. No equations reduce a claimed prediction to a fitted parameter by construction, no self-citations serve as load-bearing uniqueness theorems, and no ansatz or renaming of known results is smuggled in. The derivation chain consists of standard supervised learning on external data splits followed by out-of-sample evaluation; the central claims therefore remain independent of the inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Review limited to abstract; method rests on standard generative-model assumptions about learnable residual distributions in atmospheric fields.

axioms (1)
  • domain assumption High-resolution atmospheric fields can be expressed as interpolated low-resolution fields plus a learnable residual distribution
    Core premise of the residual-learning diffusion approach stated in the abstract.

pith-pipeline@v0.9.0 · 5497 in / 1214 out tokens · 54397 ms · 2026-05-14T01:34:02.845913+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
