arxiv: 2604.03637 · v1 · submitted 2026-04-04 · 💻 cs.CV

Recognition: no theorem link

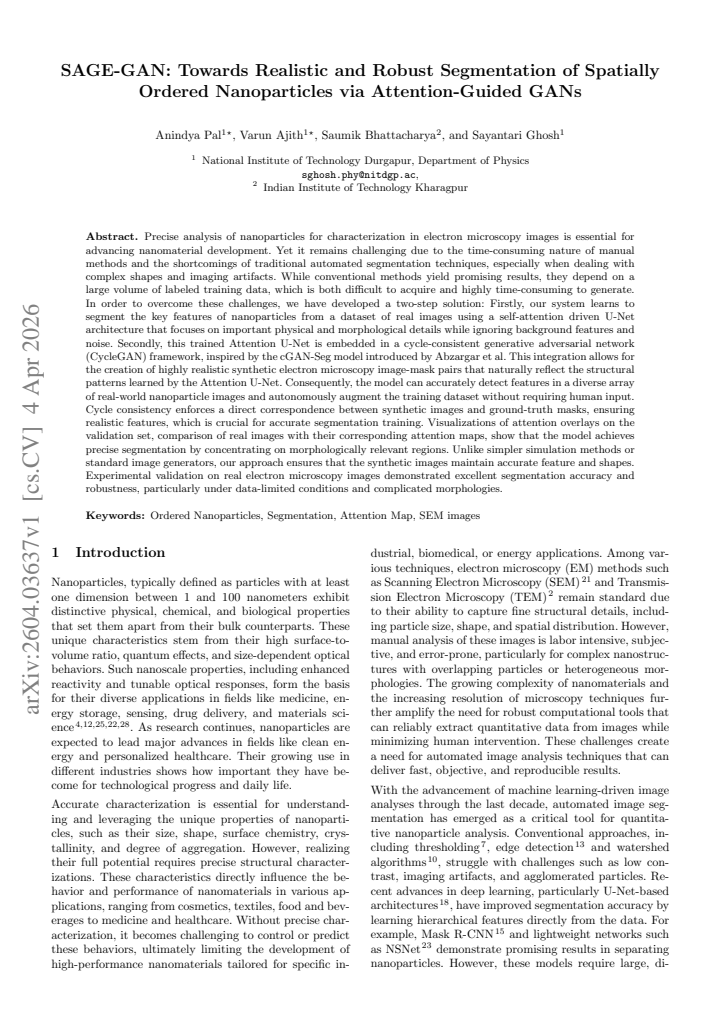

SAGE-GAN: Towards Realistic and Robust Segmentation of Spatially Ordered Nanoparticles via Attention-Guided GANs

Anindya Pal , Varun Ajith , Saumik Bhattacharya , Sayantari Ghosh

Authors on Pith no claims yet

Pith reviewed 2026-05-13 17:54 UTC · model grok-4.3

classification 💻 cs.CV

keywords nanoparticle segmentationelectron microscopyCycleGANself-attention U-Netsynthetic data generationimage-to-mask translationdata augmentation

0 comments

The pith

Embedding an attention U-Net inside a CycleGAN generates realistic synthetic electron microscopy image-mask pairs that augment training data for nanoparticle segmentation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a two-step method that first trains a self-attention U-Net on real nanoparticle images to isolate key morphological features while suppressing noise. This trained network is then placed inside a cycle-consistent GAN so that generated synthetic images are forced to match the corresponding segmentation masks. The resulting pairs let the system expand its own training set without new manual labels and improve detection on varied real-world samples that contain complex shapes and imaging artifacts.

Core claim

By embedding a self-attention U-Net inside a CycleGAN, the model learns to produce highly realistic synthetic electron microscopy image-mask pairs whose structural patterns match those extracted from real data; cycle consistency maintains direct correspondence between each synthetic image and its ground-truth mask, enabling autonomous dataset augmentation and accurate feature detection across diverse nanoparticle images.

What carries the argument

Self-attention U-Net embedded in a CycleGAN framework that uses cycle consistency to enforce correspondence between generated images and segmentation masks.

If this is right

The system detects nanoparticle features accurately in a wide range of real-world electron microscopy images.
Training datasets are expanded automatically without additional human labeling.
Cycle-consistent generation preserves realistic morphological details needed for robust segmentation.
The approach handles complex particle shapes and common imaging artifacts better than conventional methods that require large labeled sets.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Similar attention-guided CycleGAN pipelines could reduce labeling effort in other spatially ordered imaging tasks such as material defect detection.
The same embedding technique might transfer to medical or biological microscopy domains where labeled examples are scarce.
If cycle consistency holds, the method offers a scalable route to parameter-free data augmentation for any segmentation network that can be inserted into a GAN loop.

Load-bearing premise

Cycle consistency in the GAN creates a reliable one-to-one mapping between each synthetic image and its segmentation mask.

What would settle it

Segmentation performance on held-out real nanoparticle images fails to improve, or the generated masks show visible misalignment with particle boundaries in the synthetic images.

read the original abstract

Precise analysis of nanoparticles for characterization in electron microscopy images is essential for advancing nanomaterial development. Yet it remains challenging due to the time-consuming nature of manual methods and the shortcomings of traditional automated segmentation techniques, especially when dealing with complex shapes and imaging artifacts. While conventional methods yield promising results, they depend on a large volume of labeled training data, which is both difficult to acquire and highly time-consuming to generate. In order to overcome these challenges, we have developed a two-step solution: Firstly, our system learns to segment the key features of nanoparticles from a dataset of real images using a self-attention driven U-Net architecture that focuses on important physical and morphological details while ignoring background features and noise. Secondly, this trained Attention U-Net is embedded in a cycle-consistent generative adversarial network (CycleGAN) framework, inspired by the cGAN-Seg model introduced by Abzargar et al. This integration allows for the creation of highly realistic synthetic electron microscopy image-mask pairs that naturally reflect the structural patterns learned by the Attention U-Net. Consequently, the model can accurately detect features in a diverse array of real-world nanoparticle images and autonomously augment the training dataset without requiring human input. Cycle consistency enforces a direct correspondence between synthetic images and ground-truth masks, ensuring realistic features, which is crucial for accurate segmentation training.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

SAGE-GAN embeds an attention U-Net in CycleGAN to generate synthetic EM image-mask pairs for nanoparticle segmentation, but the abstract supplies no metrics or tests to back the accuracy claims.

read the letter

The paper's main move is to train a self-attention U-Net on real electron microscopy images of nanoparticles, then drop that network into a CycleGAN so it can produce new image-mask pairs for training. The goal is to cut down on manual labeling while handling varied particle shapes and imaging noise. They cite the earlier cGAN-Seg work and add the attention blocks to help the segmenter focus on morphological features instead of background clutter. That is a straightforward domain-specific extension rather than a new theoretical step. The practical motivation is clear: labeling EM data is slow and expensive, so any method that can safely augment the set has obvious appeal for materials researchers who need automated analysis. The attention mechanism itself is a common tweak that often helps in noisy images, so the architecture choice is reasonable on paper. The real weakness is that none of the performance claims are supported by numbers. The abstract asserts that the model can accurately detect features across diverse real images and that cycle consistency alone ensures realistic masks, yet there are no IoU scores, no baseline comparisons, no dataset details, and no check on whether the synthetic pairs actually improve downstream segmentation. Cycle consistency only forces the generators to reconstruct each other; it does not guarantee that the image produced from a given mask contains exactly the right particle features once the real data distribution shifts. Without even a small held-out validation or expert review of the synthetics, the central promise of autonomous augmentation stays untested. This work would interest people doing computational imaging in nanomaterials who already follow GAN-based segmentation papers. If the full manuscript contains solid experiments that close the gap, it could be worth a look for the workflow. Right now the evidence is too thin for a serious referee to spend time on it.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes SAGE-GAN, a two-stage framework for nanoparticle segmentation in electron microscopy images. First, a self-attention U-Net is trained on real images to segment key morphological features while suppressing noise and background. This pre-trained Attention U-Net is then embedded inside a CycleGAN to synthesize realistic image-mask pairs that augment the original training set. The authors claim that cycle consistency produces accurate synthetic pairs, enabling the model to detect features accurately across diverse real-world nanoparticle images without further human labeling.

Significance. If the central claim were supported by evidence, the approach would address a genuine bottleneck in nanomaterial characterization by reducing dependence on large manually labeled EM datasets. Combining attention-guided segmentation with GAN-based augmentation is a plausible direction for data-scarce domains. However, the complete absence of quantitative results, metrics, or validation experiments makes it impossible to evaluate whether the method delivers any improvement over existing techniques.

major comments (2)

[Abstract] Abstract: The statement that 'the model can accurately detect features in a diverse array of real-world nanoparticle images' is presented without any supporting quantitative evidence. No segmentation metrics (IoU, Dice, precision-recall), error analysis, held-out test results, or baseline comparisons appear in the manuscript.
[Abstract] Abstract / CycleGAN integration: The assertion that 'Cycle consistency enforces a direct correspondence between synthetic images and ground-truth masks, ensuring realistic features' is not justified. Cycle consistency only constrains reconstruction (F(G(m)) ≈ m); it does not guarantee that the generated image contains precisely the nanoparticle features encoded in the input mask when the image distribution differs from the U-Net's original training data. No diagnostic experiment (e.g., expert-labeled IoU on synthetic pairs or distribution-shift tests) is described to verify semantic fidelity.

minor comments (1)

[Abstract] The citation 'Abzargar et al.' for the cGAN-Seg model should be expanded to a full reference with title, venue, and year.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback on our manuscript. We fully acknowledge the concerns about the lack of quantitative support for the claims in the abstract and the need for stronger validation of the CycleGAN integration. We will revise the manuscript to address these points by adding the requested experiments and metrics.

read point-by-point responses

Referee: [Abstract] Abstract: The statement that 'the model can accurately detect features in a diverse array of real-world nanoparticle images' is presented without any supporting quantitative evidence. No segmentation metrics (IoU, Dice, precision-recall), error analysis, held-out test results, or baseline comparisons appear in the manuscript.

Authors: We agree that the current manuscript does not include quantitative segmentation metrics or baseline comparisons to support the abstract claims. The full text contains only qualitative examples. In the revised version we will add a new experimental section reporting IoU, Dice, precision, and recall on held-out real EM test sets, together with comparisons against standard U-Net and other segmentation baselines. revision: yes
Referee: [Abstract] Abstract / CycleGAN integration: The assertion that 'Cycle consistency enforces a direct correspondence between synthetic images and ground-truth masks, ensuring realistic features' is not justified. Cycle consistency only constrains reconstruction (F(G(m)) ≈ m); it does not guarantee that the generated image contains precisely the nanoparticle features encoded in the input mask when the image distribution differs from the U-Net's original training data. No diagnostic experiment (e.g., expert-labeled IoU on synthetic pairs or distribution-shift tests) is described to verify semantic fidelity.

Authors: We appreciate the referee's clarification on the limitations of cycle consistency for semantic fidelity. While the architecture is designed to leverage the pre-trained Attention U-Net for mask-to-image mapping, we recognize that additional diagnostics are required. The revised manuscript will include new experiments that compute IoU between input masks and Attention U-Net predictions on the generated images, plus any available expert annotations on synthetic pairs, and will explicitly discuss the assumptions and potential distribution-shift issues. revision: yes

Circularity Check

0 steps flagged

No circularity: standard CycleGAN embedding with external citation and no self-referential equations

full rationale

The paper presents a two-step pipeline: train an Attention U-Net on real nanoparticle images, then embed the pre-trained model inside a CycleGAN to generate synthetic image-mask pairs. No equations, fitted parameters, or derivations are shown that reduce any central claim to a quantity defined by its own inputs. The mention of cycle consistency is a standard property of CycleGAN (cited to an external work by Abzargar et al.), not a self-definition or fitted-input prediction. No self-citation load-bearing steps or uniqueness theorems from the same authors appear. The derivation chain is self-contained against external benchmarks and does not reduce by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The abstract contains no mathematical derivations, fitted constants, or new postulated entities; it rests on standard assumptions from deep learning literature about the ability of attention mechanisms and cycle-consistent GANs to produce useful synthetic data.

axioms (2)

domain assumption A self-attention U-Net can learn to focus on nanoparticle morphological details while ignoring background noise from real images.
Invoked in the first step of the described pipeline.
domain assumption Embedding the trained U-Net inside a CycleGAN will produce synthetic image-mask pairs that reflect the learned structural patterns.
Central to the second step and the claim of autonomous data augmentation.

pith-pipeline@v0.9.0 · 5550 in / 1332 out tokens · 80620 ms · 2026-05-13T17:54:54.890400+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

29 extracted references · 29 canonical work pages · 3 internal anchors

[1]

Abraham, N., Khan, N.M.: A novel focal tversky loss function with improved attention u-net for lesion segmen- tation (2018), https://arxiv.org/abs/1810.07842

work page arXiv 2018
[2]

In: IOP Conference Series: Materials Science and Engineering

Anjum, D.H.: Characterization of nanomaterials with transmission electron microscopy. In: IOP Conference Series: Materials Science and Engineering. vol. 146, p. 012001. IOP Publishing (2016)

work page 2016
[3]

Scientific data7(1), 101 (2020)

Boiko, D.A., Pentsak, E.O., Cherepanova, V.A., Ananikov, V.P.: Electron microscopy dataset for the recognition of nanoscale ordering effects and location of nanoparticles. Scientific data7(1), 101 (2020)

work page 2020
[4]

Chemical Society Reviews41(7), 2740–2779 (2012)

Dreaden, E.C., Alkilany, A.M., Huang, X., Murphy, C.J., El-Sayed, M.A.: The golden age: gold nanoparticles for biomedicine. Chemical Society Reviews41(7), 2740–2779 (2012)

work page 2012
[5]

https://www.blender.org (2023)

Foundation, B.: Blender: A free and open source 3d cre- ation suite. https://www.blender.org (2023)

work page 2023
[6]

Generative Adversarial Networks

Goodfellow, I.J., Pouget-Abadie, J., Mirza, M., Xu, B., Warde-Farley, D., Ozair, S., Courville, A., Bengio, Y.: Generative adversarial networks (2014), https://arxiv. org/abs/1406.2661

work page internal anchor Pith review Pith/arXiv arXiv 2014
[7]

Ultramicroscopy 194, 25–34 (2018)

Groom, D., Yu, K., Rasouli, S., Polarinakis, J., Bovik, A., Ferreira, P.: Automatic segmentation of inorganic nanoparticles in bf tem micrographs. Ultramicroscopy 194, 25–34 (2018)

work page 2018
[8]

Johnson, J., Alahi, A., Fei-Fei, L.: Perceptual losses for real-time style transfer and super-resolution (2016), https://arxiv.org/abs/1603.08155

work page Pith review arXiv 2016
[9]

Karras, T., Laine, S., Aila, T.: A style-based generator architecture for generative adversarial networks (2019), https://arxiv.org/abs/1812.04948

work page arXiv 2019
[10]

npj Computational Materials4(1), 36 (2018)

Li, W., Field, K.G., Morgan, D.: Automated defect anal- ysis in electron microscopic images. npj Computational Materials4(1), 36 (2018)

work page 2018
[11]

PloS one19(10), e0311228 (2024)

Liang, F., Zhang, Y., Zhou, C., Zhang, H., Liu, G., Zhu, J.: Segmentation study of nanoparticle topological struc- tures based on synthetic data. PloS one19(10), e0311228 (2024)

work page 2024
[12]

Journal of the American Chemical Society134(38), 15607–15620 (2012)

Lohse, S.E., Murphy, C.J.: Applications of colloidal in- organic nanoparticles: from medicine to energy. Journal of the American Chemical Society134(38), 15607–15620 (2012)

work page 2012
[13]

Micron106, 34–41 (2018)

Meng, Y., Zhang, Z., Yin, H., Ma, T.: Automatic detec- tion of particle size distribution by image analysis based on local adaptive canny edge detection and modified cir- cular hough transform. Micron106, 34–41 (2018)

work page 2018
[14]

Small Methods5(7), 2100223 (2021)

Mill, L., Wolff, D., Gerrits, N., Philipp, P., Kling, L., Vollnhals, F., Ignatenko, A., Jaremenko, C., Huang, Y., De Castro, O., et al.: Synthetic image rendering solves annotation problem in deep learning nanoparticle seg- mentation. Small Methods5(7), 2100223 (2021)

work page 2021
[15]

Nanomaterials11(4), 968 (2021)

Monchot, P., Coquelin, L., Guerroudj, K., Feltin, N., Del- vall´ ee, A., Crouzier, L., Fischer, N.: Deep learning based instance segmentation of titanium dioxide particles in the form of agglomerates in scanning electron microscopy. Nanomaterials11(4), 968 (2021)

work page 2021
[16]

Oktay, O., Schlemper, J., Folgoc, L.L., Lee, M., Hein- rich, M., Misawa, K., Mori, K., McDonagh, S., Ham- merla, N.Y., Kainz, B., Glocker, B., Rueckert, D.: At- tention u-net: Learning where to look for the pancreas (2018), https://arxiv.org/abs/1804.03999

work page internal anchor Pith review Pith/arXiv arXiv 2018
[17]

O’Shea, K., Nash, R.: An introduction to convolu- tional neural networks (2015), https://arxiv.org/abs/ 1511.08458

work page arXiv 2015
[18]

Ronneberger, O., Fischer, P., Brox, T.: U-net: Con- volutional networks for biomedical image segmentation (2015), https://arxiv.org/abs/1505.04597

work page internal anchor Pith review Pith/arXiv arXiv 2015
[19]

Materials Today Communications35, 106127 (2023)

Shah, A., Schiller, J.A., Ramos, I., Serrano, J., Adams, D.K., Tawfick, S., Ertekin, E.: Automated image seg- mentation of scanning electron microscopy images of graphene using u-net neural network. Materials Today Communications35, 106127 (2023)

work page 2023
[20]

In: International conference on machine learning

Shrikumar, A., Greenside, P., Kundaje, A.: Learning im- portant features through propagating activation differ- ences. In: International conference on machine learning. pp. 3145–3153. PMlR (2017)

work page 2017
[21]

Progress in Solid State Chemistry42(1-2), 1–21 (2014)

Suga, M., Asahina, S., Sakuda, Y., Kazumori, H., Nishiyama, H., Nokuo, T., Alfredsson, V., Kjellman, T., Stevens, S.M., Cho, H.S., et al.: Recent progress in scan- ning electron microscopy for the characterization of fine structural details of nano materials. Progress in Solid State Chemistry42(1-2), 1–21 (2014)

work page 2014
[22]

Nature photonics1(12), 717–722 (2007)

Sun, Q., Wang, Y.A., Li, L.S., Wang, D., Zhu, T., Xu, J., Yang, C., Li, Y.: Bright, multicoloured light-emitting diodes based on quantum dots. Nature photonics1(12), 717–722 (2007)

work page 2007
[23]

Nanoscale14(30), 10761–10772 (2022)

Sun, Z., Shi, J., Wang, J., Jiang, M., Wang, Z., Bai, X., Wang, X.: A deep learning-based framework for automatic analysis of the nanoparticle morphology in sem/tem images. Nanoscale14(30), 10761–10772 (2022)

work page 2022
[24]

SourceForge (Apr 2010), https://sourceforge.net/ projects/k3d/postdownload, accessed: 2023-06-20

Team, K.D.: K-3d: Free 3d modeling and animation soft- ware. SourceForge (Apr 2010), https://sourceforge.net/ projects/k3d/postdownload, accessed: 2023-06-20

work page 2010
[25]

Beilstein Journal of Nanotechnology6, 1769–1780 (2015)

Vance, M.E., Kuiken, T., Vejerano, E.P., McGin- nis, S.P., Jr., M.F.H., Rejeski, D., Hull, M.S.: Nan- otechnology in the real world: Redeveloping the nanomaterial consumer products inventory. Beilstein Journal of Nanotechnology6, 1769–1780 (2015). https://doi.org/10.3762/bjnano.6.181, https://doi.org/ 10.3762/bjnano.6.181

work page doi:10.3762/bjnano.6.181 2015
[26]

Advances in neural information processing systems30(2017)

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones, L., Gomez, A.N., Kaiser, L., Polosukhin, I.: At- tention is all you need. Advances in neural information processing systems30(2017)

work page 2017
[27]

Iscience27(5) (2024)

Zargari, A., Topacio, B.R., Mashhadi, N., Shariati, S.A.: Enhanced cell segmentation with limited train- ing datasets using cycle generative adversarial networks. Iscience27(5) (2024)

work page 2024
[28]

Journal of the American Chemical Society136(20), 7317–7326 (2014)

Zhang, Z., Wang, J., Nie, X., Wen, T., Ji, Y., Wu, X., Zhao, Y., Chen, C.: Near infrared laser-induced targeted cancer therapy using thermoresponsive polymer encapsu- lated gold nanorods. Journal of the American Chemical Society136(20), 7317–7326 (2014)

work page 2014
[29]

Zhu, J.Y., Park, T., Isola, P., Efros, A.A.: Unpaired image-to-image translation using cycle-consistent adver- sarial networks (2020), https://arxiv.org/abs/1703.10593

work page arXiv 2020
