arxiv: 2604.05102 · v1 · submitted 2026-04-06 · 📡 eess.SY · cs.RO· cs.SY

Recognition: no theorem link

Finite-Step Invariant Sets for Hybrid Systems with Probabilistic Guarantees

Varun Madabushi , Elizabeth Dietrich , Hanna Krasowski , Maegan Tucker

Authors on Pith no claims yet

Pith reviewed 2026-05-10 18:53 UTC · model grok-4.3

classification 📡 eess.SY cs.ROcs.SY

keywords hybrid systemsfinite-step invariant setsPoincare return mapsprobabilistic guaranteessampling-based optimizationperiodic orbitsellipsoidal invariant setslegged locomotion

0 comments

The pith

A sampling-based optimization framework computes finite-step invariant ellipsoids around periodic orbits in hybrid systems with probabilistic guarantees.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors present a method to identify sets of states that remain within an ellipsoid after a finite number of steps under the Poincare return map of a hybrid system. By using optimization over samples from forward simulations, they obtain an ellipsoid with attached probabilistic guarantees of invariance to a chosen accuracy level. This matters for systems where periodic behavior must be robust to disturbances but the full dynamics are only simulatable. The technique is illustrated on low-dimensional examples and a compass-gait biped model.

Core claim

We propose an algorithmic framework leveraging sampling-based optimization to compute a finite-step invariant ellipsoid around a nominal periodic orbit using sampled evaluations of the return map. The resulting solution is accompanied by probabilistic guarantees on finite-step invariance satisfying a user-defined accuracy threshold.

What carries the argument

The finite-step invariant ellipsoid obtained through sampling-based optimization on the Poincare return map evaluations.

If this is right

Robustness analysis becomes possible for periodic orbits in simulation-only hybrid systems.
Probabilistic guarantees can be tailored to a user-defined accuracy threshold.
The method works for both low-dimensional systems and more complex models like compass-gait walkers.
Invariant sets can be found without closed-form system equations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Similar sampling optimization could be applied to other stability or safety properties in hybrid systems.
The approach suggests a path toward certifying periodic behaviors in real-world cyber-physical systems with limited model knowledge.
Extensions might include incorporating explicit disturbance models into the sampling process.

Load-bearing premise

That sampled evaluations of the return map via forward simulation are sufficient to certify finite-step invariance with the stated probabilistic guarantees, without hidden assumptions on the distribution of disturbances or the convexity of the ellipsoid.

What would settle it

Simulations revealing that the actual probability of leaving the ellipsoid after the finite steps is higher than the guaranteed threshold for the chosen accuracy.

Figures

Figures reproduced from arXiv: 2604.05102 by Elizabeth Dietrich, Hanna Krasowski, Maegan Tucker, Varun Madabushi.

**Figure 2.** Figure 2: Sampling-based, finite-step invariant set algorithm and verification. (a,b) Sequence of ellipsoid iterates [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

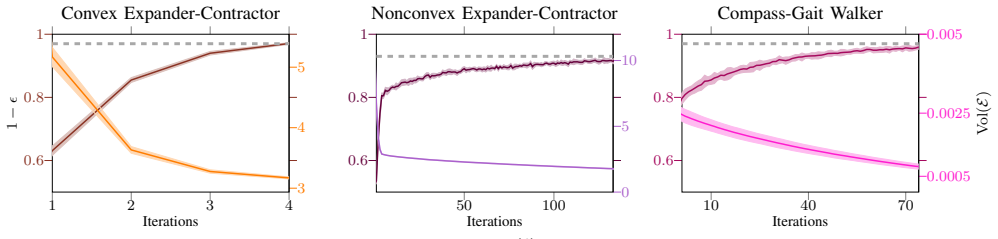

**Figure 3.** Figure 3: Mean and standard deviation of accuracy 1 − ϵ and ellipsoid volume Vol(θ) over 10 algorithm runs. The dashed gray line indicates the user-defined target accuracy for each system. (Left): The Convex Expander-Contractor system (accuracy: dark orange, volume: light orange) with desired accuracy 97%, converges within 5 iterations on average. (Middle): The Nonconvex Expander-Contractor system (accuracy: dark pu… view at source ↗

**Figure 4.** Figure 4: Evaluation of extension of one-step probabilistic guarantees to [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

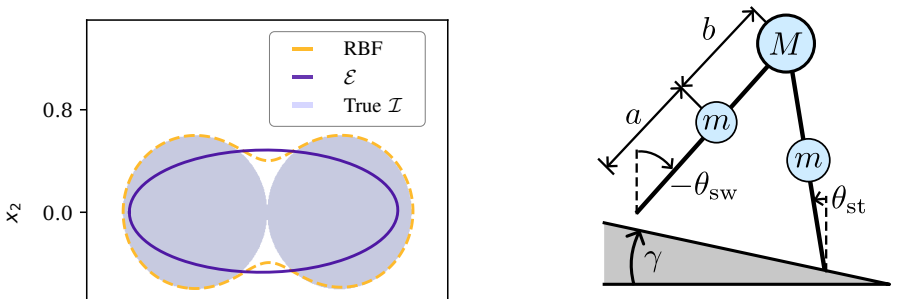

**Figure 6.** Figure 6: Coordinates and parameters of the Compass-Gait Walker. [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗

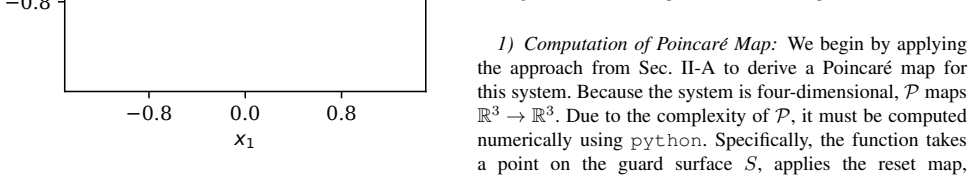

**Figure 5.** Figure 5: Invariant sets of Nonconvex Expander-Contractor (NEC) system. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

read the original abstract

Poincare return maps are a fundamental tool for analyzing periodic orbits in hybrid dynamical systems, including legged locomotion, power electronics, and other cyber-physical systems with switching behavior. The Poincare return map captures the evolution of the hybrid system on a guard surface, reducing the stability analysis of a periodic orbit to that of a discrete-time system. While linearization provides local stability information, assessing robustness to disturbances requires identifying invariant sets of the state space under the return dynamics. However, computing such invariant sets is computationally difficult, especially when system dynamics are only available through forward simulation. In this work, we propose an algorithmic framework leveraging sampling-based optimization to compute a finite-step invariant ellipsoid around a nominal periodic orbit using sampled evaluations of the return map. The resulting solution is accompanied by probabilistic guarantees on finite-step invariance satisfying a user-defined accuracy threshold. We demonstrate the approach on two low-dimensional systems and a compass-gait walking model.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper gives a sampling method for finite-step invariant ellipsoids on hybrid return maps with probabilistic claims, but those claims look thin without explicit coverage or regularity arguments.

read the letter

The paper's main offering is a sampling-based optimization routine that finds an ellipsoid around a nominal periodic orbit such that the Poincare return map keeps the set inside itself for a finite number of steps, with a user-specified probabilistic guarantee on the accuracy. The approach is aimed at hybrid systems known only through forward simulation, which covers many legged-robot and switching-circuit cases where closed-form invariants are unavailable. The compass-gait walking example shows the method runs on a relevant low-dimensional model and produces usable sets. That combination of finite-step framing and sampling is a reasonable targeted extension of existing invariance and Monte-Carlo ideas. The demonstrations are modest but on-point for the intended domain. The soft spot is exactly the one the stress-test flags. Sampled return-map evaluations can verify the property on the observed points, yet certifying the whole ellipsoid for the continuous dynamics requires either a density argument or some regularity (Lipschitz constant, bounded variation) on the map so that local samples control the image of the set. The abstract gives no sign that such conditions are stated or enforced in the optimization, so the guarantee risks reducing to an empirical check on the finite sample rather than a statement about the underlying hybrid flow. If the full paper does not supply error bounds or explicit propagation of the probability through the finite-step composition, the central claim weakens. The work stays within low dimensions, leaving scaling questions open. This is for control and robotics researchers who analyze periodic orbits in simulation-only hybrid models and need a computational robustness tool rather than a purely analytic one. A reader already working on Poincare-map methods or legged locomotion would get concrete value from the framework and the walking example. The paper deserves peer review because the problem is real, the basic algorithmic idea is coherent, and the examples are relevant; referees would likely press on the probabilistic derivation and any hidden sampling assumptions, which is normal and useful. I would send it out.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes an algorithmic framework that uses sampling-based optimization to compute finite-step invariant ellipsoids around nominal periodic orbits of hybrid systems, based on sampled evaluations of the Poincaré return map. The resulting ellipsoids come with probabilistic guarantees of finite-step invariance that meet a user-specified accuracy threshold. The approach is illustrated on two low-dimensional examples and a compass-gait biped model.

Significance. If the sampling-to-guarantee step is rigorously justified, the method would supply a practical, simulation-driven route to certified robustness margins for hybrid periodic orbits when closed-form dynamics are unavailable. This is relevant to legged locomotion and switched power systems, where traditional invariant-set algorithms scale poorly.

major comments (3)

[§3.2, Theorem 1] §3.2 and Theorem 1: The probabilistic certificate is stated to hold for the continuous return map, yet the argument relies on uniform sampling without an explicit covering radius, Lipschitz constant of the return map, or concentration inequality that propagates the finite-sample guarantee to the entire ellipsoid. Without these, the invariance statement reduces to an empirical observation on the observed trajectories.
[Algorithm 1] Algorithm 1, step 4: The finite-step composition of the return map is optimized directly on samples, but no error bound is derived for the composition of the probabilistic certificates across multiple steps; the user-defined accuracy threshold appears only as a post-hoc filter rather than being propagated through the optimization.
[§4.3] §4.3 (compass-gait example): The reported success probability is computed from the same sample set used for optimization; an independent validation set or out-of-sample Monte-Carlo test with quantified coverage is not provided, leaving open whether the guarantee generalizes beyond the training samples.

minor comments (2)

[§2] Notation for the ellipsoid parameters (center, shape matrix) is introduced inconsistently between the abstract and §2; a single consistent definition would improve readability.
[Figure 3] Figure 3 caption does not state the number of samples or the exact accuracy threshold used, making it difficult to reproduce the plotted invariant set.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript. These points help clarify the presentation of the probabilistic guarantees and validation procedures. We address each major comment below and will revise the manuscript accordingly.

read point-by-point responses

Referee: [§3.2, Theorem 1] The probabilistic certificate is stated to hold for the continuous return map, yet the argument relies on uniform sampling without an explicit covering radius, Lipschitz constant of the return map, or concentration inequality that propagates the finite-sample guarantee to the entire ellipsoid. Without these, the invariance statement reduces to an empirical observation on the observed trajectories.

Authors: We agree that Theorem 1 would benefit from an explicit argument bridging the finite samples to the continuous ellipsoid. In the revision we will add a covering-radius argument that invokes the local Lipschitz continuity of the return map (which holds in a neighborhood of the periodic orbit) together with a concentration inequality (e.g., Hoeffding) to obtain a rigorous high-probability bound that applies uniformly over the ellipsoid. This will make the continuous-domain guarantee explicit rather than implicit. revision: yes
Referee: [Algorithm 1] Algorithm 1, step 4: The finite-step composition of the return map is optimized directly on samples, but no error bound is derived for the composition of the probabilistic certificates across multiple steps; the user-defined accuracy threshold appears only as a post-hoc filter rather than being propagated through the optimization.

Authors: The present formulation applies the per-step threshold independently and invokes a union bound over the finite number of steps. We acknowledge that a tighter propagation of the error through the composition would be preferable. The revised manuscript will derive an accumulated-error bound that uses the Lipschitz constants of the successive return-map compositions and will incorporate the user-specified accuracy threshold directly into the optimization rather than applying it only as a post-hoc filter. revision: yes
Referee: [§4.3] §4.3 (compass-gait example): The reported success probability is computed from the same sample set used for optimization; an independent validation set or out-of-sample Monte-Carlo test with quantified coverage is not provided, leaving open whether the guarantee generalizes beyond the training samples.

Authors: We recognize that reporting the success probability on the optimization samples alone weakens the empirical validation in §4.3. The revised version will add an independent validation set of Monte-Carlo trajectories drawn from the same distribution but not used during optimization, together with explicit coverage statistics and success-rate figures on this held-out set to demonstrate generalization of the probabilistic guarantee. revision: yes

Circularity Check

0 steps flagged

No circularity: sampling-based optimization uses external evaluations and statistical guarantees

full rationale

The paper's core contribution is an algorithmic framework that takes sampled forward simulations of the Poincaré return map as input to a sampling-based optimizer, producing a finite-step invariant ellipsoid with user-specified probabilistic guarantees. This chain is self-contained against external benchmarks: the samples are generated by simulation (independent of the ellipsoid), the optimization is a standard procedure, and the probabilistic certificates rely on concentration inequalities or similar external statistical results rather than any self-referential fit, definition, or self-citation that reduces the claim to its own inputs. No load-bearing step equates a prediction to a fitted parameter or imports uniqueness via author overlap. The derivation therefore does not collapse by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The approach rests on standard hybrid systems assumptions such as the existence of a well-defined Poincare return map and the ability to evaluate it via forward simulation; no free parameters or invented entities are explicitly introduced in the abstract.

axioms (1)

domain assumption Existence and computability of Poincare return map via forward simulation for the hybrid system
Invoked in the abstract when stating that the return map captures evolution on the guard surface and can be evaluated through simulation.

pith-pipeline@v0.9.0 · 5465 in / 1244 out tokens · 47937 ms · 2026-05-10T18:53:00.631085+00:00 · methodology
