Aperiodic metalenses: intrinsically near-achromatic visible focusing with identical nanocylinders

Ivan Moreno , J. Carlos Basilio-Ortiz
Authors on Pith no claims yet

Pith reviewed 2026-05-10 18:17 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords aperiodic metalensesidentical nanorodschromatic aberrationeffective refractive indexdielectric metasurfacesphase modulationvisible focusingbroadband metasurfaces
0
0 comments X

The pith

Metalenses of identical nanocylinders achieve near-achromatic visible focusing solely by modulating local periodicity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that conventional metalenses suffer chromatic dispersion because varying meta-atom geometry couples phase to wavelength-dependent dimensions. By using only structurally identical dielectric nanorods and controlling phase exclusively through local spacing in an aperiodic layout, the design achieves full 2π coverage without changing rod size or shape. This invariance produces a linear effective-refractive-index scaling with periodicity that meets the dispersive condition for reduced chromatic aberration across the visible range. The resulting lenses at NA 0.4 and 0.8 cut longitudinal focal shift by nearly 42 percent relative to size-variant designs while preserving high efficiency and diffraction-limited spots. The single uniform building block simplifies fabrication and scaling.

Core claim

Composing metalenses exclusively from identical dielectric nanorods and obtaining full 2π phase coverage through local periodicity modulation alone yields a linear effective-refractive-index scaling that intrinsically satisfies the wavelength-dependent condition required for near-achromatic focusing.

What carries the argument

Aperiodic array of identical nanorods whose local periodicity supplies the full 2π phase shift and produces linear effective-index scaling with spacing.

If this is right

  • Longitudinal chromatic focal shift drops by nearly 42 percent for both moderate and high numerical apertures.
  • Spectral efficiency remains higher than in conventional designs across the visible band.
  • Focal spots stay tighter and diffraction-limited over a broader wavelength range.
  • Fabrication simplifies to a single uniform nanostructure repeated with controlled spacing.
  • The approach supplies a scalable route to broadband metasurfaces without geometric diversity.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The uniform-rod constraint may reduce sensitivity to fabrication errors in large-area devices where feature-size variation is hard to control.
  • Similar periodicity-only phase control could be tested in reflective or transmissive beam-steering metasurfaces.
  • The linear scaling relation invites direct numerical extraction of the effective index from finite arrays to check higher-order corrections at the design wavelengths.

Load-bearing premise

The effective refractive index of the aperiodic array of identical nanorods scales linearly with local periodicity and this scaling by itself meets the exact dispersive requirement for achromatic focusing without higher-order corrections.

What would settle it

Fabrication and focal-plane measurement of the proposed aperiodic designs showing that chromatic focal shift is not reduced by approximately 42 percent compared with conventional size-variant metalenses, or direct extraction of effective index versus periodicity that deviates from linearity.

Figures

Figures reproduced from arXiv: 2604.06512 by Ivan Moreno, J. Carlos Basilio-Ortiz.

Figure 1

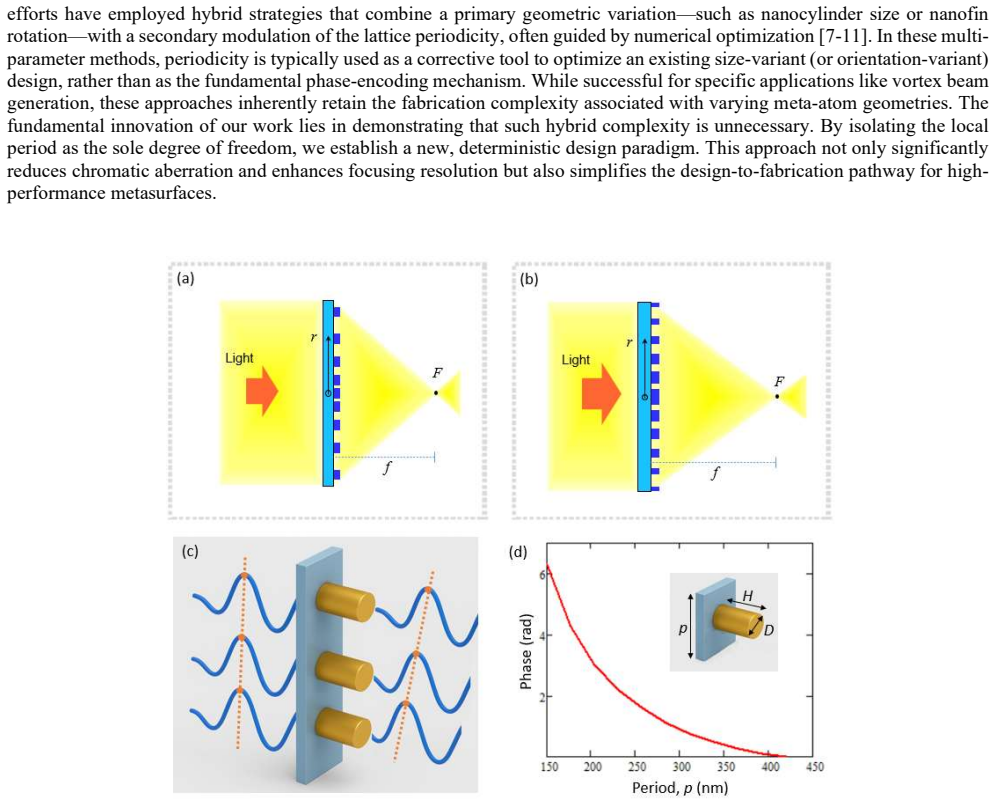

Figure 1. Figure 1: Concept and working principle of the aperiodic metalens paradigm. (a) Schematic of the proposed aperiodic metalens, which [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: (a) Schematic representation of the unit cell with period [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Metalens design strategy inspired by mosaic patterning. (a) Metalens surface divided into concentric rings (shown in blue and yellow), each [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

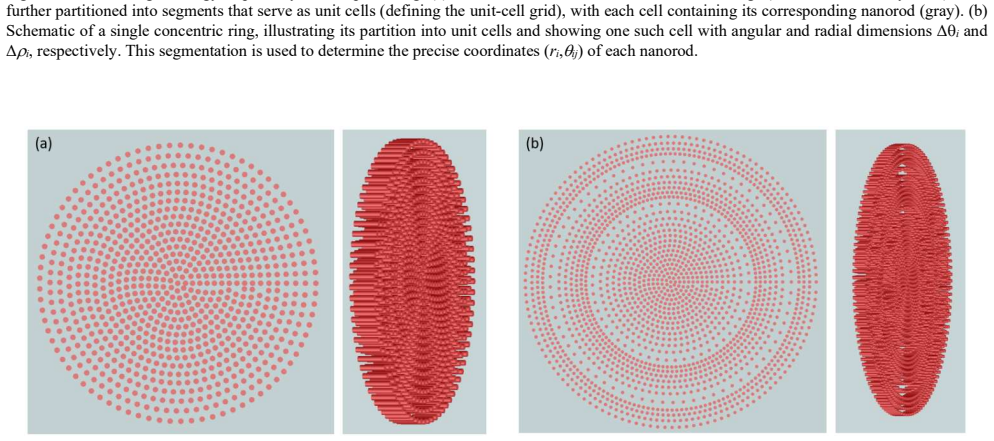

Figure 4. Figure 4: Layouts of the proposed aperiodic metalenses composed of identical nanocylinders. Top and side views illustrate the structure and spatially [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Comparative analysis of monochromatic focusing performance. FDTD simulations comparing the proposed aperiodic metalens and a [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Chromatic dispersion and efficiency analysis. Comparison between the (a) proposed aperiodic metalens and (b) a conventional size-variant [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Focusing performance of the aperiodic and conventional (periodic) metalenses. The plot shows the full width at half maximum (FWHM) of [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Intensity profiles at the focal point through the [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Monochromatic focusing performance of high-NA metalenses at the design wavelength (λ [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Chromatic focusing performance analysis for high-NA metalenses. Longitudinal intensity distributions (x [PITH_FULL_IMAGE:figures/full_fig_p011_10.png] view at source ↗
read the original abstract

Conventional metalenses control light by varying meta-atom geometry, a design strategy that inherently couples phase modulation to structural dimensions and exacerbates chromatic dispersion. Here, we break this paradigm by decoupling phase control from meta-atom geometry. We introduce an aperiodic metalens architecture composed exclusively of structurally identical dielectric nanorods, where full 2{\pi} phase coverage is achieved solely through local periodicity modulation. We theoretically demonstrate that this geometric invariance yields a linear effective-refractive-index scaling that intrinsically satisfies the dispersive condition required for near-achromatic focusing. Operating in the visible spectrum, our aperiodic designs (moderate and high numerical apertures of 0.4 and 0.8) reveal a passive suppression of chromatic aberration. Compared to conventional size-variant designs, our aperiodic approach reduces longitudinal chromatic focal shift by nearly 42% and maintains superior spectral efficiency, yielding tighter, diffraction-limited focal spots. By relying on a single, fabrication-tolerant nanostructural building block, this approach offers a highly simplified and scalable route toward next-generation broadband metasurfaces.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces an aperiodic metalens architecture using only structurally identical dielectric nanorods, achieving full 2π phase coverage through modulation of local periodicity rather than varying meta-atom geometry. It claims that this geometric invariance produces a linear effective-refractive-index scaling that intrinsically satisfies the dispersive condition for near-achromatic focusing in the visible spectrum. Simulations for designs at NA=0.4 and NA=0.8 report a nearly 42% reduction in longitudinal chromatic focal shift relative to conventional size-variant metalenses, along with improved spectral efficiency and diffraction-limited focal spots.

Significance. If the local effective-medium approximation holds under the stated conditions, the approach offers a fabrication-tolerant route to broadband metalenses by relying on a single nanostructure type, which could simplify manufacturing and improve scalability. The reported focal-shift reduction and spectral performance suggest a practical advantage over geometry-variant designs. However, the overall significance is moderated by the need to rigorously validate the approximation for high-NA cases, as unaccounted non-local effects could limit the claimed intrinsic achromatism.

major comments (2)
  1. [Abstract] The abstract asserts a 'theoretical demonstration' that linear effective-refractive-index scaling 'intrinsically satisfies the dispersive condition' for near-achromatic focusing, yet no derivation, equations, or explicit steps are provided to show how the linearity produces the exact λ^{-1} phase profile without higher-order wavelength-dependent corrections. This leaves the central claim resting on unverified model assumptions.
  2. [Theoretical demonstration and simulation results] The local effective-index model (n_eff scaling linearly with local periodicity p(r)) is invoked to support the achromatic performance, but at NA=0.8 the required phase gradient implies p(r) variations exceeding 20% over ~λ distances. This violates the slowly-varying periodicity assumption underlying effective-medium theory, potentially introducing unmodeled inter-cylinder coupling and evanescent effects that alter the phase profile. Full-wave simulations directly compared to the effective model predictions are required to substantiate the 42% focal-shift reduction.
minor comments (2)
  1. The abstract references 'moderate and high numerical apertures of 0.4 and 0.8' and a 'visible spectrum' but omits the exact design parameters (e.g., nanorod dimensions, substrate index, or wavelength range) used to obtain the 42% reduction and spectral efficiency metrics.
  2. Notation for effective refractive index and local periodicity should be introduced with explicit definitions and units in the main text to improve clarity for readers unfamiliar with the effective-medium framework.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful and constructive review. The comments highlight important points regarding the presentation of the theoretical derivation and the validation of the effective-medium approximation. We have revised the manuscript to address both issues directly.

read point-by-point responses

  1. Referee: [Abstract] The abstract asserts a 'theoretical demonstration' that linear effective-refractive-index scaling 'intrinsically satisfies the dispersive condition' for near-achromatic focusing, yet no derivation, equations, or explicit steps are provided to show how the linearity produces the exact λ^{-1} phase profile without higher-order wavelength-dependent corrections. This leaves the central claim resting on unverified model assumptions.

    Authors: We agree that the abstract does not contain the derivation due to length constraints. The main text presents the effective-medium framework, but to make the central claim fully transparent we have added an explicit step-by-step derivation (including the governing equations) in the revised theoretical section. This shows how the linear n_eff(p) relation produces the required 1/λ phase compensation without introducing higher-order wavelength-dependent corrections within the stated approximation. revision: yes

  2. Referee: [Theoretical demonstration and simulation results] The local effective-index model (n_eff scaling linearly with local periodicity p(r)) is invoked to support the achromatic performance, but at NA=0.8 the required phase gradient implies p(r) variations exceeding 20% over ~λ distances. This violates the slowly-varying periodicity assumption underlying effective-medium theory, potentially introducing unmodeled inter-cylinder coupling and evanescent effects that alter the phase profile. Full-wave simulations directly compared to the effective model predictions are required to substantiate the 42% focal-shift reduction.

    Authors: We acknowledge that the local effective-medium approximation is strained when periodicity varies rapidly at high NA. The full-wave simulations already incorporate all coupling and evanescent effects. To provide the requested direct validation, we have added a comparison of the phase profile predicted by the local effective-index model against the phase extracted from full-wave simulations of the complete aperiodic structure. The revised manuscript now includes this comparison, which supports the reported focal-shift reduction. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation self-contained via standard EMT

full rationale

The paper's theoretical demonstration applies effective-medium theory to identical nanorods under local-periodicity modulation to obtain linear n_eff(p) scaling. The resulting phase profile φ(r, λ) = (2π/λ)(n_eff(p(r)) − 1)h then satisfies the standard achromatic condition (constant focal length) because the explicit 1/λ factor matches the required wavelength dependence for fixed f, independent of the specific functional form of n_eff(p). This follows from the definition of optical path difference rather than any self-referential construction, fitted parameter renamed as prediction, or self-citation chain. No load-bearing step reduces to its own inputs by construction, and the reported 42% focal-shift reduction is a downstream numerical result, not a forced theoretical identity.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that effective-medium theory applied to aperiodic identical nanorods produces a strictly linear refractive-index versus period relation that exactly cancels material dispersion for focusing.

axioms (1)
  • domain assumption Effective refractive index scales linearly with local periodicity in an aperiodic array of identical dielectric nanorods.
    Invoked to assert that geometric invariance alone satisfies the dispersive condition for near-achromatic focusing.
