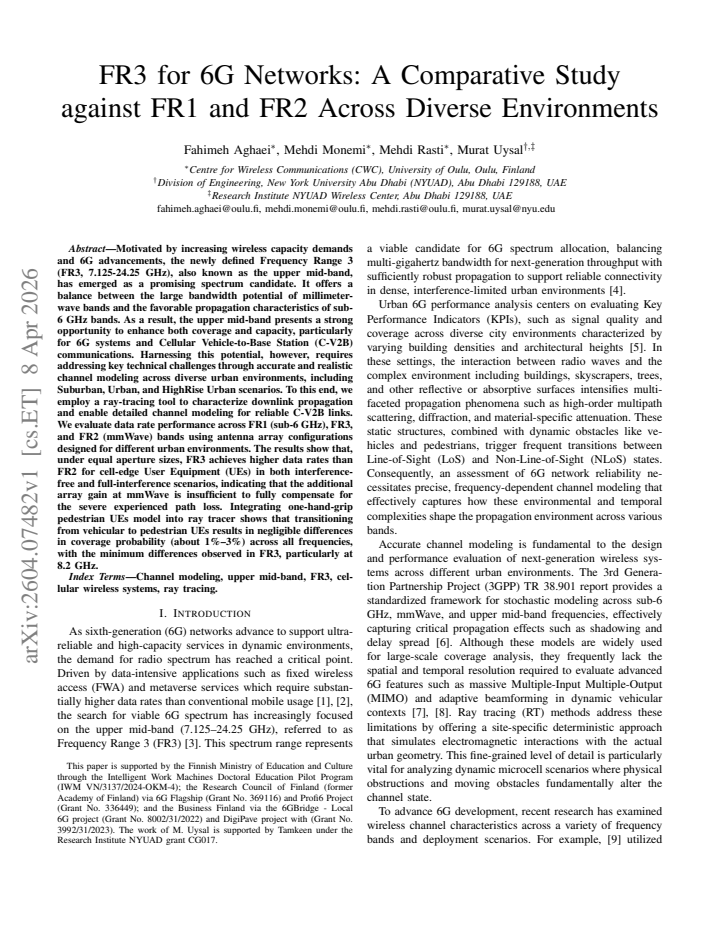

· Lean TheoremFR3 for 6G Networks: A Comparative Study against FR1 and FR2 Across Diverse Environments
Pith reviewed 2026-05-10 16:53 UTC · model grok-4.3
The pith
Under equal aperture sizes, FR3 achieves higher data rates than FR2 for cell-edge UEs in both interference-free and full-interference urban scenarios.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
By modeling channels with ray-tracing in suburban, urban, and high-rise urban scenarios, the authors demonstrate that FR3 achieves superior data rates compared to FR2 for cell-edge UEs under equal aperture sizes in both interference-free and full-interference cases. The additional array gain at mmWave frequencies is insufficient to compensate for the severe path loss experienced. Transitioning to pedestrian UEs from vehicular ones results in only minor changes in coverage probability, on the order of 1-3 percent, and those changes are smallest in FR3.
What carries the argument
Ray-tracing tool for characterizing downlink propagation and enabling channel modeling for FR1, FR3, and FR2 with environment-specific antenna array configurations.
If this is right
- FR3 can deliver higher cell-edge throughput than FR2 when physical antenna sizes are constrained to be equal.
- The upper mid-band reduces reliance on very large arrays to combat path loss in dense deployments.
- Coverage predictions remain similar for pedestrian and vehicular users, allowing simpler modeling in FR3.
- Interference scenarios do not reverse the data-rate advantage of FR3 over FR2 at cell edges.
Where Pith is reading between the lines
- Network planners may select FR3 to lower base-station array costs while preserving cell-edge rates.
- Spectrum allocation for 6G could shift emphasis toward the 7-24 GHz range to exploit the observed coverage balance.
- Validating ray-tracing outputs against field measurements would test whether the predicted FR3 gains hold in practice.
Load-bearing premise
The ray-tracing tool produces sufficiently accurate channel models for the three urban environments and the chosen antenna configurations without needing calibration against real measurements.
What would settle it
A measurement campaign in matching urban locations that records actual downlink data rates for FR3 and FR2 systems using equal-aperture antennas at cell-edge user positions.
Figures
read the original abstract
Motivated by increasing wireless capacity demands and 6G advancements, the newly defined Frequency Range 3 (FR3, 7.125-24.25 GHz), also known as the upper mid-band, has emerged as a promising spectrum candidate. It offers a balance between the large bandwidth potential of millimeter-wave bands and the favorable propagation characteristics of sub-6 GHz bands. As a result, the upper mid-band presents a strong opportunity to enhance both coverage and capacity, particularly for 6G systems and Cellular Vehicle-to-Base Station (C-V2B) communications. Harnessing this potential, however, requires addressing key technical challenges through accurate and realistic channel modeling across diverse urban environments, including Suburban, Urban, and HighRise Urban scenarios. To this end, we employ a ray-tracing tool to characterize downlink propagation and enable detailed channel modeling for reliable C-V2B links. We evaluate data rate performance across FR1 (sub-6 GHz), FR3, and FR2 (mmWave) bands using antenna array configurations designed for different urban environments. The results show that, under equal aperture sizes, FR3 achieves higher data rates than FR2 for cell-edge User Equipment (UEs) in both interference-free and full-interference scenarios, indicating that the additional array gain at mmWave is insufficient to fully compensate for the severe experienced path loss. Integrating one-hand-grip pedestrian UEs model into ray tracer shows that transitioning from vehicular to pedestrian UEs results in negligible differences in coverage probability (about 1\%--3\%) across all frequencies, with the minimum differences observed in FR3, particularly at 8.2 GHz.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper conducts a ray-tracing simulation study comparing downlink data rates and coverage for FR1 (sub-6 GHz), FR3 (7.125-24.25 GHz), and FR2 (mmWave) bands in suburban, urban, and high-rise urban environments for 6G C-V2B links. It claims that, under equal physical aperture sizes, FR3 yields higher cell-edge UE data rates than FR2 in both interference-free and full-interference scenarios because mmWave array gain fails to offset FR2 path loss; it further reports that switching from vehicular to one-hand-grip pedestrian UE models changes coverage probability by only 1-3% across bands, with the smallest change in FR3.
Significance. If the underlying channel models prove accurate, the work would usefully inform 6G spectrum decisions by quantifying when the upper mid-band can deliver better cell-edge performance than mmWave under realistic aperture constraints. The multi-environment comparison and explicit treatment of pedestrian grip effects add practical relevance for C-V2B system design.
major comments (2)
- [Abstract] Abstract: the headline claim that FR3 outperforms FR2 at cell-edge UEs under equal apertures rests entirely on simulated path-loss values, yet the manuscript supplies no ray-tracing parameters, material reflection/diffraction coefficients, antenna element patterns, or any calibration against measured urban path-loss data at representative FR3 and FR2 frequencies. Without these, the reported ordering cannot be verified and could reverse under plausible model bias.
- [Simulation setup and results sections] Simulation setup and results sections: the interference-free and full-interference scenarios inherit the same unvalidated propagation numbers; no sensitivity study or comparison to 3GPP or measurement-based models is provided to bound the uncertainty in the frequency-dependent excess loss that drives the FR3-vs-FR2 conclusion.
minor comments (1)
- [Abstract] Abstract: the one-hand-grip pedestrian UE model is introduced without a reference or brief description of how body effects and antenna placement are incorporated into the ray tracer.
Simulated Author's Rebuttal
We are grateful to the referee for the detailed and insightful comments, which will help improve the clarity and rigor of our manuscript. We address the major comments point-by-point below and commit to substantial revisions to enhance the transparency of our simulation methodology.
read point-by-point responses
-
Referee: [Abstract] Abstract: the headline claim that FR3 outperforms FR2 at cell-edge UEs under equal apertures rests entirely on simulated path-loss values, yet the manuscript supplies no ray-tracing parameters, material reflection/diffraction coefficients, antenna element patterns, or any calibration against measured urban path-loss data at representative FR3 and FR2 frequencies. Without these, the reported ordering cannot be verified and could reverse under plausible model bias.
Authors: We thank the referee for highlighting the importance of methodological transparency. The manuscript indeed omits detailed ray-tracing configuration parameters, which we will rectify in the revision by adding them to the Simulation Setup section. Specifically, we will specify the ray-tracing software used, the maximum order of reflections and diffractions (typically 6 reflections and 1 diffraction in urban scenarios), the dielectric properties of materials (e.g., frequency-dependent permittivity and conductivity for common urban materials), antenna models (uniform linear arrays with element patterns based on standard 3D radiation patterns), and the exact carrier frequencies simulated within each band. For calibration, while this work is purely simulation-based and does not include new field measurements, the ray-tracing tool employed has been extensively validated in prior literature against real-world data in similar urban environments at mmWave and mid-band frequencies. We will include references to these validation studies to support the reliability of our results. We maintain that the comparative advantage of FR3 over FR2 at cell-edge under equal aperture is robust because it stems from the fundamental frequency dependence of free-space path loss versus array gain scaling, which holds across reasonable model variations. However, we agree that providing these details will allow readers to assess potential biases. revision: yes
-
Referee: [Simulation setup and results sections] Simulation setup and results sections: the interference-free and full-interference scenarios inherit the same unvalidated propagation numbers; no sensitivity study or comparison to 3GPP or measurement-based models is provided to bound the uncertainty in the frequency-dependent excess loss that drives the FR3-vs-FR2 conclusion.
Authors: We acknowledge the lack of sensitivity analysis and model comparisons in the current version. In the revised manuscript, we will incorporate a new subsection on 'Model Validation and Sensitivity'. This will include: (1) a sensitivity study where we vary the reflection and diffraction coefficients by ±10-20% and recompute the cell-edge rates to demonstrate that the FR3 superiority persists; (2) a direct comparison of our ray-tracing path loss values against the 3GPP TR 38.901 urban macro and micro models for the corresponding frequency bands, highlighting agreements and discrepancies. This will help bound the uncertainty in the excess loss and strengthen confidence in the FR3 vs. FR2 ordering. We believe these additions will address the concern without changing the core findings. revision: yes
Circularity Check
No circularity: results are direct ray-tracing simulation outputs with no fitted parameters or self-referential derivations
full rationale
The manuscript is a comparative simulation study that runs a ray-tracing tool to generate channel realizations for FR1/FR3/FR2 in three urban scenarios, then computes data rates and coverage probabilities from those realizations. No equations are presented that derive new quantities from previously fitted constants inside the paper, no parameters are tuned on a data subset and then re-predicted, and no load-bearing claims rest on self-citations whose validity is assumed rather than independently verified. The headline ordering (FR3 outperforming FR2 at cell-edge under equal aperture) is simply the numerical outcome of the propagation model; it does not reduce to a tautology or to an input that was itself defined by the same model. The absence of any derivation chain therefore yields a circularity score of zero.
Axiom & Free-Parameter Ledger
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction unclearunder equal aperture sizes, FR3 achieves higher data rates than FR2 for cell-edge UEs... additional array gain at mmWave is insufficient to fully compensate for the severe experienced path loss
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclearWe employ a ray-tracing tool to characterize downlink propagation... data rate R = B min(ρ_max, α log2(1 + Γ))
Reference graph
Works this paper leans on
-
[1]
Quantifying the impact of 5G and COVID-19 on mobile data consumption,
Opensignal, “Quantifying the impact of 5G and COVID-19 on mobile data consumption,” https://www.opensignal.com/reports/2021/06/global-state-of-the-mobile- network, accessed: April 10, 2026
2021
-
[2]
How to monetize 5G,
PwC, “How to monetize 5G,” https://www.pwc.com/us/en/tech- effect/emerging-tech/5g-monetization.html, accessed: April 10, 2026
2026
-
[3]
Upper mid-band spectrum for 6G: Opportunities and key enablers,
Samsung Research, “Upper mid-band spectrum for 6G: Opportunities and key enablers,” https://research.samsung.com/blog/Upper-Mid-Band- Spectrum-for-6G-Opportunities-and-Key-Enablers, accessed: April 10, 2026
2026
-
[4]
M. Haiyang,et al., “A survey of new mid-band/FR3 for 6G: Channel measurement, characterization and modeling in outdoor environment,” arXiv preprint arXiv:2504.06727, 2025
-
[5]
5G 3GPP-like channel models for outdoor urban microcellular and macrocellular environments,
K. Hanedaet al., “5G 3GPP-like channel models for outdoor urban microcellular and macrocellular environments,” in2016 IEEE 83rd Vehicular Technology Conference (VTC Spring), 2016, pp. 1–7
2016
-
[6]
Study on channel model for frequency spectrum from 0.5 to 100 GHz,
3GPP, “Study on channel model for frequency spectrum from 0.5 to 100 GHz,” 3rd Generation Partnership Project (3GPP), Sophia Antipolis, France, Tech. Rep. TR 38.901, 2020
2020
-
[7]
Higher-Order Meta Distribution Reliability Analysis of Wireless Networks,
M. Monemiet al., “Higher-Order Meta Distribution Reliability Analysis of Wireless Networks,”arXiv preprint arXiv:2501.14289, 2025
-
[8]
A review on the cross-sector resource management framework for electric vehicles integration: Challenges, solutions, key- enabling technologies, and future directions,
N. Gholipooret al., “A review on the cross-sector resource management framework for electric vehicles integration: Challenges, solutions, key- enabling technologies, and future directions,”IEEE Open Journal of Intelligent Transportation Systems, vol. 6, pp. 1084–1120, 2025
2025
-
[9]
A study of channel model parameters for aerial base stations at 2.4 GHz in different environments,
N. Sharma,et al., “A study of channel model parameters for aerial base stations at 2.4 GHz in different environments,” in2018 15th IEEE Annual Consumer Communications & Networking Conference (CCNC), 2018, pp. 1–6
2018
-
[10]
D. Shakya,et al., “Urban outdoor propagation measurements and channel models at 6.75 GHz FR1(C) and 16.95 GHz FR3 upper mid- band spectrum for 5G and 6G,”arXiv preprint arXiv:2410.17539, 2024
-
[11]
Cellular wireless networks in the upper mid-band,
S. Kang,et al., “Cellular wireless networks in the upper mid-band,” IEEE Open Journal of the Communications Society, vol. 5, pp. 2058– 2075, 2024
2058
-
[12]
Characterization of FR3 Cellular Vehicle-to-Base Station Links in HighRise Urban Scenarios
F. Aghaei, M. Monemi, M. Rasti, and M. Uysal, “Characterization of FR3 Cellular Vehicle-to-Base Station Links in HighRise Urban Scenarios,”arXiv preprint arXiv:2604.03992, 2026
work page internal anchor Pith review Pith/arXiv arXiv 2026
-
[13]
Vehicular mmw communication: Channel characteri- zation based on ray tracing study,
F. Aghaei,et al., “Vehicular mmw communication: Channel characteri- zation based on ray tracing study,” in2024 19th International Symposium on Wireless Communication Systems (ISWCS), 2024, pp. 1–6
2024
-
[14]
Wireless insite reference manual,
“Wireless insite reference manual,”Remcom, version 3.3.3, 2019
2019
-
[15]
Rec. p.1410-2 propagation data and prediction methods for the design of terrestrial broadband millimetric aadio access systems,
ITU-R, “Rec. p.1410-2 propagation data and prediction methods for the design of terrestrial broadband millimetric aadio access systems,”P Series, Radiowave propagation, 2003
2003
-
[16]
Propagation data and prediction methods for the planning of short-range outdoor radiocommunication systems and radio local area networks in the frequency range 300 MHz to 100 GHz,
“Propagation data and prediction methods for the planning of short-range outdoor radiocommunication systems and radio local area networks in the frequency range 300 MHz to 100 GHz,” Aug. 2019
2019
-
[17]
LTE capacity com- pared to the Shannon bound,
P. Mogensen, W. Na, I. Z. Kovacs, F. Frederiksen, A. Pokhariyal, K. I. Pedersen, T. Kolding, K. Hugl, and M. Kuusela, “LTE capacity com- pared to the Shannon bound,” in2007 IEEE 65th Vehicular Technology Conference - VTC2007-Spring, 2007, pp. 1234–1238
2007
-
[18]
Recommendation ITU-R P.2040-1: Effects of building materials and structures on radio wave propagation above about 100 MHz,
A. Uyrus,et al., “Recommendation ITU-R P.2040-1: Effects of building materials and structures on radio wave propagation above about 100 MHz,”Recomm. ITU-R P .2040, vol. 1, 2015
2040
-
[19]
Overview of 3GPP Release 19 study on channel modeling enhancements to TR 38.901 for 6G,
P. Hitesh, G. Dimitri, L. Daewon, Z. Nan, S. Gokul, A. Henrik, and S. Mansoor, “Overview of 3GPP Release 19 study on channel modeling enhancements to TR 38.901 for 6G,”arXiv preprint arXiv:2507.19266, 2025
