DBMF: A Dual-Branch Multimodal Framework for Out-of-Distribution Detection

Jiangbei Yue , Darren Treanor , Venkataraman Subramanian , Sharib Ali

Authors on Pith no claims yet

Pith reviewed 2026-05-10 17:04 UTC · model grok-4.3

classification 💻 cs.CV cs.AI

keywords out-of-distribution detectionmultimodal frameworkendoscopic imagingdual-branch architecturedeep learning safetymedical image analysis

0 comments

The pith

A dual-branch multimodal framework detects out-of-distribution samples in endoscopic images by integrating text-image and vision branch scores.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes a framework that runs two parallel branches on endoscopic images: one that aligns images with text descriptions and one that works from visual features alone. Scores from each branch are combined into a single value used to flag samples that fall outside the training distribution, such as unseen disease patterns. A sympathetic reader would care because reliable OOD detection could prevent deep-learning tools from silently failing when real clinical data deviates from what the model saw during training. The authors report that this combined score remains effective across several network backbones and raises detection performance by as much as 24.84 percent on public endoscopic datasets compared with earlier methods.

Core claim

After separate training of the text-image branch (yielding score St) and the vision branch (yielding score Sv), their integration produces a final OOD score S that is thresholded to decide whether an input is out-of-distribution.

What carries the argument

The dual-branch architecture in which one branch computes an image-text matching score and the other computes a vision-only score, followed by direct integration of the two scores to form the final decision threshold.

If this is right

Deep-learning models for endoscopy become more reliable when they encounter previously unseen disease presentations.
The performance gain holds when the underlying backbone networks are swapped for different architectures.
State-of-the-art OOD detection on the tested public endoscopic datasets improves by up to 24.84 percent.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same score-integration pattern could be tested on other medical imaging tasks where both visual appearance and descriptive text are available.
Deployment in hospitals would still require validation on live data streams that contain natural, unscripted distribution shifts.
Replacing the fixed score combination with a learned fusion layer might further improve results on more diverse data.

Load-bearing premise

The two branches supply genuinely complementary information whose simple combination yields a better detector than either branch alone, and the chosen public datasets reflect the distribution shifts that occur in actual clinical practice.

What would settle it

A controlled test on an endoscopic dataset collected from a different clinical site or patient cohort in which the dual-branch integrated score shows no gain, or a loss, in OOD detection metrics relative to the strongest single-branch baseline.

Figures

Figures reproduced from arXiv: 2604.08261 by Darren Treanor, Jiangbei Yue, Sharib Ali, Venkataraman Subramanian.

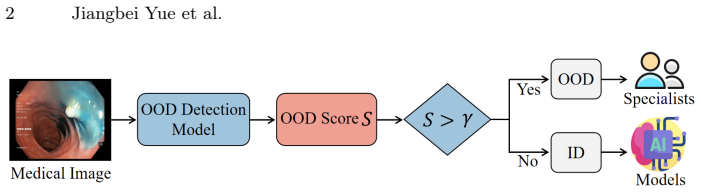

**Figure 1.** Figure 1: The pipeline of the OOD detection. γ is a threshold. questionable. Following previous works [21, 4], we consider normal/healthy and abnormal/unhealthy samples as ID and OOD data, respectively. A common OOD detection pipeline is illustrated in [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

**Figure 2.** Figure 2: The overview of the DBMF. Our framework consists of the training phase, inference phase, and OOD detection. After training two branches, we compute St and St, resulting in the OOD score S. The final detection is based on S and a threshold γ. the text-image branch and the vision branch, respectively. The OOD score S is the combination of St and Sv. Finally, we can utilize S to identify OOD data. We evaluate… view at source ↗

**Figure 3.** Figure 3: Qualitative comparison of OOD score distributions on Kvasir-v2 and GastroVision between NERO and our framework. OOD scores are plotted along the horizontal axis, while the vertical axis shows the corresponding probability density. the proposed framework with these baseline methods on Kvasir-v2 and Gastrovision. The experimental results are shown in [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

read the original abstract

The complex and dynamic real-world clinical environment demands reliable deep learning (DL) systems. Out-of-distribution (OOD) detection plays a critical role in enhancing the reliability and generalizability of DL models when encountering data that deviate from the training distribution, such as unseen disease cases. However, existing OOD detection methods typically rely either on a single visual modality or solely on image-text matching, failing to fully leverage multimodal information. To overcome the challenge, we propose a novel dual-branch multimodal framework by introducing a text-image branch and a vision branch. Our framework fully exploits multimodal representations to identify OOD samples through these two complementary branches. After training, we compute scores from the text-image branch ($S_t$) and vision branch ($S_v$), and integrate them to obtain the final OOD score $S$ that is compared with a threshold for OOD detection. Comprehensive experiments on publicly available endoscopic image datasets demonstrate that our proposed framework is robust across diverse backbones and improves state-of-the-art performance in OOD detection by up to 24.84%

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Dual-branch multimodal OOD detector for endoscopy has a plausible architecture but the gains rest on unshown ablations and vague score fusion.

read the letter

The main point is a dual-branch setup that runs a text-image matching branch alongside a pure vision branch, then combines their OOD scores for endoscopic images. It reports up to 24.84% better performance than prior methods on public datasets and checks a few different backbones for robustness. That combination is the actual novelty here, since most OOD work in this area stays with one modality or the other. The experiments give a concrete starting point for anyone trying to make medical imaging models more reliable in practice. The soft spots sit in the middle of the central claim. The abstract says the final score S comes from integrating St and Sv but never shows the formula or weighting. There are no per-branch results and no ablation that removes one branch to test whether the other is sufficient or whether the two signals actually add independent information. Without those checks it is impossible to know if the reported lift comes from complementarity or from something simpler like averaging correlated outputs. The public endoscopic datasets are a reasonable choice, yet the paper gives no breakdown of what distribution shifts the OOD test sets actually contain, so the clinical relevance stays hard to judge. This work is aimed at researchers who build or evaluate OOD methods for medical imaging, especially endoscopy. A reader who needs a multimodal baseline or wants to extend the idea to other modalities could extract the architecture and the headline numbers without much trouble. It has enough experiments on real data and addresses a practical safety issue to deserve a serious referee, though the review will almost certainly require the missing ablations and shift characterization. I would send it for peer review rather than desk reject.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes DBMF, a dual-branch multimodal framework for out-of-distribution (OOD) detection in endoscopic images. It consists of a text-image branch and a vision branch whose scores S_t and S_v are integrated into a final OOD score S; the framework is claimed to be robust across diverse backbones and to improve state-of-the-art OOD detection performance by up to 24.84% on publicly available endoscopic datasets.

Significance. If the reported gains prove robust and attributable to genuine complementarity between the text-image and vision branches rather than simple averaging of correlated signals, the work could meaningfully advance reliable multimodal OOD detection for clinical deep-learning systems. The emphasis on public datasets supports reproducibility, yet the absence of detailed metrics, ablations, and shift characterizations currently limits the ability to gauge its broader impact on handling real-world clinical distribution shifts.

major comments (3)

Abstract: The integration rule that produces the final score S from S_t and S_v is never specified, nor are the exact OOD metrics (AUROC, FPR@95, etc.), the precise baselines, or any statistical significance tests underlying the “up to 24.84 %” improvement. Without these details the central performance claim cannot be evaluated or reproduced.
Experiments (assumed section): No ablation results, per-branch performance numbers, or failure-case analysis are presented to show that the two branches supply genuinely complementary signals. It is therefore impossible to determine whether the reported gains exploit complementarity or merely average correlated scores.
Dataset description: The paper asserts robustness on public endoscopic datasets but provides no characterization of the concrete distribution shifts (new pathologies, equipment changes, demographic variations) present in the OOD test splits, leaving open whether the 24.84 % figure generalizes beyond the chosen splits to clinically relevant shifts.

minor comments (2)

Abstract: The abstract states that “comprehensive experiments” were performed yet supplies no quantitative metrics, confidence intervals, or backbone-specific results, which would allow readers to assess the strength of the claims at a glance.
Notation: The symbols S_t, S_v, and S are introduced without an accompanying equation or pseudocode defining their computation and combination, which would improve clarity.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. The comments highlight important areas for improving clarity, reproducibility, and depth of analysis. We address each major comment below and have revised the manuscript to incorporate the requested details and additional experiments.

read point-by-point responses

Referee: Abstract: The integration rule that produces the final score S from S_t and S_v is never specified, nor are the exact OOD metrics (AUROC, FPR@95, etc.), the precise baselines, or any statistical significance tests underlying the “up to 24.84 %” improvement. Without these details the central performance claim cannot be evaluated or reproduced.

Authors: We agree that the abstract, in its current concise form, omits critical specifics needed for immediate evaluation. The integration rule (a weighted combination of the two branch scores) and the full set of metrics, baselines, and significance testing are described in the methods and experimental sections. In the revised manuscript we will expand the abstract to explicitly state the integration rule, list the precise metrics (AUROC, FPR@95, etc.), name the baselines, and report the statistical tests supporting the 24.84 % figure. revision: yes
Referee: Experiments (assumed section): No ablation results, per-branch performance numbers, or failure-case analysis are presented to show that the two branches supply genuinely complementary signals. It is therefore impossible to determine whether the reported gains exploit complementarity or merely average correlated scores.

Authors: We acknowledge that the current experimental section lacks the ablations necessary to isolate the contribution of each branch. We will add (i) per-branch AUROC/FPR@95 numbers, (ii) an ablation table showing performance when using only S_t, only S_v, and the combined S, and (iii) a qualitative failure-case analysis. These additions will directly demonstrate whether the observed gains stem from complementary signals. revision: yes
Referee: Dataset description: The paper asserts robustness on public endoscopic datasets but provides no characterization of the concrete distribution shifts (new pathologies, equipment changes, demographic variations) present in the OOD test splits, leaving open whether the 24.84 % figure generalizes beyond the chosen splits to clinically relevant shifts.

Authors: We agree that a more explicit characterization of the distribution shifts is required for clinical interpretability. In the revised dataset section we will describe the specific shifts present in each OOD split—new pathologies, changes in imaging equipment, and demographic variations—supported by quantitative statistics on the test sets. This will clarify the scope of the reported gains. revision: yes

Circularity Check

0 steps flagged

No significant circularity; framework and claims are self-contained

full rationale

The paper defines a dual-branch architecture with separate text-image (S_t) and vision (S_v) branches whose scores are computed after training and then integrated into a final OOD score S. No equations, derivations, or performance claims reduce the reported improvements (up to 24.84%) to a fitted parameter renamed as a prediction, a self-referential definition, or a load-bearing self-citation chain. The central contribution is an empirical architectural proposal evaluated on public datasets, with no steps that collapse by construction to the inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim rests on standard supervised training assumptions for deep networks plus the unstated premise that the two branches capture independent signals whose linear or simple combination improves detection.
