arxiv: 2604.09922 · v1 · submitted 2026-04-10 · 💻 cs.LG · cs.CV

Recognition: unknown

K-STEMIT: Knowledge-Informed Spatio-Temporal Efficient Multi-Branch Graph Neural Network for Subsurface Stratigraphy Thickness Estimation from Radar Data

Maryam Rahnemoonfar, Zesheng Liu

Authors on Pith no claims yet

Pith reviewed 2026-05-10 16:57 UTC · model grok-4.3

classification 💻 cs.LG cs.CV
keywords graph neural networksradargramsice sheet stratigraphyphysical priorsmulti-branch networkssnow accumulationspatio-temporal modeling
0
0 comments X

The pith

Knowledge-informed graph network fuses weather model data into radar processing to cut ice layer thickness error by 21 percent.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces K-STEMIT, a multi-branch graph neural network that learns spatial geometry from radargrams while adding temporal convolutions and physical constraints from a regional weather model. An adaptive fusion step dynamically weighs the branches so that the physical priors help correct for speckle noise and improve estimates when the network must extrapolate across space or time. Experiments show this combination lowers root mean squared error by 21.01 percent relative to conventional multi-branch versions at almost no extra computational cost. The resulting thickness maps support continuous tracking of snow accumulation across large polar regions. Without the physical priors, purely data-driven approaches produce unrealistic layer thicknesses outside the training distribution.

Core claim

K-STEMIT is a knowledge-informed spatio-temporal efficient multi-branch graph neural network that combines a geometric spatial learning framework, temporal convolution, and synchronized physical data from the Model Atmospheric Regional weather model, then uses adaptive feature fusion to integrate the branches. This produces more accurate subsurface stratigraphy thickness estimates from radargrams than existing knowledge-informed or non-knowledge-informed methods while preserving near-optimal efficiency.

What carries the argument

K-STEMIT, the knowledge-informed efficient multi-branch spatio-temporal graph neural network that incorporates physical weather model priors and adaptive feature fusion to combine spatial, temporal, and physical branches.

Load-bearing premise

The physical data synchronized from the Model Atmospheric Regional weather model must be accurate and relevant enough to provide useful constraints that improve generalization under spatial or temporal extrapolation.

What would settle it

Run the same radar test sets through K-STEMIT with the physical priors and adaptive fusion removed; if root mean squared error does not rise by roughly 21 percent or more, or if performance on new regions with mismatched weather data stays equally good, the central benefit claim is falsified.

Figures

Figures reproduced from arXiv: 2604.09922 by Maryam Rahnemoonfar, Zesheng Liu.

Figure 1
Figure 1. Figure 1: Diagram of capturing radargrams and generating corresponding labels. (a) How airborne radar sensor is used to capture the status of internal ice layers (Image adapted from [35]) (b) Example of a radargram captured by the airborne radar sensor. (c) Corresponding labeled images, where each ice layer is manually annotated. Each layer is formed in a certain year. ice and snow layers to collect high-resolution … view at source ↗
Figure 2
Figure 2. Figure 2: Architecture of our proposed K-STEMIT. Aggregate A temporal sequence of 𝑚 spatial graphs Compressed spatial graph with concatenated node features [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Dimension reduction in the spatial branch, where the graph sequence is compressed into a single graph with concatenated node features. reduction strategies help disentangle spatial and temporal dependencies, allowing each branch to operate on the most informative feature subsets while minimizing redundancy. For the spatial branch, we leverage the structural characteristics of radargrams: nodes located in t… view at source ↗
Figure 4
Figure 4. Figure 4: Diagram of Temporal Convolution Block. As shown in [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5

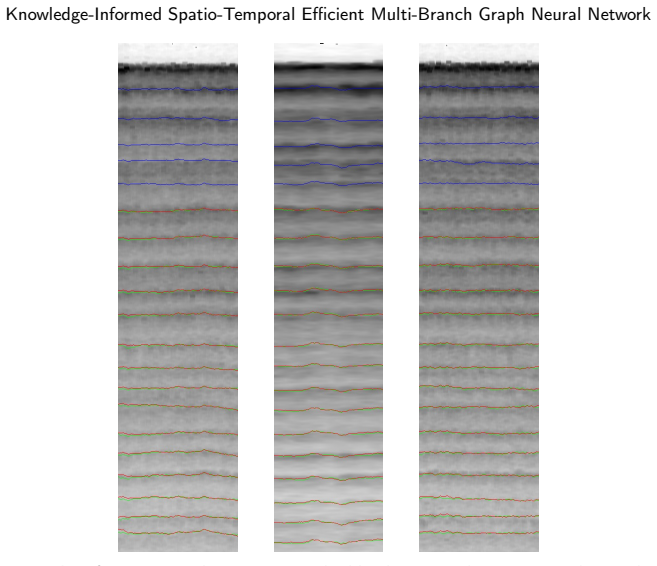

Figure 5. Figure 5: Qualitative results of our proposed K-STEMIT. The blue line is used to generate the graphs. The green line is the groundtruth (manually-labeled ice layers) and the red line is the model prediction [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6

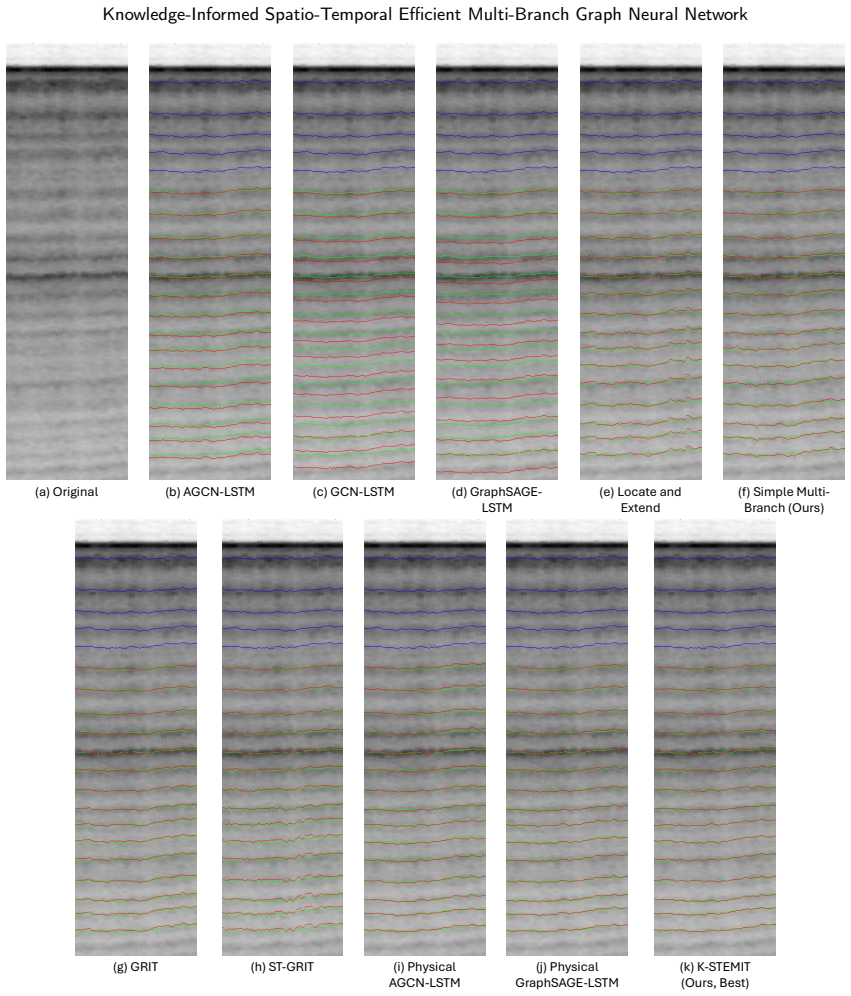

Figure 6. Figure 6: Comparison between qualitative results of different graph models. The blue line is used to generate the graphs. The green line is the groundtruth (manually-labeled ice layers) and the red line is the model prediction. all error terms equally by normalizing each residual by its ground truth value. Evaluating 𝛿 (𝑘) 𝑗 across layers provides insights into the error consistency of the model, revealing whether d… view at source ↗
Figure 7
Figure 7. Figure 7: Relative MAE on individual ice layers for each model. As shown in [PITH_FULL_IMAGE:figures/full_fig_p017_7.png] view at source ↗
read the original abstract

Subsurface stratigraphy contains important spatio-temporal information about accumulation, deformation, and layer formation in polar ice sheets. In particular, variations in internal ice layer thickness provide valuable constraints for snow mass balance estimation and projections of ice sheet change. Although radar sensors can capture these layered structures as depth-resolved radargrams, convolutional neural networks applied directly to radar images are often sensitive to speckle noise and acquisition artifacts. In addition, purely data-driven methods may underuse physical knowledge, leading to unrealistic thickness estimates under spatial or temporal extrapolation. To address these challenges, we develop K-STEMIT, a novel knowledge-informed, efficient, multi-branch spatio-temporal graph neural network that combines a geometric framework for spatial learning with temporal convolution to capture temporal dynamics, and incorporates physical data synchronized from the Model Atmospheric Regional physical weather model. An adaptive feature fusion strategy is employed to dynamically combine features learned from different branches. Extensive experiments have been conducted to compare K-STEMIT against current state-of-the-art methods in both knowledge-informed and non-knowledge-informed settings, as well as other existing methods. Results show that K-STEMIT consistently achieves the highest accuracy while maintaining near-optimal efficiency. Most notably, incorporating adaptive feature fusion and physical priors reduces the root mean-squared error by 21.01% with negligible additional cost compared to its conventional multi-branch variants. Additionally, our proposed K-STEMIT achieves consistently lower per-year relative MAE, enabling reliable, continuous spatiotemporal assessment of snow accumulation variability across large spatial regions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes K-STEMIT, a knowledge-informed spatio-temporal efficient multi-branch graph neural network for subsurface stratigraphy thickness estimation from radar data. It integrates geometric spatial learning, temporal convolutions, physical priors synchronized from the Model Atmospheric Regional (MAR) weather model, and an adaptive feature fusion strategy. The central claim is that this yields the highest accuracy among state-of-the-art methods in both knowledge-informed and non-knowledge-informed settings, with a 21.01% RMSE reduction and negligible added cost relative to conventional multi-branch variants, while enabling reliable spatiotemporal snow accumulation assessment.

Significance. If the empirical claims hold under rigorous validation, the work could advance the use of graph neural networks with embedded physical knowledge for geophysical radar analysis, potentially improving constraints on ice-sheet mass balance and climate projections by better handling extrapolation and noise.

major comments (3)
  1. [Abstract and Experiments] Abstract and Experiments section: The headline claim of a 21.01% RMSE reduction via adaptive fusion and MAR physical priors is presented without dataset descriptions (e.g., radargram sources, spatial/temporal coverage, label acquisition), baseline specifications, error-bar reporting, statistical tests, or ablation breakdowns, rendering the central empirical result unverifiable.
  2. [Experiments and Results] Experiments and Results sections: No independent validation is provided that the synchronized MAR fields supply accurate, relevant, and non-redundant constraints on accumulation (e.g., cross-checks against in-situ stakes or alternative reanalysis products). This leaves open whether observed gains arise from the priors themselves or from the fusion mechanism alone, directly undermining the generalization and extrapolation claims.
  3. [Results] Results section: The reported accuracy improvements lack details on the number of runs, cross-validation strategy, or significance testing, so the 21.01% RMSE figure cannot be assessed for robustness or reproducibility.
minor comments (2)
  1. [Methods] Methods section: Expand on the precise formulation of the geometric spatial learning component and the adaptive feature fusion mechanism, including any equations or pseudocode.
  2. [Abstract] Abstract: The phrase 'near-optimal efficiency' is vague; quantify computational cost (e.g., FLOPs or inference time) relative to baselines.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for their constructive and detailed feedback on our manuscript. We have carefully reviewed each major comment and provide point-by-point responses below, indicating where revisions will be made to strengthen the presentation of our results.

read point-by-point responses

  1. Referee: [Abstract and Experiments] Abstract and Experiments section: The headline claim of a 21.01% RMSE reduction via adaptive fusion and MAR physical priors is presented without dataset descriptions (e.g., radargram sources, spatial/temporal coverage, label acquisition), baseline specifications, error-bar reporting, statistical tests, or ablation breakdowns, rendering the central empirical result unverifiable.

    Authors: We agree that additional details are necessary to make the empirical claims fully verifiable. The current manuscript provides a concise summary in the abstract and high-level experimental comparisons but omits explicit descriptions of radargram sources, spatial/temporal coverage, label acquisition procedures, baseline model specifications, error bars, statistical tests, and comprehensive ablation breakdowns. In the revised manuscript, we will expand the Experiments and Results sections to include these elements, ensuring the 21.01% RMSE reduction and related claims can be independently assessed. revision: yes

  2. Referee: [Experiments and Results] Experiments and Results sections: No independent validation is provided that the synchronized MAR fields supply accurate, relevant, and non-redundant constraints on accumulation (e.g., cross-checks against in-situ stakes or alternative reanalysis products). This leaves open whether observed gains arise from the priors themselves or from the fusion mechanism alone, directly undermining the generalization and extrapolation claims.

    Authors: This comment correctly identifies a gap in the current validation strategy. While the manuscript shows performance gains from integrating MAR priors via the adaptive fusion mechanism, it does not include new independent cross-checks (such as direct comparisons to in-situ stake measurements or other reanalysis products) to confirm the accuracy and non-redundancy of the MAR fields specifically for this task. We will revise the paper to add a dedicated discussion subsection referencing established literature on MAR model performance for polar accumulation, and we will clarify that the reported improvements stem from the combined knowledge-informed framework rather than isolating the priors alone. However, performing new cross-validations would require datasets and analyses outside the scope of the present study. revision: partial

  3. Referee: [Results] Results section: The reported accuracy improvements lack details on the number of runs, cross-validation strategy, or significance testing, so the 21.01% RMSE figure cannot be assessed for robustness or reproducibility.

    Authors: We acknowledge that the current Results section does not explicitly report the number of independent runs, the cross-validation strategy, or statistical significance tests. In the revised manuscript, we will include these details, specifying the experimental protocol (e.g., number of runs with different random seeds), the cross-validation approach used, and results from appropriate significance tests to demonstrate the robustness and reproducibility of the reported accuracy improvements, including the 21.01% RMSE reduction. revision: yes

standing simulated objections not resolved
  • Independent cross-validation of the MAR physical priors against in-situ stakes or alternative reanalysis products, as this would require access to additional external datasets and new experiments beyond the current study scope.

Circularity Check

0 steps flagged

No significant circularity; empirical claims rest on external comparisons

full rationale

The paper introduces K-STEMIT as a GNN architecture incorporating physical priors from the MAR weather model and an adaptive fusion strategy. Performance claims (e.g., 21.01% RMSE reduction) are presented as outcomes of comparative experiments against baselines and variants, not as derivations or predictions that reduce by construction to fitted parameters or self-citations. No equations, uniqueness theorems, or ansatzes are shown that equate the claimed gains to the model's own inputs. The central results depend on held-out test data and external benchmarks, making the derivation chain self-contained against those comparisons.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim depends on the utility of synchronized physical weather data and the effectiveness of the proposed multi-branch architecture; no free parameters or invented physical entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption Physical data from the Model Atmospheric Regional weather model can be accurately synchronized with radar observations and supplies useful priors for thickness estimation.
    Invoked to justify improved performance under extrapolation.
