Topological Complexity and Phase Space Stability: A Persistent Homology Approach to Cryptocurrency Risk

Gabriel Santana , Jemirson Ramirez

Authors on Pith no claims yet

Pith reviewed 2026-05-10 13:11 UTC · model grok-4.3

classification 🧮 math.GN q-fin.CP

keywords cryptocurrency riskpersistent homologyphase space reconstructiondelay embeddingtopological persistence norm1-cyclesmarket stabilityVietoris-Rips filtration

0 comments

The pith

Persistent homology of delay-embedded cryptocurrency log-returns yields a coordinate-free risk metric based on phase-space cycle lifetimes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper argues that conventional risk tools built on variance or tail quantiles overlook the geometric organization of price trajectories. It reconstructs the market's underlying dynamics by embedding log-return sequences into a point cloud that approximates the phase-space attractor. Persistent homology is computed on the growing Vietoris-Rips complexes of this cloud, and the lifetimes of the resulting one-dimensional features are aggregated into a single scalar called the Topological Persistence Norm. This norm is offered as a stability measure that remains unchanged under coordinate re-labeling and is insensitive to rapid price jitter. A reader would care because the same scalar is proposed to guide how much leverage to apply when the detected cycles lengthen.

Core claim

By Takens delay embedding of cryptocurrency log-return time series the authors obtain a point cloud whose Vietoris-Rips filtration produces persistent homology groups; the Topological Persistence Norm is defined directly from the total persistence of the one-dimensional homology classes across this filtration, and the norm is shown to rise precisely when the reconstructed attractor exhibits greater structural instability, supplying a heuristic for adjusting position size.

What carries the argument

The Topological Persistence Norm, obtained by summing the lengths of the persistence intervals of one-cycles in the Vietoris-Rips filtration of the delay-embedded log-return cloud.

If this is right

Risk readings become invariant to the particular choice of price coordinates or units.
High-frequency noise is automatically filtered because only features that survive across a range of scales contribute to the norm.
Market regimes can be labeled by the topological complexity of their attractors instead of by moments of the return distribution.
Leverage can be scaled proportionally to the observed persistence of one-cycles, tightening exposure when cycles shorten.
The same pipeline applies to any cryptocurrency without asset-specific parameter retuning.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The norm could be monitored in real time to trigger automatic deleveraging before volatility spikes become statistically visible.
Applying the identical embedding and filtration steps to equity or FX series would test whether the link between cycle persistence and risk generalizes beyond cryptocurrencies.
Varying the embedding dimension while holding the norm stable would confirm that the detected instability is a property of the attractor rather than an artifact of the reconstruction.
A low-dimensional dynamical system whose attractors exhibit controlled changes in cycle persistence could serve as a synthetic test bed for the method.

Load-bearing premise

That the delay embedding of log-returns produces an attractor whose one-cycles correspond to genuine market instability rather than to embedding parameters or sampling noise.

What would settle it

Historical cryptocurrency series in which the Topological Persistence Norm remains low immediately before large realized drawdowns or in which the norm jumps under small changes to embedding delay without any corresponding change in volatility.

Figures

Figures reproduced from arXiv: 2604.13311 by Gabriel Santana, Jemirson Ramirez.

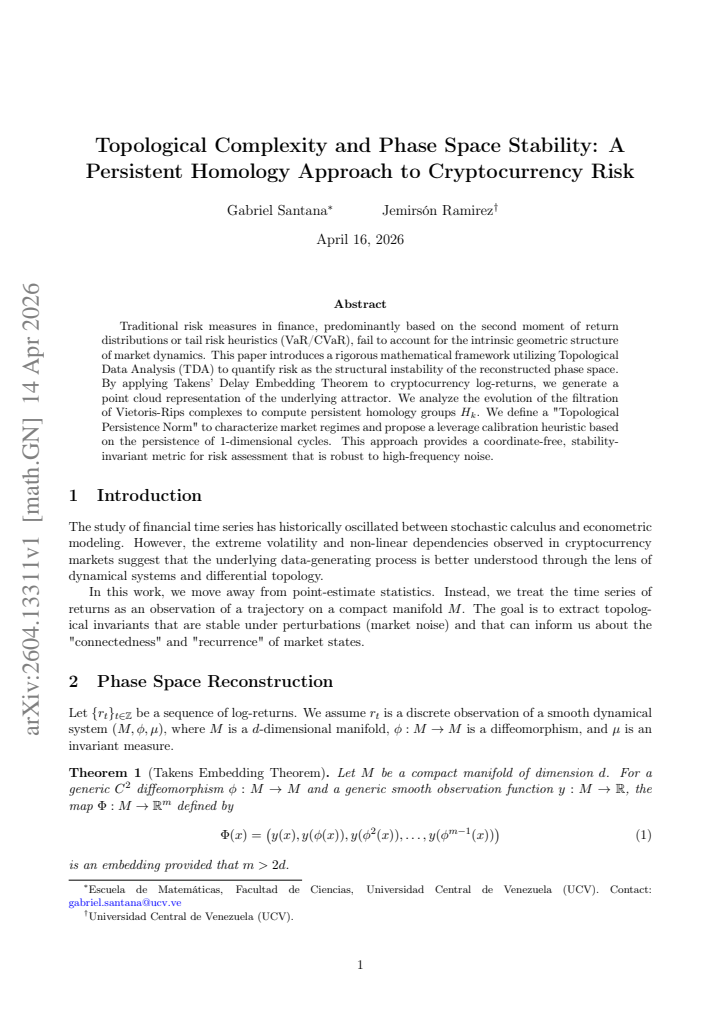

read the original abstract

Traditional risk measures in finance, predominantly based on the second moment of return distributions or tail risk heuristics (VaR/CVaR), fail to account for the intrinsic geometric structure of market dynamics. This paper introduces a rigorous mathematical framework utilizing Topological Data Analysis (TDA) to quantify risk as the structural instability of the reconstructed phase space. By applying Takens' Delay Embedding Theorem to cryptocurrency log-returns, we generate a point cloud representation of the underlying attractor. We analyze the evolution of the filtration of Vietoris-Rips complexes to compute persistent homology groups $H_k$. We define a "Topological Persistence Norm" to characterize market regimes and propose a leverage calibration heuristic based on the persistence of 1-dimensional cycles. This approach provides a coordinate-free, stability-invariant metric for risk assessment that is robust to high-frequency noise.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper applies Takens embedding and persistent homology to cryptocurrency log-returns then names the resulting 1-cycle measure a Topological Persistence Norm, but supplies no tests showing it tracks risk better than standard measures.

read the letter

The main takeaway is that the authors embed crypto log-returns with Takens delay coordinates, build Vietoris-Rips filtrations, extract persistent homology, and define a persistence norm from the H1 features to set leverage. That construction is the only new element here. Everything else follows directly from existing TDA machinery. The pipeline is written out clearly enough that a reader can follow the steps without guessing at the filtration or the norm formula. The choice to focus on 1-cycles rather than 0-cycles is reasonable for capturing loops in the reconstructed attractor. Credit for keeping the description coordinate-free and for naming the quantity so others can cite the definition if they want to test it later. The soft spot is exactly where the stress-test note flags it: the paper defines the norm and the leverage heuristic but does not run it against documented volatility episodes, does not compare out-of-sample forecast accuracy to realized variance or VaR, and does not report error bars or robustness checks on the embedding parameters. Without those checks the claim that the norm measures structural instability rests on an unverified correlation. The free parameters for delay and dimension are listed but not explored for sensitivity, which leaves the result dependent on choices that are not justified by the data. This work is aimed at applied topologists or quantitative finance researchers who already know persistent homology and want to see it tried on high-frequency returns. A reader in that group could extract the norm definition and run their own back-tests. It is not yet ready for practitioners who need a validated risk signal. The manuscript shows clear thinking about the geometric setup and honest use of standard tools, so it deserves a serious referee. Reviewers could ask for the missing empirical section and decide whether the added geometric view justifies the extra computation. I would send it to review rather than desk-reject.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes a framework applying Takens delay embedding to cryptocurrency log-returns, constructing Vietoris-Rips filtrations, and computing persistent homology to define a Topological Persistence Norm from the persistence of 1-cycles; this norm is presented as a coordinate-free, stability-invariant risk metric, with an additional leverage calibration heuristic based on those cycles.

Significance. If empirically validated to track or predict financial risk episodes in a manner complementary to or superior to variance, VaR, or other standard measures, the approach could introduce a geometrically grounded tool for assessing market instability that is robust to noise. At present the significance is limited because the central construction remains untested against real data or baselines.

major comments (2)

[Abstract] Abstract: the claim that the method supplies a 'rigorous mathematical framework' and a 'stability-invariant metric' for risk is unsupported; the text describes the pipeline but provides neither a derivation of the Topological Persistence Norm nor any empirical results, error bars, or comparisons to established risk measures.
The Topological Persistence Norm is defined directly from the persistent homology of the embedded point cloud (H_1 of the Vietoris-Rips filtration); without an independent grounding, out-of-sample test, or back-test against documented risk episodes, the quantity is circular and does not demonstrably capture genuine structural instability beyond the input features.

minor comments (1)

The free parameters (delay tau, embedding dimension m, filtration scale range, persistence threshold) are acknowledged but no sensitivity analysis or reproducibility details are supplied.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and constructive feedback on our manuscript. We address each major comment below and outline the revisions we will make to strengthen the presentation.

read point-by-point responses

Referee: [Abstract] Abstract: the claim that the method supplies a 'rigorous mathematical framework' and a 'stability-invariant metric' for risk is unsupported; the text describes the pipeline but provides neither a derivation of the Topological Persistence Norm nor any empirical results, error bars, or comparisons to established risk measures.

Authors: We agree with the referee that the abstract overstates the contributions by referring to a 'rigorous mathematical framework' and a 'stability-invariant metric' without sufficient support in the current manuscript. The Topological Persistence Norm is introduced as a definition based on the sum or norm of persistence intervals in the H_1 persistence diagram of the Vietoris-Rips filtration on the Takens-embedded point cloud. While this construction is mathematically well-defined using standard TDA tools, we do not provide a proof that it satisfies the properties of a norm or invariance under certain transformations beyond the embedding theorem. Furthermore, the manuscript does not include empirical validation, comparisons to VaR or volatility measures, or error analysis. We will revise the abstract to accurately describe the work as proposing a new topological approach to risk characterization via persistent homology, removing the unsupported claims. This revision will be made in the next version. revision: yes
Referee: The Topological Persistence Norm is defined directly from the persistent homology of the embedded point cloud (H_1 of the Vietoris-Rips filtration); without an independent grounding, out-of-sample test, or back-test against documented risk episodes, the quantity is circular and does not demonstrably capture genuine structural instability beyond the input features.

Authors: The referee raises a valid point regarding the grounding of the proposed metric. The Topological Persistence Norm is indeed computed directly from the persistence of 1-cycles in the filtration, which by construction reflects features of the input time series after embedding. However, the grounding is provided by Takens' theorem, which guarantees that the embedding preserves the topological properties of the underlying dynamical system, and persistent homology then extracts stable topological features (such as loops indicating recurrent behavior or instability). It is not circular in the sense that it transforms the raw returns into a geometric summary that is invariant to the choice of coordinates. Nevertheless, we concur that without out-of-sample testing or back-testing on historical cryptocurrency risk events (e.g., the 2018 crash or 2022 bear market), its ability to capture 'genuine structural instability' or to serve as a predictive risk measure cannot be asserted. The current manuscript focuses on the methodological proposal and the leverage heuristic. We will add a new section discussing the theoretical motivations, potential limitations, and the importance of future empirical validation against standard risk metrics. This will clarify the scope without altering the core definition. revision: partial

Circularity Check

0 steps flagged

No significant circularity in the mathematical derivation chain

full rationale

The paper applies standard Takens delay embedding to log-returns, constructs Vietoris-Rips filtrations, computes persistent homology, and defines the Topological Persistence Norm directly from the resulting persistence diagram of H_1. This follows the conventional TDA pipeline without any equation or step in which a claimed output (the risk metric) is mathematically equivalent to the input data features by construction. No self-citations are invoked to justify uniqueness or load-bearing premises, no parameters are fitted on a subset and then relabeled as predictions, and no ansatz is smuggled via prior work. The central claim is an interpretive application of the defined norm to market regimes rather than a derived equality that reduces to the inputs. The absence of back-tests or out-of-sample checks is a validation concern, not a circularity in the derivation itself.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 1 invented entities

Only the abstract is available, so the ledger is inferred from stated assumptions; the framework rests on the validity of delay embedding for financial time series and on the interpretive leap that topological persistence measures risk.

free parameters (2)

delay tau and embedding dimension m
Practical choices required by Takens theorem but not specified; any concrete implementation must select them, typically by cross-validation or heuristics.
filtration scale range and persistence threshold
Parameters that define which cycles contribute to the Topological Persistence Norm; these are data-dependent and not derived from first principles.

axioms (2)

domain assumption Takens' Delay Embedding Theorem applies to the underlying market dynamics and reconstructs an attractor from scalar log-returns
Invoked to justify the point-cloud construction; financial markets are noisy and non-stationary, so the theorem's hypotheses may not hold strictly.
ad hoc to paper Persistence of 1-dimensional cycles in the Vietoris-Rips filtration correlates with market instability or risk
Central interpretive step; no independent justification is given in the abstract.

invented entities (1)

Topological Persistence Norm no independent evidence
purpose: Scalar summary of persistent homology used to characterize regimes and calibrate leverage
Newly defined quantity whose precise formula is not supplied; independent evidence for its risk-predictive power is absent.

pith-pipeline@v0.9.0 · 5439 in / 1671 out tokens · 47545 ms · 2026-05-10T13:11:02.827909+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

5 extracted references

[1]

K., & Wang, Y

Dey, T. K., & Wang, Y. (2022).Computational Topology for Data Analysis. Cambridge University Press

2022
[2]

Takens, F. (1981). Detecting strange attractors in turbulence.Dynamical Systems and Turbulence, Warwick 1980, 366-381

1981
[3]

Zomorodian, A., & Carlsson, G. (2005). Computing persistent homology.Discrete & Computational Geometry, 33(2), 249-274

2005
[4]

Gidea, M., & Katz, Y. (2018). Topological data analysis of financial time series: Landscapes of crashes.Physica A, 491, 820-834

2018
[5]

Cohen-Steiner, D., Edelsbrunner, H., & Morozov, D. (2007). Stability of persistence diagrams. Discrete & Computational Geometry, 37(1), 103-120. 5

2007
