arxiv: 2604.13321 · v1 · submitted 2026-04-14 · 💻 cs.CV

Recognition: unknown

Why MLLMs Struggle to Determine Object Orientations

Anju Gopinath , Nikhil Krishnaswamy , Bruce Draper
Authors on Pith no claims yet

Pith reviewed 2026-05-10 15:16 UTC · model grok-4.3

classification 💻 cs.CV
keywords multimodal large language modelsobject orientationvisual encoderslinear probinggeometric reasoningCLIPSigLIPLLaVA
0
0 comments X

The pith

Orientation details are recoverable from MLLM visual encoder embeddings via linear models, showing encoders are not the cause of reasoning failures.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper challenges the idea that MLLMs fail at 2D object orientation tasks because encoders like CLIP and SigLIP lack geometric information due to their semantic training. Experiments train linear regressors on embeddings from models such as LLaVA OneVision and Qwen2.5-VL, using both full images and rotated patches, and find accurate prediction of rotation angles. This presence of the data shifts attention to how the language model accesses or combines it during generation. A reader would care because it reframes the problem from missing signals to underutilized ones in multimodal systems.

Core claim

Contrary to the hypothesis that visual encoders fail to preserve orientation, simple linear models recover object rotation angles from SigLIP, ViT, and CLIP embeddings with high accuracy. The information exists in the representations from LLaVA and Qwen models but spreads across tens of thousands of features, which may prevent effective exploitation by the full MLLM during inference.

What carries the argument

Linear regressors that map encoder feature vectors to predicted object orientation angles, applied to full images or foreground patches.

Load-bearing premise

That accurate linear prediction from embeddings means the MLLM can locate and apply this orientation information when answering queries.

What would settle it

An auxiliary training run that adds an orientation prediction loss on the encoder outputs yet shows no gain in MLLM accuracy on orientation queries would indicate the information remains inaccessible in practice.

Figures

Figures reproduced from arXiv: 2604.13321 by Anju Gopinath, Bruce Draper, Nikhil Krishnaswamy.

Figure 1
Figure 1. Figure 1: Set of images - Sets A and B are used for experiments with LLaVA-OV and Qwen2.5-VL-7B-Instruct, and set C is used for [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗

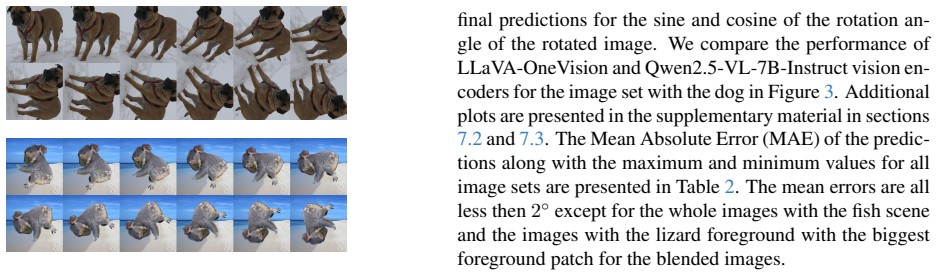

Figure 2
Figure 2. Figure 2: Collage of every 15th image from Sections A (a) dog [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

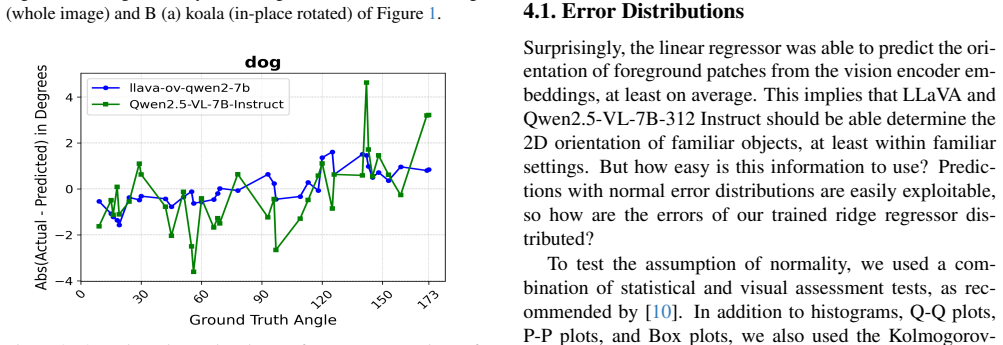

Figure 3
Figure 3. Figure 3: 2D orientation estimation performance comparison of [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: Statistical Analysis using visual plots for Qwen2.5-VL [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Incremental feature substitution for LLaVA-OneVision on images with the dog scene. On the y axis, when y = 1, predicted [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Incremental feature substitution for Qwen2.5-VL-7B-Instruct on images with the dog scene. On the y axis, when y = 1, predicted [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Collage of every 20th image from the images with the [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗
Figure 11
Figure 11. Figure 11: 2D orientation estimation performance comparison be [PITH_FULL_IMAGE:figures/full_fig_p011_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: 2D orientation estimation performance comparison be [PITH_FULL_IMAGE:figures/full_fig_p011_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: 2D orientation estimation performance comparison be [PITH_FULL_IMAGE:figures/full_fig_p012_13.png] view at source ↗
Figure 16
Figure 16. Figure 16: 2D orientation estimation performance comparison be [PITH_FULL_IMAGE:figures/full_fig_p012_16.png] view at source ↗
Figure 15
Figure 15. Figure 15: 2D orientation estimation performance comparison be [PITH_FULL_IMAGE:figures/full_fig_p012_15.png] view at source ↗
Figure 20
Figure 20. Figure 20: 2D orientation estimation performance comparison be [PITH_FULL_IMAGE:figures/full_fig_p013_20.png] view at source ↗
Figure 21
Figure 21. Figure 21: 2D orientation estimation performance comparison be [PITH_FULL_IMAGE:figures/full_fig_p013_21.png] view at source ↗
Figure 19
Figure 19. Figure 19: 2D orientation estimation performance comparison be [PITH_FULL_IMAGE:figures/full_fig_p013_19.png] view at source ↗
Figure 23
Figure 23. Figure 23: 2D orientation estimation performance comparison be [PITH_FULL_IMAGE:figures/full_fig_p014_23.png] view at source ↗
Figure 24
Figure 24. Figure 24: 2D orientation estimation performance comparison be [PITH_FULL_IMAGE:figures/full_fig_p014_24.png] view at source ↗
Figure 25
Figure 25. Figure 25: 2D orientation estimation performance comparison be [PITH_FULL_IMAGE:figures/full_fig_p014_25.png] view at source ↗
Figure 26
Figure 26. Figure 26: Statistical Analysis using visual plots for LLaVA [PITH_FULL_IMAGE:figures/full_fig_p015_26.png] view at source ↗
Figure 27
Figure 27. Figure 27: Statistical Analysis using visual plots for Qwen2.5- [PITH_FULL_IMAGE:figures/full_fig_p015_27.png] view at source ↗
Figure 28
Figure 28. Figure 28: Statistical Analysis using visual plots for LLaVA [PITH_FULL_IMAGE:figures/full_fig_p016_28.png] view at source ↗
Figure 29
Figure 29. Figure 29: Statistical Analysis using visual plots for Qwen2.5- [PITH_FULL_IMAGE:figures/full_fig_p016_29.png] view at source ↗
Figure 30
Figure 30. Figure 30: Statistical Analysis using visual plots for LLaVA [PITH_FULL_IMAGE:figures/full_fig_p017_30.png] view at source ↗
Figure 31
Figure 31. Figure 31: Statistical Analysis using visual plots for Qwen2.5- [PITH_FULL_IMAGE:figures/full_fig_p017_31.png] view at source ↗
Figure 36
Figure 36. Figure 36: Statistical Analysis using visual plots for LLaVA [PITH_FULL_IMAGE:figures/full_fig_p018_36.png] view at source ↗
Figure 35
Figure 35. Figure 35: Statistical Analysis using visual plots for Qwen2.5- [PITH_FULL_IMAGE:figures/full_fig_p018_35.png] view at source ↗
Figure 38
Figure 38. Figure 38: Statistical Analysis using visual plots for LLaVA [PITH_FULL_IMAGE:figures/full_fig_p019_38.png] view at source ↗
Figure 39
Figure 39. Figure 39: Statistical Analysis using visual plots for Qwen2.5- [PITH_FULL_IMAGE:figures/full_fig_p019_39.png] view at source ↗
Figure 44
Figure 44. Figure 44: Statistical Analysis using visual plots for LLaVA 1.6 - [PITH_FULL_IMAGE:figures/full_fig_p020_44.png] view at source ↗
Figure 43
Figure 43. Figure 43: Statistical Analysis using visual plots for LLaVA 1.5 - [PITH_FULL_IMAGE:figures/full_fig_p020_43.png] view at source ↗
Figure 48
Figure 48. Figure 48: Statistical Analysis using visual plots for LLaVA 1.5 [PITH_FULL_IMAGE:figures/full_fig_p021_48.png] view at source ↗
Figure 47
Figure 47. Figure 47: Statistical Analysis using visual plots for LLaVA 1.5 [PITH_FULL_IMAGE:figures/full_fig_p021_47.png] view at source ↗
Figure 50
Figure 50. Figure 50: Statistical Analysis using visual plots for LLaVA 1.6 [PITH_FULL_IMAGE:figures/full_fig_p022_50.png] view at source ↗
Figure 51
Figure 51. Figure 51: Statistical Analysis using visual plots for LLaVA 1.6 [PITH_FULL_IMAGE:figures/full_fig_p022_51.png] view at source ↗
Figure 54
Figure 54. Figure 54: Statistical Analysis using visual plots for LLaVA 1.5 - [PITH_FULL_IMAGE:figures/full_fig_p023_54.png] view at source ↗
Figure 55
Figure 55. Figure 55: Statistical Analysis using visual plots for LLaVA 1.5 - [PITH_FULL_IMAGE:figures/full_fig_p023_55.png] view at source ↗
Figure 58
Figure 58. Figure 58: Statistical Analysis using visual plots for LLaVA 1.6 - [PITH_FULL_IMAGE:figures/full_fig_p024_58.png] view at source ↗
Figure 59
Figure 59. Figure 59: Incremental feature substitution for LLaVA-OneVision on images with the lizard scene. No matter how the features are [PITH_FULL_IMAGE:figures/full_fig_p026_59.png] view at source ↗
Figure 60
Figure 60. Figure 60: Incremental feature substitution for Qwen2.5-VL-7B-Instruct on images with the lizard scene. No matter how the features are [PITH_FULL_IMAGE:figures/full_fig_p026_60.png] view at source ↗
Figure 62
Figure 62. Figure 62: Incremental feature substitution for Qwen2.5-VL-7B-Instruct on images with the train scene. No matter how the features are [PITH_FULL_IMAGE:figures/full_fig_p026_62.png] view at source ↗
Figure 63
Figure 63. Figure 63: Incremental feature substitution for LLaVA-OneVision on images with the beach scene. No matter how the features are [PITH_FULL_IMAGE:figures/full_fig_p026_63.png] view at source ↗
Figure 64
Figure 64. Figure 64: Incremental feature substitution for Qwen2.5-VL-7B-Instruct on images with the beach scene. No matter how the features are [PITH_FULL_IMAGE:figures/full_fig_p027_64.png] view at source ↗
Figure 65
Figure 65. Figure 65: Incremental feature substitution for LLaVA-OneVision on images with the indoor scene. No matter how the features are [PITH_FULL_IMAGE:figures/full_fig_p027_65.png] view at source ↗
Figure 66
Figure 66. Figure 66: Incremental feature substitution for Qwen2.5-VL-7B-Instruct on images with the indoor scene. No matter how the features are [PITH_FULL_IMAGE:figures/full_fig_p027_66.png] view at source ↗
Figure 67
Figure 67. Figure 67: Incremental feature substitution for LLaVA-OneVision on images with the fish scene. No matter how the features are selected [PITH_FULL_IMAGE:figures/full_fig_p027_67.png] view at source ↗
Figure 68
Figure 68. Figure 68: Incremental feature substitution for Qwen2.5-VL-7B-Instruct on images with the fish scene. No matter how the features are [PITH_FULL_IMAGE:figures/full_fig_p028_68.png] view at source ↗
Figure 69
Figure 69. Figure 69: Incremental feature substitution for LLaVA-OneVision on images with the koala-beach scene. No matter how the features are [PITH_FULL_IMAGE:figures/full_fig_p028_69.png] view at source ↗
Figure 70
Figure 70. Figure 70: Incremental feature substitution for Qwen2.5-VL-7B-Instruct on images with the koala-beach scene. No matter how the features [PITH_FULL_IMAGE:figures/full_fig_p028_70.png] view at source ↗
Figure 71
Figure 71. Figure 71: Incremental feature substitution for LLaVA-OneVision on images with the vase-indoor scene. No matter how the features are [PITH_FULL_IMAGE:figures/full_fig_p028_71.png] view at source ↗
Figure 72
Figure 72. Figure 72: Incremental feature substitution for Qwen2.5-VL-7B-Instruct on images with the vase-indoor scene. No matter how the features [PITH_FULL_IMAGE:figures/full_fig_p029_72.png] view at source ↗

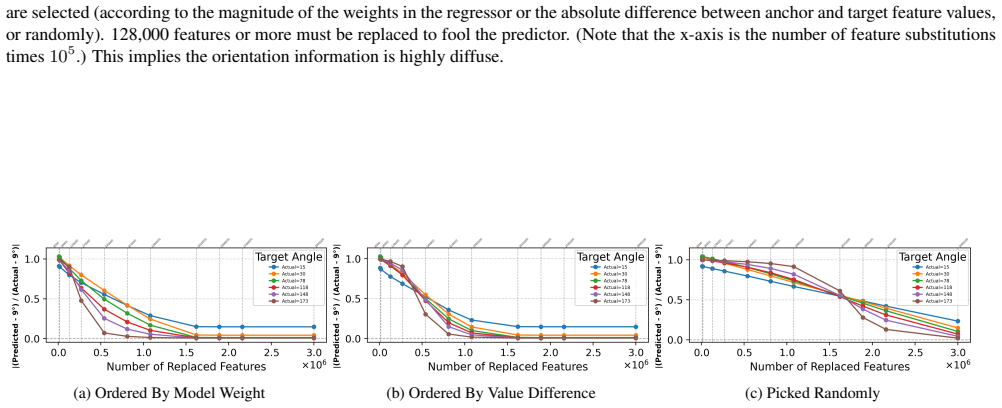

Figure 73
Figure 73. Figure 73: Incremental feature substitution for LLaVA-OneVision on images with the vase-toaster-indoor scene. No matter how the features [PITH_FULL_IMAGE:figures/full_fig_p029_73.png] view at source ↗
Figure 74
Figure 74. Figure 74: Incremental feature substitution for Qwen2.5-VL-7B-Instruct on images with the vase-toaster-indoor scene. No matter how [PITH_FULL_IMAGE:figures/full_fig_p029_74.png] view at source ↗
Figure 75
Figure 75. Figure 75: Incremental feature substitution for LLaVA 1.5 on images with the beach background scene. No matter how the features are [PITH_FULL_IMAGE:figures/full_fig_p031_75.png] view at source ↗
Figure 76
Figure 76. Figure 76: Incremental feature substitution for LLaVA 1.6 on images with the beach background scene. No matter how the features are [PITH_FULL_IMAGE:figures/full_fig_p031_76.png] view at source ↗
Figure 77
Figure 77. Figure 77: Incremental feature substitution for LLaVA 1.5 on images with the fish background scene. No matter how the features are [PITH_FULL_IMAGE:figures/full_fig_p032_77.png] view at source ↗
Figure 78
Figure 78. Figure 78: Incremental feature substitution for LLaVA 1.6 on images with the fish background scene. No matter how the features are [PITH_FULL_IMAGE:figures/full_fig_p032_78.png] view at source ↗
Figure 79
Figure 79. Figure 79: Incremental feature substitution for LLaVA 1.5 on images with the indoor background scene. No matter how the features are [PITH_FULL_IMAGE:figures/full_fig_p033_79.png] view at source ↗
Figure 80
Figure 80. Figure 80: Incremental feature substitution for LLaVA 1.6 on images with the indoor background scene. No matter how the features are [PITH_FULL_IMAGE:figures/full_fig_p033_80.png] view at source ↗

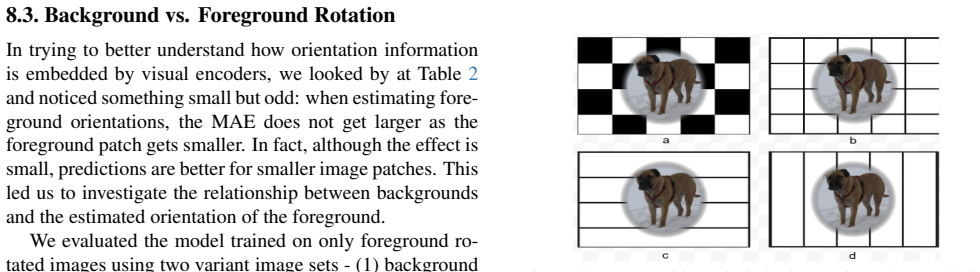

Figure 82
Figure 82. Figure 82: Images with synthetic backgrounds used to test the im [PITH_FULL_IMAGE:figures/full_fig_p034_82.png] view at source ↗

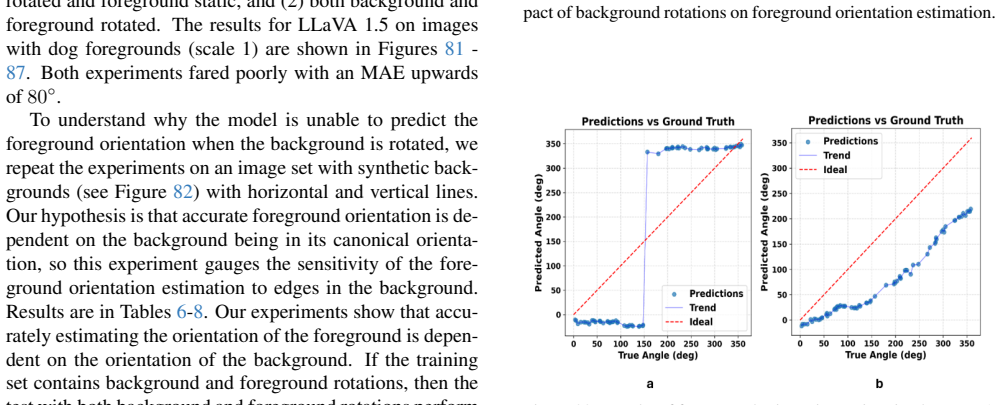

Figure 83
Figure 83. Figure 83: Results of foreground orientation estimation by LLaVA [PITH_FULL_IMAGE:figures/full_fig_p034_83.png] view at source ↗
Figure 81
Figure 81. Figure 81: Results of foreground orientation estimation by LLaVA [PITH_FULL_IMAGE:figures/full_fig_p034_81.png] view at source ↗
Figure 85
Figure 85. Figure 85: Results of foreground orientation estimation by LLaVA [PITH_FULL_IMAGE:figures/full_fig_p035_85.png] view at source ↗
Figure 87
Figure 87. Figure 87: Results of foreground orientation estimation by LLaVA [PITH_FULL_IMAGE:figures/full_fig_p036_87.png] view at source ↗
read the original abstract

Multimodal Large Language Models (MLLMs) struggle with tasks that require reasoning about 2D object orientation in images, as documented in prior work. Tong et al. and Nichols et al. hypothesize that these failures originate in the visual encoder, since commonly used encoders such as CLIP and SigLIP are trained for image-text semantic alignment rather than geometric reasoning. We design a controlled empirical protocol to test this claim by measuring whether rotations can be recovered from encoder representations. In particular, we examine SigLIP and ViT features from LLaVA OneVision and Qwen2.5-VL-7B-Instruct models, respectively, using full images, and examine CLIP representations in LLaVA 1.5 and 1.6 using rotated foreground patches against natural background images. Our null hypothesis is that orientation information is not preserved in the encoder embeddings and we test this by training linear regressors to predict object orientation from encoded features. Contrary to the hypothesis, we find that orientation information is recoverable from encoder representations: simple linear models accurately predict object orientations from embeddings. This contradicts the assumption that MLLM orientation failures originate in the visual encoder. Having rejected the accepted hypothesis that MLLMs struggle with 2D orientation tasks because of visual encoder limitations, we still don't know why they fail. Although a full explanation is beyond the scope of this paper, we show that although present, orientation information is spread diffusely across tens of thousands of features. This may or may not be while MLLMs fail to exploit the available orientation information.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript tests the hypothesis that MLLM failures on 2D object orientation tasks originate in visual encoders (e.g., SigLIP, ViT, CLIP) failing to preserve geometric information. Using linear regression probes on embeddings from full images (LLaVA OneVision, Qwen2.5-VL) and rotated foreground patches on natural backgrounds (LLaVA 1.5/1.6), the authors reject the null that orientation is not recoverable, showing accurate prediction from encoder features. They note the information is present but diffuse across many dimensions and do not claim this resolves MLLM inference failures.

Significance. If the results hold, the work is significant for providing a controlled empirical refutation of a common hypothesis about MLLM geometric reasoning limits. The use of standard linear probes as an information-presence test, combined with separate full-image and patch-based setups, offers a direct, falsifiable check against the encoder-origin claim. Credit is due for the reproducible probe design and the explicit acknowledgment that presence of information does not imply exploitability by the full model. This shifts attention to decoder or training factors without overclaiming.

minor comments (2)
  1. [Abstract] Abstract: the description of experimental controls (e.g., exact rotation ranges, background selection criteria, and error metrics such as MAE or R²) is incomplete, making it harder to assess the strength of the linear prediction results without the full methods section.
  2. The discussion of diffuse information across tens of thousands of features would benefit from a brief quantitative illustration (e.g., how many top dimensions are needed for a given accuracy threshold) to ground the observation that the signal is not localized.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their supportive review and recommendation of minor revision. We appreciate the accurate summary of our controlled empirical protocol, the recognition of its falsifiability, and the acknowledgment that our results shift attention to decoder or training factors without overclaiming. The positive assessment of the reproducible probe design and explicit caveats is encouraging.

Circularity Check

0 steps flagged

No significant circularity; empirical refutation of external hypothesis

full rationale

The paper's central result is an empirical test: linear regressors are trained on encoder embeddings to recover object orientation angles, directly rejecting the null hypothesis (drawn from Tong et al. and Nichols et al.) that such information is absent from CLIP/SigLIP/ViT features. No equation or claim reduces to a fitted parameter renamed as a prediction, no self-citation supplies a load-bearing uniqueness theorem, and the diffuse-information observation is presented as an open question rather than a derivation. The protocol is self-contained against the stated external hypothesis and does not rely on internal self-definition or ansatz smuggling.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the standard assumption that linear probes suffice to detect linearly accessible information in embeddings; no free parameters are fitted to support the main conclusion, and no new entities are introduced.

axioms (1)
  • domain assumption Linear probes can extract information that is linearly present in high-dimensional embeddings
    Invoked when training regressors to predict orientation from encoder features; this is a standard assumption in representation learning literature.
