Fast Time-Varying Contiguous Cartograms Using Integral Images

Vladimir Molchanov , Hennes Rave , Lars Linsen
Authors on Pith no claims yet

Pith reviewed 2026-05-10 11:58 UTC · model grok-4.3

classification 💻 cs.CG cs.HC
keywords contiguous cartogramstime-varyingintegral imagesGPU implementationdeformation mappinggeovisualizationdensity textures
0
0 comments X

The pith

A deformation technique using integral images computes time-varying contiguous cartograms efficiently on GPUs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a deformation method for generating time-varying contiguous cartograms from dynamic statistical data. It relies on integral images computed from density textures to iteratively adjust region areas while preserving adjacencies and shapes. A single adjustable parameter manages the balance between area accuracy and shape preservation, and the approach runs significantly faster on GPUs than previous techniques.

Core claim

The central claim is that integral images evaluated over a series of discrete density distributions enable an iterative mapping that smoothly transforms the domain to gradually equalize temporal density, with global shape preservation controlled by a single user parameter.

What carries the argument

Integral images evaluated for density textures, applied in an iterative deformation process that equalizes region areas over time.

Load-bearing premise

The iterative mapping will gradually equalize densities without introducing unacceptable topological errors when controlled by one shape-preservation parameter.

What would settle it

A benchmark on standard geographic datasets where the new method produces higher topological error rates or slower runtimes than prior state-of-the-art algorithms.

Figures

Figures reproduced from arXiv: 2604.13880 by Hennes Rave, Lars Linsen, Vladimir Molchanov.

Figure 1
Figure 1. Figure 1: Iterative construction of a contiguous cartogram for population [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

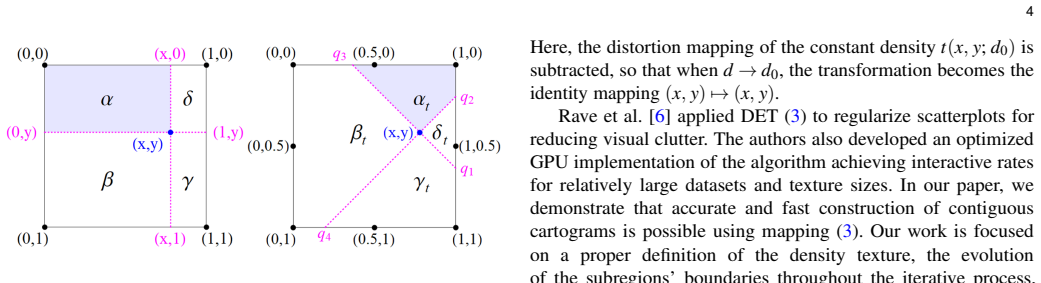

Figure 2
Figure 2. Figure 2: Sketch of InIm computations (reproduction from Molchanov and [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

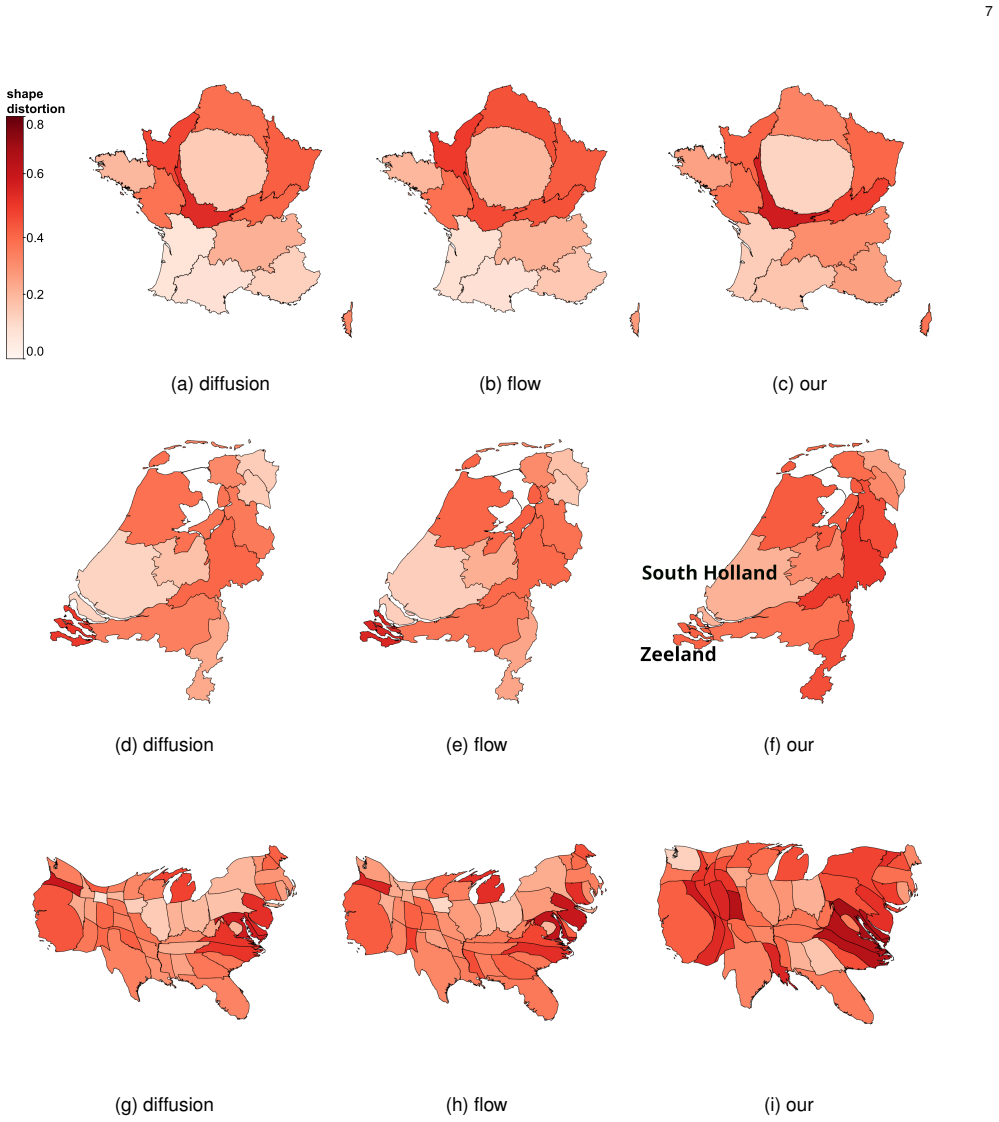

Figure 3
Figure 3. Figure 3: Comparison of cartograms generated by diffusion [ [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 6
Figure 6. Figure 6: Performance measures of our proposed method for contiguous [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 4
Figure 4. Figure 4: Quality measures for the cartograms presented in Figure [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Evolution of quality measures for the cartograms presented in [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 7
Figure 7. Figure 7: Effect of scaling on quality measures for the cartograms presented [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: Weekly United States new COVID-19 cases (dataset from [ [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
Figure 8
Figure 8. Figure 8: Dependence of different types of errors on the values of back [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: Cartograms showing weekly United States new COVID-19 cases, dataset from [51]. The evolution of global integral statistics Mi(t) is presented at the top. The user chose the date 2020/06/10 as a starting point for analysis. For the date 2020/10/28, both direct and cumulative approaches produce similar cartograms. The cartogram computed for 2022/05/11 by the cumulative approach is overly distorted. Note the… view at source ↗
Figure 11
Figure 11. Figure 11: Quality measures and performance for direct and cumulative [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
Figure 1
Figure 1. Figure 1: Upper row: GDP of Europe cartograms generated by diffusion [ [PITH_FULL_IMAGE:figures/full_fig_p013_1.png] view at source ↗
read the original abstract

Cartograms are a technique for visually representing geographically distributed statistical data, where values of a numerical attribute are mapped to the size of geographic regions. Contiguous cartograms preserve the adjacencies of the original regions during the mapping. To be useful, contiguous cartograms also require approximate preservation of shapes and relative positions. Due to these desirable properties, contiguous cartograms are among the most popular ones. Most methods for constructing contiguous cartograms exploit a deformation of the original map. Aiming at the preservation of geographical properties, existing approaches are often algorithmically cumbersome and computationally intensive. We propose a novel deformation technique for computing time-varying contiguous cartograms based on integral images evaluated for a series of discrete density distributions. The density textures represent the given dynamic statistical data. The iterative application of the proposed mapping smoothly transforms the domain to gradually equalize the temporal density, i.e., region areas grow or shrink following their evolutionary statistical data. Global shape preservation at each time step is controlled by a single parameter that can be interactively adjusted by the user. Our efficient GPU implementation of the proposed algorithm is significantly faster than existing state-of-the-art methods while achieving comparable quality for cartographic accuracy, shape preservation, and topological error. We investigate strategies for transitioning between adjacent time steps and discuss the parameter choice. Our approach applies to comparative cartograms' morphing and interactive cartogram exploration.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes a novel deformation technique for computing time-varying contiguous cartograms by iteratively applying integral-image-based mappings to a sequence of density textures derived from dynamic statistical data. Region areas are adjusted to match evolving densities while a single user-adjustable parameter controls global shape preservation at each step. The authors present an efficient GPU implementation claimed to be significantly faster than existing state-of-the-art methods, with comparable cartographic accuracy, shape preservation, and topological error; they also discuss transitioning strategies between time steps and parameter choice, with applications to morphing and interactive exploration.

Significance. If the speed and quality claims hold under quantitative scrutiny, the work would offer a practical advance for interactive visualization of temporal geographic data, where current contiguous cartogram methods are often too slow for real-time use. The adaptation of integral images for density equalization is a direct and efficient reuse of a standard technique, and the single-parameter control could simplify user interaction if its robustness is demonstrated.

major comments (2)
  1. [Abstract] Abstract: the claims that the GPU implementation is 'significantly faster' and achieves 'comparable quality for cartographic accuracy, shape preservation, and topological error' are unsupported by any numerical benchmarks, timing tables, error metrics (e.g., area distortion, Hausdorff distance, or adjacency violation counts), or direct comparisons to prior methods. The evaluation section must supply these data to make the central performance assertion verifiable.
  2. [Iterative mapping and transitioning strategies] The section discussing iterative mapping and transitioning strategies: the assertion that a single global shape-preservation parameter suffices to keep topological error acceptable across time steps lacks supporting analysis. No bounds on the parameter, no enumeration of failure cases for steep or opposing density gradients, and no quantitative tracking of topological violations (e.g., adjacency flips or fold counts) across the sequence are provided, leaving the weakest assumption of the central claim untested.
minor comments (2)
  1. [Abstract] The abstract states that 'transitioning strategies were investigated' but provides no summary of the concrete strategies tested or their relative performance; a brief enumeration or table of outcomes would improve clarity.
  2. [Figures] Figure captions should explicitly state the value of the shape-preservation parameter, the number of iterations per time step, and any error visualizations used, so readers can reproduce the reported behavior.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. The comments highlight opportunities to strengthen the quantitative support for our claims and the analysis of our method's robustness. We address each major comment below and will incorporate revisions to improve verifiability.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claims that the GPU implementation is 'significantly faster' and achieves 'comparable quality for cartographic accuracy, shape preservation, and topological error' are unsupported by any numerical benchmarks, timing tables, error metrics (e.g., area distortion, Hausdorff distance, or adjacency violation counts), or direct comparisons to prior methods. The evaluation section must supply these data to make the central performance assertion verifiable.

    Authors: We agree that the abstract's performance claims require explicit numerical backing to be verifiable. Although the manuscript includes an evaluation section with runtime comparisons and qualitative quality discussions, we will expand it in revision to add detailed timing tables, quantitative error metrics (including area distortion, shape similarity measures, and counts of topological violations), and direct side-by-side comparisons against prior contiguous cartogram methods. The abstract will be updated to reference these specific results. revision: yes

  2. Referee: [Iterative mapping and transitioning strategies] The section discussing iterative mapping and transitioning strategies: the assertion that a single global shape-preservation parameter suffices to keep topological error acceptable across time steps lacks supporting analysis. No bounds on the parameter, no enumeration of failure cases for steep or opposing density gradients, and no quantitative tracking of topological violations (e.g., adjacency flips or fold counts) across the sequence are provided, leaving the weakest assumption of the central claim untested.

    Authors: We acknowledge that the current discussion of the shape-preservation parameter would benefit from more rigorous supporting analysis. In the revised manuscript we will add bounds derived from our experiments, enumerate potential failure cases for extreme density changes, and include quantitative plots tracking topological violations (adjacency flips and fold counts) across time sequences on multiple datasets. This will directly test the robustness of the single-parameter control. revision: yes

Circularity Check

0 steps flagged

No significant circularity in the integral-image cartogram deformation

full rationale

The paper introduces a deformation technique that applies established integral-image summation to density textures derived from time-varying statistical data, with iterative application to equalize region areas and a single user parameter for shape control. No load-bearing step reduces a claimed result to a self-defined quantity, a fitted parameter renamed as prediction, or a self-citation chain; the core mapping is algorithmic and builds on prior non-author work on integral images without smuggling ansatzes or renaming known results. Claims of speed and quality are positioned as empirical outcomes of the GPU implementation rather than tautological consequences of the inputs.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that integral images can efficiently compute the required density-equalizing mappings and that iterative application converges to a usable cartogram; one free parameter controls shape preservation.

free parameters (1)
  • global shape preservation parameter
    Single adjustable parameter that controls how much the overall map shape is preserved during deformation.
axioms (1)
  • domain assumption Integral images provide an efficient and accurate means to evaluate cumulative sums for computing deformation mappings from density textures.
    Invoked when describing the core mapping step for equalizing temporal density.
