arxiv: 2604.14202 · v1 · submitted 2026-04-03 · 🧬 q-bio.NC · cs.AI

Recognition: 2 theorem links

· Lean Theorem

Bridging scalp and intracranial EEG in BCI via pretrained neural representations and geometric constraint embedding

Yihang Dong , Changhong Jing , Shuqiang Wang

Authors on Pith no claims yet

Pith reviewed 2026-05-13 18:15 UTC · model grok-4.3

classification 🧬 q-bio.NC cs.AI

keywords EEG enhancementbrain-computer interfacesgeometric constraintspretrained modelsdiffusion processscalp EEGintracranial EEGneural signal propagation

0 comments

The pith

A framework using pretrained EEG representations and geometric constraints on cortical anatomy synthesizes enhanced signals that recover neural patterns lost in brain propagation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper proposes a unified approach to enhance standard scalp EEG by embedding geometric constraints derived from cortical anatomy and integrating representations from a pretrained large EEG model. These elements guide a multidimensional diffusion process to synthesize signals that restore details lost as neural activity travels outward through brain tissue. The work matters because scalp EEG is cheap and portable while intracranial EEG offers superior resolution but requires surgery; closing that gap could expand high-performance BCIs to far more users. A sympathetic reader would see the central claim as reframing BCI limits as a modeling problem rather than a hardware barrier.

Core claim

Guided by the principle that geometric structure dictates function, the framework maps static cortical anatomy onto dynamic constraints governing neural signal propagation and integrates general-purpose neural representations extracted by a pre-trained large EEG model to explicitly model signal transmission through the brain. Enhanced EEG signals are then synthesized via a multidimensional representation diffusion process. Numerous experimental results demonstrate that the generated enhanced EEG signals effectively recover the neural activity patterns lost during propagation through the brain.

What carries the argument

Geometric constraint embedding that maps static cortical anatomy onto dynamic neural signal propagation constraints, combined with pretrained EEG representations inside a diffusion-based synthesis process.

If this is right

The generated enhanced EEG signals effectively recover the neural activity patterns lost during propagation through the brain.
The performance ceiling of BCIs is constrained not only by acquisition hardware but also by the depth to which the generative model resolves the mechanisms of neural signal propagation.
The proposed framework provides a viable pathway toward acquiring high-fidelity neural signals at low cost.
Enhanced signals can narrow the gap between accessible scalp EEG and the spatial resolution of intracranial EEG.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the recovery generalizes, real-time enhancement pipelines could let standard scalp setups approach invasive performance for many BCI tasks without surgery.
The same geometry-to-propagation mapping might transfer to other non-invasive modalities such as MEG or functional near-infrared spectroscopy.
Direct tests could measure whether users achieve higher control accuracy on BCI tasks when operating on the enhanced rather than raw scalp signals.
The method implies that patient-specific dynamic data may not be required if static anatomy plus large-scale pretraining suffices to approximate propagation physics.

Load-bearing premise

Static cortical anatomy supplies enough information to define dynamic constraints that accurately govern how neural signals propagate outward, and a pretrained model plus diffusion can faithfully reconstruct the lost signal components.

What would settle it

Record scalp and intracranial EEG simultaneously in the same subjects, apply the enhancement pipeline to the scalp data alone, and test whether the output matches the actual intracranial recordings in spatial patterns, frequency content, and task-related information.

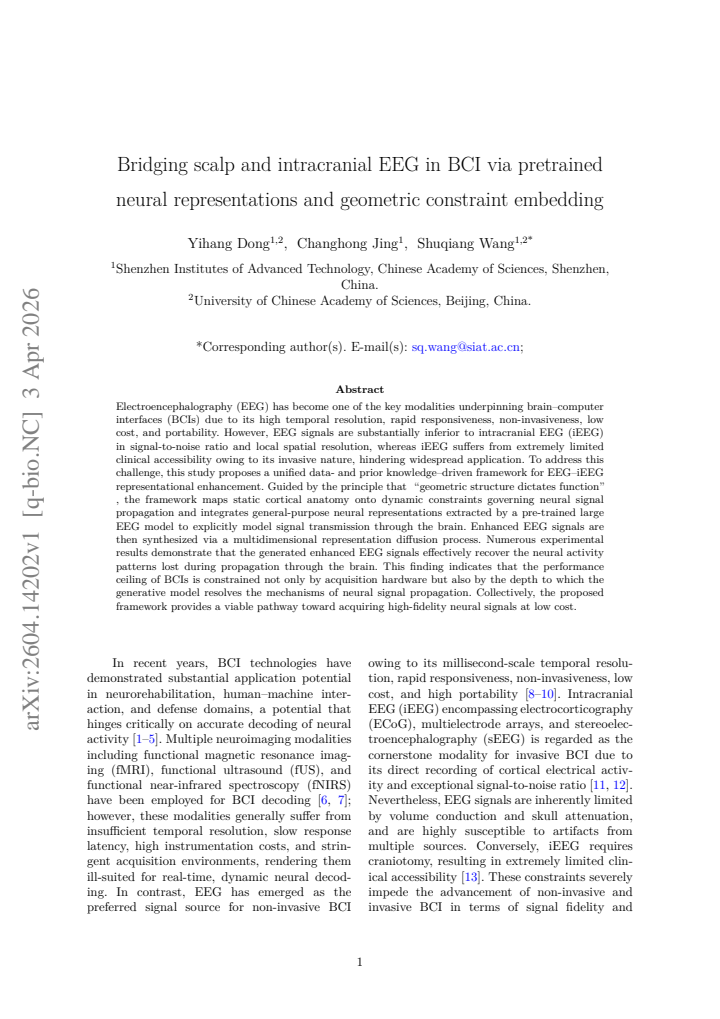

read the original abstract

Electroencephalography (EEG) has become one of the key modalities underpinning brain-computer interfaces (BCIs) due to its high temporal resolution, rapid responsiveness, non-invasiveness, low cost, and portability. However, EEG signals are substantially inferior to intracranial EEG (iEEG) in signal-to-noise ratio and local spatial resolution, whereas iEEG suffers from extremely limited clinical accessibility owing to its invasive nature, hindering widespread application. To address this challenge, this study proposes a unified data-and prior knowledge-driven framework for EEG-iEEG representational enhancement. Guided by the principle that "geometric structure dictates function", the framework maps static cortical anatomy onto dynamic constraints governing neural signal propagation and integrates general-purpose neural representations extracted by a pre-trained large EEG model to explicitly model signal transmission through the brain. Enhanced EEG signals are then synthesized via a multidimensional representation diffusion process. Numerous experimental results demonstrate that the generated enhanced EEG signals effectively recover the neural activity patterns lost during propagation through the brain. This finding indicates that the performance ceiling of BCIs is constrained not only by acquisition hardware but also by the depth to which the generative model resolves the mechanisms of neural signal propagation. Collectively, the proposed framework provides a viable pathway toward acquiring high-fidelity neural signals at low cost.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper offers a novel fusion of pretrained EEG models and anatomical geometry in a diffusion framework for signal enhancement, though direct validation on paired recordings is missing.

read the letter

The core idea here is a pipeline that pulls general representations from a pretrained large EEG model, folds in static cortical geometry via a Laplacian on the mesh, and runs a multidimensional diffusion process to synthesize enhanced scalp signals that aim to recover intracranial detail. That specific combination looks new relative to the cited work, and the motivation around geometry dictating signal propagation gives it a coherent starting point instead of pure black-box generation. The experiments apparently show gains on downstream BCI metrics, which at least demonstrates that the outputs carry usable information beyond raw scalp EEG. That part is worth noting as a practical step forward for non-invasive setups. The soft spot is the validation. The geometric constraints stay time-invariant and don't incorporate measured dynamic connectivity or conductivity differences, and the setup skips simultaneous scalp-iEEG pairs for direct reconstruction loss or supervised checks. Evaluation falls back to distributional similarity with unpaired iEEG or task performance, so it's still possible the model is producing statistically plausible signals that aren't anatomically faithful. That gap keeps the recovery claim provisional rather than confirmed. This is for BCI and neuroengineering groups that already work with generative models and anatomical priors and are willing to add their own paired-data tests. A reader could pull the geometric embedding idea and try it in their own pipeline even if the full claims need more scrutiny. The thinking is clear and the framing engages the propagation literature honestly, so it deserves a serious referee to examine the methods and results in detail.

Referee Report

3 major / 3 minor

Summary. The paper proposes a unified framework for enhancing scalp EEG signals toward intracranial EEG (iEEG) quality in BCIs. It maps static cortical anatomy to dynamic propagation constraints via a fixed Laplacian operator, extracts general-purpose representations from a pretrained large EEG model, and synthesizes enhanced signals through a multidimensional representation diffusion process. Experiments claim that the resulting signals recover neural activity patterns lost to volume conduction, as evidenced by improved downstream BCI performance and distributional similarity to unpaired iEEG.

Significance. If the reconstruction is shown to be faithful rather than merely statistically plausible, the work could meaningfully raise the performance ceiling of non-invasive BCIs by demonstrating that generative modeling of signal propagation can compensate for hardware limitations. The combination of pretrained representations with geometric priors is a timely direction for data-efficient enhancement in neuroengineering.

major comments (3)

[Section 3.2] Section 3.2: The geometric constraint embedding is defined via a fixed, time-invariant Laplacian operator on the static cortical mesh. This operator does not incorporate conductivity heterogeneity, measured functional connectivity, or any dynamic factors, so it is unclear how the embedding can accurately govern time-varying neural signal propagation as asserted in the central claim.
[Evaluation sections] Evaluation sections: No simultaneous scalp-iEEG pairs are used for supervised fine-tuning or a direct reconstruction loss. Signals are evaluated only via downstream BCI metrics or distributional similarity to unpaired iEEG; this leaves open the possibility that the diffusion process produces statistically plausible but anatomically incorrect enhancements, undermining the claim that lost patterns are recovered.
[Section 4] Section 4 (diffusion process): The claim that pretrained representations and geometric constraints are independent of the target iEEG data is not explicitly verified. Without an ablation that isolates the contribution of each component or a test on held-out paired recordings, the reconstruction risks reducing to a tautology that fits training distributions rather than recovering propagation-attenuated components.

minor comments (3)

[Section 2] Clarify the precise architecture and training corpus of the pretrained large EEG model; the current description is too high-level to assess transferability.
[Results] Add quantitative metrics (e.g., correlation or spectral coherence) between enhanced signals and any available reference iEEG on a small paired subset, even if not used for training.
[Figures] Improve figure captions to explicitly label which panels show original scalp EEG, enhanced output, and reference iEEG distributions.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for the detailed and constructive comments. We address each major comment point by point below, proposing revisions where they strengthen the manuscript without altering its core claims.

read point-by-point responses

Referee: [Section 3.2] Section 3.2: The geometric constraint embedding is defined via a fixed, time-invariant Laplacian operator on the static cortical mesh. This operator does not incorporate conductivity heterogeneity, measured functional connectivity, or any dynamic factors, so it is unclear how the embedding can accurately govern time-varying neural signal propagation as asserted in the central claim.

Authors: The Laplacian operator is deliberately fixed to encode the static cortical geometry, which provides the fundamental structural constraints on signal propagation paths due to volume conduction. Time-varying dynamics are instead introduced via the multidimensional diffusion process conditioned on the pretrained representations. We will revise Section 3.2 to clarify this separation of concerns and add a brief discussion of the limitations arising from the absence of conductivity heterogeneity or functional connectivity data. revision: partial
Referee: [Evaluation sections] Evaluation sections: No simultaneous scalp-iEEG pairs are used for supervised fine-tuning or a direct reconstruction loss. Signals are evaluated only via downstream BCI metrics or distributional similarity to unpaired iEEG; this leaves open the possibility that the diffusion process produces statistically plausible but anatomically incorrect enhancements, undermining the claim that lost patterns are recovered.

Authors: Simultaneous paired scalp-iEEG recordings are not available in the datasets used, precluding supervised reconstruction losses. Evaluation therefore relies on downstream BCI task performance and distributional alignment with unpaired iEEG to demonstrate functional recovery of propagation-attenuated patterns. We will add an explicit limitations paragraph acknowledging that these metrics do not guarantee anatomical fidelity and outlining the practical barriers to paired-data validation. revision: partial
Referee: [Section 4] Section 4 (diffusion process): The claim that pretrained representations and geometric constraints are independent of the target iEEG data is not explicitly verified. Without an ablation that isolates the contribution of each component or a test on held-out paired recordings, the reconstruction risks reducing to a tautology that fits training distributions rather than recovering propagation-attenuated components.

Authors: The pretrained representations originate from a large-scale model trained on independent EEG corpora, and the geometric constraints are derived exclusively from standard anatomical meshes with no dependence on the target iEEG. We will incorporate ablation studies that isolate each component's contribution and perform subject-wise cross-validation on held-out data to demonstrate generalization. These additions will be included in the revised Section 4. revision: yes

standing simulated objections not resolved

Direct validation using simultaneous scalp-iEEG paired recordings or held-out paired data is not possible given the scarcity of such datasets.

Circularity Check

0 steps flagged

No circularity: framework uses external pretrained representations and fixed anatomical priors with empirical validation

full rationale

The paper's derivation chain maps static cortical anatomy to time-invariant geometric constraints (via Laplacian on mesh) and conditions a diffusion process on representations from a pretrained large EEG model. These inputs are independent of the target iEEG data and the generated outputs. The central claim of recovering lost neural patterns is presented as an empirical outcome supported by downstream BCI metrics and distributional comparisons, not as a mathematical identity or self-referential fit. No equation reduces the prediction to its own inputs by construction, and no load-bearing step relies on self-citation chains that are themselves unverified. The approach is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The framework rests on the untested premise that cortical geometry supplies sufficient dynamic constraints for signal propagation and that a pretrained general EEG model already encodes the necessary transmission mechanisms; no independent evidence for these mappings is supplied in the abstract.

axioms (2)

domain assumption Geometric structure of cortex dictates neural signal propagation constraints
Invoked in the abstract as the guiding principle for mapping static anatomy to dynamic constraints.
domain assumption Pretrained large EEG model extracts general-purpose neural representations sufficient for modeling transmission
Assumed when integrating pretrained representations to explicitly model signal transmission.

pith-pipeline@v0.9.0 · 5526 in / 1289 out tokens · 15670 ms · 2026-05-13T18:15:32.099683+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Foundation/AlexanderDuality.lean alexander_duality_circle_linking echoes

?

echoes
ECHOES: this paper passage has the same mathematical shape or conceptual pattern as the Recognition theorem, but is not a direct formal dependency.

geometric mode decomposition... Laplace–Beltrami Operator (LBO) ... eigenvalue problem Δ_M ϕ_k = −λ_k ϕ_k

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

44 extracted references · 44 canonical work pages

[1]

& Ramos- Murguialday, A

Chaudhary, U., Birbaumer, N. & Ramos- Murguialday, A. Brain–computer inter- faces for communication and rehabilitation. Nature Reviews Neurology 12, 513–525 (2016)

work page 2016
[2]

Schwemmer, M. A. et al. Meeting brain– computer interface user performance expec- tations using a deep neural network decod- ing framework. Nature medicine 24, 1669– 1676 (2018)

work page 2018
[3]

dnAscoli, S. et al. Towards decoding individual words from non-invasive brain recordings. Nature Communications 16, 10521 (2025)

work page 2025
[4]

Lee, J. Y. et al. Brain–computer interface control with artificial intelligence copilots. Nature machine intelligence 7, 1510–1523 (2025)

work page 2025
[5]

Merk, T. et al. Invasive neurophysi- ology and whole brain connectomics for neural decoding in patients with brain implants. Nature Biomedical Engineering 1–18 (2025)

work page 2025
[6]

& Daly, I

Rybář, M., Poli, R. & Daly, I. Simultane- ous eeg and fnirs recordings for semantic decoding of imagined animals and tools. Scientific Data 12, 613 (2025)

work page 2025
[7]

Griggs, W. S. et al. Decoding motor plans using a closed-loop ultrasonic brain– machine interface. Nature Neuroscience 27, 196–207 (2024)

work page 2024
[8]

Ding, Y., Udompanyawit, C., Zhang, Y. & He, B. Eeg-based brain-computer interface enables real-time robotic hand control at individual finger level. Nature Communica- tions 16, 1–20 (2025)

work page 2025
[9]

& Grootswagers, T

Huang, L., Varlet, M. & Grootswagers, T. Robust neural decoding with low-density eeg. Scientific Reports (2026)

work page 2026
[10]

Neural decoding of music from the eeg

Daly, I. Neural decoding of music from the eeg. Scientific Reports 13, 624 (2023)

work page 2023
[11]

Stolk, A. et al. Integrated analysis of anatomical and electrophysiological human intracranial data. Nature protocols 13, 1699–1723 (2018)

work page 2018
[12]

Dipalo, M. et al. Plasmonic meta-electrodes allow intracellular recordings at network level on high-density cmos-multi-electrode arrays. Nature nanotechnology 13, 965–971 (2018)

work page 2018
[13]

& Kastner, S

Parvizi, J. & Kastner, S. Human intracra- nial eeg: promises and limitations. Nature neuroscience 21, 474 (2018)

work page 2018
[14]

Michel, C. M. et al. Eeg source imaging. Clinical neurophysiology 115, 2195–2222 (2004)

work page 2004
[15]

O., Hamaneh, M., Turnbull, J

Kaiboriboon, K., Lüders, H. O., Hamaneh, M., Turnbull, J. & Lhatoo, S. D. Eeg source imaging in epilepsy ipracticalities and pit- falls. Nature Reviews Neurology 8, 498–507 (2012)

work page 2012
[16]

& Sanei, S

Abdi-Sargezeh, B., Valentin, A., Alarcon, G., Martin-Lopez, D. & Sanei, S. Higher- order tensor decomposition based scalp-to- intracranial eeg projection for detection of interictal epileptiform discharges. Journal of neural engineering 18, 066039 (2021)

work page 2021
[17]

& Sanei, S

Abdi-Sargezeh, B., Oswal, A. & Sanei, S. Mapping scalp to intracranial eeg using generative adversarial networks for auto- matically detecting interictal epileptiform discharges, 710–714 (IEEE, 2023). 22

work page 2023
[18]

& Sanei, S

Abdi-Sargezeh, B., Shirani, S., Valentin, A., Alarcon, G. & Sanei, S. Eeg-to-eeg: Scalp-to-intracranial eeg translation using a combination of variational autoencoder and generative adversarial networks. Sensors 25, 494 (2025)

work page 2025
[19]

Cao, M. et al. Virtual intracranial eeg sig- nals reconstructed from meg with potential for epilepsy surgery. Nature communica- tions 13, 994 (2022)

work page 2022
[20]

I., Yu, B

Santhanam, G., Ryu, S. I., Yu, B. M., Afshar, A. & Shenoy, K. V. A high-performance brain–computer inter- face. nature 442, 195–198 (2006)

work page 2006
[21]

Wang, G. et al. Human-centred physical neuromorphics with visual brain-computer interfaces. Nature Communications 15, 6393 (2024)

work page 2024
[22]

Pun, T. K. et al. Measuring instabil- ity in chronic human intracortical neural recordings towards stable, long-term brain- computer interfaces. Communications Biol- ogy 7, 1363 (2024)

work page 2024
[23]

Jiang, L. et al. Gene transcription, neuro- transmitter, and neurocognition signatures of brain structural-functional coupling vari- ability. Nature Communications 16, 7623 (2025)

work page 2025
[24]

Zhang, Z. et al. Dynamic structure-function coupling in macroscale neonatal brain net- works. Communications Biology (2025)

work page 2025
[25]

& Lu, B.-L

Jiang, W.-B., Zhao, L.-M. & Lu, B.-L. Large brain model for learning generic representations with tremendous eeg data in bci. arXiv preprint arXiv:2405.18765 (2024)

work page arXiv 2024
[26]

Cui, W. et al. Neuro-gpt: Towards a foun- dation model for eeg , 1–5 (IEEE, 2024)

work page 2024
[27]

Scheeringa, R. et al. Neuronal dynam- ics underlying high-and low-frequency eeg oscillations contribute independently to the human bold signal. Neuron 69, 572–583 (2011)

work page 2011
[28]

J., David, O

Kiebel, S. J., David, O. & Friston, K. J. Dynamic causal modelling of evoked responses in eeg/meg with lead field param- eterization. NeuroImage 30, 1273–1284 (2006)

work page 2006
[29]

Pang, J. C. et al. Geometric constraints on human brain function. Nature 618, 566–574 (2023)

work page 2023
[30]

& Osher, S

Yu, S., Ma, J. & Osher, S. Geometric mode decomposition. Inverse Problems & Imaging 12 (2018)

work page 2018
[31]

N., Gallagher, B

Youngworth, R. N., Gallagher, B. B. & Stamper, B. L. An overview of power spectral density (psd) calculations. Opti- cal manufacturing and testing VI 5869, 206–216 (2005)

work page 2005
[32]

& Cohen, I

Benesty, J., Chen, J., Huang, Y. & Cohen, I. in Pearson correlation coeﬀicient 1–4 (Springer, 2009)

work page 2009
[33]

Xia, P., Zhang, L. & Li, F. Learning similarity with cosine similarity ensemble. Information sciences 307, 39–52 (2015)

work page 2015
[34]

W., North, D

Thatcher, R. W., North, D. & Biver, C. Eeg and intelligence: relations between eeg coherence, eeg phase delay and power. Clinical neurophysiology 116, 2129–2141 (2005)

work page 2005
[35]

Schindler, K., Leung, H., Elger, C. E. & Lehnertz, K. Assessing seizure dynamics by 23 analysing the correlation structure of multi- channel intracranial eeg. Brain 130, 65–77 (2007)

work page 2007
[36]

Maaten, L. v. d. & Hinton, G. Visualiz- ing data using t-sne. Journal of machine learning research 9, 2579–2605 (2008)

work page 2008
[37]

Lundberg, S. M. & Lee, S.-I. A unified approach to interpreting model predictions. Advances in neural information processing systems 30 (2017)

work page 2017
[38]

Kragel, P. A. & LaBar, K. S. Decoding the nature of emotion in the brain. Trends in cognitive sciences 20, 444–455 (2016)

work page 2016
[39]

A., Wager, T

Lindquist, K. A., Wager, T. D., Kober, H., Bliss-Moreau, E. & Barrett, L. F. The brain basis of emotion: a meta-analytic review. Behavioral and brain sciences 35, 121–143 (2012)

work page 2012
[40]

The emotional brain

Dalgleish, T. The emotional brain. Nature Reviews Neuroscience 5, 583–589 (2004)

work page 2004
[41]

R., Plotzker, A

Olson, I. R., Plotzker, A. & Ezzyat, Y. The enigmatic temporal pole: a review of findings on social and emotional processing. Brain 130, 1718–1731 (2007)

work page 2007
[42]

Eeg is better left alone

Delorme, A. Eeg is better left alone. Sci- entific reports 13, 2372 (2023)

work page 2023
[43]

& Chen, Z

Zhang, Y. & Chen, Z. S. Harness- ing electroencephalography connectomes for cognitive and clinical neuroscience. Nature Biomedical Engineering 9, 1186– 1201 (2025)

work page 2025
[44]

& Frauscher, B

Olejarczyk, E., Gotman, J. & Frauscher, B. Region-specific complexity of the intracra- nial eeg in the sleeping human brain. Sci- entific reports 12, 451 (2022). Supplement To quantify the contribution of distinct neural oscillatory bands to EEG signal enhance- ment, this experimental set systematically eval- uates the spectral-specific performance of the...

work page 2022
