arxiv: 2604.16420 · v1 · submitted 2026-04-03 · 💻 cs.NE · cs.AI

Recognition: 2 theorem links

· Lean Theorem

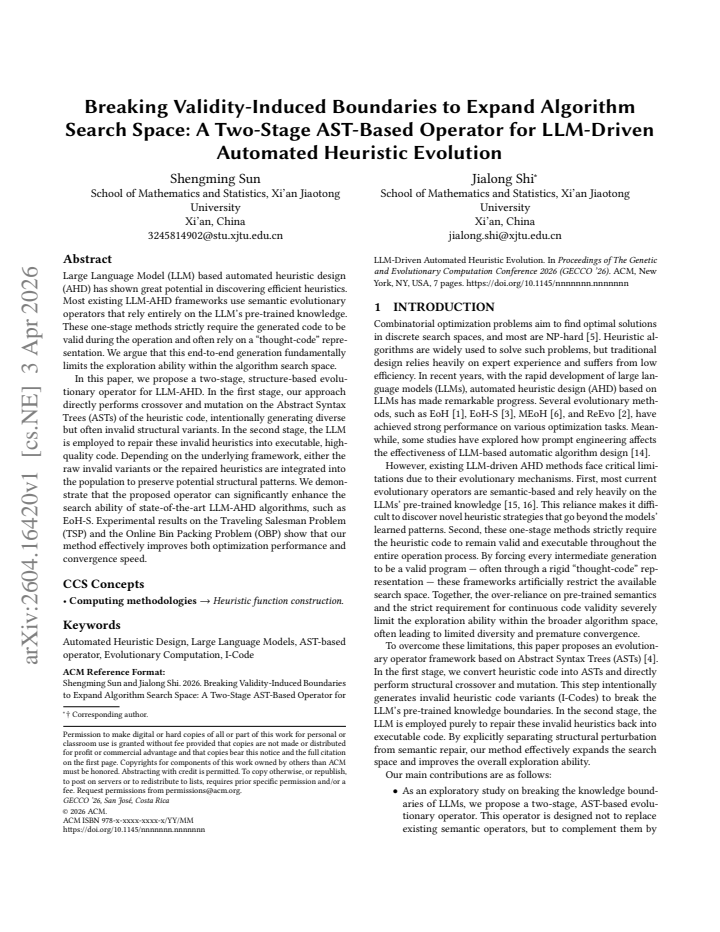

Breaking Validity-Induced Boundaries to Expand Algorithm Search Space: A Two-Stage AST-Based Operator for LLM-Driven Automated Heuristic Evolution

Sun Shengming , Shi Jialong

Authors on Pith no claims yet

Pith reviewed 2026-05-13 18:55 UTC · model grok-4.3

classification 💻 cs.NE cs.AI

keywords automated heuristic designLLM evolutionAST operatorstwo-stage repairtraveling salesmanbin packingevolutionary algorithms

0 comments

The pith

Two-stage AST mutation followed by LLM repair expands the search space for automated heuristic design.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Most current LLM-driven methods for inventing heuristics generate complete code in one step and must produce valid syntax immediately. This paper shows that this requirement shrinks the space of reachable algorithms. The proposed fix is a two-stage operator: first apply crossover and mutation directly to the abstract syntax tree of a heuristic, accepting that many results will be invalid; then ask the LLM to repair the broken code into working form. The evolutionary population can keep either the raw invalid variants or the repaired versions, so promising structural changes survive. Experiments on the traveling salesman problem and online bin packing show faster convergence and better final performance than prior one-stage approaches.

Core claim

By intentionally generating invalid heuristic variants through AST-level crossover and mutation and then using the LLM to repair them, the operator removes the validity constraint that previously limited exploration, allowing state-of-the-art LLM-AHD methods to discover higher-quality heuristics for TSP and OBP.

What carries the argument

The two-stage structure-based evolutionary operator consisting of AST crossover and mutation in stage one and LLM repair in stage two.

If this is right

The search ability of algorithms such as EoH-S is significantly enhanced.
Optimization performance improves on both the Traveling Salesman Problem and the Online Bin Packing Problem.
Convergence speed increases for the evolutionary process.
Beneficial structural patterns from the first-stage mutations are preserved in the population.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Extending this approach to other domains of automated program improvement could similarly increase reachable solution quality.
Future work might test whether retaining invalid variants in the population is always beneficial or if it depends on the problem.
The method suggests that validity checking can be decoupled from generation to allow more radical exploration.

Load-bearing premise

That the LLM repair stage can turn the invalid AST variants into high-quality executable heuristics without losing the advantageous structural patterns created by the mutations.

What would settle it

Compare the final solution quality and convergence curves of the two-stage method against the original one-stage LLM-AHD baseline on the same TSP or OBP instances; a clear and consistent advantage would support the claim.

Figures

Figures reproduced from arXiv: 2604.16420 by Shi Jialong, Sun Shengming.

**Figure 1.** Figure 1: Framework of the AST-based operator. It comprises three core processes: (1) Heuristics to ASTs: Selected heuristics are [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

**Figure 2.** Figure 2: Illustration of search space expansion via I-Codes. Black rectangles represent the entire algorithm space; light orange [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

read the original abstract

Large Language Model (LLM) based automated heuristic design (AHD) has shown great potential in discovering efficient heuristics. Most existing LLM-AHD frameworks use semantic evolutionary operators that rely entirely on the LLM's pre-trained knowledge. These one-stage methods strictly require the generated code to be valid during the operation and often rely on a ``thought-code'' representation. We argue that this end-to-end generation fundamentally limits the exploration ability within the algorithm search space. In this paper, we propose a two-stage, structure-based evolutionary operator for LLM-AHD. In the first stage, our approach directly performs crossover and mutation on the Abstract Syntax Trees (ASTs) of the heuristic code, intentionally generating diverse but often invalid structural variants. In the second stage, the LLM is employed to repair these invalid heuristics into executable, high-quality code. Depending on the underlying framework, either the raw invalid variants or the repaired heuristics are integrated into the population to preserve potential structural patterns. We demonstrate that the proposed operator can significantly enhance the search ability of state-of-the-art LLM-AHD algorithms, such as EoH-S. Experimental results on the Traveling Salesman Problem (TSP) and the Online Bin Packing Problem (OBP) show that our method effectively improves both optimization performance and convergence speed.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The two-stage AST mutation plus LLM repair is a plausible tweak to loosen validity limits in LLM heuristic search, but without repair details or stats the gains on TSP and OBP are hard to trust.

read the letter

The paper's main move is to split the evolutionary operator into two stages: first apply crossover and mutation directly on the ASTs of the heuristic code to create structural variants that are often invalid, then hand those to the LLM for repair into executable code. They sometimes keep the raw invalid variants in the population to hold onto the structural changes. This is positioned as an improvement over the one-stage semantic operators in prior LLM-AHD work like EoH-S, and the abstract reports better performance and faster convergence on TSP and OBP when the operator is plugged in. That structural-first step is the concrete novelty here and it directly targets the validity bottleneck the authors identify. The approach is straightforward and the work measures against external baselines rather than circular self-referential claims. The soft spot is the repair stage. The abstract gives no prompt template, no similarity check between mutated and repaired code, and no evidence that the LLM keeps the intended structural patterns instead of generating fresh valid code. If repair routinely overwrites the mutations, the method reduces to extra LLM sampling with no real expansion of the search space. The experiments are also described only at a high level with no error bars, statistical tests, or ablations, so the reported gains rest on thin evidence. This is for researchers already working on LLM-driven evolutionary algorithms for combinatorial optimization. A reader in that niche could extract the operator description and test it themselves if the full paper supplies the missing implementation details. I would send it to peer review so the authors can clarify how the repair preserves mutations and add the necessary experimental controls.

Referee Report

2 major / 2 minor

Summary. The paper introduces a two-stage AST-based evolutionary operator for LLM-driven automated heuristic design (AHD). Stage 1 applies crossover and mutation directly to the ASTs of existing heuristic code to produce diverse but frequently invalid structural variants. Stage 2 uses an LLM to repair these variants into executable code; the repaired (or sometimes raw invalid) variants are then inserted into the population of frameworks such as EoH-S. Experiments on TSP and OBP are reported to show improved optimization performance and faster convergence relative to baseline LLM-AHD methods.

Significance. If the central claim holds—that AST-level mutations generate structural patterns that survive LLM repair and measurably enlarge the effective search space—the work would provide a concrete mechanism for overcoming the validity constraints that currently limit one-stage semantic LLM operators. Demonstrating reproducible gains on two standard combinatorial problems would be of interest to the evolutionary computation and LLM-for-optimization communities, particularly if accompanied by evidence that the gains are not attributable to increased sampling alone.

major comments (2)

[Section 3] The description of the repair stage (Section 3) states only that the LLM 'repairs these invalid heuristics into executable, high-quality code' without providing the prompt template, temperature settings, or any post-repair similarity metric (e.g., tree-edit distance or subtree overlap) between the mutated AST and the final repaired code. This omission leaves open the possibility that the LLM performs a full semantic rewrite, which would collapse the claimed advantage to ordinary extra LLM sampling.
[Section 5] Experimental results (Section 5) report performance improvements on TSP and OBP but supply neither error bars, statistical significance tests, nor ablation runs that isolate the AST-mutation component from the effect of simply issuing more LLM calls. Without these controls it is impossible to attribute the observed gains specifically to 'breaking validity-induced boundaries' rather than increased computational budget.

minor comments (2)

[Abstract] The abstract and introduction use the phrase 'either the raw invalid variants or the repaired heuristics are integrated' without clarifying the decision rule or frequency of each choice across the reported runs.
[Figures 3-4] Figure captions and axis labels in the convergence plots should explicitly state the number of independent runs and the exact baseline configurations (e.g., EoH-S with identical LLM budget).

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the valuable feedback on our manuscript. The comments help clarify the presentation of our two-stage AST-based operator. We address each major comment below and will make the necessary revisions to strengthen the paper.

read point-by-point responses

Referee: [Section 3] The description of the repair stage (Section 3) states only that the LLM 'repairs these invalid heuristics into executable, high-quality code' without providing the prompt template, temperature settings, or any post-repair similarity metric (e.g., tree-edit distance or subtree overlap) between the mutated AST and the final repaired code. This omission leaves open the possibility that the LLM performs a full semantic rewrite, which would collapse the claimed advantage to ordinary extra LLM sampling.

Authors: We agree that the manuscript's description of the repair stage in Section 3 lacks sufficient implementation details, which could lead to the interpretation raised. In the revised manuscript, we will provide the complete prompt template employed for LLM-based repair, specify the temperature setting used (0.7), and include quantitative analysis using tree-edit distance to measure the structural similarity between the AST-mutated variants and the repaired code. This addition will demonstrate that the repair process preserves the novel structural patterns introduced by the AST operators rather than performing an unrestricted semantic rewrite, thereby supporting the claim that the method expands the search space beyond standard LLM sampling. revision: yes
Referee: [Section 5] Experimental results (Section 5) report performance improvements on TSP and OBP but supply neither error bars, statistical significance tests, nor ablation runs that isolate the AST-mutation component from the effect of simply issuing more LLM calls. Without these controls it is impossible to attribute the observed gains specifically to 'breaking validity-induced boundaries' rather than increased computational budget.

Authors: We acknowledge the need for more rigorous experimental validation to isolate the effect of the AST-based operators. In the revised paper, we will augment Section 5 with error bars from 10 independent runs, include statistical significance tests such as the Mann-Whitney U test between our method and baselines, and add ablation experiments that match the total number of LLM calls across compared methods. These controls will help confirm that the performance gains arise from the expanded search space enabled by the two-stage approach rather than from additional computational resources alone. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical evaluation stands on external benchmarks

full rationale

The paper introduces a two-stage AST mutation-plus-LLM-repair operator and reports performance gains on TSP and OBP relative to external baselines such as EoH-S. No equations, parameter fittings, or derivations appear in the provided text; the central claims rest on measured optimization performance and convergence speed rather than any self-referential reduction of outputs to inputs. Self-citations, if present, are not load-bearing for the reported results, which remain falsifiable against independent test problems and algorithms.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The method builds on standard evolutionary operators and LLM repair capabilities assumed from prior literature; no new free parameters, axioms, or invented entities are introduced or fitted in the abstract description.

pith-pipeline@v0.9.0 · 5535 in / 1069 out tokens · 40118 ms · 2026-05-13T18:55:52.121755+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Foundation/RealityFromDistinction.lean reality_from_one_distinction unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

two-stage, structure-based evolutionary operator... AST-based destruction and LLM-based repair
IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

J(x) = ½(x + x⁻¹) − 1 and φ-ladder constants

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

20 extracted references · 20 canonical work pages

[1]

F. Liu, X. Tong, M. Yuan, et al. 2024. Evolution of Heuristics: Towards Efficient Automatic Algorithm Design Using Large Language Model. InProc. 41st Interna- tional Conference on Machine Learning (ICML). ML Research Press, 32201–32223

work page 2024
[2]

H. Ye, J. Wang, Z. Cao, et al. 2024. Reevo: Large language models as hyper- heuristics with reflective evolution.Advances in Neural Information Processing Systems37 (2024), 43571–43608

work page 2024
[3]

F. Liu, Y. Liu, Q. Zhang, et al. 2025. EoH-S: Evolution of Heuristic Set using LLMs for Automated Heuristic Design. InProc. 40th AAAI Conference on Artificial Intelligence (AAAI). AAAI Press

work page 2025
[4]

W. Sun, C. Fang, Y. Miao, et al. 2023. Abstract syntax tree for programming language understanding and representation: How far are we?arXiv preprint arXiv:2312.00413

work page arXiv 2023
[5]

M. R. Garey and D. S. Johnson. 1979.Computers and Intractability: A Guide to the Theory of NP-Completeness. W. H. Freeman

work page 1979
[6]

S. Yao, F. Liu, X. Lin, et al. 2025. Multi-objective evolution of heuristic using large language model. InProc. AAAI Conference on Artificial Intelligence, Vol. 39. 27144–27152

work page 2025
[7]

Romera-Paredes, M

B. Romera-Paredes, M. Barekatain, A. Novikov, et al. 2024. Mathematical discov- eries from program search with large language models.Nature625, 7995 (2024), 468–475

work page 2024
[8]

B. Cui, J. Li, T. Guo, et al. 2010. Code comparison system based on abstract syntax tree. InProc. 3rd IEEE International Conference on Broadband Network and Multimedia Technology (IC-BNMT). 668–673

work page 2010
[9]

J. R. Koza. 1994. Genetic programming as a means for programming computers by natural selection.Statistics and Computing4, 2 (1994), 87–112

work page 1994
[10]

Martello and P

S. Martello and P. Toth. 1990. Lower bounds and reduction procedures for the bin packing problem.Discrete Applied Mathematics28, 1 (1990), 59–70

work page 1990
[11]

S. M. Mousavi, S. Alghisi, and G. Riccardi. 2025. Llms as repositories of factual knowledge: Limitations and solutions.arXiv preprint arXiv:2501.12774

work page arXiv 2025
[12]

Huang, F

Q. Huang, F. Ye, A. Shahane, et al. 2026. From Heuristic Selection to Automated Al- gorithm Design: LLMs Benefit from Strong Priors.arXiv preprint arXiv:2603.02792

work page arXiv 2026
[13]

C. Chen, M. Zhong, Y. Fan, et al. 2026. Hifo-prompt: Prompting with hindsight and foresight for llm-based automatic heuristic design. InProc. 14th International Conference on Learning Representations (ICLR)

work page 2026
[14]

L. A. Loss and P. Dhuvad. 2025. From manual to automated prompt en- gineering: Evolving LLM prompts with genetic algorithms. InProc. IEEE Congress on Evolutionary Computation (CEC). IEEE, Hangzhou, China, 1–8. DOI:10.1109/CEC65147.2025.11043059

work page doi:10.1109/cec65147.2025.11043059 2025
[15]

Gurkan, et al

C. Gurkan, et al. 2025. Lear: Llm-driven evolution of agent-based rules. InProc. Genetic and Evolutionary Computation Conference Companion (GECCO)

work page 2025
[16]

Bhaskar, D

A. Bhaskar, D. Friedman, and D. Chen. 2024. The heuristic core: Understanding subnetwork generalization in pretrained language models. InProc. 62nd Annual Meeting of the Association for Computational Linguistics (ACL). Vol. 1. 14351– 14368

work page 2024
[17]

C. Chen, M. Zhong, Y. Fan, et al. 2026. TIDE: Tuning-Integrated Dynamic Evolu- tion for LLM-Based Automated Heuristic Design.arXiv preprint arXiv:2601.21239

work page arXiv 2026
[18]

J. He, M. Rungta, D. Koleczek, et al. 2024. Does prompt formatting have any impact on llm performance?arXiv preprint arXiv:2411.10541

work page arXiv 2024
[19]

B. Chen, Z. Zhang, N. Langrené, et al. 2025. Unleashing the potential of prompt engineering for large language models.Patterns6, 6 (2025). Breaking Validity-Induced Boundaries to Expand Algorithm Search Space: A Two-Stage AST-Based Operator for LLM-Driven Automated Heuristic Evolution GECCO ’26, July 13–17, 2026, San José, Costa Rica

work page 2025
[20]

Y. Song, C. Lothritz, X. Tang, et al. 2024. Revisiting code similarity evaluation with abstract syntax tree edit distance. InProc. 62nd Annual Meeting of the Association for Computational Linguistics (ACL). Vol. 2. 38–46

work page 2024
